Maxon sm-2000 series User manual

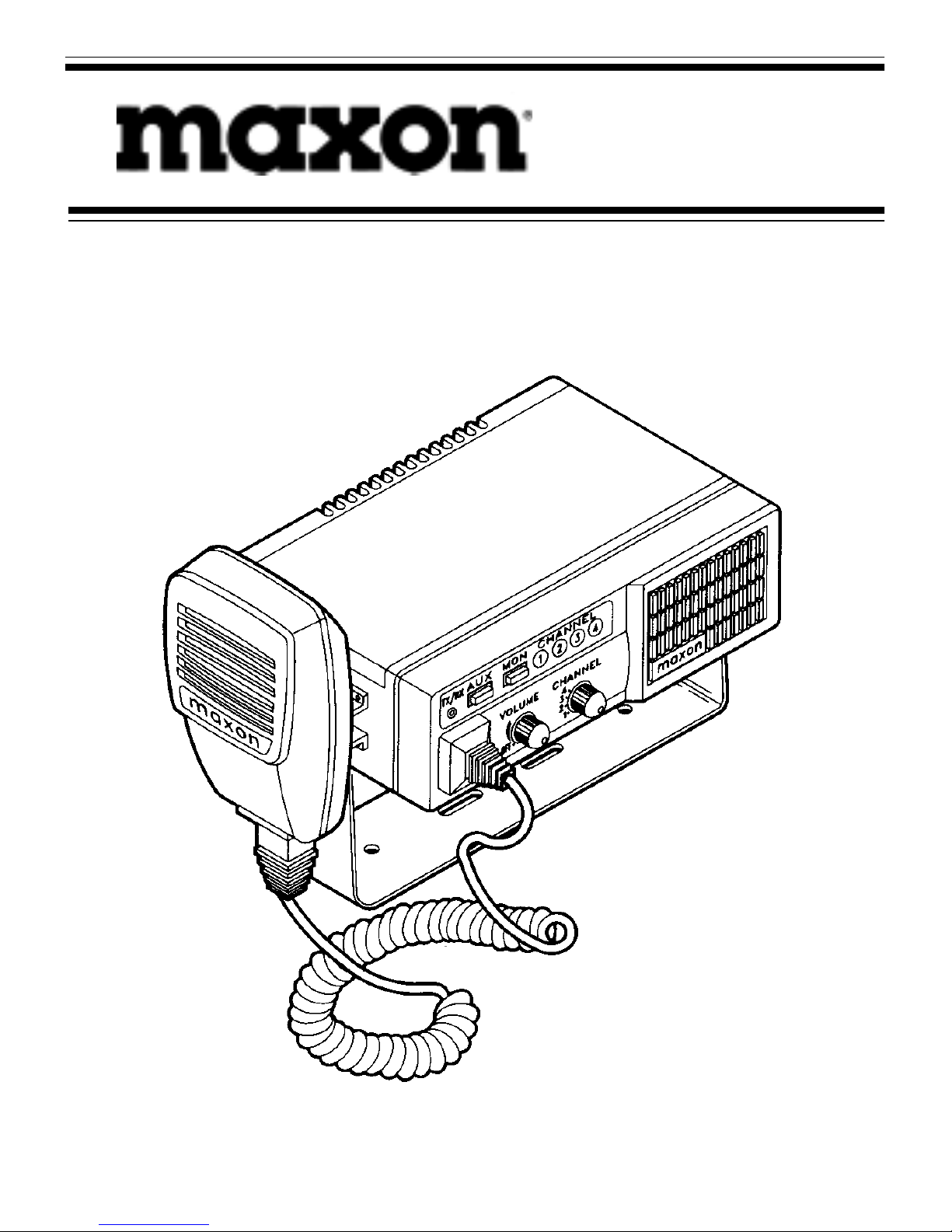

SM-2000 Series
Synthesized Scanning Mobile
Operating Instructions

About Your SM-2000 Series Radio
Maxon’s SM-2000 Series mobile radios feature simple 4
channel operation and enhanced software to customize
the radio to the varying needs of the user. Operation and
functions for Maxon SM-2000 Series mobile radios are
described in this manual.
We urge you to thoroughly read this manual before
operating the radio.
Application of some of the functions described in this
manual is determined by the system you use. Your
Maxon Dealer will program your radio so that you have
the greatest number of functions possible relative to your
needs.
Should you have questions regarding the operation of the
radio, please consult your Maxon Dealer.
About Maxon America, Inc.
Maxon America, Inc. designs and manufactures
professional FM two-way radio equipment to serve a
wide variety of communication needs. Maxon produces
equipment for the land mobile radio and specialized
mobile radio markets (business, industrial, government
and public safety).

Table of Contents
Safety Information 1
Unpacking Information 3
SM-2000 Series Features 4
Installation Safeguards 5
Description of Radio Components 8
Controls and Connectors 8
SM-2000 Series Operation 10
Power On-Volume 10
Channel Select 10
Channel Monitor 10
Transmit 11
Receive 11
Scan Modes 12
Channel Scan 12
Normal Scan 12
Priority Channel Scan 13
Scan Channel Delete 13
Other Programmable Scan Features 14
Look-Back 14
CTCSS/DCS Scanning 14
Normal Scan TX 14
Priority Scan TX 14
Priority Only TX 15
Receive Only Scan 15
Fuse Replacement 15
FCC Licensing 15
Software Copyrights 16
Warranty Statement 17
Quick Reference Guide Inside Back Cover

Safety Information
The Federal Communications Commission (FCC), with its
action in General Docket 79-144, March 13, 1985, has
adopted a safety standard for the human exposure to radio
frequency (RF) electromagnetic energy emitted by FCC
regulated equipment. Maxon subscribes to the same safety
standard for the use of its products. Proper operation of this
radio will result in user exposure far below the Occupa-
tional Safety and Health Act and Federal Communications
Commission limits.
WARNING - It is mandatory that radio installations
in vehicles fueled by liquefied petro-
leum gas conform to the following
standard: National Fire Protection
Association standard NFPA 58 applies
to radio installations in vehicles fueled
by liquefied petroleum (LP) gas with
LP gas container in the trunk or other
sealed-off space within the interior
of the vehicle. This standard requires
that:
1. Any space containing radio
equipment shall be isolated by a seal
from the space in which the LP gas
container and its fittings are located.
2. Remote (outside) filling connections
shall be vented to the outside.
1

WARNING - DO NOT operate the transmitter of
a mobile radio when someone outside
the vehicle is within two feet (0.6
meter) of the antenna.
WARNING - DO NOT allow children to operate
transmitter-equipped radio equipment.
CAUTION - DO NOT operate the radio near
electrical blasting caps or in an
explosive atmosphere.
CAUTION - DO NOT operate the transmitter of
any radio unless all RF connectors are
secure and any open connectors are
properlyterminated.
All equipment must be properly grounded for safe
operation.
All equipment should be serviced only by a qualified
technician.
This device complies with Part 15 of the FCC rules.
Operation is subject to the condition that this device does
not cause harmful interference.
2

Unpacking Information
Remove and carefully inspect the contents of your package
for the following items:
•Radio
•Microphone
•DC power supply cord
•Radio mounting bracket and hardware
•Microphone bracket and hardware
•Operating instructions
If any items are missing, please contact your Maxon
Dealer.
3

SM-2000 Series Features
• Channel Scan
• Priority Channel Scan
• Look-Back Channel
• CTCSS/DCS Tone Signalling
• Programmable Channel Spacing - Allows 12.5 KHz /
25 KHz channel spacing per channel.
• Programmable High / Low Power - Each channel may be
programmed to use either high or low power settings.
• Programmable Microphone Off-Hook Switching -
Monitors channel activity.
• Busy Channel Lockout - Prevents transmission on a
busy channel.
• Time-Out Timer - Prevents lock-up of a repeater or
channel as a result of prolonged keying of the
transmitter.
4

Installation Safeguards
WARNING - DO NOT install the unit where
it would interfere with the proper
operation of automatic collision
protection devices (air bags).
WARNING - DO NOT install the unit where it
would likely cause injury in case of
accident.
A. Select a location for the radio where you can easily see
and reach all controls, including the microphone.

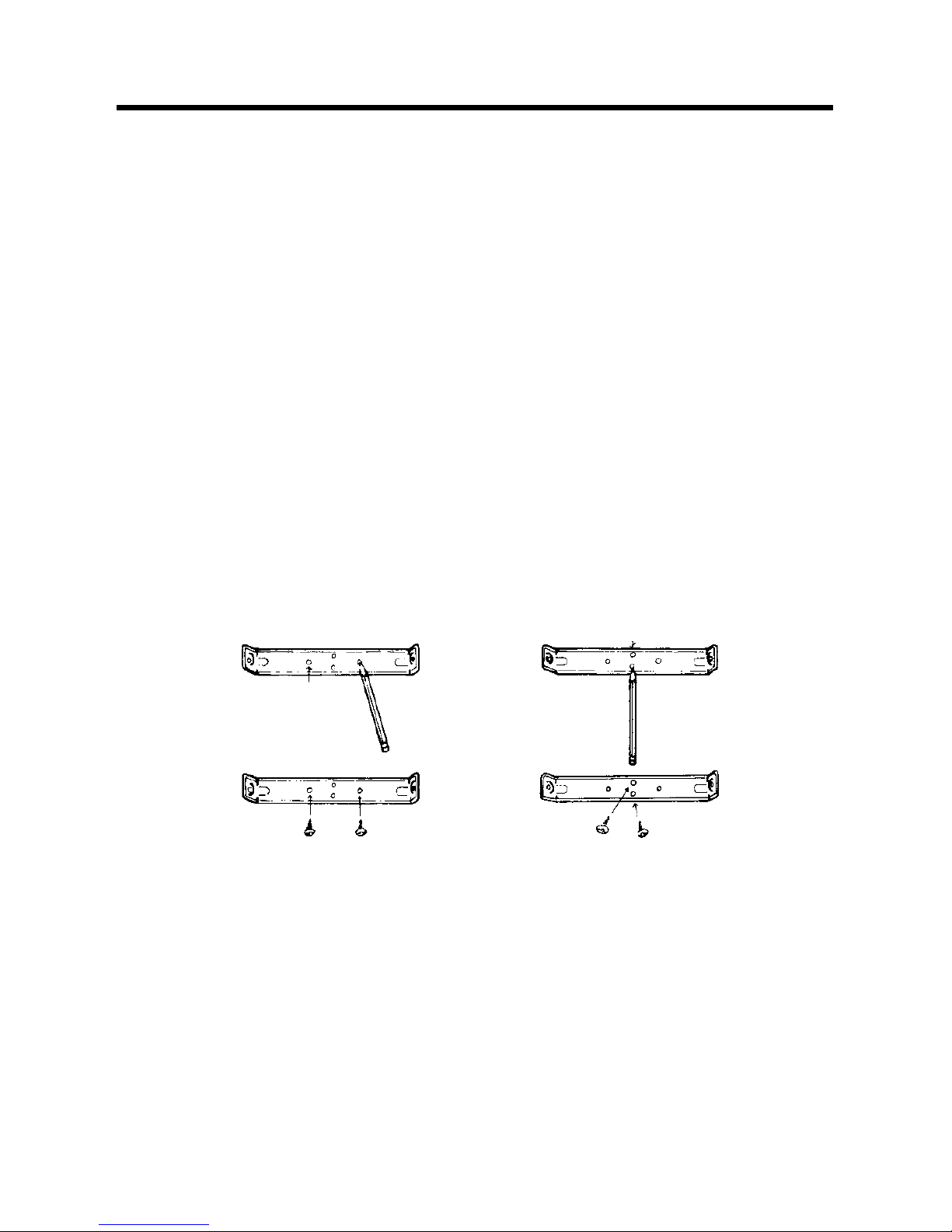

B. Using the radio mounting bracket as a template, mark
the spots with a pencil where the bracket securing screws
will be located.
NOTE - Before drilling holes in the vehicle, verify that
there is nothing that could be damaged or get
in the way by drilling and putting screws in this
location. It is better to use existing passages in
the dashboard, trunk, and floor for the routing
cable, thus avoiding excessive drilling.
After drilling holes for the mounting bracket, attach
bracket to surface using the two large Phillips head screws.
5

C. Install the radio unit to the bracket using the two large
black screw knobs, two spring lock washers, and two large
flat washers.
NOTE - Depending on the location where the radio unit
will be mounted, it may be more convenient to
install the microphone bracket before installing
the radio unit into the radio bracket.
D. Mount the microphone bracket to the most convenient
side of the radio unit, using the two small Phillips head
screws. There are two options for installing the microphone
bracket, allowing the on-hook placement of the micro-
phone from either the top or the front of the bracket.
E. Connect the DC power supply cord to the radio. If
necessary, the power supply cord may be connected
before mounting the radio unit to the radio bracket.
6

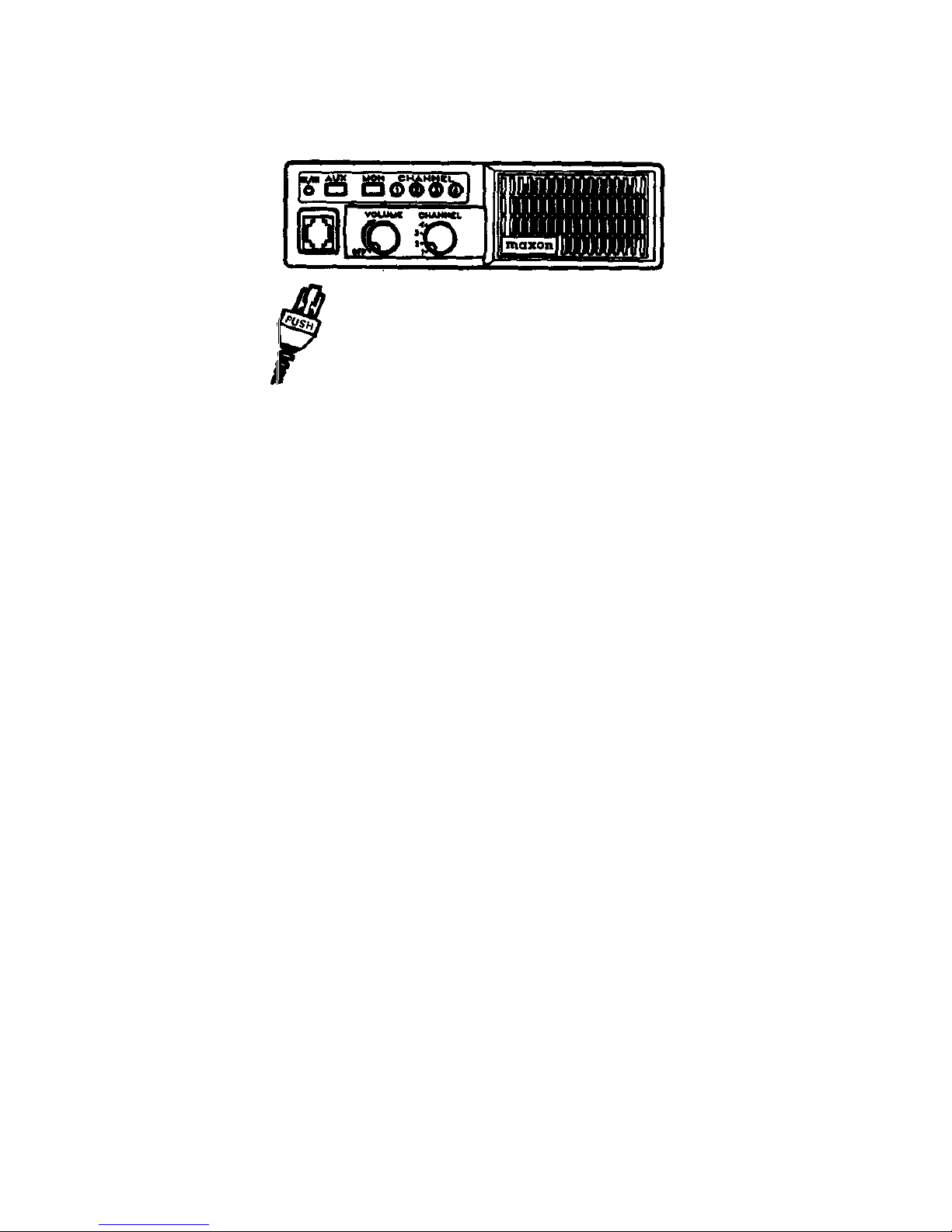

F. Push the modular microphone connector into the
microphone jack (located in the front of the radio unit)
until a click is heard.
CAUTION - Some electronic fuel injection, anti-
skid braking systems, cruise controls,
and vehicle alarms may be prone to
interference from radio frequency
energy or may malfunction due to a
lack of protection from RF energy. If
the vehicle contains such equipment,
consult the dealer to get help
determining whether the electronics
equipment in the vehicle will operate
properly when the radio is transmitting.
The radio is not intended for operation in a positive ground
vehicle.
You must purchase an antenna for proper operation of the
radio. Consult your dealer to determine which antennas are
suitable.
7

8

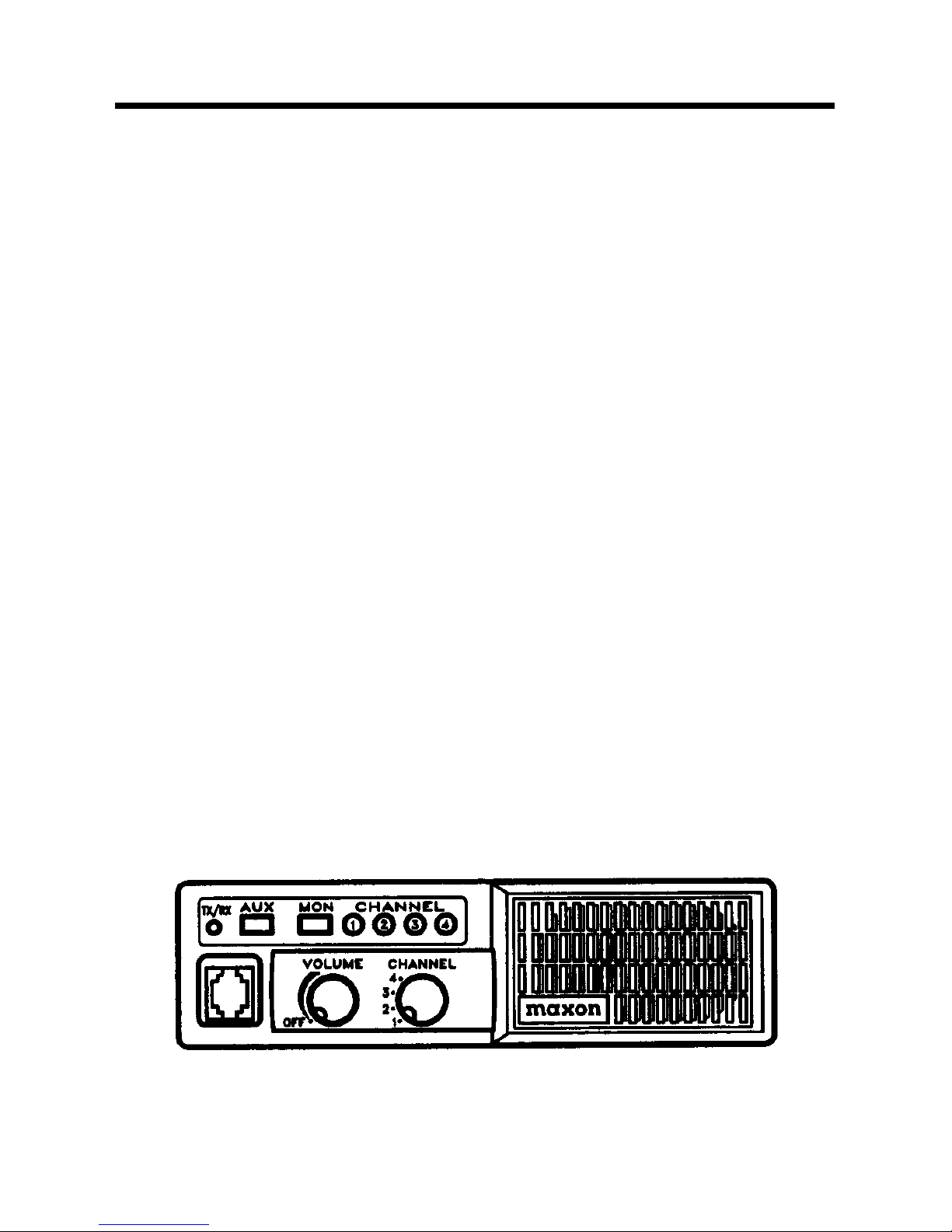

Description of Radio Components
Controls and Connectors
TX / RX Indicator - The tri-color LED identifies the
following conditions by color: red when transmitting;
green when tone-coded squelch calls are received; amber
to signal busy channel; flashing green when in scan mode
(if programmed).
Auxiliary Button - Used for after-market accessories.
Monitor Button - Monitors channel for activity; disables
tone coded squelch options (only in receive mode). Also
can be used for scan channel delete when operating in the
scan mode.
Channel Indicator LED’s - Green back-lit numbers
indicating the channel selected.
Speaker - 4 ohm internal speaker.
Channel Selector Knob
On/ Off-Volume Control
Microphone Jack

9
Controls and Connectors, Continued
Antenna Connector - SO-239 connector. Must be
connected to a properly installed 50 ohm antenna.
Power Connector - Polarized plug: 13.8 VDC input for
NEGATIVE GROUND SYSTEMS ONLY.
External Speaker Connector - A 3.5 mm diameter jack is
provided for a 4 ohm external speaker.

SM-2000 Series Operation
Power On- Volume
Rotate the on /off-volume control clockwise to turn the
power on. Adjust to the desired volume level. Turn the
radio off by rotating the volume control counter-clockwise
to detent.
Channel Select
Set the channel selector knob to the desired channel.
Green back-lit numbers indicate the channel selected.
Channel Monitor
NOTE - Federal Communications Commission Rules
and Regulations require that you monitor a
frequency for activity before transmitting.
To monitor the channel for activity before transmitting,
press the monitor button.
NOTE - The TX/RX indicator will glow amber if RF
activity is present. It will glow green if the
10

transmission has a CTCSS or DCS tone that
matches a tone programmed for receiving. If the
LED is not illuminated, a clear channel is present.
If enabled, the channel can be monitored for activity before
transmitting by going off-hook.
Transmit
When the channel is clear, press and hold the P-T-T bar
on the side of the microphone. Hold the microphone 1 or 2
inches from your mouth, and speak clearly and distinctly.
The LED will glow red when transmitting and should be on
continuously while the P-T-T bar is being pressed and the
radio is transmitting.
Receive
When the transmission is complete, release the P-T-T bar
to receive.
NOTE - Pressing the monitor button disables any tone
coded squelch options, if programmed.
11

Scan Modes
Channel Scan
Channel scan is a programmable feature that allows you to
monitor a number of channels. Your dealer will help you
define a channel scan list to be programmed into a scan
channel location (any channel, 1 - 4). Once that channel
location is selected, scan is initiated.
Normal Scan
Once the scan list is programmed, you can initiate scan.
Simply move the channel selector knob to that position,
and the radio will start to scan. The TX/RX indicator on
the front panel can be programmed to flash green as the
radio is scanning.
If a conversation is detected on any of the channels in
the scan list, the radio will stop on that channel, and
you will be able to hear the conversation. If programmed
for normal scan TX, you will be able to transmit on that
active channel during the programmable scan delay time.
The scan delay time is the amount of time the radio will
stay on that channel once activity has ceased (dealer
programmable, 4 - 7 seconds is typical). The radio will
resume scanning once the scan delay time has expired.
Going off-hook while locked on an active channel will
stop scan and allow for transmission and reception.
The radio will continue to scan when going off-hook and
not locked on an active channel. Scanning will continue
unless the channel selector knob is changed or the P-T-T
bar is pressed. 12

13
Priority Channel Scan
A single channel may be programmed as the priority
channel. The radio will constantly monitor this channel
while scanning and when the radio has stopped on an
active channel. If a call is detected on the priority channel,
the radio will automatically move to and remain on the
priority channel for as long as the priority conversation
takes place. Priority channel activity takes precedence
over all other conversations.
NOTE - Priority channel scan and look-back require that
the radio leave the active channel for a fraction
of a second (at regular intervals) to check the
priority channel for a message. Depending upon
how the radio is programmed (scan speed, etc.),
this may or may not be noticeable as breaks on
the active channel for that same fraction of a
second.
Scan Channel Delete
On occasion you may wish to temporarily delete a channel
from the scan list. To do this, simply press the monitor
button while scanning and stopped on the channel to be
deleted. This will remove that channel from the scan list
until the selector is moved from the scan list channel
position or the radio’s power is reset. When power is
restored or the scan list channel position is again selected,
the original dealer programmed scan list will be activated.

14
Other Programmable Scan Features
Look-Back
Any channel, when not in the scan mode, can be pro-
grammed to “look-back” at the priority channel. This
feature is ideal for those who do not need scan as defined
above but want to make sure they never miss a call on the
priority channel if another channel has been selected.
Once a look-back channel has been selected, the radio
will periodically scan the priority channel. If activity is
detected on the priority channel, the radio will move to
that channel for as long as it remains active.
CTCSS/DCS Scanning
The SM-2000 can be programmed to scan for tone. This
will help block out unwanted calls.
Normal Scan TX
A transmission is allowed only after a call is received,
depending on the programmed scan delay time. After scan
resumes and a transmission is made, the radio will sound
an alarm (two beeps) and will not allow a transmission.
Priority Scan TX
This allows a transmission after a call is received depend-
ing on programmed scan delay time. The transmission will
be made on the channel that the call was received. After
the radio resumes scanning, if a transmission is made, the
radio will transmit on the programmed priority channel.

Priority Only TX
Your radio will transmit on the priority channel when
scanning and when not stopped on an active channel. It
can also be programmed to always transmit on the priority
channel if scanning or stopped on an active channel.
Receive Only Scan
If a transmission is made at any time, the radio will sound
an alarm (two beeps) and will not allow the transmission.
Only reception is allowed.
Fuse Replacement
For protection from fire hazard, replace fuse only with
same size, type and style: 32 V, 10 amp 3AG fuse.
FCC Licensing
The Federal Communications Commission requires that the
user of this radio be properly licensed under the applicable
Part and / or Parts of the FCC Rules and Regulations.
Consult with your Maxon Dealer or contact the nearest
FCC Field Office for pertinent information related to
obtaining a license.
15

16
Software Copyrights
The Maxon products described in this operating instruction
manual may include copyrighted Maxon software programs
stored in semi-conductor memories or other media. Laws in
the United States and other countries preserve for Maxon
certain exclusive rights for copyrighted software programs,
including the exclusive right to copy or reproduce in any
form the copyrighted software program. Accordingly, the
copyrighted Maxon software programs contained in the
Maxon products described in this operating instruction
manual may not be copied or reproduced without the
express written permission of Maxon. Furthermore, the
purchase of Maxon products shall not be deemed to grant
either directly or by implication, estoppel, or otherwise,
any license under the copyrights, patents or patent applica-
tions of Maxon, except for normal non-exclusive royalty
free license to use that arises by operation of law in the
sale of a product.

SM-2000 Series Limited Warranty*
Maxon America, Inc. (“Maxon”) warrants the Maxon
Product manufactured by it against defects in material
and workmanship under normal use and service for two
(2) years from the date of delivery to the original end user,
provided that the user has complied with the requirements
stated herein. This warranty is not assignable or transfer-
able.
Maxon shall have no obligation to make repairs or to cause
replacement required which result from normal wear and
tear or necessitated in whole or in part by catastrophe, fault
or the negligence of the user, improper or unauthorized
alterations, repairs to the Product, use of the Product in a
manner for which it was not designed, or by causes
external to the Product. This warranty is void if the serial
number is altered, defaced or removed.
Maxon’s sole obligation hereunder shall be to repair or
replace the Product covered in the above warranty.
To receive warranty service, deliver or send the Product,
transportation and insurance prepaid, to the place of
purchase along with your proof of purchase. Alternatively,
call 1-800-821-7848 for other locations or authorization to
return the Product directly to Maxon.
THE EXPRESS WARRANTIES CONTAINED HEREIN ARE
IN LIEU OF ALL OTHER WARRANTIES, EITHER
EXPRESSED OR IMPLIED OR STATUTORY, INCLUD-
ING, WITHOUT LIMITATION, ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. 17
