Mazda KA0G V1 370 User manual

1
GENUINE ILLUMINATED SCUFF PLATE
INSTALLATION AND USER’S INSTRUCTIONS
Thank you for purchasing a Genuine Mazda Accessory.
Before removal and installation, Please thoroughly read these instructions.
For your safety, please read the contents of this booklet to properly install and use the illuminated scuff
plate.
Keep these instructions with your vehicle records for future reference.
There are several WARNING and CAUTION sections in this booklet concerning safety when
installing or removing the illuminated scuff plate. Always read and follow the instructions in order to prevent
order to prevent injuries, accidents, and possible damage to the vehicle.
WARNING: Indicates a situation in which serious injury or death could result if the warning
is ignored.
CAUTION: Indicates a situation in which bodily injury or damage to the vehicle could result
if the caution is ignored.
For areas indicating the tightening torque in this instruction manual, tighten to the specified torque by using
a torque wrench. For areas in which the tightening torque is indicated inside parentheses ( ), the tightening
torque is indicated as a reference value, however tightening using a torque wrench is not necessary
Do not modify the illuminated scuff plate.
Do not install the illuminated scuff plate in any way other than described in the following instructions.
If in doubt, please contact your Mazda dealer to install the accessory in order to prevent errors in
installation.
If you have any questions about the use of the accessory, ask your Mazda dealer for proper advice before
using it.
Mazda and its suppliers are not responsible for injuries, accidents, and damage to persons and property
that arise from the failure of the dealer or installer to follow these instructions.
To ensure safety and reliability of the work, installation, removal and disposal work must be carried out by
an Authorized Mazda Dealership.
Be careful not to lose removed parts, and be sure that they are kept free of dirt, scratches, or damage.
PART NAME: ILLUMINATED SCUFF PLATE
PART NUMBER: KA0G V1 370
VEHICLE: MAZDA CX-5
To the dealer
Please turn over these instructions to the customer after installation.
To the customer
Keep these instructions after installation. The instructions may be necessary for
installing other optional parts or removal of this accessory.
Should the vehicle or this accessory be resold, Always transfer these
instructions to the next owner.
NOTE
WARNING

2
Part Part name Qty Part Part name Qty
Scuff plate
(Identical for LH/RH) 2
Magnet set
(Magnet/cover) 2 sets
Installation manual 1 Template 1
REQUIRED TOOLS
☆Scissors ☆Masking tape
WARNING CAUTION
Park the vehicle on a flat,
level surface, set the selector
lever to P (AT vehicles) or the
shift lever to 1st or R (MT
vehicles), apply the parking
brake and block the wheels
so that the vehicle does not
move during installation.
Put the removed parts and the
parts in the kit on the
protective sheet to prevent
scratches.
2. PARTS
3. BEFORE INSTALLATION
1. INSTALLATION VIEW
Before installation, verify that the kit includes all the following parts and that they are free of dirt, scratches, or
damage.

3
* "Attachment surface" refers to the doors and/or bumper, and "part" refers to supplementary parts.

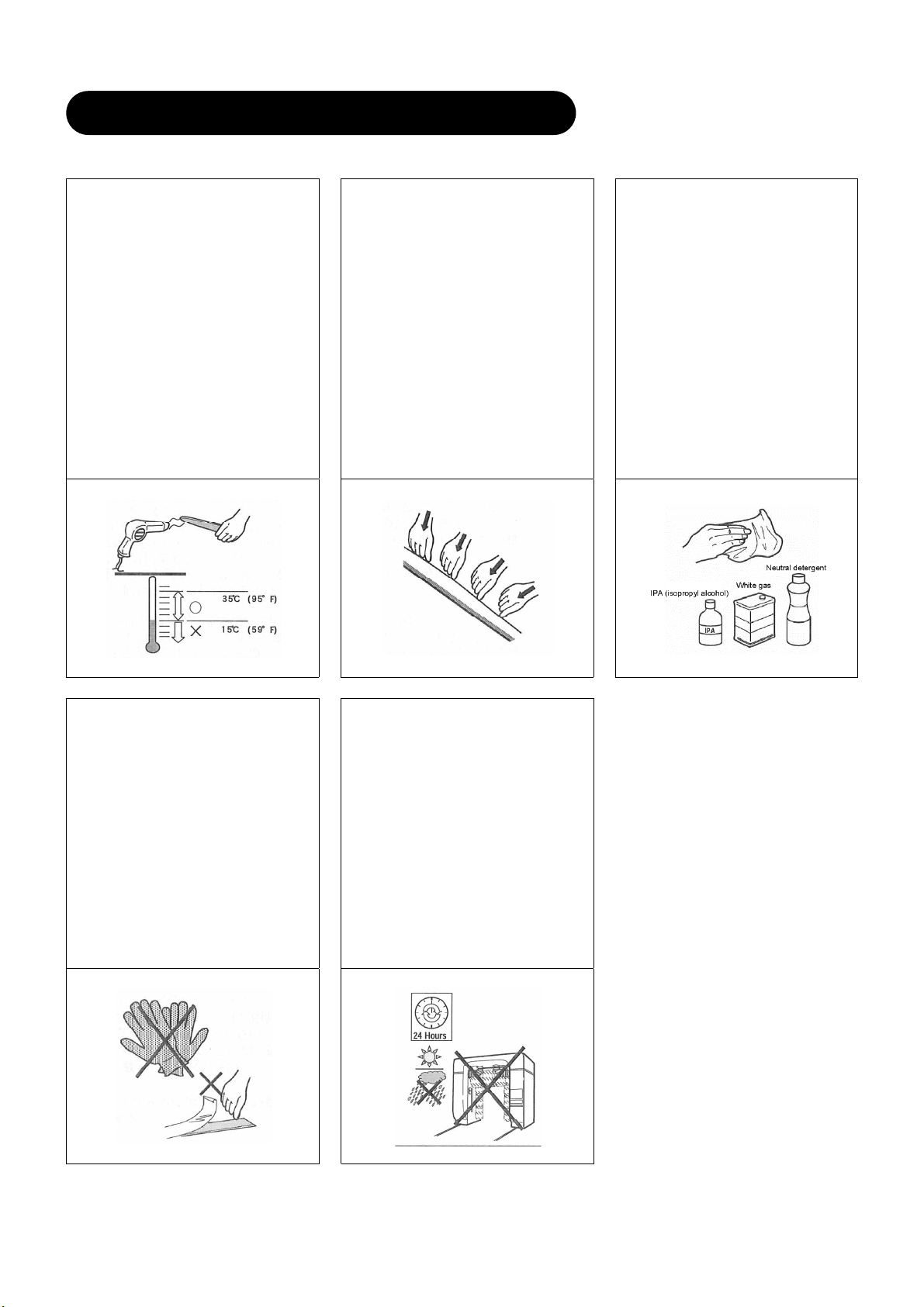

1. Avoid working in ambient
temperatures of less than 15 °C.
The stickiness of the adhesive
depends on the softness of the resin,
and so the adhesive loses its
stickiness and the adhesive strength
drops at low temperatures (15 °C or
less).
Accordingly, avoid carrying out work in
places where the ambient
temperature is less than 15 °C.
If working in places where the ambient
temperature is less than 15 °C, you
should heat the attachment surface
and the part until they are warm
enough.
2. Attach evenly.
In order to ensure that the adhesive
surface of the double-sided tape
attaches correctly, it is necessary to
press the adhesive surface of the tape
against the attachment surface with a
uniform force overall. In particular,
press down sufficiently on the
double-sided tape when the ends of
the tape and the attachment surface
are curved.
3. Clean the attachment surface.
If there is any dirt, grease or other
contamination on the attachment
surface, they may become attached
to the double-sided tape, causing a
drop in the adhesive strength of the
double-sided tape.
You should clean the attachment
surface before attaching the
double-sided tape.
As a general rule, use neutral
detergent for interior surfaces, and
use IPA (isopropyl alcohol) or white
gas for exterior surfaces.
4. Avoid getting the tape dirty.
If you touch the adhesive surface
while working, oil from your hands can
get onto the adhesive and cause a
drop in the adhesive strength of the
double-sided tape.
In addition, when working while
wearing gloves, fibers and dirt from
the gloves may become attached to
the adhesive.
Take care to avoid contaminating the
adhesive surface of the double-sided
tape.
5. Handling after attaching the
tape
After the tape has been attached, the
adhesive strength will not stabilize
until 24 hours have passed, so do not
drive or wash the vehicle or leave it
exposed to rain for 24 hours.
In addition, never remove and
reattach the double-sided tape once
the product has been installed, as this
will result in a dramatic drop in
adhesive strength.
4. DOUBLE-SIDED TAPE ATTACHMENT

4
Scuff plate installation
1. Open the front door.
2. Clean the attachment areas for the scuff plate using a cloth or
similar which has been moistened with IPA (isopropyl alcohol) or
white gas to remove any oil and dirt, and then dry the area
completely.
3. Cut the template.
4. Align the cut template with the curve ends of the vehicle as
shown in the diagram at left, and then attach it using masking
tape.
5. Provisionally attach the scuff plate to the vehicle so that it
follows the product contour line on the template, and check that
it follows the shape of the vehicle.
6. Remove all of the backing paper (2 places) from the
double-sided tape on the scuff plate (underside).
7. Install the scuff plate to the vehicle so that it follows the product
contour line on the template.
8. Remove the template.
9. Press down firmly on the scuff plate.
5. GENUINE ILLUMINATED SCUFF PLATE INSTALLATION
Follow the same procedure when installing to the opposite
side of the vehicle.

5
Magnet installation
1. Place the magnet onto the printed mark on the protective film
(clear) which is attached to the scuff plate.
2. Close the door with a slightly firm push.
3. Open the door, and check that the magnet is attached to the
door panel.
4. Check that the scuff plate ilumination turns on, and that it
automatically switches off after approximately 30 seconds.
5. Remove all of the backing paper from the double-sided tape on
the cover.
6. Install the cover over the magnet to secure the magnet.
7. Remove the protective film from the scuff plate.
If the magnet does not attach itself to the door panel even
when the door is closed firmly, carry out the following
procedure.
Follow the same procedure when installing to the opposite
side of the vehicle.

Be careful not to move the magnet which is attached to the
door panel when installing the cover.
CAUTION

6
Be sure to observe the following when using and handling (cleaning) the illuminated scuff plates.
Use
Check that the illumination turns on when the door is opened, and that it automatically switches off after
approximately 30 seconds.
Cautions on handling
If the parts become dirty, wipe them clean with a soft cloth which has been moistened with diluted neutral
detergent.
When wiping the scuff plates, they may move forward or back by about 2mm, but this is the allowable margin of
movement required for removing and installing the scuff plates and is not the sign of a defect.
Keep items such as clocks, precision machinery, magnetic recording devices and electronic recording devices
away from the magnets.
1. Press down on the middle of the scuff plate with one hand.
2. Remove the scuff plate by first lifting up the rear end of the scuff
plate, and then lifting up the front end.
3. Turn the scuff plate upside-down, and then remove the battery
covers.
4. Take out the batteries, and insert fresh batteries.
5. Install the battery covers.
6. CAUTIONS ON HANDLING
7. BATTERY REPLACEMENT
Do not lift up the scuff plate from the outside edge.
This will result in damage to the scuff plate.
Batteries: Lithium CR 2320 batteries/2 per scuff plate
(Total 4 batteries per vehicle)

7
6. Install the scuff plate so that it fits into the locking plates which
are attached to the side frame of the vehicle.
Check that the scuff plate clicks into place when fitting it to the
vehicle.
