Mazda KPF1 V3 460 Guide

MAZDA MOTOR CORPORATION
3-1 Shinchi, Fuchu-cho, Aki-gun, Hiroshima 730-8670
KFNA3460-00
Thank you for purchasing a Genuine Mazda Accessory.
Before removal and installation, Please thoroughly read these instructions.
For your safety, please read the contents of this booklet to properly install and use the mud flap (rear).
Keep these instructions with your vehicle records for future reference.
WARNING
•
There are several WARNING and CAUTION sections in this booklet concerning safety when installing or
removing the mud flap (rear). Always read and follow the instructions in order to prevent injuries, accidents, and
possible damage to the vehicle.
WARNING : Indicates a situation in which serious injury or death could result if the warning is ignored.
CAUTION : Indicates a situation in which bodily injury or damage to the vehicle could result if the
caution is ignored.
• For areas indicating the tightening torque in this instruction manual, tighten to the specified torque by using a
torque wrench. For areas in which the tightening torque is indicated inside parentheses ( ), the tightening torque is
indicated as a reference value, however tightening using a torque wrench is not necessary.
• Do not modify the mud flap (rear).
• Do not install the mud flap (rear) in any way other than described in the following instructions.
• If in doubt, please contact your Mazda dealer to install the accessory in order to prevent errors in installation.
• If you have any questions about the use of the accessory, ask your Mazda dealer for proper advice before using it.
• Mazda and its suppliers are not responsible for injuries, accidents, and damage to persons and property that arise
from the failure of the dealer or installer to follow these instructions.
• To ensure safety and reliability of the work, installation, removal and disposal work must be carried out by an
Authorized Mazda Dealership.
• Be careful not to lose removed parts, and be sure that they are kept free of dirt, scratches, or damage.
PART NAME MUD FLAP (REAR)
PART NUMBER KPF1 V3 460 / KSD5 V3 460
VEHICLE MAZDA CX
To the dealer
• Please turn over these instructions to the customer after installation.
To the customer
• Keep these instructions after installation. The instructions may be necessary for installing
other optional parts or removal of this accessory.
• Should the vehicle or this accessory be resold, Always transfer these instructions to the
next owner.
NOTE
GENUINE MUD FLAP (REAR)
INSTALLATION AND USER’S INSTRUCTIONS

2

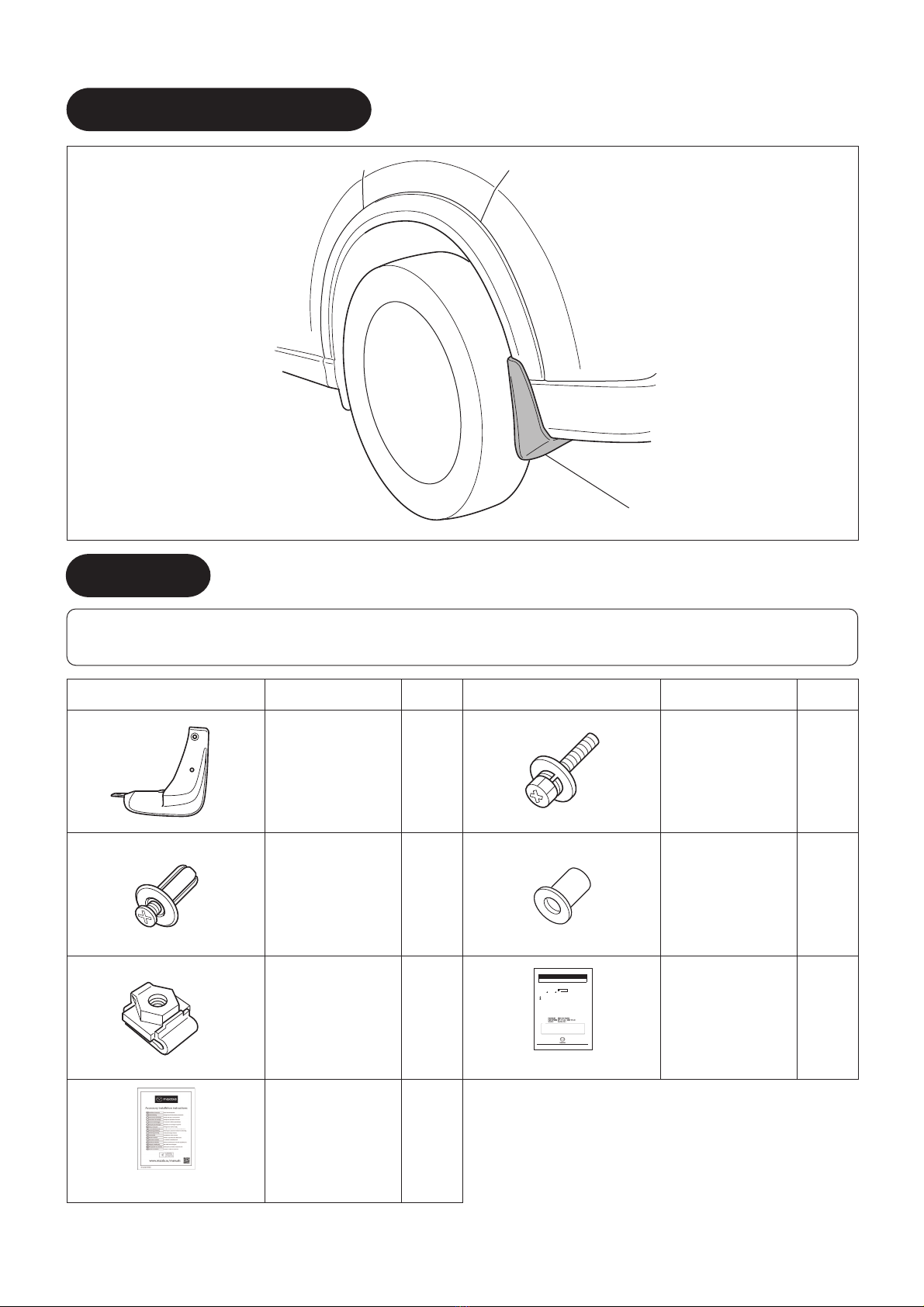

Part Part name Qty Part Part name Qty
Mud flap
(rear)
RH/LH
Each 1 Bolt 6
Fastener 2 Well nut 2
Clip nut 4
* Included with KPF1 V3 460 only
Installation and
user's instructions
(English/French/
Spanish)
(Other than Europe)
Each 1
Web guide
(For Europe) 1
Mud flap (rear)
5223989
* Included with KSD5 V3 460 only
• Before installation, verify that the kit includes all the following parts and that they are free of dirt, scratches,
or damage.
2. PARTS
1. INSTALLATION VIEW
MAZDAMOTORCORPORATION
3-1Shinchi,Fuchu-cho, Aki-gun, Hiroshima 730-8670
Thankyou for purchasing a Genuine Mazda Accessory.
Beforeremoval and installation, Please thoroughlyread these instructions.
Foryour safety,please read the contents of this booklet to properly install and use the mud flap (rear).
Keepthese instructions with your vehicle records for future reference.
WARNING
•
Thereare several WARNING and CAUTION sectionsin this booklet concerning safety when installing or
removingthe mud flap (rear). Alwaysread and follow the instructions in order to prevent injuries, accidents, and
possibledamage to the vehicle.
WARNING : Indicatesa situation in which serious injury or death could result if the warning is ignored.
CAUTION : Indicatesa situation in which bodily injury or damage to the vehicle could result if the
caution is ignored.
•For areas indicating the tightening torque in this instruction manual, tighten to the specified torque by using a
torquewrench. For areas in which the tightening torque is indicatedinside parentheses ( ), the tightening torque is
indicatedas a reference value, however tightening using a torque wrench is not necessary.
•Do not modify the mud flap (rear).
•Do not install the mud flap (rear) in any way other than described in the following instructions.
•If in doubt, please contact your Mazda dealer to install the accessoryin order to prevent errors in installation.
•If you have any questions about the use of the accessory,ask your Mazda dealer for proper advice before using it.
•Mazda and its suppliers are not responsible for injuries, accidents,and damage to persons and property that arise
fromthe failure of the dealer or installer to follow these instructions.
•To ensure safety and reliabilityof the work ,installation, removal and disposal work must be carried out by an
AuthorizedMazda Dealership.
•Be careful not to lose removed parts, and be sure that they arekept free of dirt, scratches, or damage.
Tothe dealer
•Please turn over these instructions to the customer after installation.
Tothe customer
•Keep these instructions after installation. The instructions may be necessary for installing
otheroptional parts or removal of this accessory.
•Should the vehicle or this accessory be resold,Always transfer these instructions to the
nextowner.
NOTE
GENUINE MUD FLAP (REAR)
INSTALLATIONAND USER’S INSTRUCTIONS

3
REQUIRED TOOLS (Make sure they are at hand before starting work)
ӺPhillips screwdriver ӺSocket wrench (8mm) ӺNipper
ӺFastener remover wrapped with protective tape ӺUtility knife ӺBurr remover
Before performing any work,
park the vehicle on level
ground, apply the parking
brake securely, and then block
the wheels. If the vehicle
moves while performing work,
it may cause injury.
Be sure to cover the vehicle
body with protectors or mats
to prevent stains, scratches
and damage when removing/
installing the vehicle parts.
Using improper tools may
cause damage and or broken
parts. Use the correct tool for
the installation.
Wrap protective tape around
screwdrivers and fastener
remover tools to prevent
scratching the vehicle.
Put the removed parts and
the parts in the kit on the
protective sheet to prevent
scratches.
Make sure to remove burrs.
If any burrs remain,
deformation will occur.
Advice
Refer to the Workshop Manual
for removal and installation of
vehicle parts. If the procedures
in the workshop manual
are not followed, operating
problems or accidents may
result.
WORKSHOP
MANUAL
WARNING
CAUTION
3. BEFORE INSTALLATION

4
4. MUD FLAP (REAR) INSTALLATION
1. Remove the fasteners (2 places) as shown in the diagram.
• Discard these two (2) fasteners. They will not be reused.
2. Remove the tapping screws (2 places) at the bottom of the
splash shield as shown in the diagram.
3. Use a nipper or similar to cut along the dotted part of the thin
walled section on the underside of the splash shield.
Vehicle front
Fastener
Fastener
Vehicle front
Vehicle exterior side
Vehicle exterior side
Tapping screw
Rear tire
Figure viewed from lower
Splash shield
Vehicle exterior side
Vehicle front
Rear tire
Rear bumper
Pull outward
Thin walled part
on underside
Splash shield
Splash shield
Splash shield
Cut
أفٓحءُء٦ٕس׾酅꬗ַ׵鋅׋㔳
أفٓحءُء٦ٕس׾酅꬗ַ׵鋅׋㔳
Viewed from underside of splash shield
• This instruction manual shows the left side installation. Perform the same procedure for the right side.

5
4. Securely push the clip nut into the rear bumper hole as far as it
will go until it clicks into place.
• When installing the clip nut, install it so that the flat
surface is facing toward the front of the vehicle.
5. Securely push the clip nut into the splash shield hole as shown in
the diagram as far as it will go until it clicks into place.
• When installing the clip nut, install it with the flat non-
threaded surface facing downward.
6. Install the well nut to the splash shield hole.
7. Install the tapping screws which were removed in step 2 to the
splash shield.
8. Place the mud flap (rear) against the rear over fender, and then
loosely install the fastener and the bolts (3 places).
Vehicle front
Clip nut
Splash
shield
Rear bumper
Well nut
Clip nut
Rear bumper
Splash shield
Figure viewed from lower
Tapping screw
Tapping screw
Vehicle exterior side
Vehicle exterior side
Vehicle exterior side
Vehicle front
Mud flap (rear)
Rear over fender
Rear bumper
Mud flap
(rear)
Rear tire
(loosely install)
Fastener
Vehicle front
(loosely install)
Bolt
Bolt
(loosely install) (loosely install)
Bolt
Figure viewed from lower
Figure viewed from lower
Figure viewed from lower

6
9. Install while pushing the mud flap (rear) in the direction of the
arrow so that the gaps between the contact surfaces at the top
and bottom of the Vgroove are even.
At this time, fully tighten the bolts so that there is no gap
between the contact surfaces of the rear over fender.
Bolt tightening torque:0.8 ։1.2 Nm
10. While pushing the mud flap (rear) in the direction of the arrow,
fully tighten the bolts (2 places) so that there is no gap between
the contact surfaces of the rear over fender.
Bolt tightening torque:0.8 ։1.2 Nm
Mud flap (rear)
Bolt Bolt
Vehicle front
Figure viewed from lower
Rear over fender
Rear bumper
Push
(Fully tighten) (Fully tighten)
Vehicle front
Vehicle front
Mud flap (rear)
Rear tire
Bolt
(Fully tighten)
Mud flap (rear)
Push
Rear bumper
Rear bumper
Rear over fender V-groove
1. Verify that there are no gaps.
խխ• If there are any gaps, loosen the front and lower bolts (3 places), follow steps 9 to 10 again while checking that
there are no gaps at the rear over fender, and then retighten the bolts.
2. Check that the bolts and fastener are securely installed.
5. VERIFICATION AFTER INSTALLATION
