Medivators SCOPE BUDDY User manual

50096-381 Rev D

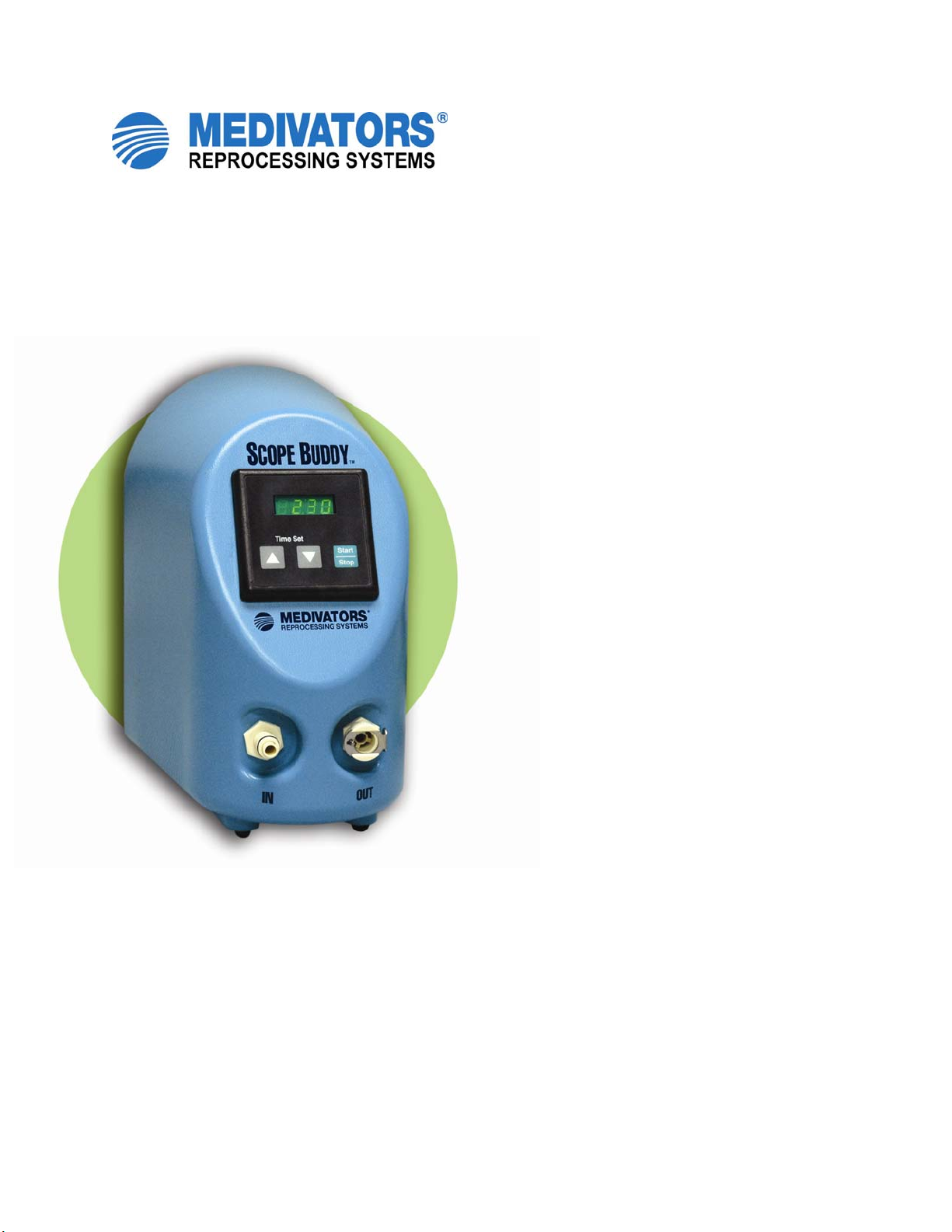

SCOPE BUDDY
ENDOSCOPE FLUSHING AID
USER MANUAL
®

SCOPE BUDDY USER/SERVICE MANUAL
FUJINON™ is a registered trademark of Fujinon Corporation
MEDIVATORS®is a registered trademark of Minntech Corporation.
OLYMPUS®is a registered trademark of Olympus Corporation.
PENTAX®is a registered trademark of Pentax Precision Instrument Corporation.
SCOPE BUDDY®is a trademark of Minntech Corporation.
© 2009 Minntech Corporation
All rights reserved. This publication is protected by copyright. Copying, disclosure to others, or the use of
this publication is prohibited without the express written consent of Minntech Corporation.
Minntech reserves the right to make changes in the specifications shown herein without notice or
obligation. Contact your Medivators representative or Medivators customer service for more information.

TABLE OF CONTENTS
Page
1INTRODUCTION
Using this Manual..................................................................................................................1
Product Description .............................................................................................................1
Product Specifications..........................................................................................................2
2SAFETY
Intended Use..........................................................................................................................3
Electrical Compliance ..........................................................................................................3
Operator Safety......................................................................................................................4
Endoscope Safety .................................................................................................................4
Notes, Cautions, and Warnings ..........................................................................................5
Guidelines ..............................................................................................................................6
Endoscope Pre-cleaning................................................................................................6
Cleaning and Disinfection..............................................................................................7
3SETUP AND FAMILIARIZATION
Device Installation.................................................................................................................9
System Components............................................................................................................10
Control Panel ........................................................................................................................11
Tubing Connections.............................................................................................................12
4DEVICE OPERATION
Programming Times............................................................................................................ 13
Elevator Wire Channel – Fujinon Endoscopes……….………………………………......... 14
Forward Water Jet – Fujinon Endoscopes ....................................................................... 15
Endoscope Flushing using a Medivators DSD Hook-up................................................. 15
Endoscope Flushing using the Endoscope Manufacturer’s All-channel Irrigator........20
Endoscope Flushing using the Elevator Wire Channel Hook-up –
Fujinon Endoscopes .......................................................................................................... 25
Daily Quality Assurance Test .............................................................................................30
Daily Decontamination Procedure......................................................................................33
5MAINTENANCE & TROUBLESHOOTING
Maintenance .........................................................................................................................35
Troubleshooting Guide........................................................................................................36
6GLOSSARY ______________________________________________________________ 37
7WARRANTY _____________________________________________________________________39

SCOPE BUDDY USER/SERVICE MANUAL

MEDIVATORS REPROCESSING SYSTEMS
1
1INTRODUCTION
Using this Manual
This manual describes the features of the Medivators SCOPE BUDDY Endoscope Flushing Aid,
including setup, operation, safety, maintenance, and troubleshooting procedures. It is important to follow
the provided instructions to keep the device in good operating condition, delivering proper fluid flows, and
to ensure long product life.
Given the unique design of the electrical and mechanical components used within this product, no user-
serviceable parts are contained within the unit and no internal calibration is required. Annual calibration
and preventative maintenance schedules are also not required as the unit is designed to be maintenance-
free. It is however; strongly recommended that daily quality assurance testing and the daily
decontamination procedure be performed to ensure the system is functioning properly and ready for use.
Refer to Section 4 for further information.
Contact the manufacturer’s representative if you have any questions regarding this product, its use, or
operation.
Product Description
The Medivators SCOPE BUDDY Endoscope Flushing Aid is designed to facilitate the flushing of rinse
water and cleaning solutions through the channels of flexible, immersible endoscopes. This device is to
be used during the manual pre-cleaning phase of endoscope reprocessing, prior to the endoscope being
placed in an automated endoscope reprocessor (AER) for high level disinfection.
The SCOPE BUDDY combines a diaphragm pump, digital timer, and electronic control circuitry to pump
fluids through tubing connections to the channels of the endoscope. Three different tubing sets allow
connection to most types of endoscopes. The Elevator Wire Channel Hookup allows connection to the
Fujinon endoscope’s elevator wire channel, or to the Fujinon endoscope’s Forward Water Jet. The DSD
Extension Line allows connection to the DSD hook-up which attaches to the endoscope. The Universal
Cleaning Adapter Extension Line and multi-way adapters allow connection to the Universal Cleaning
Adapter Hook-up provided with the endoscope.
The SCOPE BUDDY is designed to be used as a flushing aid only during the manual cleaning process of
a flexible endoscope. This device is not an endoscope disinfector. All endoscopes must be high-level
disinfected prior to use on a patient.

SCOPE BUDDY USER/SERVICE MANUAL
2
Product Specifications
Chassis Dimensions
(height - width - depth)
9 ½”H x 6”W x 8”D (Inches)
24.13H x 15.24W x 20.32D (CM’s)
Weight (approx.) 10 lb (4.5kg)
Power Cord and Connector Medical Grade – 6 feet (2.83m) 18AWG,
#3 Connector
Electrical Requirements 100 – 250 VAC ±10%
47-63 HZ 1φ
Current Draw < 1.0 Amperes
Breaker and Protection 1 Amp max. at 90 VAC input,
Non-replaceable, internal primary current fuse,
inrush limiting, thermal shutdown
Maximum Fluid Delivery 1 Liter per minute
Maximum Pump Pressure 29 PSI w/Safety Bypass
Cycle Time Range Setting 0 to 99 minutes/59 seconds
Cycle Completion Indicators Audible and Visual
Electrical Safety Certifications ETL and cETL Listed
Conforms to UL 61010-1
Certified to CAN/CSA C22.2 No. 61010-1
Electromagnetic Interference FCC Title 47, Part 15, Class A, EN 55011 and
EN 50082-1
Environmental Rating Standard
Designed for Use Indoor Use Only
Installation/ Over Voltage Category II
Classification 1, Ordinary protection
Pollution Degree 2
Operating Temperature Range 15° C to 35° C
Operating Humidity Range 10-75% non-condensing
Storage Temperature Range -29° C to 57° C
Storage Humidity Range 5 – 90% non-condensing
Warranty Period One Year

MEDIVATORS REPROCESSING SYSTEMS
3
2SAFETY
Intended Use
The Medivators SCOPE BUDDY Endoscope Flushing Aid is an electro-mechanical device intended to
pump fluids through channels of flexible, immersible endoscopes. The device is designed to be used as a
flushing aid only during the endoscope manual cleaning process.
This device is not an endoscope disinfector and does not take the place of an automatic endoscope
reprocessor. Endoscopes must be high-level disinfected by an approved endoscope reprocessor or
manual HLD soaking prior to use on a patient.
Throughout this manual are notes, cautions, and warnings, which are also represented by specific icons.
These are designed to provide important information to the user regarding the proper use and operation
of this device. It is important to read and understand all notes, cautions, and warnings, prior to using this
product. Should you have any questions or require further clarification, please contact your
manufacturer’s representative. Examples of these icons are shown below.
Note: A note refers to important information to which the user should pay special attention.
Notes provide added insight and helpful information which can be useful to the operator.
Caution: This information is an alert to the possibility of a problem with the device
associated with its use or misuse.
WARNING: This information is an alert to possible injury or other serious adverse reaction
associated with the use or misuse of this device.
WARNING: Do not use this device on NON-IMMERSIBLE endoscopes or on
endoscopes with internal leaks.
Electrical Compliance
SCOPE BUDDY has been rigorously tested to stringent electrical certifications and safety standards.
This device meets the laboratory standard for Electromagnetic Interference Requirements for FCC Title
47, Part 15, Class A, EN 55011 and EN 50082-1, and the Electrical Safety Requirements of UL 61010-1,
Pollution Degree 2, and Installation Category II Equipment.
SCOPE BUDDY carries and is certified to ETL and cETL, the Electrical CE Mark, UL 61010-1, and
CAN/CSA C22.2 No. 61010-1.
Caution: This device must always be plugged into an electrical wall outlet that includes an
approved Ground Fault Interrupter (GFI) prior to operation of the pump.
!

SCOPE BUDDY USER/SERVICE MANUAL
4
Operator Safety
1. This device is only to be operated by properly trained and qualified personnel who are fully familiar
with its intended use and operation.
2. Avoid biological contamination and chemical burns. Always wear appropriate personal protective
equipment (PPE) including clothing, gloves, and safety glasses when handling used endoscopes.
3. Cleaning and detergent solutions for endoscope flushing must be used in accordance with the
regulations governing their use, safety, and shelf life. Decontamination solutions for performing the
Scope Buddy Daily Decontamination Cycle must be used in accordance to the regulations governing
their direction for use.
4. In case of contact with cleaning solutions, flush eyes or skin with copious amounts of water for a
minimum of 15 minutes. Seek immediate medical attention in case of eye contact.
5. Decontamination solutions can be harmful if swallowed. In case of accidental ingestion, drink large
quantities of water and call a physician immediately. Avoid contact with food. Do not store
decontamination solutions near food.
Patient Safety
1. Failure to adhere to the endoscope manufacturer’s recommendations governing the proper cleaning
of endoscopes after each patient examination may compromise the efficacy of the subsequent
endoscope high level disinfection process.
2. All endoscopes must be high-level disinfected prior to patient use. SCOPE BUDDY is not designed to
replace an automated endoscope disinfector and should never be used to disinfect an endoscope.
Endoscope Safety
Scope Buddy has been designed and tested to meet or exceed endoscope manufacturer’s guidelines
including pressure and flow requirements. Medivators Scope Buddy is certified and validated safe for use
with Olympus, Pentax, Fujinon and Storz flexible, immersible endoscopes.

MEDIVATORS REPROCESSING SYSTEMS
5
Notes, Cautions, and Warnings
General Cautions
•Use only a medical-grade detergent which has bacteriostatic properties, is low-foaming, free-
rinsing, and has a neutral pH.
•Detergent and rinse water cleaning solutions can be drawn from either a clean container for a
single-pass through Scope Buddy, or recirculated from the sink through Scope Budd. Scope Buddy
can be used in either format depending on the facility’s endoscope cleaning procedure.
•For the daily decontamination procedure, select a decontamination solution whose label indicates
that it may be used at room temperature to achieve decontamination (see Section 6, Glossary, for
definition) of medical instruments. Consult the manufacturer’s label for the appropriate directions for
use and decontamination solution contact time.
•Do not use alcohol-based products in or on the SCOPE BUDDY device. Alcohol is not compatible
and should never be used to clean, flush, or rinse SCOPE BUDDY. Use of alcohol or alcohol-based
products with SCOPE BUDDY will void the warranty. The tubing however can be reprocessed
independently using 70% alcohol when not attached.
•Do not use bleach solutions or hydrogen peroxide in or on Scope Buddy.
•Do not exceed a detergent, water, decontamination solution temperature of 50°C in Scope Buddy.
•Follow the endoscope manufacturer’s instructions and established professional guidelines for
cleaning endoscopes.
•The SCOPE BUDDY Endoscope Flushing Aid User Manual is intended to be used in conjunction
with the instructions and labeling provided by the endoscope/accessory manufacturer.
Endoscope/accessory manufacturers provide instructions and labeling necessary for users to
understand the basic design, specifications, nomenclature, and components of specific flexible
endoscopes/accessories.
•Users should be properly trained and instructed to inspect, prepare, use, clean, disinfect, rinse, dry,
and store endoscopes. Follow recommended standards as referred by ASTM, ASGE, SGNA, and
APIC.
•Read all precaution labels on the Scope Buddy device before using.
•Never use Scope Buddy in a manner not specified by the manufacturer.
•Ensure that fluid exiting the open end of the endoscope or tubing is not facing a direction that would
allow fluid to be sprayed on personnel, electrical fixtures, or the user.
•Scope Buddy, through its’ inherit use, becomes contaminated and requires cleaning and
decontamination. Precautions must be taken to insure the device is properly decontaminated.
Please refer to the Daily Decontamination Procedure for further information.
•Duodenoscopes with elevator wire channels (EWC) may require additional cleaning and
disinfection steps. It is particularly important for the elevator wire channel to be manually cleaned
and fully reprocessed correctly. Extra attention should also be given to the position of the EWC
throughout the cleaning process. Refer to the endoscope manufacturer’s instruction for the proper
positioning of the elevator wire channel.
•If the Scope Buddy is to be unused for an extended period of time such as overnight, or over the
weekend, it should be left full of decontamination fluid or clean rinse water. This maintains pump-
head decontamination, lubrication and facilitates priming. Scope Buddy should not be air-purged
and store empty between uses. The tubing can be detached from the Scope Buddy unit during this
period.

SCOPE BUDDY USER/SERVICE MANUAL
6
Guidelines
Endoscope Pre-cleaning
Proper endoscope precleaning is essential to removing microbial burden and bio-debris from the inside
and the outside of an endoscope. Precleaning guidelines should always be consulted and followed, and a
pre-cleaning process should always be developed and strictly adhered to, to ensure an endoscope is
effectively and properly cleaned.
Always follow the endoscope manufacturer’s instructions and established professional guidelines to
properly preclean an endoscope.
•Meticulous manual cleaning of the endoscope or accessory must be performed using an appropriate
detergent solution.
•Carefully brush all channels and valve ports using the detergent solution and cleaning tools designed
for this purpose.
•Avoid the use of cotton swabs, gauze pads, and other lint-producing tools.
•Endoscopes should be leak tested before submersion as part of the overall reprocessing protocol as
defined in the instrument manufacturer’s instructions. Leak testing detects damage within the interior
or exterior of the endoscope.
•Follow instructions for manual pre-cleaning contained in the endoscope manufacturer’s manual.

MEDIVATORS REPROCESSING SYSTEMS
7
Cleaning and Disinfection
Always follow the endoscopes manufacturer’s recommendations pertaining to the reprocessing of
endoscopes and endoscope accessories to ensure that the endoscopes and accessories will be safe for
patient use. A protocol should be developed and followed based on such guidelines.
The following professional organizations have published guidelines pertaining to the reprocessing of
endoscopes and associated accessories:
Society of Gastroenterology Assoc. for Professionals in Infection
Nurses and Associates, Inc. Control and Epidemiology, Inc.
401 North Michigan Ave. 1275 K Street NW, Suite 1000
Chicago, IL 60611-4267 Washington, DC 20005-4006
USA USA
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
www.sgna.org www.apic.org
American Society for American Society for
Gastrointestinal Endoscopy Testing and Materials
1520 Kensington Rd., Suite 202 100 Barr Harbor Dr.
Oak Brook, IL 60523-2141 West Conshohocken, PA 19428-2959
USA USA
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
www.asge.org www.astm.org
Association of periOperative Canadian Society of Gastroenterology
Registered Nurses, Inc. Nurses & Associates
2170 S. Parker Rd., Suite 300 27 Nicholson Dr.
Denver, CO 80231-5711 Lakeside, NS B3T 1B3
USA CANADA
Tel: [phone] Fax: [phone]
Fax: [phone] www.csgna.com
www.aorn.org
British Society of Gastroenterological Nurses College of
Gastroenterology Australia, Inc. (GENCA)
3 St. Andrews Place PO Box 483
Regents Park Boronia
London NW1 4LB Vistoria 3155
ENGLAND Australia
Tel: (+44) (0)20 7387 3534 Tel: [phone]
www.bsg.org.uk Fax: [phone]
www.genca.org

SCOPE BUDDY USER/SERVICE MANUAL
8

MEDIVATORS REPROCESSING SYSTEMS
9
3SETUP & FAMILIARIZATION
Device Installation
•SCOPE BUDDY can only be used with the power supply supplied with the device. Do not attempt to
substitute or use a non-approved replacement power supply.
•The cycle run time can be adjusted by the operator, but always verify the rinse time is appropriate for
the endoscope being flushed.
•Do not use alcohol or alcohol-based products, bleach solutions, or hydrogen peroxide in the SCOPE
BUDDY.
•The tubing hookups, hookup extensions, and fluid intake line are not autoclavable and must be
reprocessed using low temperature decontamination methods only.
•SCOPE BUDDY is designed to be placed on a counter top or mounted to the wall by using the
supplied wall-mounting bracket. If mounting to a wall, ensure the bracket is properly secured using
the correct mounting hardware, adequate to support at least ten pounds of weight.
•SCOPE BUDDY must be located within a vertical height no greater than three feet above the
incoming detergent or rinse water solution. The distance between the top of the fluid solution and
SCOPE BUDDY must not exceed three feet.
•SCOPE BUDDY is designed to operate in a damp environment, but should not be immersed in any
fluids. Do not use the device if it becomes immersed in any type of fluid, or if fluid is observed leaking
from the device.

SCOPE BUDDY USER/SERVICE MANUAL
10
System Components
•SCOPE BUDDY Base Unit
•Wall-mount bracket
•Power Supply
•Fluid Intake Line
•DSD Extension Line
•Universal Cleaning Adapter Extension Line
•Universal Cleaning Adapter 2-way adapter
•Universal Cleaning Adapter 3-way adapter
•Universal Cleaning 4-way adapter
•Flow Verification Tube
•Elevator Wire Channel (EWC) Hookup
Figure 1 System Components
SCOPE BUDDY Base Unit
Wall-Mount Bracket
Power Su
pp
l
y
Fluid Intake Line
DSD Extension Line
UCA 3-wa
y
Ada
p
ter
UCA 4-wa
y
Ada
p
ter
UCA 2-wa
y
Ada
p
ter Universal Cleanin
g
Ada
p
ter Extension Line
Flow Verification Tube
Elevator Wire Channel Hook-u
p

MEDIVATORS REPROCESSING SYSTEMS
11
Control Panel
•Timer Display – Displays the timer setting (when idle) or the time
remaining when pumping.
•Time Set – Used to increase or decrease the timer setting.
•Start/Stop Switch – Press to start, stop, or pause the timer countdown
and pumping action.
•Fluid Inlet – “IN” port where fluid is drawn into the base unit.
•Fluid Outlet – “OUT” port where fluid is discharged from the base unit.
•Power On/Off Switch – Used to turn the device on or off.
•Power Connection – Connection port for incoming power from the power supply to the base unit.
Figure 2 Control Panel
Power On/Off Switch
Power Connection
Fluid Inlet
Time Set Increase/Decrease
Time Display
Start/Stop Switch
Fluid Outlet

SCOPE BUDDY USER/SERVICE MANUAL
12
Tubing Connections
The device is designed to function with a wide variety of manufacturer’s endoscopes of various
configurations. The device is supplied with different types of tubing connections which allow connection to
most endoscopes.
The DSD Extension Line allows connection to a Medivators DSD hook-up which attaches to the endoscope.
Refer to the DSD Hook-up Application Guide to identify the correct hook-up to use for the endoscope being
flushed and the hook-ups’ Directions for Use Instructions for correct connection.
The Universal Cleaning Adapter Extension Line and multi-way adapters allow connection to the Universal
Cleaning Adapter provided with the endoscope. Refer to the endoscope manufacturer’s Instructions for Use
to ensure the correct Cleaning Adapter is being used and that it is correctly connected.
The Elevator Wire Channel Hook-up allows flushing of the elevator wire channel of a Fujinon
Duodenoscope. The Elevator Wire Channel Hook-up is also used to flush the forward water jet of a Fujinon
endoscope.
Note: The Fujinon forward water jet adapter is always used in conjunction with the Elevator
Wire Channel Hook-up.
Note: When using a Pentax or Fujinon water jet adapter, always verify it does NOT contain a
check valve. Only non-check valve forward water jet adapters can be used with Scope Buddy
to achieve the correct flushing volume over the stated Rinse Matrix times.
Note: The universal cleaning adapter may be referred to as an All-Channel
Irrigator by some endoscope manufacturers.
Reference the Medivators Hook-up Application Guide which can be downloaded at
www.minntech.com/medivators to identify the appropriate DSD hook-up for the manufacturer’s endoscope
being cleaned.
The supplied tubing segments which facilitate endoscope connection are:
•Fluid Intake Line – Tubing set that allows fluid to be drawn up from the sink into the SCOPE BUDDY.
• DSD Extension Line – Tubing set that allows fluid to be delivered from the machine to the DSD Hook-up.
•Universal Cleaning Adapter Extension Line – Tubing set that allows fluid to be delivered from the
machine to the Universal Cleaning Adapter supplied with the manufacturer’s flexible endoscope.
•UCA 2-way Adapter – Tubing adapter which connects to the Universal Cleaning Adapter Extension
Line and allows connection to an endoscope’s Universal Cleaning Adapter with 2 connection ports.
•UCA 3-way Adapter – Tubing adapter which connects to the Universal Cleaning Adapter Extension
Line and allows connection to an endoscope’s Universal Cleaning Adapter with 3 connection ports.
•UCA 4-way Adapter – Tubing adapter which connects to the Universal Cleaning Adapter Extension
Line and allows connection to an endoscope’s Universal Cleaning Adapter with 4 connection ports.
•Elevator Wire Channel Hookup – Tubing set that allows fluid to be delivered from the machine to the
elevator wire channel, or to the forward water jet of a Fujinon endoscope.
•Flow Verification Tube – Tubing segment used during the Daily Quality Assurance Test to ensure
SCOPE BUDDY is delivering the proper amount of fluid.
Note: A complete set of tubing connections is available by contacting Medivators Customer
Support. The reorder part number is 78399-669, and the tubings are only available as a
complete set.

MEDIVATORS REPROCESSING SYSTEMS
13
4DEVICE OPERATION
Programming Times
SCOPE BUDDY Programming Times for Olympus, Pentax & Fujinon Brand Endscope are listed below for Scope
Buddy units having a serial number >201345.
Programming times are different depending on which version Scope Buddy is being used. Reference the Scope
Buddy serial number (found on Scope Buddy’s back panel) to identify which “Scope Buddy Rinse Matrix” is to be
used.
•For Scope Buddy units having a serial number ≤201344, then use the Scope Buddy Rinse Matrix part
number 50096-704.
•For Scope Buddy units having a serial number ≥201345, then use the Scope Buddy Rinse Matrix part
number 50096-849.
The Scope Buddy Rinse Matrices can be found by logging onto the Medivators website located at:
www.minntech.com/medivators. Click on the “Medivators Reprocessing Systems” tab followed by the “Resource
Center” dropdown and then “User Library”. Select “Scope Buddy” as the product and then scroll down to the “Users
Manuals” heading and “Document Descriptions” to locate the correct Scope Buddy Rinse Matrix.
Always verify the correct Scope Buddy Rinse Matrix is being used based off of the serial number of the unit in use.
Reference the “Scope Buddy Rinse Matrix” to identify the programming time required to flush cleaning and rinse
solutions through the endoscope channels during the manual cleaning process.
The time stated assumes that the connection tubings and hookup kits from SCOPE BUDDY to the endoscope are
primed and full of fluid. Program times should be extended by 10 seconds if the tubes are not pre-primed.
The rinse matrix times area based on in-house validation tests that were conducted using endoscopes with
channels in good working condition, free from restrictions and/or defects. These rinse times represent the grouping
of endoscopes. Rinse times may be reduced by individual flow testing of a specific endoscope. Always ensure
flushing volumes comply with endoscope manufacturer’s guidelines.
Due to differences in individual endoscope channel performance, users should always verify that the solution
volumes meet the manual cleaning requirements of the endoscope manufacturer and or the facility. Use these
programming times for Scope Buddy units having serial numbers ≥201345.
Programming Time to Flush 90 mls through Olympus Endoscopes including those with an Elevator Wire
Channel
Small Caliber Endoscopes 30 seconds
Gastroscopes 30 seconds
Gastroscope : Model GIF-2T100 1 minute
Duodenoscopes (including elevator
wire channel) 1 minute
Colonoscopes 2 minutes 45 seconds
Colonoscopes: (Model CF-140, 160
and 180 (1 and 2 channels), PCF-140,
160 and180, CF-1T140L
30 seconds
Sigmoidoscopes 1 minute
Ultrasound Scope 1 minute

SCOPE BUDDY USER/SERVICE MANUAL
14
Programming Time to Flush 100 mls through Pentax Endoscopes including those with an Elevator Wire
Channel (serial number ≥201345)
Note: When flushing the Forward Water Jet of a Pentax endoscope, always ensure the forward
water jet adapter does not contain a check valve. Only a forward water jet non-check valve
adapter can be used. Also, the Forward Water Jet can be flushed simultaneously with the other
endoscope channels, and does not require the use of the Elevator Wire Channel Hook-up. The
Pentax forward water jet can be flushed using the DSD Hook-up or the All-channel Irrigator
Hook-up.
Small Caliber Endoscopes 35 seconds
Gastroscopes (including forward water
jet w/non-check valve adapter) 35 seconds
Duodenoscopes (including elevator
wire channel) 1 minute 5 seconds
Colonoscopes (including forward water
jet w/non-check valve adapter) 1 minutes 5 seconds
Sigmoidoscopes 35 seconds (using the forward
water jet w/non-check valve
adapter
Ultrasound Scope 35 seconds
Programming Time to Flush 100 mls through Fujinon Endoscopes excluding those with an Elevator Wire
Channel or a Forward Water Jet (serial number ≥201345)
Small Caliber Endoscopes 35 seconds
Gastroscopes 1 minute 30 seconds
Gastroscope: Model EG-450HR 35 seconds
Duodenoscopes (including elevator
wire channel) 1 minute 5 seconds
Duodenoscopes (elevator wire channel
only, 15 mls) 3 minutes (using EWC hook-up)
Colonoscopes 1 minutes 5 seconds
Sigmoidoscopes 1 minute 5 seconds
Ultrasound Scope 1 minute 5 seconds
Fjuinon Forward Water Jet 1 minute 30 seconds (using EWC
hook-up)
Elevator Wire Channel – Fujinon Endoscopes
SCOPE BUDDY can be used to flush an endoscope’s elevator wire channel (EWC). Due to the internal
structure of the Fujinon EWC channel, it must be flushed independently of the other endoscope channels
The Fujinon endoscope’s EWC simultaneously with other endoscope channels as the elevator wire channel will
not be properly flushed per the endoscope manufacturer’s standards and guidelines. The independent flushing
of the elevator wire channel using Scope Buddy’s Elevator Channel Hook-up ensures fluid is delivered directly
to this channel. Go to the section labeled “Endoscope Flushing using the Elevator Wire Channel Hook-up –
Fujinon Endoscopes” for further instructions.
.

MEDIVATORS REPROCESSING SYSTEMS
15
Forward Water Jet – Fujinon Endoscopes
The SCOPE BUDDY elevator wire channel (EWC) hook-up must be used to flush the Forward Water Jet of a
Fujinon endoscope.
The Fujinon endoscope’s forward water jet must be flushed independently and while using Scope Buddy’s
Elevator Wire Channel hook-up. These specific endoscope’s have an internally contained check-valve and
Scope Buddy’s elevator wire channel hook-up is uniquely designed for this function. The DSD Hook-up or the
All-channel Irrigator Hook-up cannot be used to flush the Forward Water Jet of a Fujinon endoscope.
Never flush the Fujinon endoscope’s forward water jet simultaneously with other endoscope channels as the
Fujinon endoscope’s forward water jet will not be properly flushed per the endoscope manufacturer’s standards
and guidelines. The independent flushing of this channel using Scope Buddy’s EWC Hook-up ensures fluid is
delivered directly to this channel. Go to the section labeled “Endoscope Flushing using the Elevator Wire
Channel Hook-up – Fujinon Endoscopes” for further instructions.
Endoscope Flushing using a Medivators DSD Hook-Up
Use this step-by-step procedure to properly attach the device to an endoscope using the Fluid Intake
Tubing, the DSD Extension Line, and the appropriate Medivators DSD Hook-up.
The Fluid Intake Tubing and the DSD Extension Line are provided with the device. The Medivators DSD
Hook-up is provided by current users of a Medivators DSD Endoscope Reprocessor. Reference the
Medivators Hook-up Application Guide, located at www.minntech.com/medivators to identify the correct
DSD Hook-up for the endoscope being cleaned. Refer to the Directions for Use Instructions supplied with
the hook-up to ensure correct connection.
When properly connected, fluid will be drawn up from the sink or from a clean container of detergent or
rinse water solution, flow through the Fluid Intake Tubing to SCOPE BUDDY, and then out of SCOPE
BUDDY and through the DSD Extension Tubing and the DSD Hook-up to the endoscope. This provides
fluid delivery for flushing the internal lumens of the endoscope.
Note: If flushing the Forward Water Jet or the Elevator Wire Channel of a Fujinon endoscope,
then the elevator wire channel hook-up must be used. The Medivators DSD Hook-up cannot be
used. Go to the section labeled “Endoscope Flushing using the Elevator Wire Channel Hook-up
– Fujinon Endoscopes” for further instructions.

SCOPE BUDDY USER/SERVICE MANUAL
16
Figure 3 Scope Buddy Line Hook-up
Note: The endoscope leak test must be performed prior to commencing the cleaning
process according to manufacturer’s guidelines.
Note: Detergent and rinse water cleaning solutions can be drawn from either a clean
container for a single-pass through Scope Buddy, or recirculated from the sink through Scope
Buddy. Scope Buddy can be used in either format depending on the facility’s endoscope
cleaning procedure.
Caution: Verify fluid exiting the open end of the endoscope or tubing is not facing a direction
that would allow fluid to be sprayed on personnel or electrical fixtures. The endoscope should
always be fully immersed under water.
Flushing an Endoscope with Detergent:
1. Plug the unit in and then turn it on by pressing the power switch located on the side of the unit. The
timer display will now illuminate. See Figure 3.
DSD Extension LineFluid Intake Line
Sco
p
e Budd
y
Unit
