Medline MDS86825SLR User manual

User Guide
MDS86825SLR
Ultra-Light Rollator
Revised: July 1, 2008
Supplying Hospitals
for Over 90 Years

Contents
Ultra-Light Rollator Features ...................................................................................................... 3
Rollator Components .................................................................................................................. 4
Safety Instructions ........................................................................................................................ 5
Assembly Instructions ................................................................................................................. 6
Rear Wheel Assembly .................................................................................................................. 7
Front Wheel Assembly .................................................................................................................. 8
Brake Handle Assembly .............................................................................................................. 9
Backrest Assembly ..................................................................................................................... 10
Operating Instructions .......................................................................................................... 11-12
Maintenance ................................................................................................................................ 13
Warranty ...................................................................................................................................... 14
2

Includes high-end, water-
proof nylon bag with snaps.
Shoulder strap gives end-
user more freedom.
Hand brakes push to lock,
pull to release.
Height/seat adjustable legs
and handles with easy to
read numbered holes.
Height Measurements
• Seat Height Adjustable from 19 1/4" to 23 1/4"
• Handle Height Adjustable from 29 1/4" to 36 1/4"
Ultra-Light Rollator Features
Congratulations on purchasing one of the most durable rollators
made anywhere. With proper assembly the rollator will provide
years of great performance.
• Weighs only 11 lbs!
• Height adjustable (junior-standard)
• Removable nylon carry-all Bag
• Hand brakes lock for safety
• 5.5” wheels for smooth ride
• Swivel front wheel for easy maneuvering
3

Rollator Components
Figure 1
Assembled Ultra-Light Rollator
A. Hand Grips
B. Hand Brake Lock
C. Padded Seat
D. Padded Backrest
E. Triangular Hand Screw
F. 5.5” Front Wheels
G. Folding Hinge
H. 5.5” Rear Wheels
I. Brake Cable
Figure 2
Triangular Hand Screw
4
A
B
C
D
E
H
G
F
I
Figure 3
Hand Brakes

5
Safety Instructions
To ensure your safety in using the Medline rollator, the following safety
information and all instructions must be followed.
• DO NOT use this product without first reading and understanding the instructions contained in this
booklet. If you are unable to understand the warnings, cautions, or instructions, contact a health-
care professional, dealer, or technical personnel before use—otherwise serious bodily injury and
damage may occur.
• Consult with your doctor, physical, or occupational therapist or other qualied professional
regarding the proper height adjustment for maximum support and correct brake activation.
• Rollators are for individual use only and are NOT to be used as a wheelchair.
• DO NOT attempt to push the rollator while someone is sitting on the seat.
• DO NOT self-propel the rollator while seated.
• Serious injury to the user and/or damage to the rollator walker frame or wheels may result
from improper use.
• DO NOT use the seat to transport people or objects. DO NOT use the seat to carry or move anything.
• DO NOT sit on the rollator while it is being loaded into a vehicle or while it is being transported
in a vehicle.
• DO NOT exceed the maximum weight capacity (including bag contents) or serious injury
could result: Handles: 250 lbs., Seat: 250 lbs. maximum at a time.
• Before each use make sure the rollator frame is fully opened and in a stable position.
• Check the brakes for proper operation. Make sure that all parts are secure and that moving parts
are in good working order.
• All wheels must be in contact with the oor at ALL TIMES. This will ensure the rollator is properly
balanced.
• DO NOT hang anything from the rollator handles or frame (other than the Medline provided bag the
position described). This may cause the rollator to tip, resulting in bodily injury or rollator damage.
• The seat MUST be in the DOWN position when using the rollator for ambulatory assistance.
• DO NOT use the seat without the backrest in place. Falls are possible if the user leans or slides
backward on the seat.
• The brakes MUST be in the locked position BEFORE using the seat.
• When using the rollator in a stationary position, the hand brakes MUST be LOCKED.
• DO NOT sit on the seat when the rollator is on an incline.
• DO NOT use the rollator to walk backwards down gradients or to clime stairs, curbs, or to go over
obstacles. Serious risk of fall or injury may occur.
• DO NOT perform any adjustments to the rollator while it is in use.
• Only use accessories and spare parts authorized by Medline Industries, Inc.
• DO NOT push rollator while brakes are in use.
• Brakes are used to keep the rollator from rolling.

6
Assembly Instructions
IMPORTANT: Read all operating and safety instructions
before using your Medline Ultra-Light Rollator.
1. Carefully remove the rollator components from the shipping carton.
Refer to diagram (Figure 1) as needed.
• 1 Rollator Frame
• 6 Triangular Hand Screws
• 1 Bag with Shoulder Strap
• 2 Front Wheels
• 2 Rear Wheels
• 1 Backrest with Push-Buttons
• 2 Hand Grips with Brake Assembly
2. Examine all parts for shipping damage. DO NOT use the rollator if there is
apparent damage or if any parts (other than the bag) are missing. If there
are missing or damaged parts, please call Medline Customer Care toll free
at 1-800-MEDLINE.
3. Check all of the wheels to see that they are in good working order and
roll freely. Remove plastic cover from the wheels before use.
4. Unfold the Medline Rollator by pushing down on the Folding Hinge (G)
until the frame is in full extension.

Rear Wheel Assembly
1. Turn wheel so that it is facing outside of rollator (see Figure A).
2. Insert wheel to desired height depicted by numeric holes (see Figure B)
and use chart below for recommended height settings).
3. Insert triangular hand screw into hole on same side of wheel so that
the triangular hand screw stays outside of rollator frame.
4. Tighten triangular hand screw (Important: HandTighten Only!) until secure
(see Figure C).
5. Repeat steps 1-4 for other rear wheel.
Figure CFigure BFigure A
Recommended Height:
Your feet should comfortably touch the
ground when you are seated on rollator.
Height Range:
Under 5’ Hole 1 or 2
5’1”-5’6” Hole 3 or 4
5’7” and over Hole 5 or 6
Note: These are only recommended
heights, as each individual is built
differently.
7

8
Front Wheel Assembly
1. When inserting front wheel make sure FRONT sticker is pointed
toward the front and away from rollator (see Figure A).
2. Insert wheel to desired height depicted by numbered holes (set to the same
number as rear wheels).
3. Place triangular hand screw into hole. Make sure triangular hand screw stays
outside of rollator frame (see Figure B).
4. Tighten triangular screw (Important: HandTighten Only!) until secure
(see Figure C).
5. Repeat steps 1-4 for other front wheel.

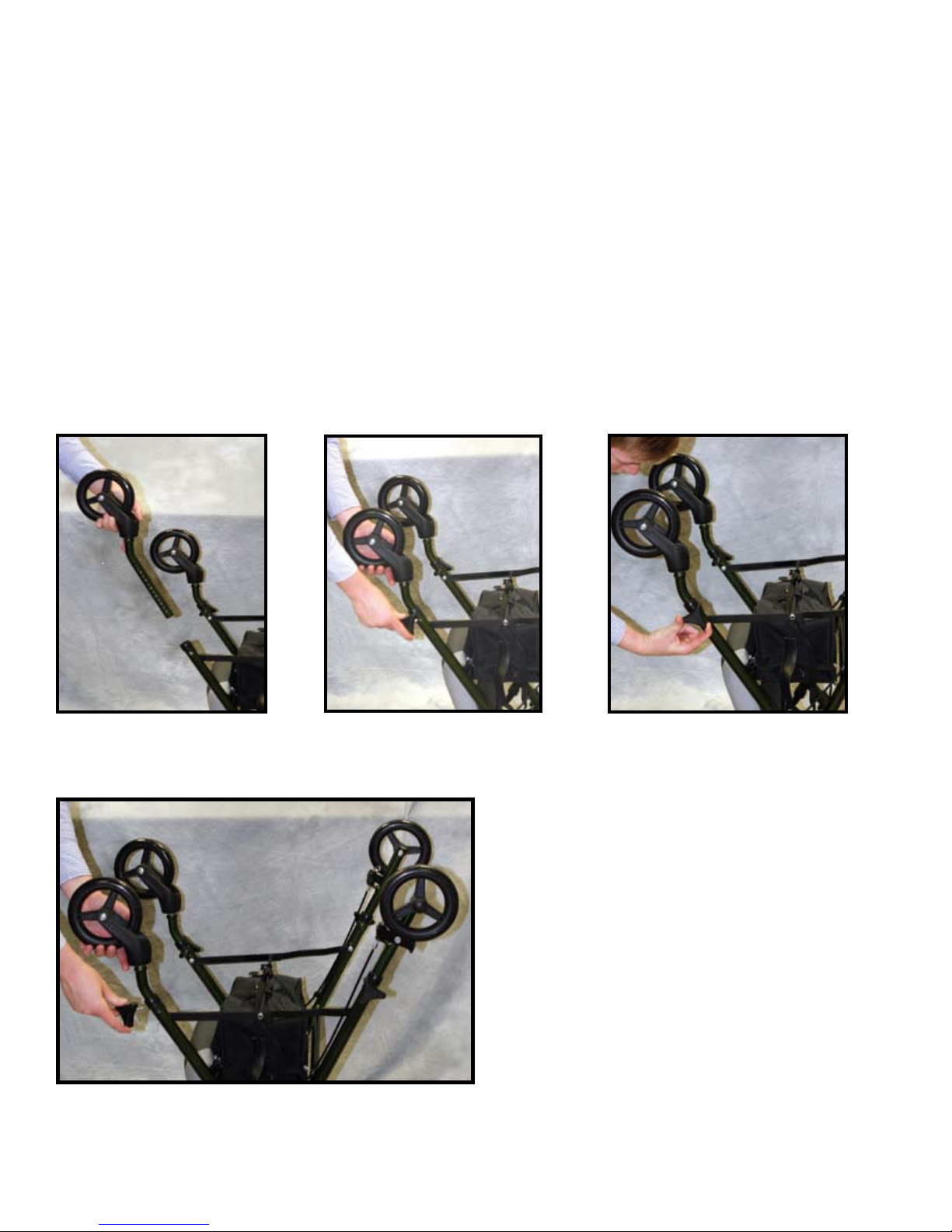

Figure A Figure B Figure C

To determine proper height, stand upright behind the
rollator with shoulders relaxed, arms hanging at your side
and eyes looking straight ahead. Standing in current
position, the hand grips (A) of the rollator should be adjusted
to a height even with the wrists. This will position the arms
at an approximated 20 to 30 degree bend when using the
rollator. Secure the wheels to the closest hole to the
desired height. Insert and tighten the triangular hand
screws until secure. (Important: Hand Tighten Only!)
Hole 1 Hole 2 Hole 3 Hole 4
Hole 1 29 1/4" 30 1/4" 31" 32"
Hole 2 30 1/2" 31 1/4" 32" 32 3/4"
Hole 3 31 1/4" 32" 32 3/4" 33 1/2"
Hole 4 32" 33" 33 3/4" 34 1/2"
Hole 5 32 3/4" 33 1/2" 34 1/2" 35 1/4"
Hole 6 33 3/4" 34 1/2" 35 1/4" 36 1/4"
9
Brake Handle Assembly

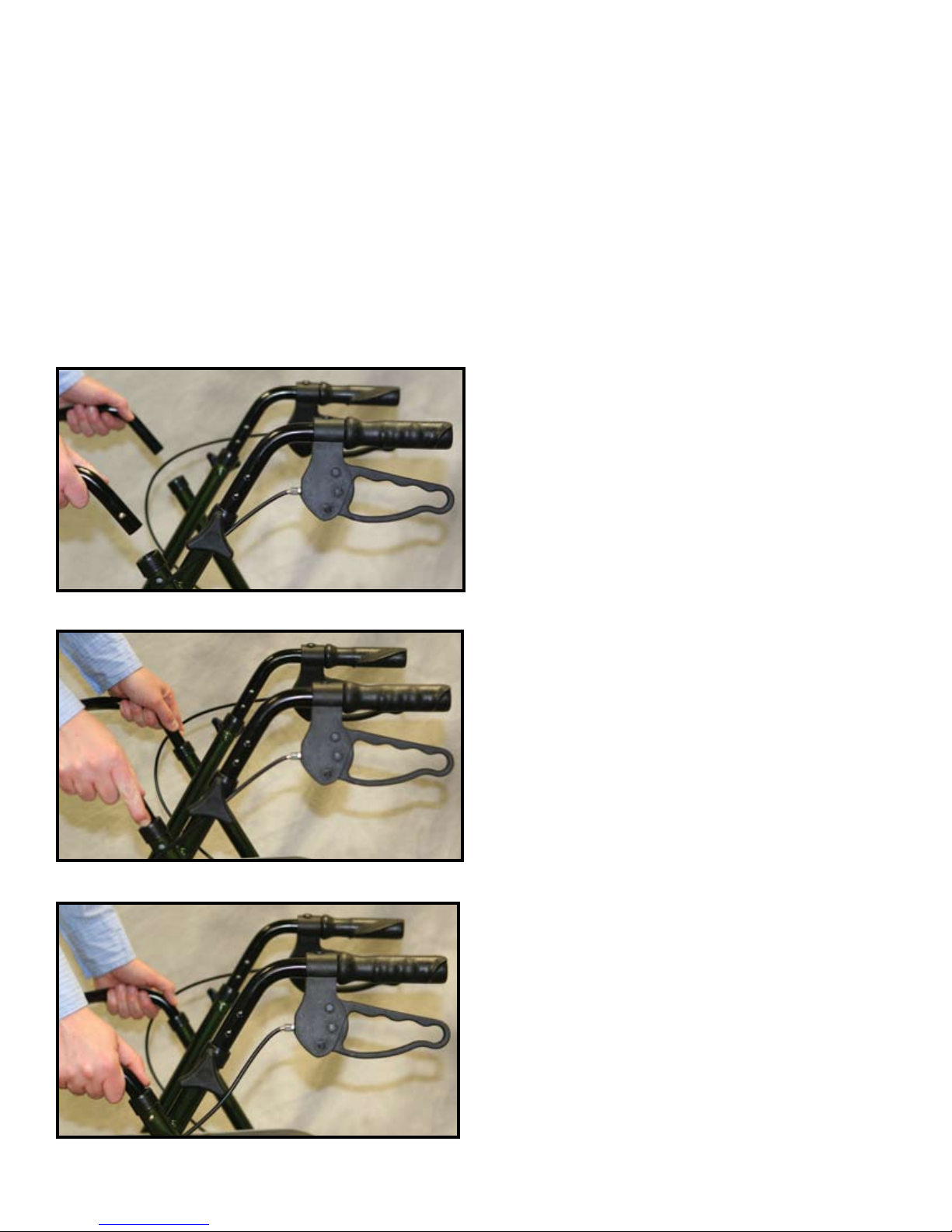

1. Insert hand grip into appropriate hole (see Figure A and chart below).
Note: Keep brake cable on outside of rollator.
2. Insert triangular hand screw into hole on outside of rollator frame (see Figure B).
(Important: Insert hand screw into one of the 4 holes provided.
DO NOT put hand screw in open slot at end of hand grip!)
3. Hand tighten screw until secure (see Figure C). (Important: Hand Tighten Only!)
4. Repeat steps 1-4 for other hand grip.

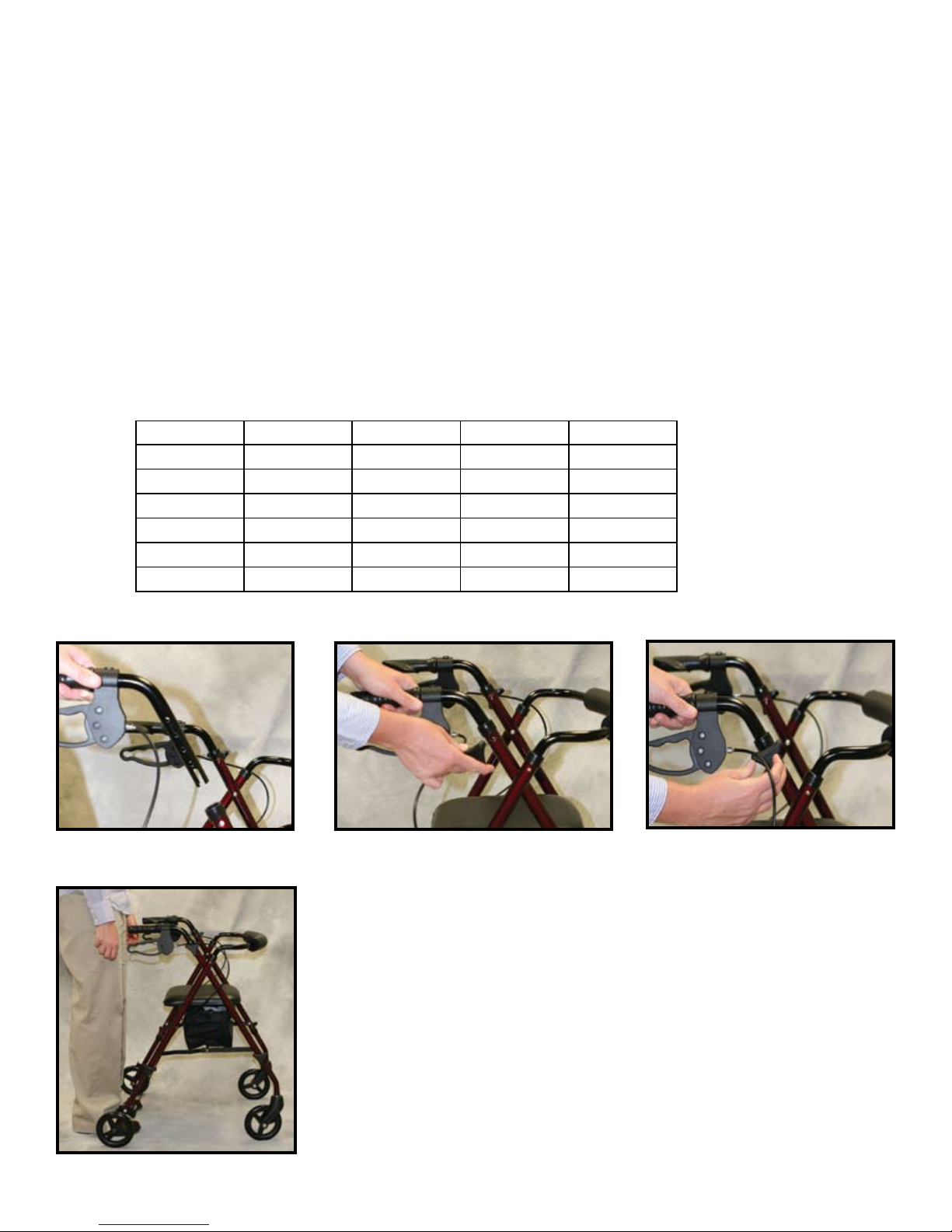

Ultra-Light Rollator Hole Measurements:
Arm Height
Leg
Height
Figure CFigure BFigure A
Seat height adjustable
from 19 1/4" to 23 1/4"
Handle height adjustable
from 29 1/4" to 36 1/4"

10
Backrest Assembly
1. Insert backrest into designated slot so that push-buttons are facing outward
(see Figure A).
2. Push buttons in and continue to insert backrest until buttons securely lock into holes
(see Figure B).
Notes: Make sure the brakes are locked before you lean against backrest.
Make sure push-buttons are firmly protruding before leaning against backrest.
Figure C
Figure B
Figure A

11
Operating Instructions
Opening the Rollator
Push down on the seat (C) until all four wheels are
extended out and the seat is completely at. Before
using the rollator make sure that all four wheels make
contact with the oor and the rollator is stable in the
open position.
Folding the Rollator
• For more compact storage, remove bag and the
backrest.
• Pull up on the bar under the seat until the rollator
closes.
Checking the Brakes
• Before each use, check to make sure the brakes are
working properly.
• Applying pressure on brake handles using a pulling up
motion the brakes will stop the wheels momentarily.
• Pushing down on the brake handles will lock the
wheels in place permanently.
Adjusting the Brakes
1. Loosen the cable nut.
2. While holding the brake to the wheel
3. Pull down on the brake cable to lengthen
the brake cable.
4. Retighten the nut. Retest and repeat
as necessary for good brake function.

12
Operating Instructions
Using the rollator as a walker:
For proper positioning and use of your rollator, imagine a line drawn across the back of
the rear wheels. Part of one foot should be slightly ahead of that line as you walk.
Using the rollator as a seat:
• Push the rollator into the position where you want to sit
• LOCK the brakes BEFORE sitting.
To Operate the Brakes:
• To slow down, squeeze the brake handles up.
• To lock the brakes, push down on the brake handles until you feel or hear the brakes
click into locked position. If the brakes have been adjusted but the rear wheels on
the rollator move while the brakes are in the locked position, DO NOT use the
rollator. Please call our toll-free customer service number at 1-800-MEDLINE for
returns or repairs.
• To release the brakes from the locked position, simply pull up on the brake handles.
Safety Warnings: Also See Instructions
Before using the seat portion of your rollator, ALWAYS lock the brakes FIRST.
DO NOT navigate the rollator while sitting on the seat. The brakes should always
be locked when the seat is being used. Risk of fall and serious injury may result
if brakes are NOT locked while the user is sitting on the seat.

13
Maintenance
Your Medline rollator should be checked periodically to ensure the brakes are function-
ing properly and that all nuts and bolts are secure.
Periodically test the brakes by both walking and squeezing the brakes and by stopping,
pushing down on the brakes to a locked position, and then trying to push the walker.
If the brakes do not lock the wheels, the brakes need to be adjusted. If adjustment
does not tighten the brakes, DO NOT use the rollator.
Keep your receipt!
Contact us at 1-800-MEDLINE, Monday – Friday 8am to 5pm CST if you encounter
any problems or for information regarding repairs or maintenance.

14
Lifetime Limited Warranty
Your Medline rollator frame is warranted to be free of defects in material and
workmanship for a lifetime for the original consumer. This device was built to
precise standards and carefully inspected prior to shipment. This Lifetime
Limited Warranty is an expression of our confidence in the material and
workmanship of our products and assures years of convenient, dependable
service. In the event of a defect covered by this warranty, we will, at our
option, repair or replace the device.
This warranty does not cover device failure due to owner misuse, negligence,
or normal wear and tear. The warranty does not extend to non-durable
components such as plastic accessories, brakes and grips, which are subject
to normal wear and replacement. Non-durable components are warranted for
6 months. If you have a question about your Medline product or this
warranty, please call us at 1-800-MEDLINE. This warranty gives you specific
legal rights, and you may have other rights, which vary from state to state.
FRAME LIFETIME WARRANTY
HAND BRAKES
BRAKE CABLES
PUSH-BUTTONS
BACKREST
BRAKES
UPHOLSTERY
WHEELS (FRONT AND REAR)
MEDLINE BAG
TRIANGULAR HAND SCREWS
ALL OTHER PARTS
6 MONTH WARRANTY
