Metra Electronics 95-8733B User manual

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 5/5/20 INST95-8733B
INSTALLATION INSTRUCTIONS
95-8733B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DDIN radio provision
• Painted scratch resistant matte black

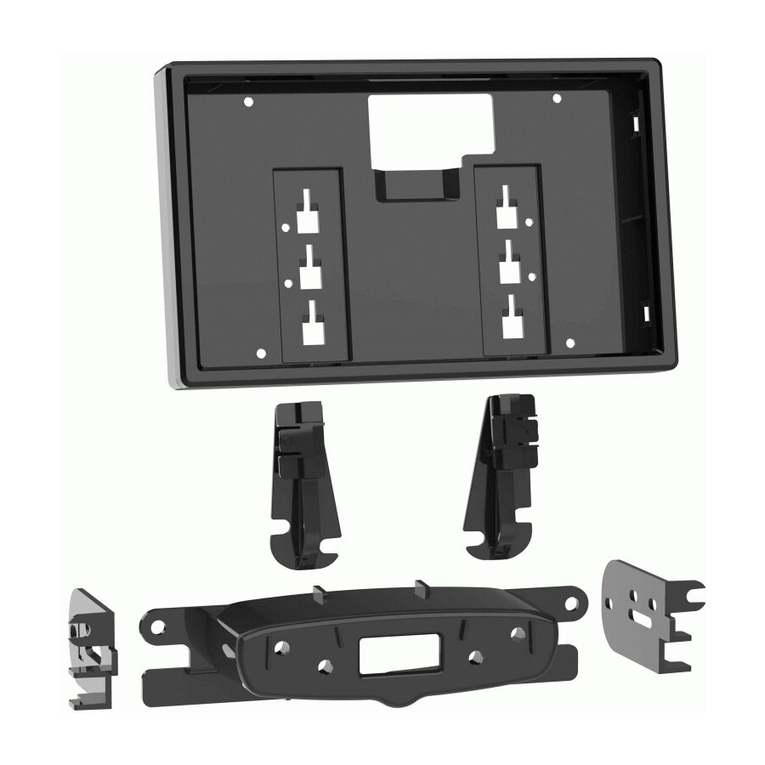

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Button housing • D) Button trim panel • E) Button blanks • F) Button panel hooks
• G) #4 x 3/8” Phillips screws (9) • H) Panel clips (2)
A B C
F F
G
D E
Mercedes-Benz C-class 2008-2011 (W204)
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• T-20 Torx driver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit assembly ...........................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: See metraonline.com or
axxessinterfaces.com for interface/harness.
Antenna Adapter: 40-EU56

386.257.1187
|
MetraOnline.com
2
1. Unclip the air vents, unplug and remove
(do not cycle the key while unplugged).
(Figure A)
2. Remove two T-20 Torx from the radio
and lift up on the two tabs located at
each mounting point. (See detail)
3. Slide the factory radio out paying
attention to the runners on the sides.
(Figure B) (Figure D)
(Figure A) (Figure C)
DASH DISASSEMBLY
4. Unclip the trim at the bottom of the
radio and unscrew the factory buttons to
be relocated to the button trim panel in
kit assembly.
5. Remove two T-20 Torx screws from
the bottom of the factory radio screen
assembly and remove.
Continue to Kit Preparation
Detail

REV. 5/5/2020 INST95-8733B 3
KIT PREPARATION KIT ASSEMBLY
1. Secure the button panel hooks to the
button housing with (4) #4 x 3/8”
Philips screws included. (Figure A)
2. Assemble the factory buttons into the
button housing and button trim panel
with the (5) #4 x 3/8” Philips screws
included. Note: blanks are included for
different vehicle options. (Figure B)
3. Attach the (2) supplied panel clips to the
radio housing. (Figure C)
Continue to Kit Assembly
1. Route the factory button wiring up to
the top of the dash opening.
2. Attach the radio brackets to the radio
using screws supplied with the radio,
and then secure into the dash opening.
NOTE: the radio mounting screws must
be flush in the brackets so the radio
assembly will fit into the dash opening.
(Figure A)
3. Locate the factory wiring harness and
antenna connector in the dash, and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra and/
or AXXESS. Re-connect the negative
battery terminal and test the radio for
proper operation.
4. Snap the radio trim panel over the radio
and reassemble the dash in reverse
order of disassembly. (Figure B)
5. Install button assembly starting with the
button panel hooks at the top and then
snapping the bottom in. (Figure C)
(Figure A)(Figure A)
(Figure B)(Figure B)
(Figure C)(Figure C)
