Middle Atlantic Products T5 SERIES User manual

I-00825 Rev -
T5 SERIES
Pre-Select Conference Tables
Instruction Sheet
PRODUCT FEATURES
THANK YOU
Thank you for purchasing a T5 Series Pre-Select Conference Table. Please read these
instructions thoroughly before installing or assembling this product.
• Patent-pending swing-out pedestal rack can be located in the table pedestal of choice.
Innovative flexibility for up to 3 RU of sideways rackmounting, small device mounting or a
combination of the two. Includes three tool-free Lever Lock™ plates for mounting small devices
• Wiremold InteGreat™ Table Boxes in black or silver with 2 retracting HDMI cables and 2 AC
outlets for power and connectivity at the surface. Table boxes and cable retractors are
concealed by the table’s pedestal
• Power distribution
• Cable management strips and bridge lances

Page 2
IMPORTANT SAFETY INSTRUCTIONS
DANGER HAZARDOUS VOLTAGE: The lightning flash with the arrowhead symbol, within an equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
WARNING: A warning alerts you to a situation that could result in serious personal injury or death.
CAUTION: A caution alerts you to a situation that may result in minor personal injury or damage to the product and/or property.
NOTE: A note is used to highlight procedures pertaining to the installation, operation, or maintenance of the product.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Clean only with dry cloth.
• Only use attachments/accessories specified by the manufacturer.
WARNING: Failure to read, understand and follow the following information can result in serious personal injury, damage to the
equipment or voiding of the warranty. It is the responsibility of the Installer/User to ensure that this product is loaded according to
specifications.
WARNING: The weight ratings of this product can be found on the product. Exceeding these weight ratings can result in serious
injury or damage to the equipment. It is the responsibility of the Installer/User to ensure the components installed do not surpass the
weight ratings as an unstable condition can occur which may cause possible injury or damage.
CAUTION: Note that during construction, there must be no possibility of personal injury, for example the squeezing of fingers or
arms.
CAUTION: If there is visible damage on the product, it must not be installed.
CAUTION: Safety measures must be practiced at all times during the assembly of this product. Use proper safety equipment and
tools for the assembly procedure to prevent personal injury.
CAUTION: For loading, always put heavier items at the bottom of the bays, not near the top, in order to help prevent the possibility
of the furnishing tipping over.
CAUTION: The appliance is not intended for use by young children or infirm persons without supervision.
Safety Instructions: Rack Mount
Elevated Operating Ambient: If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack
environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment
compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the
equipment is not compromised.
Mechanical Loading: Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven
mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the equipment to the supply circuit and the effect that
overloading of the circuit might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate
ratings should be used when addressing this concern.
Reliable Earthing: Reliable earthing of rack-mounting equipment should be maintained. Particular attention should be given to supply
connections other than direct connections to the branch circuit (e.g. use of power strips).
Disconnect Device (Pluggable Equipment): The socket-outlet shall be installed near the equipment and shall be easily accessible.

Page 3
DANGER TENSION DANGEREUSE: Le symbole de la pointe de flèche, dans un triangle équilatéral, est destiné à alerter l'utilisateur sur la
présence de tension dangereuse non isolée dans l'enceinte du produit qui peut être d'une ampleur suffisante pour constituer un risque d'électrocu-
tion.
AVERTISSEMENT: Un avertissement vous avertit d'une situation pouvant entraîner des blessures graves ou la mort.
ATTENTION: Une attention vous avertit d'une situation pouvant entraîner des blessures mineures ou des dommages au produit et/ou à la
REMARQUE: Une remarque est utilisée pour mettre en évidence les procédures relatives à l'installation, au fonctionnement ou à l'entretien du
produit.
INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ
• Lire ces instructions.
• Conservez ces instructions.
• Respectez tous les avertissements.
• Suivez toutes les instructions.
• Nettoyer uniquement avec un chiffon sec.
• N'utilisez que des accessoires spécifiés par le fabricant.
AVERTISSEMENT: Les caractéristiques de poids de ce produit peuvent être trouvées sur le produit. Le dépassement de ces
caractéristiques de poids peut entraîner des blessures graves ou des dommages à l'équipement. C'est l'responsabilité de l'installa-
teur/utilisateur de s'assurer que les composants installé ne dépassent pas les notes de poids comme un instable condition peut se
produire qui peut causer des blessures ou dommages.
ATTENTION: S'il ya des dommages visibles sur le produit, il ne doit pas être installé.
ATTENTION: Des mesures de sécurité doivent être mises en œuvre en tout temps lors de l'assemblage de ce produit. Utiliser un
équipement et des outils de sécurité appropriés pour la procédures de afin d'éviter les blessures.
ATTENTION: Notez que pendant la construction, il ne doit pas y avoir de risque de blessure, comme par exemple le écraser des
doigts ou des bras.
ATTENTION: Pour le chargement, placez toujours des articles plus lourds au bas des baies, pas près du sommet, afin d'éviter la
possibilité de basculement de l'ameublement.
ATTENTION: L'appareil n'est pas destiné à être utilisé par des enfants en bas âge ou des personnes infirmes sans surveillance.
AVERTISSEMENT: Refus de lire, comprendre et suivre la renseignements suivants peut traduire par de graves blessures, des
dommages à l'équipement ou invalider la garantie. Il est la responsabilité de l'installateur/utilisateur de s'assurer que ce produit
est chargé conformément aux spécifications.
Consignes de sécurité: montage en rack
Température de fonctionnement élevée: Si installé dans un rack fermé ou à unités multiples , la température ambiante de fonctionne-
ment de l'environnement du rack peut être supérieure à ambiante de la pièce. Par conséquent, il faudrait envisager d'installer l'équipe-
ment dans un environnement compatible avec la température ambiante maximale (Tma) spécifiée par le constructeur.
Réduction Air accréditives: Installation de l'équipement dans un rack doit être telle que la quantité de flux d'air nécessaire au bon
fonctionnement de l'équipement ne soit pas compromise.
Chargement mécanique: Le montage de l'équipement dans le rack doit être telle qu'une condition dangereuse ne lié à un chargement
mécanique irrégulier.
Surcharge des circuits: Il faudrait envisager à la connexion de l'équipement au circuit d'alimentation et l' effet que la surcharge du
circuit pourrait avoir sur la protection contre les surintensités et le câblage d'alimentation. Examen approprié des équipements évalua-
tions de la plaque signalétique doit être utilisée pour traiter de cette préoccupation.
Mise à la terre fiable: Fiable mise à la terre de l'équipement de montage en rack doit être maintenue. Une attention particulière devrait
être accordée aux connexions d'alimentation autres que les connexions directes vers le circuit de dérivation (par exemple de l'utilisation
de bandes de puissance).
Appareil Disconnect (Équipement Pluggable): La prise de courant doit être installée à proximité du matériel et doit être facilement
accessible.

Page 4
WEIGHT RATINGS
AVERTISSEMENT: Cette produit est conçu pour être utilisé uniquement avec les produits et les poids maximum indiqué. unique-
ment avec les produits et les poids maximaux indiqués. En cas d'utilisation avec d'autres produits ou des produits plus lourds que
le poids maximal indiqué, le chariot peut devenir instable et causer des blessures. Le poids total de la table ne doit pas dépasser
200 lbs. (90.71 kg).
WARNING: This product is intended for use only with the products and maximum weights indicated. Use with other products or
products heavier than the maximum weights indicated may result in instability causing possible injury. Total tabletop weight must
not exceed 200 lbs. (90.71 kg).
Model Number Weight Rating
Tabletop
Swing-Out Rack
200 lbs. Maximum Total Rated Load
20 lbs. Maximum Total Rated Load
SUPPLIED COMPONENTS AND HARDWARE
Flat
Washer
Lock
Washer
(6x)
Wood Biscuits
(2-Piece Tabletop Models Only)
H
5/16” x 1 3/4”
Bolt With Lock
and Flat Washer
E
#8 x 1”
Wood Screw
G
(2x)
Mending Plate
(2-Piece Tabletop Models Only)
K
(4x)
Joint Connector
(2-Piece Tabletop Models Only)
J
(2x)
End Pedestal Base
B
Center Pedestal Base
(2-Piece Tabletop Models Only)
C
1-Piece Tabletop
2-Piece Tabletop
Model Qty.
8
24
*Standard hardware quantites for
12’ and 16’ 2-piece tabletops,
respectively.
Amounts for custom tabletop
lengths may vary.
#8 x 1 1/2”
Wood Screw
F
1-Piece Tabletop
2-Piece Tabletop
Model Qty.
14
28 or 36*
1-Piece Tabletop
2-Piece Tabletop
Model Qty.
8
16
Tabletop
D
1-Piece Tabletop
2-Piece Tabletop
Model Qty.
1
2
Trough
A
1-Piece Tabletop
2-Piece Tabletop
Model Qty.
1
2

SUPPLIED COMPONENTS AND HARDWARE (CONTINUED)
Page 5
(6x) 10-32 x 3/4”
Truss Screw With
Washer
Y
Lever Lock
Adapter Brackets
X
(2x)
2” Lever Lock
Plate
Z
1-Piece Tabletop
2-Piece Tabletop
Model Qty.
1
2
1-Piece Tabletop
2-Piece Tabletop
Model Qty.
1
2
1-Piece Tabletop
2-Piece Tabletop
Model Qty.
2
4
1-Piece Tabletop
2-Piece Tabletop
Model Qty.
2
4
SWING-OUT RACK (T5-TECH-KITXX)
Power Strip
T
(2x) 10-32 x 1/2”
Flat Head Screw
R
Power Mounting
Clip
S
10” Lever Lock
Plate
AA
Power Cable
NOTE: Lengths vary based on table size.
U
Swing-Out Rack
W
(2x)
Pivot Bracket
V
(20x)
#10 x 5/8” Wood
Screw
L
(2x)
Lacing Strip
M
1-Piece Tabletop
2-Piece Tabletop
Model Qty.
4
6
HDMI Retractors
N
1-Piece Tabletop
2-Piece Tabletop
Model Qty.
2
4
(2x) 10-32 Oval
Nut
P

NOTE: Additional hardware is included that may not be required for your installation.
REQUIRED TOOLS
WARNING: Use tools with caution and follow all necessary safety protocols.
AVERTISSEMENT: Utiliser des outils avec prudence et suivre tous les protocoles de sécurité
nécessaires.
• 4’ Level
• Saw Horses (or Stable Platform)
• Power Driver With 6” Long Phillips Bit or 6” Long #2 Phillips Screwdriver
• 5mm Hex Driver (Included)
• 7/16” Box Wrench
• 1/2” Socket Wrench
SUPPLIED COMPONENTS AND HARDWARE (CONTINUED)
Page 6
(6x)
Lever Lock Securing Rivet
AB
(20x)
Lever Lock Plate Washer
AC
FAN OPTION (T5-DCFANKIT-1)
SWING-OUT RACK (T5-TECH-KITXX)
(3x) #10 x 5/8”
Tie Saddle Screw
AN
(3x)
Tie Saddle
AM
Fan Controller
Power Supply
AK
Fan Controller
AH
(2x)
Fan
AG
(8x)
10-32 x 3/8” Fan
Mounting Screw
AF
(2x)
#6 x 3/8” Fan
Controller Mounting
Screw
AJ
(12x)
Wire Tie
AL
Face After Panel
AD
1-Piece Tabletop
2-Piece Tabletop
Model Qty.
2
3
A/V Table Box
AE

INSTALLING TROUGHS TO PEDESTAL BASES
Page 7
Leveling Glide
Locations
TIP: Use 7/16” box
wrench for nut
above leveling
glide, if necessary.
CAUTION: At least two people are required for pedestal, trough, and tabletop procedures.
ATTENTION: Au moins deux personnes sont requises pour les procédures de piédestal, de
quille et de table.

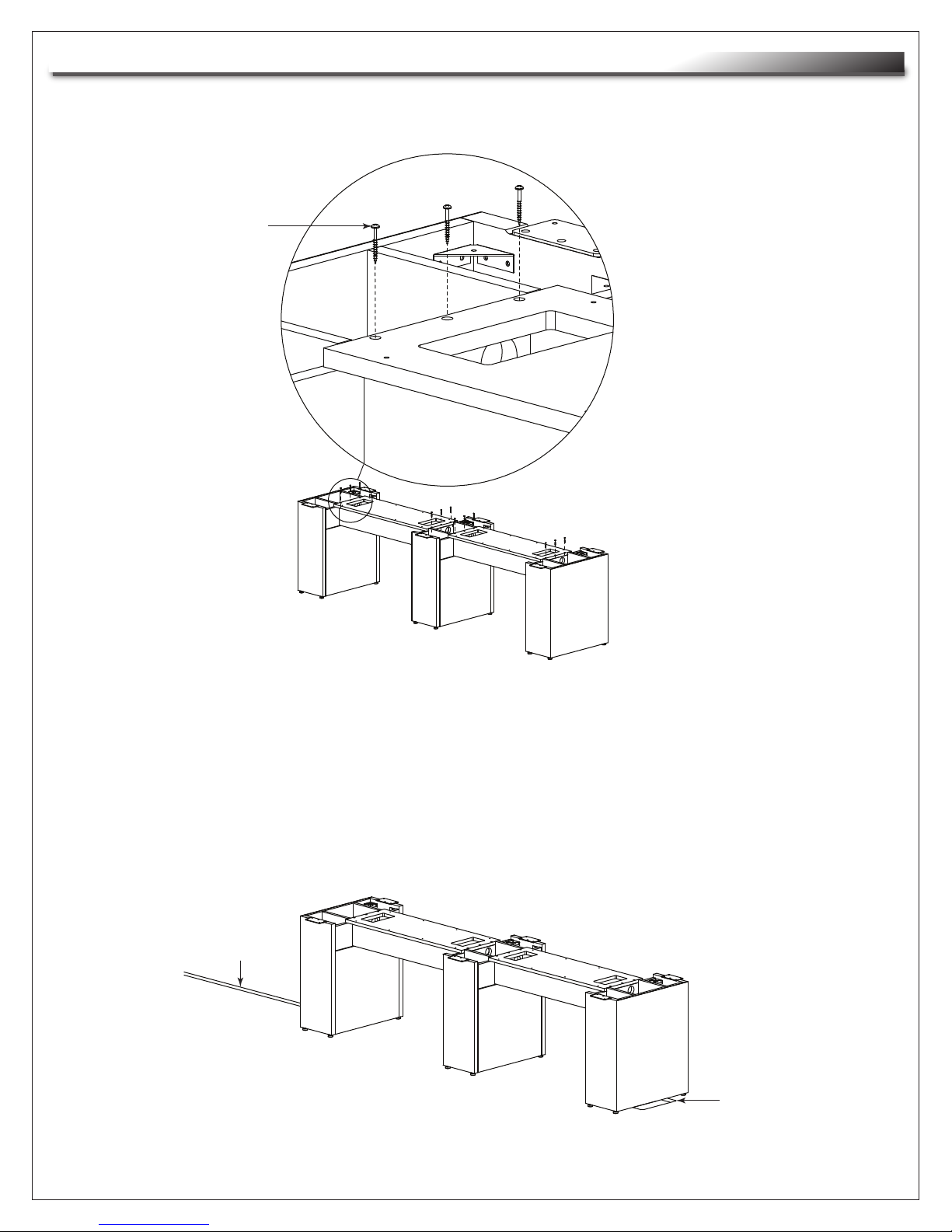

2. Position end pedestal bases (B) with the doors facing each
other. If you have a 2-piece tabletop model, position the
center pedestal base (C) in between the ends. Space all
bases approximately one trough (A) length apart from each
other. (FIGURE B)
NOTE:
• A center pedestal base (C) is provided for
2-piece tabletop models. No center base
is provided for 1-piece models.
• Position center pedestal base (C) so the
door opens from the desired side.
3. Use a 1/2” socket and (16x for 2-piece
tabletop models, 8x for 1-piece models)
5/16” x 2” bolts with washers (E) to
attach the troughs (A) to the pedestal
bases (B and C).
NOTE: First, loosely attach all of the
5/16” x 2” bolts with washers (E), and then
tighten them. Do not overtighten.
1. Before you begin, hand tighten all leveling glides on the pedestal bases as shown. (FIGURE A)
FIGURE A
FIGURE B
E
B
AC

Page 8
FIGURE C
FIGURE D
INSTALLING TROUGHS TO PEDESTAL BASES (CONTINUED)
F
NOTE: Use the 1
1/2" wood screws
(F) and not the 1"
wood screws (G)
for this step.
4. Use power driver or screwdriver and (12x for 2-piece tabletop models, 6x for 1-piece models) 1 1/2”
wood screws (F) to finish installing the troughs to the pedestal bases as shown. (FIGURE C)
5. With the troughs fully installed to the pedestal bases, place the entire assembly over any floor boxes
and where any over floor raceway ends as needed. (FIGURE D)
NOTE:
• Pull floor box cables before placing the assembly for access from inside the pedestal bases.
• Over floor raceway and floor box provided as examples.
Floor
Box
Over Floor
Raceway

Page 9
INSTALLING TROUGHS TO PEDESTAL BASES (CONTINUED)
6. With the assembly now in its final location, use a 4’ level to check across pedestal bases and along
troughs and carefully make necessary adjustments by loosening leveling glides as needed.
(FIGURE A)
FIGURE E
INSTALLING THE LACING STRIPS
• Use power driver or screwdriver and (6x) #10 x 5/8” wood screws (L) to install the (2x) lacing strips (M)
to the inside of the pedestal base as shown. (FIGURE E)
NOTE:
Right side
of pedestal
base
removed for
clarity.
L
M

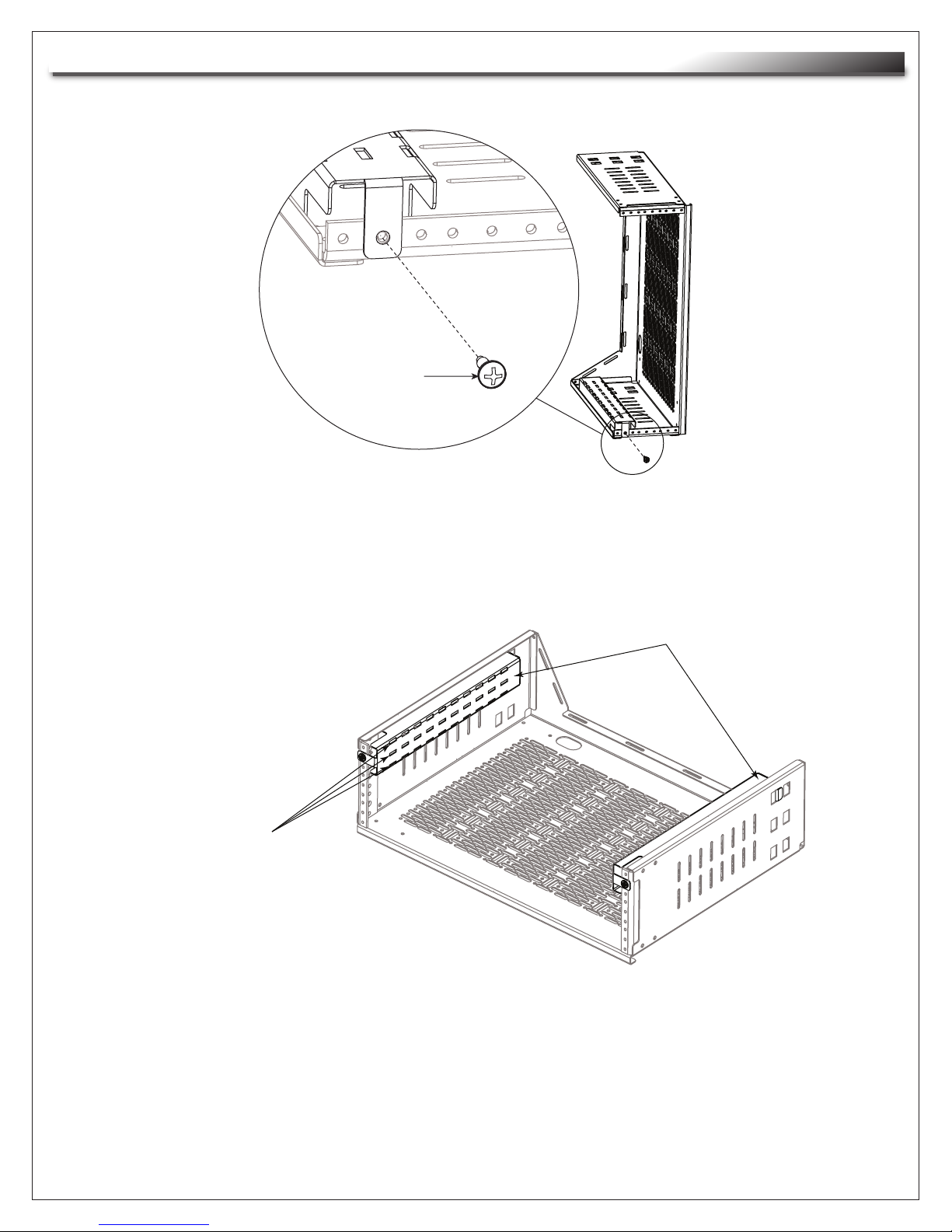

INSTALLING THE HDMI RETRACTORS
Page 10
• Install each HDMI retractor (N) by carefully hooking the shovel lances up and to the center of the
retractor bracket as shown. (FIGURE F)
Shovel Lances
on Retractors
NOTE: Carefully push the
retractor inward to secure
the clip into place.
NOTE: Retractors and bracket isolated for clarity.
Retractor
Bracket
FIGURE F
FIGURE G

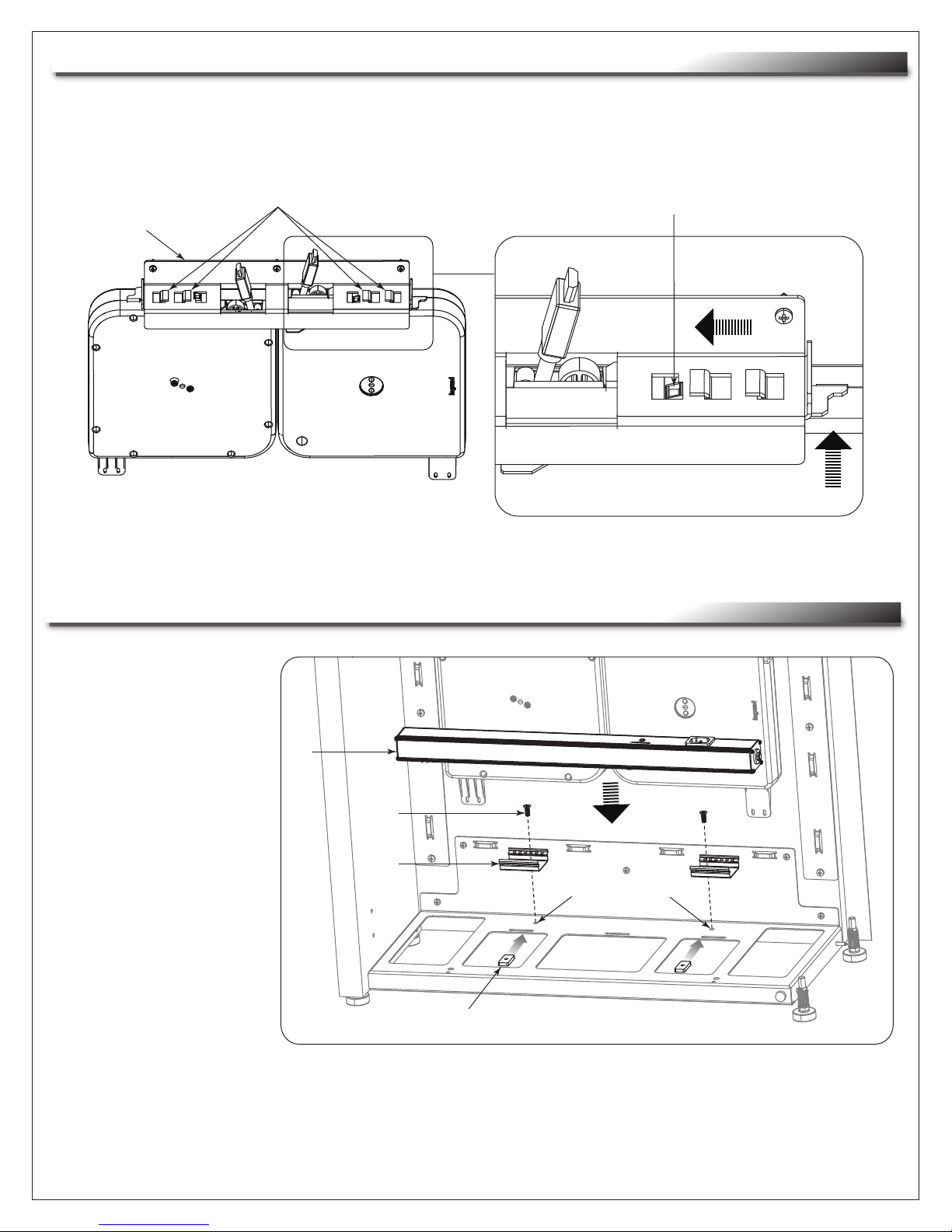

INSTALLING THE POWER STRIP
1. Hold oval nut (P)
underneath the bracket
hole as shown.
(FIGURE G)
2. Use power driver or
screwdriver and a flat
head screw (R) to
secure each power
mounting clip (S) to the
bottom of the pedestal.
3. Push power strip (T)
into power mounting
clips (S) until it snaps
into place.
T
R
P
S
Bracket Holes

Page 11
INSTALLING THE POWER STRIP (CONTINUED)
NOTE:
• For more information, see “Powering the Table Boxes” on page 25.
• Different IEC cables may be used; however, the length must be a minimum of 5ft. (1.5M) and a
maximum of 15ft. (4.5M).
4. Plug the power cable (U) into the receptacle on
the power strip (T) and secure it in place with the
power cable retainer. (FIGURE H)
5. Connect the power cable into your desired
receptacle.
TIP: Remove the power strip (T)
from the power mounting clips by
wedging a flat head screwdriver
between the side of the power
strip and clip, and gently pry
them from each other as shown.
(FIGURE J)
Screwdriver Tip
Power
Mounting
Clip
FIGURE J
T
FIGURE H
U
T
Power
Cable
Retainer

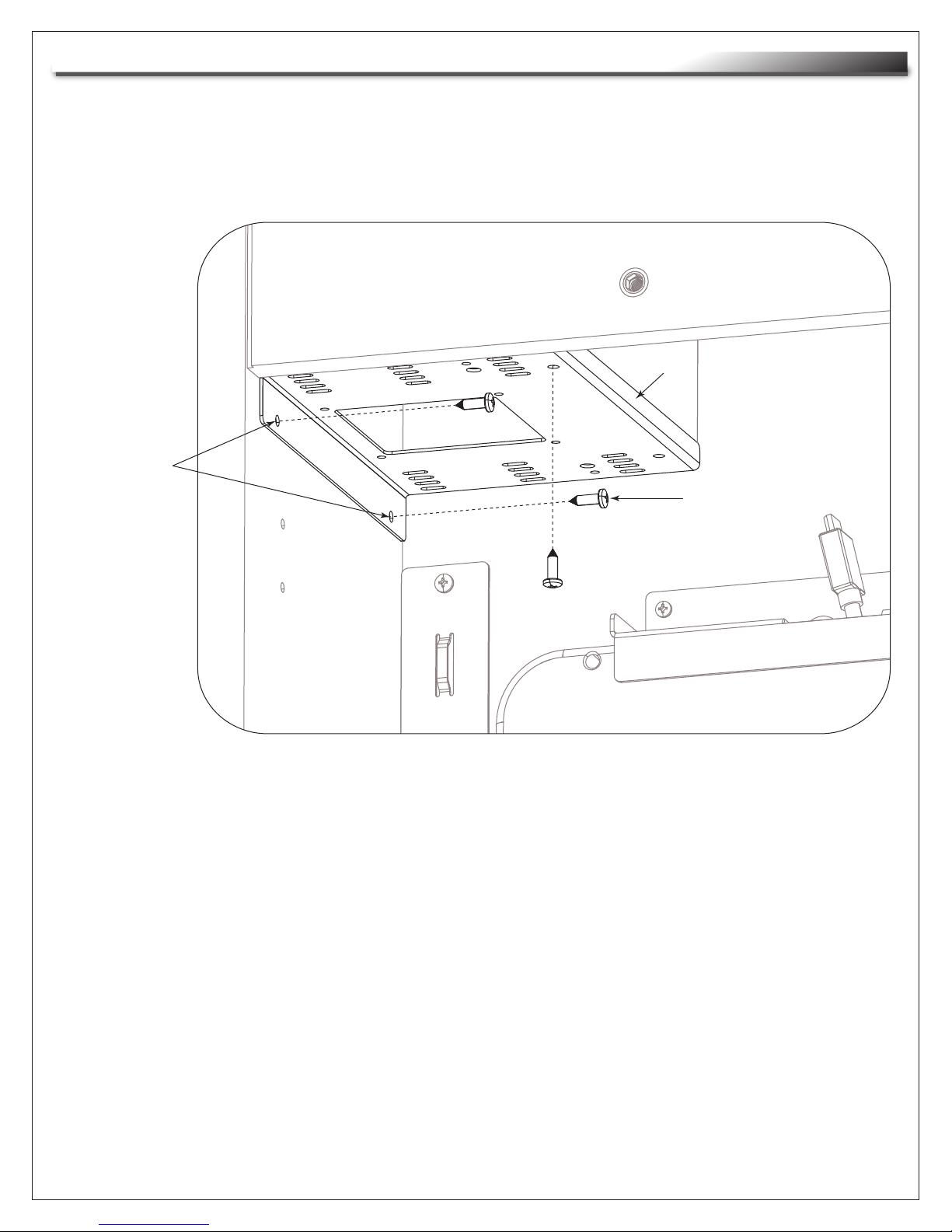

INSTALLING THE PIVOT BRACKETS
Page 12
1. Place pivot bracket (V) inside of pedestal with flanges positioned as shown. (FIGURE K)
2. Use power driver and (3x) #10 x 5/8” wood screws (L) to secure the pivot bracket (V) to the side and
center of pedestal.
3. Repeat the process with the second pivot bracket on the other side of the pedestal.
FIGURE K
NOTE: Pre-drilled
holes located on
side of pedestal. L
Inside of
Pedestal
V

Page 13
FIGURE N
Cables positioned
toward inside back
corners of pedestal.

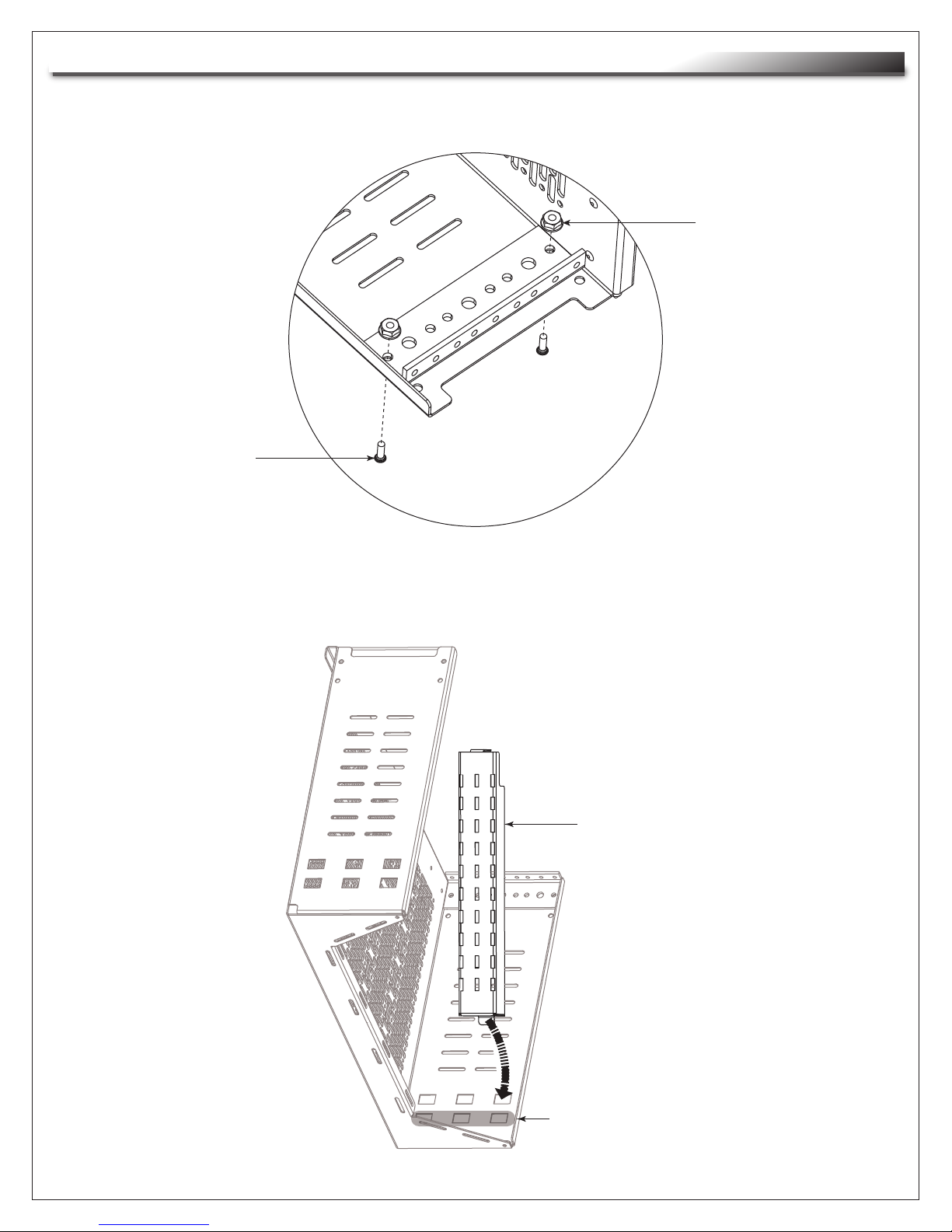

INSTALLING THE FAN OPTION (T5-DCFANKIT-1)
1. Use (4x per fan) 10-32 x 3/8” fan mounting screws (AF) to install each fan (AG) upward into the
opening on the pivot bracket (V) with the cables positioned toward the back corners as shown.
(FIGURE L)
Inside of Pedestal
AF
AG
3. Use (2x) #6 x 3/8” controller mounting screws (AJ) to mount the inline fan controller (AH) at the
location of the pre-drilled holes on the upper-back inside of the pedestal. (FIGURE N)
2. Install the jumper on the inline fan controller (AH)
for the following functions:
• Jumper on two center pins (pre-installed location)
turns the fan on at 87º and off at 85º. (FIGURE M)
• Jumper on two left pins, fan will remain off.
• Jumper on two right pins, fan will remain on.
FIGURE M
Side View of Inline Fan Controller
AH Jumper
Inside of Pedestal Pre-Drilled
Holes
AJ
AH
V
FIGURE L

Page 14
INSTALLING THE FAN OPTION (T5-DCFANKIT-1, CONTINUED)
4. Run the cables from each fan to the inline
fan controller (AH). (Inputs 1 and 2 are
interchangeable.) (FIGURE P)
5. Connect power supply (AK) to input on
inline fan controller (AH).
6. Connect power supply (AK) to power strip
(T).
NOTE: Wire ties (AL), tie saddles (AM), and
tie saddle screws (AN) are provided for cable
management.
AK
Cable
From Fan
Jumper Pins
FIGURE P
AH
INSTALLING LEVER LOCK™ INTO THE SWING-OUT RACK
1. Choose from the following positions to install your Lever Lock adapter bracket (X) into the
swing-out rack (W). (FIGURE R)
POSITION 1
POSITION 2
POSITION 3
NOTE: Rack isolated
for clarity.
FIGURE R
W

Page 15
INSTALLING LEVER LOCK™ INTO THE SWING-OUT RACK (CONTINUED)
2. Insert the tab on the end of the Lever Lock adapter bracket (X) into the opening of your selected
position. (FIGURE T)
NOTE: Reposition the rackrails to the second depth position using the (2x, per rail) 10-32 PEM studs
and (2x, per rail) 10-32 nuts, if desired. (FIGURE S)
FIGURE S
FIGURE T
NOTE: Openings for second
rackrail depth position, if used.
10-32
Nut
10-32
PEM Stud
X

3. Use a 10-32 x 3/4” truss screw with washer (Y) to secure the Lever Lock adapter bracket to the
rackrail. (FIGURE U)
4. Repeat the process to install the second Lever Lock adapter bracket (X) in the same position as the
first, but on the opposite side of the rack. (FIGURE V)
FIGURE U
Page 16
INSTALLING LEVER LOCK INTO THE SWING-OUT RACK (CONTINUED)
FIGURE V
X
NOTE: There are
3 different depths
available on the
Lever Lock
adapter brackets.
Y

Page 17
INSTALLING LEVER LOCK INTO THE SWING-OUT RACK (CONTINUED)
FIGURE W
NOTE:
• The Lever Lock plates may be installed on the brackets at different depths. (FIGURE V)
• All 4 corners of the Lever Lock plates must be inserted into the brackets at the same depth in order to
function correctly.
• (20x) Lever Lock plate washers (AC) are provided for equipment mounting convenience.

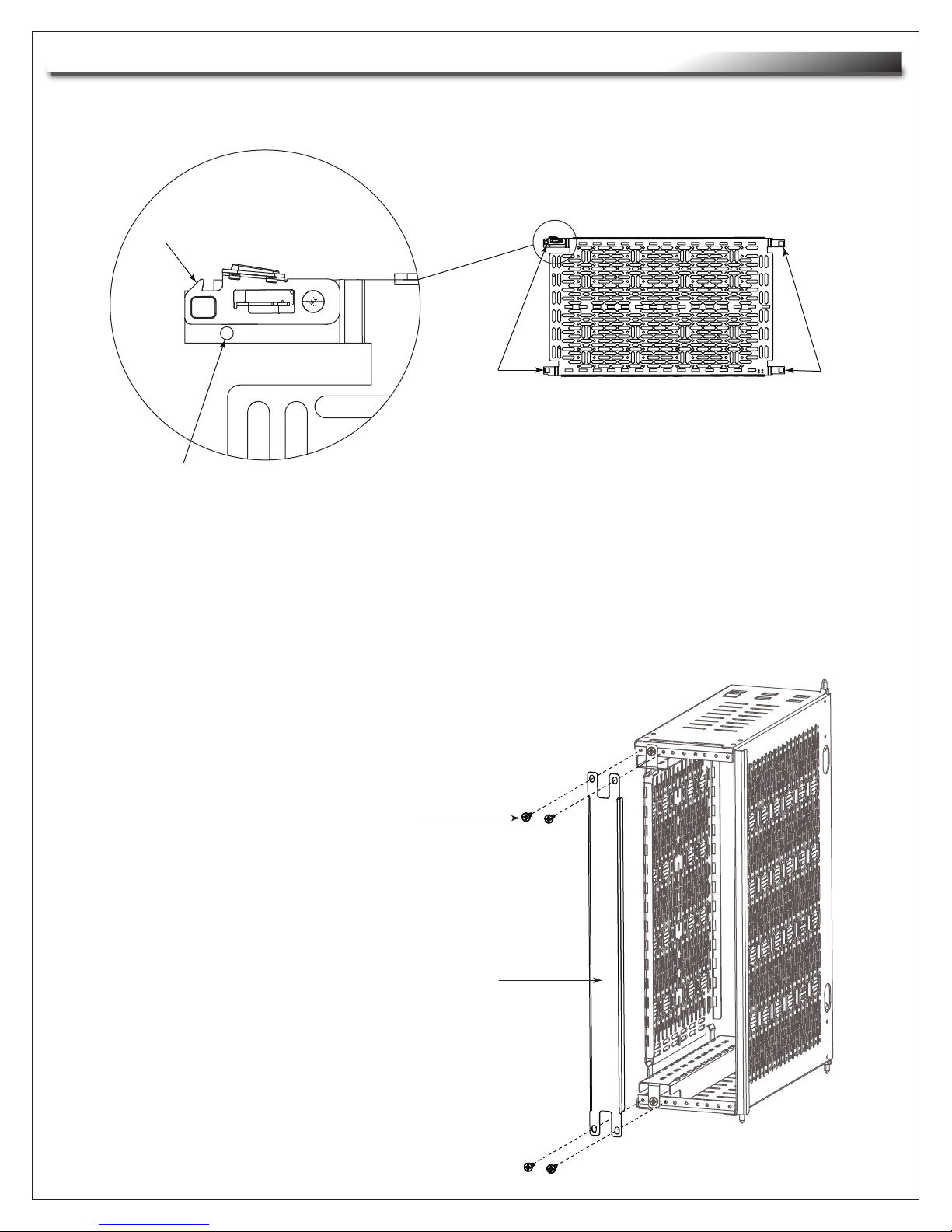

5. Attach the 2” and/or 10” Lever Lock plate (Z and AA, respectively) by installing the side without the
clip into the brackets first. Then install the side with the clip until it clicks into place. (FIGURE W)
Side with
clip
Side without
clip
Clip
NOTE: Install plastic securing
rivet (AB) into hole to secure
the clip more permanently, if
desired.
NOTE: 10” Lever Lock plate shown.
6. Use (4x) 10-32 x 3/4” truss
screw with washers (Y) to
secure the face after panel (AD)
to the rack. (FIGURE X)
FIGURE X
Y
AD

Page 18

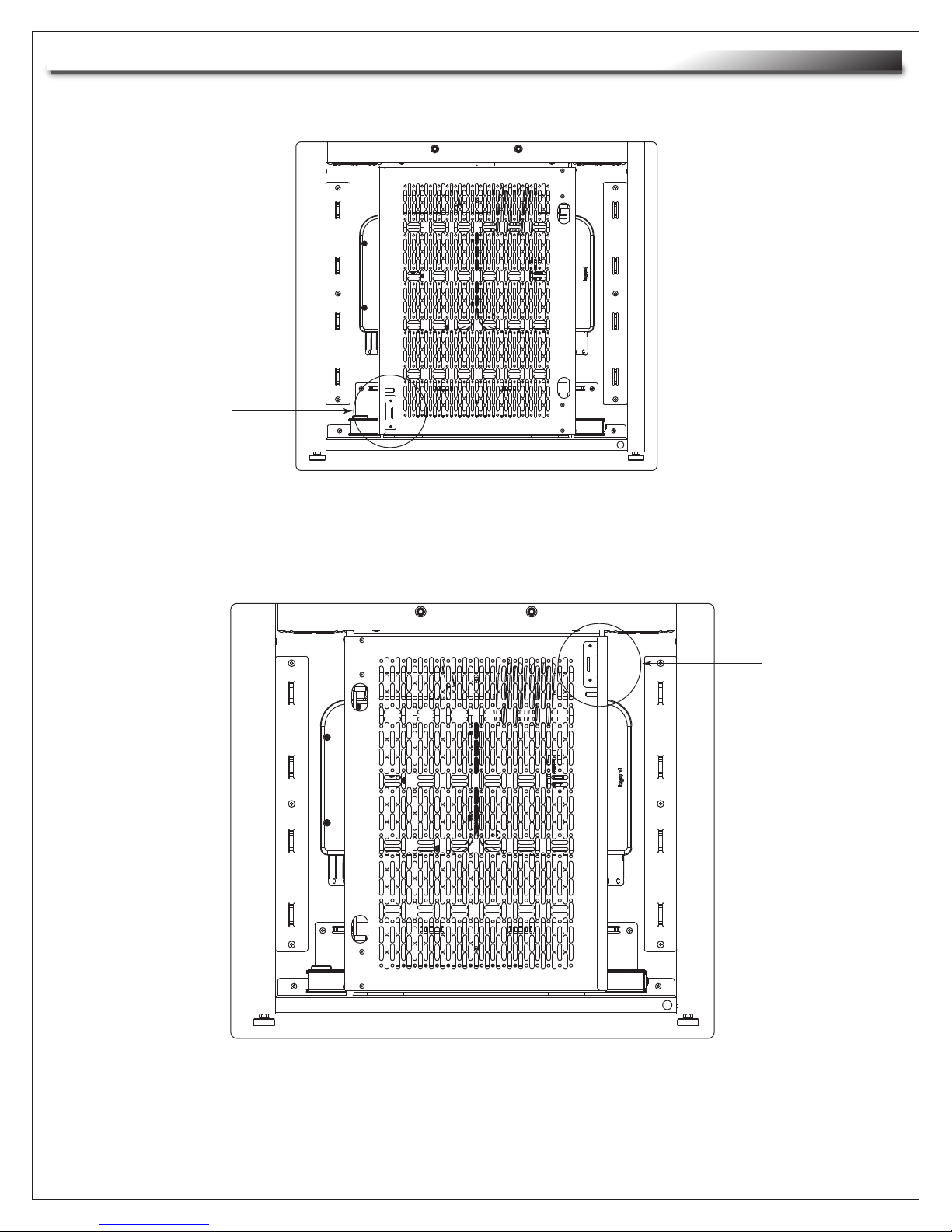

INSTALLING THE SWING-OUT RACK
NOTE: This topic shows the installation of the swing-out rack in a recommended right swing position
inside of the pedestal and may be reversed to have a left swing, if desired.
1. Place the retractable hinge pins into the holes on the pivot bracket (top) and bottom of the pedestal
as shown. (FIGURE Y)
FIGURE Y
NOTE:
• Access hinge pins
through swing-out rack
openings.
• Pedestal base door
removed for clarity.
FIGURE Z
NOTE: If desired, reverse the swing-out rack to have a left swing position by rotating the swing-out rack
and placing the hinge pins into the holes on the pivot bracket (top) and bottom of the pedestal as
shown. (FIGURE Z)
NOTE:
Access
hinge pins
through
swing-out
rack
openings.

Page 19
2. Use the swing-out rack’s lock pin to secure the rack into the pedestal as shown. (FIGURE AA)
INSTALLING THE SWING-OUT RACK (CONTINUED)
Lock
Pin
FIGURE AA
NOTE: When the swing-out rack is installed with a left swing position, the lock pin is on the upper-right
side and secures into the pivot bracket (top) instead of the bottom of the pedestal. (FIGURE AB)
FIGURE AB
Lock
Pin

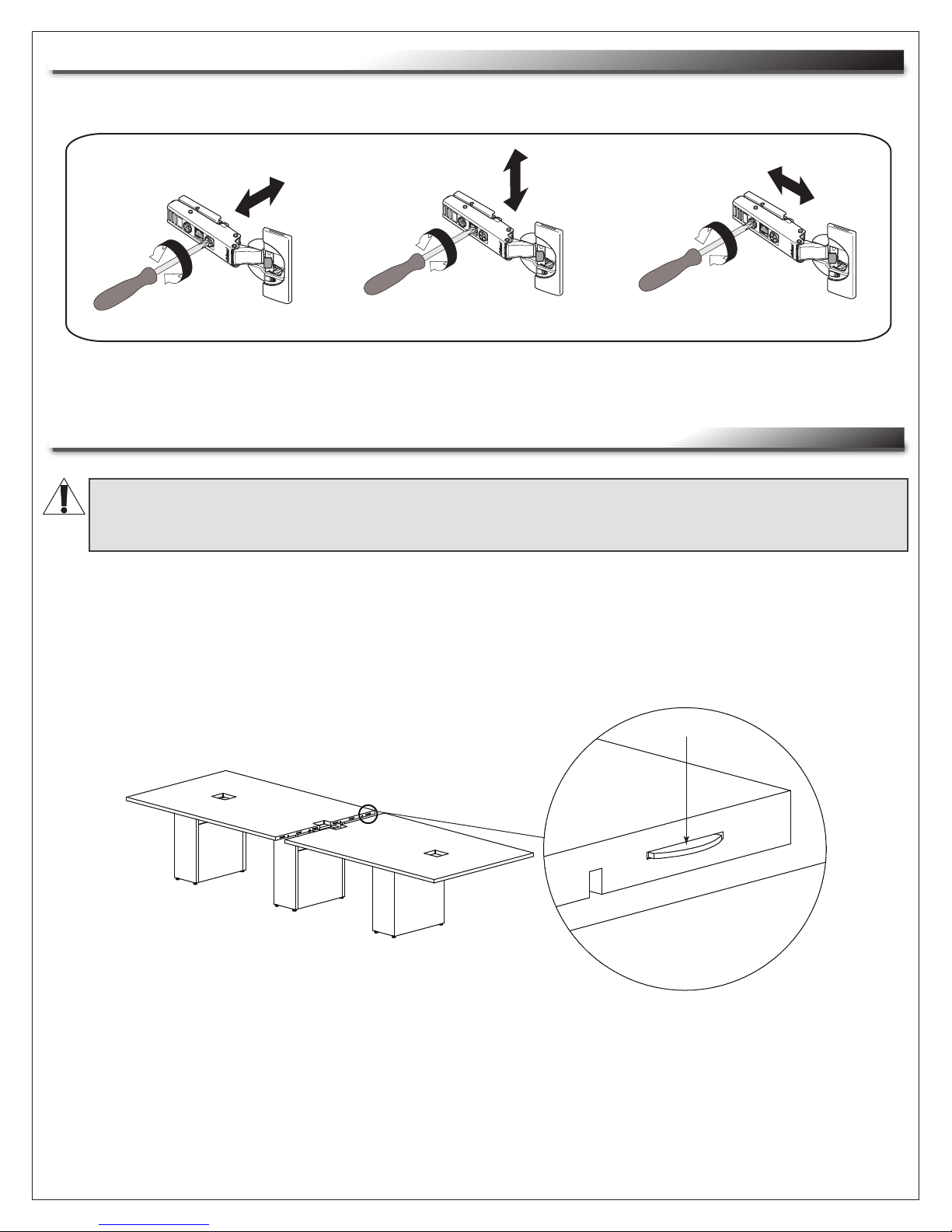

ADJUSTING PEDESTAL BASE DOOR (IF NECESSARY)
FIGURE AC
• If necessary, use screwdriver to adjust door hinges as shown. (FIGURE AC)
Side Adjustment Depth AdjustmentHeight Adjustment
Page 20
JOINING TABLETOP HALVES (2-PIECE TABLETOP MODELS ONLY)
FIGURE AD
H
NOTE: To protect the wood finish from scratching, do not place any parts or tools on the unprotected
tabletop surface during assembly. For wood kit care and cleaning, refer to I-00788.
1. Place tabletops (D) on the leveled base assembly and gently slide tops together inserting (6x) wood
biscuits (H) into slots for alignment. (FIGURE AD)
CAUTION: At least two people are required for pedestal, trough, and tabletop procedures.
ATTENTION: Au moins deux personnes sont requises pour les procédures de piédestal, de
quille et de table.
