Miele SE 247 User manual

Operating instructions
for hob control unit SE 247
It is essential to read these
operating instructions before Q\}
installing or using the machine,
to avoid the risk of accident,
or damage to the machine. M.-Nr. 04 697 770

Contents
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Safety feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation
– Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Maintenance
Cleaning and care
– Appliance front, controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
– Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Preparation for use
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installation
– Installation in a base unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Please consult the operating instructions supplied with the hob for details on
its use and installation.

Description of the appliance
SE 2 7
bDisplay area and timer push buttons, – /+ push buttons with indicator lights
cCooking zone control: front left
dCooking zone control: back left
eCooking zone control: back right
fCooking zone control: front right
Data plate
When the control unit has been built in the data plate can not be seen.
A further data plate is supplied with this appliance. Please stick this into the
booklet in the frame in the section “After sales service”.
3

Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials
which are environmentally friendly for
disposal and can normally be recycled.
Rather than just throwing these ma-
terials away, please ensure they are of-
fered for recycling.
Disposal of your old
machine / appliance
Old machines / appliances contain ma-
terials which can be reclaimed or re-
cycled. Please contact your dealer,
your waste collection centre or scrap
merchant about potential recycling
schemes.
Ensure that the machine / appliance
presents no danger to children while
being stored for disposal.
See the appropriate section in the
Warning and Safety instructions.
4

Warning and Safety instructions
This appliance complies with all
relevant legal safety requirements.
Improper use of the appliance can,
however, present a risk of both per-
sonal injury and material damage.
Before installation and before using
the appliance for the first time, read
the operating instructions carefully.
They contain important notes on
safety, on the operation and care of
the appliance. This way you will
avoid the risk of accidents and dam-
age to the appliance.
Keep these instructions in a safe
place and pass them on to any fu-
ture user.
Do not let children access the ap-
pliance or its controls. Supervise its
use by the elderly or infirm.
Correct usage
The control unit is intended to be
used in combination with a Miele
hob / cooktop. Any other usage is at
the owner’s risk and could be dan-
gerous. The manufacturer cannot be
held responsible for damage caused
by improper use of the appliance.
Technical safety
Before connecting the appliance
to the mains supply make sure that
the connection data given on the data
plate correspond to those of the mains
supply. It is essential that these data
match, to avoid any damage to the ap-
pliance. Consult a competent person if
in doubt.
The electrical safety of this ap-
pliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system, which complies with local and
national regulations. It is most import-
ant that this basic safety requirement is
tested by a qualified electrician. The
manufacturer cannot be held respon-
sible for the consequences of an inade-
quate earthing system.
This appliance must only be oper-
ated as a built-in appliance. This is
necessary to ensure that all electrical
components are shielded.
Never open the casing of the ap-
pliance.
Tampering with electrical connections
or components and mechanical parts
is highly dangerous to the user and
can cause operational faults.
5

Warning and Safety instructions
Installation work and repairs may
only be carried out by suitably
qualified and competent persons to en-
sure safety. Repairs and other work by
unqualified persons could be dan-
gerous.
The appliance is only completely
isolated from the electricity supply
when:
– it is switched off at the wall socket,
or isolator,
– or the mains fuse is withdrawn,
– or the screw-out fuse is removed
(in countries where this is applic-
able).
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance.
In countries which may be subject
to infestation by cockroaches or
other vermin, pay particular attention to
keeping the appliance and its surround-
ings in a clean condition at all times.
Any damage which might be caused
by cockroaches or other vermin will not
be covered by the appliance guaran-
tee.
Disposal of a discarded
appliance
Before discarding an old ap-
pliance / machine switch off and
disconnect it from the power supply.
Disconnection of an isolator should
only be undertaken by a competent
person. Cut off and render any plug
useless. Cut off the cable directly be-
hind the appliance / machine to pre-
vent misuse.
The manufacturer cannot be held
liable for damage caused by non-
compliance with safety instructions.
6

Timer use
The timer can:
– show the time of day,
– switch the hob front cooking zones
off, or on and off automatically, inde-
pendently of each other.
Push buttons
With the push buttons you can:
– enter the time of day.
– enter the start of a cooking process.
– enter the duration of a cooking pro-
cess.
– enter the end of a cooking process.
A corresponding symbol for each push
button appears in the display when ap-
propriate.
The Symbol lights up when hob zone
control switched on and the relevant
button pressed in.
7

Timer use
All data input or alteration is done with
the – /+ button .
Changes to the start, duration or end of
cooking time, or time of day are ef-
fected in 1 minute steps.
To enter the time:
Press the required button.
The – /+ push button indictator light
comes on.
Enter the time immediately with the
– /+ button.
While the indicator light at the centre of
the – /+ button is lit up, a time can be
entered or altered.
This can be done by pressing the – /+
button or any other button.
When the indicator light goes out the
data input or alteration has been regis-
tered.
A symbol in the timer display shows
which cooking zone is being pro-
grammed:
“*”the front left cooking zone
“#”the front right cooking zone
“t”both front cooking zones.
8

Before using for the first time
Timer
After the appliance has been switched
on “12:00” and the symbols “f” and
“)” flash in the display.
Setting the time of day
(24 hour display)
Press the buttons “f” and “)” at
the same time.
“12:00” and the indicator light for the
– /+ button now stay on without flash-
ing.
Use the – /+ button to enter the time
of day in hours : minutes.
An entry can be made while the indica-
tor light for the – /+ button is on.
When the indicator light for the – /+
button goes out, the time of day has
been set and the clock display change-
s at one minute intervals. The colon
flashes.
9

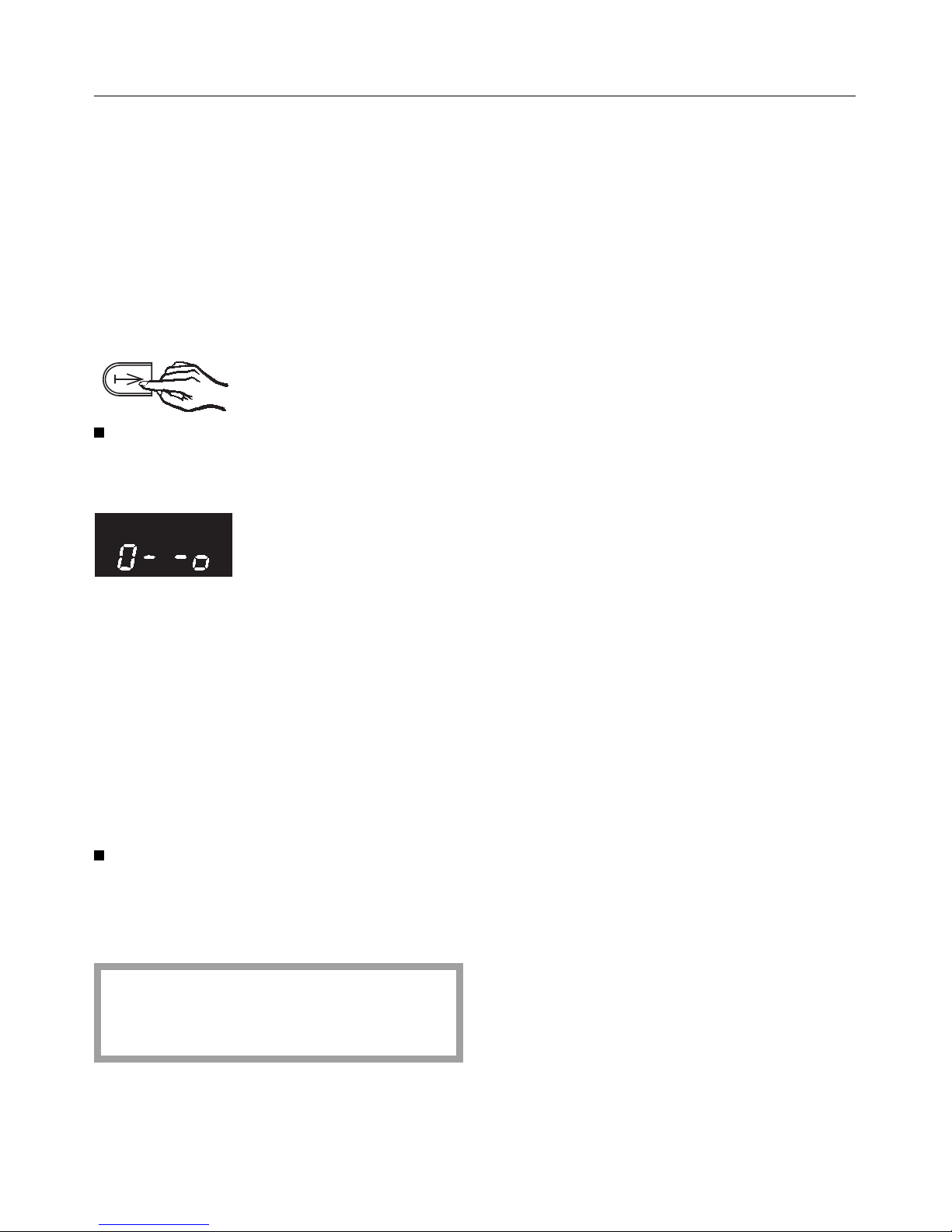

Safety feature
Operating lock for the hob
cooking zones
The operating lock can be activated to
prevent the hob being switched on un-
intentionally, by children for example.
The operating lock is activated as fol-
lows:
Press the “f” button until the key
symbol appears in the display area.
The cooking zones can now not be
switched on.
After a short time the time of day reap-
pears in the display area. However, the
key symbol will appear as soon as a
button is pressed.
To cancel the operating lock:
Press the “f” button until the key
symbol in the display area disap-
pears.
After an interruption to the power
supply the operating lock must be
reactivated.
10

Timer use
Time of day - 2 hour display
When the colon in the time display
– flashes:
Once the time has been entered it
proceeds in minute intervals.
– is on constantly:
Time of day has been halted and
can be entered or altered.
When the appliance is first con-
nected to the power supply, or after a
power cut “12:00” and the symbols
“f” and “)” flash in the display.
If a process has been pre-pro-
grammed, the time of day can not
be altered or cancelled.
To alter the time of day
Press the buttons “f” and “)” at
the same time.
“12:00” will show constantly in the dis-
play.
Using the – /+ button enter the time
of day in hours : minutes.
To cancel the time of day
Press the “f” and “)” buttons
twice in succession.
The time of day continues to run un-
seen.
To bring back the visible time display
Press the “f” and “)” buttons
together once.
11

Timer use
Programming cooking time
With the timer it is possible for both the
front hob cooking zones to be switched
off automatically, or set to come on at a
later time and then also be switched off.
A symbol in the display shows which
hob zone is being programmed:
*= front left zone
#= front right zone
t= both front zones
Turn the hob zone control to the set-
ting required.
The corresponding symbol will flash for
a short time.
Enter the times for the automatic pro-
cess.
When a cooking process has been
pre-selected the hob zone symbol
flashes next to the time of day display.
When the process starts running ,
the symbol for the chosen hob zone
lights up next to the time of day.
When the end of cooking time is
reached
– the hob switches off automatically.
– an audible tone sounds for approx.
5 seconds.
– the symbol for the selected hob
zone and the “)” symbol both
flash.
If the audible tone is not switched off,
as described earlier, it will repeat at 5
minute intervals as a reminder that the
end time has been reached. This re-
minder continues for up to an hour.
Both the audible tone and the visual
display can be cancelled by:
– Turning the hob zone control to “0”.
– Pressing the “)” button.
12

Timer use
To end a cooking time auto-
matically
Turn the hob zone control to the re-
quired setting.
The hob zone comes on.
Press the “g” button.
The hob zone switches off and “0:00”
appears in the display area.
With the + button enter the required
time in hours : minutes.
(1 min. – 23 hrs. 59 mins.)
The cooking process begins as soon
as the – /+ indicator light goes out.
The end of cooking time is automati-
cally calculated from the time entered.
Postponing the start of a cook-
ing process
The start of a cooking process can be
delayed, by postponing either the end
or the start of cooking time.
Postponing the end of cooking time
Turn the hob zone control to the re-
quired setting.
First enter the cooking time:
Press the “g” button.
“0:00” appears in the display field.
With the + button enter the required
cooking time in hours : minutes.
(1 min – 23 hrs. 59 mins.)
Now postpone the end of cooking time
immediately, while the indicator light
for the – /+ button remains on:
Press the “)” button.
The time of day and the duration of
cooking time entered appear in the dis-
play.
Use the + button to postpone the
end of cooking time.
First the time of day will appear.
Postponing the start of cooking time
Turn the hob zone control to the re-
quired setting.
First enter the start of cooking time:
Press the “f” button.
“0:00” appears in the display.
Use the + button to postpone the
start of cooking time.
First the time of day will appear.
Now enter the cooking time immedi-
ately, while the indicator light for the
– /+ button remains on:
Press the “g” button.
“0:00” appears in the display.
With the + button enter the requried
cooking time in hours : minutes.
(1 min. – 23 hrs. 59 mins.).
If only the start of cooking time is pro-
grammed, the hob zone will come
on straight away without any delay.
Please note the following
In addition to the possibilities outlined
above, the beginning and end or only
the end (of cooking time) can be pro-
grammed in using the relevant buttons.
13

Timer – use
Checking and changing times
entered
It is possible at any time to call up the
times entered. The corresponding but-
ton for the time to be checked or
changed has to be pressed.
If times are programmed for both hob
zones, these can be displayed by
briefly pressing the relevant button:
Press once and the time entered for the
left front cooking zone and the “*” sym-
bol appear.
Press twice and the time entered for
the right front cooking zone and the
“#” symbol appear.
To check
Press the button for the time to be
checked.
“f”
The start time of the cooking process is
displayed. This goes out as soon as
the process begins.
“g”
The display shows the duration of cook-
ing time or the time left if the process
has started.
“)”
The end of the cooking process is dis-
played.
To change
Press the corresponding button.
Use the – /+ button to enter the re-
quired time.
When the indicator light for the
– /+ button goes out, the newly se-
lected time is registered. The time of
day appears in the display.
Please note:
If a button is pressed, where the time
was not entered, but calculated auto-
matically by the system, the time can-
not be altered.
To cancel programmed pro-
cesses
– Turn the cooking zone control to “0”.
– Set the duration to “0:00”.
The cooking zone will remain on if
the control is turned to a setting.
If there is a power cut all programmes
entered will be deleted.
14

Cleaning and care
Appliance front and control
panel
Use a mild cleaning agent or a dash of
detergent in hot water. Wipe dry with a
soft cloth.
Do not use a scouring agent as this
would scratch the surface.
15

Problem solving guide
Repairs to the electrical compo-
nents of this appliance should only
ever be carried out by a competent
person. Unauthorised repairs can
be dangerous.
Some minor problems however can be
dealt with as follows:
What to do if . . .
. . . “12:00” is flashing in the timer
display.
This is not a fault.
There has been an interruption to the
power supply.
When power is restored:
– the time of day must be entered
again,
– and the hob lock re-activated.
16

After sales service
In the event of any fault which you can-
not remedy yourself, please contact
– your Dealer
or
– the nearest authorised Customer Ser-
vice department (address on back
page)
When contacting the Service depart-
ment please quote the model and ser-
ial number of your appliance which are
shown on the data plate.
Please also quote the model and serial
number of your hob.
Space for the data plate for the control
unit / hob.
17

Electrical connection Q\}
All electrical work should be under-
taken by a competent person in
strict accordance with national and
local safety regulations.
Connection of this appliance should be
made via a suitable isolator which com-
plies with national and local regulations
and which is accessible after the ap-
pliance has been built in.
The voltage, rated load and fusing
are given on the data plate. Please en-
sure that these match the household
mains supply.
Please quote these data and the model
and serial number when contacting the
Miele Service dept.
For extra safety it is advisable to install
a residual current device with a trip cur-
rent of 30 mA.
Control unit U.K.
The appliance is supplied with a 3-core
cable for connection to a 230 - 240 volt
50 Hz supply.
Important
The wire are coloured in accordance
with the following code:
Green/yellow = earth
Blue = neutral
Brown = live
WARNING
THIS APPLIANCE MUST BE
EARTHED.
If the connection requires a different
cable, the Miele Service dept must
be consulted.
See the data plate for the maximum
rated load.
Possible combinations
The hob control units may only be com-
bined with one of the hobs listed below,
(not all units are available in every
country).
Hob / Hob elec-
tronic control
unit
KM 240
KM 242
KM 243
KM 245
KM 246
KM 247
KM 248
KSE 202-1
KM 251 KSE 204-1
18

Electrical connection Q\}
\
The fuse rating must be be in accord-
ance to national and local standards.
The appliance is supplied with a 3-core
cable for connection to a 230-240 volt
50 Hz supply.
The wires are coloured in accordance
with the following code:
Green/yellow = earth
Blue = neutral
Brown = live
The fuse rating is 32 amps.
The control unit is fitted with an approx.
1.8 metres long cable.
WARNING
THIS APPLIANCE MUST BE
EARTHED.
If the connection requires a different
cable, the Miele Service dept must
be consulted.
See the data plate for the maximum
rated load.
}
Data relating to electrical connection
will be found on the data plate, located
at the rear of the appliance.
Make sure that these figures comply
with the main voltage.
Connection of this appliance should be
made via a suitable isolator which com-
plies with national and local regulations
The appliance is supplied with a 3-core
cable for connection to a 230-240 volt
50 Hz supply.
The wires are coloured in accordance
with the following code:
Green/yellow = earth
Blue = neutral
Brown = live
The fuse rating is 32 amps.
The control unit is fitted with an approx.
1.8 metres long cable.
WARNING
THIS APPLIANCE MUST BE
EARTHED.
If the connection requires a different
cable, the Miele Service dept must be
consulted.
19

Installation
Control unit and hob
electronic control
Building into a base unit
The control unit must be separated
by a removable shelf from the rest
of the space in the base unit, to
make it inaccessible.
Disconnect the mains electricity
supply to the appliance.
Install the hob.
Before building in the control unit
pull the control knobs out of the
openings in the facia.
Draw out the control unit from the re-
taining plate.
Set the control unit retaining plate
into the cut-out base unit facia.
Fix the retaining plate to the side
edges of the base unit cut-out with 2
screws on each side.
20
