Miracle-Ear EarLINK TV Streamer AV User manual

www.miracle-ear.com
Miracle-EarLINK™
TV Streamer AV
User Manual

Table of Contents
3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Basic Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connecting to Audio Sources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Start/Stop Audio Streaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Assembling the Power Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Regulatory Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

IntroductionIntroduction
54
The 2.4 GHz Miracle-EarLINK™TV Streamer AV is designed to
stream audio from electronic audio sources directly to your 2.4
GHz wireless hearing aids. The Miracle-EarLINK™TV Streamer
AV can be successfully connected to many electronic audio
sources, including televisions, computers, MP3 players, DVD
players and cable boxes.
The Miracle-EarLINK™TV Streamer AV can concurrently stream
audio to an unlimited number of users, allowing them to share
the same listening experience.
Streaming – Audio or sound transmitted wirelessly from the
Miracle-EarLINK™TV Streamer AV directly to your hearing aids
Package Contents
• Miracle-EarLINK™TV Streamer AV
• Power Adapter
• Optical Toslink Cable
• 3.5 mm to RCA cable
• User Manual
Typical Setup
Television
Audio Out

OverviewOverview
76
ABCD

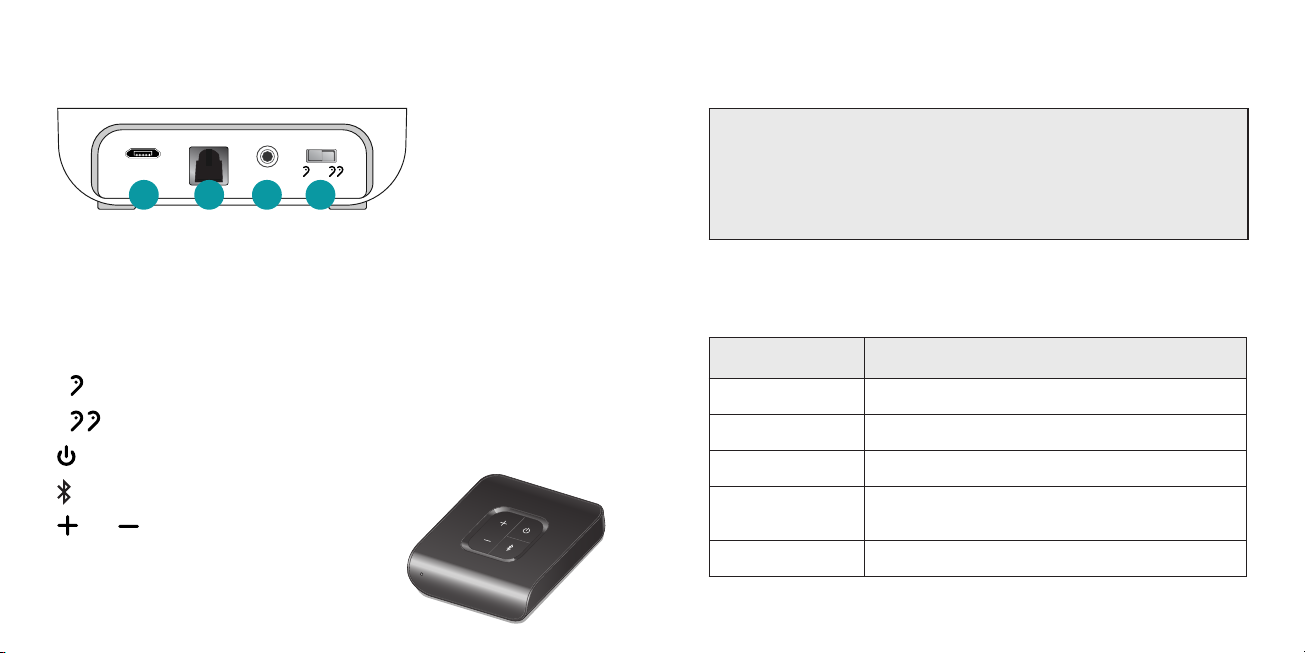

A. Power Supply Jack: A power adapter is provided.
B. Optical TOSLINK Jack: A TOSLINK cable is provided.
C. Analog Jack: 3.5 mm-to-RCA cable is provided.
D. Mono/Stereo Switch
• (MONO) – select if you wear one hearing aid
• (STEREO) – select if you wear two hearing aids
: Powers the Miracle-EarLINK™TV Streamer AV on and off

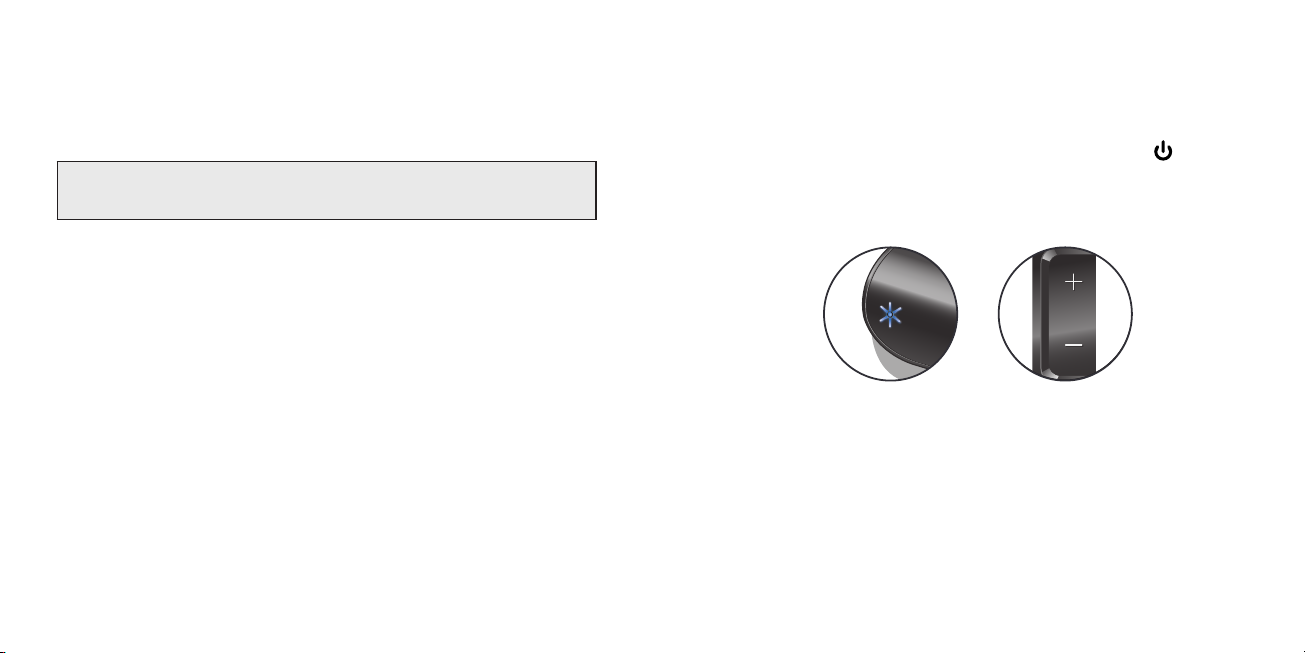

: Pair with hearing aids
and : To increase the audio
stream volume, press the “+”.
To decrease the volume, press the “-“.
Tip: Streaming volume can also be adjusted via the app,
Miracle-EarLINK™Remote AV, and/or hearing aid user controls.
Review your hearing aid User Manual or contact your
Miracle-Ear®Hearing Care Professional for details on your
particular system setup.
LED: Provides helpful information about the Miracle-EarLINK™TV
Streamer AV.
LED CURRENT STATE
Off Power is off
Solid Green Power is on, but not streaming audio
Solid Blue Power is on and streaming audio
Blinking Blue Hearing aid pairing mode is active. For more
details, refer to Pairing section.
Solid Red Possible fault condition

Basic UseBasic Use
98
To quickly start using the Miracle-EarLINK™TV Streamer AV with
a typical setup:

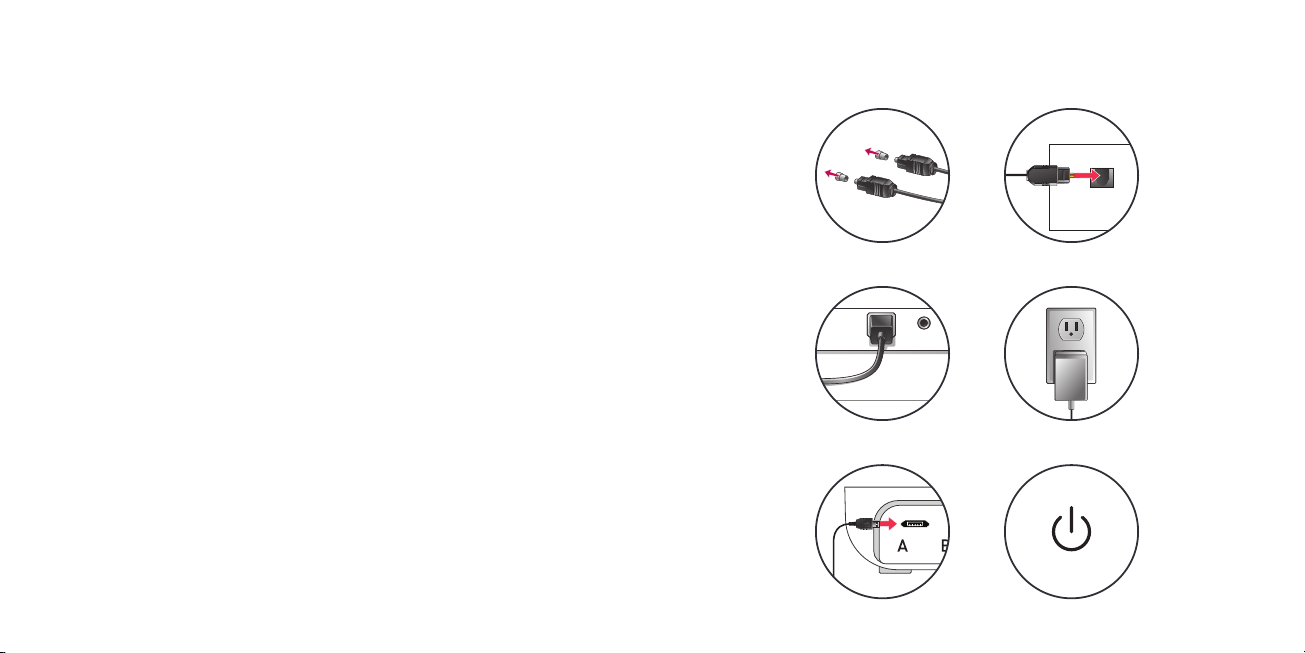

1. Remove the plastic caps from both ends of the TOSLINK cable.
2. Attach a TOSLINK cable into the Audio OUT jack on your
electronic audio source. Power on your electronic audio
source.
NOTE: If there is no TOSLINK audio OUT jack, try a different
electronic audio source or try the 3.5 mm to RCA cable.
3. Attach the other end of TOSLINK cable to the rear of the
Miracle-EarLINK™TV Streamer AV (jack B).
4. Plug the power adapter into the wall socket.
NOTE: If the power adapter does not have the proper plug
configuration, refer to Assembling the Power Adapter section
on page 16.
5. Insert the power adapter microUSB connector into the rear
of the Miracle-EarLINK™TV Streamer AV (jack A).
6. Press the power button on the Miracle-EarLINK™TV Streamer
AV to turn it on. 6
2
4
3
BC
5
Audio Out

Basic UseBasic Use
1110
7. If the front LED glows solid blue, then the Miracle-EarLINK™
TV Streamer AV has detected audio and is streaming.
Tip: If the LED remains solid green, recheck your setup or
review Troubleshooting section.
8. Ensure your hearing aids are powered on.
NOTE: Prior to streaming audio for the first time, your hearing
aids will need to be paired to the Miracle-EarLINK™TV
Streamer AV. Refer to the Pairing section on page 13.
9. To start streaming audio,
• Refer to Start/Stop Audio Streaming section on page 15 for
additional options.
10. Press the +/- button on the Miracle-EarLINK™TV Streamer
AV to adjust the stream volume.
11. To stop streaming, do one of the following:
• Turn off the Miracle-EarLINK™TV Streamer AV ( ).
• Refer to Start/Stop Audio Streaming section on page 15 for
additional options.
710

Pairing
1312
Connecting to Audio Sources
There are different ways to attach an audio source to the
Miracle-EarLINK™TV Streamer AV. Carefully examine an
electronic audio source to determine which AUDIO OUT
options it offers.
For the Miracle-EarLINK™TV Streamer AV to interact with your
hearing aid(s), you must first pair the Miracle-EarLINK™TV Streamer
AV with each hearing aid. You only need to perform this action one
time, as they should automatically recognize each other when both
are powered on and within wireless operating range.*
To pair the Miracle-EarLINK™TV Streamer AV with your hearing aid(s):
1. Ensure your hearing aids are not connected to nearby Bluetooth®
devices. To do this:
• Disable Bluetooth®on your mobile phone.
• Power off any nearby Miracle-EarLINK™TV Streamer AV or
accessories, which you previously paired to your hearing aids.
2. Power off, then power on your hearing aids.
3. Place your hearing aids within 15 cm (6 inches) of the
Miracle-EarLINK™TV Streamer AV.
4. Press the button on the Miracle-EarLINK™TV Streamer AV.
The front LED will begin blinking blue. Audio streaming will be
temporarily stopped during this step.
*Typical operating range is up to 15 meters (~50 feet). Operational range may be reduced by
environmental factors, such as obstructions, interference, and human body positioning. Larger
operational distances are achievable, though audio quality and connectivity may decrease.
Insert cable into the
AUDIO OUT jack on
your electronic audio
source
Attach the other
end of cable to
the rear of the
Miracle-EarLINK™
TV Streamer AV
Optical TOSLINK
Audio Out
Use jack B
BC
Analog RCA to
3.5 mm
Note: Connect the red-to-
red and white-to-white.
Use jack C
BC
Audio Out
Tip: During initial setup, a solid blue LED confirms the audio
cable is properly attached to the Miracle-EarLINK™TV
Streamer AV and audio streaming is active.

Start/Stop Audio Streaming
1514
Pairing
5. For a set of hearing aids:
First LED
Blink Second LED Blink Pairing Result Next Step
Both hearing aids
paired Complete
Only one hearing
aid paired Repeat steps 1 – 5
N/A No hearing aids
paired Repeat steps 1 – 5
6. For a single hearing aids:
LED Blink Pairing Result Next Step
Successful Complete
Unsuccessful Repeat steps 1 − 4 and 6
Audio streaming from the Miracle-EarLINK™TV Streamer AV may
be started (or stopped) in a variety of ways:
• Miracle-EarLINK™Remote AV – If preconfigured by your
Miracle-Ear®Hearing Care Professional, press the Favorite
button ( ).
• Hearing aid user control – If preconfigured by your
Miracle-Ear®Hearing Care Professional, a specific gesture
(e.g., a Long Press on a Push Button) can start/stop streaming.
Audio streaming will also stop when:
• An incoming audio signal is not detected.
• Miracle-EarLINK™TV Streamer AV is turned off.
An audible indicator may play in your hearing aids to signal the
start/stop of audio streaming.

Troubleshooting
17
Assembling the Power Adapter
16
The Miracle-EarLINK™TV Streamer AV may include a variety
of plug configurations for use in different countries. If the power
adapter requires assembly:
1. Select the appropriate plug configuration used in your
country.
2. Slide the plug onto the power adapter until it snaps into
place.
3. To remove the plug, press the tab and slide the plug away
from the cable.
21 3
SYMPTOM POSSIBLE
CAUSES
SOLUTIONS
One (or both)
hearing aids
unexpectedly
drops out of audio
streaming.
Hearing aids may
be on the edge of
wireless range.
Move closer to the
Miracle-EarLINK™TV
Streamer AV
Battery level in
hearing aid can no
longer support audio
streaming.
Replace hearing aid
battery with new one.
The Miracle-EarLINK™
TV Streamer AV may
not be positioned for
optimal streaming.
Re-orient the
Miracle-EarLINK™TV
Streamer AV spatially by
turning a few degrees to
right or left.
Large object, such
as furniture or a wall,
may be degrading
signal.
For best performance,
your hearing aids should
be within line-of-sight of
the Miracle-EarLINK™TV
Streamer AV.

TroubleshootingTroubleshooting
1918
SYMPTOM POSSIBLE
CAUSES
SOLUTIONS
LED is solid blue, but
no streamed sounds
are heard in the
hearing aids.
Hearing aids are not
within wireless range.
Move closer to the
Miracle-EarLINK™TV
Streamer AV.
Audio stream needs
to be manually
started to be heard in
hearing aids.
Manually start the audio
stream via your remote, or
hearing aid user control.
Hearing aids are
not paired with the
Miracle-EarLINK™TV
Streamer AV.
Refer to Pairing section
to associate your
hearing aids with the
Miracle-EarLINK™TV
Streamer AV.
SYMPTOM POSSIBLE
CAUSES
SOLUTIONS
I expect to hear
audio streaming,
but my LED is solid
green.
Audio cable may be
connected to “audio
IN” on electronic
audio source.
Ensure the cable is
plugged into “audio
OUT” jack on the
electronic audio source.
No incoming audio
signal is available.
Turn on the electronic
audio source.
Electronic audio
source output is not
correct format.
Set the digital output on
your electronic audio
source to PCM or Dolby
Audio.

Safety Information
21
Troubleshooting
20
SYMPTOM POSSIBLE
CAUSES
SOLUTIONS
LED is solid red. Possible error
condition.
Remove power adapter
from jack A, wait 5
seconds and reinsert
power adapter.
Streamed audio is
not synchronized
with the television
picture.
Many new televisions
(such as HDTVs)
take a long time
to process the
video signal, so
they may delay the
audio to maintain
synchronization.
• Try using another audio
output jack (which may
require a different type of
cable) on your television.
• Try using another
electronic audio source.
For example, if currently
using cable box, try the
audio OUT on a television
or vice versa.
• Some electronic
audio sources (such
as televisions or A/V
receivers) have a built-in
option to adjust the
timing sequence of audio
and video.
Intended Use
Miracle-EarLINK™TV Streamer AV is an accessory to a wireless air conduction
hearing aid. It is intended as a wireless transmitter of sound from a television or other
electronic audio source directly to an air conduction hearing aid.
The Miracle-EarLINK™TV Streamer AV is designed to operate in public
and residential environments and are designed to comply with international
Electromagnetic Compatibility emissions and immunity standards for medical
devices. However, it is still possible that you may experience interference caused by
power line disturbances, airport metal detectors, electromagnetic fields from other
medical devices, radio signals and electrostatic discharges.
The Miracle-EarLINK™TV Streamer AV is classified as a Type B applied part under
the IEC 60601-1 medical device standard.
If you use other medical devices or wear implantable medical devices such as
defibrillators or pacemakers and are concerned that your Miracle-EarLINK™TV
Streamer AV might cause interference with your medical device, please contact your
physician or the manufacturer of your medical device for information about the risk of
disturbance.
Aircraft Warning: Miracle-EarLINK™TV Streamer AV should not be used on aircraft
unless specifically permitted by the flight personnel.

Safety InformationSafety Information
2322
10% rH
95% rH
-40°C
60°CThe Miracle-EarLINK™TV Streamer AV should be stored
and transported within the temperature and humidity
ranges of -40˚C (-40˚F) to +60˚C (140˚F) and 10%-95%
relative humidity.
0°C
40°C The Miracle-EarLINK™TV Streamer AV is designed to operate
indoors in the range of temperatures from 0˚C (32˚F) to 40˚C (104˚F).
We are required by regulations to provide the following warnings:
WARNING: Use of the Miracle-EarLINK™TV Streamer AV directly next to
other electronic equipment should be avoided because it could result in improper
performance. If such use is necessary, note as to whether your hearing aids and the
other equipment are operating normally.
WARNING: Use of accessories, components or replacement parts other than
those provided by the manufacturer of your Miracle-EarLINK™TV Streamer AV
could result in increased electromagnetic emissions and decreased electromagnetic
immunity and could result in degradation of performance.
WARNING: If Portable Radio Frequency communications equipment is
used closer than 30 cm (12 inches) from your Miracle-EarLINK™TV Streamer AV,
degradation of the performance of your hearing aid could result. If this occurs, move
away from the communications equipment.
Although the Miracle-EarLINK™TV Streamer AV is not formally certified (IP rated)
for protection against dust or water ingress, per IEC 60529, it has been tested to the
IP 5X level. This means that the Miracle-EarLINK™TV Streamer AVV is protected
from dust.
The Miracle-EarLINK™TV Streamer AV does not contain any user-serviceable parts.
Do not open or modify it.
Do not connect the Miracle-EarLINK™TV Streamer AV to any devices not described
in this manual.
The expected service life of the Miracle-EarLINK™TV Streamer AV is 5 years.
Your Miracle-EarLINK™TV Streamer AV is approved to operate at a radio frequency
that is specific to your country or region and might not be approved for use outside
your country or region. Be aware that operation during international travel may cause
interference to other electronic instruments, or other electronic instruments may
cause interference to your Miracle-EarLINK™TV Streamer AV.

Regulatory InformationRegulatory Information
2524
WIRELESS TECHNICAL DESCRIPTION
Miracle-EarLINK™TV Streamer AV operates in the 2.4- 2.4835 GHz band with
a maximum effective radiated power of 21 dBm (North America), 10 dBm (rest
of world) with transmission modulation type of GFSK and 2 MHz bandwidth. The
receiver section of the radio has a bandwidth of 2 MHz.
The Miracle-EarLINK™TV Streamer AV device has been tested to, and has passed,
the following emissions and immunity tests:
• IEC 60601-1-2 radiated and conducted emissions requirements for a Group 1
Class B device as stated in CISPR 11.
• Harmonic distortion and voltage fluctuations affecting the power input source as
stated in Table 2 of IEC 60601-1-2.
• RF radiated immunity at a field level of 10 V/m between 80 MHz and 2.7 GHz as
well as higher field levels from communications devices as stated in Table 9 of
IEC 60601-1-2.
• Immunity to power frequency magnetic fields at a field level of 30 A/m as well as
proximity magnetic fields as defined in table 11 of 60601-1-2.
• Immunity to ESD levels of +/- 8 kV conducted discharge and +/- 15 kV air discharge.
• Immunity to electrical fast transients on the power input at a level of +/- 2 kV at a
100 Hz repetition rate.
• Immunity to surges on the power input of +/- 1 kV line to line.
• Immunity to conducted disturbances induced by RF fields on the power input as
stated in Table 6 of IEC 60601-1-2.
• Immunity to voltage dips and interruptions on the power input as stated in Table 6
of IEC 60601-1-2.
WIRELESS NOTICES
FCC ID: EOA-24TV
IC: 6903A-24TV (Models 800 and 801)
FCC/IC Notice
This device complies with part 15 of the FCC rules and with Industry Canada’s license-
exempt RSS standard(s). Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation of
the device. Users are cautioned that a 20 cm (8 inch) minimum separation distance
must be maintained from the device to insure compliance with FCC and ISED Canada
RF exposure requirements.
NOTE: The manufacturer is not responsible for any radio or TV Streamer interference
caused by unauthorized modifications to this equipment. Such modifications could
void the user’s authority to operate the equipment.

Regulatory InformationRegulatory Information
2726
ALTERNATE Non-ionizing electromagnetic
radiation symbol
This Miracle-EarLINK™TV Streamer AV
produces radio frequency energy. Interference
may occur in the vicinity of equipment marked
with the following symbol.
Class II Device
Waste from electronic equipment must be
handled according to local regulations
Consult User Manual
Keep dry
Manufactured under license from Dolby
Laboratories. Dolby, Dolby Audio, and the
double-D symbol are trademarks of Dolby
Laboratories.
Manufactured for:
Miracle-Ear
150 South Fifth Street, Suite 2300
Minneapolis, MN 55402
Instructions for Disposal of Old Electronics
The below instructions are provided for the benefit of disposal/recycling
personnel. Please include this manual with your device when disposing of
your Miracle-EarLINK™TV Streamer AV.
Miracle Ear encourages, and local community laws may require, that your
Miracle-EarLINK™TV Streamer AV be disposed of via your
local electronics recycling/disposal process.

Regulatory Information
2928
Regulatory Information
Symbol Symbol Meaning Applicable Standard Symbol
Number
Manufacturer symbol – To identify the
manufacturer of a product
Manufacturer BS EN ISO 15223-1:2021 5.1.1
EEA/EU/EC European Authorised
Representative symbol
Authorized representative in
the European Community BS EN ISO 15223-1:2021 5.1.2
Date of manufacture symbol – To indicate the
date on which a product was manufactured
Date of Manufacture BS EN ISO 15223-1:2021 5.1.3
Indicates the manufacturer’s catalogue
number so the medical device can be
identified
Catalogue Number BS EN ISO 15223-1:2021 5.1.6
Serial Number BS EN ISO 15223-1:2021 5.1.7
Medical Device BS EN ISO 15223-1:2021 5.7.7
Keep Dry BS EN ISO 15223-1:2021 5.3.4
Temperature Limit BS EN ISO 15223-1:2021 5.3.7
Humidity Limitation BS EN ISO 15223-1:2021 5.3.8
Caution BS EN ISO 15223-1:2021 5.4.4
General warning sign EC 60601-1, Reference no.
Table D.2, Safety sign 2 ISO 7010-W001
Refer to user manual EC 60601-1, Reference no.
Table D.2, Safety sign 10 ISO 7010-M002
WEEE (Waste Electrical and Electronic
Equipment) Directive symbol
Collect Separately DIRECTIVE 2012/19/EU (WEEE) Annex IX
Class II or double insulated electrical
appliance symbol
Class II equipment IEC 60417
Reference no. Table D.1
Symbol 9 (IEC 60417-
5172)
Symbol Symbol Meaning Applicable Standard Symbol
Number
Direct current IEC 60601-1
Reference no. Table D.1 IEC 60417-5031
Norma Oficial Mexicana logo
NOM Certification symbol Norma Oficial Mexicana N/A
Korea KCC Mark KS A 0062 N/A
Degree of protection IEC 60601-1 (IEC 60529)
Table D.3 Code 2
Recycling Symbol
European Parliament and
Council Directive 94/62/EC Annex I-VII
ALTERNATE Non-ionizing electromagnetic
radiation symbol
Non-ionizing
electromagnetic radiation IEC 60417 7000-5140

www.miracle-ear.com
Miracle-EarLINK™
TV Streamer AV
Manual de instrucciones

3
Tabla de contenido
Introducción . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Visión general . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Uso básico . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Conectar fuentes de audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Emparejamiento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Iniciar/detener transmisión de audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Montar el adaptador de potencia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Solución de problemas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Información sobre seguridad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Avisos sobre normativas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

IntroducciónIntroducción
54
Configuración típica
Televisión
Salida de audio
El Miracle-EarLINK™TV Streamer AV de 2,4GHz ha sido diseñado
para transmitir audio desde fuentes de audio electrónicas
directamente a sus audífonos inalámbricos de 2,4GHz. El
Miracle-EarLINK™TV Streamer AV puede conectarse de forma
satisfactoria a numerosas fuentes de audio electrónicas, como
por ejemplo televisores, computadoras, reproductores de MP3,
reproductores de DVD y cajas de conexiones.
El Miracle-EarLINK™TV Streamer AV puede transmitir audio
simultáneamente a un número ilimitado de usuarios, permitiéndoles
compartir la misma experiencia de escucha.
Transmisión– Audio o sonido transmitido de forma inalámbrica
directamente desde el Miracle-EarLINK™TV Streamer AV a sus
audífonos
Contenido del paquete
• Miracle-EarLINK™TV Streamer AV
• Adaptador de potencia
• Cable Toslink óptico
• Cable de 3,5mm a RCA
• Manual de instrucciones

Visión generalVisión general
76
Consejo: El volumen de transmisión también puede ajustarse a
través de la aplicación móvil, el control Miracle-EarLINK™Remote
AV y/o los controles de usuario de los audífonos. Consulte el
manual de instrucciones de su audífono o póngase en contacto
con su médico clínico para más información sobre la configuración
específica de su sistema.
LED: Proporciona información útil sobre el Miracle-EarLINK™TV
Streamer AV.
LED ESTADO ACTUAL
Apagado Está apagado
Verde fijo Está encendido, pero sin transmisión de audio
Azul fijo Está encendido, con transmisión de audio
Azul parpadeante
El modo de emparejamiento de audífonos
está activo. Para más información, remítase a la
sección Emparejamiento, en la página 13.
Rojo fijo Posible fallo
ABCD
A. Conector de alimentación: Se suministra un adaptador
depotencia.
B. Conector TOSLINK óptico: Se suministra un cable TOSLINK.
C. Conector analógico: Se suministra un cable de 3,5mm a RCA.
D. Interruptor mono/estéreo.
• (MONO)– selecciónelo si lleva un audífono
• (ESTÉREO)– selecciónelo si lleva dosaudífonos
: Enciende y apaga el Miracle-EarLINK™TV Streamer AV
: Emparejar con audífonos
y : Para aumentar el volumen
de la transmisión de audio, pulse “+”.
Para reducir el volumen, pulse “-”.

Uso básicoUso básico
98
6
2
4
3
BC
5
Salida de
audio
Para empezar a usar el Miracle-EarLINK™TV Streamer AV
rápidamente con una configuración típica:
1. Retire los tapones de plástico de ambos extremos del
cableTOSLINK.
2. En su fuente de audio electrónica, acople un extremo del cable
TOSLINK al conector de salida de audio. Encienda su fuente de
audio electrónica.
NOTA: Si no hay conector de salida de audio TOSLINK, pruebe
otra fuente de audio electrónica o pruebe el cable de 3,5mm a
RCA.
3. Acople el otro extremo del cable TOSLINK a la parte trasera del
Miracle-EarLINK™TV Streamer AV (conector B).
4. Enchufe el adaptador de potencia a la toma de corriente.
NOTA: Si el adaptador de potencia no tiene la configuración de
enchufe adecuada, remítase a la sección Montar el adaptador de
potencia, en la página 16.
5. Inserte el conector microUSB del adaptador de potencia en la
parte trasera del Miracle-EarLINK™TV Streamer AV (conectorA).
6. Pulse el botón de encendido del Miracle-EarLINK™TV Streamer
AV para encenderlo.
