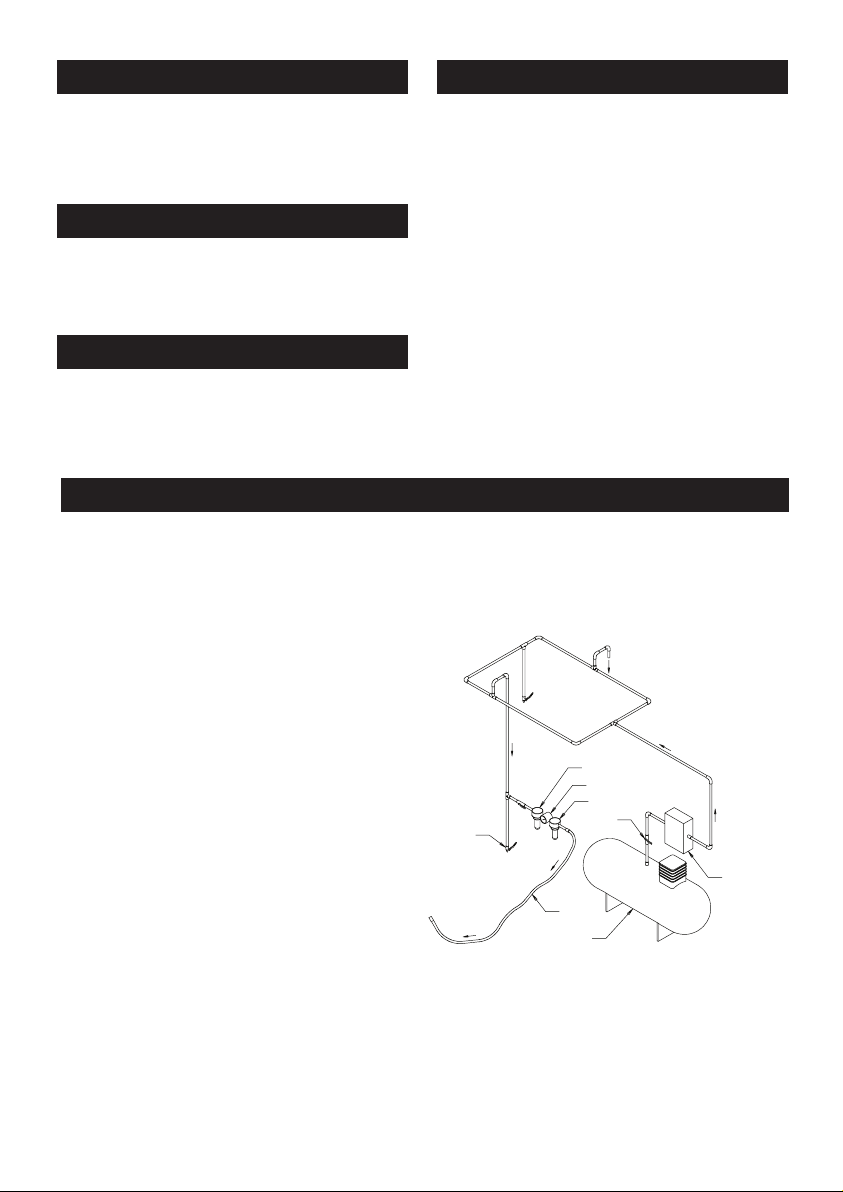

NOTES:
DWG SCALE 1 : 3
1.
ITEMS 59 AND 60 ARE TO BE RETAINED ON THE
2.
BODY OF ITEMS 57 AND 58 USING ITEM 61
REVISION RECORD
R
DESCRIPTION / DATE
A
-ITEMS 32 AND 40 WERE NOT ON
RAG 11/12/04 PWH 11/13/04
B
-ITEM 33's P/N "XPA0768" WAS "XPA0073"
-ITEM 42's P/N "XPA0766" WAS "XPA0347"
-ITEM 44's P/N "XPA0767" WAS "XPA0767"
-ITEM 66's P/N "XPA0769" WAS "XPA0769"
RAG 12/14/04 PWH 12/31/04
C
-ITEM 7 DESC. WAS "...item 8 set)", QTY WAS
5
-ITEM 8 P/N WAS XPA0063, DECS. WAS
"...AND KEY SET"
-ITEM 9 DESC. WAS"...item 8 set)"
-ITEM 27 DESC. WAS "SPACER SET..."
-ITEM 30 P/N XPA0288 DESC. WAS "2 1/2 in.
(65 mm) GRIP"
-ITEM 30 P/N XPA0289 DESC. WAS "2 3/4 in.
(70 mm) GRIP"
-ITEM 30 P/N XPA0290 DESC. WAS "3 in. (75
mm) GRIP (Standard)"
-ITEM 46 WAS STANDARD VACUUM PAD
ITEM 50 P/N WAS XPA0096 DESC. WAS
"MUFFLER ASSEMBLY (Spare Parts Set)"
RAG 03/07/05 PWH 03/14/05
D
-ITEM 69 WAS NOT ON
-TORQUE SETTINGS WERE NOT MOVED TO
TABLE
-TORQUE SETTINGS FOR ITEMS 33, 42, 44,
45, AND 66 WERE NOT ON
RAG 06/21/05 PWH 06/24/05
E
-ITEM 62 WAS STANDARD
-ITEM 64 WAS OPTIONAL
-ITEM 67 P/N WAS XPA0468
RAG 08/02/05 PWH 11/11/05
F
-DRAWING WAS NOT IN SOLIDWORKS
-DRAWING WAS NOT IN NEW PARTS PAGE
FORMAT WITH REPLACEMENT SETS
REMOVED AND LISTED SEPARATELY IN
MANUALS.
-ITEMS AFTER 4 WERE NOT RENUMBERED
-ITEMS WERE NOT STANDARD
SOLIDWORKS TITLES
-PART NO XPA0004, XPA0081, XPA0098,
XPA0465, XPA0801, XPA0805 WERE NOT
REMOVED
-PART NO XPA0079, XPA0080, XPA0464,
XPA0778, XPA00854, XPA0856, XPA0931,
XPAB0005 WERE NOT ON
-CV AND SGV HOSES WERE NOT SHOWN
AS SEPARATE ITEMS.
-TORQUE SETTINGS WERE NO UPDATED
TO CURRENT STANDARD VALUES WHERE
NEEDED.
-DWG TITLE WAS "MIRKA 3 in. X 4 in.
ORBITAL SANDER PARTS PAGE W/ SCREW
ON PAD MOUNT
MJW 09/04/06 PWH 09/08/06
G
-ITEM 27: XPA1697 WAS XPA0744
-ITEM 71 WAS NOT ON
RAG 11/05/10 PWH 11/08/10
H
-ITEM 72 WAS NOT ON
MCC 02/24/11 FNK 02/24/11
I
-ITEM 63 : XPA0200-Z WAS NOT ON
MCC 11/02/15 KVN 11/02/15
IT P/N
DESCRIPTION
QTY
1 XPA0040
EXTERNAL RETAINING RING
1
2 XPA0021
10 X 26 X 8 BEARING - 2 SHIELDS
1
3 XPB0017
REAR ENDPLATE
1
4 XPA0042
5 mm x 2.0 mm O-RING
1
5 XPA0005
20 mm CYLINDER ASSEMBLY
1
6 XPB0005
MACHINED ROTOR
1
7 XPA0010
VANE
5
8 XPA0041
3 mm x 13 mm WOODRUFF KEY
1
9 XPB0016
FRONT ENDPLATE
1
10 XPA0019
12 X 28 X 8 BEARING - 2 SHIELDS
1
11 XPA0045
39.4 mm x 3.1 mm O-RING
1
12 XPA0001
LOCK RING
1
13 XPB0102
3 x 4 in. - 1/8 in. ORBIT OS AirSHIELD™ PLUS SHAFT BALANCER (screw on pad)
1
14 XPA0122
FILTER
1
15 XPA0121
DUCKBILL CHECK VALVE
1
16 XPA0120
VALVE RETAINER
1
17 XPA0107
.394 in. (10.0 mm) RETAINING RING
1
18 XPA0162
10 x 22 x 6 BEARING - NO SEAL/SHIELDS
1
19 XPA0196
SPACER, 22.0 x 18.0 x 0.1
1
20 XPA0161
10 x 22 x 6 BEARING - 1 SEAL
1
21 XPA0108
SHIM, 10.1 ID x 14.0 OD x 0.2 THK
1
22 XPA0126
BELLEVILLE WASHER 12.1 ID x 22.4 OD x 1.86 HT
1
23 XPA0177
22.2 mm RETAINING RING
1
24 XPA0163
SPINDLE ASSEMBLY
1
25 XPA0080
SPACER 6.5 ID x 20.0 OD x 0.4 THK
1
26 XPA0079
SPACER 6.5 ID x 20.0 OD x 0.2 THK
OPT
27 XPA1697
THROTTLE LEVER FOR MIRKA 10,000 OPM 3.0 mm (1/8 in.) ORBIT SANDERS
1
28 XPA0031 LEVER SPRING PIN 1
29 XPA0288
GRIP, 2 1/2 in. YELLOW PMS 123 C
OPT
29 XPA0289
GRIP, 2 3/4 in YELLOW PMS 123 C
OPT
29 XPA0290
GRIP, 3 in. YELLOW PMS 123 C
1
30 XPA0015
VALVE SLEEVE
1
31 XPA0768
HEX SOCKET BUTTON HEAD MACHINE SCREW M4 x 12
4
32 XPA0076
M4 WASHER 4.3 ID x 9 OD x 0.8 THK
4
33 XPA0743
HOUSING FOR MIRKA 3 in. x 4 in. ORBITAL SANDER, MACHINED
1
34
XPC0162
3 in. x 4 in. (75 mm x 110 mm) SHROUD SEAL
1
35 XPA0008
VALVE STEM ASSEMBLY
1
36 XPA0043
9 mm x 1.5 mm O-RING
1
37 XPB0014
SPEED CONTROL
1
38 XPA0039
INTERNAL RETAINING RING
1
39
XPC0018
MINI PAD SUPPORT ASSEMBLY
2
40 XPA0766
HEX SOCKET COUNTERSUNK HEAD MACHINE SCREW M4 x 6
4
41 XPB0101
MACHINED 3 in x 4 in PAD BACKING FOR FASTENER MOUNTED PADS
1
42 XPA0767
HEX SOCKET COUNTERSUNK HEAD MACHINE SCREW M4 x 10
4
43 XPA0078
SOCKET FLAT COUNTER SUNK MACHINE SCREW M6 x 14
1
44
NA
3 in. x 4in. PAD
1
45 XPA0864 2.5 mm HEX WRENCH 1
46 XPA0032
MUFFLER INSERT (for 10,000 RPM Machines)
2
47 XPA0038
MUFFLER PLATE
1
48 XPA0166
MUFFLER HOUSING
1
49 XPA0009 VALVE SEAT 1
50 XPA0007 VALVE 1
51 XPA0014 VALVE SPRING 1
52 XPA0013
1/4-18 NPT INLET BUSHING ASSEMBLY
1
53 XPB0069
SNAP-IN VAC COVER PLATE
1
54
XPC0017
SNAP-IN EXHAUST ADAPTER
1
55 XPA0722
10,000 RPM SVG RETAINER
1
56 XPA0044
14.0 x 1.5 O-RING
2
57 XPA0410
ASSEMBLY FOR 1 in/28 mm HOSE SuperVAC SGV SWIVEL EXHAUST FITTING
1
58 XPA0409
ASSEMBLY FOR 3/4 in./19 mm HOSE SuperVAC SWIVEL EXHAUST FITTING
OPT
59 XPA0778
1 in./28 mm HOSE SEAL
1
60 XPA0854
3/4 in./19 mm HOSE SEAL
OPT
61 XPA0856
MIRKA 3/4 in./19 mm HOSE SEAL TAG W/INSTRUCTION
OPT
61 XPA0931
MIRKA 1 in./28 mm HOSE SEAL TAG W/INSTRUCTION
1
62 XPA0412
Ø 1 in. VAC HOSE TO DOUBLE BAG FITTING AND AIRLINE ASSY
1
62 XPA0411
Ø3/4 in. VAC HOSE TO DOUBLE BAG FITTING AND AIRLINE ASSY
1
63
XPA0200-Z
MIRKA VAC HOSE AND ADAPTER ASSY
1
63 XPA0300
Ø3/4 in. VAC HOSE TO Ø3/4 in. x 1 in./28 mm ADAPTER COUPLING AND AIRLINE ASSM
OPT
64 XPA0298
OS SuperVAC 3/4 in CV SWIVEL EXHAUST ASSEMBLY
1
65 XPA0092
1 in/28 mm OS SuperVAC CV SWIVEL EXHAUST ASSEMBLY
1
66 XPA0048
M5 x 0.8 FLANGED NUT
1
67 XPA0047
M5 WASHER
1
68 XPA0769
HEX SOCKET BUTTON HEAD MACHINE SCREW M5 x 10
1
69
XPC0110
VACUUM BAG
1
70 XPA0464
INSERT FOR MIRKA VACUUM BAG
1
71 XPA2541
FRONT BEARING DUST SHIELD
1
72 XPA2543
SPINDLE BEARING DUST SHIELD 3/32" ORBIT
1
