Mitsubishi Electric AJ65BT-RPI-10A User manual

User’s Manual
(Hardware)
AJ65BT-RPI-10A/
AJ65BT-RPI-10B
Thank you for purchasing the programmable controller MELSEC
series.
© 1999 MITSUBISHI ELECTRIC CORPORATION
CC-Link System Space Optical
Repeater Module
Prior to use, please read this and relevant manuals thoroughly to
fully understand the product.
MODEL AJ65BT-RPI-10AB-U
MODEL
CODE 13JQ86
IB(NA)-0800090-K(1806)MEE

A-1
SAFETY PRECAUTIONS
(Read these precautions before using this product.)
Before using this product, please read this manual and the relevant manuals
carefully and pay full attention to safety to handle the product correctly.
The precautions given in this manual are concerned with this product only. For the
safety precautions of the programmable controller system, refer to the user's
manual for the CPU module used.
In this manual, the safety precautions are classified into two levels:
" WARNING" and " CAUTION".
Under some circumstances, failure to observe the precautions given under
" CAUTION" may lead to serious consequences.
Observe the precautions of both levels because they are important for personal
and system safety.
Make sure that the end users read this manual and then keep the manual in a safe
place for future reference.
WARNING
Indicates that incorrect handling may cause
hazardous conditions, resulting in death or severe
injury.
Indicates that incorrect handling may cause
hazardous conditions, resulting in minor or moderate
injury or property damage.
CAUTION

A-2
[Design precautions]
[Installation precautions]
WARNING
●Input/output could be switched on or off when a problem occurs in the
repeater module.
So build an external monitoring circuit that will monitor any input/output
signals that could cause a serious accident.
CAUTION
●Use each module in an environment as specified in the "general
specification" in the CPU module User's Manual.
Usage of the module outside the general specification range may cause
electric shock, fire, malfunction, product damage or deterioration.
●Do not have control cables and communication cables bundled with or
placed near by the main circuit and/or power cables.
Wire those cables at least 100mm(3.94 inch) away from the main circuit
and/or power cables.
It may cause malfunction due to noise interference.
CAUTION
●Do not directly touch the module's conductive parts.
Doing so could cause malfunction or trouble in the module.
●Tighten the module securely using DIN rail or installation screws within the
specified torque range.
Loose terminal screws may cause falling, short circuit or erroneous
operation.
If the terminal screws are too tight, it may cause falling or short circuit due to
damage of the screws.
●When using multiple sets of the AJ65BT-RPI-10A/10B in line, provide shields
between the sets.
Not doing so can cause a malfunction due to interference.
●When using multiple sets of the AJ65BT-RPI-10A/10B in parallel, place the A
and B modules alternatively and keep a distance of at least 1m (3.28ft.).
Not placing them alternately can cause a malfunction due to interference.

A-3
[Wiring Precautions]
WARNING
●Be sure to shut off all phases of the external power supply used by the
system before installation or wiring.
Not doing so can cause the product to be damaged or malfunction.
CAUTION
●Always ground the FG terminal to the protective ground conductor.
Otherwise there will be an electric shock or misoperation.
●Terminal screws which are not to be used must be tightened always.
Otherwise there will be a danger of short circuit against the bare solderless
terminals.
●Use applicable solderless terminals and tighten them with the specified
torque. If any solderless spade terminal is used, it may be disconnected
when the terminal screw comes loose, resulting in failure.
●Perform correct wiring for the module according to the product's rated
voltage and terminal arrangement. Connecting to a power supply different
from the rating or mis-wiring may cause fire and/or trouble.
●Fix terminal screws securely with the specified torque.
Loose terminal screws may cause short circuit or malfunction.
If the terminal screws are too tight, it may cause falling, short circuit or
erroneous operation due to damage of the screws or module.
●Make sure foreign objects do not get inside the module, such as dirt and wire
chips.
It may cause fire, trouble or malfunction.
●Be sure to fix wires or cables that are connected to the module in place,
either by running them through a duct or by using clamps.
If the cables are not fixed in one of these ways, dispersion, movement, or
careless pulling of the cables may cause damage to the module or cables, or
malfunction due to cable contact faults.
●Do not install the control lines together with the communication cables, or
bring them close to each other. Failure to do so may cause malfunctions due
to noise.
●When disconnecting a communication or power supply cable from the
module, do not pull on the cable itself.
Before disconnecting the cable from the terminal block, loosen off the screws
of the terminal block.
If you pull the cable connected to the module, the module or cable can be
damaged or misoperation can occur due to cable connection fault.

A-4
[Startup and Maintenance Precautions]
[Disposal Precautions]
WARNING
●Do not touch terminals when the power is on.
It may cause an electric shock or malfunction.
CAUTION
●For use in any environment where optical axis misalignment or the like is
expected due to lens surface contamination, vibration, impact or the like,
carry out periodic maintenance/inspection and improve the environment.
Not doing so can cause a malfunction.
●Never try to disassemble or modify module.
It may cause trouble, malfunction, injury or fire.
●The module case is made of resin; do not drop it or subject it to strong shock.
Module damage may result.
●Be sure to shut off all phases of the external power supply used by the
system before cleaning or retightening the terminal screws.
Not doing so can cause the module to fail or malfunction.
●Be sure to shut off all phases of the external power supply used by the
system before mounting or dismounting the module to or from the panel.
Not doing so can cause the module to fail or malfunction.
●Do not install/remove the terminal block more then 50 times after the first use
of the product. (IEC 61131-2 compliant)
●Always make sure to touch the grounded metal to discharge the electricity
charged in the body, etc., before touching the module.
Failure to do so may cause a failure or malfunctions of the module.
CAUTION
●When disposing of this product, treat it as industrial waste.

A-5
PRÉCAUTIONS DE SÉCURITÉ
(Lire ces précautions avant toute utilisation du produit.)
Avant d'utiliser ce produit, lire attentivement ce manuel ainsi que les manuels
auxquels il renvoie, et toujours considérer la sécurité comme de la plus haute
importance en manipulant le produit correctement.
Les précautions à observer figurant dans ce manuel ne concernent que ce
produit. Quant aux précautions de sécurité à observer pour le système du
contrôleur programmable, se reporter au manuel d'utilisation du module CPU
utilisé.
Dans ce manuel, les précautions de sécurité sont classées en deux niveaux, à
savoir : " AVERTISSEMENT" et " ATTENTION"
Dans certaines circonstances, le non-respect d'une précaution de sécurité
introduite sous le titre " ATTENTION"peut avoir des conséquences graves.
Les précautions de ces deux niveaux doivent être observées dans leur intégralité
car elles ont trait à la sécurité des personnes et aussi du système.
Veiller à ce que les utilisateurs finaux lisent ce manuel qui doit être conservé
soigneusement à portée de main pour s'y référer autant que de besoin.
AVERTISSEMENT
Attire l'attention sur le fait qu'une négligence peut
créer une situation de danger avec risque de mort
ou de blessures graves.
Attire l'attention sur le fait qu'une négligence peut
créer une situation de danger avec risque de
blessures légères ou de gravité moyennes ou
risque de dégâts matériels.
ATTENTION

A-6
[Précautions lors de la conception]
AVERTISSEMENT
●Les entrées/sorties peuvent se trouver activées ou désactivées par
l'apparition d'un problème dans le module répéteur.
On doit donc constituer un circuit de surveillance externe pour le suivi des
signaux d'entrée/sortie qui pourraient être à l'origine d'accidents ou
d'incidents graves.
ATTENTION
●Utiliser chacun des modules dans un environnement conforme aux
"Spécifications générales" du manuel de l'utilisateur du module CPU.
L'utilisation du module dans un environnement ne respectant pas les
conditions prévues dans les spécifications générales peut entraîner une
électrocution, un départ de feu, des dysfonctionnements et une détérioration
du produit.
●Ne pas grouper ni placer à proximité les câbles de commande ou câbles de
communication avec les câbles des circuits principaux et/ou d'alimentation.
Installer ces câbles à une distance d'au moins 100mm (3,94 pouces) des
câbles des circuits principaux et/ou d'alimentation.
Cela pourrait produire des interférences à l'origine de dysfonctionnements.

A-7
[Précautions d'installation]
[Pécautions de câblage]
ATTENTION
●Éviter tout contact direct avec les parties conductrices du module.
Cela pourrait être à l'origine de dysfonctionnements ou autres problèmes
avec le module.
●Serrer le module fermement avec un rail DIN ou avec des vis de fixation
serrées dans les limites du couple de serrage prescrit.
Des vis de bornes desserrées peuvent tomber et être à l'origine de court-
circuits ou d'un fonctionnement erratique.
Un serrage excessif des vis de borne risque de les endommager ces vis
dont la chute risque de provoquer un court-circuit.
●Lors de l'utilisation de plusieurs ensembles AJ65BT-RPI-10A/10B en ligne,
fournissez des blindages entre les ensembles.
Faute de quoi, des interférences peuvent produire des dysfonctionnements.
●Quand on utilise plusieurs ensembles AJ65BT-RPI-10A/10B en ligne,
disposer en alternance un module A et un module B en maintenant une
distance minimum de 1m (3,28ft.).
Le non-respect de cette disposition en alternance peut produire des
interférences à l'origine de dysfonctionnement.
AVERTISSEMENT
●Avant installation ou câblage, toujours vérifier que les alimentations externes
utilisées par le système ont été coupées sur toutes les phases.
Faute de quoi, il y a risque d'endommagement ou de dysfonctionnement du
produit.

A-8
ATTENTION
●Toujours mettre à la masse la borne FG sur le conducteur de protection de
terre.Autrement, il y aurait risque d'électrocution ou de dysfonctionnement.
●Toutes les vis des bornes inutilisées doivent être serrées.
Autrement, il y aurait risque de court-circuit par contact sur les bornes sans
soudure nues.
●Utiliser des bornes sans soudure de type approprié en les serrant dans les
limites du couple de serrage prescrit. Une borne sans soudure dont la vis se
desserre peut être une source de mauvais contact avec risque de panne.
●Effectuer le câblage du module correctement, en respectant la tension
nominale et l'affectation des bornes du produit. Le raccordement à une
source d'alimentation électrique différente de celle prescrite ou une erreur de
câblage peut être à l'origine d'un départ de feu et/ou d'un
dysfonctionnement.
●Bien serrer les vis de borne au couple de serrage prescrit.
Des vis de bornes desserrées peuvent être à l'origine de court-circuits ou de
dysfonctionnements.
Un serrage excessif peut endommager le module ou les vis qui risquent de
tomber et de provoquer un court-circuit ou un fonctionnement erratique.
●Veiller à ce qu'aucun objet ou impureté, débris de fil ou autres, ne pénètre
dans le module.
Cela peut être à l'origine d'un départ de feu, d'une panne ou d'un
dysfonctionnement.
●Veillez à installer correctement les câbles ou fils connectés au module, soit
en les faisant passer dans un conduit soit en utilisant des colliers de fixation.
Si les câbles ne sont pas fixés d'une façon ou d'une autre, la dispersion ou le
déplacement des câbles ou une traction exercée par inadvertance sur un
câble pourrait endommager le module ou les câbles et créer un mauvais
contact à l'origine de dysfonctionnements.
●Ne pas installer les lignes de commande et les câbles de communication
avec les lignes des circuits principaux ou de l'alimentation, et ne pas les
placer à proximité les uns des autres. Faute de quoi, les bruits parasites
produiront des dysfonctionnements.
●Pour enlever un câble d'alimentation ou de communication du module, ne
pas tirer sur le câble proprement dit.
Avant de débrancher le câble de la plaque à bornes, desserrer les vis de la
plaque à bornes.
Tirer sur un câble raccordé au module peut endommager le module ou le
câble et entraîner des dysfonctionnements par mauvais contact.

A-9
[PRÉCAUTIONS DE MISE EN SERVICE ET DE MAINTENANCE]
[PRÉCAUTIONS DE MISE AU REBUT]
AVERTISSEMENT
●Ne pas toucher aux bornes quand l'appareil est sous tension.
Cela pourrait être à l'origine d'une électrocution ou d'un dysfonctionnement.
ATTENTION
●Pour l'utilisation dans un environnement où la contamination des lentilles, les
vibrations, les chocs, etc. risquent d'entraîner un dérèglement des axes
optiques, effectuer régulièrement les opérations de maintenance/inspection
périodique et apporter des améliorations à l'environnement.
Faute de quoi, il y a risque de dysfonctionnement.
●Ne jamais tenter de démonter ou modifier le module.
Il y aurait risque de panne, dysfonctionnement, blessure ou départ de feu.
●Le boîtier du module est en matière plastique; ne pas faire tomber le module
ou le soumettre à des chocs violents.
Il pourrait en résulter une détérioration du module.
●Ne pas oublier de couper toutes les phases de l'alimentation externe utilisée
par le système avant le nettoyage ou le resserrage des vis de bornes.
Faute de quoi, il y a risque de panne ou de dysfonctionnement du module.
●Ne pas oublier de couper toutes les phases de l'alimentation externe utilisée
par le système avant de mettre le module en place dans le tableau ou de l'en
retirer.
Faute de quoi, il y a risque de panne ou de dysfonctionnement du module.
●Après la première utilisation du produit, le nombre maximum admissible
d'opérations de pose/retrait du bornier est de 50. (selon IEC 61131-2)
●Avant de toucher le module, toujours se décharger de la charge
électrostatique dont le corps est porteur en touchant un objet métallique mis
à la terre.
Faute de quoi, il y a risque de panne ou de dysfonctionnements du module.
ATTENTION
●Lors de sa mise au rebut, ce produit doit être traité comme un déchet
industriel.

A-10
CONDITIONS OF USE FOR THE PRODUCT
(1) Mitsubishi programmable controller ("the PRODUCT") shall be used in
conditions;
i) where any problem, fault or failure occurring in the PRODUCT, if any,
shall not lead to any major or serious accident; and
ii) where the backup and fail-safe function are systematically or
automatically provided outside of the PRODUCT for the case of any
problem, fault or failure occurring in the PRODUCT.
(2) The PRODUCT has been designed and manufactured for the purpose of
being used in general industries.
MITSUBISHI SHALL HAVE NO RESPONSIBILITY OR LIABILITY
(INCLUDING, BUT NOT LIMITED TO ANY AND ALL RESPONSIBILITY
OR LIABILITY BASED ON CONTRACT, WARRANTY, TORT, PRODUCT
LIABILITY) FOR ANY INJURY OR DEATH TO PERSONS OR LOSS OR
DAMAGE TO PROPERTY CAUSED BY the PRODUCT THAT ARE
OPERATED OR USED IN APPLICATION NOT INTENDED OR
EXCLUDED BY INSTRUCTIONS, PRECAUTIONS, OR WARNING
CONTAINED IN MITSUBISHI'S USER, INSTRUCTION AND/OR SAFETY
MANUALS, TECHNICAL BULLETINS AND GUIDELINES FOR the
PRODUCT.
("Prohibited Application")
Prohibited Applications include, but not limited to, the use of the PRODUCT
in;
• Nuclear Power Plants and any other power plants operated by Power
companies, and/or any other cases in which the public could be
affected if any problem or fault occurs in the PRODUCT.
• Railway companies or Public service purposes, and/or any other cases
in which establishment of a special quality assurance system is
required by the Purchaser or End User.
• Aircraft or Aerospace, Medical applications, Train equipment, transport
equipment such as Elevator and Escalator, Incineration and Fuel
devices, Vehicles, Manned transportation, Equipment for Recreation
and Amusement, and Safety devices, handling of Nuclear or
Hazardous Materials or Chemicals, Mining and Drilling, and/or other
applications where there is a significant risk of injury to the public or
property.

A-11
Notwithstanding the above, restrictions Mitsubishi may in its sole discretion,
authorize use of the PRODUCT in one or more of the Prohibited
Applications, provided that the usage of the PRODUCT is limited only for
the specific applications agreed to by Mitsubishi and provided further that
no special quality assurance or fail-safe, redundant or other safety features
which exceed the general specifications of the PRODUCTs are required.
For details, please contact the Mitsubishi representative in your region.

A-12
REVISIONS
*The manual number is given on the bottom right of the cover.
© 1999 MITSUBISHI ELECTRIC CORPORATION
Print date *Manual number Revision
Nov.,1999 IB (NA)-0800090-A First edition
Feb.,2001 IB (NA)-0800090-B
Change specified torque range of Display window
mounting screw from 32 to 5.8N/cm on
Section 4.2.1(1)
Jun.,2003 IB (NA)-0800090-C
SAFETY PRECAUTIONS, About the Manuals,
Chapter 1, Section 1.3, 2.2, 3.1, 3.2, 4.2.1, 4.6
Jul.,2005 IB (NA)-0800090-D
Conformation to the EMC Directive and Low
Voltage Instruction
SAFETY PRECAUTIONS
Dec.,2006 IB (NA)-0800090-E
SAFETY PRECAUTIONS, About the Manuals,
Section 1.3, 2.2, 3.1, 3.2, 3.4, 4.2.1
Jun.,2007 IB (NA)-0800090-F
Section 4.3,Contact address (Back cover)
Aug.,2007 IB (NA)-0800090-G
Section 4.3
Dec.,2011 IB (NA)-0800090-H
CONDITIONS OF USE FOR THE PRODUCT
SAFETY PRECAUTIONS, About the Manuals,
COMPLIANCE WITH EMC AND LOW VOLTAGE
DIRECTIVES, Section 3.1, 4.2.1, 4.5
Jul.,2014 IB (NA)-0800090-I
About the Manuals, Section 1.3, 2.2, 4.3
Dec., 2016 IB (NA)-0800090-J
SAFETY PRECAUTIONS (French)
Section 3.1, 4.2.1, 4.5
Jun.,2018 IB (NA)-0800090-K Descriptions are revised due to compliance with
the Chinese standardized law.
This manual confers no industrial property rights or any rights of any other kind, nor does it
confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any
problems involving industrial property rights which may occur as a result of using the contents
noted in this manual.
Partial correction
Partial correction
Addition
Partial correction
Partial correction
Partial correction
Partial correction
Addition
Partial correction
Partial correction
Addition
Partial correction

A-13
CONTENTS
1. OVERVIEW .................................................................................................... 1
1.1 Features ................................................................................................... 1
1.2 Packaged parts ........................................................................................ 3
1.3 Abbreviated names, generic names and terms ........................................ 4
2. SYSTEM CONFIGURATION.......................................................................... 5
2.1 Total configuration .................................................................................... 5
2.2 Cautions on system configuration ............................................................ 7
3. SPECIFICATIONS........................................................................................ 13
3.1 General specifications ............................................................................ 13
3.2 Performance specifications .................................................................... 15
3.3 Specifications of connection cables ....................................................... 16
3.4 Max. transmission distance .................................................................... 16
3.5 List of I/O Signals from/to the Master Module ........................................ 17
4. PROCEDURE UP TO START OF DATA LINK ........................................... 18
4.1 Procedure up to start of data link ........................................................... 18
4.2 Mounting and installation........................................................................ 19
4.2.1 Cautions on handling ...................................................................... 19
4.2.2 Installation environment .................................................................. 21
4.3 Names and settings of parts................................................................... 21
4.4 Setting of switches ................................................................................. 24
4.5 Connection of module through CC-Link dedicated cable ....................... 26
4.6 Optical axis adjustment .......................................................................... 28
4.6.1 Precautions for optical axis adjustment .......................................... 28
4.6.2 Optical axis adjustment method ...................................................... 29
4.6.3 Adjustment procedures for interference light .................................. 30
4.7 Check for state of connection (line test) ................................................. 32
5. ABOUT THE MONITOR FUNCTION............................................................ 34
6. TROUBLESHOOTING.................................................................................. 35
7. EXTERNAL DIMENSIONS DIAGRAM ......................................................... 36

A-14
ABOUT MANUALS
The following manuals are related to this product.
Referring to this list, please request the necessary manuals.
COMPLIANCE WITH EMC AND LOW VOLTAGE
(1) Method of ensuring compliance
To ensure that Mitsubishi programmable controllers maintain EMC
and Low Voltage Directives when incorporated into other
machinery or equipment, certain measures may be necessary.
Please refer to one of the following manuals.
• User's manual for the CPU module or head module used
• Safety Guidelines (this manual is included with the CPU
module, base unit, or head module)
The CE mark on the side of the programmable controller indicates
compliance with EMC and Low Voltage Directives.
(2) Additional measures
To ensure that this product maintains EMC and Low Voltage
Directives, please refer to one of the manuals listed under (1).
Related Manual
Manual name Manual Number
(Model code)
CC-Link System Master/Local Module Type AJ61BT11/A1SJ61BT11
User's Manual
IB-66721
(13J872)
CC-Link System Master/Local Module Type
AJ61QBT11/A1SJ61QBT11 User's Manual
IB-66722
(13J873)
MELSEC-Q CC-Link System Master/Local Module User's Manual SH-080394E
(13JR64)
MELSEC-L CC-Link System Master/Local Module User’s Manual SH-080895ENG
(13JZ41)
CC-Link System Repeater (T-junction) Module User’s Manual
AJ65SBT-RPT
IB-0800078
(13JQ81)
CC-Link System Optical Repeater Module User's Manual IB-0800089
(13JQ85)
CC-Link System Low Profile Waterproof Type Repeater Hub Module
User’s Manual AJ65FBTA-RPH
IB-0800288
(13JP55)
CC-Link System Spring Clamp Terminal Block Type Repeater Hub
Module User’s Manual AJ65BTS-RPH
IB-0800346
(13JP97)

1
1. OVERVIEW
This User's Manual describes the specifications, part names, settings
and others of the AJ65BT-RPI-10A/10B type CC-Link system space
optical repeater module (hereafter abbreviated to the AJ65BT-RPI-
10A/10B) used in a CC-Link system.
1.1 Features

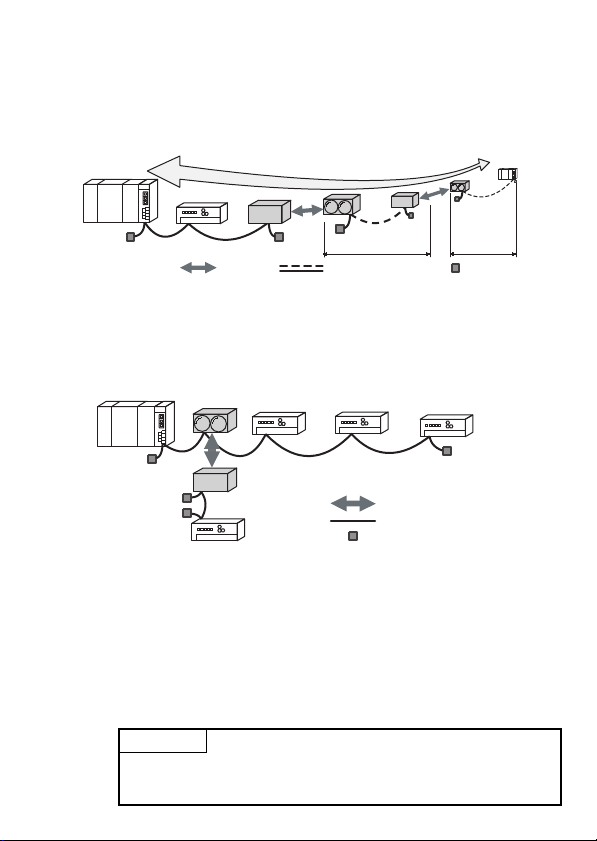

The AJ65BT-RPI-10A/10B is a module used to expand the CC-Link
system.
By using the AJ65BT-RPI-10A and AJ65BT-RPI-10B in combination,
infrared space transmission, increased transmission distance and T-
junction wiring can be achieved in a CC-Link system (at the
transmission speed of 2.5Mbps, 625kbps or 156kbps only).
Also, the optical axis adjustment can be made easily because the light
receiving status of the module can be transmitted to the master station.
(1) Infrared space transmission
Using these modules enables infrared space transmission of 0 to
100m (0 to 327.87ft.).
This makes a CC-Link system usable in places where cabling is
difficult.
[Places where cabling is difficult]
• Place where a movable range is wide
• Place where the number of movable times is large and cables
may be broken due to fatigue
• Place where you want to minimize the number of movable parts,
e.g. cable bearers, for dust proof purpose (such as a clean
room)
Space
transmission CC-Link dedicated cable Termination resistor (required)
Movable
Local station
Remote station
Repeater
Repeater
Master station

2
(2) Increased transmission distance
Using these modules increases the transmission distance of a CC-
Link system.
Also, using multiple sets of these modules allows the transmission
distance to be increased by up to two stages.
(3) T-junction wiring enabled in CC-Link system
T-junction wiring can be performed by arrangement of these
modules between the modules of a CC-Link system.
(4) Communication status of the module can be monitored
The light receiving status of the module can be monitored
(imported to the master station) by setting the station numbers to
these modules and also making the remote I/O station-equivalent
parameter setting in the master station.
Also, the imported receiving status of the mating module can be
indicated by the LEDs of the own module using the sequence
program of the master station, ensuring ease of fine adjustment of
the optical axes.
POINT
Station number and parameter settings are not needed when these modules are
used as repeaters only, i.e. the light receiving status is not monitored (monitor
function is not used).
*2 Though omitted here, another remote station may be connected between repeaters.
*1 Max. transmission distance at the transmission speed setting of 156kbps.
Termination resistor
(required)
CC-Link dedicated cable
Space
transmission
1st stage 2nd stage
Remote
station
*1
Increased up to 3.8km!!
Repeater
*2
*2
Master station
Remote I/O station
Termination resistor (required)
CC-Link dedicated cable
Space transmission
Remote
device station
device station
Remote I/O station
T-junction wiring
enabled!!
Repeater
Intelligent
Repeater
Master station Remote
I/O station

3
1.2 Packaged parts
After unpacking, make sure that those parts listed below are packaged.
(1) AJ65BT-RPI-10A
(2) AJ65BT-RPI-10B
Part name Quantity
AJ65BT-RPI-10A module 1
Terminating resistances 1101/2W (Brown, Brown, Brown) 1
Terminating resistances 1301/2W (Brown, Orange, Brown) 1
Part name Quantity
AJ65BT-RPI-10B module 1
Terminating resistances 1101/2W (Brown, Brown, Brown) 1
Terminating resistances 1301/2W (Brown, Orange, Brown) 1

4
1.3 Abbreviated names, generic names and terms
Abbreviated names, generic names and terms Description
Abbreviated names,
generic names and terms Description
AJ65BT-RPI-10A/10B Abbreviation of AJ65BT-RPI-10A/AJ65BT-RPI-10B type CC-Link
system space optical repeater module
AJ65SBT-RPT Abbreviation of AJ65SBT-RPT type CC-Link system repeater (T-
junction) module.
AJ65SBT-RPS/RPG Abbreviation of AJ65SBTRPS/AJ65SBT-RPG type CC-Link system
optical repeater module.
AJ65FBTA-RPH Abbreviation of AJ65FBTA-RPH type CC-Link system low profile
waterproof type repeater hub module.
AJ65BTS-RPH Abbreviation of AJ65BTS-RPH type CC-Link system spring clamp
terminal block type repeater hub module.
A module Abbreviation of AJ65BT-RPI-10A type CC-Link system space
optical repeater module
B module Abbreviation of AJ65BT-RPI-10B type CC-Link system space
optical repeater module
Segment
System between terminating resistances connected to each other
through cross-over cables.The conventional CC-Link system can
be said to be configured with one segment (Refer to Section 2.1.).
Master station Station to control the data link system. One station is required for
each system.
Local station Station which has a sequencer CPU and can communicate with the
master station and the other local stations.
Remote I/O station Remote station processing only information in unit of bit.
(AJ65BTB1-16D, AJ65SBTB1-16D, AJ65SBTB1-8, etc.)
Remote device station Remote station processing only information in unit of bit and in unit
of word.(AJ65BT-64AD, AJ65BT-64DAV, AJ65BT-64DAI, etc.)
Remote station Generic name of remote I/O station and remote device station.
Controlled by the master station.
Intelligent device station Station allowing transient transmission such as AJ65BT-R2.
(Including local stations)
Repeater Module for expanding the CC-Link system by connecting the
segments to each other.
Ready master station Backup station which inherits data link control when the master
station comes off parallel due to error.
Built-in CC-Link function Abbreviation of built-in CC-Link system master/local functions of the
L26CPU-BT and L26CPU-PBT
Master local module
Generic name of RJ61BT11, QJ61BT11N, QJ61BT11, built-in CC-
Link function, AJ61BT11, A1SJ61BT11, AJ61QBT11, and
A1SJ61QBT11
Master module Generic name of the master local module that is used as a master
station
Local module Generic name of the master local module that is used as a local
station
Remote module Generic name of AJ65BTB1-16D, AJ65SBTB1-16D,
AJ65BT-64AD, AJ65BT-64DAV, AJ65BT-64DAI and A852GOT.
Intelligent device module Module allowing transient transmission such as AJ65BT-R2.

5
2. SYSTEM CONFIGURATION
2.1 Total configuration
The total configuration employed when the AJ65BT-RPI-10A/10B
module is used is as shown below.
*1 The A and B modules must be used in pairs.
*2 The transmission speed of each segment must be matched with that of the
master station (2.5Mbps, 625kbps, 156kbps).
*3 Up to two stages of segments may be used.
[Segment (1st stage)]
device station
Remote I/O station
Termination resistor
(required)
CC-Link dedicated cable
Space
transmission
[Segment (2nd stage)]
(the B or A module)
(the B or A module)
(the A or B module)
Remote I/O
station
Local station
device station
device station
Remote I/O
station
[Segment (1st stage)]
(the B or A module)
(the A or B module)
device station
(the A or B module)
[Segment]
*1
*1
*1
*1
*1
*1
*3
*2
Repeater
Repeater
Repeater
Repeater
RepeaterRepeater
Remote
Intelligent
Intelligent
Remote
Master station
Remote I/O station
Remote I/O
station
