Thank you for buying the Mitsubishi General Use PC MELSEC-A Series.
Before use, please read this manual carefully and correctly operate the module
with a sufficient understanding of the A series PC functions and performance.
Please place this manual in a location where it is available to end u
s
ers.
MODEL A1S64TCRTS1-U-H-E
MODEL
CODE 13JL02
IB-66755-
A (9702) MEE

The United States Mitsubishi Electronics America, Inc., (Industrial Automation Division)
800 Biemann Court, Mt. Prospect, IL 60056.
Phone : [phone]
Canada Mitsubishi Electric Sales Canada, Inc., (Industrial Automation Division)
4299 14th Avenue, Markham, Ontario L3R OJ2
Phone : [phone]
United Kingdom Mitsubishi Electric UK Ltd., (Industrial Sales Division)
Travellers Lane, Hatfield, Herts., AL10 8XB
Phone : [phone]
Germany Mitsubishi Electric Europe GmbH, (Industrial Automation Division)
Gothaer Strasse 8, Postfach 1548, D-4030 Ratingen 1
Phone : [phone]
Taiwan Setsuyo Enterprise Co., Ltd.,
(106) 11th FI., Chung-Ling Bldg., 363, Sec. 2, Fu-Hsing S. Rd., Taipei,
Taiwan. R.O.C.
Phone : [phone]
Hongkong (& China) Ryoden International Ltd., (Industrial & Electrical Controls Division)
10/F., Manulife Tower, 169 Electric Rd., North Point, Hong Kong.
Phone : [phone]
Singapore (& Malaysia) MELCO Sales Singapore Pte. Ltd., (Industrial Division)
307 Alexandra Rd. #05-01/02, Mitsubishi Electric Bldg., Singapore 0315.
Phone : [phone]
Thailand F.A. Tech Co., Ltd.,
1138/33-34 Rama 3 Rd., Yannawa, Bangkok 10120.
Phone : [phone]
Australia Mitsubishi Electric Australia Pty. Ltd., (Industrial Controls Division)
348 Victoria Rd., Rydalm ere, N.S.W. 2116.
Phone : [phone]
Republic of South Africa M.S.A. Manufacturing (Pty) Ltd., (Factory Automation Division)
P.O. Box 39733, Bramley, Johannesburg 2018.
Phone : [phone]
When exported from Japan, this manual does not require application to the
Ministry of International Trade and Industry for service transaction permission.
Printed in Japan Specifications subject to change without notice.
HEAD OFFICE: MITSUBISHI DENKI BLDG MARUNOUCHI TOKYO 100 TELEX: J24532 CABLE MELCO TOKYO
NAGOYA WORKS: 1-14, YADA-MINAMI 5, HIGASHI-KU, NAGOYA, JAPAN

Revisions
* The manual number is noted at the lower left of the back cover.
Print Date *Manual Number Revision
Feb. 1997 IB-66755 First Printing
This manual does not imply guarantee or implementation right for industrial
ownership or implementation of other rights. Mitsubishi Corporation is not
responsible for industrial ownership problems caused by use of the contents
of this manual.
©1997 Mitsubishi Electric Corporation

Table of Contents
SAFETY PRECAUTIONS
About this Manual
1. General Description 1
2. Performance Specification  2

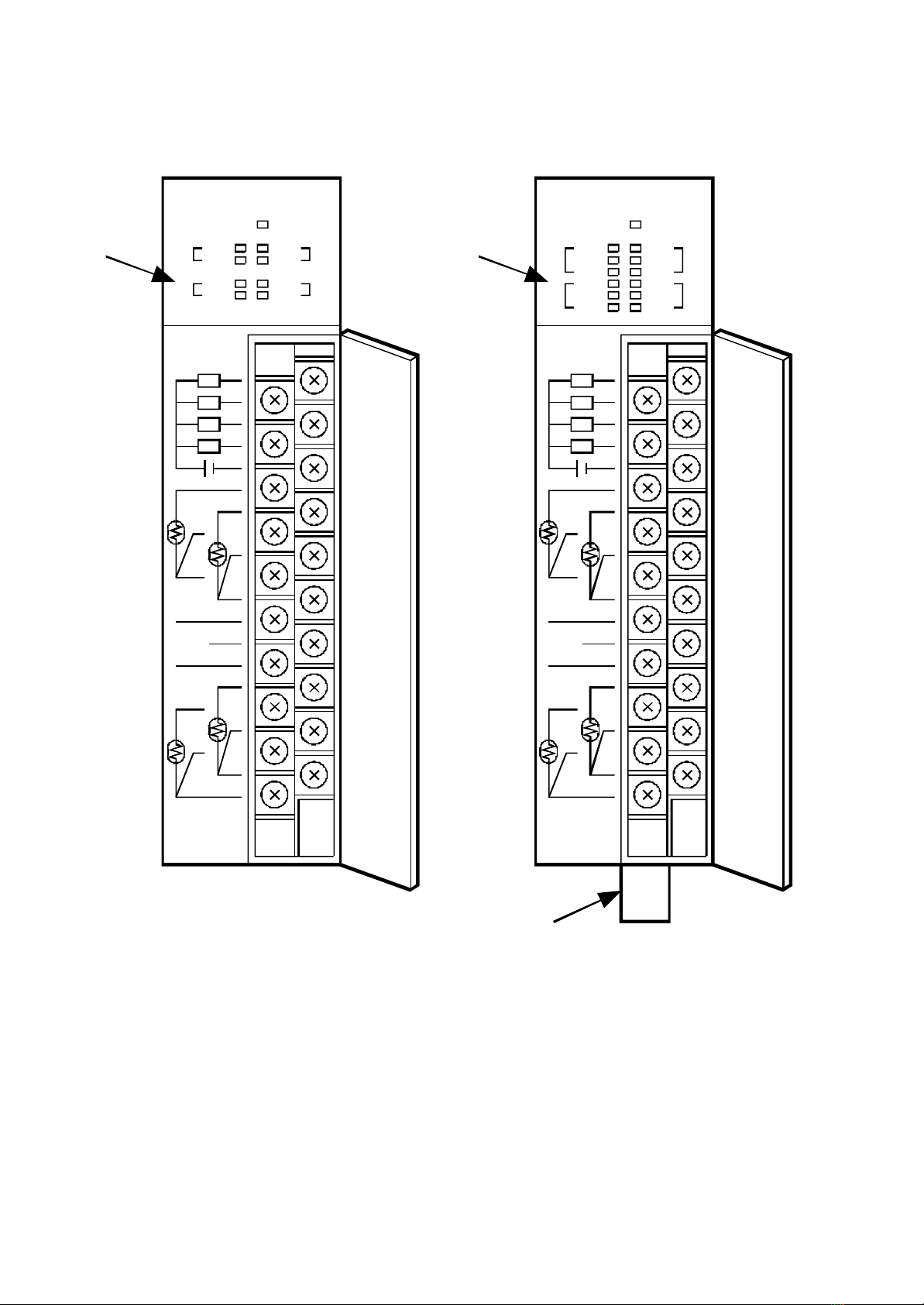

3. Name of Each Part 7
4. Handling  9
4.1 Precaution when handling 9
5. Wiring  10
5.1 Precaution when wiring 10

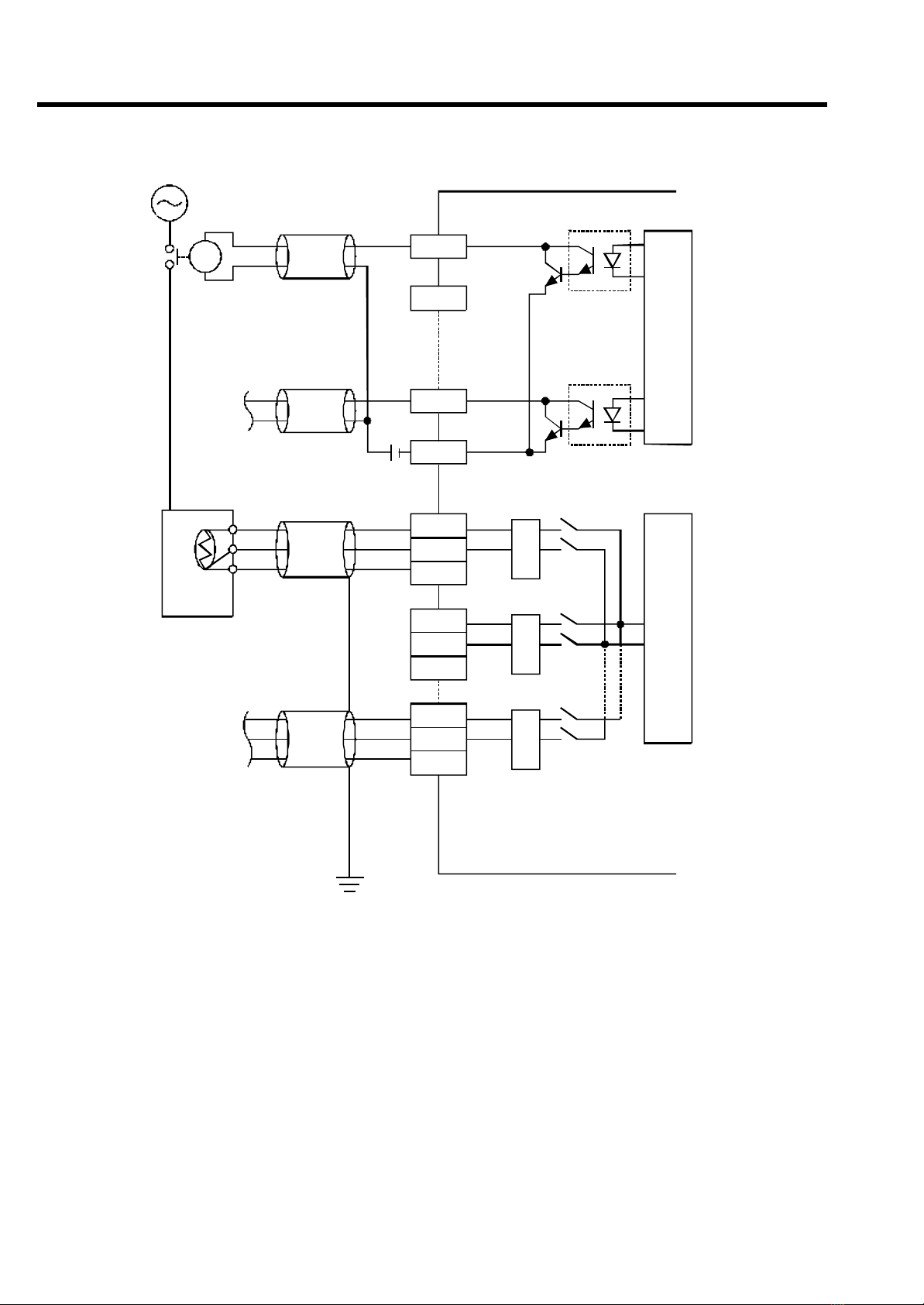

5.2 Module connection example  11
6. External Dimensions  13
6.1 A1S64TCRT-S1 13
6.2 A1S64TCRTBW-S1  14
7. Appendix A-1
Appendix 1. I/O Signal List A-1
Appendix 2. Buffer Memory Allocation  A-2
Appendix 3. Alert Occurrence Details A-6
Appendix 4. Error Code List  A-7
Appendix 5. Troubleshooting A-9
Appendix 5.1 Handling the A1S64TC errors A-9
Appendix 5.2 When the A1S64TC RUN LED flashes or turns OFF  A-10
Appendix 5.3 When the ALM LED is turned ON or flashing A-10
Appendix 5.4 When the temperature adjustment ready flag(X1)
is not turned ON  A-11
Appendix 5.5 When the write data error flag (X2) is ON A-11
Appendix 5.6  When the H/W(hardware) error flag (X3) is ON A-11
Appendix 5.7 When the alert flag (XC to XF) is ON A-11

SAFETY PRECAUTIONS
(Read these precautions before using.)
When using Mitsubishi equipment, thoroughly read this manual and the associated
manuals introduced in this manual. Also pay careful attention to safety and handle
the module properly.
These precautions apply only to Mitsubishi equipment. Refer to the CPU module
user's manual for a description of the PC system safety precautions.
TheseySAFETYPRECAUTIONSyclassify the safety precautions into two categories:
"DANGER" and "CAUTION".
!DANGER
Procedures which may lead to a dangerous condition and
cause death or serious injury if not carried out properly.
#
CAUTION
Procedures which may lead to a dangerous condition and
cause superficial to medium injury, or physical damage
only, if not carried out properly.
Depending on circumstances, procedures indicated by #CAUTION may also be linked
to serious results.
In any case, it is important to follow the directions for usage.
Store this manual in a safe place so that you can take it out and read it whenever
necessary. Always forward it to the end user.

[DESIGN PRECAUTIONS]
!DANGER
l
Configureasafetycircuit external to the PC, so that the entire system operates
safely even if there is an external power error or if the PC is malfunctioning.
(1) The external output are as shown below, depending on the output status
setting in the external-output control setting mode:
Please be careful when performing the setting.
Refer to the Detailed Manual’s Item 3.3.12 about the output status.
(2) Due to malfunction of the output element or its internal circuit, normal output
may not be obtained, or erroneous output may be performed.
For output signals that may cause a severe accident, set an external circuit
to monitor the output.
[DESIGN PRECAUTIONS]
#
CAUTION
l
Do not bundle, or near the control cables and communication cables with the
main circuit and power cables. Keep them at least 100mm (3.94inch) away from
such cables. Noise may cause erroneous operation.

[INSTALLATION PRECAUTIONS]
#
CAUTION
l
Use the PC in the environment given in the general specifications of this manual.
Using the PC outside the range of the general specifications may result in
electric shock, fire or malfunction, or may damage or degrade the module.
l
Insert the tabs at the bottom of the module into the mounting holes in the base
module before installing the module. Tighten the module fixing screws by the
specified torque. Improper installation may result in malfunction, breakdowns
or cause the module to fall out.
l
Do not directly touch the module’s conductive parts or electronic components.
Doing so could cause malfunction or trouble in the module.
[WIRING PRECAUTIONS]
#
CAUTION
l
Be sure to ground the shield wire with a special PC ground of Type III or above.
Not doing so could result in erroneous operation.
l
When wiring in the PC, be sure that it is done correctly by checking the product’s
rated voltage and the terminal layout. Connecting a power supply that is
different from the rating or incorrectly wiring the product could result in short
circuit or damage.
l
Tighten the terminal screws to the specified torque.
Loose terminal screws may cause a short circuit, fire, or erroneous operation.
l
Be sure that cuttings, wire chips, or other foreign matter do not enter the
module.
Foreign matter may start a fire or cause an accident or erroneous operation.

[STARTING AND MAINTENANCE PRECAUTIONS]
!DANGER
l
Do not touch the terminal before all phases of the power supply have been
obstructed from the outside.
It may cause erroneous operation.
l
Make sure all phases of the power supply have been obstructed from the outside
before cleaning the module or retightening the screws. Failure to completely
shut off the all phases of the power supply phases may cause damage to the
module or cause erroneous operation.
#
CAUTION
l
Never disassemble or modify the module. This may cause breakdowns,
malfunction, injury and/or fire.
l
Switch all phases of the external power supply off before mounting or removing
the module. If you do not switch off the external power supply, it will cause
failure or malfunction of the module.
[DISPOSAL PRECAUTIONS]
#
CAUTION
l
When disposing of this product, handle it as industrial waste.

About This Manual
The following product manuals are available. Please use this table as a reference
to request the appropriate manual as necessary.
Detailed Manual
Manual Name Manual No.
(Model Code)
A1S64TCRT-S1 Temperature Control Module
A1S64TCRTBW-S1 Temperature Control Module with Heater
Disconnection Detection Function
User’s Manual
IB-66756
(13JL03)

1
1.General Description
This user’s manual describes the specification, name of each part, wiring, etc.
of the following modules, which can be used with the MELSEC-A series
AnS/QnAS CPU module (abbreviated as PC CPU from here on).
lA1S64TT-S1 Temperature Control Module
(abbreviated as A1S64TCRT-S1 from here on)
lA1S64TCRTBW-S1 Temperature Control Module
(abbreviated as A1S64TCRTBW-S1 from here on)
1. A1S64TCRT-S1
The A1S64TCRT-S1 is a special module that performs temperature
adjustment, which converts the external platinum temperature-measuring
resistor input value to a digital value in 16-bit encoded BIN format and
performs PID operation automatically.
2. A1S64TCRTBW-S1
The A1S64TCRTBW-S1 is a module which enhances the A1S64TCRT-S1
with a function to detect the disconnection of the input power to the
controlling device.
3. Temperature input and control output type
The temperature input type and control output type of each temperature
control module are indicated below:
Model Temperature input type Control output type
A1S64TCRT-S1
A1S64TCRTBW-S1
Platinum tempera-
ture-measuring resistor
(P+100, JPt 100)
Transistor output
4. Parts included in the shipment
Item A1S64TCRT-S1 A1S64TCRTBW-S1
Heater disconnection
detection connector 1 (Pre-installed to the main module)
Abbreviated to
A1S64TC referring
to both mo
dels

2
2.Performance Specification
The A1S64TC performance specification is indicated in Table 2.1.
Table 2.1 A1S64TC performance specification
Specification
Item A1S64TCRT-S1 A1S64TCRTBW-S1
Control output value Transistor output
Temperature input points 4-channel/module
Supported platinum temperature-measuring re-
sistor See Table 2.2.
Specification accuracy
Ambient temperature 23°C ±5°C
: (Set value ±0.3%) ±1 digit
Ambient temperature 0°C ±55°C
: (Set value ±0.7%) ±1 digit
Sampling period
0.5s/4-channel (Sampling period is constant. It
is not connected with the number of channels
used)
Control output period 1 to 100s
Sensor current 0.25mA
Allowable input wire resistor effects Less than 20Ω
Input filter 0 to 100s (0: input filter off)
Sensor compensation value setting -5.00 to 5.00%
Action when sensor input is disconnected Upscale processing
Temperature control method PID on/off pulse or 2-position control
PID constant setting Auto-tuning setting is possible
Proportional section (P) 0.0 to 100.0% (0.0: 2-position control)
Integral time (I) 1 to 3600s
PID constant range
Derivative time (D) 0 to 3600s (0: PI control)
Set value setting range Within the temperature range set by the platinum
temperature-measuring resistor to be used.
Blind section setting range 0.1 to 10.0%

3
Table 2.1 A1S64TC performance specification (continued)
Specification
Item A1S64TCRT-S1 A1S64TCRTBW-S1
Output signal ON/OFF Pulse
Rated load voltage 10.2 to 30VDC
Maximum load current 0.1A/point
0.4A/common
Maximum inrush cur-
rent 0.4A 10ms
Maximum current
when OFF Less than 0.1mA
Maximum voltage drop
when ON
0.1VDC (TYP) 0.1A
2.5VDC (MAX) 0.1A
Transistor output
Response time OFF→ON: Less than 2ms
ON→OFF: Less than 2ms (resistor load)
Insulation method
Between the input and grounding:
transformer insulation
Between the input and channel:
transformer insulation
Current sensor
URD manufactured
current sensor*
CTL-12-S36-8
(0.0 to 100.0A)
CTL-6-P
(0.00 to 20.00A)
Input method Multiplexor method A/D
conversion
Heater disconnection
detection specification
Number of alert delays

3 to 255
I/O occupied points Special 32 points
Connection terminal 20 points terminal block
Supported cable size (mm) [inch] 0.75 to 1.5 (0.030 to 0.059)
Supported solderless terminal R1.25-3, 1.25-YS3, RAV1.25-3, V1.25-YS3A
Internal consumed current (mA) 330 420
Weight (kg) [lb] 0.27 [0.60] 0.30 [0.66]
For the noise resistance, dielectric withstand voltage, and insulation re-
sistance for the PC system which uses this module, refer to the power module
specification found in the CPU Module User’s Manual.

4
Remarks *: The contact phone number of URD, Ltd. is as follows:
India AMTECH ELECTRONICS PVT. LTD.
E-6, GIDC ELECTRONICS ZONE
GANDHINAGAR 382044 INDIA
Tel: [phone] Fax: [phone]
Brazil DP GENCO INDUSTRIA E COMERCIO LTDA.
Alameda Barao de Umeira, 739-sl. 2,
01202-002 Sao Paulo-SP, BRAZIL.
Tel: [phone] Fax: [phone]
America URD AMERICA Inc.
23882 Pipit Court, Laguna Niguel,
CA, 92677, USA
Tel: [phone] Fax: [phone]
Germany ALLIED ELECTRONICS GmbH
Maarweg 231-233 D-50825 Koein, F.R. GERMANY
Tel: [phone] Fax: [phone]
France DILTRONIC S.A.
11, rue Raymond Greban,
F-78100 Saint Germain-en-Laye, FRANCE
Tel: [phone] Fax: [phone]
South Korea JOYANG TRADING CO.
672-6 Daelim 3-Dong.
Youngdeungpo-Gu, Seoul, KOREA.
Tel: [phone] Fax: [phone]
TWINKLE STAR ELECTRIC CO.
Room #605-1, Hyundai Bldg.
175-4, Jongro-Ku, Jongro-3Ka, Seoul, KPREA
Tel: [phone] Fax: [phone]

5
Singapore LEE LABORATORIES PTE., LTD.
21 Moonstone Lane #08-03
Poh Leng Building, SINGAPORE 1232
Tel: [phone] Fax: [phone]
Hong Kong GRANDFIT TRADING LIMITED
Room 1207. East Point Centre.
555 Hennessy Road, Causeway Bay, HONG KONG.
Tel: [phone] Fax: [phone]

6
Table 2.2 The types of supported platinum temperature-measuring resistor
and the measured temperature range
°° C°° FPlatinum
tempera-
ture-measuri
ng resistor
Measured
temperature range
Data
resolution
Measured
temperature range
Data
resolution
-300 to 1100 1
Pt 100 -200.0 to 600.0
-200.0 to 200.0 0.1 -300.0 to 300.0 0.1
-300 to 900 1
JPt 100 -200.0 to 500.0
-200.0 to 200.0 0.1 -300.0 to 300.0 0.1

7
3.Name of Each Part
A1S64TCRT-S1
CH1 CH3
OUT
ALM
OUT
RUN
ALM
CH2 CH4
OUT
ALM
OUT
ALM
L1
L2
L3
L4
+-
B2
b2
A2
B1
b1
A1
B4
b4
A4
B3
b3
A3
NC
NC
NC
A1S64TCRTBW-S1
CH1 CH3
OUT
ALM
OUT
RUN
ALM
BR.W BR.W
CH2 CH4
OUT
ALM
OUT
ALM
BR.W BR.W
L1
L2
L3
L4
+-
B2
b2
A2
B1
b1
A1
B4
b4
A4
B3
b3
A3
NC
NC
NC
1 1
2
A1S64TCRT-S1 A1S64TCRTBW-S1

8
Number Name Description
LED
RUN
A1S64TC operation status display
ON: Normal operation in progress
Flashing (2 sec. ON/2 sec. OFF)
: Write data error
Flashing (1 sec. ON/1 sec. OFF)
: Hardware error
OFF: 5V power shutoff, Watchdog timer error
OUT
Transistor output status display
ON: Transistor output ON
OFF: Transistor output OFF
[A1S64TCRT-S1]
A1S64TCRT-S1
CH1
CH2
CH3
RUN
CH4
OUT
ALM
OUT
ALM
OUT
ALM
OUT
ALM
ALM
Alert alarm status display
ON: Alert alarm is ON.
LAB error.
Flashing: The measured temperature range is
exceeded.
The platinum temperature-measuring
resistor is not connected.
The platinum temperature-measuring
resistor cable is disconnected.
OFF: Disconnection alarm OFF
1
[A1S64TCRTBW-S1]
A1S64TCRTBW-S1
CH1
CH2
CH3
RUN
CH4
OUT
ALM
BR.W
OUT
ALM
BR.W
OUT
ALM
BR.W
OUT
ALM
BR.W
BR.W
Heater disconnection detection status display
ON: Heater disconnection is detected.
OFF: Heater disconnection is not detected.
2 Disconnection detection connector
Connector for current sensor
Disconnection
detection connector
Front
BW1 (for CH1)
BW2 (for CH2)
BW3 (for CH3)
BW4 (for CH4)

9
4.Handling
4.1Precaution when handling
(1)The module case is made of plastic. Be sure not to drop it or subject it
to strong vibration.
(2)Do not remove the module printed circuit boards from the case. It may
cause trouble.
(3)When connecting the wiring, do not allow wire cuttings or other foreign
matter to enter from the top of the module. Remove any foreign matter
from the module.
(4)Tighten the module mounting screws within the following tightening torque
range.
Screw Tightening Torque range
Module mounting screws (M4 screws) 78 to 118N •cm (8 to 12kg •cm)
[6.93 to 10.40lb •inch]
Terminal block terminal screws (M3.5 screws) 59 to 88N •cm (6 to 9kg •cm)
[5.20 to 7.80lb •inch]
Terminal block mounting screws (M4 screws) 78 to 118N •cm (8 to 12kg •cm)
[6.93 to 10.40lb •inch]

10
5.Wiring
The precaution when wiring and the module connection example are shown
below.
5.1Precaution when wiring
In order to have the best result from the A1S64TC functions and to make the
systemhighlyreliable,anexternalcablingwithlow noise effects arenecessary.
The external wiring precautions are shown below:
1. Useseparate cables for thealternatingcurrentand A1S64TC external input
signals to avoid A/C surges and induction effects.
2. Do not bunch the cables with the main circuit, high-voltage cable or load
cables from other than PC, or install them close to each other.
Install the cables far apart from high-frequency circuits, such as the
high-voltage cable and inverter load main circuit, as much as possible.
This increases the noises, surges, and induction.
3. Performa one-point grounding for the shielded line and shields of the seal
and cable at the PC. However, there may be cases when grounding should
be performed externally depending on the noise condition.

11
5.2Module connection example
1. A1S64TCRT-S1
Internalcircuit
Internalcircuit
A1
B1
b1
Filter
A2
B2
b2
Filter
A4
B4
b4
Filter
A
B
B
DC24V
COM-
L1
L2
L4
R
A1S64TCRT-S1
Control
target
