Mitsubishi Electric AH-1006S-E User manual

1
Air Conducting Fan
MODEL
AH-1006S-E
AH-1509S-E
AH-2009S-E
AH-3009S-E
OPERATING AND INSTALLATION INSTRUCTIONS
For users
Carefully read this manual before use for safe and correct operation.
After reading this manual, keep it in a place where any person using the product can refer at anytime.
For dealers
• Carefully read this manual before work for safe and correct installation.
• Installation must be made by the dealer or qualied contractor.
• This product is for indoor use. Do not install the product in a place where it may be exposed to rain.
• After completing installation, be sure to give this manual to the user.
Safety Precautions
• The following symbols denote the type and degree of danger resulting from incorrect handling.
WARNING Incorrect handling could cause serious injury or death.
Prohibited
Do not install the product where
explosive gas or dust is being, or
could be, emitted.
It could induce explosion or re.
No water
exposure
Refrain from immersing in water or
splashing the product with water.
Failure to heed this warning could
result in short circuit or electric shock.
No
disassembly
Do not modify or disassemble the
product.
Failure to heed this warning could
result in re, electric shock or injury.
Do not touch
Do not poke your ngers or any objects
into the air outlet or moving parts during
operation since this is dangerous.
You may injure yourself.
If operation stops while the power
is still switched on, do not touch the
product under any circumstances.
There is a danger that the unit could suddenly
start operating again and cause injury. There
is also a danger of electrical shock.
Check
grounding
Make sure to ground and install an
all-pole isolator securely.
If a malfunction or current leakage
occurs, electric shock could result.
Follow
instructions
Operate the product at the rated
voltage and rated frequency.
Otherwise, re or electric shock could result.
When power supply cable passes through
metal or wire lath in the wall, securely
prevent the cable from contacting to them.
Ignition may occur if power leaks.
Make sure to turn off the circuit
breaker before maintenance.
There are risks of electrical shock or injury.
If power fails, be sure to turn off the product.
Injury could result if the product operates
suddenly at restoration of power.
Since the product is designed to
be installed at a higher location,
install the product at least 2.3 m
above the oor.
Failure to heed this warning could result in injury.
If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualied
persons in order to avoid a hazard.
Beware of the
rotating parts
Do not touch the moving parts.
You may injure yourself.
English
1511876HD8301
Instruction Maual
Report No. 295976 (1 of 7 pages)

2
Safety Precautions (Continued)
CAUTION Incorrect handling could cause injury or damage to property or household
effects.
Prohibited
Do not hang from the product.
It may fall, resulting in injury.
When adjusting the mounting
angle, do not remove the self-
locking nut at the center.
It may fall, resulting in injury.
Cannot be installed
in a bathroom
Never use the product in a
bathroom or other location with
excessive moisture (more than
90% RH).
Electrical shock or re could result.
Follow
instructions
Select a place with rigid structural
strength and install the product
securely.
It may fall, resulting in injury.
Make sure to install securely every
part.
It may fall, resulting in injury.
Wiring work must be performed
by qualied professionals, and be
implemented safely and securely
in accordance with local rules and
regulations.
Poor connection or improper wiring
work could cause electric shock or
re.
Always use the specied anchor
bolts (hook bolts), nuts and
washers.
It may fall, resulting in injury.
Before Installation
• Installation in an inappropriate place may cause malfunctions. When mounting the
product, avoid the following locations:
- outdoor
- the salt damage area
- where the product is subject to high temperatures over 45 °C or low temperatures under -10 °C
- where freezing is anticipated or the ambient temperature is extremely low as is in a refrigerated storage
or freezing chamber
- where there is a high concentration of oil mist or steam
- dusty locations such as the places where the air is likely to contain plenty of cotton dust, or cloudy/
powdery sand dust
- where it is exposed combustible gases, and acid or alkaline gases
- where relative humidity exceeds 90% at normal temperature
• Be sure to use an all-pole isolator in the wiring system.
• Install the product in a place where trouble does not occur even if dust or the like accumulated
on the product falls.
Follow
instructions
For installation and maintenance
work, wear gloves.
Otherwise, you may injure yourself.
If the fans get dirty, clean off the
dirt of them.
Parts may fall due to the vibration,
which could cause injury.
Do not use the product when
any abnormal vibration has been
detected on the main unit.
There are risks of injury by falling the
main unit or parts.
Make sure to turn off the circuit
breaker when suspending use for
a long time.
It could cause electrical shocks or
re by fault current resulting from
deteriorated insulation.
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
Instruction Maual
Report No. 295976 (2 of 7 pages)

3
External Dimensions
111.8
• The mounting angle of the main unit is selectable from
the following 8 angles to the mounting surface:
0°, 11.3°, 22.5°, 33.8°, 45°, 56.3°, 67.5°, 90°
(Inside installation pitch)
For Inside-pitch installation of mounting plate
Terminal cover
When angle at 90°
(Outside installation pitch)
Details of mounting plate
Wind direction
Unit: mm
Model A B C DE
AH-1006S-E 600 716 680 525 489
AH-1509S-E 900 1016 980 825 789
AH-2009S-E 900 1016 980 825 789
■ AH-1006S-E, AH-1509S-E, AH-2009S-E
100
• Eight-angle wind direction can be selected as
following angles to the mounting surface.
0°, 11.3°, 22.5°, 33.8°, 45°, 56.3°, 67.5°, 90°
* When it is mounted directly on the ceiling, 67.5° and
90° are not allowed.
(Inside installation pitch)
(Outside installation pitch)
Wind direction
Unit: mm
Vinyl cabtyre cable
4 conductors x 0.75 mm2
Effective length 1 m
4 places x 12 x 40
slotted holes
■ AH-3009S-E
Instruction Maual
Report No. 295976 (3 of 7 pages)

4
Example of Installation
■ AH-1006S-E, AH-1509S-E, AH-2009S-E ■ AH-3009S-E
Horizontal installation
(with outlet facing downward)
Vertical installation
(with outlet facing sideward)
Note
• An open space of at least 100 mm must
be provided for the inlet of the product.
Otherwise, the product will not provide
sufcient blowing capacity.
• When installing two or more units, leave a
clearance of more than 100 mm between the
neighboring mounting plates.
• The wall-mounted unit must not be set for
the outow in upward direction ranging
from horizontal to vertical (see the gure).
(Outow in such direction will cause excessive
vibrations.)
• For ceiling-suspension, be sure to reinforce
the anchor bolts with vibration-isolation parts.
Horizontal installation
(with outlet facing downward)
Vertical installation
(with outlet facing sideward)
Note
• An open space of at least 150 mm must
be provided for the inlet of the product.
Otherwise, the product will not provide
sufcient blowing capacity.
• When installing two or more units, leave a
clearance of more than 100 mm between the
neighboring mounting plates.
• For ceiling-suspension, be sure to reinforce
the anchor bolts with vibration-isolation parts.
Ceiling surface-mountingCeiling-suspensionWall mounting
Main
unit
Main
unit
Main
unit
Main
unit
Main
unit
Outow within this
area is impossible.
Less than 900 mm
More than 75 mm
More than 75 mm
Mounting plate Mounting plate
Mounting
plate
Mounting
plate
Mounting
plate
Ceiling surface-mountingCeiling-suspensionWall mounting
22.5°
22.5°
Main
unit
Main
unit
Main
unit
Main
unit
A unit that is mounted directly on the
ceiling cannot discharge air vertically.
Less than 900 mm
More than 240 mm
More than
150 mm
More than 240 mm
Mounting
plate
Mounting
plate
Mounting
plate
Mounting plate
More than 100 mm
Installation of Main Unit
1. According to the “External dimensions”, select
rm foundation and install commercially
available anchor bolts (M8 or M10). (Refer to
the gures below.)
2.
When adjusting the mounting angle, rst,
remove the angle adjustment bolts to unclamp
the main unit from the mounting plate, and
then, loosen the self-locking nuts.
3. To clamp the mounting plate to the ceiling, get
the installed anchor bolts (hook bolts) through
the holes in the mounting plate and rmly
secure them using commercially available
washers and nuts.
Direct mounting
* The gure shows ceiling surface-mounting,
and the shape of mounting plate is AH-
1006S-E.
Mounting plate
Anchor bolt
(commercially available)
Washer
(commercially available)
Nut x 2
(commercially available)
Main unit
Instruction Maual
Report No. 295976 (4 of 7 pages)

5
Installation of Main Unit (Continued)
Ceiling-suspension
Adjusting the Mounting Angle
The wind direction is selectable using 8-angle
adjustment.
1. When adjusting the angle after installation of
the main unit, remove the angle adjustment
bolts, and then, loosen the self-locking nuts.
2. After adjusting the angle, reinstall the angle
adjustment bolts, tighten them, and rmly
secure with the self-locking nuts.
■ AH-1006S-E, AH-1509S-E, AH-2009S-E
■ AH-3009S-E
CAUTION
When adjusting the mounting angle, do not
remove the self-locking nuts at the center.
It may fall, resulting in injury.
Mounting plate
Hook bolt
(commercially available)
Washer
(commercially available)
Washer
(commercially
available)
Nut x 2
(commercially available)
Main unit
Mounting plate
Main unit
Self-locking nut
Angle adjustment bolt
Mounting plate
Angle adjustment
bolt
Self-locking
nut
Main unit

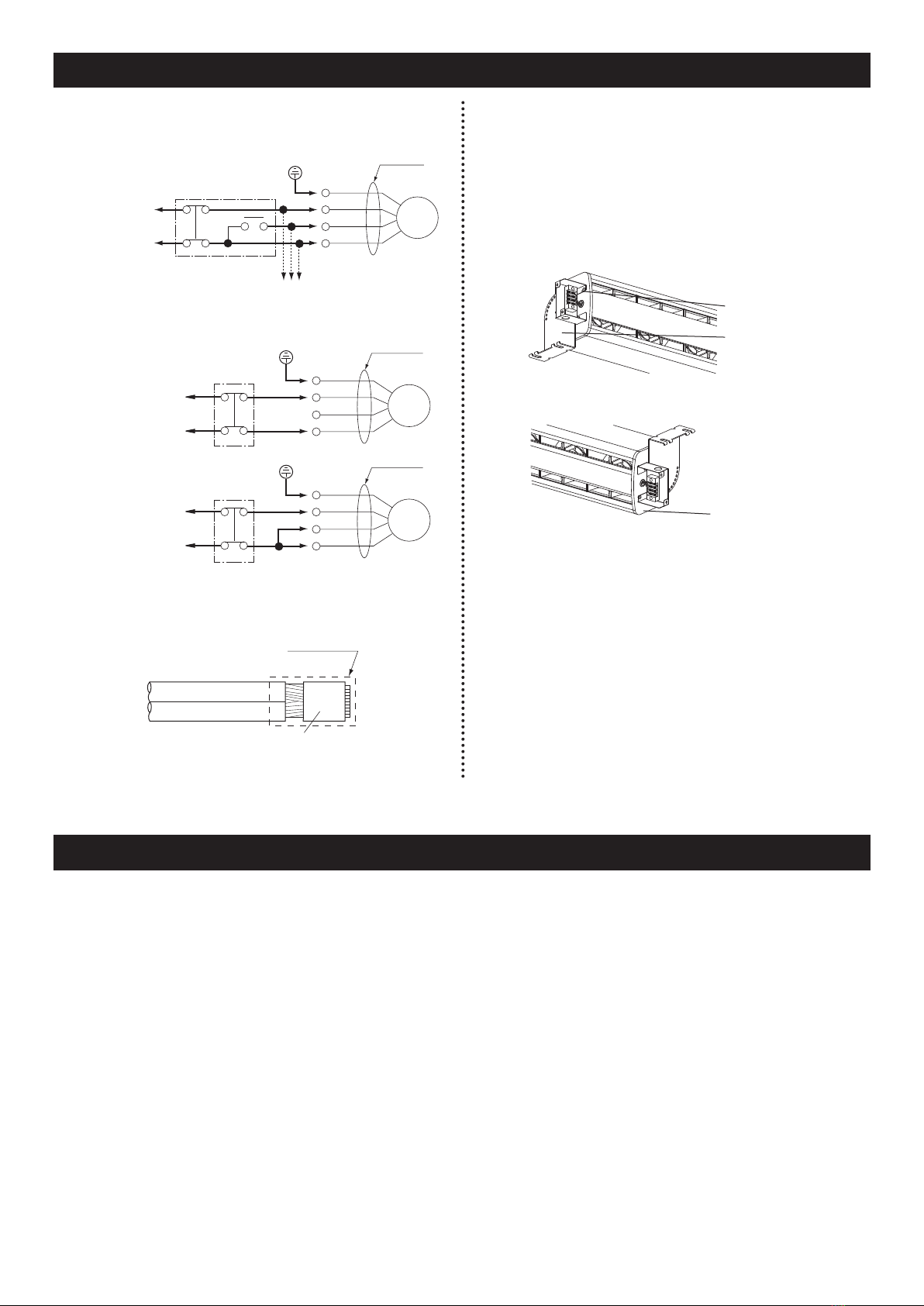

Electrical Work
• Electrical work must be performed by qualied
professionals.
• The cable size must be at least 0.75 mm2
for power cable. When operating multiple
units, connect the power using a cable with
a capacity corresponding to the total current
value of the units installed.
• Use ring-terminals to connect with the terminal
block.
• When selecting a motor circuit breaker, etc.,
make selection on the basis of its tripping
current corresponding to the 1.2 to 1.5 times
the load current given in the specication table.
• Make sure to ground and install an all-pole
isolator securely.
■ AH-1006S-E, AH-1509S-E, AH-2009S-E
1. Remove the two screws securing the terminal
cover and installed bushing.
2. Connect the wires to the terminals as shown
in the gure, using rmly xable bushing such
as a PG connector. Opening for bushing is
dia. 21 mm.
3. Connect the grounding wire.
4. After connecting wires, reinstall the terminal
cover as it has been before.
Wire Connection
■ AH-1006S-E, AH-1509S-E, AH-2009S-E
Thick and dotted lines are eld work.
When “High-Low” operation is selected:
When “High” or “Low” xed operation is selected:
PG connector
(commercially
available)
Terminal block
ON/OFF
ON/OFF
FANS
FANS
FANS
COM
Low
High
COM
Low
High
COM
Low
High
N
L
Terminal block
Terminal block
Terminal block
Second unit
HIGH/LOW
ON/OFF
Control Switch
(not supplied)
Switch
(commercially available)
Switch
(commercially available)
“High” operation
“Low” operation
Power supply
220-240V ~ 50Hz
220V ~ 60Hz
Power supply
220-240V ~50Hz
220V ~60Hz
Power supply
220-240V ~ 50Hz
220V ~ 60Hz
Instruction Maual
Report No. 295976 (5 of 7 pages)

6
Installation of Main Unit (Continued)
Trial Operation
■ AH-3009S-E
When “High-Low” operation is selected:
When “High” or “Low” xed operation is selected:
*Connect the power supply cable securely
according to local rules and regulations.
Examples in Japan
Insulation
Sleeve
After completing installation, check that every wire is connected properly, the product operates
properly, and the main unit is installed securely and does not produce vibration or abnormal noises.
Should any trouble be found, it must be immediately corrected.
Please explain correct manner of operation with the presence of the user (customer).
Shifting the Terminal block to the Right
Side (AH-1006S-E, AH-1509S-E, AH-
2009S-E)
If the terminal block is desired to relocate on the
right side of the main unit, perform as follows
before mounting the main unit on the ceiling.
1. Remove the terminal cover. Rotate the
mounting plate 180°and re-secure it.
2. Turn the main unit upside down and t the
terminal cover in place.
Turn the main unit
Remove the
terminal cover
Rotate the mounting
plate 180°
Switch
(commercially available)
Switch
(commercially available)
Power supply
220-240V ~ 50Hz
220V ~ 60Hz
Power supply
220-240V ~ 50Hz
220V ~ 60Hz
Power supply
220-240V ~ 50Hz
220V ~ 60Hz
GREEN/
YELLOW
BLUE
BLACK
BROWN
FANS
FANS
FANS
GREEN/
YELLOW
BLUE
BLACK
BROWN
GREEN/
YELLOW
BLUE
BLACK
BROWN
N
L
Control Switch
(not supplied)
HIGH/LOW
ON/OFF
“High” operation
“Low” operation
Power cord
Power cord
Power cord
Second unit
ON/OFF
ON/OFF
Instruction Maual
Report No. 295976 (6 of 7 pages)

CAUTION
During cleaning or maintenance, do not
climb on an unstable stand.
Injury may result if you tumble down.
Cleaning the Product
Use a cloth dipped in neutral detergent to wipe away
dirt from the main unit, guards, and fans. Then wipe
with a dry cloth to remove any remaining detergent.
Note
• Do not use solvents such as the following to
clean the product:
Paint thinner, alcohol, benzine, gasoline, kerosene,
aerosol sprays, alkaline solvents or chemicals
in chemically treated cleaning clothes. (Surface
deterioration or discoloration could result.)
Reassembly and Inspection after Cleaning
After cleaning, reverse the disassembly steps to
reassemble the product.
Inspect the following items as you reassemble
the product.
1.
The fan ts onto the shaft in a specic
orientation. Be sure not to install it upside-down.
2. Are there any scratches on the wiring inside
the main unit?
3. Have the main unit, screws, washers, fans,
nuts, and guards all been mounted securely?
4. Switch power on and check that the product
operates properly.
Maintenance and lifetime
Motors are service parts. It is necessary that
the regular check and the regular replacement,
or replacement when it is broken.
In addition, expenses for parts and replacement
work are charged to users (customers).
After- sale service
Please contact the dealer from whom the product
was purchased concerning after-sales service.
For Users
Specications
When the product has become dirty, clean it
once every three months.
- Always switch power off before cleaning the product.
- Never hang from the product or push downward
on it forcefully. It could result serious accident.
- Wear rubber gloves to avoid injuring your ngers.
Disassembling the Product
1. Remove the guard stopper screw and the
washer. Then slide the guard as shown in the
gure and remove it from the hook. (The number
of guards differs depending on the model.)
2. Remove the fan nut (M5 counterclockwise
threading) and pull off the fan.
Note:
• Note that the fan ts onto the shaft in a specic
orientation.
■ AH-1006S-E, AH-1509S-E, AH-2009S-E
* The tightening torque of the nut is 1.6 N・m.
■ AH-3009S-E
* The tightening torque of the nut is 1.6 N・m.
Washer
Nut *
Fan
Main unit
Guard
Screw
Hook
Fan
Nut *
Guard
Screw
Washer Washer Washer
Main unit
Model Notch
Air Velocity (m/s) Noise (dB) Current (A)
Starting
Current (A)
Weight
(Kg)
220-240 V ~50 Hz 220 V ~60 Hz 220-240 V ~50 Hz 220 V ~60 Hz 220-240 V ~50 Hz 220 V ~60 Hz
AH-1006S-E High 6.5 - 6.9 6.5 42 - 44 43 0.14 - 0.15 0.17 0.23 7.5
Low 5.3 - 5.7 5.0 39 - 40 39 0.13 - 0.13 0.15
AH-1509S-E High 7.3 - 7.8 7.3 43.5 - 45 44 0.26 - 0.26 0.30 0.43 10.5
Low 5.8 - 6.4 5.4 39 - 41.5 36 0.24 - 0.25 0.26
AH-2009S-E High 8.3 - 8.6 9.0 46.5 - 47.5 50 0.43 - 0.47 0.47 0.85 11
Low 7.0 - 7.4 6.5 44 - 46 43 0.36 - 0.37 0.39
AH-3009S-E High 8.2-8.2 58-58 0.87 - 0.94 2.53 20.5
Low 7.3-7.3 55.5-56 0.74 - 0.75 1.55
* The noise values were measured at 1.5 meters inclined at 45° from the center of the air outlet.
Manufactured by: MITSUBISHI ELECTRIC CORPORATION
TOKYO BLDG. 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO, 100-8310 JAPAN
Importer in EU: MITSUBISHI ELECTRIC EUROPE B.V.
HARMAN HOUSE, 1 GEORGE STREET, UXBRIDGE, MIDDLESEX, UB8 1QQ, U.K.
Instruction Maual
Report No. 295976 (7 of 7 pages)
