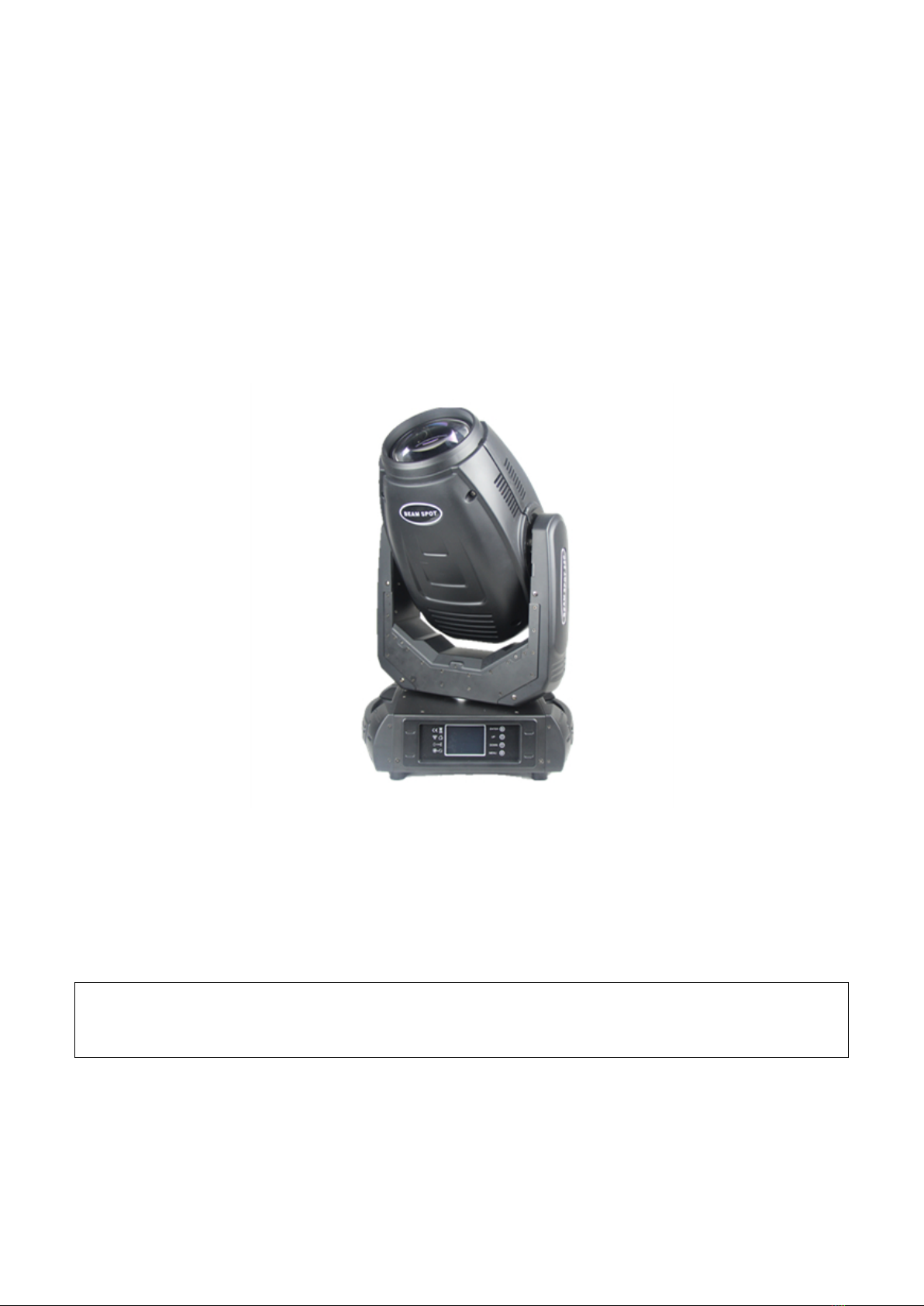

MJ LED LIGHTNING MJ-1280 User manual

280W 10R BEAM SPOT WASH 3IN1
MOVING HEAD LIGHT
MJ-1280
User Manual
======PROFESSIONAL LIGHTING ========
Thank you for choosing our beam spot Wash moving head light. For the sake of your safety,
Please read and follow these instructions carefully and keep this manual in a safe place for
future reference.

2
Catalogue
Chapter Page
Safe Usage Of The Product ------------------------------------------------------------------------------------------3
Install The Equipment -------------------------------------------------------------------------------------------------4
Fitting The Lamp--------------------------------------------------------------------------------------------------------4
Power Code Connection ----------------------------------------------------------------------------------------------5
DMX Connection -------------------------------------------------------------------------------------------------------5
DMX Terminator -------------------------------------------------------------------------------------------------------6
Function Set --------------------------------------------------------------------------------------------------------------6
Operation Menu ---------------------------------------------------------------------------------------------------------7
Maintenance -------------------------------------------------------------------------------------------------------------10
Keeping The Product Clean -----------------------------------------------------------------------------------------10
Trouble Shooting---------------------------------------------------------------------------------------------------------11
Equipment and Appendix----------------------------------------------------------------------------------------------11
Channel List----------------------------------------------------------------------------------------------------------------11
Technical Parameters----------------------------------------------------------------------------------------------------16
☆Important notice:
·In this instruction for use contains about the installment and the use aspect important information of the beam moving
head. When installing and using, you need to look this usage instruction strictly.
·Before open the beam moving head and if you want to do the repair work, please make sure the power source is at the
separation condition.
·Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and the unit are
in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer
and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer or dealer.
Attention: Unceasingly carries on the product improvement about our company the policy, in this instruction booklet
carries the data will have the possibility to be able to change in the future, when no longer separate notice change matters
concerned. Our company retains when the product improvement changes the related specification the authority. This
instruction booklet publisher cannot be responsible regarding this instruction booklet in information accuracy, also cannot
the related consequence which causes regarding these information be responsible.

3
SAFE USAGE OFTHE PRODUCT
When unpacking and before disposing of the carton, check there is no transportation damage before
using the product. Should there be any damage caused by transportation, consult your dealer and do
not use the apparatus.
The product is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain
and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other
liquids.
The product is not designed or intended to be mounted directly on to inflammable surfaces
The product is only intended for installation, operation and maintenance by professional person.
The product must be installed in a location with adequate ventilation, at least 50cm from adjacent
wall surfaces. Be sure that no ventilation slots are blocked.
Do not product the beam onto inflammable surfaces, minimum distance is 12m.
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power
requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation conforms to all
relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the
power-cord come into contact with other cables. Only handle the power-cord by the plug. Never pull
out the plug by tugging the power-cord.
Keep the light clean. Do not touch the light glasss with bare hands.
The product should always be installed with a secondary safety fixing. On the projector base brink,
there is a hole for the safety cord provided. It should be attached as shown in “installing the projector”
section.
The lamp used in this projector is a discharge lamp. After switching off don,t attempt to restart the
projector until lamp has cooled, this will require approx 15 minutes. Switching the lamp on and off at
short intervals will reduce the life of both the lamp and the projector. But occasional breaks will
prolong the life of the lamp and projector.
Never run the projector without a lamp.
The light shall be changed if it has become damaged or thermally deformed or reached its life limit.
Shields and lens shall be changed if they have become visibly damaged to such an extent than their
effectiveness is impaired, for example by cracks or deep scratches.
Exterior surface temperatures of the luminaire after 5 minutes operation is 70°。，when steady state is achieved 140°。
There is no user serviceable parts inside the projector, do not open the housing and never operate the product
with the covers removed.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
★Always disconnect from the mains, when the device is not in use or before cleaning it or
before attempting any maintenance work !

4
Install The Equipment:

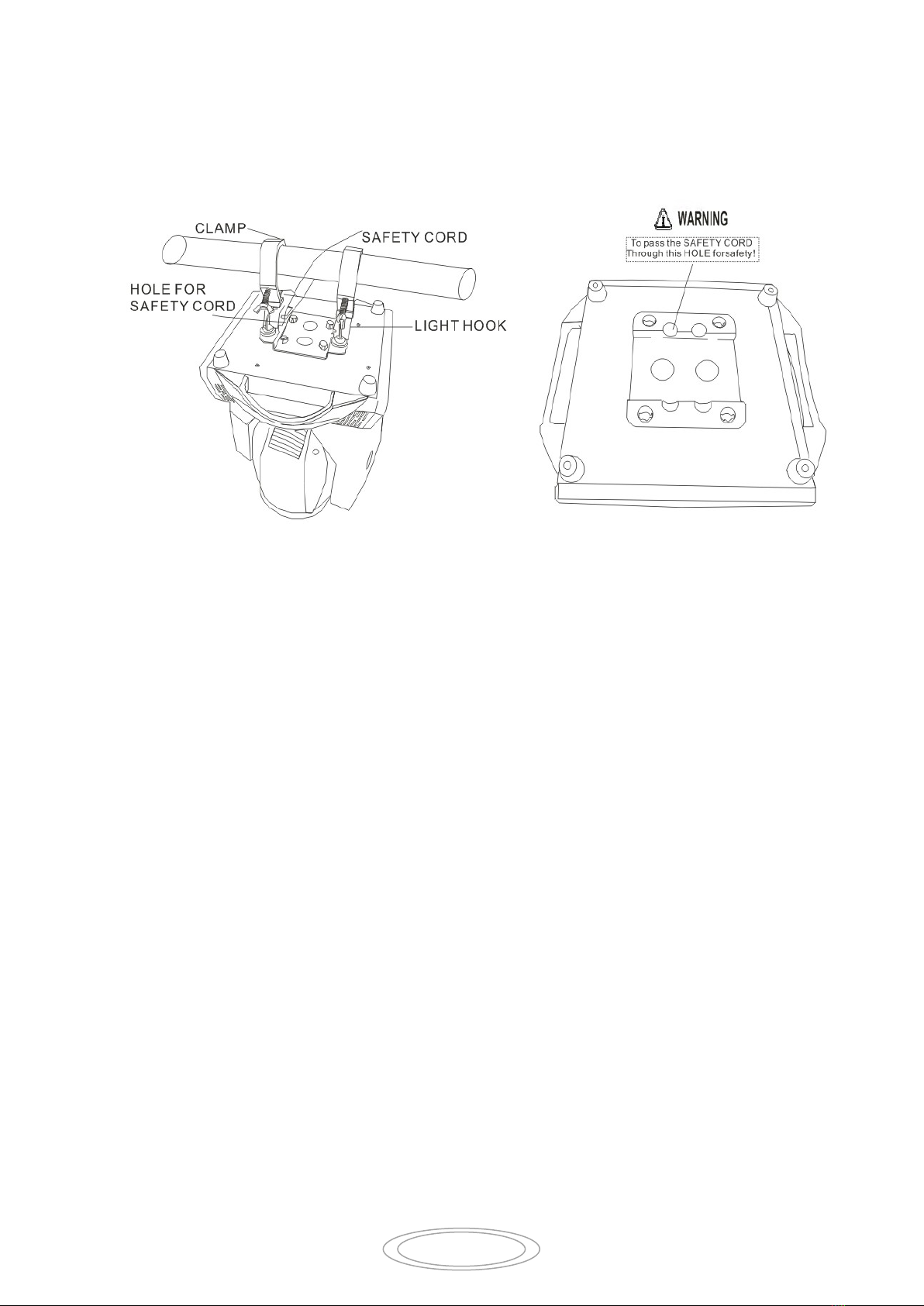

Use 2pcs clamp and 1safety cord(need to purchase).Use clamp fix with light hook which in the
packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure
and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm
the light which you fixed is strong enough for hanging the light. Base on safety reason, please
according to the above picture using safety wire cross the light to make it strong enough again.
Warning!
1. Unlock the PAN and TILT before the 1st application of the light for safety.
2．Hook and clamp only use for hanging the light. Do not use clamp as a tool to move fixtures.
3．Base on safety reason, please use the safety cord which can afford the weight ten times of lamp
through Insurance hole for auxiliary hanging.
4．Don't use the handle of the moving head light to fixed or lift!
Fitting The Lamp：
.Loosen 4 fast-fit screws and remove the back cover, when fitting/replacing the lamp.
.Do not touch the bulb of the new lamp with bare hand so as not to influence the beam output.
.Do not harm the sticking out point of the lamp during its installation.
.Fit new lamp and close the back cover by fastening 4 fast-fit screws when finished lamp installation.
.Lamp work will reach a very high temperature, Vapor discharge lamp can not continue to supply this
physical characteristics, therefore, the power completely cool for 10 minutes before on the operation.
Failure to do so will lead to a high-pressure discharge and short circuit burned out the computer's
control panel components.
Notes: Unplug the light from power before lamp installation or replacement and wait for it to cool.

5
Power Code Connection:
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to the voltage and
frequency marked on the panel of the projector. It is recommended that each projector be supplied
separately so that they may be individually switched on and off.
★It is essential that each projector is correctly earthed and the electrical installation conforms
to all relevant standards.
DMX Connection:

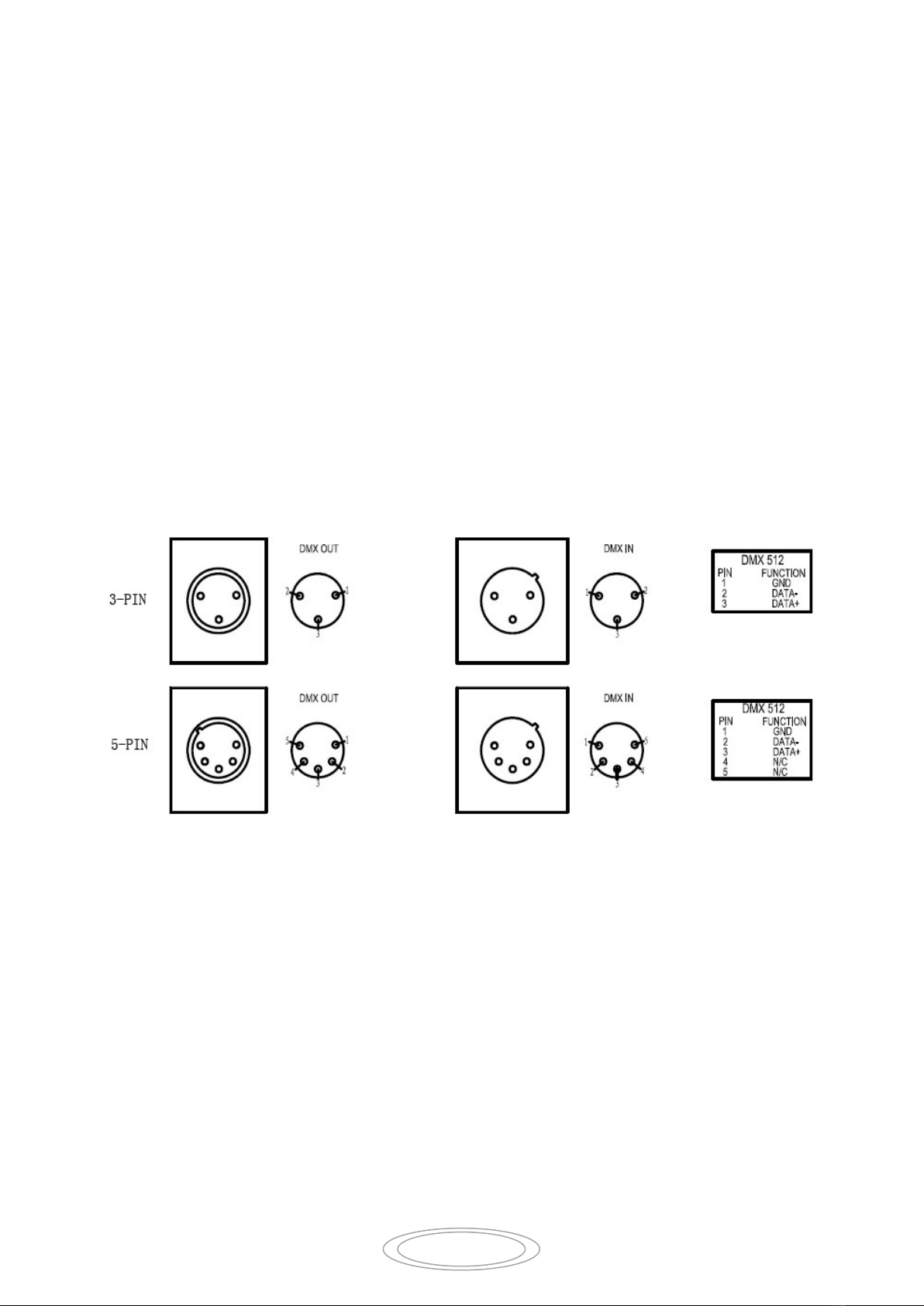

Connection between the controller and a projector and between one projector and another must be
made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to
and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and
sockets. The XLR's are connected as shown in the figure above.
Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each
other. The body of the plug is not connected in any way. The XLED 590 accepts digital control
signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the
second fixture’s input and connect the rest fixtures in the same way. Eventually connect the last
fixture’s output to a DMX terminator as shown in the figure below.

6
DMX Terminator:
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a
DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control
signals.
The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins
2 and 3, which is then plugged into the output socket on the last projector in the chain. The
connections are illustrated below.
Function Set:
1. Touch Operation
Manual
Setting Information
Back
Lamp
180
LCD
EN/CN
DMX Address
DMX mode

7

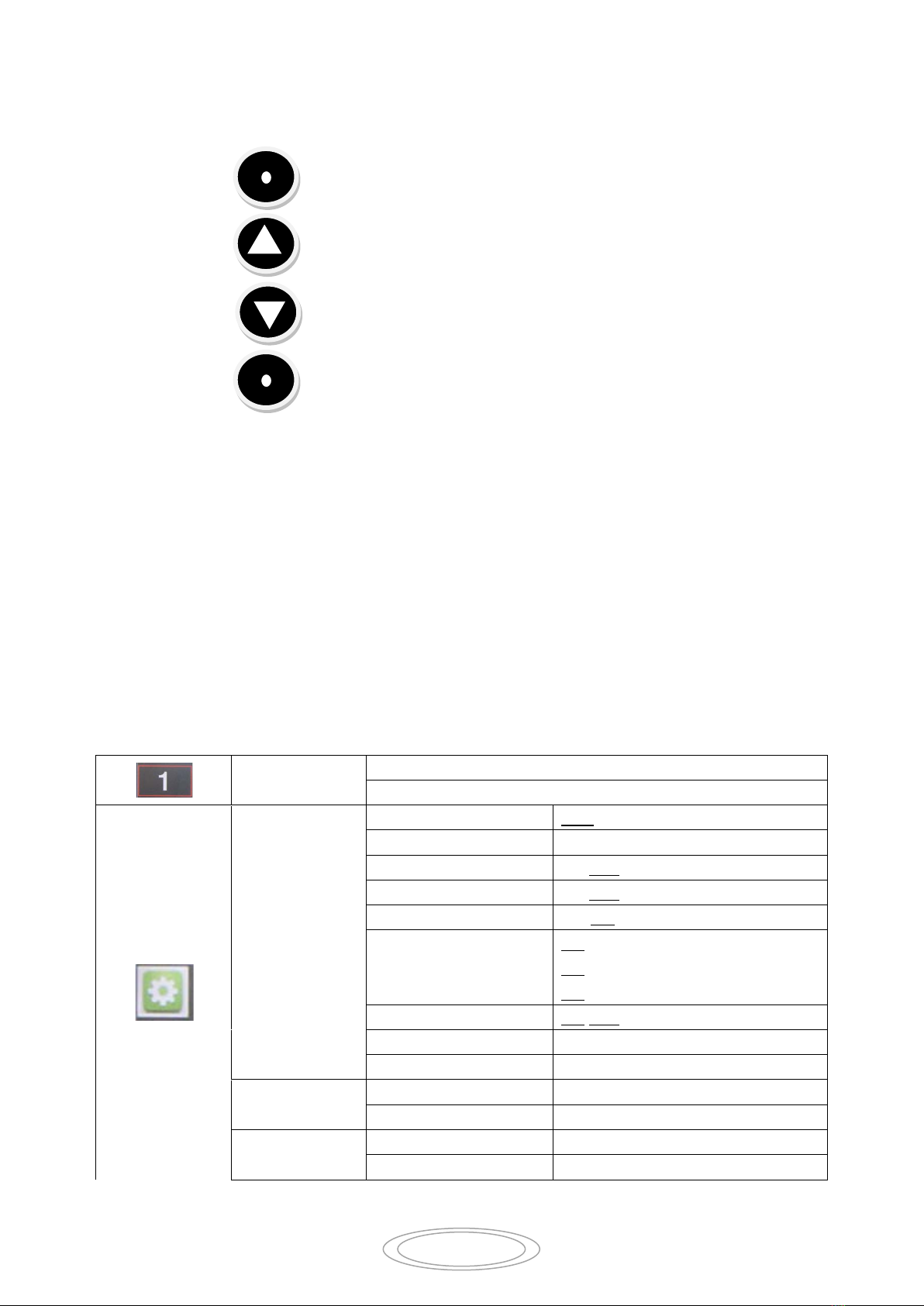

2. Button Opertion
ESC
UP
DOWN
MENU/ENTER
Use button switch and touch LCD display, can set the address code and function code easily.
Check or modify lighting function settings, Press the Set UP or MENU button. LCD display panel will display
main menus. Function operation menu all have corresponding submenu .Each menu all represent the specific
functions of lamps, specific see below "operation menu" section.
Set or browse function setting of lamp, Press UP or DOWN key.
Press ENTER key to save your changes or to enter submenu, Press UP or DOWN can change
value(Plus or reduce number).
Operation Menu:
Menu Structure chart
Main Menu Sub Menu
Dmx Address
(0-512)
Save
Esc
Features Setting
Running Mode Dmx /Wireless /Automatic
Channel Mode
Standard/Simplify/Custom
X Reverse
ON/OFF
Y Reverse
ON/OFF
X Axis Angle
360/540
XY Optocoupler Test
ON/OFF
Signalclear
ON/OFF
Full Color
ON/OFF
The Shortest Distance
ON/OFF
ADV (High
Level)
Password 1 ***
Password 2 ***
Channel
Definition
Password 1
***
Password 2
***
Factory Set
Password 1
***
Password 2
***

8
Use The
Management
Password 1 ***
Password 2 ***
RST Reset Reset setting
ESC Esc Return to the main menu
Manual
Light Reset
All motors
Part motor
XY motor
Yes
No
Test Running
Auto running
Sound running
ESC
Simulation Controller CH1-CH32(0-255)
ESC
System Info
Dmx Value Ch1-CH32(0-255)
ESC
Other Info
Running time(0-9999)
Running count(0-9999)
Residue time(Infinite)
Residue count (Infinite)
Fan 1:0
Fan 2:0
Temperature 1(0-100)
Temperature 2(0-100)
PCB1 Ver.: (V1.15)
PCB2 Ver.: (V1.22)
PCB3 Ver.: (V1.22)
ESC
Error Info
(If Have A Problem, It
Will Be Display To Here)
Color plate error
Rotate gobo error
Fixed rotate gobo error
X error
Y error
Gobo rotation error
Prism error
Gradient error
Prism rotation error
Gradient rotation error
Enlarge error
Focus error
ESC

9
Display Set
Brightness
Light Delay
Menu Back
Flicker -Backlight Flash
Save
1-7 level
10/20/30 seconds/ ON
10/20/30 seconds/OFF
ON/OFF
Save settings and return to menu
Return Don't save return to menu
Lamp Setting
Default ON
Manual ON
Electronic ON
ESC
Display Reverse Display 180 degree rotation
Chinese /English
Display Switch the language of the menu display
Return to the screen protection
Maintenance:
To prolong the life of the projector, some maintenance work has to be done to ensure the optical
system in good condition. If the projector does not function, check the fuses on the power socket of
the projector, they should only be replaced by fuses of the same specification. Should these be
damaged, call a qualified technician before replacement. The projector has thermal protection
device that will switch off the projector in case of overheating. Should either of these operate, check
that the fans are not blocked, and if they are dirty, clean them before switching on the projector
again. Check that the fans are operational, if not, call a qualified technician.
☆Any maintenance work should only be carried out by qualified technicians.
Keeping The Product Clean:
To ensure the reliability of the projector, it should be kept clean. It is recommended that the fans
should be cleaned every 15 days. The lens and dichroic colour filters should also be regularly cleaned
to maintain an optimum light output.
Do NOT use any type of solvent on dichroic colour filters.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or
particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics. Asoft cloth
and typical glass cleaning products should be used for cleaning. It is recommended to clean the
external optics at least once every 15 days and clean the internal optics at least once every 60 / 90
days.
☆Do not use any organic solvent, e.g. alcohol, to clean housing of the apparatus.

10
Trouble Shooting:
Problem
Answer
The moving head light doesn’t switch
on.
Check the fuse the power socket
Replace the lamp
Although shines, but the moving head
lamp doesn’t accept the instruction of
the controller.
Check the digital start address and also check the
connection situation of the communication control line
The moving head lamp only can work
intermittently.
Inspect the power supply and voltage is whether normal.
Make sure the fan is working well or fans and their
filters not blocked
Defective projection
Make sure the lamp is within its life limit
Remove dust or grease from the lenses.
The beam appears dim
heck the optics is clean or the lens in good condition(not
cracked)
Replace with a new lamp of the specified type and rating.
☆Other maintain work should by the specialist which has the experience to carry on.
Equipment and Appendix:
☆280W 10R Moving Head Light 1pcs
☆Power Cable 1pcs
☆XLR connector 1unit
☆Light Hook 2pcs
☆The Product of Instruction 1pcs
Channel List:
STAN
(24CH)
SMAL
(16CH)
DMX
Value
Function
1
1
0
－
255
Pan
2
*
0
－
255
Pan fine
3
2
0
－
255
Tilt
4
*
0
－
255
Tilt fine
5
3
0－255
Pan/Tilt speed
6 4
Macro function
0－19 Empty
20－24 Energy saving mode（230W）
25-129
Empty
130
－
139
Lamp On
140
－
149
X Y axis reset

11
150－159 Empty
160－169 All small motor reset
170－199 Empty
200
－
209
Light reset
210
－
229
Empty
230
－
239
Lamp Off
240
－
255
empty
7 5
Color wheel
0
－
3
Open
3－9
White + Red
9－18
Red + Deep Green
18－27 Deep Green + Blue
27－37 Blue + Light Yellow
37
－
46
Light Yellow + Brown
47
－
55
Brown + Deep blue
55
－
64
Deep blue + Orange red
64
－
73
Orange red + Light-green
73
－
82
Light-green + Blue-green
82
－
91
Blue-green + Rose red
91－101
Rose red + Claybank
101-110
Claybank +Purple
110-119 Purple +Orange
119-127 Orange + White
128
－
129
White
130
－
134
Red
135
－
138
Deep Green
139
－
143
Blue
144
－
147
Light Yellow
148
－
152
Brown
153－157
Deep blue
158－161
Orange red
162－166 Light-green
167－171 Blue-green
172
－
176
Rose red
177－180 Claybank
181
－
185
Purple
186
－
189
Orange
190
－
215
From fast to slow stream
218
－
243
From slow to fast stream
244－249
Random voice contrpl running color
250－255
Random running color automatic
8 * 0－255 Color wheel fine
9 6 0－255 Effect speed

12
10 7
Static gobo wheel
0－3 empty
4－9 Gobo 1
10
－
15
Gobo 2
16
－
21
Gobo 3
22
－
27
Gobo 4
28
－
33
Gobo 5
34
－
39
Gobo 6
40
－
45
Gobo 7
46－51
Gobo 8
52－57
Gobo 9
58－63 Gobo 10
64－69 Beam reducer 1
70
－
75
Beam reducer 2
76
－
81
Beam reducer 3
82
－
87
pattern shake from slow to fast
88
－
95
Gobo 1
96
－
103
Gobo 2
104
－
111
Gobo 3
112－119
Gobo 4
120－127
Gobo 5
128－135 Gobo 6
136－143 Gobo 7
144
－
151
Gobo 8
152
－
159
Gobo 9
160
－
167
Gobo 10
168
－
175
Beam reducer 1
176
－
183
Beam reducer 2
184
－
191
Beam reducer 3
192-199
Open
202－221
Fixed pattern stream from fast to slow in positive direction
222-223 stream stop
224-243 fixed pattern stream from slow to fast reverse
244-249
random voice control running fixed pattern
250-255 random voice control running fixed pattern automatic
11 8
Rotating gobo wheel
Index-set indexing on channel 12/9
0
－
4
Open
5
－
7
Gobo 1
8－10
Gobo 2
11－13
Gobo 3
14－16 Gobo 4
17－19 Gobo 5

13
20
－
22
Gobo 6
23
－
25
Gobo 7
26
－
28
Gobo 8
29
－
31
Gobo 9
Rotation-set rotation on channel 12/9
32－34
Gobo 1
35－37 Gobo 2
38－40 Gobo 3
41
－
43
Gobo 4
44
－
46
Gobo 5
47
－
49
Gobo 6
50
－
52
Gobo 7
53
－
55
Gobo 8
56
－
59
Gobo 9
pattern shake from slow to fast
Index-set indexing on channel 12/9
60－67 Gobo 1
68－75 Gobo 2
76
－
83
Gobo 3
84
－
91
Gobo 4
92
－
99
Gobo 5
100
－
107
Gobo 6
108
－
115
Gobo 7
116
－
123
Gobo 8
124－129
Gobo 9
Rotation-set rotation on channel 12/9
130－137 Gobo 1
138－145 Gobo 2
146
－
153
Gobo 3
154－161 Gobo 4
162
－
169
Gobo 5
170
－
177
Gobo 6
178
－
185
Gobo 7
186
－
193
Gobo 8
194－199
Gobo 9
202－221
Gobo wheel rotation from fast to slow
224－243 Gobo wheel rotation from slow to fast stream
244－255 Auto random gobo
12 9
Rot.gobo indexing and rotation
0－127 index
128
－
177
Counterclockwise from slow to fast stream
178
－
203
stop
204
－
255
Clockwise from fast to slow stream

14
13 * 0－255 Rot.gobo indexing and rotation fine
14 10
prism
0－19 empty
20
－
49
6-facet linear prism index function
50-75
6-facet linear prism rotation function
76
－
104
8-facet circular prism index function
105-127
8-facet circular prism rotation function
128-135
Macro function 1
136-143
Macro function 2
144-151
Macro function 3
152-159
Macro function 4
160-167 Macro function 5
168-175 Macro function 6
176-183
Macro function 7
184-191
Macro function 8
192-199
Macro function 9
200-207
Macro function 10
208-215
Macro function 11
216-223
Macro function 12
224-231
Macro function 13
232-239
Macro function 14
240-247 Macro function 15
248-255 Macro function 16
15 11
Prism rotation
0
－
127
index
128
－
191
Clockwise from fast to slow stream
192
－
193
empty
194
－
255
Counterclockwise from slow to fast stream
16 12
Frost
0－64
Empty
65－255
Linear frost
17 13 Zoom
0－255 Linear zoom
18
*
0
－
255
Zoom fine
19 14 0－255 Focus
20
*
0
－
255
Focus fine
21
*
0
－
255
Empty
22 15
Strobe
0
－
31
strobe off
32－63
strobe on
64－95
strobe from slow to fast
96－127 strobe opem
128－143 from fast to slow,slow off fast on

15
144
－
159
from slow to fast,fast on slow off
160
－
191
strobe on
192
－
223
random strobe from slow to fast
224
－
255
strobe on
23 16 0－255
Dimmer
0－255
Linear dimmer
24 * 0－255 Empty
Technical Parameters:
Voltage : AC100~240V/50-60Hz
Power consumption:470W@(220V)
Bulb: YODN MSD2800R10 LAMP lamp
Lamp : OYODN 280W ,Color temperature : 8500K
Color: 13 Color + White
Gobo1: 9 Rotating gobo + White
Gobo2: 14 Fixed gobo + White
Prism : 1Pcs rotation 8-face prism, Bilateral rotation .frost function
1Pcs rotation 6-facet linear prism rotating in both directions at different speeds
Dimmer : 0-100% linear adjustment ,Strobe(0.5-9 times/ second)
Beam angle : Parallel beam angel 2.5 – 20°
Channel : 16/24CHs
Control mode : DMX512, Automatic，Sound and Master- slave mode
Pan: X axis 540° automatically accurate positioning
Tilt:Y axis 270° automatically accurate positioning
Control Panel: LCD touch screen display panel with buttons, 2.2-inch color LCD display with
English and Chinese menu, can be rotation 180 °
Protection grade:IP20
Gross Weight: 19.5 kg
Package Size: 450 x 430x 530cm
