MJ LED LIGHTNING MJ-1034A User manual

10.Maintenance and Cleaning
The following points have to be considered during the inspection:
1. All screws for installing the devices or parts of the device have to be tightly connected
and must not be corroded.
2. There must not be any deformations on the housing, color lenses, fixations and
installation spots (ceiling, suspension, trussing).
3. Mechanically moved parts must not show any traces of wearing and must not rotate
with unbalances.
4. The electric power supply cables must not show any damage, material fatigue or
sediments.
Further instructions depending on the installation spot and usage have to be adhered by
a skilled installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a
regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the lights due
to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make
sure that the circuit contacts are in good condition, prevent the poor contact of circuit
from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth.
Never use alcohol or solvents.
There are no serviceable parts inside the device. Please refer to the instructions under
“Installation instructions”.
.11.
LED BEAM4 MOVING HEAD
MJ-1034A
User Manual
======PROFESSIONAL LED LIGHTING ========
Thank you for choosing our Mini LED moving head light. For the sake of
your safety, Please read and follow these instructions carefully and keep
this manual in a safe place for future reference.

11CH Mode
Channel Function DMX Value Description
1
Pan
0-255
0~540 degree
2 Tilt 0-255 0~270 degree
3 Strobe
0-15 Open Lighting
16-131 Strobe from slow to fast
132-139 Open lighting
140-181 Fast dark then slow light
182-189 Open lighting
190-231 Slow light then fast dark
232-239 Open lighting
240-247 Random strobe
248-255 Open lighting
4 led1 dimming 0-255 dimming from dark to bright
5 led2 dimming 0-255 dimming from dark to bright
6 led3 dimming 0-255 dimming from dark to bright
7 Led4 dimming 0-255 dimming from dark to bright
8 Total Dimming 0-255 Dimming from 0-100%
9 Lens Plate 0-127 0-360 degree position
128-191
Rotation clock from fast to slow
192-255 Rotation re clock from slow to fast
10 Color Plate
0-67 16 kinds color and half color
68-128 Color Plate position 360 degree
120-190 Rotation clock from fast to slow
191-193 Stop
194-255 Rotation re clock from slow to fast
11 Macro function
0-69 No Function
70-79 Dark activate when X/Y Rotation
80-89 Dark no-activate when X/Y Rotation
90-199
No Function
200-209 Reset
.10.
1. Unpacking
Thank you for choosing Super beam light . For your own safety, please read this
manual before installing the device. This manual covers the important information on
installation and applications. Please install and operate the fixture with following
instructions. Meanwhile, please keep this manual well for future needs.
Super beam light is made of a new type of high temperature strength of engineering
plastics and cast aluminum casing with nice outlook. The fixture is designed and
manufactured strictly following CE standards, complying with international standard
DMX512 protocol. It’s available independently controlled and linkable with each other for
operation. And it is applicable for large-scale live performances, theater, studio,
nightclubs and discos.
The adopts 4pcs 25 LEDs which features high brightness and stability. Please
carefully unpack it when you receive the fixture and check whether it is damaged during
the transportation. And please check whether the following items are included inside the
box:
Moving Head------------One XLR connector----One
Hanging Bracket-------One Power Cable-------One
User Manual------------One
.1.

2. Safety Instructions
This device has left the factory in perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the
safety instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental
changes, do not switch it on immediately. The arising condensation could damage the
device. Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this
manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would
be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power
cord.
During initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm
distance with wall for smooth air flow, so there should be no shelter for fans and
ventilation for heat radiation.
If the external flexible cable or cord of the luminaire was damaged, it shall
be exclusively replaced by the manufacturer or his service agent or a similar qualified
person in order to avoid a hazard.
.2.
9. DMX CHANNELS:
16CH Mode
Channel Function DMX Value Description
1
Pan
0-255
0~540 degree
2
Pan fine adjustment
0-255
16bit
3
Tilt
0-255
0~270 degree
4
Tilt fine adjustment
0-255
16bit
5
Pan/Tilt speed
0-255
Pan/Tilt speed from fast to slow
6 X/Y Auto run effect
0-15
No function
16-35
Auto run 1
36-55
Auto run 2
..........
.........
236-255
Auto run 12
7
6CH Effect Speed
0-255
From fast to slow
8 Lens motor
rotation(Beam)
0-127
0-360 degree position
128-191
Rotation clock from fast to slow
192-255
Rotation re clock from slow to fast
9 Color Plate
0-67
16 kinds color and half color
68-128
Color Plate position 360 degree
120-190
Rotation clock from fast to slow
191-193
Stop
194-255
Rotation re clock from slow to fast
10 Macro function
0-69
No Function
70-79
Dark activate when X/Y Rotation
80-89
Dark no-activate when X/Y Rotation
90-199
No Function
200-209
Reset
210-249
No Function
250-255
Random Sound Mode
11
Total Dimming
0-255
Total Dimming 0-100%
12 Strobe
0-15
Open Lighting
16-131
Strobe from slow to fast
132-139
Open lighting
140-181
Fast dark then slow light
182-189
Open lighting
190-231
Slow light then fast dark
232-239
Open lighting
240-247
Random strobe
248-255
Open lighting
13
led1 dimming
0-255
Linear dimming from dark to bright
14
led2 dimming
0-255
Linear dimming from dark to bright
15
led3 dimming
0-255
Linear dimming from dark to bright
16
Led4 dimming
0-255
Linear dimming from dark to bright
.9.

3. Operation Instructions
-The moving head is for beam light use.
-Don’t turn on the fixture if it’s been through severe temperature difference like after
transportation because it might damage the light due to the environment changes.
So make sure to operate the fixture until it is in normal temperature.
-This light should be keep away from strong shaking during any transportation or
movement.
-Don’t pull up the light by only the head, or it might cause damages to the
mechanical parts.
-Don’t expose the fixture in overheat, moisture or environment with too much dust
when installing it. And don’t lay any power cables on the floor. Or it might cause
electronic shock to the people.
-Make sure the installation place is in good safety condition before installing the
fixture.
-Make sure to put the safety chain and check whether the screws are screwed
properly when installing the fixture.
-Make sure the lens are in good condition. It’s recommended to replace the units if
there are any damages or severe scratch.
-Make sure the fixture is operated by qualified personnel who knows the fixture
before using.
-Keep the original packages if any second shipment is needed.
-Don’t try to change the fixtures without any instruction by the manufacturer or the
appointed repairing agencies.
-It is not in warranty range if there are any malfunctions from not following the user
manual to operate or any illegal operation, like shock short circuit, electronic shock,
lamp broke, etc.
.3.
8. Menu Instruction
DMX Address A001-A512
Channel Mode 11/16CH Choose
Show Mode Sound Mode/Auto Mode
Slave Mode Master/Slave Mode Choose
Black Out YES/NO Wait Mode
Sound State ON/OFF
Sound Sense 0-100
Pan Inverse YES/NO
Tit Inverse YES/NO
Back Light ON/OFF of display light
White Balance LED1234 dimming
Manual Test Pan,Tilt, LED1---4,Dimmer,Strobe
Auto Test Auto run
Fixture Time 0-9999 fixture used time
Firmware Version V104
Pro Defaults YES/NO
System Reset YES/NO
.8.

4. Specifications:
Voltage: AC100-240V 50-60Hz
Led source: 4pcs high brightness 25W white LEDs
Power: 130W Beam angle: 5-40°
Strobe: 1-25Hz/Second with various stroboscopic effects
Dimmer: 16 bit dimming system, smoothly without strobe
Pan: 540°+ fine Tilt: 250°+ fine
Color: RYB, colorful and symmetrical, with running water effect
Channel: 11/15 DMX channels
Control: DMX512/Master-slave/Auto/Sound activated
Function: 1. Strong beam light effect, beam angle is optional, beam light with macro
effect.
2. Each bulb is controllable, with racing light effect.
3. Intelligent fan control system, temperature auto detect system.
N.W: 7KG G.W: 8KG
Packing Size: 31*27*40 cm (1pc/CTN)
N.W: 16KG G.W: 17 KG
Packing Size: 57*33*43 cm (2pcs/CTN)
5. Installation instruction:
Cautions: For added protection mount the fixtures in areas outside walking paths,
seating areas, or in areas were the fixture might be reached by
unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can
hold a minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such
as an appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the
fixture.
From a ceiling, or ser on a flat level surface (see illustration below0. Be sure the fixture
is kept at least 0.5 m away from any flammable materials.
Always use and install the supplied safety cable as a safety measure to prevent
accidental damage caused by the clamp fails.
.4.
7. Photometric Data
Photometric Beam Angle Data
5° Beam Angle LUX
（
White
）
115800Lux@2m 32400Lux@4m 16000Lux@6 9200Lux@8m 6200Lux@10m
Photometric Beam Angle Data
5° Beam Angle LUX
（
RGBW
）
R: 11050 Lux@1m 4070 Lux@3m 15060 Lux@5m 830 Lux@7m
G: 2670 Lux@1m 9060 Lux@3m 3370 Lux@5m 1680 Lux@7m
B: 4480 Lux@1m 16060 Lux@3m 5360 Lux@5m 2660 Lux@7m
W: 11570 Lux@1m 53070 Lux@3m 19500 Lux@5m 10170 Lux@7m
.7.

Mounting points: Overhead mounting requires extensive experience, including
amongst others calculating working load limits, a fine knowledge of the installation
material being used, and periodic safety inspection of all installation material and the
fixture. If you lack these qualifications, do not attempt the installation yourself. Improper
installation can result in bodily injury.
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.

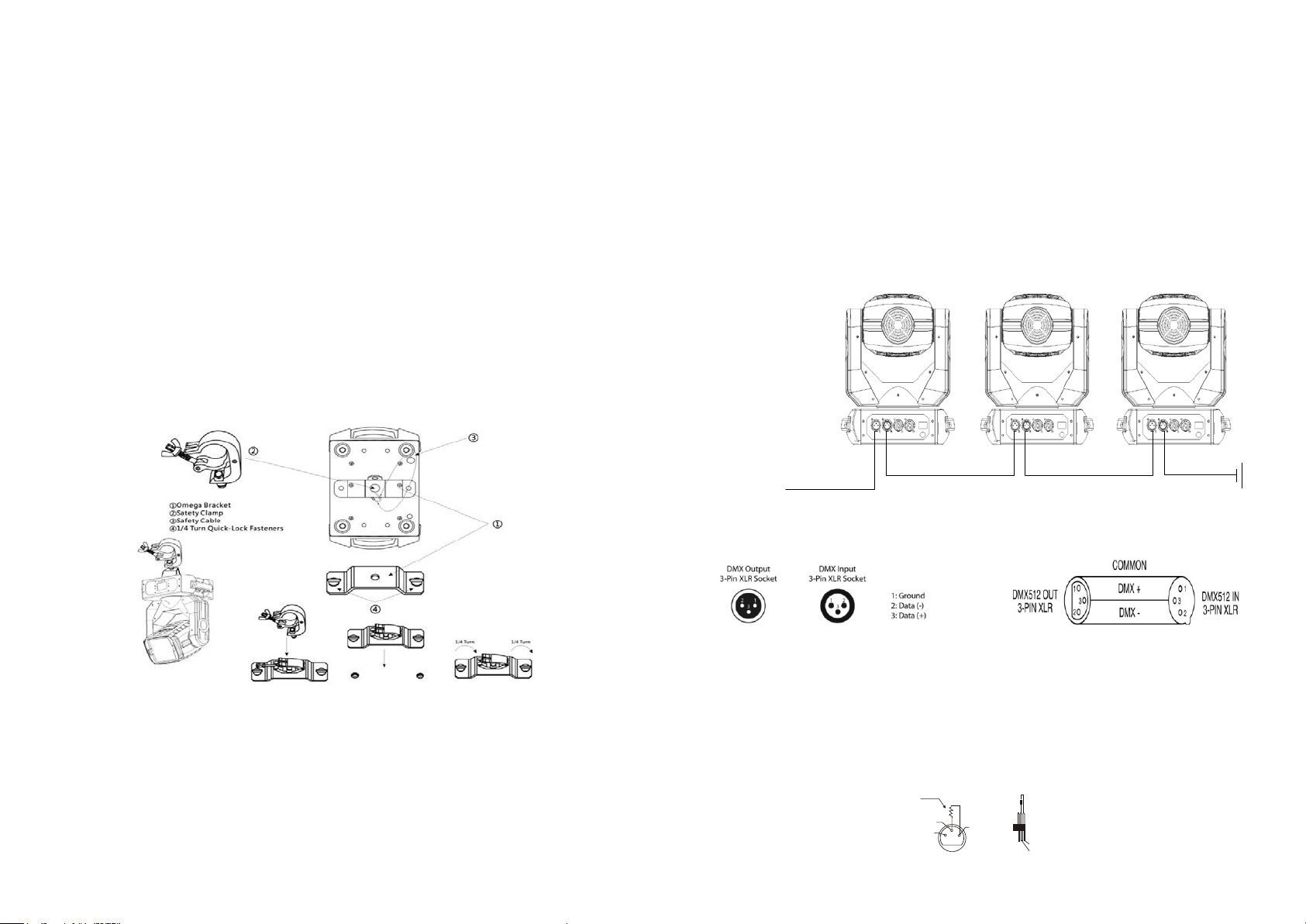

Clamp Mounting: The LED BEAM provides a unique mounting bracket assembly that
integrates the bottom of the base, the included “Omega Bracket,” and the safety cable
rigging point in one unit (see the illustration below). When mounting this fixture to truss
be sure to secure an appropriately rated clamp to the included omega bracket using a
M10 screw fitted through the center hole of the “omega bracket”. As an added safety
measure be sure to attached at least one properly rated safety cable to the fixture using
on of the safety cable rigging point integrated in the base assembly
Regardless of the rigging option you choose for your LED super beam, always be sure
to secure your fixture with a safety cable. The fixture provides a built-in rigging point for
a safety cable on the hanging bracket as illustrated above. Be sure to only use the
designated rigging point for the safety cable and never secure a safety cable to a
carrying handle.
.5.
6. DMX-512 control connections
Connect the provided XLR cable to the female 3-pin XLR output of your controller and
the other side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core,
screened cable with XLR input and output connectors. Please refer to the diagram
below.
DMX-512 connection with DMX terminator
CONTROLLER
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, such as in a discotheque, it is recommended to use a DMX
terminator. This helps in preventing corruption of the digital control signal by electrical
noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor connected
between pins 2 and 3,which is then plugged into the output XLR socket of the last
fixture in the chain. Please see illustrations below.
1
23
PIN 3
PIN 2
120Ω
.6.
