MJ LED LIGHTNING MJ-1350N User manual

350W MOVING HEAD LIGHT
BEAM SPOT WASH(3IN1)
MJ-1350N
User manual
======PROFESSIONAL STAGE LIGHTING ========
Thank you for choosing our moving head light. For the sake of your safety,
Please read and follow these instructions carefully and keep this manual in a
safe place for future reference.

BEAM SPOT WASH (3IN1) 350W BEAM SPOT WASH (3IN1) 350W
Catalogue
Chapter Page
Safe Usage Of The Product -------------------------------------------------------------1
Install The Equipment -------------------------------------------------------------------2
Fitting The Lamp-------------------------------------------------------------------------2
Power Code Connection ----------------------------------------------------------------3
DMX Connection ------------------------------------------------------------------------3
DMX Terminator ------------------------------------------------------------------------4
Function Set ------------------------------------------------------------------------------5
Operation Menu --------------------------------------------------------------------------6
Maintenance -----------------------------------------------------------------------------9
Keeping The Product Clean -----------------------------------------------------------9
Trouble Shooting------------------------------------------------------------------------10
Equipment and Appendix--------------------------------------------------------------10
Channel List------------------------------------------------------------------------------11
Technical Parameters--------------------------------------------------------------------15
☆
Important notice:
·In this instruction for use contains about the installment and the use aspect
important information of the beam moving head. When installing and using, you need
to look this usage instruction strictly.
·Before open the beam moving head and if you want to do the repair work, please
make sure the power source is at the separation condition.
·Every unit is tested completely and packed properly by the manufacturer. Please
make sure the packing and the unit are in good condition before installation and use.
Should there be any damage caused by transportation, consult your dealer and do not
use the unit. Any damage caused by improper use will not be assumed by the
manufacturer or dealer.
Attention: Unceasingly carries on the product improvement about our company
the policy, in this instruction booklet carries the data will have the possibility to be able
to change in the future, when no longer separate notice change matters concerned.
Our company retains when the product improvement changes the related specification
the authority.
Technical Parameters:
Voltage : AC100~240V/50-60Hz
Power consumption:540W@ (220V)
Lamp: YODN MSD 350 R17 lamp
Color temperature : 8500K
Color: 13 Color + White, Color half step function
Gobo1: 9 Rotating gobo +White, Gobo shake function
Gobo2: 14 Fixed gobo + White, Gobo shake function
Prism:1Pcs rotation 6-face prism,Bilateral rotation,Prism superposition function
1Pcs rotation 8-facet linear prism,Bilateral rotation,Prism superposition function
Frost function
Dimmer : 0-100% linear adjustment ,Strobe(0.5-9 times/ second)
Focus : Electric focus from near to far
ZOOM: Linear ZOOM function
Zoom angle : 2.5°-5° beam model; 5°–39° spot model
Channel : 16/24CHs
Control mode : DMX512,Automatic and Master/ slave mode, Sound
Pan: X axis 540°automatically accurate positioning
Tilt: Y axis 270°automatically accurate positioning
Control Panel: Touch LCD display panel with 4
buttons,2.2-inch color LCD display with
English and Chinese menu, can be rotation 180 °
Protection grade:IP20
Gross Weight: 22 kg
Package Size: 470 x 450x 590cm
15

BEAM SPOT WASH (3IN1) 350W BEAM SPOT WASH (3IN1) 350W
SAFE USAGE OFTHE PRODUCT
When unpacking and before disposing of the carton, check there is no transportation
damage before using the product. Should there be any damage caused by
transportation, consult your dealer and do not use the apparatus.
The product is for indoor use only, IP20. Use only in dry locations. Keep this device
away from rain and moisture, excessive heat, humidity and dust. Do not allow contact
with water or any other liquids.
The product is not designed or intended to be mounted directly on to inflammable
surfaces
The product is only intended for installation, operation and maintenance by
professional person.
The product must be installed in a location with adequate ventilation, at least 50cm
from adjacent wall surfaces. Be sure that no ventilation slots are blocked.
Do not product the beam onto inflammable surfaces, minimum distance is 12m.
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the
power requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation
conforms to all relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never
let the power-cord come into contact with other cables. Only handle the power-cord
by the plug. Never pull out the plug by tugging the power-cord.
Keep the light clean. Do not touch the light glasss with bare hands.
The product should always be installed with a secondary safety fixing. On the
projector base brink, there is a hole for the safety cord provided. It should be attached
as shown in “installing the projector” section.
The lamp used in this projector is a discharge lamp. After switching off don,t attempt
to restart the projector until lamp has cooled, this will require approx 15 minutes.
Switching the lamp on and off at short intervals will reduce the life of both the lamp
and the projector. But occasional breaks will prolong the life of the lamp and projector.
Never run the projector without a lamp.
The light shall be changed if it has become damaged or thermally deformed or
reached its life limit.
Shields and lens shall be changed if they have become visibly damaged to such an
extent than their effectiveness is impaired, for example by cracks or deep scratches.
Exterior surface temperatures of the luminaire after 5 minutes operation is 70° 。，
when steady state is achieved 140°。
There is no user serviceable parts inside the projector, do not open the housing and
never operate the product with the covers removed.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
★Always disconnect from the mains, when the device is not in use or
before cleaning it or before attempting any maintenance work !
1
135-195 Slow rotation
196-200 Pattern 1 is slow to fast shake
201-205 Pattern 2 slow to fast shake
206-210 Pattern 3 slow to fast shake
211-215 Pattern 4 slow to fast shake
216-220 Pattern 5 slow to fast shake
221-225 Pattern 6 slow to fast shake
226-230 Pattern 7 slow to fast shake
231-235 Pattern 8 slow to fast shake
236-240 Pattern 10 slow to fast shake
241-245 Pattern 10 slow to fast shake
246-250 Pattern 11 slow to fast shake
CH14 Focusing 0-255 Focus 0% - Focus 100%
CH15 Zoom 0-255 Zoom 0% - Zoom 100%
CH16 Prism 1
(Liner 6-face)
0-255 Prism does not start
128-255 The prism opens
CH17 Prism 1 is rotated
0-127 Prism angle adjustment
128-188 Fast rotation from fast to slow
190-192 stop
193-255 Fast rotation from slow to fast
CH18 Prism 2
(Round 8-face)
0-127 Prism does not start
128-255 The prism opens
CH19 Prism 2 is rotated
0-127 Prism angle adjustment
128-188 Fast rotation from fast to slow
190-192 stop
193-255 Slow rotation from slow to slow
CH 20 Reset
100-105 Light on
200-205 Light off
255 Reset
14

BEAM SPOT WASH (3IN1) 350W BEAM SPOT WASH (3IN1) 350W

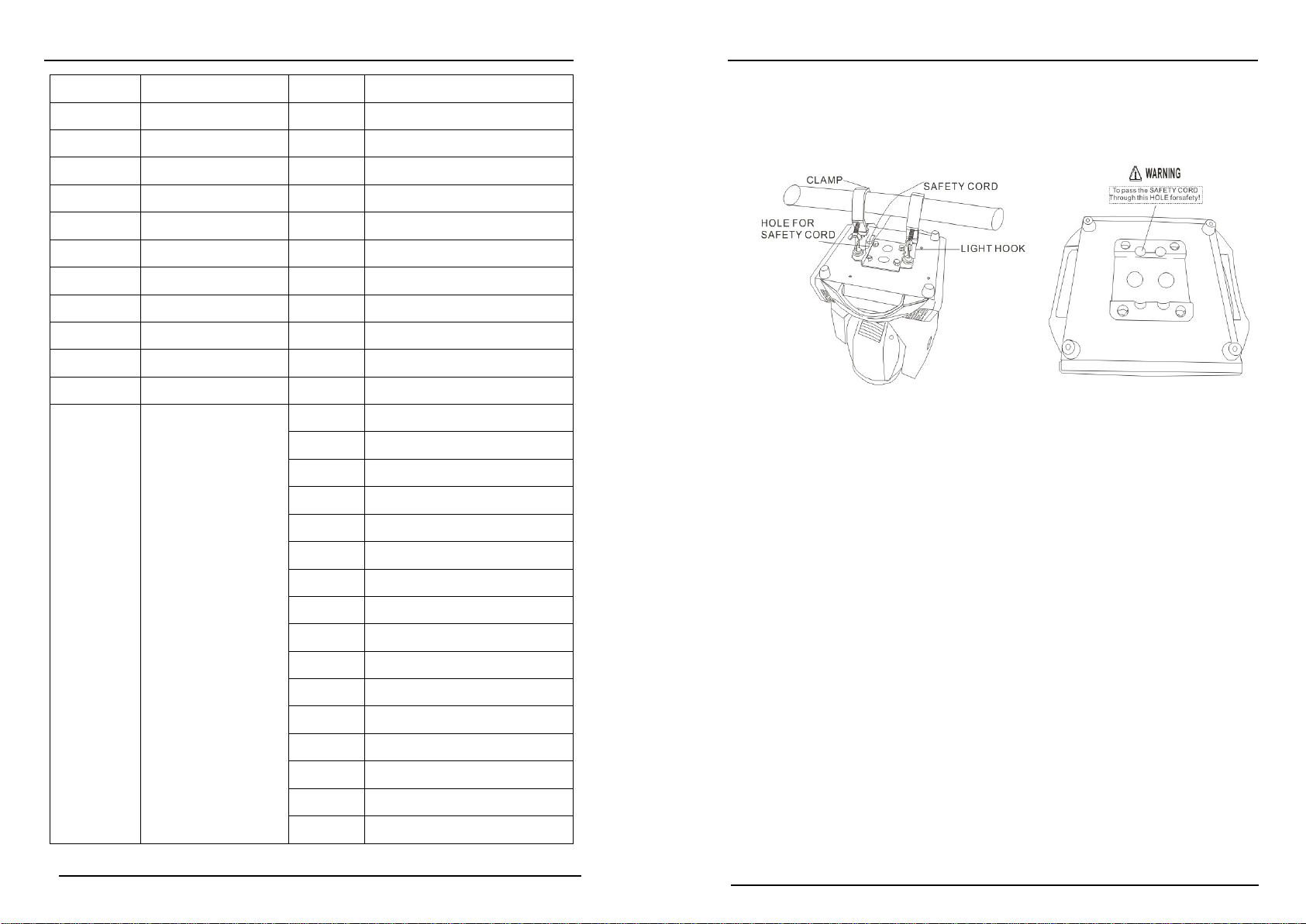

Install The Equipment:
Use 2pcs clamp and 1safety cord(need to purchase).Use clamp fix with light hook
which in the packing box with light, then use screw install to the bottom of lamp. Hang
the fixture on the structure and fasten the screws attached to each clamp. Make sure
the light is installed reliable, and confirm the light which you fixed is strong enough for
hanging the light. Base on safety reason, please according to the above picture using
safety wire cross the light to make it strong enough again.
Warning!
1. Unlock the PAN and TILT before the 1st application of the light for safety.
2．Hook and clamp only use for hanging the light. Do not use clamp as a tool to move
fixtures.
3．Base on safety reason, please use the safety cord which can afford the weight ten
times of lamp through Insurance hole for auxiliary hanging.
4．Don't use the handle of the moving head light to fixed or lift!
Fitting The Lamp
：
.Loosen 4 fast-fit screws and remove the back cover, when fitting/replacing the lamp.
.Do not touch the bulb of the new lamp with bare hand so as not to influence the beam
output.
.Do not harm the sticking out point of the lamp during its installation.
.Fit new lamp and close the back cover by fastening 4 fast-fit screws when finished
lamp installation.
2
CH11 Gobo rotation 0-126 Angle adjustment
127 Fast rotation
…… ……
190 Slow rotation
191-192 stop
193 Slow rotation
…… ……
255 Fast rotation
CH12 Pattern shake 0 stop
1 Moving slowly shake
…… ……
255 Moving fast shake
CH13 Fix Gobo + shake
0-4 White light
5-9 Pattern 1
10-14 Pattern 2
15-19 Pattern 3
20-24 Pattern 4
25-29 Pattern 5
30-34 Pattern 6
35-39 Pattern 7
40-44 Pattern 8
45-49 Pattern 9
50-54 Pattern 10
55-59 Pattern 11
60-64 Pattern 12
65-74 Pattern 13
75-129 Fast rotation from fast to slow
130-134 Rotation stops from slow to fast
14

BEAM SPOT WASH (3IN1) 350W BEAM SPOT WASH (3IN1) 350W
.Lamp work will reach a very high temperature, Vapor discharge lamp can not
continue to supply this physical characteristics, therefore, the power completely cool
for 10 minutes before on the operation. Failure to do so will lead to a high-pressure
discharge and short circuit burned out the computer's control panel components.
Notes: Unplug the light from power before lamp installation or replacement
and wait for it to cool.
Power Code Connection:
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to
the voltage and frequency marked on the panel of the projector. It is recommended
that each projector be supplied separately so that they may be individually switched
on and off.
★
It is essential that each projector is correctly earthed and the
electrical installation conforms to all relevant standards.
DMX Connection:
Connection between the controller and a projector and between one projector and
another must be made with a 2 core-screened cable, with each core having at least a
0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are
included with the projector) XLR plugs and sockets. The XLR's are connected as
shown in the figure above.
3
70-74 Colour13+White light
75-79 Colour12+Colour13
80-84 Colour11+Colour12
85-89 Colour10+Colour11
90-04 Colour9+Colour10
95-99 Colour8+Colour9
100-104 Colour7+Colour8
105-109 Colour6+Colour7
110-114 Colour5+Colour6
115-119 Colour4+Colour5
120-124 Colour3+Colour4
125-129 Colour2+Colour3
130-134 Colour1+Colour2
135-139 White light+Colour1
140 Slow water
…… ……
255 Fast water
CH10 Rotating Gobo
0-9 White light
10-19 pattern1
20-29 pattern2
30-39 pattern3
40-49 pattern4
50-59 pattern5
60-69 pattern6
70-79 pattern7
80-89 pattern8
90-99 pattern9
100 Fast rotation
…… ……
175 Slow rotation
176 Slow rotation
…… ……
255 Fast rotation
12

BEAM SPOT WASH (3IN1) 350W BEAM SPOT WASH (3IN1) 350W
Note: Care should be taken to ensure that none of the pins touch the metallic body of
the plug or each other. The body of the plug is not connected in any way. The XLED
590 accepts digital control signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s
output to the second fixture’s input and connect the rest fixtures in the same way.
Eventually connect the last fixture’s output to a DMX terminator as shown in the figure
below.
DMX Terminator:
In the Controller mode, at the last fixture in the chain, the DMX output has to be
connected with a DMX terminator. This prevents electrical noise from disturbing and
corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor
connected across pins 2 and 3, which is then plugged into the output socket on the
last projector in the chain. The connections are illustrated below.
4
Channel List:
Channel
Function
Value
Effect
CH1 Pan 0-255 0--540°
CH2 Tilt 0-255 0--270°
CH3 Pan Fine tune 0-255 0--2.1°
CH4 Tilt Fine tune 0-255 0--1.0°
CH5 P/T speed adjustment 0-255 fast---SLOW
CH6 Frost 0-255 turn off--open
CH7 Dimming 0-255 Dimming0%--Dimming100%
CH8 Strobe
0-10 The shutter is closed
11 Slow strobe
…… ……
250 Fast strobe
251-255 The shutter is open
CH9 Colour
0-4 White light
5-9 Colour1
10-14 Colour2
15-19 Colour3
20-24 Colour4
25-29 Colour5
30-34 Colour6
35-39 Colour7
40-44 Colour8
45-49 Colour9
50-54 Colour10
55-59 Colour11
60-64 Colour12
65-69 Colour13
11

BEAM SPOT WASH (3IN1) 350W BEAM SPOT WASH (3IN1) 350W

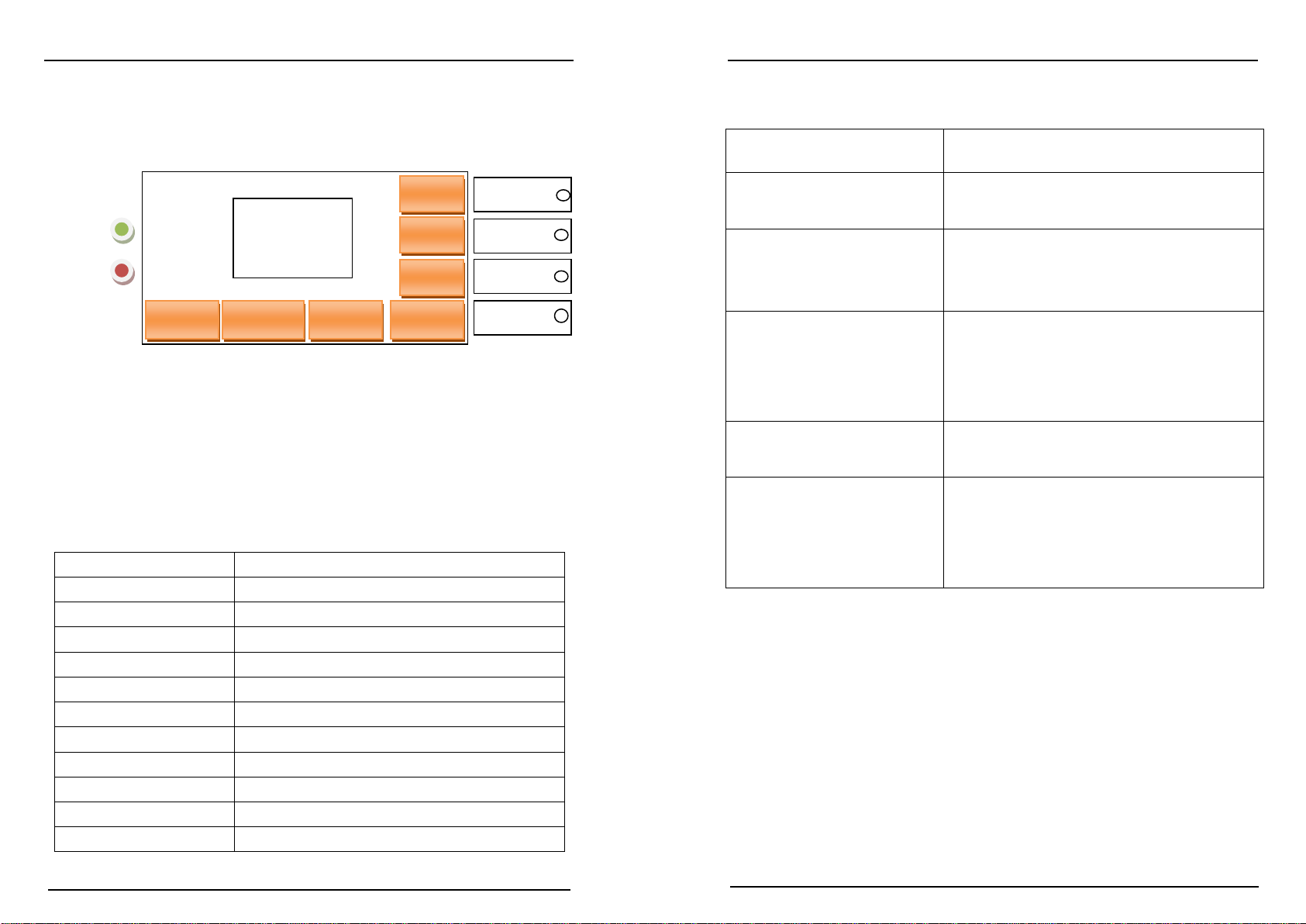

Menu Function Set:
Touch Operation:
Use button switch and LCD display, can set the address code and function code
easily.
Check or modify lighting function settings, Press the LCD display or MENU button.
LCD display panel will display main menus. Function operation menu all have
corresponding submenu . Each menu all represent the specific functions of lamps,
specific see below "operation menu" section.
Set or browse function setting of lamp, Press UP or DOWN key.
Press ENTER key to save your changes or to enter submenu, Press UP
or DOWN can change value(Plus or reduce number).
DMX DMX signal indicator
ERR It have some function have problem
ESCAPE Main menu
PREV Menu up selection
NEXT Menu down selection
ENTER Confirm button
Setting Function setting
Manual Manual control
Info Light use information
System Factory setting
中/EN language choice
180 Screen rotation
5
DMX
ERR
001
Setting Manual Info System
中/EN
180
Lock
ESCAPE
NEXT
PREV
ENTEN
Trouble Shooting:
Problem Answer
The moving head light doesn’t
switch on.
Check the fuse the power socket
Replace the lamp
Although shines, but the moving
head lamp doesn’t accept the
instruction of the controller.
Check the digital start address and also check
the connection situation of the communication
control line
The moving head lamp only can
work intermittently.
Inspect the power supply and voltage is whether
normal.
Make sure the fan is working well or fans and
their filters not blocked
Defective projection Make sure the lamp is within its life limit
Remove dust or grease from the lenses.
The beam appears dim heck the optics is clean or the lens in good
condition(not cracked)
Replace with a new lamp of the specified type
and rating.
☆
Other maintain work should by the specialist which has the experience to
carry on.
Equipment and Appendix:
☆Beam 350W Moving Head Light 1pcs
☆Power Cable 1pcs
☆XLR connector 1unit
☆Light Hook 2pcs
☆The Product of Instruction 1pcs
10

BEAM SPOT WASH (3IN1) 350W BEAM SPOT WASH (3IN1) 350W
Operation Menu:
Menu Structure chart:
Main interface --Set up ----Running mode
----DMX address
----Channel mode
----X Reversal
----Y Reversal
----Y Reversal
---- XY Encoder
----No DMX signal
----screen protector
----Boot bright bubble
----Color wheel linear change
----Restore the default settings
--Manual
--system ----Software version
----DMX Channel value monitoring
----System error record
-----Total use time
-----This time of use
----The total time of the bright bubble
----This time the bubble time
--advanced ----Reset calibration
----Maximum bright time
----The bright bubble time is cleared
----Sensor monitoring
--Switch between Chinese and English
--The screen rotates
6

Advanced
Set a password here to prevent misuse of non-professionals. The default password is "up and
down". Press "OK" to verify the password.
Option Description
Reset calibration
After entering the sub-interface, you can adjust the X-axis, Y-axis and
other motor reset position to compensate for the hardware installation
of the error, the adjustment range -128 ~ +127, + 0 that no adjustment.
Maximum bright
time
0-9999 hours, the operation of the maximum bright bubble time the
system will have alarm tips
The bright bubble
time is cleared
After clearing, the light bubble time is recalculated
Sensor
monitoring
Real-time monitoring lights on a variety of photoelectric switches,
Hall and other sensor status
Maintenance:
To prolong the life of the projector, some maintenance work has to be done to
ensure the optical system in good condition. If the projector does not function, check
the fuses on the power socket of the projector, they should only be replaced by
fuses of the same specification. Should these be damaged, call a qualified
technician before replacement. The projector has thermal protection device that will
switch off the projector in case of overheating. Should either of these operate, check
that the fans are not blocked, and if they are dirty, clean them before switching on
the projector again. Check that the fans are operational, if not, call a qualified
technician.
☆Any maintenance work should only be carried out by qualified
technicians.
Keeping The Product Clean:
To ensure the reliability of the projector, it should be kept clean. It is recommended
that the fans should be cleaned every 15 days. The lens and dichroic colour filters
should also be regularly cleaned to maintain an optimum light output.
Do NOT use any type of solvent on dichroic colour filters.
Cleaning frequency depends on the environment in which the fixture operates: damp,
smoke or particularly dirty surroundings can cause greater accumulation of dirt on the
unit's optics. A soft cloth and typical glass cleaning products should be used for
cleaning. It is recommended to clean the external optics at least once every 15 days
and clean the internal optics at least once every 60 / 90 days.
☆Do not use any organic solvent, e.g. alcohol, to clean housing of the
apparatus.
9

BEAM SPOT WASH (3IN1) 350W BEAM SPOT WASH (3IN1) 350W

Set up
Option Description
Running mode
DMX
Slave Status: Receive DMX signals from the console
or host
Self-running1
Host Status: Go and send DMX signal to slave
Voice control
Pass the voice and send the DMX signal to the slave
DMX address 1~512
Press "OK" key to enter the editing state. At this time
is selected hundred, press the "up" "down" key to
change the address code. Press "OK" again to select
the ten edit. Press
"OK" again to select the bit edit.
Press again to exit the editstate
Channel mode
standard 20CH
Standard 20CH channel mode
XReversal
turn off
open
YReversal
turn off
open
XYexchange
turn off
open Exchange the axis o
f the XY axis (including fine
tuning)
XYEncoder
open
Use the encoder (optocoupler) to determine the out of
step and automatically correct the position
turn off
Do not use the encoder (optocoupler) to correct the
position
No DMX
signal
maintain
Continue to run as it is
Cleared
The motor is turned back and stopped
screen
protector
open
Idle after 30 seconds off
turn off
Backlight forever bright
Boot bright
bubble
turn off
Power on the direct reset, do not light bulb (need to
use the menu or console to manually bright bubble)
open
Power on the automatic light bubble, and to wait until
the light bulb was successfully lit.
Color wheel
linear change
open
Color wheel linear change
turn off
Color wheel non-linear change, half color change
Restore the
default
settings
Press the "OK" button to see the confirmation dialog
box, press the "OK" button to restore the default
settings
7

System information
Option Description
Software version
current software version
DMX channel value Thereby entering the sub-interface, displaying the channel values
in values and percentages for viewing
System error record
If the red ERR indicator light is lit, indicating that the lights run
error, the details can be entered into the sub-interface view. After
viewing, press "Clear" to clear the error log
Note: sometimes not really Hall or optocoupler installation
problems, but the motor line reverse
Total use time
Accumulated use time (accurate to minutes)
This time of use
This time since the start of the use of time (accurate to minutes)
The total time of the
bright bubble
Cumulative burst time (accurate to minutes)
This time the bubble
time
This bright time (accurate to minutes)
Information
Error message Description
Motor reset failed,
serial error
The driver board does not respond. There is a problem with the
serial communication line connecting the display board and the
driver board, or the drive board is faulty.
X axis reset failed
X-axis photoelectric switch, or X-axis motor problem
Yaxis reset failed
Y-axis photoelectric switch, or Y-axis motor problem
X axis Hall error
X-axis Hall has problems
Y axis Hall error
Y-axis Hall has problems
Color disc reset failed
Color pallet, or color plate motor problem
Pattern disk reset failed
Pattern dish Hall, or pattern disk motor problem
Focus reset failed
Focus on the hall, or the focus motor has a problem
Prism focus reset failed
Prism focus Hall, or prismatic focus motor has problem
Lamp control failed
Bright bubble or foam failure, light bulb or light bulb problems
Bright bubble time is
too long, please
change!
The accumulated light bubble time exceeds the maximum light
bubble time set in the "Advanced" menu, prompting the user to
change the gun in time. After changing the bubble in the
"Advanced" menu to clear the bright bubble time, bright bubble
time to re-count.
8
