MJ LED LIGHTNING MJ-B380 User manual

BEAM380 MOVING HEAD LIGHT
MJ-B380
User manual
======PROFESSIONAL STAGE LIGHTING ========
Thank you for choosing our beam moving head light. For the sake of your safety, Please read
and follow these instructions carefully and keep this manual in a safe place for future
reference.

2
Catalogue
Chapter Page
Safe Usage Of The Product -------------------------------------------------------------------------------------------3
Install The Equipment --------------------------------------------------------------------------------------------------4
Fitting The Lamp---------------------------------------------------------------------------------------------------------4
Power Code Connection -----------------------------------------------------------------------------------------------5
DMX Connection --------------------------------------------------------------------------------------------------------5
DMX Terminator ---------------------------------------------------------------------------------------------------------6
Function Set ----------------------------------------------------------------------------------------------------------------6
Operation Menu -----------------------------------------------------------------------------------------------------------7
Maintenance ----------------------------------------------------------------------------------------------------------------9
Keeping The Product Clean -------------------------------------------------------------------------------------------10
Trouble Shooting----------------------------------------------------------------------------------------------------------10
Equipment and Appendix-----------------------------------------------------------------------------------------------10
Channel List-----------------------------------------------------------------------------------------------------------------11
Technical Parameters-----------------------------------------------------------------------------------------------------13
☆Important notice:
·In this instruction for use contains about the installment and the use aspect important information of the beam moving
head. When installing and using, you need to look this usage instruction strictly.
·Before open the beam moving head and if you want to do the repair work, please make sure the power source is at the
separation condition.
·Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and the unit are
in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer
and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer or dealer.
Attention: Unceasingly carries on the product improvement about our company the policy, in this instruction booklet
carries the data will have the possibility to be able to change in the future, when no longer separate notice change matters
concerned. Our company retains when the product improvement changes the related specification the authority. This
instruction booklet publisher cannot be responsible regarding this instruction booklet in information accuracy, also cannot
the related consequence which causes regarding these information be responsible.

3
SAFE USAGE OFTHE PRODUCT
When unpacking and before disposing of the carton, check there is no transportation damage before
using the product. Should there be any damage caused by transportation, consult your dealer and do
not use the apparatus.
The product is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain
and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other
liquids.
The product is not designed or intended to be mounted directly on to inflammable surfaces
The product is only intended for installation, operation and maintenance by professional person.
The product must be installed in a location with adequate ventilation, at least 50cm from adjacent
wall surfaces. Be sure that no ventilation slots are blocked.
Do not product the beam onto inflammable surfaces, minimum distance is 15m.
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power
requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation conforms to all
relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the
power-cord come into contact with other cables. Only handle the power-cord by the plug. Never pull
out the plug by tugging the power-cord.
Keep the light clean. Do not touch the light glasss with bare hands.
The product should always be installed with a secondary safety fixing. On the projector base brink,
there is a hole for the safety cord provided. It should be attached as shown in “installing the projector”
section.
The lamp used in this projector is a discharge lamp. After switching off don,t attempt to restart the
projector until lamp has cooled, this will require approx 15 minutes. Switching the lamp on and off at
short intervals will reduce the life of both the lamp and the projector. But occasional breaks will
prolong the life of the lamp and projector.
Never run the projector without a lamp.
The light shall be changed if it has become damaged or thermally deformed or reached its life limit.
Shields and lens shall be changed if they have become visibly damaged to such an extent than their
effectiveness is impaired, for example by cracks or deep scratches.
Exterior surface temperatures of the luminaire after 5 minutes operation is 70°,when steady state is achieved 140°。
There is no user serviceable parts inside the projector, do not open the housing and never operate the product
with the covers removed.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
★Always disconnect from the mains, when the device is not in use or before cleaning it or
before attempting any maintenance work !

4

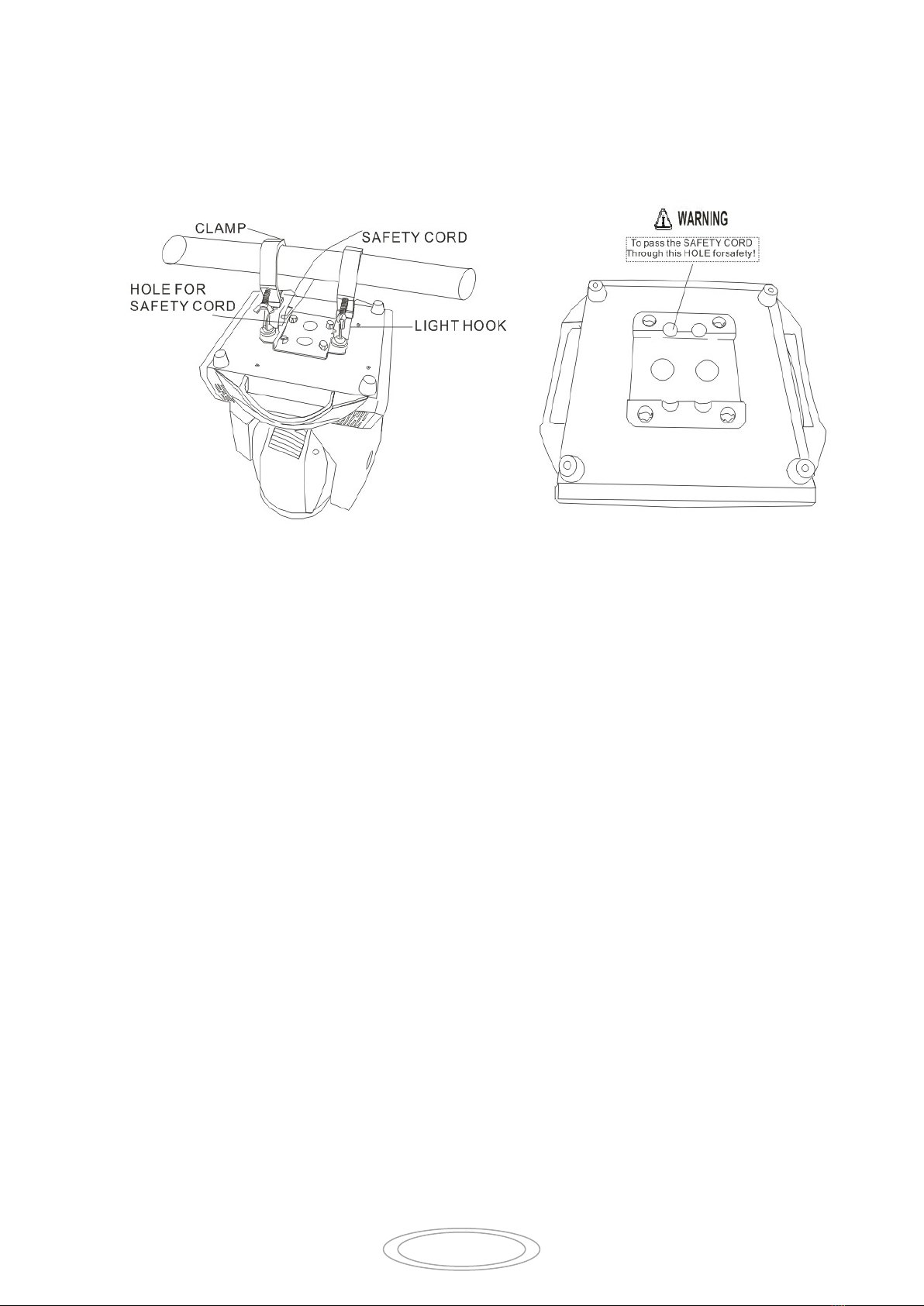

Install The Equipment:
Use 2pcs clamp and 1pcs safety cord(need to purchase).Use clamp fix with light hook which in the
packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure
and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm
the light which you fixed is strong enough for hanging the light. Base on safety reason, please
according to the above picture using safety wire cross the light to make it strong enough again.
Warning!
1. Unlock the PAN and TILT before the 1st application of the light for safety.
2．Hook and clamp only use for hanging the light. Do not use clamp as a tool to move fixtures.
3．Base on safety reason, please use the safety cord which can afford the weight ten times of lamp
through Insurance hole for auxiliary hanging.
4．Don't use the handle of the moving head light to fixed or lift!
Fitting The Lamp：
. When replacing the bulb, remove the plastic shell of the lamp head first.
.Do not touch the bulb of the new lamp with bare hand so as not to influence the beam output.
.Do not harm the sticking out point of the lamp during its installation.
.Fit new lamp and close the plastic shell of the lamp head when finished lamp installation.
.Lamp work will reach a very high temperature, Vapor discharge lamp can not continue to supply this
physical characteristics, therefore, the power completely cool for 10 minutes before on the operation.
Failure to do so will lead to a high-pressure discharge and short circuit burned out the computer's
control panel components.
Notes: Unplug the light from power before lamp installation or replacement and wait for it to cool.

5
Power Code Connection:
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to the voltage and
frequency marked on the panel of the projector. It is recommended that each projector be supplied
separately so that they may be individually switched on and off.
★It is essential that each projector is correctly earthed and the electrical installation conforms
to all relevant standards.

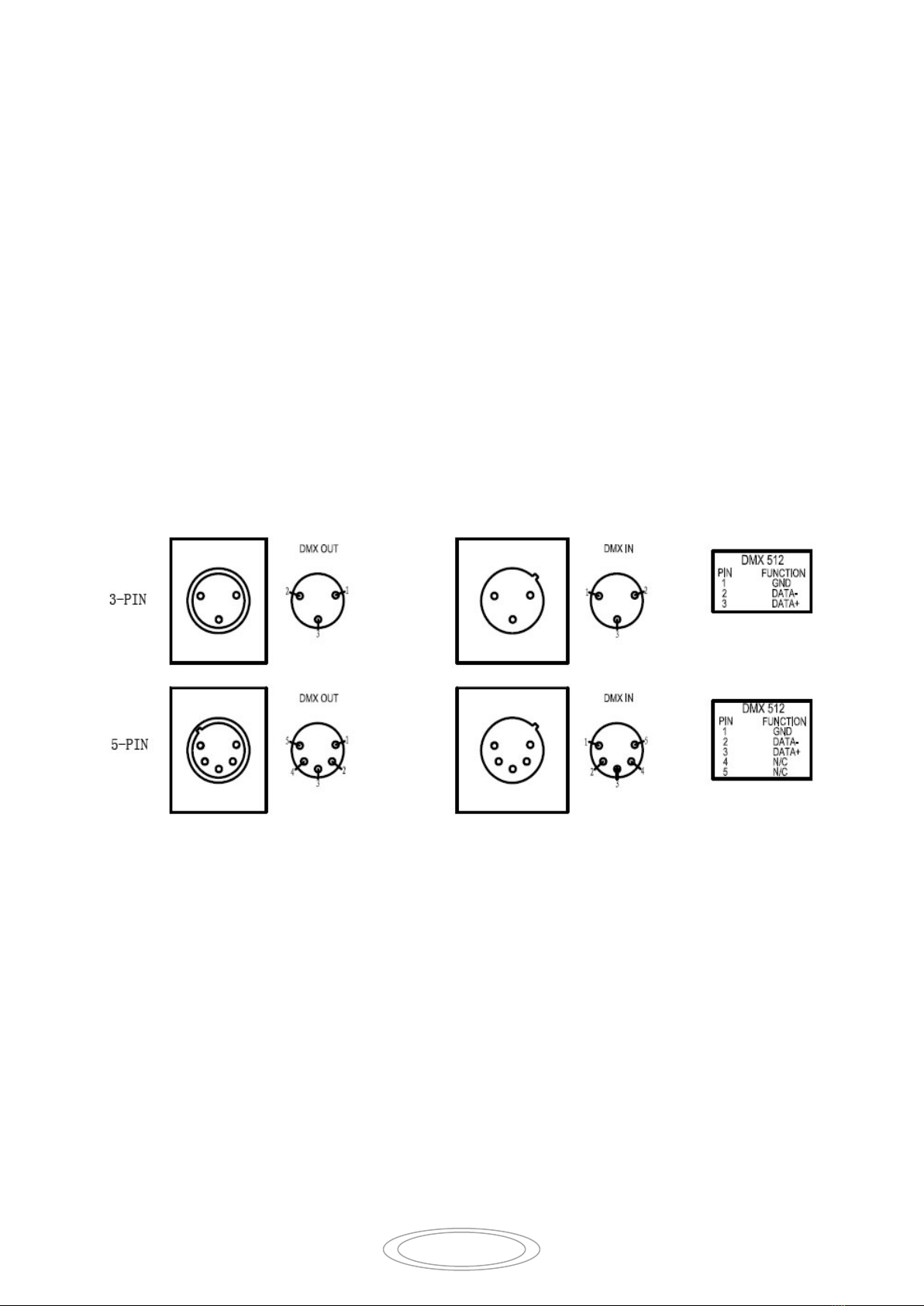

DMX Connection:
Connection between the controller and a projector and between one projector and another must be
made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to
and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and
sockets. The XLR's are connected as shown in the figure above.
Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each
other. The body of the plug is not connected in any way. The XLED 590 accepts digital control
signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the
second fixture’s input and connect the rest fixtures in the same way. Eventually connect the last
fixture’s output to a DMX terminator as shown in the figure below.

6
DMX Terminator:
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a
DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control
signals.
The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins
2 and 3, which is then plugged into the output socket on the last projector in the chain. The
connections are illustrated below.
Function Set:
1. Touch Operation(Touch the Menu into the main menu as below)
Setting Info Factory
CN 180
EN
DMXAddress
Manual

7

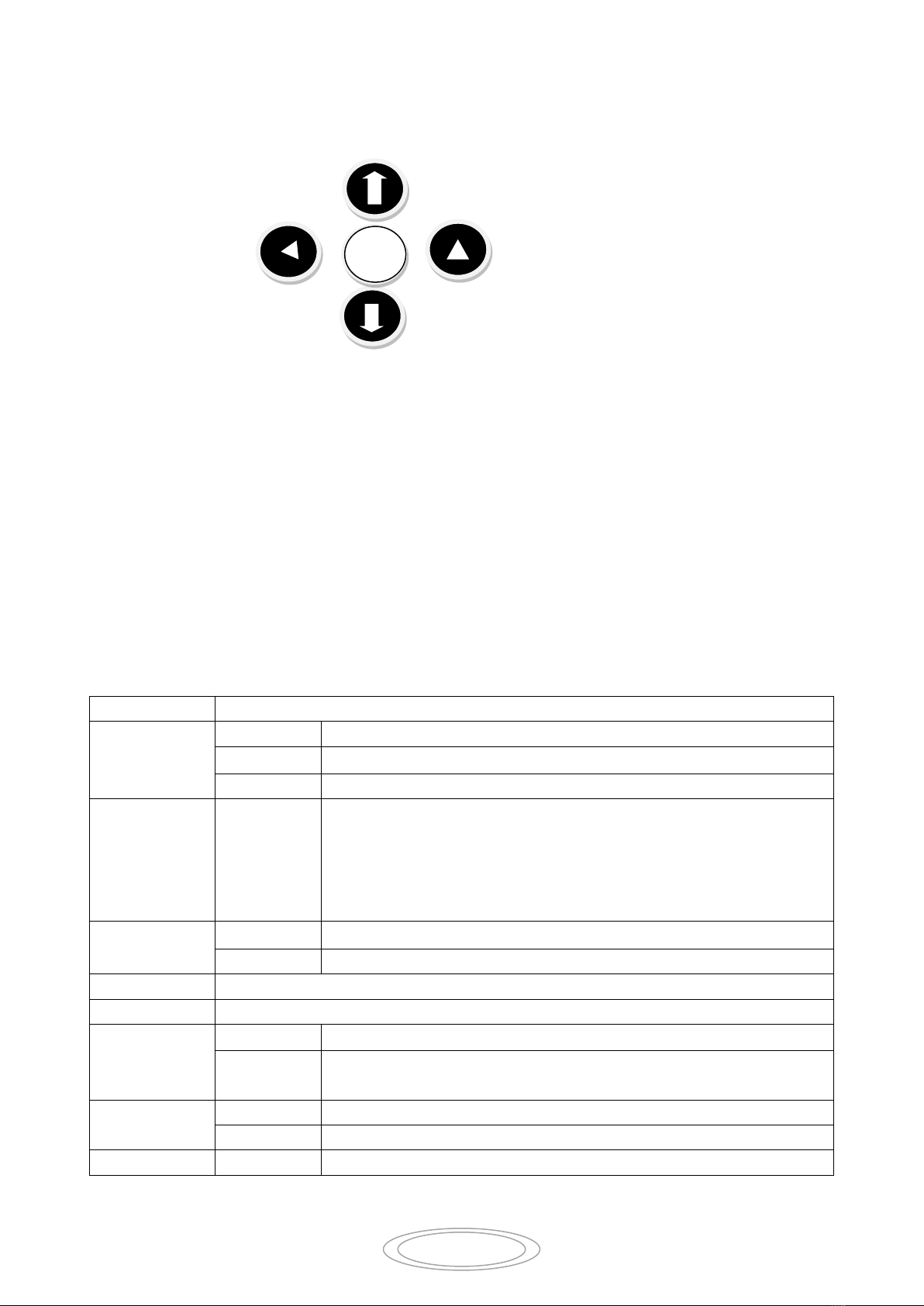

2. Button Operation
UP
Left Right
DOWN
Use button switch and LCD display, can set the address code and function code easily.
Check or modify lighting function settings, Press the LCD display or OK button. LCD display panel
will display main menus. Function operation menu all have corresponding submenu . Each menu all
represent the specific functions of lamps, specific see below "operation menu" section.
Set or browse function setting of lamp, Press UP or DOWN key.
Press LEFT and RIGHT keys function the same way: return to the previous interface
Press OK key to save your changes or to enter submenu, Press UP or DOWN can change value(Plus
or reduce number).
Operation Menu:
Menu Structure chart
1. Setting menu
Options
Instructions
The operation
mode
DMX From the machine status: receiving DMX signal from the controller or host
automatic
Host: run automatically, and send the DMXD signal from machine
Voice control Receiving external sound or vibration, run the built-in application effect
DMX address
1-512 Press "OK" button to enter edit state. At this point is selected to one
hundred, according to the "up" "down"
Key change address code. Press the "OK" button once again and selected
10 editing. Press again
"OK" button to select bits editor. Then exit the editor state at a time.
The channel
model
16 17-20 channel is invalid
20
17-20 channel control speed (see channel table)
X inversion
Guan/open
Y inversion
Guan/open
XY
The encoder
guan
Do not use the encoder (light coupling) correct position
op
Using encoder (light coupling) judging out-of-step and automatically
correct position
No DMX signal keep According to the original state continues to run
reset
The motor return, stop running
The screen
open
Close the backlit idle for 30 seconds
OK

8
saver gua Back lit yongliang
Switch on light
bubble
open When start the lamps and lanterns, lamp light up automatically
guan Start the lamps and lanterns, the bulb is not bright
Restore the
default Settings
no
yes Press "ok" is to restore the default Settings
2. Information menu
Options
Instructions
Software version
The current software version (K12.003)
Fan speed Display fan speed
Total light soaking time
Total light bubble time (accurate to minutes)
The light soaking time The light of this boot since bubble time (down to minute)
DMX channel value In the condition of DMX, showing all channels of value (number),
thus the child
into the interface, display as a percentage value and channel value for viewing
System error record If red ERR lights shine, then failed to reset run out of step, can enter child interface
for details.After the view can press "ok" the error record to empty
3.Manual control menu
This interface is used to control the current lamps and lanterns, neither belongs to the state machine from machine
shape (not receiving DMX signal) also does not belong to the host shape (not send DMX signal)
Options
Instructions
Reset
Click "ok" button after see confirmation dialog, press the "ok" key once again, after
carry into the interface, reset all motor
The light bulb control ON/OFF
The color wheel 0-255
Press "ok" button to enter edit state. At this point is selected, click on
"next" button to change channels values, press the "ok" button once
again and exit the editor.
。。。。。。 0-255
Pattern plate speed 0-255
4. Advanced interface
To enter the show advanced interface, please enter the password: XXXXXX. Specific operation process: press the
up and down key to choose Numbers (a *) at a time. Password input after fully, finally press the "ok" key password
authentication.
Options
Instructions
The biggest bright time
0-9999
Can be set up on time
Encryption scheme
Off
The number of
Can be set up the use of light times
time
Can be set the use time of light
Encryption parameters
(frequency/time)
0-9999 After the encryption mode to open the work. Can be set up the
use of lamps and lanterns (number/time)

9
5. Thou hast interface
Click "ok" button, the interface inversion can be 180 degree show.
6. English interface
Click "ok" button, the interface, switch to English mode.
7. Chinese interface
Click "ok" button, the interface, switch to the Chinese model.
8. The factory menu
Enter the factory interface, display, please enter the password: XXXXXX. Specific operation process: press the up
and down key to choose Numbers (a *) at a time. Password input after fully, finally press the "OK" (OK) key
password authentication.
Options
Instructions
Reset the
calibration (fine)
0-255 X calibration
0-255
Ycalibration
0-255 The dimming calibration
0-255
Color wheel alignment
0-255 Pattern plate of the calibration
0-255
Focusing calibration
0-255 Prism calibration
0-255
Fog lens calibration
Channel Settings Can be set up channel switch
Screen saver mode
Pattern 1
According to address code
Pattern 2According to factory LOGO
Pattern 3
No display (reserve)
Bright time reset NO/YES
Maintenance:
To prolong the life of the projector, some maintenance work has to be done to ensure the optical
system in good condition. If the projector does not function, check the fuses on the power socket of
the projector, they should only be replaced by fuses of the same specification. Should these be
damaged, call a qualified technician before replacement. The projector has thermal protection
device that will switch off the projector in case of overheating. Should either of these operate, check
that the fans are not blocked, and if they are dirty, clean them before switching on the projector
again. Check that the fans are operational, if not, call a qualified technician.
☆Any maintenance work should only be carried out by qualified technicians.

10
Keeping The Product Clean:
To ensure the reliability of the projector, it should be kept clean. It is recommended that the fans
should be cleaned every 15 days. The lens and dichroic colour filters should also be regularly cleaned
to maintain an optimum light output.
Do NOT use any type of solvent on dichroic colour filters.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or
particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics. Asoft cloth
and typical glass cleaning products should be used for cleaning. It is recommended to clean the
external optics at least once every 15 days and clean the internal optics at least once every 60 / 90
days.
☆Do not use any organic solvent, e.g. alcohol, to clean housing of the apparatus.
Trouble Shooting:
Problem
Answer
The moving head light doesn’t switch
on.
Check the fuse the power socket
Replace the lamp
Although shines, but the moving head
lamp doesn’t accept the instruction of
the controller.
Check the digital start address and also check the
connection situation of the communication control line
The moving head lamp only can work
intermittently.
Inspect the power supply and voltage is whether normal.
Make sure the fan is working well or fans and their
filters not blocked
Defective projection
Make sure the lamp is within its life limit
Remove dust or grease from the lenses.
The beam appears dim
heck the optics is clean or the lens in good condition(not
cracked)
Replace with a new lamp of the specified type and rating.
☆Other maintain work should by the specialist which has the experience to carry on.
Equipment And Appendix:
☆Beam 380W Moving Head Light 1pcs
☆Power Cable 1pcs
☆XLR connector 1unit
☆Light Hook 2pcs
☆The Product of Instruction 1pcs

11
Channel List: (16CH MODE)
Channel Function Value Function description
CH1 Colour
0 ~9
Open
10 ~14
Open+Colour1
15 ~19
Colour1
20 ~24
Colour1+Colour2
24
~
29
Colour2
30
~
34
Colour2+Colour3
35
~
39
Colour3
40
~
44
Colour3+Colour4
45
~
49
Colour4
50 ~54
Colour4+Colour5
55 ~59
Colour5
60 ~64
Colour5+Colour6
65 ~69
Colour6
70 ~74
Colour6+Colour7
75
~
79
Colour7
80
~
84
Colour7+Colour8
85
~
89
Colour8
90
~
94
Colour8+Colour9
95
~
99
Colour9
100
~
104
Colour9+Colour10
105 ~ 109
Colour10
110 ~ 114
Colour10+Colour11
115 ~ 119
Colour11
120 ~ 124
Colour11+Colour12
125
~
129
Colour12
130
~
134
Colour12+Colour13
135
~
139
Colour13
140
~
149
Colour13+Open
150
~
203
Forward flow( From fast to slow )
204 ~ 255
Reverse flow( From slow to fast)
CH2 Shutter
0 ~ 3
Closed
4 ~ 103
Strobe pulse( From slow to fast)
104 ~ 107
Open
108 ~ 207
Stroboscopic effect( From slow to fast)
209
~
212
Open
213
~
251
Randomstrobe( From slow to fast)
252
~
255
Open
CH3
Dimmer
0
~
255
From dark to light

12
CH4 Gobo
0
~
6
Open
7
~
13
Gobo1
14
~
20
Gobo2
21
~
27
Gobo3
28 ~ 34
Gobo4
35 ~ 41
Gobo5
42 ~ 47
Gobo6
48 ~ 53
Gobo7
54 ~ 59
Gobo8
60
~
65
Gobo9
66
~
71
Gobo10
72
~
89
Gobo11
90
~
95
Gobo1 shake ( From slow to fast)
96
~
100
Gobo2 shake ( From slow to fast)
101
~
105
Gobo3 shake ( From slow to fast)
106 ~ 110
Gobo4 shake ( From slow to fast)
111 ~ 115
Gobo5 shake ( From slow to fast)
116 ~ 120
Gobo6 shake ( From slow to fast)
121 ~ 125
Gobo7 shake ( From slow to fast)
126
~
130
Gobo8 shake ( From slow to fast)
131
~
135
Gobo9 shake ( From slow to fast)
135
~
140
Gobo10 shake ( From slow to fast)
141
~
155
Gobo11 shake ( From slow to fast)
156
~
160
Open
161 ~ 205
Forward flow( From fast to slow )
206 ~ 210
Open
211 ~ 255
Reverse flow( From slow to fast)
CH5 Prism1 0 ~ 255
000-019 invalid
020-075 Prism1-(16)
076-127 Prism2-(24+16+8)
128-255 Prism1Prism2
CH6 Prism1 Rot
0
~
127
Prism rotation positioning
128
~
191
Prism veering rotation from slow to fast
192
~
255
Prism reversion rotation from slow to fast
Prism2 Rot
0 ~ 127
Prism rotation positioning
128 ~ 191
Prism veering rotation from slow to fast
192 ~ 255
Prism reversion rotation from slow to fast
CH8
Focus
0 ~ 255
Linear focus( From near to far)
CH9
Pan
0 ~ 255
0-540 Degree
CH10
Pan Low
0
~
255
0-2.1 Degree Low
CH11
Tilt
0
~
255
0-270 Degree
CH12
Tilt Low
0
~
255
0-2.1 Degree Low
CH13
P/T Speed
0
~
255
From fast to slow

13
CH14
Frost
0
~
255
Frost
CH15
Colourful
prism
0
~
127
Colourful color prism Off
128
~
255
Colourful color prism Open
CH16 Reset
100
~
105
Lamp Off
200
~
205
Lamp Open
250
~
255
Reset
Technical Parameters:
Voltage : AC100~240V/50-60Hz
Power consumption:550W@(220V)
Bulb: YODN 3800W lamp
Lamp : YODN MSD380D18 LAMP
Color temperature : 8500K
Color: 13 Color + Open, Color half step function
Gobo: 11 Fixed gobo + Open,Gobo shake function
Prism: 1Pcs 16-face rotation prism, Bilateral rotation, Prism superposition function
1Pcs 24+16+8-face rotation prism, Bilateral rotation, Prism superposition function
Frost: 1Pcs frost mirror
Focus: Linear focusing
Multi-color mirror: 6 color mirror
Dimmer : 0-100% linear adjustment ,Strobe(0.5-9 times/ second)
Beam angle : Parallel beam angel 0 – 1.9°
Channel : 16CH
Control mode : Standard DMX512, Automatic, Sound and Master-slave mode
Pan: X axis 540°automatically accurate positioning
Tilt: Y axis 270°automatically accurate positioning
Control Panel: LCD touch screen display panel with buttons, 2.2-inch color LCD display with
English and Chinese menu, can be rotation 180 °
Protection grade:IP20
Net weight:18KG
Gross Weight: 20.5 kg
Package Size: 420 x 360x 695cm
