MJ LED LIGHTNING MJ-2410A-4IN1 User manual

LED MATRIXBAR 1810
MJ-2410A-4IN1
User Manual
======PROFESSIONAL LED LIGHTING ========
Thank you for choosing our LED wall washer light. For the sake of your safety,
Please read and follow these instructions carefully and keep this manual in a safe
place for future reference.
Technical Parameters:
Voltage: AC100-240V, 50Hz-60Hz
Power Consumption: 180 Watts
LED: 18pcs 10W 4in1 LED
LED Current: 500mA / 1 pc
LED Beam Angle: 25°
LED Lifetime: 80,000-100,000 hours
Possible Color Combinations: RGBW color mixing and running effect
Dimming: 0-100% with regulated constant color control
Operation Modes: DMX512, Sound, Internal Program, Master-slave
DMX Control: 9/27/72 /81Channels
Waterproof grade: IP 65
Maximum Ambient Temperature: 40° C
Gross Weight: 7.2 kg
Package Size: 1070 x 18 x 155mm
WARNING
Please do NOT use the lamp under the water!
Please do NOT connect the power cable hand by hand over 5pcs
Important notice:
Before open the LED wall washer light and if you want to do the repair
work, please make sure the power source is at the separation condition.
Unceasingly carries on the product improvement about our company the
policy, in this instruction booklet carries the data will have the possibility
to be able to change in the future, when no longer separate notice
change matters concerned. Our company retains when the product
improvement changes the related specification the authority. This
instruction booklet publisher cannot be responsible regarding this
instruction booklet in information accuracy, also cannot the related
consequence which causes regarding these information be responsible.
11

136-145 Color Snapping running 6 (It control by CH1,CH5 to
CH27. The 5CH is change speed)
146-155 Color running 1 (It control by CH1,CH5 to CH27. The
5CH is change speed)
156-165 Color running 2 (It control by CH1,CH5 to CH27. The
5CH is change speed)
...... .......
236-245 Color running 10 (It control by CH1,CH5 to CH27. The
5CH is change speed)
246-255 Sound control (It control by CH1,CH6 to CH27.)
CH4
Function 1
0-30 No function
31-45 Color running 1 (It control by CH1,CH5 to CH9. Control
the base color brightness)
... .....
91-105 Color running 4 (It control by CH1,CH5 to CH9. Control
the base color brightness)
106-120 RGBW mix Color change
121-135 Color running 5 (It control by CH1,CH5 to CH9. Control
the base color brightness)
.... ......
141-255 Color running 13 (It control by CH1,CH5 to CH9.
Control the base color brightness)
CH5 0-255 Function speed
CH6 0-255 Red color dimming
CH7 0-255 Green color dimming
CH8 0-255 Blue color dimming
CH9 0-255 White color dimming
CH10 0-255 LED 1 R color dimming
CH11 0-255 LED 1 G color dimming
CH12 0-255 LED 1 B color dimming
...... ...... .........
CH81 0-255 LED 18 W color dimming
10
SAFETY INSTRUCTIONS
This device has left the factory in perfect condition. In order to maintain this
condition and to ensure a safe
operation, it is absolutely necessary for the user
to follow the safety instructions and warning notes written in this user manual.
When unpacking and before disposing of the carton, check there is no transportation damage
before using the product. Should there be any damage caused by transportation, consult your
dealer and do not use the apparatus.
The device can be use indoors and outdoors, IP65.
The device is not designed or intended to be mounted directly on to inflammable surfaces
The device is only intended for installation, operation and maintenance by professional person.
Do not device the beam onto inflammable surfaces, minimum distance is 5m.
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle or modify the projector in any way.
Electrical connection must onlybe carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power
requirements of the projector.
It is essential that each device
is correctly earthed and that electrical installation conforms to all
relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the
power-cord come into contact with other cables. Only handle the power-cord by the plug. Never
pull out the plug by tugging the power-cord.
LED lens shall be changed if they have bec
ome visibly damaged to such an extent that their
effectiveness is impaired, for example by cracks or deep scratches.
Exterior surface temperatures of the luminaire after 5 minutes operation is 50°C，when steady
state is achieved 65°C.
There is no user servi
ceable parts inside the projector, do not open the housing and never operate
the device with the covers removed.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
Always disconnect from the mains, when the device is not in use or before
cleaning it or before attempting any maintenance work !
1

Introduction: .
Thank you for having chosen our LED lighting
Unpack the device ,inside the box you should find:
1) Light ----------------------------------------------1pcs
2)Power Cable-------------------------------------1pcs
3) User Manual------------------------------------1pcs
Description:
Features
. 9,23,or 72 DMX channels selectable for numerous applications
. DMX-controlled operation, Sound-controlled operation or stand alone
operation with Master/Slave-function
. Automatic identify Master signal
. Stepless RGBW colour changing
.Equipped with 18 x 10W 4-in-1 LEDs
. Switch-mode power supply, 110V-240V
.Operation very easy，human design，dimming no flicker、jitter phenomena.
Can be adapted to video, photography, television and other demanding
lighting occasions.
DMX-512 control connection
：
The product has a DMX 512 input fitted with 3-pin XLR connectors. Screened
cables in compliance with EIA RS-485 specifications and the following
characteristics must be used for connections:
- 2 conductors plus screen
- 120Ohm impedance
- max. transmission rate 250kBaud.
DMX-512 connection with DMX terminator
：
For installations where the DMX cable has to run a long distance or is in an
electrically noisy environment, such as in a discotheque, it is recommended to
use a DMX terminator. This helps in preventing corruption of the digital control
signal by electrical noise. The DMX terminator is simply an XLR plug with a
120 OHM resistor connected between pins 2 and 3,which is then plugged into
the output XLR socket of the last fixture in the chain.
2
CH6 0-255 Red color dimming
CH7 0-255 Green color dimming
CH8 0-255 Blue color dimming
CH9 0-255 White color dimming
CH10 0-255 LED 1 RGBW color mixing
CH11 0-255 LED 2 RGBW color mixing
CH12 0-255 LED 3 RGBW color mixing
...... ...... .........
CH27 0-255 LED 18 RGBW color mixing
C. 81channel description
Channel Value Function
CH1 0-255 Main dimming from dark to bright
CH2 0-255 Control strobe from slowly to quickly
3CH
Function 1
0-25 No Function
26-35 Off
36-45 Colorful running by Snapping, It control by 1CH,6CH to 9CH
(If ID code one by one, it can be control within one group)
46-55 Colorful running by Fading, It control by 1CH,6CH to 9CH (If
ID code one by one, it can be control within one group)
56-65 Color choose (It control by CH1,CH2,
CH5. The 5CH is choose color)
66-75 Color change by Snapping (It control by CH1,CH2,CH5. The
5CH is change speed)
76-85 Color change by Fading (It control by CH1,CH2,CH5. The
5CH is change speed)
86-95 Color Snapping running 1 (It control by CH1,CH5 to CH27.
The 5CH is change speed)
96-105 Color Snapping running 2 (It control by CH1,CH5 to CH27.
The 5CH is change speed)
...... ....... 9

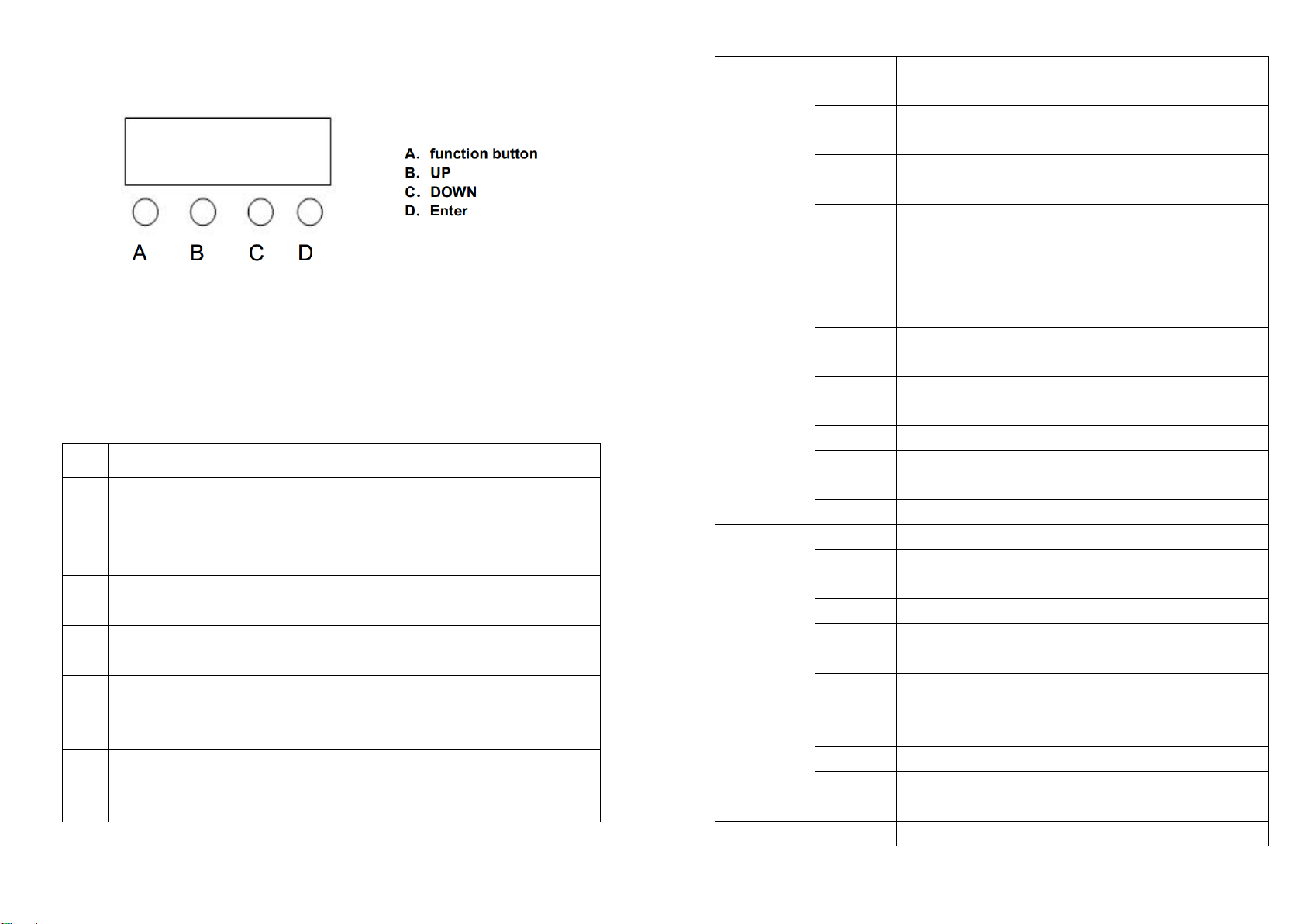

Graphic Part
：
Operation description
：
Press “A” will cycle out 14pcs different functional
effect, LED Top row in represent the current function（Reference function
table）。 LED Top row on behalf of the function in the address code、or speed
and other parameters。Press Bor Ckey can modify the parameter value。
Press Dto confirm。
Display Menu:（All the functions are selected, press D to confirm.）
No. Display
Function
1 A001 DMX address (001—512)Press “UP” and “Down” button
change the DMX address
2 9CH/27CH/
72CH/82CH
Channel choose (09CH/27CH/72CH/81CH) P
ress “UP”
and “Down” button change the DMX Channel
3 CC00 Color change by Snapping (CC01—CC99), press “UP” and
“Down” button change the snapping speed
4 Ed00 Color change by Fading (Ed01—Ed99)
, press “UP” and
“Down” button change the Fade speed
5 Er00
Colorful Running 1 (Er01—Er99), press “UP”
and “Down”
button change the running speed (If setting
ID code1 by 1, it can get running effect in one group)
6 Po00
Colorful Running 1 (Po01—Po
99), press “UP” and “Down”
button change the running speed (If setting
ID code1 by 1, it can get running effect in one group)
3
3CH
Function 1
66-75 Color change by Snapping (It control by CH1,CH2,CH5.
The 5CH is change speed)
76-85 Color change by Fading (It control by CH1,CH2,CH5. The
5CH is change speed)
86-95 Color Snapping running 1 (It control by CH1,CH5 to
CH27. The 5CH is change speed)
96-105 Color Snapping running 2 (It control by CH1,CH5 to
CH27. The 5CH is change speed)
...... .......
136-145 Color Snapping running 6 (It control by CH1,CH5 to
CH27. The 5CH is change speed)
146-155 Color running 1 (It control by CH1,CH5 to CH27. The
5CH is change speed)
156-165 Color running 2 (It control by CH1,CH5 to CH27. The
5CH is change speed)
...... .......
236-245 Color running 10 (It control by CH1,CH5 to CH27. The
5CH is change speed)
246-255 Sound control (It control by CH1,CH6 to CH27.)
CH4
Function 1
0-30 No function
31-45 Color running 1 (It control by CH1,CH5 to CH9. Control
the base color brightness)
... .....
91-105 Color running 4 (It control by CH1,CH5 to CH9. Control
the base color brightness)
106-120 RGBW mix Color change
121-135 Color running 5 (It control by CH1,CH5 to CH9. Control
the base color brightness)
.... ......
141-255 Color running 13 (It control by CH1,CH5 to CH9.
Control the base color brightness)
CH5 0-255 Function speed
8

7 tr00 Running effect (tr01—tr20
), press “UP” and “Down” button
change the running effect
8 tU00 Running effect speed (tU01—tU99), press “UP” and “Down”
button change the running effect speed
9 BE50 Sound control (BE01—BE99), press “UP” and “Down” button
change the sound sensitivity
10 R000 Red dimming by hand (R000—R255) press “UP” and “Down”
button change the Red brightness
11 G000 Green dimming by hand (G000—G255)
press “UP” and
“Down” button change the Green brightness
12 B000 Blue dimming by hand (B000—B255) press “UP” and “Down”
button change the Blue brightness
13 W000 White dimming by hand (W000—W255)
press “UP” and
“Down” button change the White brightness
14 Id01 Id code setting (Id01-Id14) press “UP” and “Dow
n” button
change the Id address (It use running effect within one group)
Attention:
1. Setting DMX address by button
1). press MODE button when show the A001 menu, then adjust the DMX
address by pressing UP or DOWN button
2).A001 is slave mode
Press ENTER to confirm or pressing MODE to return to main menu.
2. Setting ID code.(only for Er00 and Po00 do master to use)
If you set ID code one by one. and connect the light together.
It will be get amazing running effect within one group light.
(e.g. :first light ID is Id01, second light ID is Id02, third light ID is Id03, fourth
light ID is Id04....... those light is a group., it will be running from first light to
last light)
4
CH4
Function 1
0-30 No function
31-45 Color running 1 (It control by CH1,CH5 to CH9. Control
the base color brightness)
... .....
91-105 Color running 4 (It control by CH1,CH5 to CH9. Control
the base color brightness)
106-120 RGBW mix Color change
121-135 Color running 5 (It control by CH1,CH5 to CH9. Control
the base color brightness)
.... ......
141-255 Color running 13 (It control by CH1,CH5 to CH9. Control
the base color brightness)
CH5 0-255 Function speed
CH6 0-255 Red color dimming
CH7 0-255 Green color dimming
CH8 0-255 Blue color dimming
CH9 0-255 White color dimming
C. 27channel description
Channel Value Function
CH1 0-255 Main dimming from dark to bright
CH2 0-255 Control strobe from slowly to quickly
3CH
Function 1
0-25 No Function
26-35 Off
36-45 Colorful running by Snapping, It control by 1CH,6CH to 9CH
(If ID code one by one, it can be control within one group)
46-55 Colorful running by Fading, It control by 1CH,6CH to 9CH (If
ID code one by one, it can be control within one group)
56-65 Color choose (It control by CH1,CH2,
CH5. The 5CH is choose color)
7

B. 9channel description
Channel Value Function
CH1 0-255 Main dimming from dark to bright
CH2 0-255 Control strobe from slowly to quickly
3CH
Function 1
0-25 No Function
26-35 OFF
36-45 Colorful running by Snapping, It control by 1CH,6CH to 9CH
(If ID code one by one, it can be control within one group)
46-55 Colorful running by Fading, It control by 1CH,6CH to 9CH (If
ID code one by one, it can be control within one group)
56-65 Color choose (It control by CH1,CH2,
CH5. The 5CH is choose color)
66-75 Color change by Snapping (It control by CH1,CH2,CH5.
The 5CH is change speed)
76-85 Color change by Fading (It control by CH1,CH2,CH5. The
5CH is change speed)
86-95 Color Snapping running 1 (It control by CH1,CH5 to
CH27. The 5CH is change speed)
96-105 Color Snapping running 2 (It control by CH1,CH5 to
CH27. The 5CH is change speed)
...... .......
136-145 Color Snapping running 6 (It control by CH1,CH5 to
CH27. The 5CH is change speed)
146-155 Color running 1 (It control by CH1,CH5 to CH27. The
5CH is change speed)
156-165 Color running 2 (It control by CH1,CH5 to CH27. The
5CH is change speed)
...... .......
236-245 Color running 10 (It control by CH1,CH5 to CH27. The
5CH is change speed)
246-255 Sound control (It control by CH1,CH6 to CH27.)
6
Cleaning and Maintenance
We recommend a frequent cleaning of the device. Please use a soft
lint-free and moistened cloth. Never use alcohol or solvents!
CAUTION!
Disconnect from mains before starting maintenance operation.
There are no serviceable parts inside the device. Maintenance and service
operations are only to be carried out by authorized dealers.
If you need any spare parts, please use genuine parts.
If the power supply cable of this device becomes damaged, it has to be
replaced by authorized dealers only in order to avoid hazards.
If you have further questions, please contact your dealer.
Installation
The device must only be installed at a vibration-free, oscillation-free
and fire-resistant location.
DMX functions and values:
A. 72 channel description
Channel
Value
Function
CH1 0-255 R1 dimming
CH2 0-255 G1 dimming
CH3 0-255 B1 dimming
CH4 0-255 W1 dimming
...... ...... ......
CH69 0-255 R18 dimming
CH70 0-255 G18 dimming
CH71 0-255 B18 dimming
CH72 0-255 W18 dimming
5
