MobileHelp IGM-02 User manual

Mobile Medical Alert Systems
MobileHelp | Complete User Guide

MobileHelp Customer Support 1-877-827-62072
MobileHelp Complete User Guide
This MobileHelp User Guide includes information covering the
3 most popular MobileHelp Systems:
Note: Remember to always carry the Mobile Device with you
when going outside of your home.
3 most popular MobileHelp Systems:
3 most popular MobileHelp Systems:
Cellular
DUO System Cellular Classic System Solo System

MobileHelp Complete User Guide 3
Cellular DUO System
What’s In the Box
Optional Accessories
If you selected the optional Fall Button™ Automatic Fall Detect system, you will receive
the Fall Button™ and your choice of wrist button or neck pendant. You will also receive an
additional manual for the Fall Button™ Automatic Fall Detect pendant.
Cellular
Base Station Mobile
Device Mobile Case
Power
Cord
Neck Pendant /
Wrist Button Cradle Charger
+ + + + +
Fall ButtonWall Button
PRESS
for
HELP

MobileHelp Customer Support 1-877-827-62074
Cellular Classic System
What’s In the Box
Optional Accessories
If you selected the optional Fall Button™ Automatic Fall Detect system, you will receive
the Fall Button™ and your choice of wrist button or neck pendant. You will also receive an
additional manual for the Fall Button™ Automatic Fall Detect pendant.
Cellular Base Station Neck Pendant / Wrist Button
+
Fall ButtonWall Button
PRESS
for
HELP

MobileHelp Complete User Guide 5
Solo System
What’s In the Box
Optional Accessories
If you selected the optional Fall Button™ Automatic Fall Detect system, you will receive
the Fall Button™ and your choice of wrist button or neck pendant. You will also receive an
additional manual for the Fall Button™ Automatic Fall Detect pendant.
Mobile
Device Mobile Case
Power
Cord
Neck Pendant /
Wrist Button Cradle Charger
+ + + +
Fall ButtonWall Button
PRESS
for
HELP

MobileHelp Customer Support 1-877-827-62076
Setup Guide for MobileHelp’s Medical Alert System
We thank you for choosing MobileHelp’s Medical Alert System and we welcome you to
the MobileHelp family. Congratulations on making a smart choice!
If you have any questions during the setup process, please call our support team at
1-877-827-6207 and select the Technical Support option. See last page for hours of
operation.
Figure 1

MobileHelp Complete User Guide 7
Cellular Base Station Features
(Front)
Figure 2
Emergency
Button
Speaker/Microphone
Test
Button
Date & Time
ON/OFF
Switch (Back)
Volume
Signal Strength
Indicator
Temperature
Battery Charge
Indicator
Reset Button

MobileHelp Customer Support 1-877-827-62078
Mobile Device System Features
Emergency
Help Button
Low Battery
Indicator (red)
GPS Indicator
(yellow)
Cellular
Indicator (green)
USB Charging
Port
ON/OFF Button
Speaker &
Microphone
Emergency Light
(red ring)
Figure 3

MobileHelp Complete User Guide 9
Wearable Features
LED Light
LED Light
Technical Support
Use Only
Emergency
Help Button
Pendant
Wristband
Fall Button
(optional accessory)

MobileHelp Customer Support 1-877-827-620710
Please follow these simple steps to get your system set up and tested.
Connecting your Base Station
Step 1. Select a Location
 We recommend you place the Base Station near the center of your home, such as your
living room, family room or kitchen area.
 Place it near an electrical outlet.
 Do not place any object in front of the Base Station.
 Do not place near any appliances that make noise.
Step 2. Plug in the Power Cord (Please
refer to figure 4.)
Plug the power cord that is attached to the back of
the Base Station into an electrical outlet that is not
controlled by a light switch.
To avoid accidentally turning off the Base Station, DO NOT plug it into an electrical
outlet that is controlled by a light switch.
Figure 4

MobileHelp Complete User Guide 11
Step 3. Turning on your Base Station
 Turn on your Base Station using the on/off switch located on the back.
 The display screen will turn on.
 If the Base is setup correctly, the Base Station will say “system ready.”
 The emergency and reset buttons will illuminate.
 Make sure your Base Station is connected to the cellular network by checking for the
signal strength bars on the Display screen.
 You can use the volume control buttons on the front of the unit at the bottom of the display
screen, indicated by the “–” or the “+” sign, to adjust if the voice is too loud or too soft.
 Within a few minutes of turning on the system, the Cellular Base Station will obtain the
date and time from the cellular network and will appear in the display area. You are not
able to set the date and time manually.
Figure 6Figure 5
ON/OFF
Switch

MobileHelp Customer Support 1-877-827-620712
Setting Up Your Mobile Device
Step 1. Select a Location
 We recommend you place your Mobile Device in your bedroom or any other place
around your home where it can be easily accessible.
 Place your Mobile Device’s cradle charger near an electrical outlet.
Step 2. Connect the Cradle Charger (Please refer to figure 7.)
 Plug the power cord into the slot on the back of the Cradle Charger, making sure that
the narrow side is on the bottom.
 Plug the other end of the power cord into an electrical outlet that is not controlled by
a light switch.

MobileHelp Complete User Guide 13
Figure 7
WARNING
To prevent electrical shock please keep the system away from wet locations.
AVERTISSEMENT
Pour éviter le choc électrique, SVP tenir le système éloigné des endroits
humides.

MobileHelp Customer Support 1-877-827-620714
Step 3. Charge your Mobile Device
 Place the Mobile Device in the cradle charger.
 The yellow light on the front of the cradle charger will
illuminate. If it does not, make sure you have placed the
Mobile Device correctly in the charger.
 The Mobile Device will turn on within 10 seconds and then
it will take about 60 seconds for the Mobile Device to
register with the network.
 The red battery light will come on indicating that
the device still needs charging. When the device is
fully charged, the red light will turn off. It will take
about 3 hours for the device to be fully charged.
ON/OFF
Button
Figure 8

MobileHelp Complete User Guide 15
Turning your Mobile Device ON or OFF
To turn on your Mobile Device:
 Option 1: Press the ON/OFF button on the side of the Mobile Device and hold for
approximately five seconds
 Option 2: Simply place Mobile Device in the cradle charger, assuming the cradle
charger is plugged in
 All the lights will turn on and the green light will start blinking. This indicates the Mobile
Device was successfully turned on.
To turn off your Mobile Device:
 Press the ON/OFF button and hold for approximately two seconds. All the lights will
turn off. This indicates your Mobile Device was successfully turned off.

MobileHelp Customer Support 1-877-827-620716
Testing your Cellular Duo System
It is important that you test your system at least once a month.
 When you are conducting a test on your Cellular Duo System, always have your Mobile
Device nearby because if both devices activate in response to your press of a Neck
Pendant or Wrist Button, each device will send an alarm to the Emergency Response
Center and you will need to reply to the operator to clear the alarm.
 You can use the TEST button on your Cellular Base Station to conduct a test without
placing a call to the Emergency Response Center by following these steps.
- Press and hold the TEST button on Base Station until it illuminates green.
- You will hear an announcement over the Base Station that will instruct you to press
the Emergency button or Pendant.
- Press the Neck Pendant or Wrist Button.
- The Base Station will announce, “Test call sent to emergency response center” and
the Mobile Device will respond by either beeping several times or by playing the
announcement, depending upon the Mobile Device version.
- If your test was successful, you will hear “thank you for testing your device” from the
Base Station and Mobile Device.

MobileHelp Complete User Guide 17
Testing your Cellular Classic System
You can use the TEST button on your Cellular Base Station to conduct a test without
placing a call to the Emergency Response Center by following these steps:
 Press and hold the TEST button on Base Station until it illuminates green.
 You will hear an announcement over the Base Station that will instruct you to press the
Emergency button or Pendant.
 Press the Neck Pendant or Wrist Button.
 The Base Station will announce, “Test call sent to emergency response center”.
 If your test was successful, you will hear “thank you for testing your device” from the Base
Station speaker.
 If your test was not successful, the Base Station will announce “user auto-test failed,
please contact Technical Support”.

MobileHelp Customer Support 1-877-827-620718
Cellular Base Station Voice Guidance
If your system includes the Cellular Base Station, your Base Station will have voice
announcements. Select announcements are listed below:
Event Voice Prompt Notes
The Cellular Base
Station is powered on System Ready Base Station on/off switch has been turned on, be sure to connect to electric outlet or it will run on battery backup.
Both red Emergency
and Blue Reset buttons
are flashing
Power not detected or
Power restored
(when electricity is
reconnected)
Check that the Base Station is correctly plugged
into an electrical outlet.
The battery needs
charging Low Battery Check that the Base Station is correctly plugged into an electrical outlet or it will run on battery backup.
The emergency call is
initiated Call in progress Alarm is being sent to the Emergency Response Center.
Call connected Please stand by for
operator Respond to the emergency operator’s call over the device speaker.
Cellular Base Station
receives a fall signal Fall Detected - Press and hold Button to Cancel
This will occur for about 20 seconds and will allow you time
to cancel the alarm. During this time, you may press and hold
thebutton on the Fall Button for 5 seconds to cancel the signal.
Fall alarm is canceled Alarm Canceled Alarm has been canceled.

MobileHelp Complete User Guide 19
Medication Reminders (optional service):
 At the scheduled time for your Medication Reminder, your Cellular Base Station will
announce “Medication Reminder, Please Press Reset to Accept” and the blue reset
button will flash.
 The name of the medication will be displayed on the Cellular Base Station screen just
like it was entered in the MobileHelp Connect web portal.
 The Base Station will make the announcement once a minute for 30 minutes or until
reset button is pressed.
 If you press the “reset” button, the reminder will be recorded as accepted. If you do not
press the “reset” button within 30 minutes, the reminder will be recorded as ignored.
 For complete instructions for Medication Reminders, please log in to MobileHelp
Connect and under the “Help” tab, click on “MobileHelp Connect User Guide.”
 If you have any questions, please contact our customer support department at
1-877-827-6207.

MobileHelp Customer Support 1-877-827-620720
Testing your Solo System
For Mobile Device Light Indicator information, please see page 35
 Remove the Mobile Device from the cradle charger then press and
hold down the emergency button firmly for two seconds until the red
light around the emergency button lights up, then release.
 The Mobile Device will beep several times or announce, “Call in
progress”, depending on the Mobile Device version.
 An emergency operator will communicate with you through the
2-way speaker on the Mobile Device and ask you if you are okay.
 Please state clearly to the operator that “THIS IS A TEST.” If you do not explain
to the operator that you are testing your unit, EMS will be contacted.
 Test your Solo System using a Help Button (Please refer to figure 6.)
 Press your Neck Pendant or Wrist Button firmly once and you will see the button’s red
light indicator flash once indicating a signal was sent to the Mobile Device.

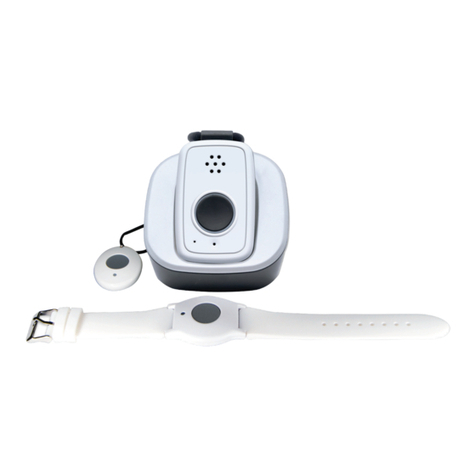

 The red ring around the Mobile Device Emergency button will light up and the
Device will beep or you will hear the announcement depending on the Mobile
Device version. If you are near to the charging cradle, you will hear a beep
coming from it also in response from the button press.
 Proceed with responding to the emergency operator to clear the alarm.
Figure 5
