Bristle Blaster®Electric

Betriebsanleitung
14
DE Bristle Blaster
®
Electric
Konformitätserklärung
MONTI - Werkzeuge GmbH
Reisertstr. 21
53773 Hennef
Deutschland
erklären in alleiniger Verantwortung, dass das Produkt
Bristle Blaster
®
Electric 230 V | 50 Hz
Bristle Blaster
®
Electric 230 V | 60 Hz
Bristle Blaster
®
Electric 120 V | 60 Hz
auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt
DIN EN 60745-2-3 (VDE 0740-2-3)
gemäß den Bestimmungen der Richtlinien
2006/42/EG, 2014/35/EU, 2014/30/EU
MONTI - Werkzeuge GmbH Hennef, 20.09.2016
Volker Jannaschk, Managing Director

Dear customer!
MONTI thanks you for the purchase of one of its products and invites you to read these operating instructions.All
the necessary information for the correct use of the tool purchased is included here. It is therefore recommended
to read the instructions completely and to follow the information they contain. Please keep the manual in good
condition. The contents of this manual may be changed without notice and without the implication of any additional
obligations so that changes and improvements can be made in copies already sent.
It is forbidden to copy or translate any part of this manual without the prior written approval of the manufacturer.
Table of contents
1. Responsibility of the owner and/or user of the tool................................................16
2. Packaging...............................................................................................................16
3. Important safety information and safety instructions..............................................16
4. Working area..........................................................................................................17
4.1 Personal safety.......................................................................................................17
4.2 Tool usage and duty of care...................................................................................18
4.3 Special safety instructions......................................................................................19
4.4 Electrical safety......................................................................................................19
5. Placing in operation................................................................................................20

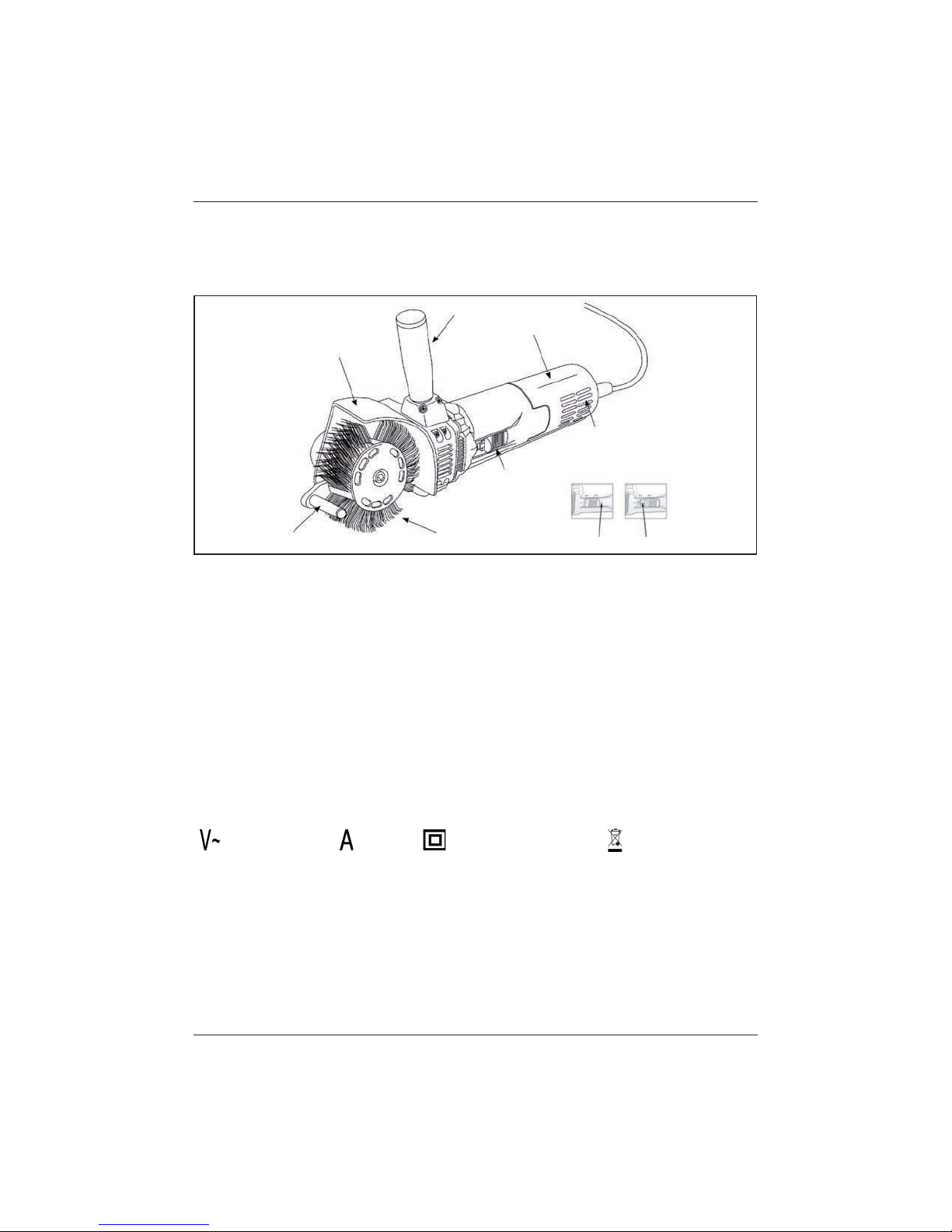

6. Technical data.........................................................................................................22

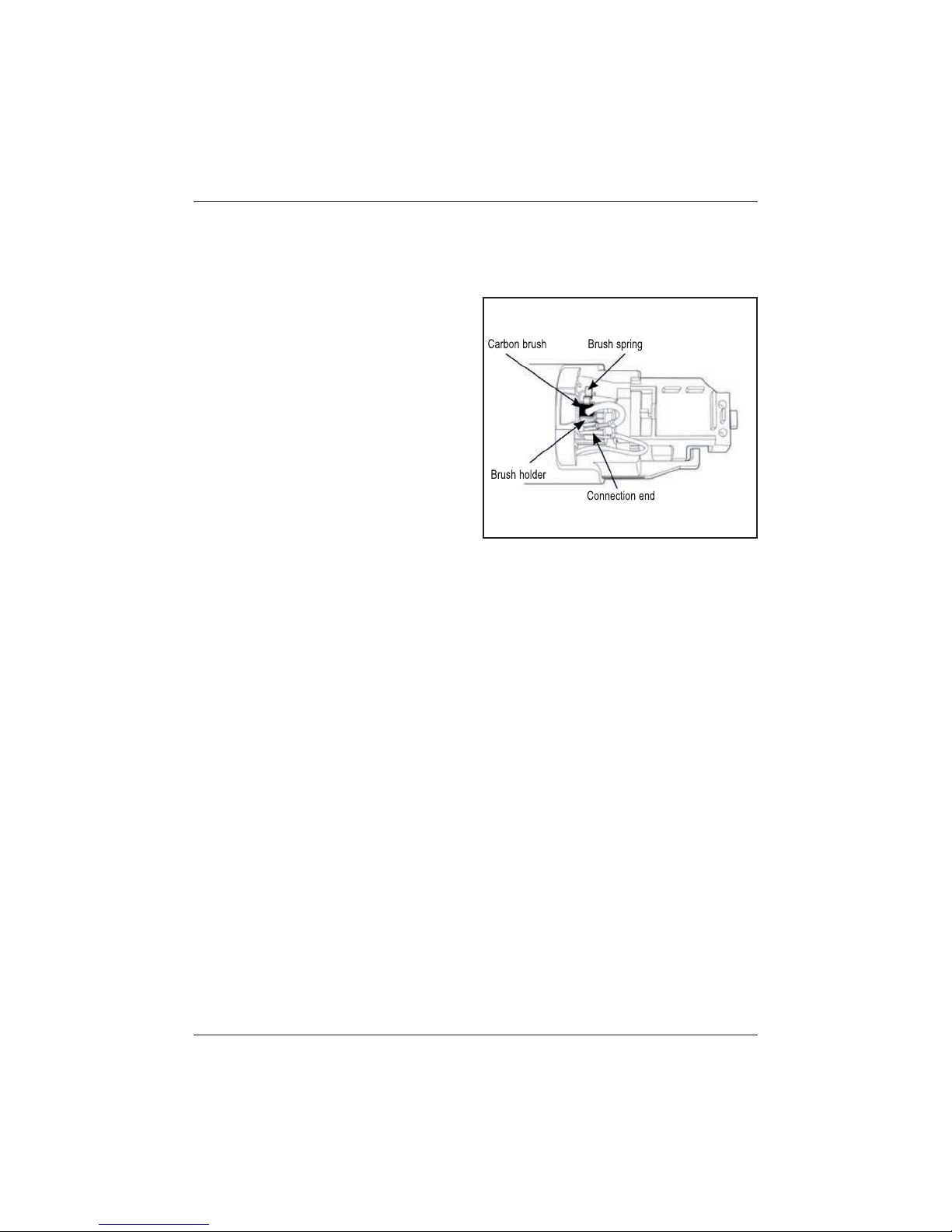

6.1 Servicing.................................................................................................................23
7. Service instructions................................................................................................24
8. Troubleshooting......................................................................................................25
15
GB/USBristle Blaster
®
Electric Operating instructions

Operating instructions
16
GB/US Bristle Blaster
®
Electric
1. RESPONSIBILITY OF THE OWNER AND/OR USER OF THE TOOL
These operating instructions form part of the items supplied for the Bristle Blaster
®
and must always accompany this
tool, also if sold. The owner and/or user of the Bristle Blaster
®
must be familiar with the instructions for use before
placing the Bristle Blaster
®
in operation.
The manufacturer is not liable for injuries or damage due to incorrect or improper usage of the Bristle Blaster
®
.
2. PACKAGING
The packaging material must be disposed of in accordance with local regulations.
3. IMPORTANT SAFETY INFORMATION AND SAFETY INSTRUCTIONS
The statutory health and safety regulations, generally recognised safety and occupational health rules, as well as
the health and safety regulations for power-driven equipment are to be observed.Any use beyond these limits is
considered incorrect. The manufacturer is not liable for any resulting damage. The operating instructions form part
of the items supplied and are to provided to the new user on the resale of Bristle Blaster
®
. To ensure safe operation,
it is to be ensured that the Bristle Blaster
®
is only operated, serviced or repaired by appropriately trained personnel.
Qualified personnel are individuals who, due to their training, experience and instruction as well as their knowledge
of applicable standards, stipulations, health and safety regulations, are qualified to undertake the related necessary
actions and can identify and avoid possible hazards during this process.
The operating organisation must ensure that personnel tasked with operation, maintenance and servicing have read
and understood the operating instructions and follow all points in the instructions:
- To avert hazards for the life and limb of the user and others
- To ensure the reliability of the Bristle Blaster
®
and
- To prevent downtime and pollution due to incorrect actions.
The responsibilities for the work must be clearly defined and observed so that there are no unclear areas of author-
ity in relation to safety. The mechanical servicing tasks are to be undertaken at the stipulated intervals and with the
stipulated scope.
After maintenance tasks, all safety features removed must be correctly re-fitted. The safety features and their pro-
tective action must be checked by an expert prior to placing the tool in operation. Removing, disengaging and / or
bypassing safety features (covers, trim panels, starter switch, etc.) and/or safety guards can cause injury or damage
and are therefore strictly forbidden by the manufacturer!
The manufacturer provides a warranty for the Bristle Blaster
®
in accordance with its general terms and conditions.

17
GB/USBristle Blaster
®
Electric Operating instructions
Claims under the warranty will be void if:
- Damage is caused by improper operation,
- Repairs or modifications are made by unauthorised individuals,
-Accessories and spare parts are used that are not suitable for the Bristle Blaster
®
.
Malfunctions must be reported immediately on detection. The Bristle Blaster
®
must be marked correspondingly.
Defects are to be repaired without delay to minimise damage and to avoid degrading the safety of the tool. Claims
under the warranty will be rendered void if this instruction is not followed.
4. WORKING AREA
1. Keep working area clean. Cluttered working areas and benches signify a risk of injury.
2. Never allow children, unauthorised individuals or individuals without safety glasses and other protective equip-
ment to enter the working area.
3. Always operate tool in a well ventilated working area. Never work with this tool near flammable liquids or
gases. The motor on this tool can produce sparks in normal operation, and sparks can cause a fire.
4.1 Personal safety
1. Wear suitable protective clothing. Never wear loose clothing or jewellery or other items of clothing that could
be trapped by moving parts. Wear gloves and shoes with non-slip soles. Protect long hair with a head band or
hair net to prevent the trapping of hair by moving parts.
2. Always wear safety glasses, face mask, hearing protection, gloves and suitable protective clothing!
3. Ensure the tool can be held safely during operation.Always ensure you are standing firmly and securely.

Operating instructions
18
GB/US Bristle Blaster
®
Electric
4.2 Tool usage and duty of care
1. After fitting accessories such as the adapter system and Bristle Blaster
®
Belt, always remove hex socket
wrench. Always ensure the hex socket wrench is removed prior to switching on the tool.
2. Prevent unintentional starting of the tool. Never carry the connected tool with your hand on the starter switch.
Ensure the starter switch is not actuated on connection to the power supply.
3. Exercise care. Handle tool with care. Use your common sense.
4. Never operate this or any other tool when you are tired.
5. Work at a distance to ensure other individuals cannot be injured by objects thrown off. During operation,
nobody should stand in front of or beside the user.
6. Maintain tool carefully. Follow the instructions on the replacement of accessories. (See section 5 Placing
in operation and 6.1 Servicing).
7. When not in use, prior to servicing and on changing accessories, switch off tool and disconnect from the power
supply.
8. Prior to the replacement and inspection of accessories, such as the adapter system and Bristle Blaster
®
Belt,
the tool is to be isolated from the power supply. Do not perform any servicing work on the tool as long as it is
connected to the power supply.
9. Never touch the Bristle Blaster
®
Belt as long as the tool is in operation.
10. Regularly check electrical cables and replace if damaged. Keep vertical handle and tool body dry, clean and
free of oil and grease. A soiled housing and/or handle can cause accidents.
11. Always use the tool at the stipulated voltage. A different voltage may damage the tool or cause injuries.
12. Always keep the tool and accessories clean to obtain an effective result from your work. Following the instruc-
tions on the servicing of the tool and on changing the accessories. Regularly check the electrical cable and
replace it if it is damaged. Regularly clean the fan with a compressed air gun to ensure correct air circulation in
the machine.
Further information on health and safety at work is available from the following web sites:
http://europe.osha.eu.int (Europe) http://www.osha.gov (USA)

19
GB/USBristle Blaster
®
Electric Operating instructions
4.3 Special safety instructions
1. Prior to use, check tool for damaged or faulty parts or other conditions that will degrade the operation of the
tool. Never use tool if damaged or adjusted incorrectly.Any damaged safety features, starter switch or other
faulty parts are to be repaired or replaced by an authorised service engineer, provided there are no other
instructions in this manual. Never use tool with faulty starter switch.
2. Use screw clamps or a vice to secure the workpieces to be machined.Always use both hands to operate the
tool.
3. Only use tool with genuine accessories such as the adapter system and Bristle
Blaster
®
Belt. The Bristle Blaster
®
Belt is specially designed for use on the Bristle
Blaster
®
Electric and is therefore not to be used in conjunction with other accesso-
ries or other machines.
4. After replacement of the Bristle Blaster
®
Belt, check adapter system for correct assembly.
5. On setting down the tool on a bench or on the floor, the label must always point upward.
6. If the tool is not in use, disconnect from the power supply and store in a suitable, dry place to prevent uninten-
tional or unauthorised use in the absence of an authorised individual.
7. In use, always hold by the tool body and the vertical handle.
8. Use Bristle Blaster
®
Belt in the correct operating direction.
9. The Bristle Blaster
®
Belt can produce sparks on machining hard surfaces.
10. Never carry tool by the cable. Protect cable against heat, sharp edges and running over.
11. If the tool suddenly feels different (level of vibration) or produces a different noise (pitch), the tool should be
shut down immediately and the accessories such as the adapter system, Bristle Blaster
®
Belt checked for
damage.
4.4 Electrical safety
1. Never subject the tool to rain. Never work with the tool in a damp or wet environment. Keep your workplace
well illuminated for maximum safety. Ensure water never enters the electrical tool, as this situation would
increase the risk of electrical shock.
2. Protect yourself against electric shock.Avoid contact with earthed surfaces such as pipework, radiator systems,
radio systems and cooling systems.
3. If you are working with the tool outdoors, only use extension cables that are approved for work outdoors and
that are marked as such (see page 10 Extension cable).
4. When you are using electrical tools, always take all basic safety precautions to prevent injuries due to electric
shocks that could place your life and the lives of others at risk.

Operating instructions
20
GB/US Bristle Blaster
®
Electric
5. PLACING IN OPERATION
Application:
This tool is used for the removal of corrosion and coatings, and for producing a rough surface profile (anchor profile)
using a specially developed Bristle Blaster
®
Belt.
1. Interrupt supply of power and then fasten Bristle Blaster
®
23 mm belt correctly to the tool using the relatedAdapter Sys-
tem (pay attention to direction of travel) and the related serrat-
ed lock washer and screw. See Fig. 1 and Fig. 2
2. For Bristle Blaster
®
23 mm stainless steel belt only use 40 mm
"stainless steel"Accelerator Bar.
3. Before you plug the tool into a socket, you must check that it
is possible to actuate the switch correctly and that the switch
returns to the "OFF" position when you press on the rear part
of the switch. To start the tool, you must release the rear part of
the switch and push it forward. You must then release the front
part of the switch so that it engages. To stop the tool, you must
press the rear part of the switch. The switch then jumps to the
"OFF" position. Prior to plugging into a socket, always ensure
the switch is not in the "ON" position.
4. Hold tool by the tool body and the vertical handle at the same
time.
5. To obtain the best performance, it is to be ensured the accel-
erator bar is guided close to the surface to be machined. If the
accelerator bar is too far from the surface, the performance will
drop significantly. See Fig. 3. For a more detailed description
of the function of the Bristle Blaster
®
see the DVD supplied
or www.monti.de
6. Only work using minimum contact pressure. Excessive contact
pressure will limit the performance.
7. In all circumstances, prevent the entry of water into the tool.

21
GB/USBristle Blaster
®
Electric Operating instructions
If the tool does not work correctly, check the following:
Are you using a suitable Bristle Blaster
®
Belt for the surface to be machined? – Use the most suitable Bristle
Blaster
®
Belt.
Is the tool operating at the stipulated speed? – Problems with the tool, see section 8, Troubleshooting.
Are you using an Bristle Blaster
®
Belt with the wrong direction of travel? – Fit the brush belt such that is runs in the
correct direction (see section 5, Placing in operation, Fig. 2).
Is theAccelerator Bar showing signs of wear? Check theAccelerator Bar. In case of wear, rotate by
approx. 45° or renew.
Correct direction of
operation
Holding machine
Less contact pressure = longer service
life and higher performance
Angle machining
Observe the correct working position!

Operating instructions
22
GB/US Bristle Blaster
®
Electric
6. TECHNICAL DATA
Function description
Technical data
Model: Bristle Blaster
®
Electric 230 V | 50 Hz
Model: Bristle Blaster
®
Electric 230 V | 60 Hz
Model: Bristle Blaster
®
Electric 120 V | 60 Hz
No-load speed: 3200 min
-1
| Net weight: 2.3 kg | Colour of the ring: orange
Noise/vibration information
TheA-weighted noise level of the tool is typically:
Sound pressure level 82 dB (A); sound power level 93 dB (A). Wear hearing protection!
The typical weighted acceleration is 2.8 m/sec².
Warning: The two carbon brushes must be replaced together. To reduce the risk of injuries, electrical shocks and
damage to the tool, it is important that you never submerge the tool in liquid, and that liquid can never enter the tool
from the outside.
Volt AC Ampère Double insulated housing RoHS
Double insulated housing
The Bristle Blaster
®
Electric has a double insulated housing. Double insulated housings are manufactured with two
separate layers of protection for the electrical insulation or have twice the width insulation between the user and the
electrical tool. The Bristle Blaster
®
Electric, which is equipped with this insulation system, does not need an earthed
electrical cable or to be plugged into an earthed socket. For this reason this tool is equipped with a plug that makes
it possible to use extension cables that do not need to be earthed. However the double insulation does not replace
the usual safety regulations that must be followed on the usage of this tool. This insulation is intended to provide
additional protection to protect you from injuries in case of possible electrical damage inside the tool.
Safety feature
Handle Rear housing
Fan
Switch
Bristle®Blaster Belt On Off
Accelerator Bar

23
GB/USBristle Blaster
®
Electric Operating instructions
Extension cable
Double insulated tools have two-core cables and can be used with two-core or three-core extension cables. Only
use sheathed extension cables. If the extension is used outdoors, the cable must be suitable for work outdoors.Any
cable that is marked for usage outdoors can also be used for work indoors. For safety reasons an extension cable
must have a suitable wire diameter or a suitable wire size (AWG – American Wire Gauge) to protect against power
loss and overheating. If you use more than one extension cable, ensure each cable is of at least the minimum wire
diameter required.
Before you use an extension cable, you must check it for loose or bare wires, as well as damaged insulation or
faulty cable connections. Perform all necessary repairs or replace the complete cable if necessary before you use it.
6.1 Servicing
Warning
Ensure the tool is switched off and unplugged before you inspect it or service it.
Servicing
This tool should only be serviced by trained repair specialists for electrical tools or other qualified service personnel
for tool.
Cleaning
After use, clean dust from the motor housing and particularly the fan by blowing off with compressed air. This regu-
lar servicing action protects against the residue from the abrasion and dust settling on surfaces inside the tool and
thus reducing the performance of the motor and the cooling by the fan.

Operating instructions
24
GB/US Bristle Blaster
®
Electric
Replacing the carbon brushes
1. Undo the screw for the rear housing and pull the
rear housing off the body of the machine.
2. Pull the connector out of the "Faston" terminal on
the brush holder flap.
3. Lift the top part of the brush ring by pressing on the
top part of the carbon brushes. Use a pliers or a
similar tool for this task.
4. Remove the worn carbon brushes from the brush
holder and fit new brushes.
5. Re-fit the connector to the brush holder flap.
6. Ensure the two carbon brushes are pressed by the
brush rings and that the connectors are connected
to the flaps.
7. Re-fit the rear housing and fasten it with the screw.
7. SERVICE INSTRUCTIONS
1. All service work on the tool is only to be undertaken by qualified workshop personnel or the dealer where you
purchased the tool. Repair or servicing by unqualified personnel may result in injuries and/or damage to the
tool.
2. Only use genuine spare parts on servicing this tool. If parts that are not approved are used or maintenance
instructions are not followed, the warranty will be rendered void and there may be a risk of injury.

25
GB/USBristle Blaster
®
Electric Operating instructions
8. TROUBLESHOOTING
Fault Cause Solution
Unusual noise Mechanical parts insufficiently lubricated Servicing by qualified engineer
Bristle Blaster
®
Belt or other machine parts
faulty Fit new Bristle Blaster
®
Belt / servicing by
qualified engineer
Heavy vibration of
the rotating belt Adapter System not fastened correctly Re-fitAdapter System
Foreign body jammed between spindle and
Adapter System Remove object and re-fit
Adapter system worn Use newAdapter System
Bristle Blaster
®
Belt faulty Fit new Bristle Blaster
®
Belt
Adapter System
comes undone in
operation
Screw not tightened or serrated lock washer
not used Use serrated lock washer and tighten screw
Screw / serrated lock washer worn Use new screw / serrated lock washer
