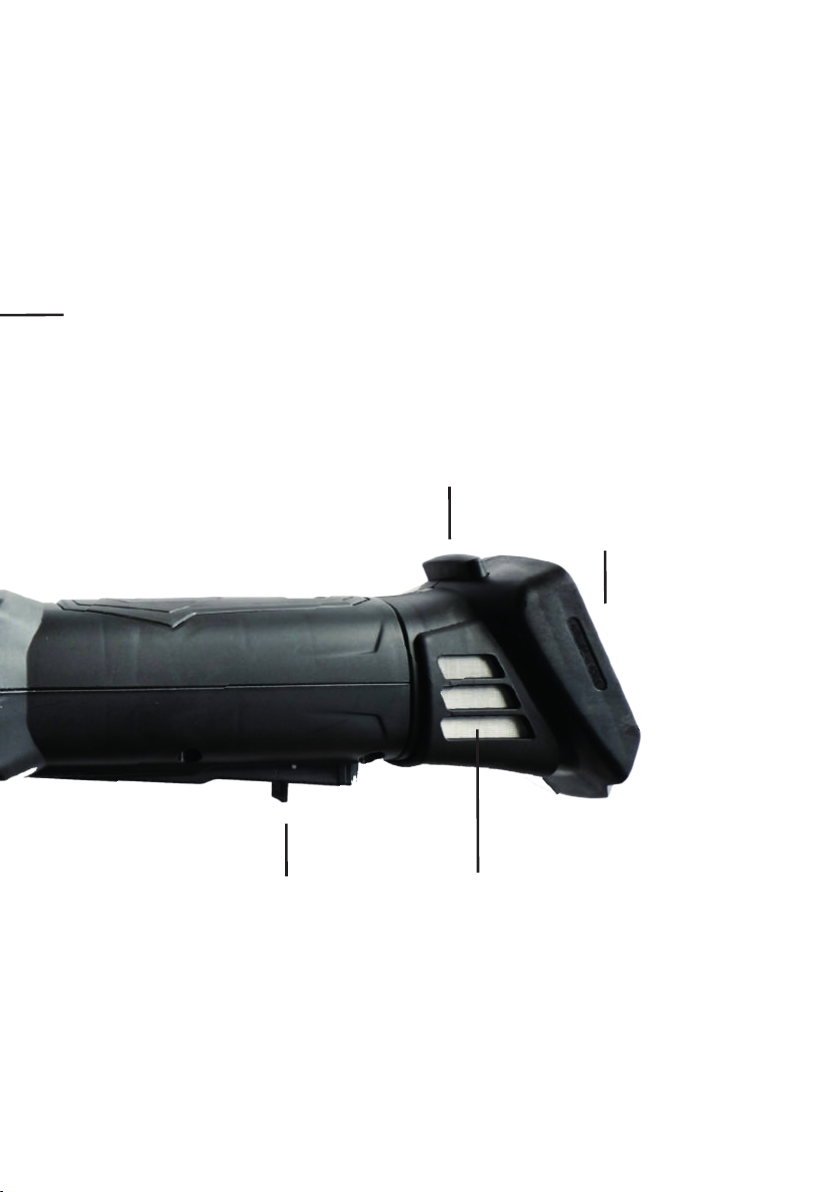

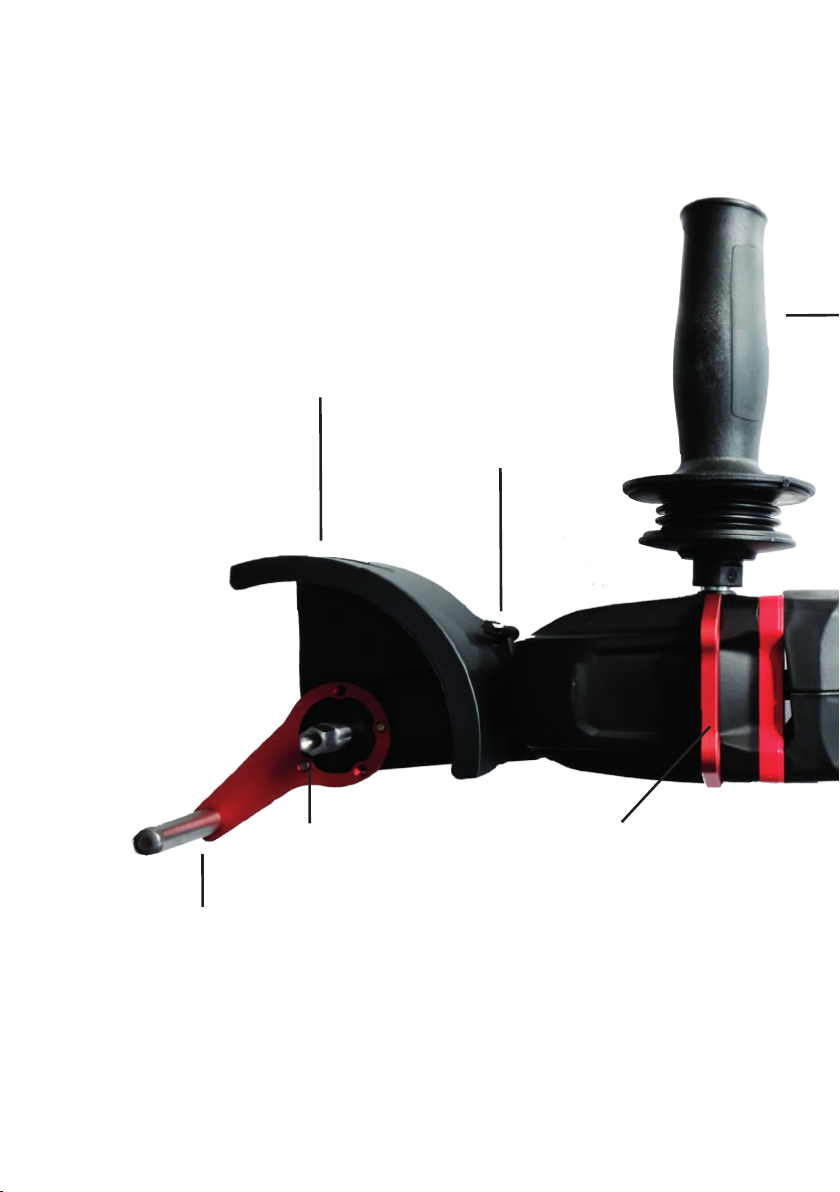

Overview Figure 1
1 Battery slide
2 Battery release switch
3 Dead man's switch
4 Vibration damping handle
5 Safety hook
6 Air inlet with Air vents filter cap
7 Protective Cap
8 Accelerator Bar
9 Spindle
10 Torx wrench

4
6
3
2
1

BRISTLE BLASTER®CORDLESS

EN Operating instructions
Dear customer!
MontiPower®thanks you for the purchase of one of its products and invites you to read these
operating instructions, which contains all the necessary information for the correct use of
the tool. It is therefore recommended to read the instructions completely and to follow the
information therein. Please keep the manual in good condition. The contents of this manual
may be changed without notice and without the implication of any additional obligations.
Therefore any changes / improvements can be read as additions to this version. It is forbidden
to copy or translate any part of this manual without the prior written approval of the
manufacturer.
Original instructions
1. Declaration of Conformity
We declare under our sole responsibility: These Bristle Blasters®, identified by type and serial
number *1), comply with all relevant requirements of the directives *2) and standards *3).
2. Specified Use
The machines, with original MONTI accessories, are suitable for surface preparation
simultaneously creating cleanliness and anchor profile. The machine can be equipped with
the standard 23mm wide belt as well as the 11mm wide belt. Special care in regards to brush
pressure has to be taken when using the 11mm belt.
The user bears sole responsibility for any damage caused by improper use. Generally accepted
accident prevention regulations and the enclosed safety information must be observed.
Specications Value Unit
Weight 2,2 kg I 4,9 lbs
Belt diameter (outer) 110 mm
Output 700 W
Torque 0.7 Nm
Idle speed (±5%) 2,300 rpm
Vibration 4 m/sec2
Required battery, voltage CAS (Cordless Alliance System), LiHD 18 V
Sound pressure level < 80 dB(A)
*2) 2006/42/EG, 2014/35/EU, 2014/30/EU
*3) DIN EN 60745-2-3 (VDE 0740-2-3)
Technical Data: Bristle Blaster®Cordless (*1) Serial number)
7
BRISTLE BLASTER®CORDLESS

EN
3. General Safety Instructions
For your own protection and for the protection of your electrical tool, pay attention
to all parts of the text that are marked with this symbol!
WARNING – Reading the operating instructions will reduce the risk of injury.
WARNING Read all safety warnings and instructions. Failure to follow all safety
warnings and instructions may result in electric shock, fire and/or serious injury.
Keep all safety instructions and information for future reference. Pass on your
electrical tool only together with these documents.
4. Special Safety Instructions
4.1 Safety Warnings Common for the use of Rotary Impact Tool Operations:
a) This power tool is intended to function as Rotary Impact Tool. Read all safety
warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or
serious injury.
b) No other operation than Rotary Impact Surface Preparation / Bristle Blasting shall be
performed with this power tool. Operations for which the power tool was not
designed may create a hazard and cause personal injury.
c) Only use MONTI Bristle Blaster®Belts and MONTI Adaptor Systems with this tool.
Do not use accessories which are not specifically designed and recommended by
the tool manufacturer. Just because the accessory can be attached to your power
tool, it does not assure safe operation.
d) Do not use a damaged Bristle Blaster®Belt or Adaptor System, inspect
before use.
e) After replacement of the Bristle Blaster®Belt, check Adaptor System for correct
assembly.
f) After fitting accessories such as the Adaptor System and Bristle Blaster®Belt, always
remove Allen key / Torx wrench. Always ensure the Allen key / Torx wrench is
removed prior to switching on the tool.
g) On setting down the tool on a bench or on the floor, the label must always point
upward.
h) If the tool is not in use, disconnect from the power supply and store in a suitable, dry
place to prevent unintentional or unauthorised use in the absence of an authorised
individual.
i) In use, always hold by the tool body and the vertical handle.
j) Use Bristle Blaster®Belt in the correct operating direction (Figure 3).
k) The Bristle Blaster®Belt can produce sparks on machining hard surfaces.
l) If the tool suddenly feels different (level of vibration) or produces a different noise
(pitch), the tool should be shut down immediately and the accessories such as the
Adaptor System, Bristle Blaster®Belt checked for damage.
m) Wear personal protective equipment. Depending on application, use face shield,
safety goggles or safety glasses. As appropriate, wear dust mask, hearing
protectors, gloves and workshop apron capable of stopping small abrasive or
workpiece fragments. The eye protection must be capable of stopping flying debris
8
BRISTLE BLASTER®CORDLESS

EN Operating instructions
generated by various operations. The dust mask or respirator must be capable of
filtering particles generated by your operation. Prolonged exposure to high intensity
noise may cause hearing loss.
n) Keep bystanders a safe distance away from work area. Anyone entering the work
area must wear personal protective equipment. Fragments of workpiece or of
a broken accessory may fly away and cause injury beyond immediate area of
operation.
o) Hold power tool by insulated gripping surfaces only, when performing an operation
where the Bristle Blaster®Belt may contact hidden wiring. The Bristle Blaster®Belt
contacting a "live" wire may make exposed metal parts of the power tool "live" and
could give the operator an electric shock.
p) Never lay the power tool down until the accessory has come to a complete stop. The
spinning accessory may grab the surface and pull the power tool out of your control.
q) Do not run the power tool while carrying it at your side. Accidental contact with the
spinning Bristle Blaste®Belt could snag your clothing, pulling the accessory into your
body.
r) Ensure the air vents filter cap is in place, (Figure 2). The air vent filter cap can be
removed for cleaning by simply pulling it away from the toolbody.
s) Regularly clean the power tool’s air vents (Figure 2).The motor’s fan will draw the
dust inside the housing and excessive accumulation of powdered metal may cause
electrical hazards. The air vent cap may be removed for cleaning, use non-metallic
objects only.
t) Do not operate the power tool near flammable materials. Sparks could ignite these
materials.
u) Do not use any liquid coolants. Using water or other liquid coolants may result in
electrocution or shock.
4.2 Kickback and Related Warnings
Kickback is a sudden reaction to a rotating wheel which can cause rapid stalling of
the rotating Bristle Blaster®Belt which in turn causes the uncontrolled power tool to
be forced in the direction opposite of the Bristle Blaster®Belt’s rotation.
a) Maintain a firm grip on the power tool and position your body and arm to allow you
to resist kickback forces. Always use auxiliary handle, if provided, for maximum
control over kickback or torque reaction during start-up. The operator can control
torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating Bristle Blaster®Belt. Accessory may
kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs.
Kickback will propel the tool in direction opposite to the Bristle Blaster®Belt’s
movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and
snagging the Bristle Blaster®Belt. Corners, sharp edges or bouncing have a tendency
to snag the rotating Bristle Blaster®Belt and cause loss of control or kickback,
damage of the Bristle Blaster®Belt and even brake of the tooth belt.
e) Do not attach any other belt or Adaptor System than the ones provided by the
manufacturer.
9
BRISTLE BLASTER®CORDLESS

EN
Figure 2
Figure 3
Figure 4
10
BRISTLE BLASTER®CORDLESS

EN Operating instructions
4.3 Additional Safety Instructions
WARNING – Always wear protective goggles.
• Accessories must be stored and handled with care in accordance with the
manufacturer's instructions.
• The workpiece must lay flat and be secured against slipping, e.g. using clamps.
Large workpieces must be sufficiently supported.
• Damaged, eccentric or vibrating tools must not be used.
• Disconnect the battery before making any adjustments, converting or
servicing the machine.
• A damaged or cracked handle must be replaced. Never operate a machine
with a defective handle.
• A damaged or cracked Protective Cap must be replaced.
Reducing dust exposure:
WARNING - Some dust created by the MONTI Bristle Blasting process may contain
chemicals known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
This also applies to dust from other materials such as some timber types (like oak or
beech dust), metals, asbestos. Other known diseases are e.g. allergic reactions, respiratory
diseases. Do not let dust enter the body.
Observe the relevant guidelines and national regulations for your material, staff,
application and place of application (e.g. occupational health and safety regulations,
disposal).
Collect the particles generated at the source, avoid deposits in the surrounding area.
Use suitable accessories for special work. In this way, fewer particles enter the environment
in an uncontrolled manner.
Use a suitable extraction unit.
Reduce dust exposure with the following measures:
• do not direct the escaping particles and the exhaust air stream at yourself or nearby
persons or on dust deposits,
• use an extraction unit and/or air purifiers,
• ensure good ventilation of the workplace and keep clean using a vacuum cleaner
Sweeping or blowing stirs up dust.
• Vacuum or wash the protective clothing. Do not blow, beat or brush.
11
BRISTLE BLASTER®CORDLESS

EN
5. Initial Operation
Please ensure the correct battery is fitted onto the unit. Specific info is listed on
the label at the bottom of the tool.
Always install 18V and fully charged batteries.

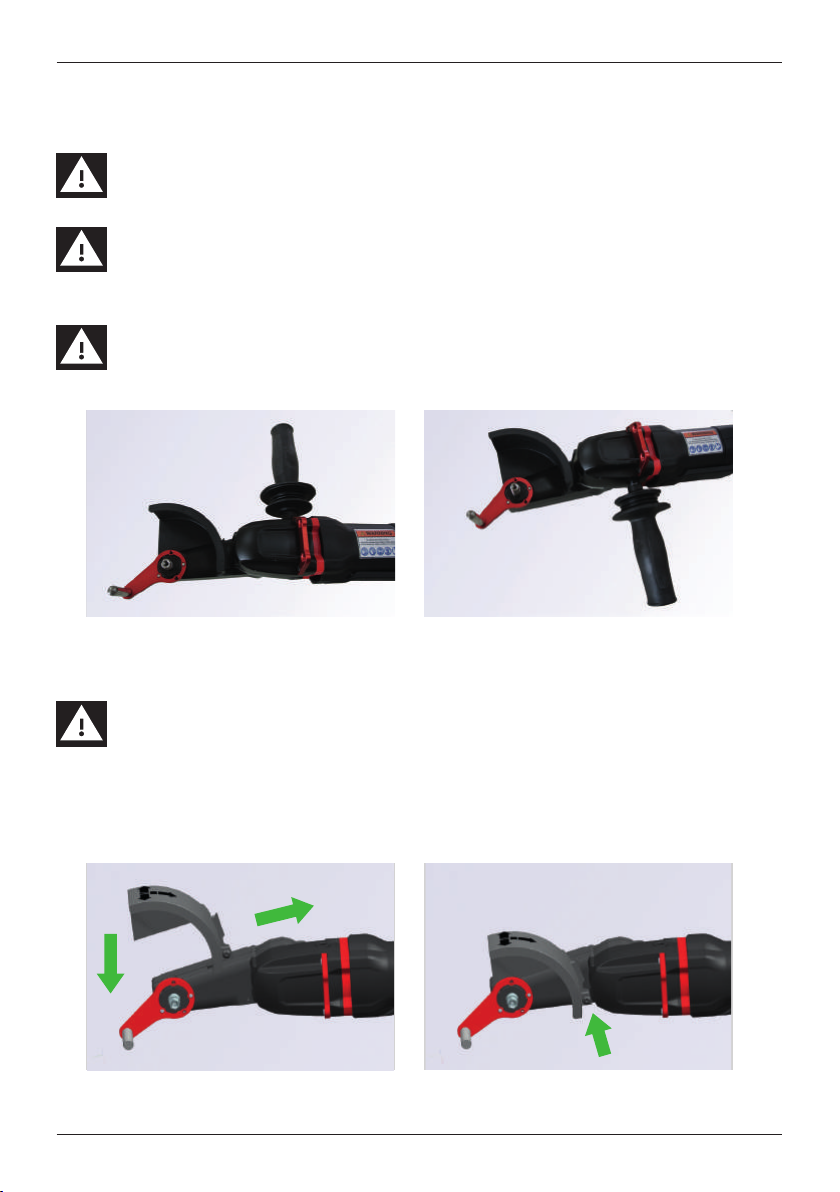

5.1 Attaching the Vibration Damping handle
Always work with the Vibration Damping handle (4) attached! Attach the handle on
the top or bottom side of the machine, depending on working position, and secure.
See Figure 5.
5.2 Attaching the Protective Cap
Always work with the Protective Cap (7) attached.
Figure 5
Figure 6
Installing:
Slide the Protective Cap (7) over the cams on de front end as shown below and secure by
tightening the screw on the side. See Figure 6.
12
3
12
BRISTLE BLASTER®CORDLESS

EN Operating instructions
6. Fitting the Adaptor System
Disconnect the battery from the unit before changing the belt or Adaptor System.
The machine must be switched off and the spindle at a standstill.
6.1 Positioning the accessory
See illustration below (Figure 7).

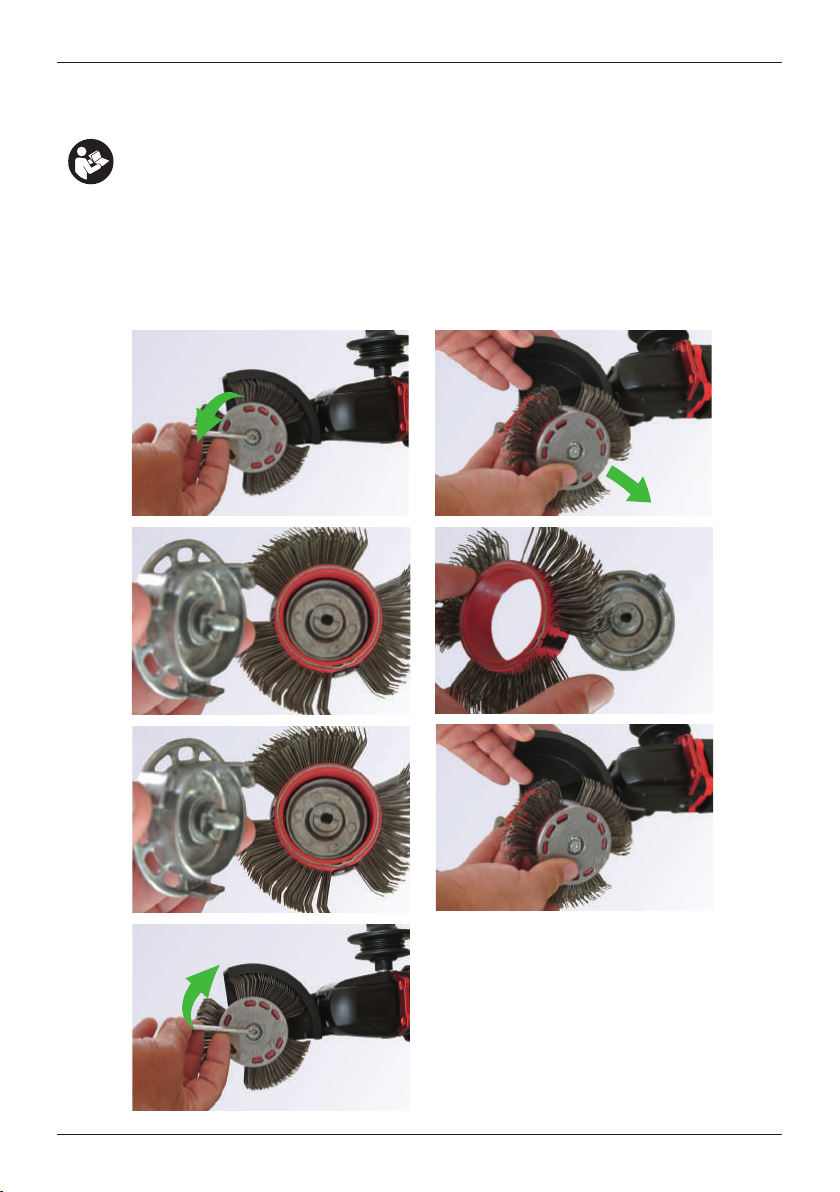

a. Fasten Bristle Blaster®Belt correctly to the tool using the related MONTI Adaptor
System (pay attention to rotating direction) and the related serrated lock washer and
screw.
Figure 7
13
BRISTLE BLASTER®CORDLESS

EN
b. For Bristle Blaster®stainless steel belt only use stainless steel Accelerator Bar.
c. Before you attach the battery to operate the tool, you must check that it is possible
to actuate the dead man’s switch correctly and that the switch returns to the "OFF"
position when you release the pressure on the dead man’s switch.
d. To start the tool, you must release the safety clip by pushing it backwards and push
the dead man’s switch (Figure 8).
e. To stop the tool, you must simply release the pressure on the dead man’s switch.
When attaching the battery ensure the dead man’s switch is not activated (Figure 9).
f. Hold tool by the tool body and the vertical handle at the same time.
g. To obtain the best performance, ensure the Accelerator Bar is maintained
approximalely 10mm from the work surface. If the Accelerator Bar is too far from
the surface, the performance will drop significantly. See Figure 4. For a more detailed
description of the function of the Bristle Blaster®visit www.montipower.com
h. Always work with adequate contact pressure. Excessive contact pressure will limit
the performance and cause damage to the MONTI Bristle Blaster®Belt and tooth
belt.
7. Use
7.1 Setting speed
The rotating speed is preset and fixed at 2,300 rpm to ensure optimal performance.
The VTC electronics make material-compatible work possible and an almost
constant speed, even under load.
Figure 8
Figure 9
14
BRISTLE BLASTER®CORDLESS

EN Operating instructions
7.2 Switching On and Off
Always guide the machine with both hands.
Switch on first, then guide the accessory towards the workpiece.
The machine must not be allowed to draw in additional dust and shavings. When
switching the machine on and off, keep it away from dust deposits. After switching off
the machine, only place it down when the motor has come to a standstill.
7.3 Working instructions
Press down lightly on the machine and
move over the surface by making oscillating
movements.
Correct direction of operation.
Less contact pressure = longer service life and
higher performance.
Note that excessive pressure will lead to
damaging the Bristle Blaster®Belt and even
break of tooth belt.
F
F
15
BRISTLE BLASTER®CORDLESS

EN
8. Cleaning
Motor cleaning: Holding the machine firmly, blow compressed air through the rear ventilation
slots of the machine regularly, Figure 2, frequently and thoroughly.
9. Troubleshooting
9.1 Battery powered machines:
• Overload protection: There is a MAJOR reduction in load speed. The motor
temperature is too high! Allow the machine to run at idle speed until it has cooled down.
• Overload protection: There is a SLIGHT reduction in load speed. The machine is
overloaded. Reduce the load before continuing to work.
• S-automatic safety shutdown: The machine was SWITCHED OFF automatically.
If the slew rate of the current is too high (for example, if the machine suddenly seizes or
kickback occurs), the machine switches off. Release the dead man’s switch to switch off
the machine. Switch it on again and continue to work as normal.
• Machine is running but Bristle Blaster®Belt does not rotate. The toothbelt is
broken or heavily damaged and needs to be replaced. See Chapter 11, Repairs.
• Machine is running but no or limited roughness is created. The positioning of the
Bristle Blaster®Belt onto the object is incorrect, or the Bristle Blaster®Belt is worn out and
needs to be replaced.
10. Accessories
Use only genuine MONTI accessories.
Use only accessories which fulfil the requirements and specifications listed in these operating
instructions. For a complete range of accessories, see www.montipower.com.
11. Repairs
Repairs to electrical tools must be carried out by qualified electricians ONLY!
Contact your local MONTI representative if you have MONTI power tools requiring
repairs.
You can download specific repair instructions and a list of spares and assemblies from
www.montipower.com.
12. Environmental Protection
The dust generated by the Bristle Blaster®process may contain hazardous materials:
do not dispose of with the household waste, but at a special collection point for
hazardous waste.
Observe national regulations on environmentally compatible disposal and on the recycling of
disused machines, packaging and accessories. Only for EU countries: Never dispose of power
tools and or its batteries in your household waste! In accordance with European Guideline
2012/19/EU on used electronic and electric equipment and its implementation in national legal
systems, used power tools must be collected separately and handed in for environmentally
compatible recycling.
16
BRISTLE BLASTER®CORDLESS

EN Operating instructions
13. Technical Specifications
Emission values
These values make it possible to assess the emissions from the power tool and to compare
different power tools. Depending on the operating conditions, the condition of the power tool
or the accessories, the actual load may be higher or lower. For assessment purposes, please
allow for breaks and periods when the load is lower. Based on the adjusted estimates, arrange
protective measures for the user e.g. organisational measures.
Vibration total value (vector sum of three directions) determined in accordance with EN 60745:
ah, P = Vibration emission value (polishing) Kh,P = Uncertainty (vibration)
Typical A-effective perceived sound levels: LpA = Sound pressure level
LWA = Acoustic power level KpA, KWA= Uncertainty
During operation the noise level can exceed 80 dB(A).
Wear ear protectors!
Problems, faults:
In individual cases, the speed may fluctuate temporarily if the machine is exposed to
extreme external electromagnetic disturbances or the electronic restart protection
may respond. In this case, switch the machine off and on again.
17
BRISTLE BLASTER®CORDLESS

BRISTLE BLASTER®CORDLESS
