1
English
IMPORTANT
SAFETY INSTRUCTIONS
This document contains important safety and operating
instructions. Please read these instructions carefully and
save them for future reference.
Before using the battery charger, read all the instructions and
cautionary markings on (1) the charger, (2) the battery, and (3) the
radio using the battery.
1. To reduce risk of injury, charge only the
rechargeable authorized NiMH and Li-lon batteries.
Other batteries may explode, causing personal
injury and damage.
2. Use of accessories not recommended by manufacturer may
result in risk of fire, electric shock, or injury.
3. To reduce risk of damage to the electric plug and cord, pull by
the plug rather than the cord when disconnecting the
charger.
WARNINGS
W A R N I N G
6871916T01.book Page 1 Tuesday, March 8, 2016 9:48 AM

2
English
WARNINGS (continued)
4. An extension cord should not be used unless
absolutely necessary. Use of an improper extension
cord could result in risk of fire and electric shock. If
an extension cord must be used, make sure that the
cord size is 18AWG for lengths up to 100 feet (30.48m), and
16AWG for lengths up to 150 feet (45.72m).
5. To reduce risk of fire, electric shock, or injury, do not operate
the charger if it has been broken or damaged in any way.
Take it to a qualified manufacturer service representative.
6. Do not disassemble the charger; it is not repairable and
replacement parts are not available. Disassembly of the
charger may result in risk of electrical shock or fire.
7. To reduce risk of electric shock, unplug the power supply from
the AC outlet before attempting any maintenance or cleaning.
W A R N I N G
FCC REGULATION
This Class B digital apparatus complies with Canadian ICES-003. Cet
appareil numérique de la Classe B est conforme à la norme NMB-003
du Canada. This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this device may
not cause harmful interference. and (2) this device must accept any
interference received including interference that may cause undesired
operation.
6871916T01.book Page 2 Tuesday, March 8, 2016 9:48 AM

3
English
OPERATIONAL SAFETY GUIDELINES
• This equipment is not suitable for outdoor use. Use only in dry
locations/conditions.
• Connect equipment only to an appropriately fused and wired
supply of the correct voltage (as specified on the product).
• When not in use, disconnect the power supply from the AC
outlet.
• The socket outlet to which the power supply is connected
should be close by and easily accessible.
• Maximum ambient temperature around the power supply
equipment must not exceed 40°C (104°F).
• Output power from the power supply unit must not exceed the
ratings stated on the product label located on the top of the
power supply housing.
• Make sure the cord is located where it will not be stepped on,
tripped over, or subjected to water, damage, or stress.
SERVICE
The single unit charger is not repairable. Order replacement
charger as necessary.
6871916T01.book Page 3 Tuesday, March 8, 2016 9:48 AM

4
English
BATTERY CHARGER
The Mag One Tri-Chem Rapid
Charger (PMLN5041_) allows
the drop-in charging of the
battery while attached to the
radio or separately.
Battery Charging
Temperature: 5-40°C
To get maximum use from a
new battery, charge it
overnight (12-16 hours) before
using the battery for the first
time.
For optimum charger performance:
1. Charge battery at 20-25°C ambient temperatures.
2. Radio should be turned off, if attached.
Note:
Typical time needed to completely charge the discharged battery is
estimated within 2.5 - 3 hours depending on cell chemistry.
LR/SW
LR=Linear Power Supply
SW=Switching Power Supply
6871916T01.book Page 4 Tuesday, March 8, 2016 9:48 AM

5
English

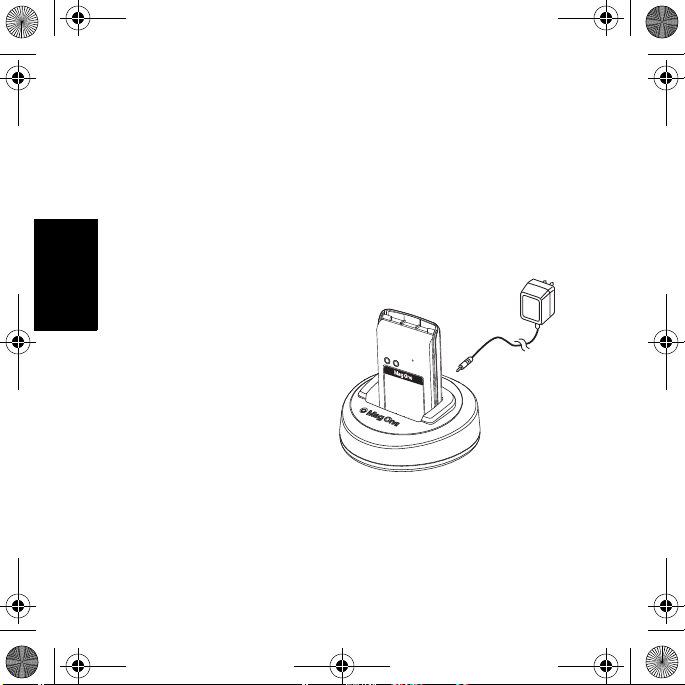

Charging Instructions
1. Make sure the radio is Off.
2. Plug the power supply into an electric outlet.
3. Connect the power supply output cord connector into the rear
of the Desktop Charging Tray.
4. The LED on the charger blinks green once to indicate charger
is turned on.
5. Insert the radio into the pocket of the Desktop Charging Tray.
If the battery is being charged separately, insert the battery
into the back pocket of the Desktop Charging Tray.
6. The charger’s LED color will indicate the battery charging
status. (See table below).
LED Color Charging Status
Solid Red Charging
Blinking Red Battery Fault
Solid Green Charge Complete
Blinking Green Top-off Charging
Single Blink Green Power On
Blinking Yellow Waiting to Charge
6871916T01.book Page 5 Tuesday, March 8, 2016 9:48 AM

6
English
MANUFACTURER AUTHORIZED BATTERIES/POWER
SUPPLIES
The batteries listed in Table 1 are approved for use with chargers
listed in Table 2.
The battery chargers should be used with the direct plug-in,
manufacturer authorized power supplies listed below.
Table 1. Manufacturer Authorized Batteries
Kit (part) Number Battery Chemistry/Description
PMNN4071_ NiMH battery, 1200mAH
PMNN4075_ Lilon battery, 1500mAH
Table 2: Power Sources/Power Supplies
Charger Kit
Number Charger Base Power Source
Power Supply Part
Number
PMLN5044_ PMLN5041_ 220–240 VAC
+/-10% EU
PS000037A01
2571586S03 (Alternate)
PMLN5045_ PMLN5041_ 220–240 VAC
+/-10% AR
PS000037A04
2571586S09 (Alternate)
PMLN5046_ PMLN5041_ 220–240 VAC
+/-10% UK
PS000037A02
2571586S02 (Alternate)
6871916T01.book Page 6 Tuesday, March 8, 2016 9:48 AM

7
English
LR = Linear Power Supply, SW = Switching Power Supply
PMLN5047_ PMLN5041_ 220–240 VAC
+/-10% AUS/NZ
PS000037A03
2571586S12 (Alternate)
PMLN5048_ PMLN5041_ 108–132 VAC US 25009297001
PMLN5049_ PMLN5041_ 220–240 VAC PS000037A01
100–240 VAC 2571886T01 (Alternate)
PMLN5050_ PMLN5041_ 220–240 VAC PS000037A04
100–240 VAC 2571886T01 (Alternate)
PMLN5051_ PMLN5041_ 220–240 VAC PS000037A02
100–240 VAC 2571886T01 (Alternate)
PMLN5055_ PMLN5041_ 220–240 VAC PS000037A05
100–240 VAC 2571586S10 (Alternate)
PMLN5043_ PMLN5041_ 108–132 VAC 25009297001
2571586S14 (Alternate)
Table 2: Power Sources/Power Supplies
Charger Kit
Number Charger Base Power Source
Power Supply Part
Number
6871916T01.book Page 7 Tuesday, March 8, 2016 9:48 AM

8
English
Table 3: Troubleshooting
LED
Indication Reason Solution
Blinking
Yellow
Battery voltage is too low
for the Normal Charge.
Wait until the battery voltage
reaches the value that allows the
charger’s Normal Charge Mode.
Battery temperature is
too warm or too cold to
charge.
Charge battery within
recommended temperature
range: 5-40°C.
Blinking Red
(4Hz)
Charger shuts off to
prevent overheating of
battery.
Allow battery to cool down
(approximately 30 mins) to
5-40°C. Unplug and reconnect
power to charger input.
Poor connection between
the Desktop Charging
Tray and battery contacts.
Remove input power, clean
contacts and reinsert battery.
LED Off
No input power.
Check the power supply
connection to the wall electric
outlet or try different wall plug.
Incorrect battery used for
charging.
Charge recommended battery
only. (See table 1)
6871916T01.book Page 8 Tuesday, March 8, 2016 9:48 AM

9
English
Notes
6871916T01.book Page 9 Tuesday, March 8, 2016 9:48 AM

10
English
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks
or registered trademarks of Motorola Trademark Holdings, LLC and are used under
license. All other trademarks are the property of their respective owners.
© 2007, 2015, 2016 Motorola Solutions, Inc. All rights reserved.
6871916T01.book Page 10 Tuesday, March 8, 2016 9:48 AM

1
Bahasa
Indonesia
PETUNJUK
PENTING MENGENAI KESELAMATAN
Dokumen ini berisi petunjuk penting mengenai keselamatan
dan penggunaan produk. Bacalah petunjuk ini dengan
saksama dan simpanlah sebagai referensi.
Sebelum menggunakan pengisi baterai, bacalah semua petunjuk
dan tanda peringatan yang terdapat pada (1) pengisi baterai, (2)
baterai, dan (3) radio yang menggunakan baterai.
1. Untuk mengurangi risiko cedera, gunakan
hanya baterai NiMH dan Li-Ion isi ulang yang
resmi. Baterai yang lain dapat meledak dan
menyebabkan cedera atau kerusakan.
2. Penggunaan aksesori yang tidak disarankan
oleh pihak manufaktur dapat mengakibatkan kebakaran,
sengatan listrik, atau cedera.
3. Untuk mengurangi risiko terjadinya kerusakan steker dan
kabel, tariklah kepala steker listrik bila ingin melepaskan
pengisi baterai.
W A R N I N G
PERINGATAN
PERINGATAN
6871916T01.book Page 1 Tuesday, March 8, 2016 9:48 AM

2
Bahasa
Indonesia
PERINGATAN (lanjutan)
W A R N I N G
PERINGATAN
4. Jangan menggunakan kabel perpanjangan
kecuali amat terpaksa. Penggunaan kabel
perpanjangan secara tidak benar dapat
mengakibatkan kebakaran dan sengatan
listrik. Jika terpaksa menggunakan kabel
perpanjangan, pastikan ukuran kabel
adalah 18AWG untuk panjang sampai dengan 100 kaki
(30.48m) dan 16AWG untuk panjang sampai dengan 150 kaki
(45.72m).
5. Untuk mengurangi risiko kebakaran, sengatan listrik, atau
cedera, jangan menggunakan pengisi baterai bila pengisi
baterai rusak atau cacat. Bawalah pengisi baterai ke
perwakilan servis yang resmi.
6. Jangan membongkar pengisi baterai; pengisi baterai tidak
dapat diperbaiki dan suku cadang pengganti tidak tersedia.
Pembongkaran pengisi baterai dapat mengakibatkan
sengatan listrik atau kebakaran.
7. Untuk mengurangi risiko sengatan listrik, lepaskan catu daya
dari stopkontak listrik sebelum melakukan tindakan
pemeliharaan atau pembersihan.
6871916T01.book Page 2 Tuesday, March 8, 2016 9:48 AM

3
Bahasa
Indonesia
PEDOMAN KESELAMATAN UNTUK
PENGGUNAAN PRODUK
• Peralatan ini tidak cocok untuk digunakan di luar ruangan.
Gunakan hanya di lokasi/kondisi yang kering.
• Hubungkan alat ke catu daya listrik yang dilengkapi sekring dan
rangkaian yang baik dengan voltase yang sama (seperti yang
tertera pada produk).
• Bila tidak digunakan, lepaskan catu daya listrik dari stopkontak
arus bolak-balik.
• Stopkontak listrik yang akan digunakan untuk catu daya ini
sebaiknya cukup dekat dan mudah dicapai.
• Suhu sekitar maksimum di daerah peralatan catu daya listrik
tidak boleh melebihi 40°C (104°F).
• Daya keluaran dari unit catu daya listrik tidak boleh melebihi
spesifikasi yang tertera pada label produk di sisi atas rumah
catu daya.
PERATURAN FCC
Aparatus digital Kelas B ini sesuai dengan ICES-003 Kanada. Cet
appareil numérique de la classe B est conforme à la norme NMB-
003 du Canada.Alat ini sesuai dengan bagian 15 dari peraturan
FCC. Penggunaan alat harus memenuhi kedua kondisi berikut: (1)
alat ini tidak boleh menyebabkan interferensi yang berbahaya. dan
(2) alat ini harus menerima interferensi yang diterima, termasuk
interferensi yang dapat mengganggu penggunaan alat.
6871916T01.book Page 3 Tuesday, March 8, 2016 9:48 AM

4
Bahasa
Indonesia
• Pastikan posisi kabel tidak akan mengganggu sehingga tidak
akan terinjak, menyebabkan orang tersandung, terkena air,
mengalami kerusakan atau regangan yang berlebihan.
PERBAIKAN
Pengisi baterai tunggal tidak dapat diperbaiki. Pesanlah pengisi
baterai pengganti sesuai keperluan.
PENGISI BATERAI
Pengisi Baterai Cepat Mag
One Tri-Chem (PMLN5041_)
memungkinkan pengisian
baterai saat baterai terpasang
pada pesawat radio atau
secara terpisah.
Suhu Pengisian
Baterai: 5-40°C
Untuk memperoleh manfaat
maksimum dari baterai yang
baru, isilah baterai satu malam penuh (12-16 jam) sebelum
menggunakan baterai untuk pertama kali.
LR/SW
LR=Catu Daya Linear
SW=Catu Daya Saklar
6871916T01.book Page 4 Tuesday, March 8, 2016 9:48 AM

5
Bahasa
Indonesia
Untuk memperoleh kinerja optimum dari pengisi
baterai:
1. Isilah baterai pada suhu sekitar 20-25°C.
2. Pesawat radio dalam keadaan dimatikan, jika terhubung
dengan baterai.
Catatan:
Waktu normal yang diperlukan untuk mengisi penuh baterai yang
kosong sama sekali adalah sekitar 2,5 - 3 jam, tergantung pada
komposisi kimia baterai.
Petunjuk Pengisian
1. Pastikan pesawat radio dalam keadaan Dimatikan.
2. Hubungkan catu daya dengan stopkontak listrik.
3. Hubungkan konektor kabel keluaran catu daya ke bagian
belakang Dudukan Pengisian Desktop.
4. LED pada pengisi baterai akan berkedip hijau satu kali untuk
menandakan bahwa pengisi baterai sudah menyala.
5. Masukkan pesawat radio ke dalam lubang dudukan pada
Dudukan Pengisian Desktop. Jika baterai diisi secara terpisah,
masukkan baterai ke dalam dudukan belakang pada Dudukan
Pengisian Desktop.
6. Warna LED pengisi baterai akan menandakan status
pengisian baterai. (Lihat tabel di bawah).
6871916T01.book Page 5 Tuesday, March 8, 2016 9:48 AM

6
Bahasa
Indonesia
BATERAI/CATU DAYA RESMI
Baterai yang tercantum di dalam Tabel 1 telah disetujui untuk
penggunaan dengan pengisi baterai yang tercantum di dalam
Tabel 2.
Warna LED Status Pengisian
Merah Tanpa Kedip Mengisi Baterai
Merah Berkedip Ada Kerusakan pada Baterai
Hijau Tanpa Kedip Pengisian Selesai
Hijau Berkedip Pengisian Mode Top-off (lambat)
Berkedip Hijau Satu Kali Menyala
Kuning Berkedip Menunggu Pengisian
Tabel 1. Baterai Resmi Manufaktur
Nomor Kit (suku cadang) Jenis Baterai/Keterangan
PMNN4071_ Baterai NiMH, 1200mAH
PMNN4075_ Baterai Li-lon, 1500mAH
6871916T01.book Page 6 Tuesday, March 8, 2016 9:48 AM

7
Bahasa
Indonesia
Pengisi baterai sebaiknya digunakan dengan catu daya plug-in
resmi yang tercantum di bawah.
Tabel 2: Catu Daya
Nomor Kit
Pengisi
Baterai
Pengisi
Baterai Catu Daya Nomor Suku Cadang Catu Daya
PMLN5044_ PMLN5041_ 220–240 VAC
+/-10% EU
PS000037A01
2571586S03 (Alternatif)
PMLN5045_ PMLN5041_ 220–240 VAC
+/-10% AR
PS000037A04
2571586S09 (Alternatif)
PMLN5046_ PMLN5041_ 220–240 VAC
+/-10% UK
PS000037A02
2571586S02 (Alternatif)
PMLN5047_ PMLN5041_ 220–240 VAC
+/-10% AUS/NZ
PS000037A03
2571586S12 (Alternatif)
PMLN5048_ PMLN5041_ 108–132 VAC US 25009297001
PMLN5049_ PMLN5041_ 220–240 VAC PS000037A01
100–240 VAC 2571886T01 (Alternatif)
PMLN5050_ PMLN5041_ 220–240 VAC PS000037A04
100–240 VAC 2571886T01 (Alternatif)
6871916T01.book Page 7 Tuesday, March 8, 2016 9:48 AM

8
Bahasa
Indonesia
LR = Catu Daya Linear, SW = Catu Daya Saklar
PMLN5051_ PMLN5041_ 220–240 VAC PS000037A02
100–240 VAC 2571886T01 (Alternatif)
PMLN5055_ PMLN5041_ 220–240 VAC PS000037A05
100–240 VAC 2571586S10 (Alternatif)
PMLN5043_ PMLN5041_ 108–132 VAC 25009297001
2571586S14 (Alternatif)
Tabel 2: Catu Daya
Nomor Kit
Pengisi
Baterai
Pengisi
Baterai Catu Daya Nomor Suku Cadang Catu Daya
6871916T01.book Page 8 Tuesday, March 8, 2016 9:48 AM
