Motorola PSS-3CR01 User manual

PSS-3CR01 Charging Cradle
Quick Reference Guide

2 PSS-3CR01 Charging Cradle
©2008 MOTOROLA, INC. All rights reserved.
Motorola reserves the right to make changes to any product to improve reliability,
function, or design.
Motorola does not assume any product liability arising out of, or in connection
with, the application or use of any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise
under any patent right or patent, covering or relating to any combination, system,
apparatus, machine, material, method, or process in which Motorola products
might be used. An implied license exists only for equipment, circuits, and
subsystems contained in Motorola products.
MOTOROLA, the Stylized M Logo and Symbol and the Symbol logo are
registered trademarks of Motorola, Inc. Other product names mentioned in this
manual may be trademarks or registered trademarks of their respective
companies and are hereby acknowledged.
Motorola, Inc.
One Motorola Plaza
Holtsville, N.Y. 11742-1300
http://www.motorola.com
Warranty
For the complete Motorola hardware product warranty statement, go to:
http://www.symbol.com/warranty.
Patents
This product is covered by one or more patents. For patent information go to:
http://www.symbol.com/patents.

Quick Reference Guide 3
Introduction
The PSS-3CR01 Charging cradle is used to charge the MC17 mobile computer.
There are two configurations available: The PSS-3C01-01R contains a locking
mechanism that locks the mobile computer in the cradle and the PSS-3C01-NLR
that does not contain the locking mechanism.
Mounting the Cradle
The cradle contains mounting holes in the back housing so that it can be secured
to supporting furniture. In addition, it come with plugs and a variety of cable
routing outlets. Cable outlets not used can be concealed with the plugs provided.
Refer to the Product Reference Guide for information required to design correct
mounting holes for the charge cradle.
Wiring
1. Install power supply, including AC
line cord and power cable, into
Decorative Housing.
2. Insert power cable through a cable
outlet of cradle back housing.
3. Plug connector into power
connector on printed circuit board.
4. If more than one cradle, connect the
interconnect cable from the first
cradle to the second cradle.
5. Use plugs to cover un-used cable
outlets.
There are some general limitations that
must be taken into account when
designing a system:
NOTE During installation
ensure all interconnect
cables are fully
enclosed within the
power supply or cradle
enclosure.
Power Cable
25-66420-01R
Interconnect Cable 25-66431-01R
Power Supply
50-14000-241R (inside
Decorative Housing)

4 PSS-3CR01 Charging Cradle
• No more than six cradles can be powered off of one power supply and power
cable 25-66420-01R.
• No more than 12 cradles can be powered off of one power supply and “Y”
power cable 25-67592-01R.
• No more than six cradles can be powered off each leg of the “Y” power cable.
• A power supply cable runs from the power supply to one or two cradles.
• Cradle interconnection cables run between each successive cradle in the
chain.
The illustration below shows how the maximum number of cradles can be cabled
to a power supply using power cable 25-66420-01R.
The illustration below shows how the maximum number of cradles can be cabled
to a power supply using the “Y” power cable 25-67592-01R. Note that there are
only six cradles per leg of the power supply cable, and only 12 cradles in total.

Quick Reference Guide 5
Assembly
1. Replace cover.
2. Secure the two captive screws.
3. Insert bar code target cover.
4. Push target cover into front cover until it snaps into place.

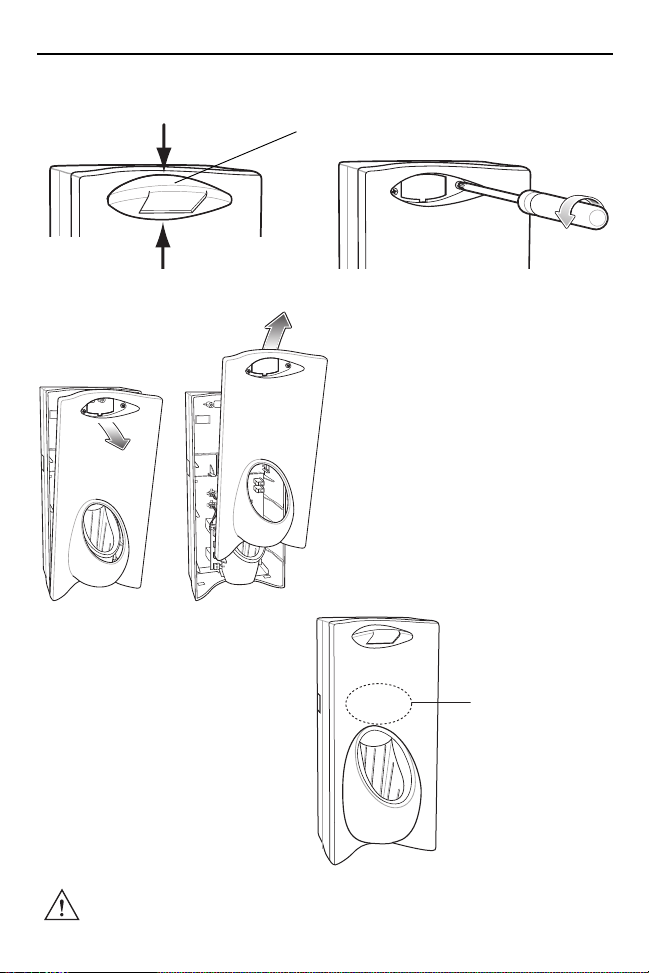

Removing the Front Cover
To remove the front cover:
1. Squeeze the top and bottom of the target cover to remove.
NOTE Do not install the target cover until you are sure that you do not
need to remove the front cover again.
Place cradle ID bar code on target cover prior to installing the
target cover.

6 PSS-3CR01 Charging Cradle
2. Loosen two captive screws securing the front cover to the back housing.
3. Pull front cover away from back housing and then lift out of the back housing.
Battery Charging
• The Li-Ion battery recharges when
the mobile computer is inserted in
the cradle.
• The cradle charge LED turns red
when the mobile computer is
inserted in the cradle, then turns
green when charging is complete.
CAUTION The temperature range for charging the battery is 0°C to
40°C (32°F to 104°F).
Targe t C o v e r
Charge LED
(behind front panel)

Quick Reference Guide 7
LED Indications
Troubleshooting
Regulatory Information
This device is approved under the Symbol Technologies brand; Symbol
Technologies, Inc., is the Enterprise Mobility business of Motorola, Inc
(“Motorola”)
All Symbol devices are designed to be compliant with rules and regulations in
locations they are sold and will be labeled as required.
Local language translations are available at the following website:
http://support.symbol.com
Condition Cradle Charge LED
Red Mobile computer is inserted in the cradle and the battery
is charging.
Green Battery is fully charged.
Off Mobile computer is not properly inserted in the cradle.
Symptom Possible Cause Action
Cradle red Charge
LED indicator does
not light when
mobile computer is
inserted in cradle.
Mobile computer is
not seated firmly in
cradle.
Replace mobile computer
securely in cradle.
Battery is not
installed in the
mobile computer.
Install battery.
Battery in the
mobile computer did
not recharge.
Battery failed. Replace battery.
Mobile computer
was removed from
cradle too soon.
Replace mobile computer in the
cradle. Approximately 5 hours
are required to recharge a fully
discharged battery.

8 PSS-3CR01 Charging Cradle
Any changes or modifications to Symbol Technologies equipment, not expressly
approved by Symbol Technologies, could void the user's authority to operate the
equipment.
Power Supply
Use only a Symbol approved power supply output rated at 12Vdc and minimum
9A. The power supply shall be Listed to UL/CSA 60950-1; and certified to
IEC60950-1 and EN60950-1 with SELV outputs. Use of alternative power supply
will invalidate any approval given to this device and may be dangerous.
Radio Frequency Interference Requirements-FCC
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Radio Frequency Interference Requirements - Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.

Quick Reference Guide 9
Marking and European Economic Area (EEA)
Statement of Compliance
Symbol Technologies, Inc. hereby declares that this device is in compliance with
all the applicable Directives, 2004/108/EC and 2006/95/EC. A Declaration of
Conformity may be obtained from http://www2.symbol.com/doc/.
Japan (VCCI) - Voluntary Control Council for Interference
この装置は、情報処理装置等電波障害自主規制協議会 （ＶＣＣＩ）の基準に基
づくクラス B 情報技術装置です。この装置は、家庭環境で使用することを目的
としていますが、この装置がラジオやテレビジョン受信機に近接して使用される
と、受信障害を引き起こすことがあります。 取扱説明書に従って正しい取り扱
いをして下さい。
This is a Class B product based on the standard of the Voluntary Control Council
for Interference from Information Technology Equipment (VCCI). If this is used
near a radio or television receiver in a domestic environment, it may cause radio
interference. Install and use the equipment according to the instruction manual.
Korea Warning Statement for Class B ITE
Waste Electrical and Electronic Equipment (WEEE)
English: For EU Customers: All products at the end of their life must be returned
to Motorola for recycling. For information on how to return product, please go to:
http://www.symbol.com/environmental_compliance.
Bulgarish: За клиенти от ЕС: След края на полезния им живот всички
продукти трябва да се връщат на Motorola за рециклиране. За информация
기 종 별 사용자 안내문
B 급 기기 이 기기는 가정용으로 전자파 적합등록을 한 기기이오니
주거지역에서는 물론 모든 지역에서 사용할 수 있습니다 .
Class User’s Guide
B class As this equipment has obtained EMC registration for
household use, it can be used in any area including
residential areas.

10 PSS-3CR01 Charging Cradle
относно връщането на продукти, моля отидете на адрес:
http://www.symbol.com/environmental_compliance
Dansk: Til kunder i EU: Alle produkter skal returneres til Motorola til recirkulering,
når de er udtjent. Læs oplysningerne om returnering af produkter på:
http://www.symbol.com/environmental_compliance.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer
Lebensdauer zum Recycling an Motorola zurückgesandt werden. Informationen
zur Rücksendung von Produkten finden Sie unter
http://www.symbol.com/environmental_compliance.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada
taaskasutamise eesmärgil Motorola'ile. Lisainformatsiooni saamiseks toote
tagastamise kohta külastage palun aadressi:
http://www.symbol.com/environmental_compliance.
Español: Para clientes en la Unión Europea: todos los productos deberán
entregarse a Motorola al final de su ciclo de vida para que sean reciclados. Si
desea más información sobre cómo devolver un producto, visite:
http://www.symbol.com/environmental_compliance.
Français : Clients de l'Union Européenne : Tous les produits en fin de cycle de vie
doivent être retournés à Motorola pour recyclage. Pour de plus amples
informations sur le retour de produits, consultez :
http://www.symbol.com/environmental_compliance.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo
ciclo di vita devono essere restituiti a Motorola al fine di consentirne il riciclaggio.
Per informazioni sulle modalità di restituzione, visitare il seguente sito Web:
http://www.symbol.com/environmental_compliance.

Quick Reference Guide 11
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Motorola
vállalathoz kell eljuttatni újrahasznosítás céljából. A termék visszajuttatásának
módjával kapcsolatos tudnivalókért látogasson el a
http://www.symbol.com/environmental_compliance weboldalra.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun
levensduur naar Motorola te worden teruggezonden voor recycling. Raadpleeg
http://www.symbol.com/environmental_compliance voor meer informatie over het
terugzenden van producten.
Português: Para clientes da UE: todos os produtos no fim de vida devem ser
devolvidos à Motorola para reciclagem. Para obter informações sobre como
devolver o produto, visite: http://www.symbol.com/environmental_compliance.
Românesc: Pentru clienţii din UE: Toate produsele, la sfârşitul duratei lor de
funcţionare, trebuie returnate la Motorola pentru reciclare. Pentru informaţii
despre returnarea produsului, accesaţi:
http://www.symbol.com/environmental_compliance.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti
podjetju Motorola za reciklažo. Za informacije o vraèilu izdelka obišèite:
http://www.symbol.com/environmental_compliance.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava
kierrätettäväksi Motorola-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen
palauttamisesta on osoitteessa
http://www.symbol.com/environmental_compliance.
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste
returneras till Motorola för återvinning. Information om hur du returnerar produkten
finns på http://www.symbol.com/environmental_compliance.

If you have a problem using the equipment, contact your facility’s Technical or
Systems Support. If there is a problem with the equipment, they will contact the
Motorola Enterprise Mobility Support at: http:www.symbol.com/contactsupport.
For the latest version of this guide go to: http://www.symbol.com/manuals.
Motorola, Inc.
One Motorola Plaza
Holtsville, New York 11742, USA
1-800-927-9626
http://www.motorola.com
MOTOROLA and the Stylized M Logo and Symbol and the Symbol logo are registered in the U.S.
Patent and Trademark Office. All other product or service names are the property of their
registered owners. © Motorola, Inc. 2008
72-104413-02 Revision A - May 2008
Service Information
