MINITOR VI
STANDARD CHARGER
RLN6505_
en-US
fr-CA
68012010009_ba.book Page 1 Wednesday, July 19, 2017 4:57 PM

2
68012010009_ba.book Page 2 Wednesday, July 19, 2017 4:57 PM

1
English
1
1English
IMPORTANT SAFETY INSTRUCTIONS
This document contains important safety and operating instructions. Please read these
instructions carefully and save them for future reference.
Before using the battery charger, read all the instructions and cautionary markings on (1) the charger,
(2) the battery, and (3) on the pager using the battery.
WARNINGS
1. To reduce risk of injury, charge only the rechargeable Motorola
Solutions-authorized batteries listed in Table 1. Other batteries may explode,
causing personal injury or damage.
2. Use of accessories not recommended by Motorola Solutions may result in
risk of fire, electric shock, or injury.
3. To reduce risk of damage to the electric plug and cord, pull by the plug rather
than the cord when disconnecting the charger.
4. An extension cord should not be used unless absolutely necessary. Use of an improper
extension cord could result in risk of fire or electric shock. If an extension cord must be used,
make sure that the cord size is 18 AWG for lengths up to 100 feet (30.48 m) and 16 AWG for
lengths up to 150 feet (45.72 m).
5. To reduce risk of fire, electric shock, or injury, do not operate the charger if it has been broken or
damaged in any way. Take it to a qualified Motorola Solutions service representative.
W A R N I N G
68012010009_ba.book Page 1 Wednesday, July 19, 2017 4:57 PM

2
2
English
WARNINGS (continued)
6. Do not disassemble the charger; it is not repairable and replacement parts
are not available. Disassembly of the charger may result in risk of electrical
shock or fire.
7. To reduce risk of electric shock, unplug the charger from the AC outlet before
attempting any maintenance or cleaning.
8. To reduce risk of injury, use charger with Motorola Solutions authorized
power supplies listed in Table 2.
9. This is a Class A product. In a domestic environment, this product may cause
pager interference in which case the user may be required to take adequate
measures.
OPERATIONAL SAFETY GUIDELINES
• This equipment is not suitable for outdoor use. Use only in dry locations/conditions.
• Ensure the pager is dry before inserting into the Standard Charger.
• Connect equipment only to an appropriately fused and wired supply of the correct voltage (as
specified on the product). Disconnect from line voltage by removing main plug.
• The socket outlet to which this equipment is connected should be close by and easily accessible.
• In equipment using fuses, replacements must comply with the type and rating specified in the
equipment instructions.
W A R N I N G
68012010009_ba.book Page 2 Wednesday, July 19, 2017 4:57 PM

3
English
3
3English
• Maximum ambient temperature around the power supply equipment must not exceed 40 °C
(104 °F).
• Output power from the power supply unit must not exceed the ratings stated on the product label
located on the bottom of the charger.
• Make sure the cord is located where it will not be stepped on, tripped over, or subjected to water,
damage, or stress.
BRIEF DESCRIPTION
The Standard Charger is intended for use with the Motorola Solutions-approved Lithium-ion
rechargeable batteries (listed in Table 1). The front pocket of the charger is capable of handling a
pager with an attached battery. The rear pocket is designed only to charge the above mentioned
batteries (alone).
An illuminated LED indicates the state of charge for the front and rear pocket.
OPERATIONAL GUIDELINES
• Always remember to power the Standard Charger first before inserting the pager with the attached
battery into the front pocket or the auxiliary battery into the charger's rear pocket.
• The front pocket has charging priority over the rear pocket. Therefore, the rear pocket may not
charge at its full rate until the front pocket charging is complete.
• The Standard Charger is not designed to accommodate the alkaline battery tray.
68012010009_ba.book Page 3 Wednesday, July 19, 2017 4:57 PM

4
4
English
MOTOROLA SOLUTIONS-AUTHORIZED BATTERIES
The batteries listed in Table 1 are approved for use with the Standard Charger.
Note: The Standard Charger is not designed to accommodate the alkaline battery tray.
MOTOROLA SOLUTIONS-AUTHORIZED POWER SOURCES/POWER
SUPPLIES
The power supply listed in Table 2 is approved for use with the Standard Charger.
Table 1: Motorola Solutions-Authorized Batteries
Kit (Part) Number Platform/Description
PMNN4438_ Battery Li-Ion (UL Battery)
PMNN4451_ Battery, Li-Ion (Non-UL Battery)
Table 2: Motorola Solutions-Authorized Power Supply
Power Supply Kit Number Description
25009298001 PS, SMPS,100–132 V, 5 W,
Low Noise, Micro-USB, US/NA
68012010009_ba.book Page 4 Wednesday, July 19, 2017 4:57 PM

5
English
5
5English
MOTOROLA SOLUTIONS-AUTHORIZED CHARGER
OPERATING INSTRUCTIONS
Standard Chargers are intended for use only with the authorized Motorola Solutions batteries
and power supplies listed in Table 1 and Table 2; usage with unauthorized products may
prevent proper operation and may damage the device.
The battery charger will accommodate a pager with an attached battery in the front pocket, and a
battery alone in the rear pocket. To charge a battery, use the following procedure:
1. Plug the power supply cord into the micro-USB connector on the back of the charger.
2. Plug the power supply into the appropriate AC outlet. The charger LED will flash single green
once to indicate a successful power-up.
3. Insert a pager with battery into the charger's front pocket by:
a. aligning the groove on each side of the pager with the corresponding raised rail on each
side of the charger pocket.
Table 3: Motorola Solutions- Authorized Charger
Charger Kit Number Description
PMLN6456_ Standard Charger Base
68012010009_ba.book Page 5 Wednesday, July 19, 2017 4:57 PM

6
6
English
b. sliding the pager into the charger pocket, ensuring complete contact between the charger
and pager contacts.
4. When the pager is properly seated in the pocket, the charger LED will light in accordance with
Table 4 on page 9.
Note:
• Charge new batteries overnight to ensure full charge. To minimize charge time, it is recommended
to turn the pager OFF.
• The Standard Charger is not designed to accommodate the alkaline battery tray.
5. Insert a battery into the charger’s rear pocket by:
a. aligning the slot on each side of the battery with the corresponding raised rail on each side
of the charger pocket.
b. sliding the battery into the charger pocket, ensuring complete contact between the charger
and battery contacts.
6. When the battery is properly seated in the pocket, the charger LED will light in accordance with
Table 4 on page 9.
Note:
• Charge new batteries overnight to ensure full charge.
• The Standard Charger is not designed to accommodate the alkaline battery tray.
68012010009_ba.book Page 6 Wednesday, July 19, 2017 4:57 PM

7
English
7
7English
Spare
Battery LED Rear Pocket
Front Pocket
Front
Pager
Battery LED
Figure 1: Standard Charger (Front)
68012010009_ba.book Page 7 Wednesday, July 19, 2017 4:57 PM

8
8
English
Micro-USB
Connector
Rear
Figure 2: Standard Charger (Rear)
68012010009_ba.book Page 8 Wednesday, July 19, 2017 4:57 PM

9
English
9
9English
TROUBLESHOOTING
When troubleshooting, always observe the color of the LED:
Table 4: Charger Status
LED Indication Charger Status
Single Flash Green
Charger Successfully Powered Up and Is
Ready for Use
Slow Flash Amber
Pre-Charge
Battery under-voltage recovery.
68012010009_ba.book Page 9 Wednesday, July 19, 2017 4:57 PM

10
10
English
Under-Voltage Recovery Timeout
(15 Minutes)
Loss of Charge Current Control (Difference
Between Command and Feedback > Electrical
Tolerance Analysis)
Excessive Power Supply Voltage
Fault.
Steady Red
Fast Charge or Charge Ramp Down
Normal operation.

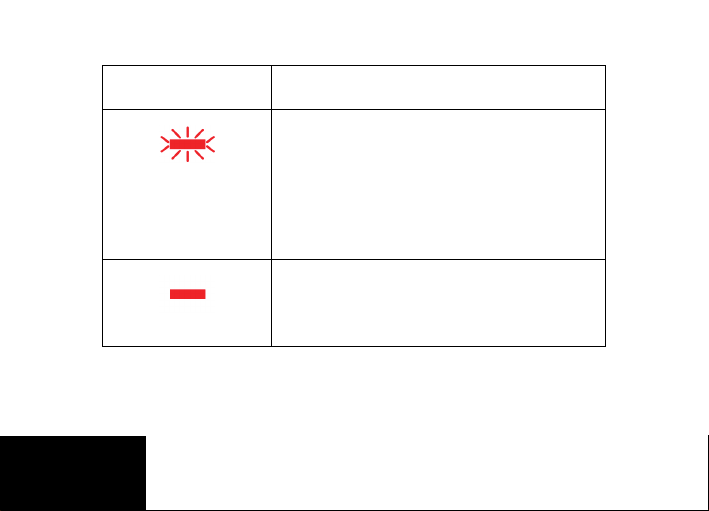

Table 4: Charger Status (continued)
LED Indication Charger Status
Fast Flash Red
68012010009_ba.book Page 10 Wednesday, July 19, 2017 4:57 PM

11
English
11
11 English
Nearly Charged
Normal operation.
The battery is charged to at least the 90%
threshold programmed into the battery. Or, if the
battery lacks an internal memory device, the
charging current has ramped down to a value less
than a charger default threshold.
Charged or Nearly Charged
Normal operation.
The battery is charged to at least the 95%
threshold programmed into the battery. Or, if the
battery lacks an internal memory device, the
charging current has ramped down to a value less
than a charger default threshold.
Table 4: Charger Status (continued)
LED Indication Charger Status
Slow Flashing Green
Steady Green
68012010009_ba.book Page 11 Wednesday, July 19, 2017 4:57 PM

12
12
English
Off
Thermistor Open
No battery in pocket.
Fast Flash Red
Battery+ Open
Fault.
or Battery– Open
Appears like Battery+ Open or
Thermistor Open.
Table 4: Charger Status (continued)
LED Indication Charger Status
Fast Flash
Red
Off
68012010009_ba.book Page 12 Wednesday, July 19, 2017 4:57 PM

13
English
13
13 English
Fast Flash Red
Thermistor Short to Ground
Fault.
or
Thermistor Short to Battery+
Appears like Thermistor Open for most battery
voltages, or
Appears like Cold Battery for discharged or
nearly-discharged batteries.
Fast Flash Red
Battery+ and Battery– Short
Fault.
Table 4: Charger Status (continued)
LED Indication Charger Status
Off
Slow Flash
Amber
68012010009_ba.book Page 13 Wednesday, July 19, 2017 4:57 PM

14
14
English
Slow Flash Amber
Temperature < Approximately 5 °C
(or Value Programmed in Battery)
Wait to charge — battery too cold.
Slow Flash Amber
Temperature ≥Approximately 45 °C
(or Value Programmed in Battery)
Wait to charge — battery too hot.
Note: Applicable to the battery pocket only if the
pocket prioritization feature is used.
The Pocket is Waiting for Charging Current to
be Available
Wait to charge — charging will begin when current
is made available by the higher-priority pocket or
device.
Table 4: Charger Status (continued)
LED Indication Charger Status
Steady Amber
68012010009_ba.book Page 14 Wednesday, July 19, 2017 4:57 PM

15
English
15
15 English
If There is No LED Indication:
1. Check that the pager with battery is inserted correctly in the front pocket or the battery in the rear
pocket.
2. Make sure that the transformer is plugged into an appropriate AC outlet and the LED on the
transformer is on.
3. Ensure that the transformer cable is plugged securely into the charger socket.
4. Confirm that the battery being used with the pager is listed in Table 1 on page 4.
SERVICE
Do not disassemble the Standard Charger; it is not repairable. Order replacement power supplies
(listed in Table 2 on page 4) as necessary.
68012010009_ba.book Page 15 Wednesday, July 19, 2017 4:57 PM

16
16
English
CHARGERS WARRANTY
The Workmanship Warranty
The workmanship warranty guarantees against defects in workmanship under normal use and service.
LIMITED WARRANTY
MOTOROLA SOLUTIONS COMMUNICATION PRODUCTS
I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG:
MOTOROLA SOLUTIONS, INC. (“MOTOROLA”) at its option, will at no charge either repair the
Product (with new or reconditioned parts), replace it (with a new or reconditioned Product), or refund
the purchase price of the Product during the warranty period provided it is returned in accordance with
the terms of this warranty. Replaced parts or boards are warranted for the balance of the original
applicable warranty period. All replaced parts of Product shall become the property of MOTOROLA.
This express limited warranty is extended by MOTOROLA to the original end user purchaser only and
is not assignable or transferable to any other party. This is the complete warranty for the Product
manufactured by MOTOROLA. MOTOROLA assumes no obligations or liability for additions or
modifications to this warranty unless made in writing and signed by an officer of MOTOROLA.
Unless made in a separate agreement between MOTOROLA and the original end user purchaser,
MOTOROLA does not warrant the installation, maintenance or service of the Product.
Chargers One (1) Year
68012010009_ba.book Page 16 Wednesday, July 19, 2017 4:57 PM

17
English
17
17 English
MOTOROLA cannot be responsible in any way for any ancillary equipment not furnished by
MOTOROLA which is attached to or used in connection with the Product, or for operation of the
Product with any ancillary equipment, and all such equipment is expressly excluded from this warranty.
Because each system which may use the Product is unique, MOTOROLA disclaims liability for range,
coverage, or operation of the system as a whole under this warranty.
II. GENERAL PROVISIONS:
This warranty sets forth the full extent of MOTOROLA'S responsibilities regarding the Product. Repair,
replacement or refund of the purchase price, at MOTOROLA’s option, is the exclusive remedy. THIS
WARRANTY IS GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS OR OTHER INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE
SUCH PRODUCT, TO THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW.
III. STATE LAW RIGHTS:
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS,
SO THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY.
This warranty gives specific legal rights, and there may be other rights which may vary from state to
state.
68012010009_ba.book Page 17 Wednesday, July 19, 2017 4:57 PM

18
18
English
IV. HOW TO GET WARRANTY SERVICE:
You must provide proof of purchase (bearing the date of purchase and Product item serial number) in
order to receive warranty service and, also, deliver or send the Product item, transportation and
insurance prepaid, to an authorized warranty service location. Warranty service will be provided by
MOTOROLA through one of its authorized warranty service locations. If you first contact the company
which sold you the Product (e.g., dealer or communication service provider), it can facilitate your
obtaining warranty service. You can also call MOTOROLA at 1-800-927-2744 US/Canada.
V. WHAT THIS WARRANTY DOES NOT COVER:
A) Defects or damage resulting from use of the Product in other than its normal and customary
manner.
B) Defects or damage from misuse, accident, water, or neglect.
C) Defects or damage from improper testing, operation, maintenance, installation, alteration,
modification, or adjustment.
D) A Product subjected to unauthorized Product modifications, disassembles or repairs (including,
without limitation, the addition to the Product of non-MOTOROLA supplied equipment) which
adversely affect performance of the Product or interfere with MOTOROLA's normal warranty
inspection and testing of the Product to verify any warranty claim.
E) Product which has had the serial number removed or made illegible.
F) Freight costs to the repair depot.
G) A Product which, due to illegal or unauthorized alteration of the software/firmware in the Product,
does not function in accordance with MOTOROLA’s published specifications or the FCC
68012010009_ba.book Page 18 Wednesday, July 19, 2017 4:57 PM
