TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47
SCHEMATIC
BATTERY
FUSE 30 AMP.
IGNITION
SWITCH
RED RED
RED BLACK
IGNITION
UNIT
HEADLIGHTS
NON-REMOVABLE
CONNECTIONS REMOVABLE
CONNECTIONS
BLACK
BLACK BLACK
WHITE
WHITE
WHITE
BLUE
BLACK
ORANGE
BLACK
BROWN
BLACK
STARTER
M
SEAT SWITCH
(NOT OCCUPIED)
GROUNDING
CONNECTOR
ATT'MENT CLUTCH
(CLUTCH OFF)
CLUTCH / BRAKE
(PEDAL UP)
SOLENOID
BLACK
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM 
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT 
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
A
AMMETER
RED
GBSML
AY
IGNITION SWITCH
CIRCUITPOSITION
OFF B + LRUN/LIGHT
B + L + SSTART
G + M + L
S
B
G
ML
B + LRUN
“MAKE”
A + Y
NONE
NONE
NONE
Y
A
HOUR
METER
(OPTIONAL)
(OPTIONAL)
SPARK PLUG
GAP
(2 PLUGS ON 
TWIN CYL. ENGINES)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47

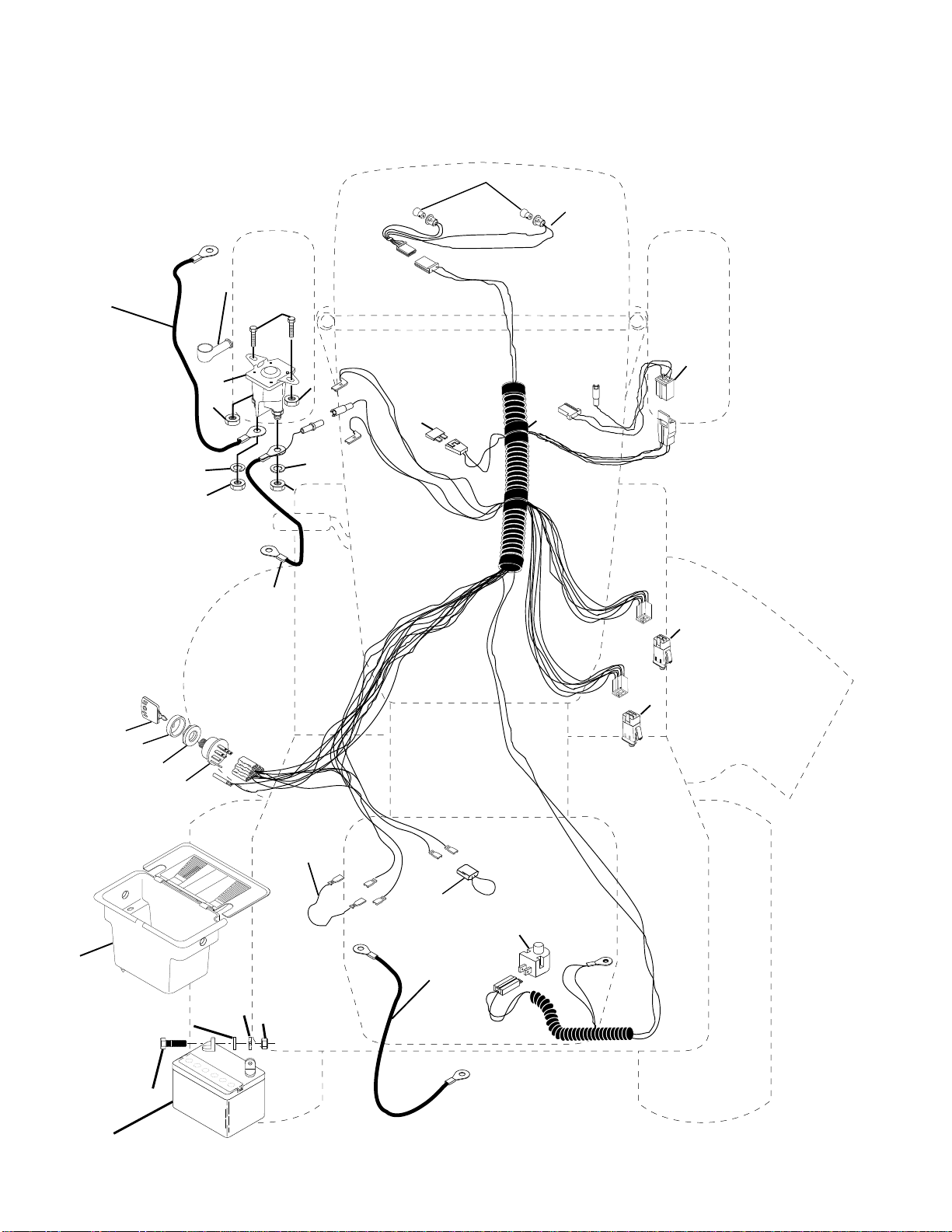

ELECTRICAL
28
28
29
26
24 42
43
44 44
25
41
19
20
19
20
40
3332 31 30
22
21
70
8
6
34
2
1
52
16
16
48
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47
ELECTRICAL
29
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
1 532144925 Battery 12 Volt 25 Amp
2 874760412 Bolt Hex Hd 1/4-20unc X 3/4
3 819091016 Washer 9/32 X 5/8 X 16 Ga
4 810040400 Washer Lock Hvy Helical 1/4
6 873220400 Nut Fin Hex 1/4-20 Unc
8 532156417 Case Battery Mech Hiinge
16 532153664 Switch Interlock Push-In
19 810090400 Washer Lock 1/4
20 873350400 Nut Jam Hex 1/4-20 Unc
21 532136850 Harness Asm Light W/4152j
22 532004152 Bulb Light #1156
24 532124780 Cable Battery 6 Ga 11"red
25 532146147 Cable Battery
26 532108824 Fuse 30 AMP Auto Green
28 532124773 Cable Ground 6 Ga 12"black
29 532121305 Switch Plunger Nc Gray
30 532140301 Switch Ign 4
31 532124211 Nut Ignition
32 532141226 Cover Sw Ignition
33 532122147 Key Ign
40 532156442 Harness Ign
41 871110408 Bolt Blk Fin Hex 1/4-20
42 532131563 Cover Terminal Red
43 532145673 Solenoid
44 873640400 Nut Keps Blk Hex 1/4-20 Unc
48 532140844 Adapter Ammeter
52 532141940 Protection Wire Loop
70 532140413 Harness Eng Briggs/Tec Dual
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

30
REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47

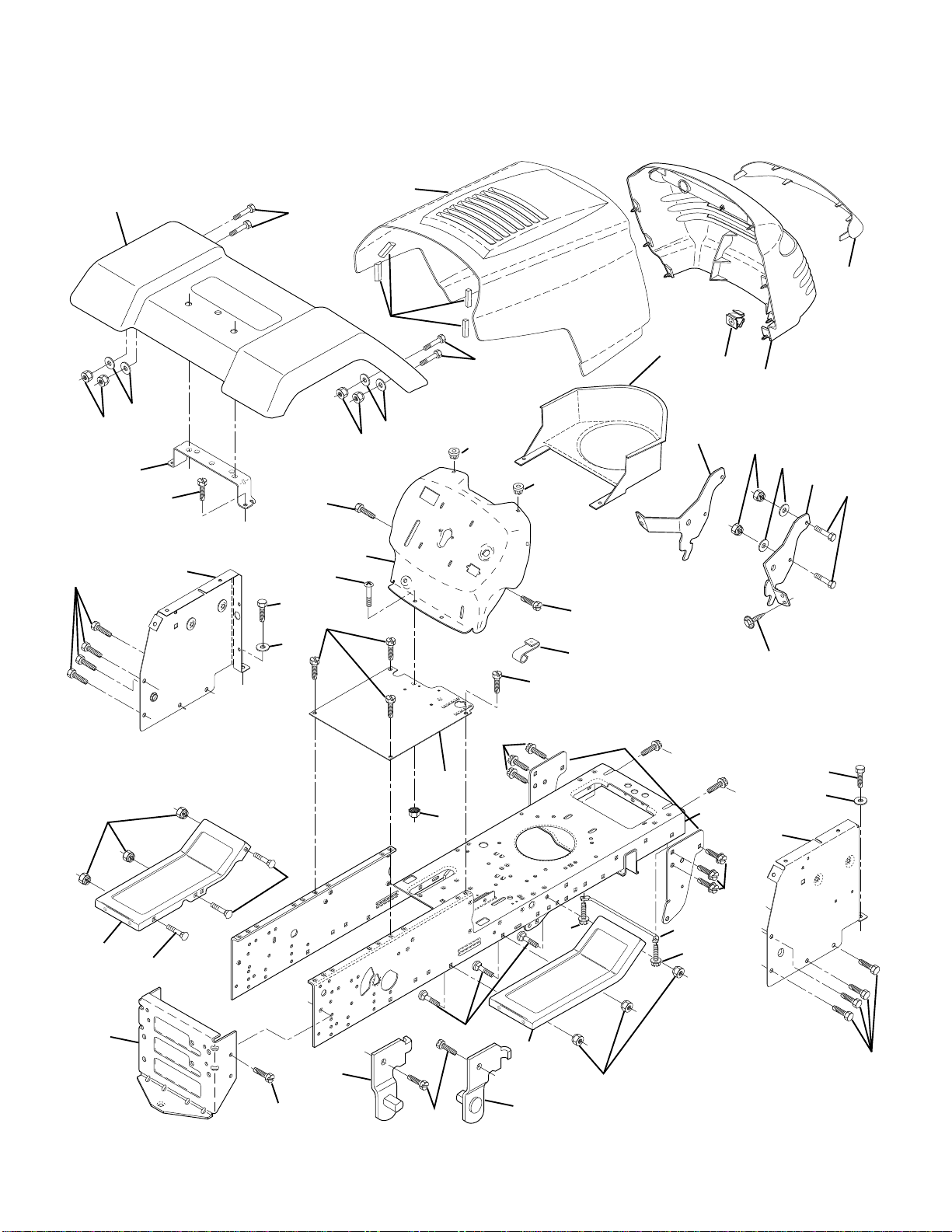

CHASSIS AND ENCLOSURES
3
3
2
3
38
39
35
26
35
26
33 10
34
1
14
14
4
11
17
29
28
14
4
14
13
12
51
57
53
52
54
55
24
26 25
26 25
3
31
24
30
140
3
3
8
3
6
16
9
15
3
3
5
5
58
145
37 37
3
3
18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

31
REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532160393 Chassis Lt Stamping 98
2 532140356 Drawbar, Stretch
3 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt
4 819131216 Washer 13/32 X 3/4 X 16 Ga.
5 532155272 Bumper, Hood/Dash
6 532162235 Saddle Silkscreen Flt Sdl
8 532155138 Clip Retainer Slide-On
9 532162717 Dash Slkscr
10 872140608 Bolt, Carriage 3/8-16 x 1
11 532155927 Panel Dash LH
12 532145660 Clip Tinnerman Grille P.L
13 532157262 Panel Slkscr Dash RH
14 817490608 Screw Thdrol 3/8-16x1/2 Ty-tt
15 874180512 Screw Mach TRHD 5/16-18uncx3/4
16 873510500 Nut Keps 5/16-18 Unc
17 532162237 Hood Pnt Stl Prvt Lbl
18 532126938 Bumper Hood
24 874780616 Bolt Fin Hex 3/8-16unc X 1 Gr. 5
25 819131312 Washer 13/32 X 13/16 X 12 Ga
26 873800600 Nut Lock Hex w/Ins 3/8-16 Unc
28 532157373 Grille P.L Ms 428
29 532140273 Lens Grille Private Label
30 532163534 Fender Pnt LT W/o Shift(red)
31 532136619 Bracket Fender Repl 109873x
33 532162241 Footrest Pnt LH Perf
34 532162242 Footrest Pnt RH Perf
35 872110606 Bolt Rdhd Sht Sqnk 3/8-16 X3/4
37 817490508 Screw Thdrol 5/16-18 x 1/2 TYT
38 532139886 Bracket Asm Pvt LH MWR Rear
39 532139887 Bracket Asm Pvt RH MWR Rear
51 873800400 Nut Lock W/Insert 1/4-20unc
52 819091416 Washer 9/32 x 7/8x16 Ga.
53 532144697 Bracket Grille Lh
54 817030814 Screw Lock Spider #8 x 7/8
55 532144696 Bracket Grille Rh
57 874780412 Bolt Fin Hex 1/4-20 unc x .75
58 532150127 Duct Air Engine PL/LT
140 532158418 Bracket Suspension Front
145 532156524 Rod Pivot Chassis/Hood
— 532005479 Plug Button Blk 359 Dia Choke
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47

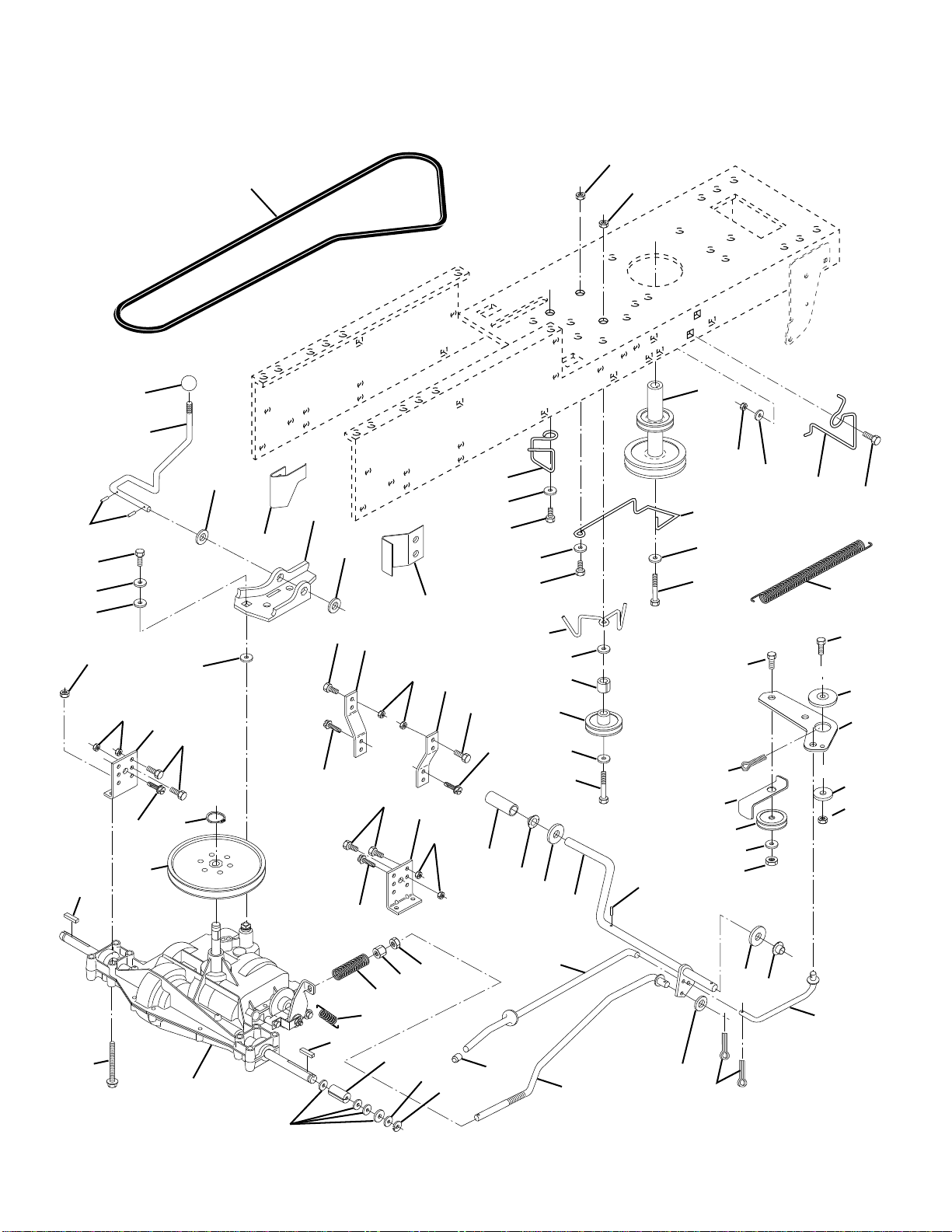

DRIVE
32
56
42
29
28
112
14
42
40
38
42
39
57 51
51
74
75
7876
77
1
25 19 24
253
35
34
37
36 35
62
36
64
65
59 19 72
55
63
116
70
77
42
61
31
58
22 27
26
6
5
18
51 518
6
52 30 32
32 3052
11
21
4
3
13
10
8
12
12
7
61
61
15
52 41
66
27
51
150
48
151
50
49
26
47
50
51
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47
DRIVE
33
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 - - - - - - - Transaxle (See Breakdown) Dana
Model 4360-112
2 532146682 Spring Return Brake
3 532123666 Pulley Transaxle 18"tires
4 812000028 Ring Retainer # 5100-62
5 532121520 Strap Torque 30 Degrees
6 817490512 Screw Thdrol 5/16-18 X 3/4 TYT
7 532162240 Plate Rod Shift T/a
8 532131679 Rod Shifter Blk (Dana)
10 876020416 Pin Cotter 1/8 X 1 Cad
11 532105701 Washer Plate Shf 388 Sq Hole
12 819151216 Washer 15/32 X 3/4 X 16 Ga
13 874550412 Bolt 1/4-28 unf Gr. 8 w/Patch
14 810040400 Washer Lock Hvy Helical 1/4
15 874490544 Bolt Hex Flghd 5/16-18 Gr. 5
18 874780616 Bolt Fin Hex 3/8-16unc X 1 Gr. 5
19 873800600 Nut lock Hex w/Ins 3/8-16 Unc
21 532121274 Knob Duckhead 1/2-13 Unc Blk
22 532130804 Rod Brake LT
24 873350600 Nut Hex Jam 3/8-16 Unc
25 532106888 Spring Rod Brake 2 00 Zinc
26 819131316 Washer 13/32 X 13/16 X 16 Ga
27 876020412 Pin Cotter 1/8 X 3/4 Cad
28 532145204 Rod Brake Parking LT/YT
29 532071673 Cap Brake Parking Black
30 532130807 Bracket Transmission
31 532127275 Keeper Belt LH LT 14 Ga
32 874760512 Bolt Fin Hex 5/16-18 x 3/4
34 532155071 Shaft Asm Pedal Foot
35 532120183 Bearing Nylon Blk 629 Id
36 819211616 Washer 21/32 X 1 X 16 Ga
37 532124963 Pin Roll 3/16 X 1"
38 532123674X Pulley Idler Flat
39 874760644 Bolt Fin Hex 3/8-16unc X 2-3/4
40 532124965 Spacer Split 395 X 59 Bzp
41 532154777 Keeper Belt Idler
42 819131312 Washer 13/32 X 13/16 X 12 Ga
47 532127783 Pulley Idler V Groove Plastic
48 532154407 Bellcrank Clutch Grnd Drive STL
49 532123205 Retainer Belt Style Spring
50 874760624 Bolt Hex Hd 3/8-16unc X 1-1/2
51 873680600 Nut Crownlock 3/8-16 Unc
52 873680500 Nut Crownlock 5/16-18 unc
53 532105710 Link Clutch 7 66
55 532105709 Spring Return Clutch 6 75
56 874760620 Bolt Fin Hex 3/8 X 16 x 1-1/4
57 532130801 V-Belt Ground Drive 95 25
58 532127274 Keeper Belt RH LT Pnt/zinc 16g
59 532140312 Keeper Belt Chassis Span Ctr
61 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt
62 532124872 Cover Pedal Blk Round
63 532140186 Engine Pulley LT/YT
64 871170764 Bolt Hex 7/16-20x4 Gr 5
65 810040700 Washer Lock Hvy Hlcl Spr 7/16
66 532154778 Keeper Belt Engine
70 532134683 Guide Belt Mower Drive RH
72 819132012 Washer 13/32 X 1-1/4 X 12 Ga
74 532109502 Spacer Axle
75 532121749 Washer 25/32 X 1 1/4 X 16 Ga
76 812000001 E-ring #5133-75
77 532123583 Key Square 2 0 X 1845/ 1865
78 532121748 Washer 25/32 X 1-5/8 X 16 Ga
112 819091210 Washer 9/32 X 3/4 X 10 Ga
116 872110610 Bolt Rdhd Sq Neck 3/8-16 x 1.25
148 532159103 Spacer
149 532122052 Spacer Retainer PM Mower
150 532150935 Bushing Nylon Collered
151 819133210 Washer 13/32 x 2 x 10 Ga.
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

34
REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47
STEERING ASSEMBLY
62 44
51 54
5
9
5
7
7
9
4
3
32
43
6
43
8
18
19
22
27
23
40 66
29
25
79
8
10
40
68
68
11
15
8
6
9
46
46
8
6
9
2
47
67
13
65
47
17
26
30
28
29
29
29
29
1
41
42
37
36
37
38
63
11
39
11
80
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

35
REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47
STEERING ASSEMBLY
KEY PART DESCRIPTION
NO. NO.
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
1 532140044 Wheel Steering Ayp/P/L Blk
2 532154427 Axle Asm
3 532156483 Spindle Asm LH
4 532157473 Spindle Asm RH
5 532124931 Bearing Race Thrust Harden
6 532121748 Washer 25/32 X 1-5/8 X 16 Ga
7 819272016 Washer 27/32 X 1-1/4 X 16 Ga
8 812000029 Ring Klip #t5304-75
9 532124937 Bearing Col Strg Blk
10 532156438 Link Drag Extended Stamped
11 810040600 Washer Lock Hvy Hlcl Spr 3/8
13 532154779 Bearing Axle
15 873901000 Nut Lock Flange 5/8-11 Unc
17 532156546 Shaft Asm Strg
18 532057079 Washer Thrust 515x 750x 033
19 532124035 Support Shaft
20 532126684 Washer Shim 1/4 X 5/8 X 062
22 871200410 Screw Hex Socket 1/4-20 x 5/8
23 532127501 Shaft Asm Pittman
25 532154406 Bracket Steering
26 532126847 Bushing Link Drag Blk LR
27 532136874 Gear Sector
28 819131416 Washer 13/32 X 7/8 X 16 Ga
29 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt
30 876020412 Pin Cotter 1/8 X 3/4 Cad
32 532130465 Rod Tie Wire Form 19 75 Mech
36 532155099 Bushing Strg 5/8 Id Dash
37 532152927 Screw
38 532140045 Cap Wheel Steer Ayp
39 819133808 Washer 13/32 X 2-3/8 X 8 Ga
40 532124701 Nut Lock Center 3/8-24un
41 532100711 Adaptor Wheel Strg
42 532145054 Boot Dash Mtl Steering Blk
43 532121749 Washer 25/32 X 1 1/4 X 16 Ga
44 532153720 Extension Steering
46 532121232 Cap Spindle Fr Top Blk
47 532124836 Fitting Grease
51 873800500 Nut Lock Hex W/Ins 5/16-18
54 874780520 Bolt Fin Hex 3/8-16unc x 1-1/4
62 532156594 Kit Steering Assembly Service
63 874780616 Bolt Fin Hex 3/8-16unc x 1 Gr.5
65 532154780 Spacer Axle
66 532154404 Bearing Arm Pittman
67 874781044 Bolt Fin Hex 5/8-11 unc x 2-3/4
68 532154429 Brace Axle
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47

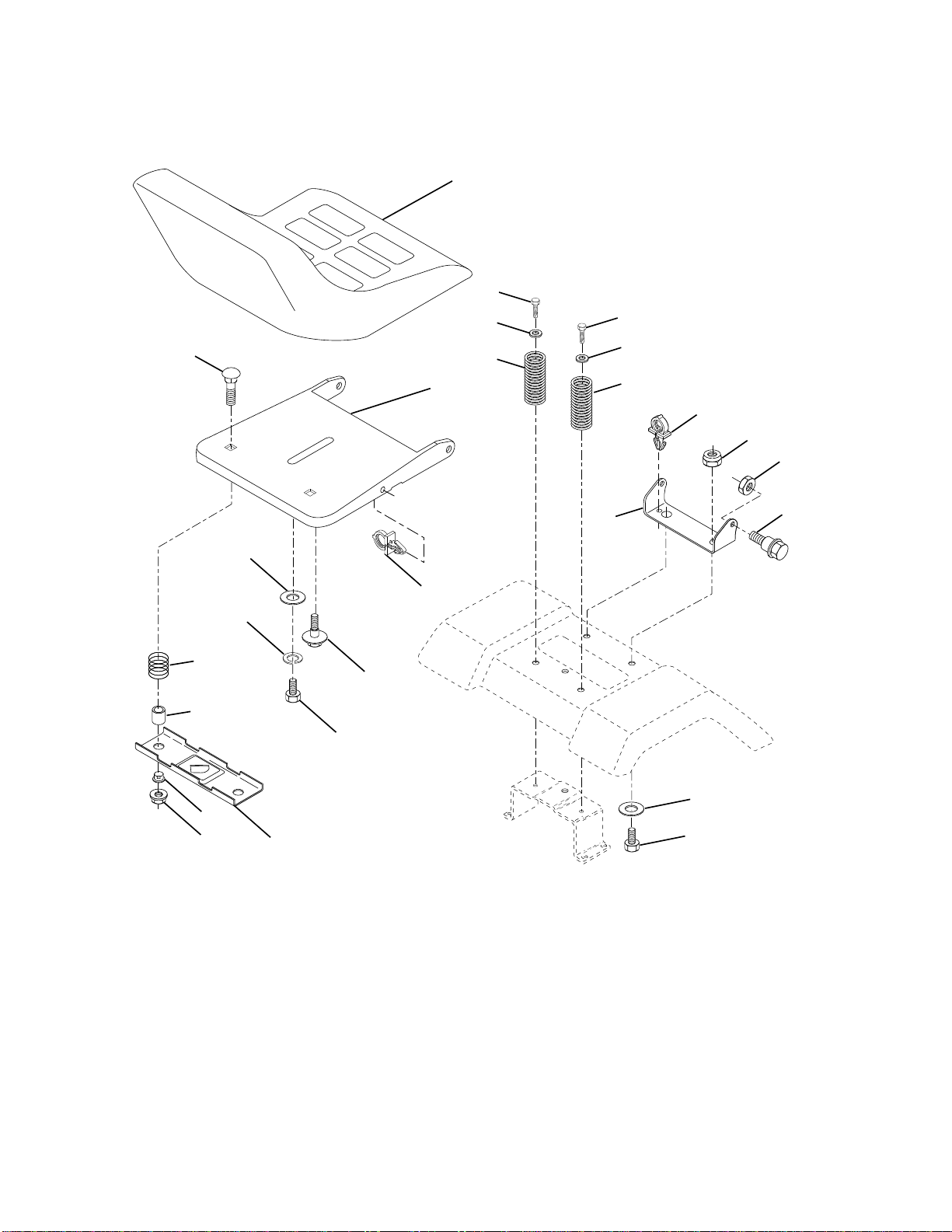

SEAT ASSEMBLY
36
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
1 532127426 Seat
2 532140551 Bracket Pivot Seat 8 720
3 874760616 Bolt Fin Hex 3/8-16unc X 1
4 819131610 Washer 13/32 X 1 X 10 Ga
5 532145006 Clip Push-In
6 873800600 Nut Hex w/Ins. 3/8-16 Unc
7 532124181 Spring Seat Cprsn 2 250 Blk Zi
8 817490616 Screw Thdrol 3/8-16 X 1 Ty-tt
9 819131614 Washer 13/32 X 1 X 14 Ga.
10 532155925 Pan Seat
12 532121246 Bracket Mounting Switch
13 532121248 Bushing Snap Blk Nyl 50 Id
14 872050412 Bolt Rdhd Sqnk 1/4-20x1-1/2
15 532134300 Spacer Split 28x 96 Yel Zinc
16 532121250 Spring Cprsn 1 27 Blk Pnt
17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 532153236 Bolt Shoulder 5/16-18 Unc
22 873800500 Nut Hex Lock W/Ins 5/16-18
23 874780814 Bolt, Hex Head, Fin 1/2-13 x 7/8
Grade 5
24 819171912 Washer 17/32 X 1-3/16 X 12 Ga.
25 532127018 Bolt Shoulder 5/16-18 X 62
26 810040800 Washer Lock
26
23
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
2
622
21
5
10
5
14
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47

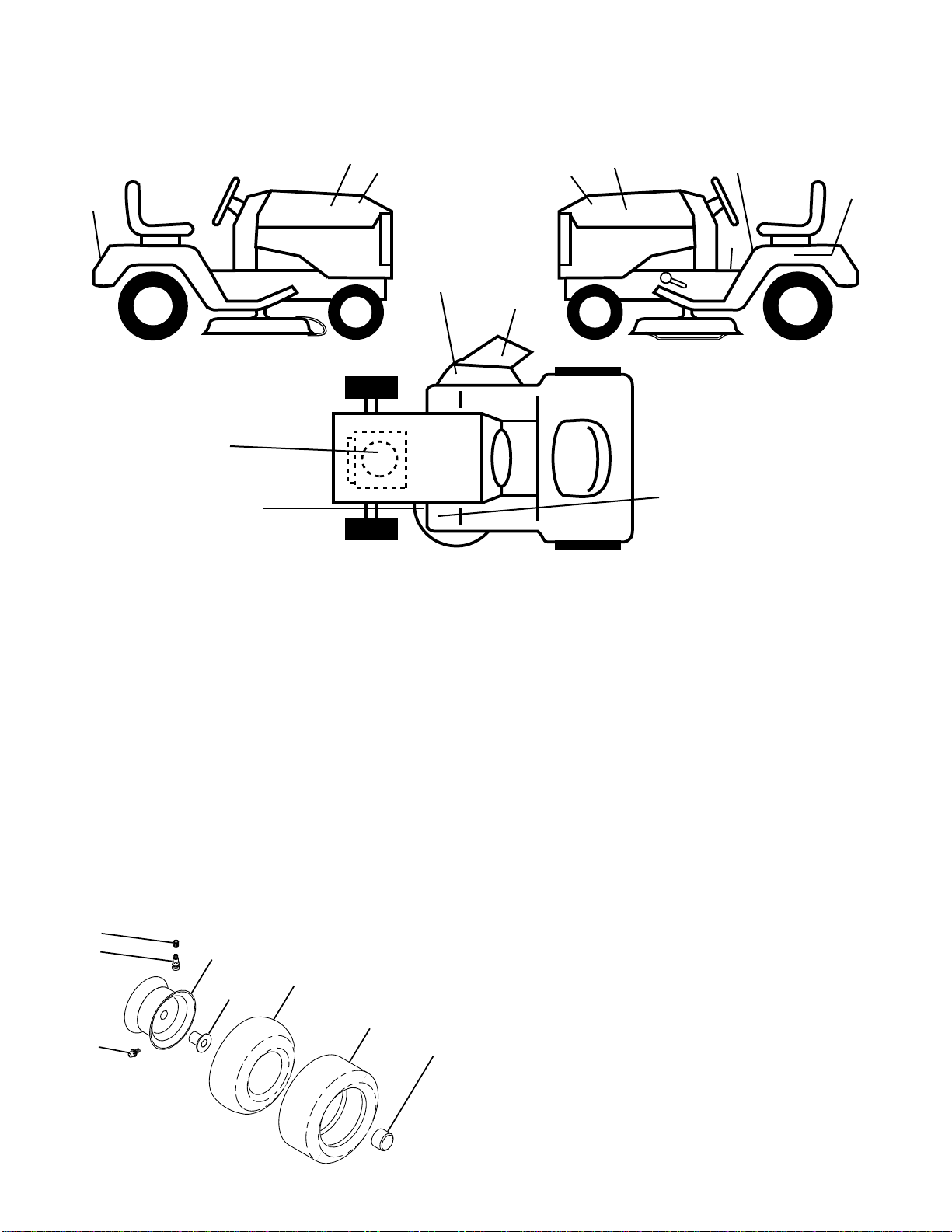

DECALS
37
6
5
5
8
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap, Tire valve
2 532065139 Stem, Valve
3 532106222 Tire, Front
4 532059904 Tube, Front (Service item only)
5 532141446 Rim assembly, 6"front
6 532124957 Fitting, Grease (Front wheel only)
7 532124959 Bearing, Flange (Front wheel only)
8 532141447 Rim assembly, 8" rear
9 532124635 Tire, Rear
10 532124926 Tube, Rear (Service item only)
11 532104757 Cap, Hub Axle
- - 532144334 Sealant, Tire (10 oz. Tube)
8
15
17
3
KEY PART
NO. NO. DESCRIPTION
16
6
2
15,8
4,10
3,9
11
7
WHEELS & TIRES
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
10
12 14
1
1 532101892 Decal, Clutch/Brake English
3 532272440 Decal, Engine HP
5 532159713 Decal, Pnl Sd
6 532157140 Decal, Fender Danger English
8 532150617 Decal, Logo, Fender
10 532137259 Decal, Warning Multi-Language
12 532162110 Decal, Hood RH
14 532162111 Decal, Hood LH
15 532145005 Decal, Caution, Battery
16 532157163 Decal, Oper Sdl P/L Gear Dr Eng
17 532136832 Decal, V-Belt Sch.
- - 532138311 Decal, Handle Lft Height Adj.
- - 532162130 Manual, Owners (Eng)
- - 532162131 Manual, Owners (Span)
Available accessories not included with mower:
- - LSB42 42" Snow thrower
- - LBD48 48" Snow blade
- - LC05 33 lb. Wheel weights (pair)
- - CH12 Tire chains
- - MP38 Mulch w/Blades Kit
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47
ENGINE
38
2
1
OPTIONAL EQUIPMENT

Spark Arrester
29
44
46
32
31
33
37
33
40
62
13 4
72
78
81
3
14
38
15
16
78
35
23
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47

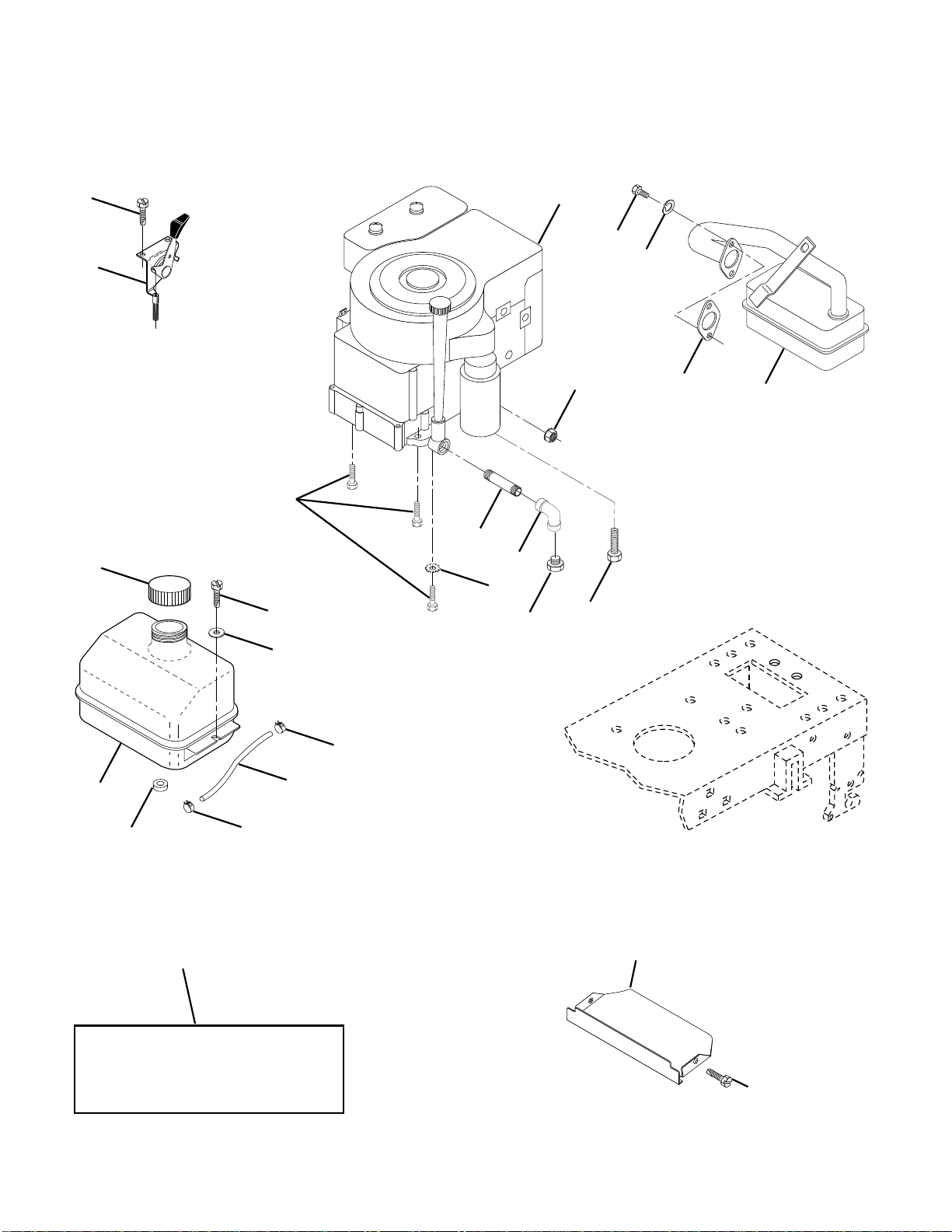

ENGINE
39
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532140310 Control Th/ch Flag
2 817720410 Screw Hex Thd Cut 1/4-20x5/8 T
3 - - - - - - - - Engine, B&S 289 707
4 532137348 Muffler Exhaust B&S Lc
13 532272293 Gasket Eng 1 313 Id Tin Plated
14 813280324 Nipple Pipe 3/8 Npt X 3"
15 813200300 Elbow Std 90 Degree 3/8-18 Npt
16 811050600 Washer Lock Ext Tooth 3/8
23 532159880 Shield Browning/Debris Guard
29 532137180 Kit Spark Arrestor (Flat Scrn)
31 532109202 Tank Fuel Front
32 532140527 Cap Asm Fuel
33 532123487 Clamp Hose
35 817490512 Screw Thdrol 5/16-18 x 3/4
37 532137040 Line Fuel 20"
38 - - - - - - - - Oil Drain Plug (Order From Engine
Manufacturer)
40 532124028 Bushing Snap Nyl Blk Fuel Line
44 817490412 Screw Thdrol 1/4-20 x 3/4
46 819091416 Washer 9/32 X 7/8 X 16 Ga
62 810040500 Washer Lock Hvy Hlcl Spr
72 871070512 Screw Hex Hd Cap 5/16-18 x 3/4
78 817490620 Screw Thdrol 3/8-16x1-1/4 TYTT
81 532128861 Nut Flange 1/4-20 Starter Nut
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47
MOWER DECK
40
141
19
86
38
42
215
14
12
128
13
11 10
9
8
1
21
2
29
27
23
26
28
25
24
21
87
88
21
124
31
32
33
69
55
56
36
36
89
123 113
53
30
109
89
122
40
89
108
107 68
4
3
5
6
2
21
16
21
2
110
43
72
45
41
74
75
76 77
79 92
80
73 78
67
71
45
81 82
54
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47
MOWER DECK
41
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532142829 Mower Housing
2 872140506 Bolt Rdhd Sqnk 5/16-18unc X3/4
3 532138017 Bracket assembly, front
4 532138440 Bracket assembly, decl
5 532124670 Retaining spring
6 532130832 Arm, suspension rear
8 532850857 Bolt 3/8-24x1 25 Gr8 Patched
9 810030600 Washer Lock Hvy 3/8 Unplated
10 532140296 Washer Hard Blade Mower Vented
11 532134148 Blade High Lift 38"
12 532129895 Bearing Ball #6204 (Mandrel)
13 532137645 Shaft Asm W/lower Bearing
14 532128774 Housing Mandrel Vented (machd)
15 532110485 Bearing Ball Mandrel
16 532140329 Stripper MWR
19 532132827 Bolt Shoulder
21 873680500 Nut Crownlock 5/16-18 UNC
23 532137607 Bracket Deflector Mower
24 532105304 Cap Sleeve 80x 112 Blk Mower
25 532123713 Spring Deflector
26 532110452 Nut Push Phos & Oil
27 532106736 Shield Deflector Mower 38"blk
28 819111016 Washer 11/32 X 5/8 X 16 Ga
29 532106735 Rod Hinge Brt/blk Zinc 9 88 Lg
30 532157722 Screw Thdrol Washer Head
31 532129963 Washer Spacer Mower Vented
32 532153532 Pulley Mandrel 38" Single
33 532137226 Nut 9/16top Lock Flng Cntr
36 532131494 Pulley Idler Flat 3060
40 873680600 Nut Crownlock 3/8-16 Unc
41 532133551 Rod Pivot W/nibs
43 532133504 Rod Clutch Secondary W/nibs
45 532124788 Spring Retainer 1" Zinc/cad
53 532130840 Brake Asm Mower Vented
54 532133943 Washer Hardened
55 532133840 Arm Idler 38"
56 532122052 Spacer Retainer Pm Mower
67 532162132 Knob Rd 7/16-14 Plstc Thds Blk
68 532144200 V-Belt Mower
69 876020312 Pin Cotter 3/32 X 3/4 Cad
71 532142427 Rod Clutch Primary 38/42
72 532131870 Spring Return
73 532127847 Arm Clutch Secondary
74 532121748 Washer 25/32 X 1-5/8 X 16 Ga
75 812000029 Ring Klip #t5304-75
76 532128903 Bolt Shoulder 3/8-16 Unc 1 44
77 532127845 Keeper Spring 4000
78 532160570 Arm Asm Clutch Primary
79 532127498 Bushing 747 Od X 794 Lg Brass
80 532153701 Spring Clutch Mower
81 873350600 Nut Hex Jam 3/8-16
82 532142028 Trunnion Adj ’94
86 532125074 Runner Mower LH 10 00
87 532128772 Runner RH 38"
88 819111216 Washer 11/32 X 3/4 X 16 Ga
89 819131612 Washer 13/32 X 1 X 12 Ga
92 873800600 Nut Lock Hex w/Ins 3/8-16 Unc
107 532133502 Spacer Arm Idler Upper Hdn 42"
108 532133503 Stiffener Arm Idler Upper 42"
109 874760640 Bolt Hex Fin 3/8-16 UNC x 2-1/2
110 532142587 Upstop Deck front
113 817490512 Screw Thdrol 5/16-18 X 3/4 TYT
122 532131289 Rod Brake Mandrel LH 4 856
123 532131288 Rod Brake Mandrel RH 10 744
124 872110614 Bolt Rdhd 3/8-16uncx1-3/4 Gr5
128 532153390 Washer Felt
141 532124931 Washer Thrust .75 x 1.230
- - 532142820 Deck Service 38" HL Mech TP
- - 532130794 Mandrel Asm Service (Includes Key
Nos. 12-15, 17-19, 31 and 33)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

42
REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47
MOWER LIFT
15
20
161718 20
20
15
20
4
5
6
2
31
65
4
7
8
10
12
11
31
32
31
32
19
19
13
13
13
13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

43
REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 14 00-47
MOWER LIFT
1 532159460 Wire Asm Inner W/plunger 17 32
2 532159471 Shaft Asm Lift
3 532105767 Pin Groove
4 812000002 E Ring #5133-62
5 819211621 Washer PLTD 21/32 X 1 X 21ga
6 532120183 Bearing Nylon Blk 629 Id
7 532109413 Grip Handle Bicycle
8 532124526 Button Plunger Black
11 532139865 Link Lift LH
12 532139866 Link Lift RH
13 532124670 Retainer Spring
15 532127218 Link Front
16 873350800 Nut Jam Hex 1/2-13 Unc
17 532130171 Trunnion Blk Zinc
18 873800800 Nut Lock W/wsh 1/2-13unc
19 532139868 Arm Suspension Rear
20 532124660 Spring, Retainer
31 532140302 Bearing Pvt. Lift Spherical
32 873540600 Nut Crownlock 3/8-24
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

44
REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 1400-47
DANA TRANSAXLE - MODEL NUMBER 4360-112
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

45
REPAIR PARTS
TRACTOR - MODEL NO. LT120 (HCLT120A), PRODUCT NO. 954 1400-47
DANA TRANSAXLE - MODEL NUMBER 4360-112
KEY PART
NO. NO. DESCRIPTION
1 160939 Housing, Upper
2 2274J Screw, Tapping, 1/4-20 X .734
3 134400 Ball, Detent
4 105904X Spring, Detent
5 160940 Screw, Tapping, No.10-24 X .482
6 138235 Assy, Shifter
7 108727X V-Ring
8 148266 Bearing, Flange
9 148269 Seal, Oil
10 2225J Ring, Retaining
11 134793 * Assy, Kit, Shim, .625 Shaft
12 148268 Bearing, Flange
13 120415X Washer, Plain, .632 X 1.38 X .046
14 142674 Key, Woodruff, No. 9
15 138234 Assy, Kit, Input Shaft
16 110078X Pinion, Bevel, 14T
17 105909X Ring, Retaining
18 105910X Chain, 24 Pitches
19 160942 Cover, Detent
20 160943 Gear, Spur, 12T
21 148267 Collar, Clutch
22 138236 Assy, Kit, Clutch Keys
23 73810500 Nut, Lock, 5/16-24
24 142676 Shaft, Intermediate
25 2244J Key, Woodruff, No. 61
26 105916X Ring, Retaining
27 120470X Sprocket, 18T
28 110070X Spacer, 1.131 X 1.45 X .494
29 142677 Gear, Spur, 37T
30 124644X Gear, Spur, 30T
31 108980X Gear, Spur, 25T
32 120406X Gear, Spur, 22T
33 134796 Gear, Spur, 19T
34 134797 Spacer, 1.133 X 1.50 X .375
35 105925X Washer, Plain, .640 X 1.37 X .061
36 2228J Washer, Plain, .632 X 1.00 X .046
KEY PART
NO. NO. DESCRIPTION
37 2231J Washer, Plain, .632 X 1.00 X .031
38 160944 Assy, Gear, Comb., 12T & 30T
39 124639X Shaft, Idler
40 120472X Spacer, .633 X .87 X .755
41 105928X Sprocket, 9T
42 110084X Gear, Bevel, 42T
43 134394 * Assy, Kit, Shim, .750 Shaft
44 120473X Shaft, Drive
45 142678 Gear, Spur, 12T
46 124641X Gear, Spur, 20T
47 106589X Gear, Spur, 25T
48 120408X Gear, Spur, 28T
49 105937X Gear, Spur, 31T
50 105936X Spacer, .781 x 1.00 x .375
51 2226J Washer, Plain, .632 X 1.00 X .060
52 134401 Washer, Neoprene
53 2264J Washer, Plain, .758X 1.25X .031
54 160946 Axle, LH
55 110081X Gear, Miter, 15T
56 160948 Ring, Retaining
57 110071X Gear, Spur, 32T
58 120952X Shaft, Cross
59 110082X Gear, Miter, 15T
60 160950 Axle, RH
61 142680 Housing, Lower
62 120961X Puck, Friction
63 7294J Disc, Brake
64 108989X Spacer, Brake Puck
65 160952 Jaw, Brake
66 120954X Pin, Dowel
67 160953 Screw, Tapping, 5/16-18 X 2.35
68 138244 Lever, Actuating
69 108996X Washer, Plain, .321 X 1.00 X .055
70 160954 Bracket, Anti-Rotation
71 120951X Puck, Friction
72 120416X Grease
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
