IMPORTANT SAFETY INSTRUCTIONS
This document contains important safety and operating instructions.
Please read these instructions carefully and save them for future
reference.
Before using the battery charger, read all the instructions and cautionary
markings on (1) the charger, (2) the battery, and (3) the radio using the
battery.
1. To reduce risk of damage to the electric plug and cord, pull by the
plug rather than the cord when disconnecting the charger.
2. An extension cord should not be used unless absolutely necessary.
Use of an improper extension cord could result in risk of fire and
electric shock. If an extension cord must be used, make sure that the
cord size is 18 AWG for lengths of up to 6.5 feet (2.0 m), and
16 AWG for lengths up to 9.8 feet (3.0 m).
3. To reduce risk of fire, electric shock, or injury, do not operate the
charger if it has been broken or damaged in any way. Take it to a
qualified Motorola service representative.
To reduce risk of injury, charge only the rechargeable
Motorola authorized batteries listed in Table 1. Other
batteries may explode, causing personal injury and
damage. Use of accessories not recommended by
Motorola may result in risk of fire, electric shock, or
injury.
C a u t i o n
68012007093.book Page 1 Tuesday, October 8, 2013 4:41 PM

2
English
4. Do not disassemble the charger – it is not repairable and
replacement parts are not available. Disassembly of the charger may
result in risk of electric shock or fire.
5. To reduce risk of electric shock, unplug the charger from the AC
outlet before attempting any maintenance or cleaning.
OPERATIONAL SAFETY GUIDELINES
• Turn off the radio when charging the battery.
• This equipment is not suitable for outdoor use. Use only in dry
locations/conditions.
• Connect equipment only to an appropriate power cord with the
correct voltage (as specified on the product).
• Disconnect from line voltage by removing the power plug from the
outlet.
• The socket outlet to which this equipment is connected should be
close and easily accessible.
• In equipment using fuses, replacements must comply with the type
and rating specified in the equipment instructions.
• Maximum ambient temperature around the charger must not exceed
40 °C (104 °F).
• Output power from the power supply unit must not exceed the ratings
stated on the product label located on the bottom of the charger.
• Make sure the cord is located where it will not be stepped on, tripped
over, or subjected to water, damage, or stress.
68012007093.book Page 2 Tuesday, October 8, 2013 4:41 PM

3
English
MOTOROLA AUTHORIZED COMPONENTS
The following charts contain component chart numbers approved for use with
the Charging Kit:
Table 1: Motorola Authorized Battery
Kit Number Description
PMNN4434_ Standard Li-Ion Battery
PMNN4453_ High Capacity Li-Ion Battery
Table 2: Motorola Authorized Power Cords
Charger Kit Description Power Cord Plug Type
PMLN6387_ MUC Charging
Tray
None No power
cord/plug
PMLN6384_ RM Series MUC
NA Kit
3004209T04 NA
68012007093.book Page 3 Tuesday, October 8, 2013 4:41 PM

4
English
OPERATING INSTRUCTIONS
The charger pockets will accommodate either a radio with a battery attached
or battery alone. Prior to charging a radio with battery, turn the radio off.
Batteries charge best at room temperature.
Note: This Multi Unit Charger is able to charge radio with battery, “Radio with
Battery plus Holster” and stand alone battery.

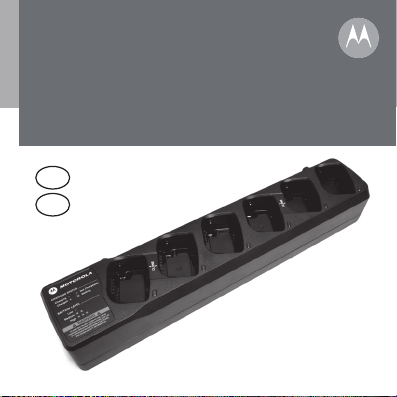

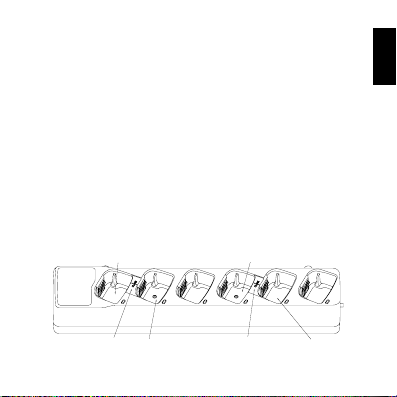

Figure 1: Multi-Unit Charger
Charging Indicator
Charging Contacts
Charging Pocket
Charger Power
Receptacle
68012007093.book Page 4 Tuesday, October 8, 2013 4:41 PM

5
English
CHARGING PROCEDURE
1. Plug the charger end of the power supply cord into the power
receptacle located at the bottom of the charger.
2. Plug the wall receptacle end of the power supply cord into
appropriate AC outlet. A successful power-up sequence in indicated
by a SINGLE FLASH GREEN on the charger indicator.
3. Insert a battery or a radio with battery (radio turned off), into the
charger's pocket by:
a. Aligning the groove on each side of the battery with the
corresponding raised rail on each side of the charger pocket.
b. Pressing the battery toward the rear of the pocket.
c. Sliding the battery into the charger pocket, ensuring complete
contact between the charger and battery contacts.
4. When the battery is properly inserted into the pocket, the charger will
indicate the Battery Level status as shown in Table 3. The charger
indicator will illuminate in STEADY RED to indicate the battery is
charging rapidly. When the battery is fully charged, charger indicator
changes to STEADY GREEN.
5. To remove a radio or battery from the charger, use both hands to
remove a radio or battery from the charger pocket. One hand to hold
and support the charger while the other hand to remove the radio or
battery.
68012007093.book Page 5 Tuesday, October 8, 2013 4:41 PM

6
English
CHARGING A STAND-ALONE BATTERY

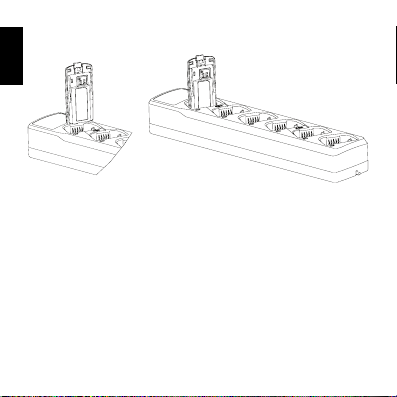

Figure 2: Charging Stand Alone Battery
Note: Align the grooves on the battery to the rails in charger.
68012007093.book Page 6 Tuesday, October 8, 2013 4:41 PM

7
English
PROGRAMMING RADIOS BY CLONING
This Multi Unit Charger allows you to clone up two radios at a time (2 sources
and 2 target radios) by using pockets 1, 2 and 4, 5. The purpose of cloning is
to copy the feature image of a radio.
How to Operate Cloning:
1. Please refer to the radio's manual for button sequence to enable the
Master radio and further details on cloning procedure.
2. Make sure the batteries are fully charged and the contacts are not
contaminated or producing faulty connection.
3. Place the slave radio into pocket 2 or 5 and it needs to be ON.
4. Master radio is prepared for cloning through key button presses and
then it is placed into pocket 1 or 4 respectively depending on where
the slave radio is located.
5. Press the key button on the Master radio to begin cloning.
6. Tones are used to indicate good or bad cloning. On the display, a
pass or fail indication will be shown.
7. Normally, the cloning process will take less than 4 sec.

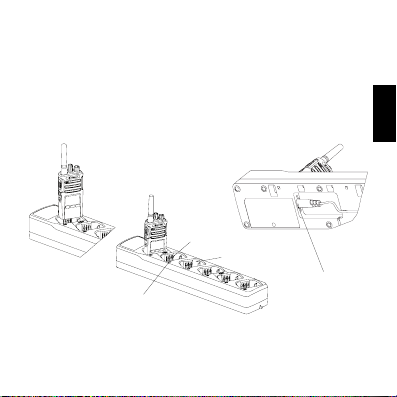

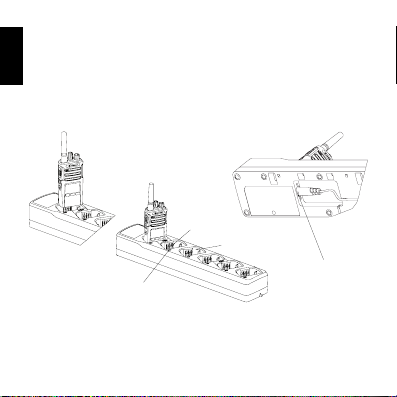

Figure 3: Radio Programming Cloning
Pocket 1 Pocket 4
“CLONE” symbol Pocket 2 “CLONE” symbol Pocket 5
68012007093.book Page 7 Tuesday, October 8, 2013 4:41 PM

8
English
TROUBLESHOOTING
When troubleshooting, always observe the color of the LED:

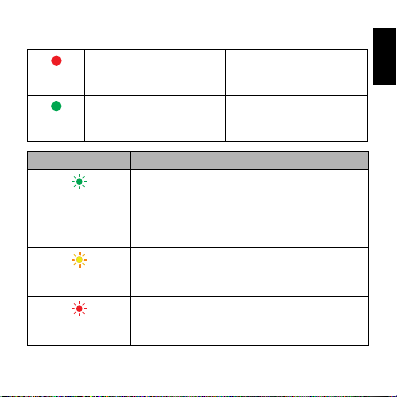

Table 3: Charger LED Indicator
LED
Indication
Charger State Comment
Single
Flash
Green
Charger successfully
powered up and is ready for
use.
The charger is ready for use.
Off
No Battery in Pocket
• Thermistor Open
• Battery (-) Open
• Thermistor short to
Battery (+)
If a battery is in the pocket,
ensure that the power supply
is plugged into the proper
main outlet.
If the indication continues,
remove the battery. Inspect
the charger and battery
contacts to ensure they are
clean. Reinsert the battery.
68012007093.book Page 8 Tuesday, October 8, 2013 4:41 PM
