Motorola Talkabout charger tray User manual

TALKABOUT®

CHARGER TRAY

OWNER’S MANUAL

en-US zh-CN zh-HK ko-KR id-ID

English

Important Safety Instructions

Before using the battery charger, read all the instructions and

cautionary markings on (1) the charger, (2) the battery, and (3)

on the radio’s manual.

Operational Safety Guidelines

• Turn the radio off when charging battery.

• This equipment is not suitable for outdoor use. Use only in

dry locations/conditions.

• Make sure the cord is located where it will not be stepped

on, tripped over, or subjected to water, damage or stress.

The Kit includes two single-unit charger base, two charger

pockets for T82 Series, two charger pockets for T62 Series,

and two single-cable micro-USB power supply.

Twin Pack

Single pack

Charging Instruction

1. Turn the radio off.

2. Insert battery to radio by following the instructions in radio’s

user manual.

3. Close the battery door.

4. Plug desired charger pocket to charger base. Refer to

Table 1 on page 2 for correct charger pocket to use.

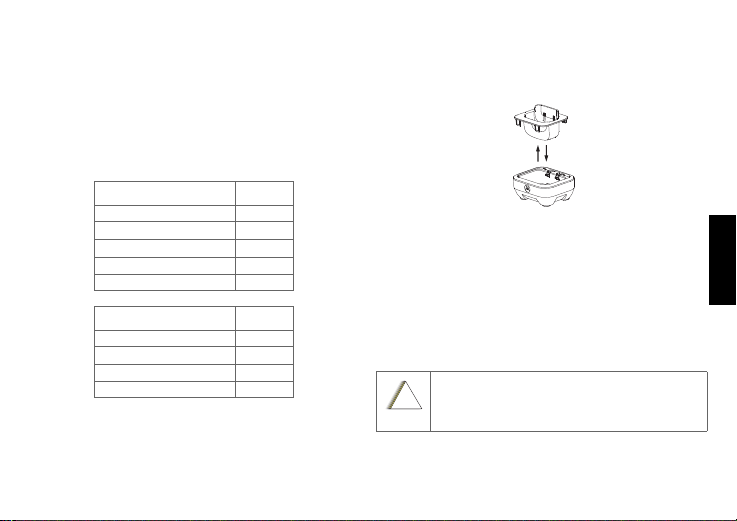

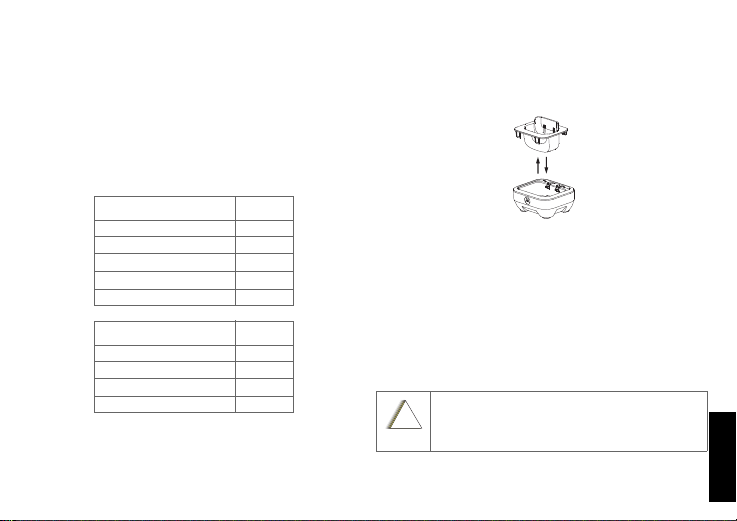

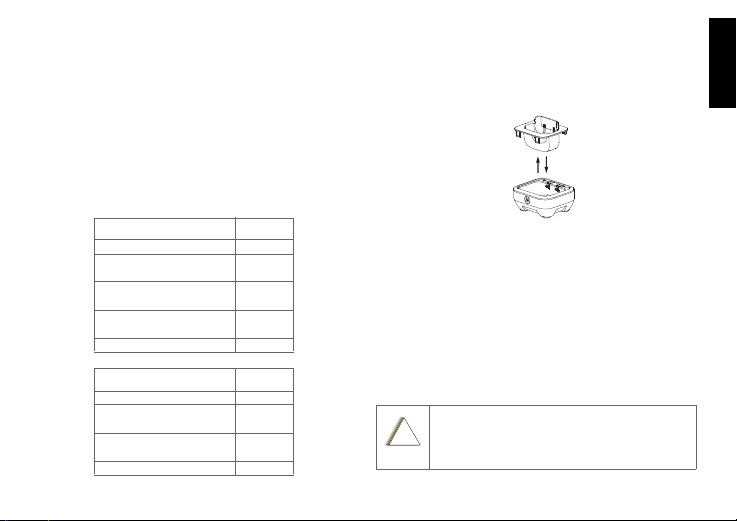

Figure 1: Removing and Attaching Charger Pocket

5. Plug the power supply Micro-USB connector to charger

base. Refer to Table 2 on page 3 authorized power supply

to use.

6. Plug the power supply into a standard wall outlet.

7. Put the radio into charger pocket.

8. Charging indicator displays on radio screen.

9. The T82 Series and T62 Series radios are fully charged

within 8 hours for 800 mAh battery.

Note: When the battery level is extremely low, it might take

some time for the radio to start display charging indicator

on screen. For optimal battery life, do not store the radio

or battery in the charger after charging is completed.

Package Content Quantity

Single-Unit Charger Base 2

Charger Pocket

(T82 Series)

Charger Pocket

(T62 Series)

Single-Cable Micro-USB

Power Supply

Owner’s Manual 1

Package Content Quantity

Single-Unit Charger Base 1

Charger Pocket

(T82 Series)

Charger Pocket

(T62 Series)

Owner’s Manual 1

Ensure that the proper charger pocket and

power supply are used together. This is stated in

the Table 1 on page 2 and Table 2 on page 3 in

this manual.

C a u t i o n

English

Motorola Solutions Authorized Radios

The radios listed in Table 1 below are approved for use with the charger.

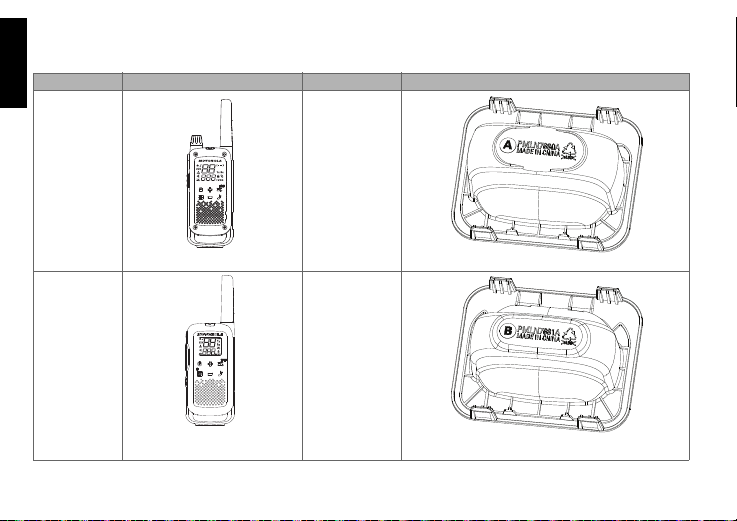

Table 1: Motorola Solutions Authorized Radios

Radio Radio Image Charger Pocket Image (Bottom View)

T82, T82

Extreme

T62 B

Note: Pre-installed in the charger tray when

shipped.

English

Motorola Solutions Authorized Power Supplies Warranty Information

The authorized Motorola Solutions dealer or retailer where you

purchased your Motorola Solutions two-way radio and/or

original accessories will honour a warranty claim and/or

provide warranty service. Please return your radio to your

dealer or retailer to claim your warranty service. Do not return

your radio to Motorola Solutions. In order to be eligible to

receive warranty service, you must present your receipt of

purchase or a comparable substitute proof of purchase bearing

the date of purchase. The two-way radio should also clearly

display the serial number. The warranty will not apply if the

type or serial numbers on the product have been altered,

deleted, removed, or made illegible.

What Is Not Covered By The Warranty

• Defects or damage resulting from use of the product in

other than its normal and customary manner or by not

following the instructions in this user manual.

• Defects or damage from misuse, accident or neglect.

• Defects or damage from improper testing, operation,

maintenance, adjustment, or any alteration, or modification

of any kind.

• Breakage or damage to aerials unless caused directly by

defects in material or workmanship.

• Products disassembled or repaired in such a manner as to

adversely affect performance or prevent adequate

inspection and testing to verify any warranty claim.

• Defects or damage due to range.

• Defects or damage due to moisture, liquid or spills.

• All plastic surfaces and all other externally exposed parts

that are scratched or damaged due to normal use.

• Products rented on a temporary basis.

• Periodic maintenance and repair or replacement of parts

due to normal usage, wear and tear.

Table 2: Motorola Solutions Authorized Power Supplies

Part Number Description

PS000132A02 EU Plug: Single Cable Micro-USB

Power Supply, Level V Efficiency, 100–240 V

PS000132A03 UK/HK Plug: Single Cable Micro-USB Power
