Motorola L6Q User manual

L6Q Multi-Unit Charger
PMPN4003 User Guide
OCTOBER 2023
© 2023 Motorola Solutions, Inc. All Rights Reserved.
*MN010173A01*
MN010173A01-AA
en-US fr-CA
fr-FR it-IT nl-NL pt-PT
es-LA pt-BR de-DE es-ES

Contents
Safety and Legal.................................................................................................................. 3
Chapter 1: Charger Overview..............................................................................................7
1.1 Charger Accessories Overview..........................................................................................................8
1.2 Authorized Batteries, Power Cords, and Power Supplies..................................................................8
1.3 Optional Equipment........................................................................................................................... 9
Chapter 2: Charger Operations.........................................................................................10
2.1 Charging the Batteries..................................................................................................................... 10
2.2 Charging Indications.........................................................................................................................11

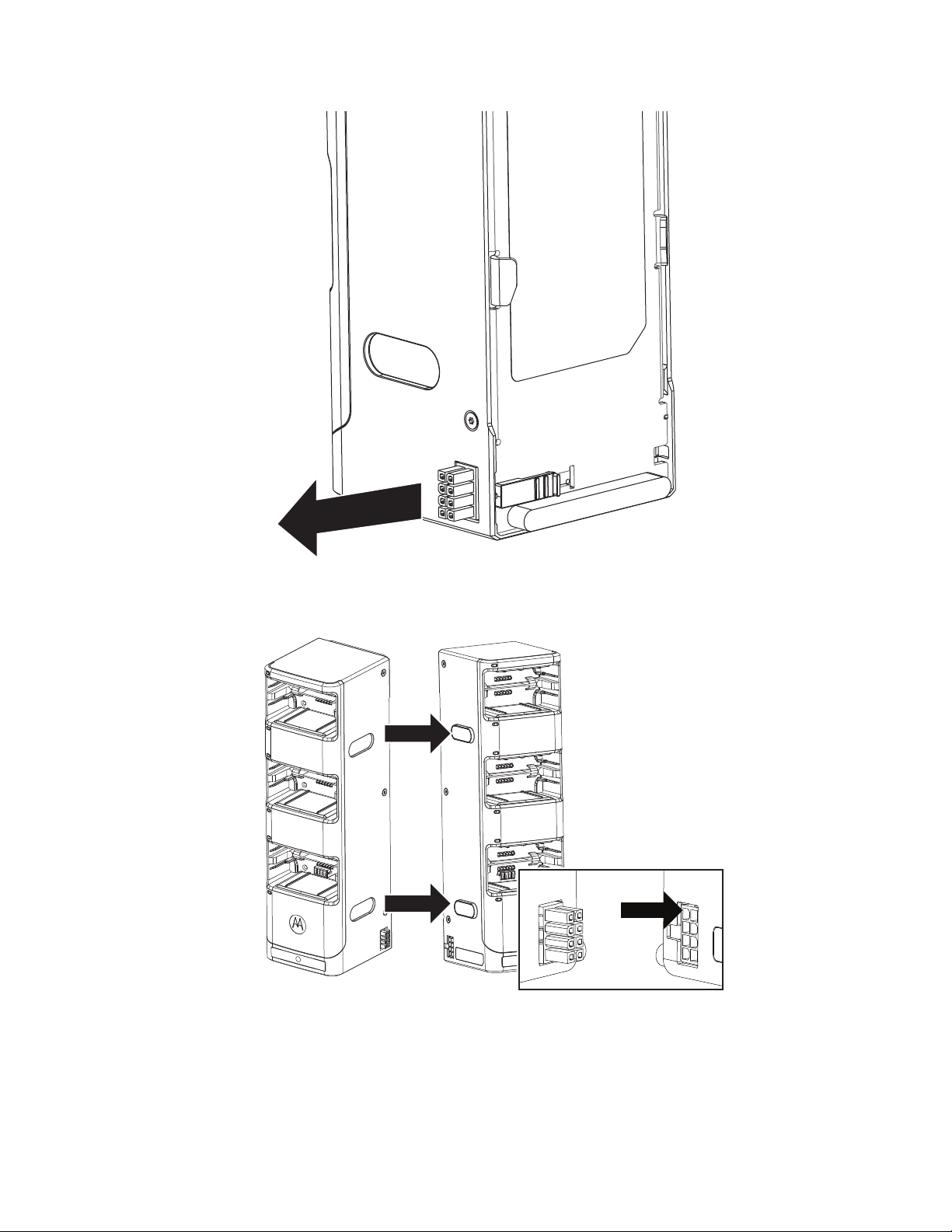

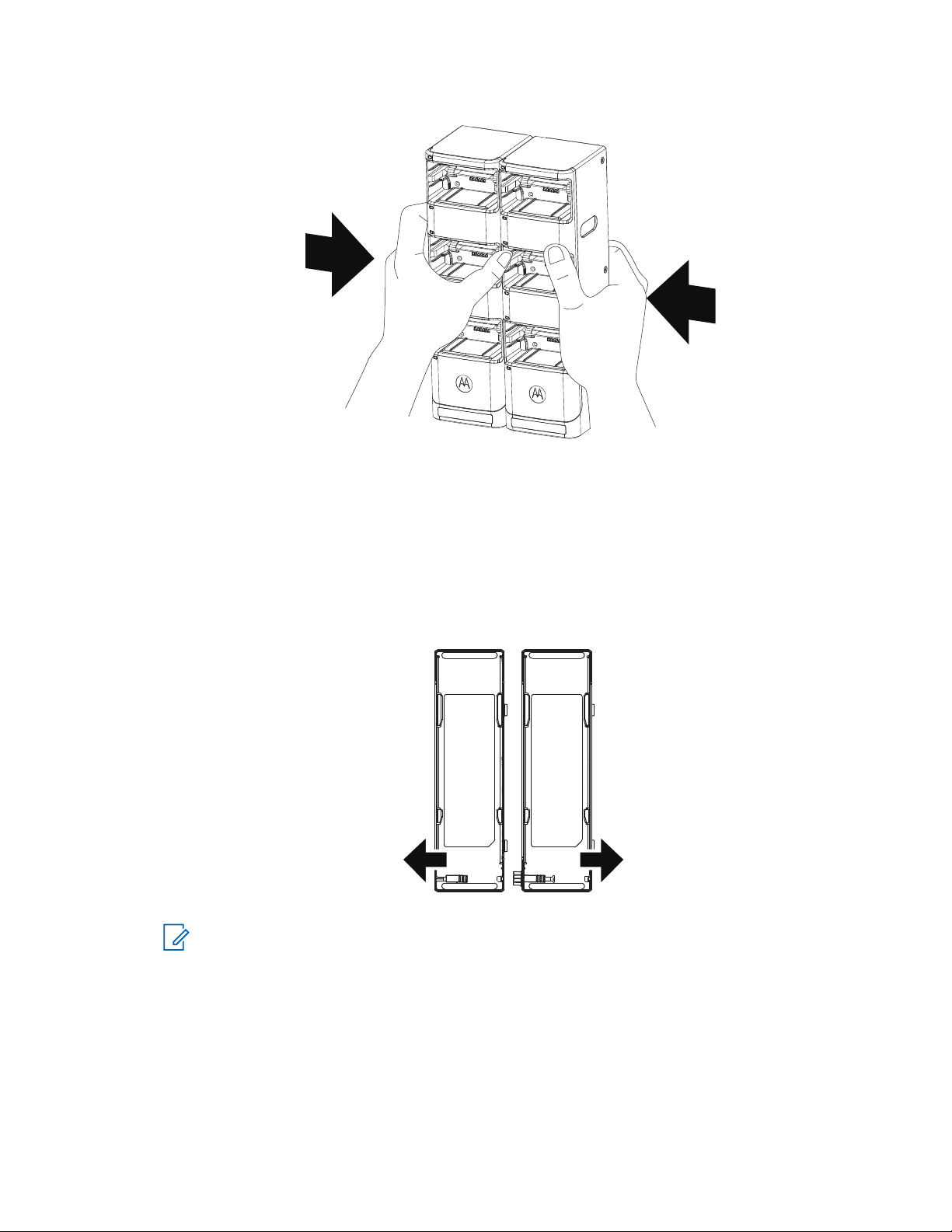

2.3 Combining the Multi-Unit Chargers.................................................................................................. 11
2.4 Separating the Multi-Unit Chargers..................................................................................................13

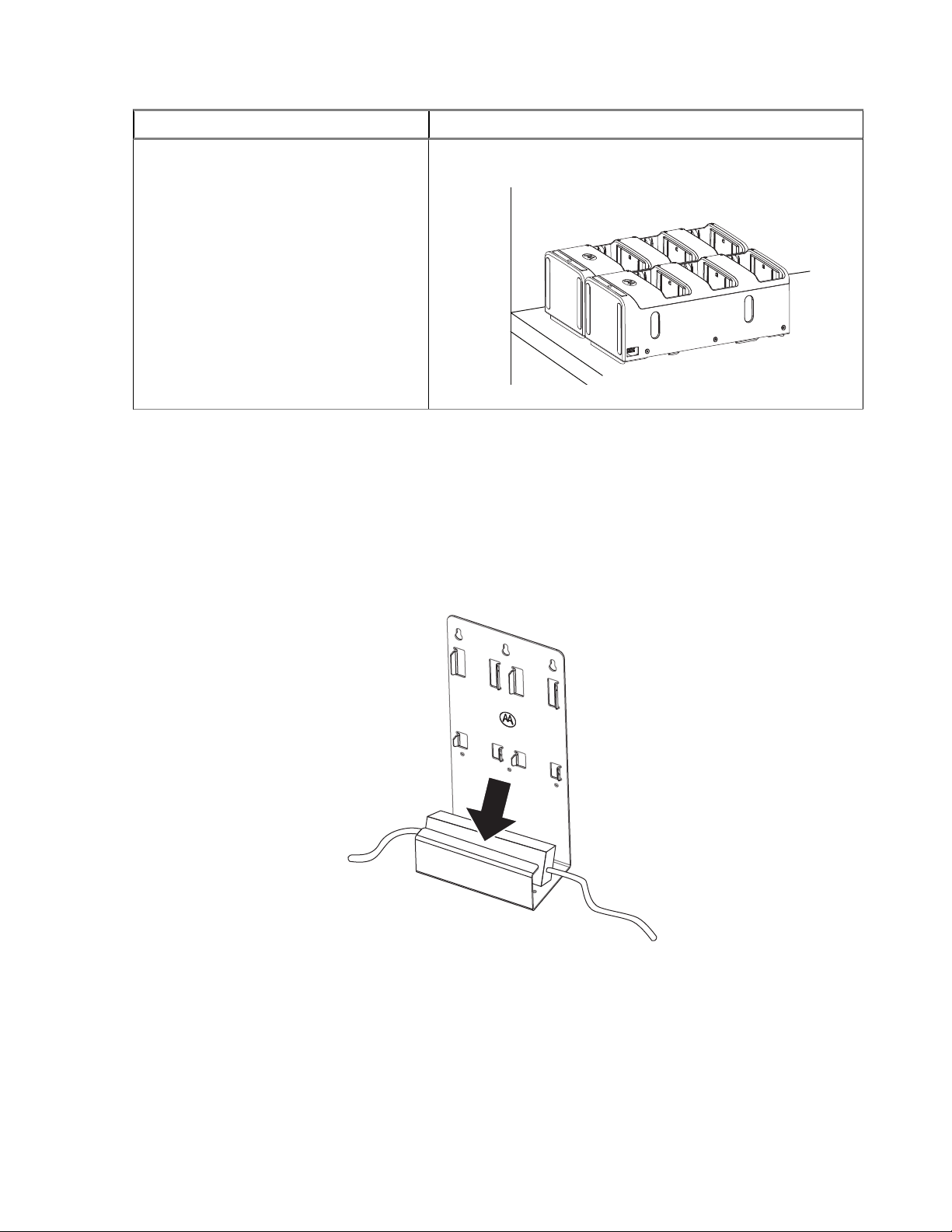

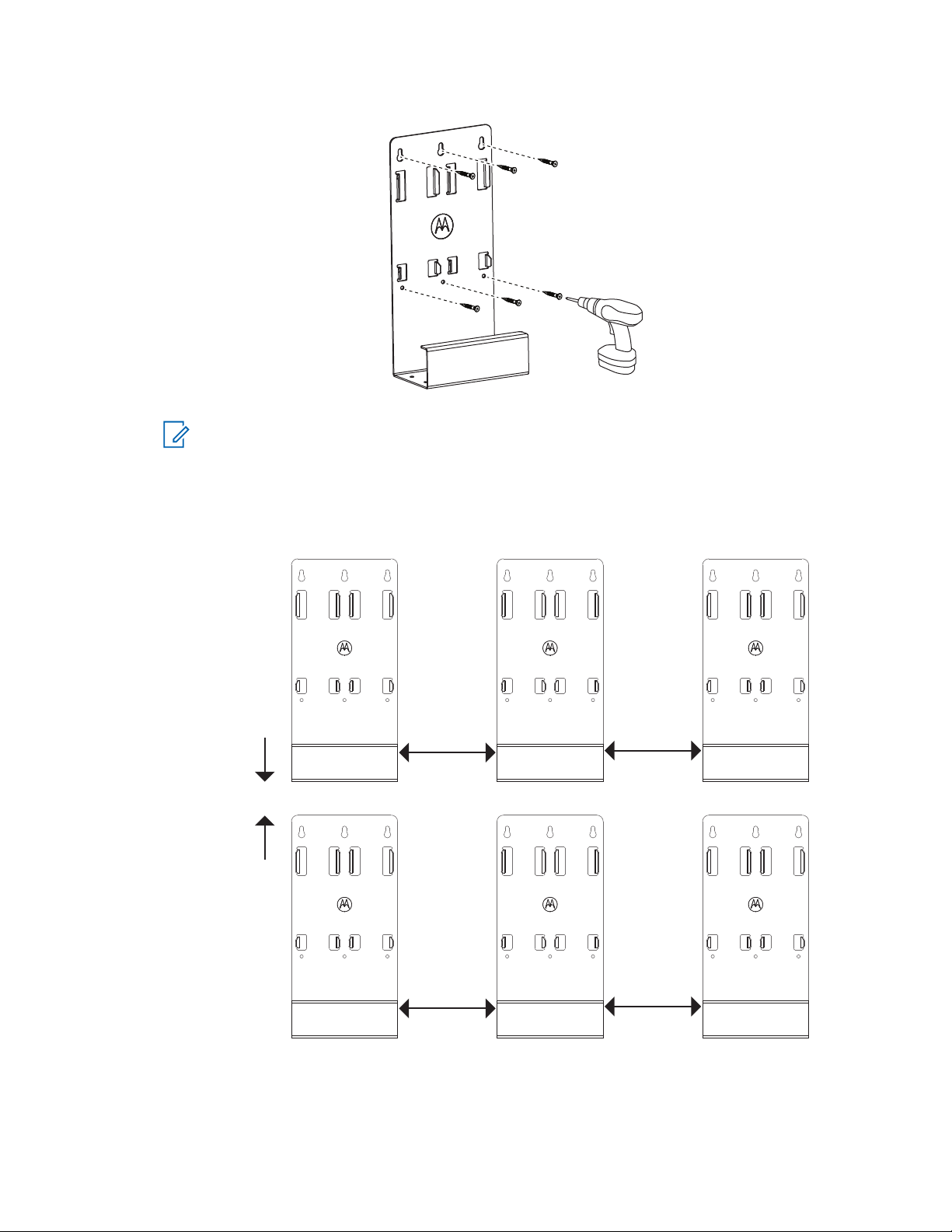

2.5 Mounting the Mounting Bracket to the Wall..................................................................................... 14
2.6 Preparing Chargers for Desktop Charging.......................................................................................16

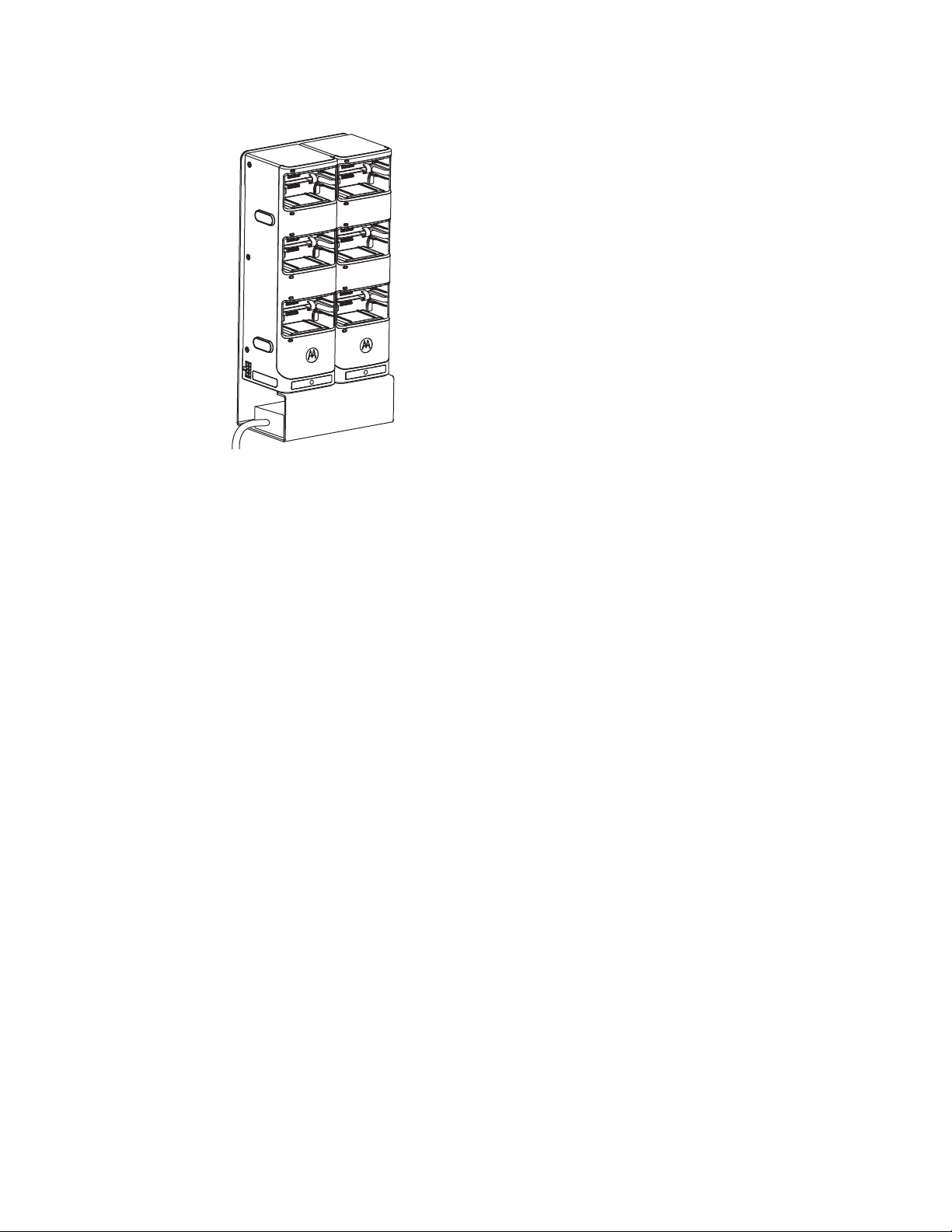

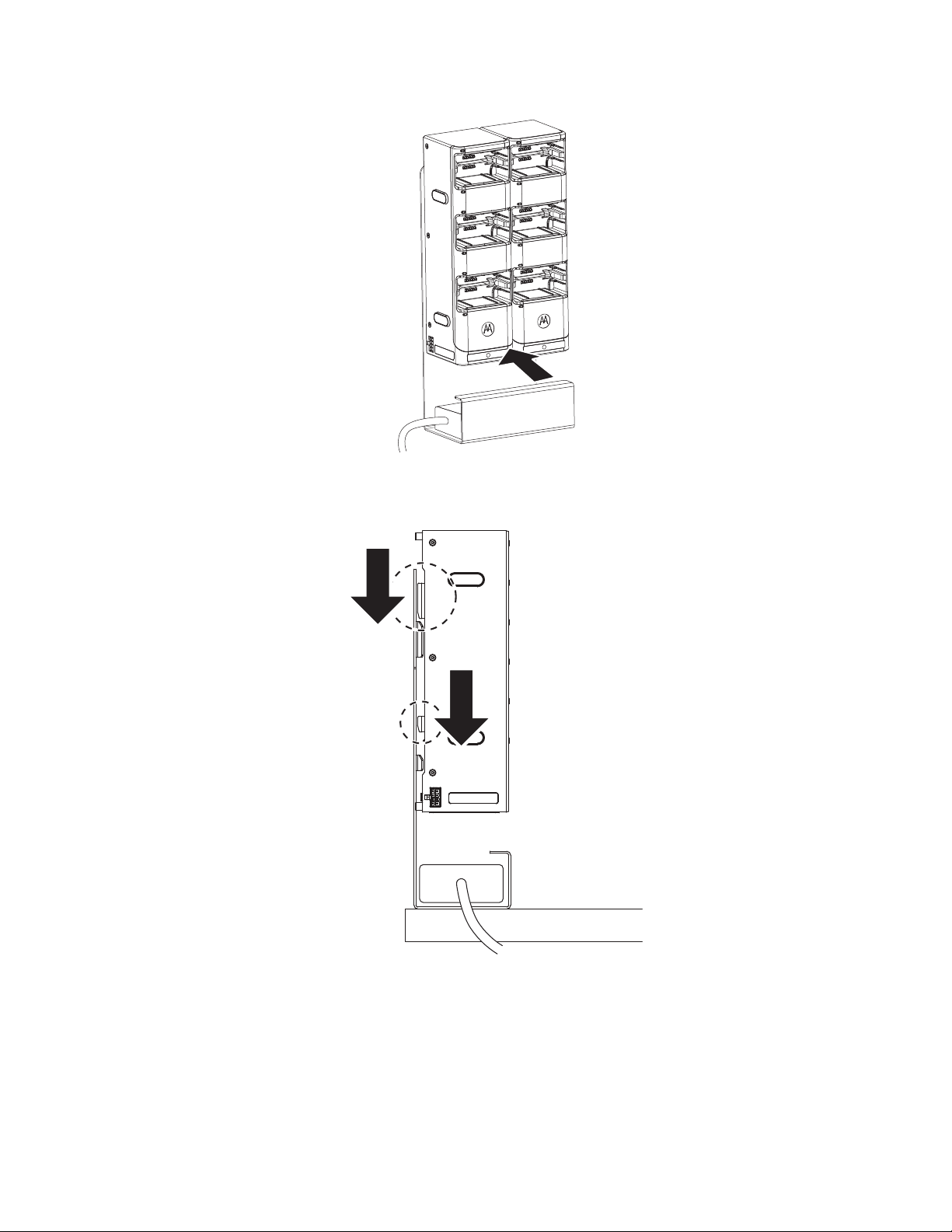

2.7 Preparing Chargers for Vertical Charging Position.......................................................................... 17
MN010173A01-AA
Contents
2

Safety and Legal
This section provides the safety and legal information for this product.

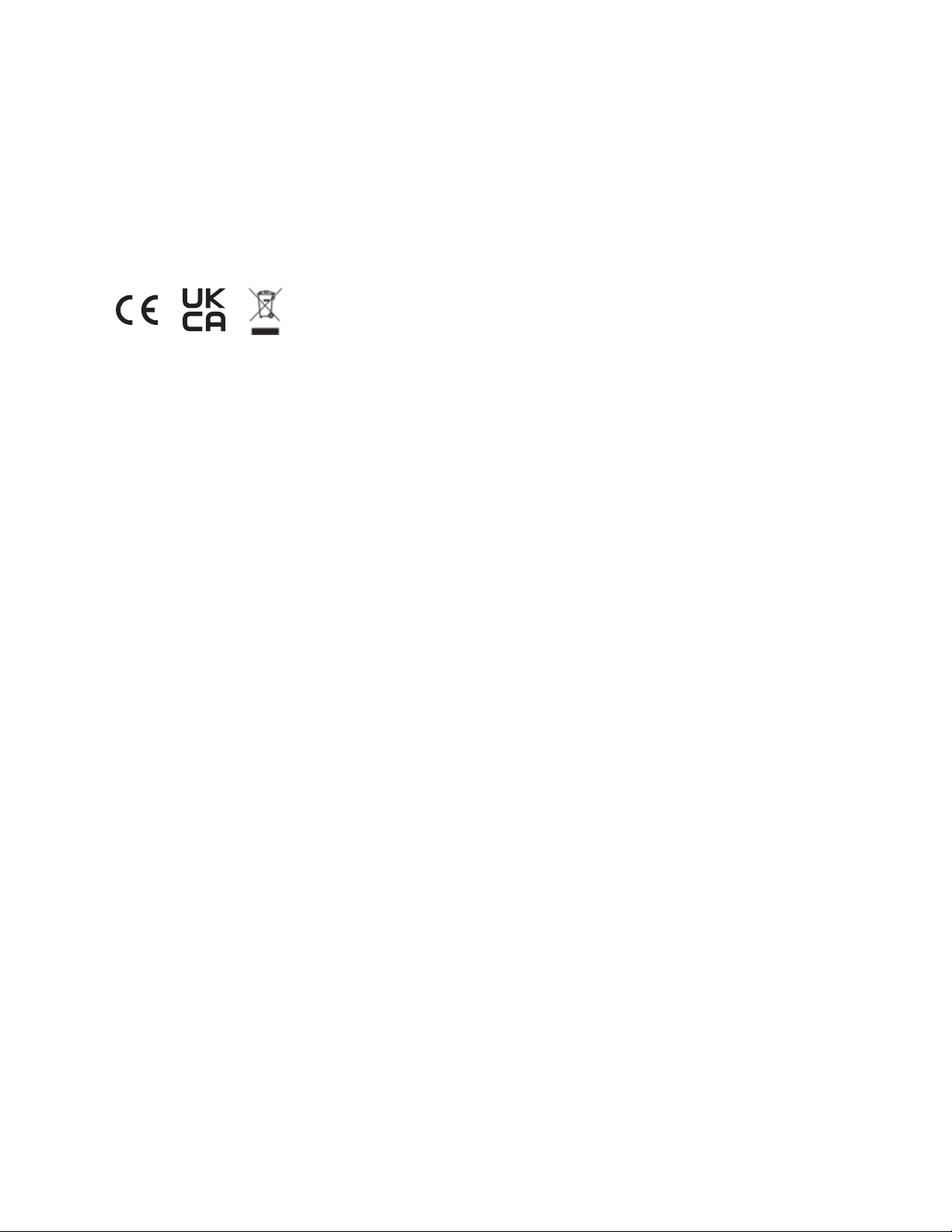

Certification Marks
Contact Address
European Union Contact
Motorola Solutions,
Czerwone Maki 82,
30-392 Krakow, Poland
Intellectual Property and Regulatory Notices
Copyrights
The Motorola Solutions products described in this document may include copyrighted Motorola Solutions
computer programs. Laws in the United States and other countries preserve for Motorola Solutions
certain exclusive rights for copyrighted computer programs. Accordingly, any copyrighted Motorola Solutions
computer programs contained in the Motorola Solutions products described in this document may not be
copied or reproduced in any manner without the express written permission of Motorola Solutions.
No part of this document may be reproduced, transmitted, stored in a retrieval system, or translated into
any language or computer language, in any form or by any means, without the prior written permission of
Motorola Solutions, Inc.
Trademarks
MOTOROLA, MOTO, MOTOROLA SOLUTIONS, and the Stylized M Logo are trademarks or registered
trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the
property of their respective owners.
License Rights
The purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication,
estoppel or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions,
except for the normal non-exclusive, royalty-free license to use that arises by operation of law in the sale of a
product.
Open Source Content
This product may contain Open Source software used under license. Refer to the product installation media
for full Open Source Legal Notices and Attribution content.
MN010173A01-AA
Safety and Legal
3

European Union (EU) and United Kingdom (UK) Waste of Electrical and Electronic
Equipment (WEEE) Directive
The European Union's WEEE directive and the UK's WEEE regulation require that products sold into
EU countries and the UK must have the crossed-out wheelie bin label on the product (or the package in some
cases). As defined by the WEEE directive, this crossed-out wheelie bin label means that customers and
end-users in EU and UK countries should not dispose of electronic and electrical equipment or accessories in
household waste.
Customers or end-users in EU and UK countries should contact their local equipment supplier representative
or service centre for information about the waste collection system in their country.
Disclaimer
Please note that certain features, facilities, and capabilities described in this document may not be applicable
to or licensed for use on a specific system, or may be dependent upon the characteristics of a specific mobile
subscriber unit or configuration of certain parameters. Please refer to your Motorola Solutions contact for
further information.
© 2023 Motorola Solutions, Inc. All Rights Reserved
Supplier's Declaration of Conformity
Supplier's Declaration of Conformity
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party
Name: Motorola Solutions, Inc.
Address: 2000 Progress Pkwy, Schaumburg, IL. 60196
Phone Number: 1-800-927-2744
Hereby declares that the product:
Model Name: Multi-Unit Charger
conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a), and section 15.109(a)
Class B Digital Device
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
MN010173A01-AA
Safety and Legal
4

2. This device must accept any interference received, including interference that may cause undesired
operation.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that in-
terference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio or TV technician for help.
For Australia Only
This provision applies to products and services supplied by Motorola Solutions to consumers within the
meaning of the Australian Consumer Law. This warranty is given by Motorola Solutions Australia Pty Limited
(ABN16 004 742 312) of Tally Ho Business Park, 10 Wesley Court. Burwood East, Victoria. Our goods come
with guarantees that cannot be excluded under the Australia Consumer Law. For major failures with the
service, you are entitled:
● To cancel your service contract with us: and
● To a refund for the unused portion, or to compensation for its reduced value.
You are entitled to choose a replacement or refund for a major failure with goods. If a failure with the
goods or service does not amount to a major failure, you are entitled to have the failure rectified in a
reasonable time. If this is not done, you are entitled to a refund for the goods, and to cancel the contract
for the service and obtain a refund of any unused portion. You are also entitled to be compensated for
any other reasonably foreseeable loss or damage from a failure in the goods or service. If you have any
queries, please call Motorola Solutions Australia at 1800 457 439. You may also visit our website: https://
www.motorolasolutions.com/en_xa/support.html for current warranty terms.
Important Safety Instructions
This document contains important safety and operating instructions.
MN010173A01-AA
Safety and Legal
5

Before using the battery charger, read all the instructions and cautionary markings on the charger and the
battery.
WARNING: Read these instructions carefully and save them for future reference.
● To reduce the risk of damage to the power cord, pull the plug rather than the cord when
disconnecting power cord from the AC outlet or the charger.
● To reduce the risk of fire or electric shock, avoid using an extension cord. If an extension cord must
be used, ensure that the cord size is 18 AWG for lengths of up to 6.5 feet (2 m), and 16 AWG for
lengths up to 9.8 feet (3 m).
● To reduce the risk of fire, electric shock, or injury, do not operate the charger if it is broken or
damaged in any way. Take it to a qualified Motorola Solutions service representative.
● To reduce the risk of fire or electric shock, do not disassemble the charger. It is not repairable and
replacement parts are not available.
● To reduce the risk of electric shock, unplug the charger power adapter from the AC outlet before
attempting any maintenance or cleaning.
● To reduce the risk of injury, charge only the rechargeable authorized batteries. Other batteries may
explode, causing personal injury and damage.
● To reduce the risk of fire, electric shock, or injury, only use the accessories recommended by
Motorola Solutions.
● Changes or modifications made to this device, not expressly approved by Motorola Solutions, could
void the authority of the user to operate this equipment.
Operational Safety Guidelines
●This equipment is not suitable for outdoor use. Use only in dry locations and condition.
● Maximum ambient temperature around the charger must not exceed 40 °C (104 °F).
● Connect the charger only to an appropriate power cord listed in Motorola Solutions Authorized Power
Cord List.
● The AC outlet to which the power cord is connected should be close and easily accessible.
● Make sure the power cord is located where it will not be stepped on, tripped over, or subjected to water,
damage, or stress.
● Connect the power cord only to an appropriately fused and wired AC outlet with the correct voltage, as
specified on the product.
Disclaimer
The information in this document is carefully examined, and is believed to be entirely reliable. However, no
responsibility is assumed for inaccuracies.
Furthermore, Motorola Solutions reserves the right to change any products to improve readability, function, or
design. Motorola Solutions does not assume any liability arising out of the applications or use of any product
or circuit described herein; nor does it cover any license under its patent rights, nor the rights of others.
MN010173A01-AA
Safety and Legal
6

Chapter 1
Charger Overview
Figure 1: Charger Overview
1
2
5
7
4
8
3
6
Table 1: Charger Overview
Label Description
1 LED Indicator
2 Charging Pocket
3 Male Connector
4 Male Connector Latch
5 Female Connector
6 Mounting Bracket Rails
7 Magnet
8 Rubber Foot
Table 2: Charger Specification
INPUT OUTPUT
15 V , 6 A (Up to 2 Multi-Unit Chargers) 4.35 V , 1.25 A x 6 pockets
MN010173A01-AA
Chapter 1: Charger Overview
7

1.1
Charger Accessories Overview
Figure 2: Mounting Bracket (Part Number: BR000628A01) Overview
1.2
Authorized Batteries, Power Cords, and Power
Supplies
Table 3: Motorola Solutions Authorized Batteries
Part Number Description Series
PMPN4546 Lithium-ion Battery, 5000 mAh L6Q
Table 4: Motorola Solutions Authorized Power Cords
Part Number Description
3087791G01 Power Cord, North America
3087791G04 Power Cord, Europe
3087791G07 Power Cord, United Kingdom
3087791G10 Power Cord, Australia/New Zealand
3087791G13 Power Cord, Argentina
3087791G22 Power Cord, Brazil
MN010173A01-AA
Chapter 1: Charger Overview
8

Table 5: Motorola Solutions Authorized Power Supply
Charger Kit Power Supply Description Module
PMPN4003 PS000242A04 External 90 W, 100–
240 V
Up to two multi-unit
chargers
1.3
Optional Equipment
A mounting bracket (Part Number: BR000628A01) is available for the Multi-Unit Charger. Contact your dealer
to order this item. See Mounting the Mounting Bracket to the Wall on page 14 for installation instructions.
WARNING:
● The mounting bracket should be installed by a trained and experienced technician. Having the
mounting bracket installed by a non-specialized technician is dangerous, and can cause damage or
injury.
● Do not install the mounting bracket where the weight cannot be supported. If the strength of the
location where the mounting bracket is installed is not strong enough, it can fall off and cause an
injury.
● Do not install the mounting bracket on a structure that is prone to vibration, movement, or chance of
impact.
MN010173A01-AA
Chapter 1: Charger Overview
9

Chapter 2
Charger Operations
This section contains the charging information of your charger.
2.1
Charging the Batteries
Prerequisites: Use only Motorola Solutions authorized batteries. Charge the batteries at room temperature.
Use only the assigned charger when charging the supported batteries.
Procedure:
1. Place the multi-unit charger horizontally on a flat surface.
NOTE: If you have more than one multi-unit charger, it is recommended to place the multi-unit
charger in a vertical position mounted to the mounting bracket.
2. Insert the power supply adapter to the female connector of the multi-unit charger.
3. Plug the power supply adapter to the power outlet.
If powering up the multi-unit charger is successful, the LED shows green for one second.
If powering up the multi-unit charger is unsuccessful, check the power cord connection.
4. Align and insert the batteries (2X) with battery tray into the charger pocket.
5. Make sure that the battery is in contact with the charger contact.
If the battery is inserted correctly and the battery is being charged in the rapid charge mode, the LED
indicator shows solid red.

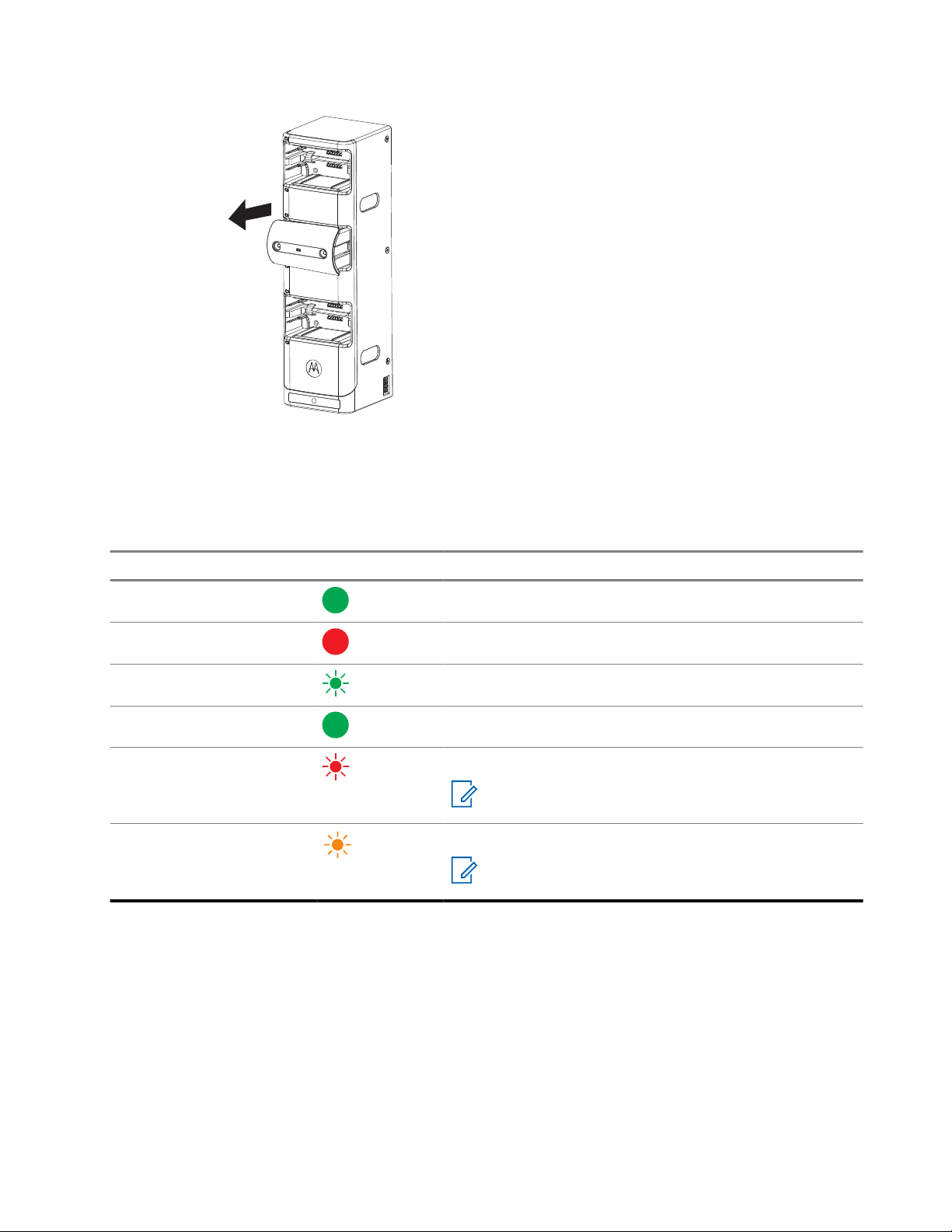

6. To remove the battery trays from the charger pocket, pull the battery trays from the charger pocket.
MN010173A01-AA
Chapter 2: Charger Operations
10

2.2
Charging Indications
Table 6: Charging Indications
Charger Indication Description
Solid green for 1 second Charger power up successfully.
Solid red Battery is charging rapidly.
Blinking green Battery is charged up to 90% or greater capacity.
Solid green Battery is charged to 95% or greater capacity.
Blinking red Battery is at fault.
NOTE: Remove and re-insert the battery to the
charger pocket.
Blinking amber Battery is in standby mode waiting to be charged.
NOTE: Battery might be too hot, too cold, or low
voltage.
2.3
Combining the Multi-Unit Chargers
Prerequisites: The maximum number of multi-unit charger that can be combined is two.
Procedure:
1. Place the chargers on the table for support before combining them.
2. To extend the connector, press and push the male connector latch to the left.
MN010173A01-AA
Chapter 2: Charger Operations
11

3. To combine the chargers, connect the male connector to the female connector.
The magnets of the chargers hold them together when connected.
4. Hold the sides of the combined chargers when moving to another location.
MN010173A01-AA
Chapter 2: Charger Operations
12

2.4
Separating the Multi-Unit Chargers
Procedure:
1. Place the combined chargers on the table.
2. To separate the combined chargers, pull each of the chargers apart.
NOTE: Do not twist the charger while pulling them apart to avoid damaging the connectors.
MN010173A01-AA
Chapter 2: Charger Operations
13

3. To retract the male connector back into the charger, press the male connector latch and push to the
right.
2.5
Mounting the Mounting Bracket to the Wall
The mounting bracket is an optional equipment. See Optional Equipment on page 9 for more information.
Procedure:
1. Position the bracket and mark the location of the mounting holes on the wall surface.
CAUTION: Ensure that the area behind the mounting surface is free from electrical wires,
cables, or pipes before cutting, drilling, or installing the mounting screws.
2. Mount the bracket to the wall using appropriate mounting hardware such as drywall anchors. The top
mounting holes have a sliding feature for easier mounting.
3. Drill based on the mounting holes markings on the wall.
4. To secure the bracket, install the mounting hardware over the mounting holes on the bracket tightly.
MN010173A01-AA
Chapter 2: Charger Operations
14

NOTE: It is recommended to use a 10–16 x 1.5 inch. tapping screw and washer (not included)
on the wood stud and solid-flat concrete or brick wall.
5. Mount any additional brackets with a minimum distance of 50 mm vertically and 140 mm horizontally
from each other.
50 mm
140 mm
140 mm
140 mm
140 mm
MN010173A01-AA
Chapter 2: Charger Operations
15

2.6
Preparing Chargers for Desktop Charging
Procedure:
Prepare charger for desktop charging by performing one of the following actions:
Option Action
Charging with mounting bracket NOTE:
● If the charger is placed in a vertical position, it
is recommended to place the charger on the
mounting bracket to prevent it from toppling.
● It is recommended to use 10–16x1.5 inch. tap-
ping screw to mount the bracket onto table top.
● Ensure that the screws do not penetrate
through the table.
a. Screw the wall bracket to the table.
b. Place the power supply inside the wall bracket.
MN010173A01-AA
Chapter 2: Charger Operations
16

Option Action
Charging without metal bracket a. Place the charger horizontally.
2.7
Preparing Chargers for Vertical Charging Position
Prerequisites: Ensure that the mounting bracket is mounted to the wall, and chargers are combined before
mounting into the mounting bracket.
Procedure:
1. Place the power supply adapter into the mounting bracket.
2. Place and lean the charger to the bracket.
MN010173A01-AA
Chapter 2: Charger Operations
17

3. Align the back rails on the charger with the rails on the mounting bracket.
4. Slide the charger downwards to attach with both rails.
5. Ensure that both rails are attached before releasing the charger.
MN010173A01-AA
Chapter 2: Charger Operations
18

MN010173A01-AA
Chapter 2: Charger Operations
19

Guide d’utilisation du
multichargeur L6Q PMPN4003
OCTOBRE 2023
© 2023 Motorola Solutions, Inc. All Rights Reserved.
*MN010173A01*
MN010173A01-AA
