IMPORTANT SAFETY INSTRUCTIONS
This document contains important safety and operating instructions.
Please read these instructions carefully and save them for future
reference.
Before using the battery charger, read all the instructions and cautionary
markings on (1) the charger, (2) the battery, and (3) the radio using the
battery.
1. An extension cord should not be used unless absolutely necessary.
Use of an improper extension cord could result in risk of fire and
electric shock. If an extension cord must be used, make sure that the
cord size is 18 AWG for lengths of up to 6.5 feet (2.0 m), and
16 AWG for lengths up to 9.8 feet (3.0 m).
2. To reduce risk of fire, electric shock, or injury, do not operate the
charger if it has been broken or damaged in any way. To reduce risk
of damage to the electric plug and cord, pull the plug rather than the
To reduce risk of injury, charge only the rechargeable
Motorola authorized batteries listed in Table 1. Other
batteries may explode, causing personal injury and
damage. Use of accessories not recommended by
Motorola may result in risk of fire, electric shock, or
injury.
C a u t i o n

2
English
cord when disconnecting the charger. Take it to a qualified Motorola
service representative.
3. Do not disassemble the charger – it is not repairable and
replacement parts are not available. Disassembly of the charger may
result in risk of electric shock or fire.
4. To reduce risk of electric shock, unplug the charger from the AC
outlet before attempting any maintenance or cleaning.
OPERATIONAL SAFETY GUIDELINES
• Turn off the radio when charging the battery.
• This equipment is not suitable for outdoor use. Use only in dry locations/
conditions.
• Connect equipment only to an appropriately fused and wired supply of the
correct voltage (as specified on the product).
• Disconnect from line voltage by removing the power plug from the outlet.
• The socket outlet that this equipment is connected should be close and
easily accessible.
• In equipments using fuses, replacements must comply with the type and
rating specified in the equipment instructions.
• Maximum ambient temperature around the charger must not exceed
40 °C (104 °F).
• Output power from the power supply unit must not exceed the ratings
stated on the product label located on the bottom of the charger.
• Make sure the cord is located where it will not be stepped on, tripped
over, or subjected to water, damage, or stress.

3
English
MOTOROLA AUTHORIZED COMPONENTS
The following charts contain component chart numbers approved for use with
the Charging Kit:
Table 1: Motorola Authorized Battery
Kit Number Description
PMNN4434_ Standard Li-Ion Battery
PMNN4453_ High Capacity Li-Ion Battery
Table 2: Motorola Authorized Charger
Kit Number Description
PMLN6383_ SUC Charging Tray

4
English
Table 3: Motorola Authorized Power Sources/Power Supplies
Part Number Manufacturer Part Number Description
25012026001 PSM08R-050MPN-R Power Supply, SMPS, 100-
240V, Universal, micro-USB
*PMPN4043_ FMP5538A Assembly, SMPS, 100-240V,
L5, 2.75W, micro-USB –
Europe
58012029004 RPE-N(MOS)-R Adapter, Power Supply,
Charger – Europe
58012029001 RPA(MOS)-R Adapter, Power Supply,
Charger – UK
PMLN6509_ PSM6509A-R Rapid Charging Power Supply
– EU/UK Adapter
PS00150A02 MU-08-L050150-C5 Rapid Charging Power Supply
– EU Adapter
PS00150A03 MU-08-L050150-B2 Rapid Charging Power Supply
– UK Adapter
Note*: Charger UL approved when shipped with this power supply.
Table 4: Motorola Authorized Programming Cable
Part Number Description
HKK4027_ CPS Cable Kit

5
English
OPERATING INSTRUCTIONS
CHARGING THE RADIO BATTERY
To charge the battery (with the radio attached), place it in a
Motorola-approved Drop-in Tray Single Unit Charger:
1. Place the drop-in tray charger on a flat surface.
2. Insert the connector of the power supply into the port on the side of
the drop-in tray charger.
Table 5: Motorola Authorized Cloning Cable
Part Number Description
HKK4028_ Cloning Cable Kit
Drop-in Tray
Charger Port
Drop-in Tray Charger Power Supply
(Transformer)

6
English
3. Plug the AC adaptor into a power outlet.
4. Insert the radio into the tray with the front of the radio facing the front
of the charger, as shown.
Note: When charging a battery attached to a radio, turn the radio off to
ensure a full charge.

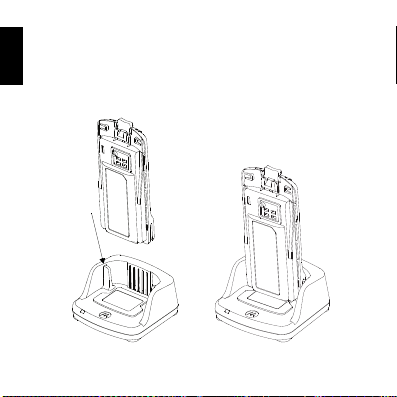

CHARGING A STAND-ALONE BATTERY
Align the
grooves on the
battery to the
rails in charger

7
English
Insert the battery into the tray with the front of the battery (label) facing the
front of the charger as shown.
ADAPTORS
Your power supply has a “switchable” capability which is compatible with any
of the adaptors that comes with your radio package.
The adaptor you choose to install depends on the region you are located in.
Proceed to install once you have identified the adaptor that matches your
electrical outlet.
Adaptor
Adaptor
Power Supply Power Supply
Install Remove

8
English
• Slide down the adaptor grooves into the power supply until it snaps
into place.
• Slide the adaptor upward to remove.
Note: The adaptor shown in the pictures are for illustration purposes.
TROUBLESHOOTING
When troubleshooting, always observe the color of the LED:
LED
Indication
Charger State Comment
Single
Flash
Green
Charger successfully powered
up and is ready for use.
The charger is ready for
use.
Off
No Battery in Pocket
• The Charger identified
the Battery as invalid or
damaged
• The Charger may have
detected an open or
shorted Battery contact
If a battery is in the pocket,
ensure that the power
supply is plugged into the
proper main outlet.
If the indication continues,
remove the battery.
Inspect the charger and
battery contacts to ensure
they are clean. Reinsert
the battery.

9
English
Amber
Slow Flash
Waiting to Rapid Charge
• Battery Under-Voltage
Recovery
• Battery too Cold,
Temperature <
approximately 5°C (or
value programmed in
battery)
• Battery too Hot,
Temperature ≥
approximately 45°C (or
value programmed in
battery)
• Thermistor short to
Battery (+)
Upon completion of
Under-Voltage Recovery,
once a cold battery warms
up or once a hot battery
cools down, the charger
automatically begins
Charging.
If Waiting to Rapid Charge
continues (e.g., more than
30 minutes), then remove
the battery. Inspect the
charger and battery
contacts to ensure they
are clean. Reinsert the
battery.

10
English
Red Fast
Flash
Fault
• The Charger identified
the Battery as invalid or
damaged
• The Charger may have
detected an open or
shorted Battery contact
• Excessive Power Supply
Voltage
• Battery Under-Voltage
Recovery Timeout
(15 minutes)
• Charging Issue
Remove the battery from
the pocket. Inspect the
charger and battery
contacts to ensure they
are clean. Reinsert the
battery.
If the indication continues,
disconnect the power
supply from the charger.
Verify that an authentic
Motorola Solutions power
supply is being used.
Inspect the power supply
and charger connectors to
ensure they are clean and
ready for use. Connect an
authentic Motorola
Solutions power supply to
the charger.
If the indication continues,
try using a different
Motorola Solutions
authorized battery.
If the indication continues
with a different battery,
contact your Motorola
Solutions representative.

11
English
Steady
Red
Charging The battery is charging.
Steady
Green
Nearly Charged or Charged The battery may be used.
LED Indication Battery State of Charge
Flash Green
3 Times
The battery is substantially charged. If followed by
the Solid Red Charging indication, allow time for the
battery to be fully charged. If followed by the Solid
Green Nearly Charged or Charged indication, some
additional time may be required to ensure that the
battery is fully charged.
Flash Amber
2 Times
The battery is moderately charged. Before heavy or
lengthy battery use, allow time for the battery to be
fully charged.
Flash Red
1 Time
The battery is substantially discharged. Before using
the battery, allow time for the battery to be fully
charged.

12
English
If there is NO LED indication:
1. Check that the radio with battery is inserted correctly.
2. Make sure that the power supply is plugged into an appropriate AC
outlet and the LED on the transformer is on.
3. Ensure that the power supply cable is plugged securely into the
charger socket.
4. Confirm that the battery used with the radio is listed in Table 1.
ESTIMATED CHARGING TIME
Charging Solution
Battery Type
Standard High Capacity
Switch Mode Charging Solution 4.5 hours 5.5 hours
Rapid Charging Solution 2 hours 3.5 hours

13
English
Limited Warranty for Motorola Personal Communications Products
Purchased
If your charger is defective, please contact your Motorola Partner where the
unit was purchased.
I. What Does This Warranty Cover?
• Products. Defects in materials and workmanship in wireless cellular
telephones, pagers and/or two-way radios and certain accessories that
are sold with them, such as the battery, battery charger and holster
manufactured and/or sold by Motorola (Products).
• Batteries. Defects in materials and workmanship in batteries that are
manufactured by Motorola and/or sold with Products are covered by this
warranty only if the fully-charged capacity falls below 80% of rated
capacity or they leak.
II. How Long Is The Period Of Coverage?
From the date the Products are purchased by the first end-user:
• Products. The warranty is for one year.
• Software. The warranty is for 90 days.
• Repairs/Replacements. The warranty is for the balance of the original
warranty or for 90 days from the date you receive it, whichever is longer.
III. Who Is Covered?
This warranty extends to the first end-user purchaser only.
IV. What Will We Do To Correct Warranty Problems?
At no charge to you, we have the option to repair or replace the Products or
software that do not conform to the warranty or to refund the Products’

14
English
purchase price. We may use functionally equivalent reconditioned,
refurbished, pre-owned or new Products or parts. No software updates are
provided.
V. How Can You Obtain Warranty Service or Other Information?
At no charge to you, we have the option to repair or replace the Products or
software that do not conform to the warranty or to refund the Products’
purchase price. We may use functionally equivalent reconditioned/
refurbished/pre-owned or new Products or parts. No software updates are
provided.
For product information please visit us at: www.motorolasolutions.com/
governmentandenterprise.
You will receive instructions on how to ship the Products to Motorola. You
must ship the Products to us with freight, duties and insurance prepaid. Along
with the Products you must include: (a) a copy of your receipt, bill of sale or
other comparable proof of purchase; (b) a written description of the problem;
(c) the name of your service provider (if this Product requires subscription
service); (d) the name and location of the installation facility (if applicable)
and, most importantly; (e) your address and telephone number. If requested,
you must also return all detachable parts such as antennas, batteries and
chargers. ALWAYS RETAIN YOUR ORIGINAL PROOF OF PURCHASE.
We will ship repaired or replacement Products at our expense for the freight
and insurance, but at your expense for any duties.
VI. What This Warranty Does Not Cover
• Products that are operated in combination with ancillary or peripheral
equipment or software not furnished by Motorola for use with the
Products (“ancillary equipment”) or any damage to the Products or

15
English
ancillary equipment as a result of such use. Among other things, “ancillary
equipment” includes batteries, chargers, adaptors and power supplies not
manufactured or supplied by Motorola. Any of these voids the warranty.
• Someone other than Motorola (or its authorised service centres) tests,
adjusts, installs, maintains, alters, modifies or services the Products in
any way. Any of these voids the warranty.
• Rechargeable batteries that: (a) are charged by other than the
Motorola-approved battery charger specified for charging such batteries;
(b) have any broken seals or show evidence of tampering; (c) are used in
equipment other than the Product for which they are specified; or (d) are
charged and stored at temperatures greater than 60 degrees centigrade.
Any of these voids the warranty.
• Products that have: (a) serial numbers or date tags that have been
removed, altered or obliterated; (b) board serial numbers that do not
match each other, or board serial numbers that do not match the housing;
or (c) non-conforming or non-Motorola housings or parts. Any of these
voids the warranty.
• Defects or damage that result from: (a) use of the Products in a manner
that is not normal or customary; (b) improper operation or misuse;
(c) accident or neglect such as dropping the Products onto hard surfaces;
(d) contact with water, rain, extreme humidity or heavy perspiration;
(e) contact with sand, dirt or the like or (f) contact with extreme heat, or
spills of food or liquid.
• Physical damage to the surface of the Products, including scratches,
cracks or other damage to a display screen, lens or other externally
exposed parts.
• Failure of Products that is due primarily to any communication service or
signal you may subscribe to or use with the Products.

16
English
• Coil cords that are stretched or that have any broken modular tabs.
• Products that are leased.
Flat-rate repair rates may apply to Products not covered by this warranty. To
obtain information about Products needing repairs that are not covered by
this warranty, please call the telephone number previously listed. We will
provide information on repair availability, rates, methods of payment, where to
send the Products, etc.
VII. Some Other Limitations
This is Motorola’s complete warranty for the Products and states your
exclusive remedies.
This warranty is given in lieu of all other express warranties. Implied
warranties, including without limitation, the implied warranties of merchant
ability and fitness for a particular purpose, are given only if specifically
required by applicable law. Otherwise, they are specifically excluded.
No warranty is made as to coverage, availability or grade of service provided
by the Products, whether through a service provider or otherwise.
No warranty is made that the software will meet your requirements or will
work in combination with any hardware or applications software products
provided by third parties, that the operation of the software products will be
uninterrupted or error free, or that all defects in the software products will be
corrected.
In no event shall Motorola be liable, whether in contract or tort (including
negligence) for damages in excess of the purchase price of the Product, or
for any indirect, incidental, special or consequential damages of any kind, or
loss of revenue or profits, loss of business, loss of information or data, or
other financial loss arising out of or in connection with the ability or inability to
use the Products, to the full extent these damages may be disclaimed by law.

17
English
VIII. Patent and Software Provisions
At Motorola’s expense, we will defend you and pay costs and damages that
may be finally awarded against you, to the extent that a lawsuit is based on a
claim that the Products directly infringe a patent. Our obligation is conditioned
on: (a) you notifying us promptly in writing when you receive notice of the
claim; (b) you giving us sole control of the defence of the suit and all
negotiations for its settlement or compromise; and (c) should the Products
become, or in Motorola's opinion be likely to become, the subject of a claim of
infringement of a patent, you permit us, at our option and expense, either to:
procure for you the right to continue using the Products; replace or modify
them so that they become non-infringing; or grant you a credit for such
Products, as depreciated, and accept their return. The depreciation will be an
equal amount per year over the lifetime of the Products, as established by
Motorola.
Motorola will have no liability to you with respect to any claim of patent
infringement that is based upon the combination of the Products or parts
furnished under this limited warranty with ancillary equipment, as defined in
Article VI above.
This is Motorola’s entire liability with respect to infringement of patents by the
Products.
Laws in certain countries preserve for Motorola and other third party software
providers certain exclusive rights for copyrighted software, such as the
exclusive rights to reproduce in copies and distribute copies of such software.
The software may be copied into, used in and redistributed with only those
Products that are associated with such software. No other use, including
without limitation, disassembly or reverse engineering of such software or
exercise of exclusive rights in such software is permitted.

18
English
Some countries and other jurisdictions do not allow the exclusion or limitation
of incidental or consequential damages, or limitation on the length of an
implied warranty, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other
rights, which vary from jurisdiction to jurisdiction.
www.motorolasolutions.com/XTseries
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are
trademarks or registered trademarks of Motorola Trademark Holdings, LLC
and are used under license. All other trademarks are the property of their
respective owners.
© 2013, 2015 Motorola Solutions, Inc. All rights reserved.
