Motorola CLP series Maintenance and service guide

CLP Series
Single Unit Charger (SUC)
P/N IXPN4028
en de-DE fr-FRes-ES it-IT
pt-PT
nl-NLda-DK
sv-SEfi-FInb-NO tr-TRpl-PL ru-RU uk-UA
68012002078.book Page 1 Monday, October 10, 2016 7:01 PM

68012002078.book Page 2 Monday, October 10, 2016 7:01 PM

1
English
IMPORTANT SAFETY INSTRUCTIONS
This document contains important safety and operating instructions. Please read these
instructions carefully and save them for future reference.
Before using the battery charger, read all the instructions and cautionary markings on (1) the
charger, (2) the battery and (3) on the radio using the battery.
1. To reduce the risk of injury, charge only the rechargeable Motorola Solutions authorised
batteries listed in this document. Other batteries may explode, causing personal injury and
damage.
2. Use of accessories not recommended by Motorola Solutions may result in risk of fire, electric
shock or injury.
3. To reduce the risk of damage to the electric plug and cord, pull by the plug rather than the
cord when disconnecting the charger.
4. An extension cord should not be used unless absolutely necessary. Use of an improper
extension cord could result in risk of fire and electric shock. If an extension cord must be
used, make sure that the cord size is 18 AWG for lengths up to 6.5 feet (2.0 m) and 16 AWG
for lengths up to 9.8 feet (3.0 m).
5. To reduce the risk of fire, electric shock or injury, do not operate the charger if it has been
broken or damaged in any way. Take it to a qualified Motorola Solutions service
representative.
6. Do not disassemble the charger; it is not repairable and replacement parts are not available.
Disassembly of the charger may result in risk of electrical shock or fire.
7. To reduce the risk of electric shock, unplug the transformer from the AC outlet before
attempting any maintenance or cleaning.
032374o
WARNING
68012002078.book Page 1 Monday, October 10, 2016 7:01 PM

2
English
OPERATIONAL SAFETY GUIDELINES
• Turn the radio OFF when charging battery.
• The charger is not suitable for outdoor use. Use only in dry locations/conditions.
• Connect charger only to an appropriately fused and wired supply of the correct voltage (as specified on
the product).
• Disconnect charger from line voltage by removing main plug.
• The outlet to which this equipment is connected should be nearby and easily accessible.
•Maximum ambient temperature around the power supply equipment must not exceed 40 °C (104 °F).
• Make sure that the cord is located where it cannot be stepped on, tripped over or subjected to water,
damage or stress.
MOTOROLA SOLUTIONS AUTHORISED BATTERIES
MOTOROLA SOLUTIONS AUTHORISED POWER SUPPLIES
Kit No. Description
HKNN4013_ CLP Series High Capacity Li -Ion Battery
HKNN4014_ CLP Series Standard Li -Ion Battery
Kit No. Description
PS000042A12 CLP Series EU Power Supply Adaptor
PS000042A13 CLP Series UK Power Supply Adaptor
NNTN7880_ CLP Series SUC Tray
68012002078.book Page 2 Monday, October 10, 2016 7:01 PM

3
English
Note: When charging a battery attached to a radio, turn the radio OFF to ensure a full charge.
The radio fits in the charger when placed face down in the tray.
Charging with the Drop-in Tray Single Unit Charger (SUC)
1. Place the drop-in tray charger on a flat surface.
2. Insert the connector of the power supply into the Micro USB port on the front of the drop-in
tray charger.
3. Connect the correct power supply to a proper AC outlet.
4. Insert the radio into the tray, making sure the radio is facing down and the charging contacts on
the charger are aligned with the contacts on the radio.
Kit # P/N IXPN4028_
68012002078.book Page 3 Monday, October 10, 2016 7:01 PM

4
English
Cloning Radios using the Single Unit Charger (SUC)
1. Unplug any cables (power supply or USB cables) from the Single Unit Chargers.
2. Plug one side of the cloning cable micro connector to one Single Unit Charger. Plug the other
end to the second Single Unit Charger.
Note: During the cloning process no power is being applied to the Single Unit Charger. The batteries are not being
charged. A data communication is being established between the two radios.
3. Turn ON the “Target Radio” and place it facing down into one of the Single Unit Chargers.
4. On the “Source Radio”, power the radio following the sequence below: • Press and hold the
Push-to-Talk (PTT) and the “-”. Button simultaneously while turning the radio ON until you hear
the Cloning Tone and Double Blinking Yellow on the Smart Status Glow.
5. Place the “Source Radio” facing down in its Single Unit Charger with an Audio accessory, then
press and release Menu Button to start the cloning process.
6. After cloning is completed, the “Source Radio” sounds either a “pass” tone (cloning was
successful) or a “fail” tone (cloning process has failed). The pass tone sounds like a good key
“chirp” whereas the “fail” tone sounds similar to a “bonk” tone. (A tone is heard in no more than
5 seconds.)
Cloning Cable HKKN4026_
(Not included)
68012002078.book Page 4 Monday, October 10, 2016 7:01 PM

5
English
Once you have completed the cloning process, you should turn the radios “OFF” and “ON” to bring
them to normal user mode (exit “clone” mode).
Charging Status LEDs
On the SUC, the radio charging pocket has an LED indicator. The LED indicators are grouped into
pairs to show which charging pockets are paired. The LED is red when the battery is charging, then
it turns to green once the battery is fully charged.
ESTIMATED CHARGING TIME
CHARGER LED INDICATOR
Charger Type Standard
Li-Ion
High Capacity Li-Ion
Single Unit
Charger
4 Hours 5.5 Hours
Status LED Status Comments
Charging Steady Red
Indication The Charger is currently
charging.
68012002078.book Page 5 Monday, October 10, 2016 7:01 PM

6
English

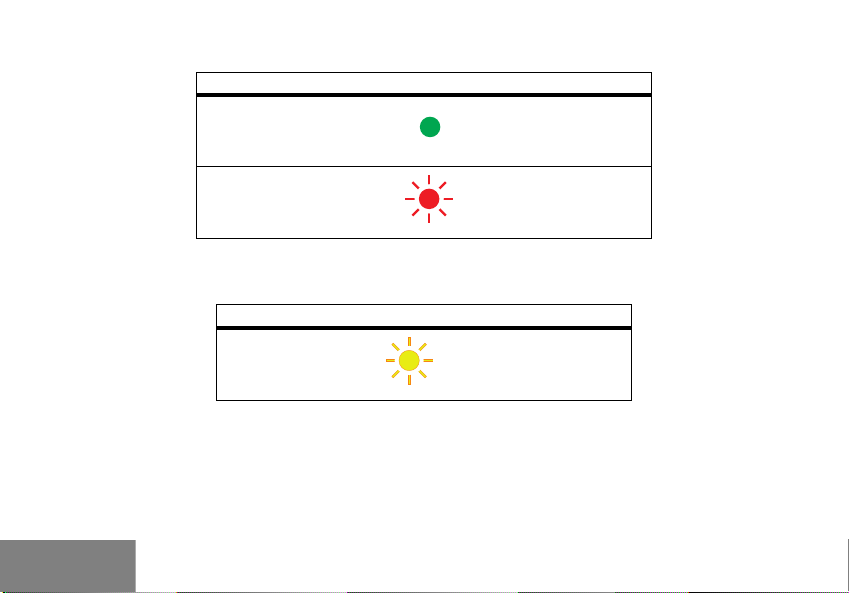

RADIO LED INDICATOR
Charge
Complete
Steady Green
Indication Battery is fully charged.
Battery
Fault
Blinking Red Battery was faulty when
inserted. Re-seating the
battery pack can probably
correct the issue.
Status LED Status Comments
Cloning Blinking
Yellow Cloning in progress.
Status LED Status Comments
68012002078.book Page 6 Monday, October 10, 2016 7:01 PM

7
English
Limited Warranty for Motorola Solutions Personal Communications Products Purchased
I. What Does This Warranty Cover?
• Products. Defects in materials and workmanship in wireless cellular telephones, pagers and/or
two-way radios and certain accessories that are sold with them, such as the battery, battery charger
and holster manufactured and/or sold by Motorola Solutions (Products).
• Batteries. Defects in materials and workmanship in batteries that are manufactured by Motorola
Solutions and/or sold with Products are covered by this warranty only if the fully-charged capacity
falls below 80% of rated capacity or they leak.
II. How Long Is The Period Of Coverage?
From the date the Products are purchased by the first end-user:
• Products. The warranty is for one year.
• Software. The warranty is for 90 days.
• Repairs/Replacements. The warranty is for the balance of the original warranty or for 90 days from
the date you receive it, whichever is longer.
III. Who Is Covered?
This warranty extends to the first end-user purchaser only.
IV. What Will We Do To Correct Warranty Problems?
At no charge to you, we have the option to repair or replace the Products or software that do
not conform to the warranty or to refund the Products’ purchase price. We may use functionally
equivalent reconditioned, refurbished, pre-owned or new Products or parts. No software updates
are provided.
68012002078.book Page 7 Monday, October 10, 2016 7:01 PM

8
English
V. How Can You Obtain Warranty Service or Other Information?
At no charge to you, we have the option to repair or replace the Products or software that do
not conform to the warranty or to refund the Products’ purchase price. We may use functionally
equivalent reconditioned/refurbished/pre-owned or new Products or parts. No software updates
are provided.
For product information please visit us at: www.motorolasolutions.com/governmentandenterprise.
You will receive instructions on how to ship the Products to Motorola Solutions. You must ship the
Products to us with freight, duties and insurance prepaid. Along with the Products you must include:
(a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description
of the problem; (c) the name of your service provider (if this Product requires subscription service);
(d) the name and location of the installation facility (if applicable) and, most importantly; (e) your
address and telephone number. If requested, you must also return all detachable parts such as
antennas, batteries and chargers. ALWAYS RETAIN YOUR ORIGINAL PROOF OF PURCHASE.
We will ship repaired or replacement Products at our expense for the freight and insurance, but at
your expense for any duties.
VI. What This Warranty Does Not Cover
• Products that are operated in combination with ancillary or peripheral equipment or software
not furnished by Motorola Solutions for use with the Products (“ancillary equipment”) or any damage
to the Products or ancillary equipment as a result of such use. Among other things, “ancillary
equipment” includes batteries, chargers, adaptors and power supplies not manufactured or supplied
by Motorola Solutions. Any of these voids the warranty.
• Someone other than Motorola Solutions (or its authorised service centres) tests, adjusts, installs,
maintains, alters, modifies or services the Products in any way. Any of these voids the warranty.
68012002078.book Page 8 Monday, October 10, 2016 7:01 PM

9
English
• Rechargeable batteries that: (a) are charged by other than the Motorola Solutions-approved
battery charger specified for charging such batteries; (b) have any broken seals or show evidence of
tampering; (c) are used in equipment other than the Product for which they are specified; or (d) are
charged and stored at temperatures greater than 60 degrees centigrade. Any of these voids the
warranty.
• Products that have: (a) serial numbers or date tags that have been removed, altered or obliterated;
(b) board serial numbers that do not match each other, or board serial numbers that do not match
the housing; or (c) non-conforming or non-Motorola Solutions housings or parts. Any of these voids
the warranty.
• Defects or damage that result from: (a) use of the Products in a manner that is not normal or
customary; (b) improper operation or misuse; (c) accident or neglect such as dropping the Products
onto hard surfaces; (d) contact with water, rain, extreme humidity or heavy perspiration; (e) contact
with sand, dirt or the like or (f) contact with extreme heat, or spills of food or liquid.
• Physical damage to the surface of the Products, including scratches, cracks or other damage to
a display screen, lens or other externally exposed parts.
• Failure of Products that is due primarily to any communication service or signal you may subscribe
to or use with the Products.
• Coil cords that are stretched or that have any broken modular tabs.
• Products that are leased.
Flat-rate repair rates may apply to Products not covered by this warranty. To obtain information
about Products needing repairs that are not covered by this warranty, please call the telephone
number previously listed. We will provide information on repair availability, rates, methods of
payment, where to send the Products, etc.
VII. Some Other Limitations
This is Motorola Solutions’ complete warranty for the Products and states your exclusive remedies.
68012002078.book Page 9 Monday, October 10, 2016 7:01 PM

10
English
This warranty is given in lieu of all other express warranties. Implied warranties, including without
limitation, the implied warranties of merchant ability and fitness for a particular purpose, are given
only if specifically required by applicable law. Otherwise, they are specifically excluded.
No warranty is made as to coverage, availability or grade of service provided by the Products,
whether through a service provider or otherwise.
No warranty is made that the software will meet your requirements or will work in combination with
any hardware or applications software products provided by third parties, that the operation of the
software products will be uninterrupted or error free, or that all defects in the software products will
be corrected.
In no event shall Motorola Solutions be liable, whether in contract or tort (including negligence) for
damages in excess of the purchase price of the Product, or for any indirect, incidental, special or
consequential damages of any kind, or loss of revenue or profits, loss of business, loss of
information or data, or other financial loss arising out of or in connection with the ability or inability to
use the Products, to the full extent these damages may be disclaimed by law.
VIII. Patent and Software Provisions
At Motorola Solutions’ expense, we will defend you and pay costs and damages that may be finally
awarded against you, to the extent that a lawsuit is based on a claim that the Products directly
infringe a patent. Our obligation is conditioned on: (a) you notifying us promptly in writing when you
receive notice of the claim; (b) you giving us sole control of the defence of the suit and all
negotiations for its settlement or compromise; and (c) should the Products become, or in Motorola
Solutions' opinion be likely to become, the subject of a claim of infringement of a patent, you permit
us, at our option and expense, either to: procure for you the right to continue using the Products;
replace or modify them so that they become non-infringing; or grant you a credit for such Products,
as depreciated, and accept their return. The depreciation will be an equal amount per year over the
lifetime of the Products, as established by Motorola Solutions.
68012002078.book Page 10 Monday, October 10, 2016 7:01 PM

11
English
Motorola Solutions will have no liability to you with respect to any claim of patent infringement that is
based upon the combination of the Products or parts furnished under this limited warranty with
ancillary equipment, as defined in Article VI above.
This is Motorola Solutions’ entire liability with respect to infringement of patents by the Products.
Laws in certain countries preserve for Motorola Solutions and other third party software providers
certain exclusive rights for copyrighted software, such as the exclusive rights to reproduce in copies
and distribute copies of such software. The software may be copied into, used in and redistributed
with only those Products that are associated with such software. No other use, including without
limitation, disassembly or reverse engineering of such software or exercise of exclusive rights in
such software is permitted.
Some countries and other jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages, or limitation on the length of an implied warranty, so the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights and you may also have
other rights, which vary from jurisdiction to jurisdiction.
Contact
Motorola Solutions EU contact address:
Motorola Solutions Germany GmbH
Am Borsigturm 130,
13507 Berlin, Germany
68012002078.book Page 11 Monday, October 10, 2016 7:01 PM

12
English
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylised M logo are trademarks or registered trademarks
of Motorola Trademark Holdings, LLC and are used under licence.
All other trademarks are the property of their respective owners.
© 2011, 2016 Motorola Solutions, Inc.
All rights reserved.
68012002078.book Page 12 Monday, October 10, 2016 7:01 PM

1
Dansk
VIGTIGE SIKKERHEDSINSTRUKTIONER
Dette dokument indeholder vigtige sikkerheds- og driftsinstruktioner.
Læs disse instruktioner omhyggeligt, og gem dem til senere reference.
Før du bruger batteriopladeren, skal du læse alle instruktionerne og
advarselsmarkeringerne på (1) opladeren, (2) batteriet og (3) på radioen,
som batteriet anvendes i.
1. For at reducere risikoen for personskade må du kun oplade de genopladelige batterier, som
Motorola Solutions har godkendt, og som er nævnt i dette dokument. Andre batterier kan
eksplodere og forårsage personskade og beskadigelse.
2. Brug af tilbehør, der ikke er anbefalet af Motorola Solutions, kan medføre en risiko for brand,
stød eller personskade.
3. Du kan reducere risikoen for beskadigelse af el-stikket og -ledningen ved at trække i stikket
og ikke i ledningen, når du frakobler opladeren.
4. Du bør ikke bruge en forlængerledning, medmindre det er absolut nødvendigt. Hvis du bruger
en upassende forlængerledning, kan det føre til risiko for brand og elektrisk stød. Hvis det er
nødvendigt at bruge en forlængerledning, skal du sikre, at ledningsstørrelsen er 18 AWG for
længder op til 2,0 m og 16 AWG for længder op til 3,0 m.
5. For at reducere risikoen for brand, stød eller personskade må du ikke bruge opladeren,
hvis den er gået i stykker eller er beskadiget. Bring den til en kvalificeret Motorola Solutions-
servicerepræsentant.
6. Adskil ikke opladeren; den kan ikke repareres, og der kan ikke fås reservedele til den.
Adskillelse af opladeren kan medføre risiko for stød eller brand.
7. For at reducere risikoen for stød skal du koble transformeren fra vekselstrømsbøsningen,
før du forsøger at udføre nogen form for vedligeholdelse eller rengøring.
032374o
ADVARSEL!
68012002078.book Page 1 Monday, October 10, 2016 7:01 PM

2
Dansk
RETNINGSLINJER FOR DRIFTSSIKKERHED
• Sluk radioen, mens du oplader batteriet.
• Opladeren er ikke egnet til udendørs brug. Brug den kun på tørre steder.
• Slut kun opladeren til en strømforsyning, der har korrekte sikringer, ledninger og korrekt spænding
(som specificeret på produktet).
• Kobl opladeren fra strømforsyningen ved at tage hovedstikket ud.
• Den udgang, som dette udstyr er tilsluttet, skal være i nærheden og være lettilgængeligt.
• Den maksimale omgivelsestemperatur omkring strømforsyningsudstyret må ikke overstige 40 °C.
• Sørg for, at ledningen er placeret et sted, hvor man ikke kan træde på den, falde over den, og hvor den
ikke bliver udsat for vand eller belastninger og ikke bliver beskadiget.
BATTERIER GODKENDT AF MOTOROLA SOLUTIONS
STRØMFORSYNINGER GODKENDT AF MOTOROLA SOLUTIONS
Sætnr. Beskrivelse
HKNN4013_ CLP Series-li-ion-batteri med høj kapacitet
HKNN4014_ CLP Series-li-ion-standardbatteri
Sætnr. Beskrivelse
PS000042A12 Strømforsyningsadapter til EU i CPL-serien
PS000042A13 Strømforsyningsadapter til Storbritannien i CPL-serien
NNTN7880_ CLP Series SUC-holder
68012002078.book Page 2 Monday, October 10, 2016 7:01 PM

3
Dansk
Bemærk! Ved opladning af et batteri, der er sat i en radio, skal du slukke radioen for at sikre en fuld
opladning. Radioen passer i holderen, når den placeres nedadvendt i holderen.
Opladning med isætningsopladeren til en enkelt enhed (SUC)
1. Placer isætningsopladeren på en flad overflade.
2. Sæt stikket fra strømforsyningen i Micro USB-porten på forsiden af isætningsopladeren.
3. Slut den korrekte strømforsyning til en passende jævnstrømsstikkontakt.
4. Sæt radioen i holderen, og sørg for, at radioen vender nedad, og at opladningskontakterne på
opladeren er justeret med kontakterne på radioen.
Sætnr. P/N IXPN4028_
68012002078.book Page 3 Monday, October 10, 2016 7:01 PM

4
Dansk
Kloning af radioer vha. opladeren til én enhed (SUC)
1. Frakobl alle kabler (strømforsyning eller USB-kabler) fra opladere til en enkelt enhed.
2. Slut den ene ende af kloningskablet (med mikrostikket) til en oplader til en enkelt enhed.
Slut den anden ende til den anden oplader til en enkelt enhed.
Bemærk! Under kloningsprocessen sendes ingen strøm til opladeren til en enkelt enhed. Batterierne oplades
ikke. Der oprettes en datakommunikation mellem de to radioer.
3. Tænd for ”målradioen”, og placer den nedadvendt i én af opladerne til en enkelt enhed.
4. På ”kilderadioen” skal du tænde radioen ved at følge nedenstående sekvens: • Tryk og hold
på PTT (Push-to-Talk) og knappen ”-” samtidigt, mens du tænder radioen, indtil du hører
kloningstonen og ser den blinkende, dobbelte gule på den smarte statusindikator.
5. Placer ”kilderadioen” nedadvendt i opladeren til en enkelt enhed med et lydtilbehør, og tryk
og slip derefter knappen Menu for at starte kloningen.
6. Når kloningen er gennemført, afspiller ”kilderadioen” enten en ”bestået”-tone (kloningen
lykkedes) eller en ”fejl”-tone (kloningen mislykkedes). Bestået-tonen lyder som en ”kvidrelyd”,
mens ”fejl”-tonen lyder som en ”dump” lyd. (Der lyder en tone i maksimalt fem sekunder).
Kloningskabel HKKN4026_
(ikke inkluderet)
68012002078.book Page 4 Monday, October 10, 2016 7:01 PM

5
Dansk
Når du har gennemført kloningsprocessen, skal du slukke og tænde radioerne for at stille dem
i normal brugertilstand (afslut kloningstilstanden).
LED-indikatorer for opladningsstatus
På SUC-enheden har radioopladningspladsen en LED-indikator. LED-indikatorerne er grupperet
i par for at vise, hvilke opladningspladser er parrede. LED-indikatoren er rød, når batteriet lades op,
og skifter så til grøn, når batteriet er fuldt opladet.
ANSLÅET OPLADNINGSTID
Opladertype Standard
li-ion
Li-ion med høj
kapacitet
Oplader til en
enkelt enhed 4 timer 5,5 timer
68012002078.book Page 5 Monday, October 10, 2016 7:01 PM

6
Dansk
LED-INDIKATOR FOR OPLADER
LED-INDIKATOR FOR RADIO
Status LED for status Kommentarer
Opladning
Konstant
rød
indikation
Opladeren lader i øjeblikket op.
Opladning
fuldført
Konstant
grøn
indikation
Batteriet er fuldt opladet.
Fejl
i batteri
Blinker
rødt
Batteriet var fejlbehæftet ved
isætning. Problemet kan ofte
løses ved at udtage batteripakken
og sætte den i igen.
Status LED for status Kommentarer
Kloning Blinker
gult Kloning i gang.
68012002078.book Page 6 Monday, October 10, 2016 7:01 PM
