Preface
Motorola Bluetooth Headset HS801 is a cordless mobile solution built on
Bluetooth wireless technology. Please read the instructions before using your
headset.
How to Use Your Headset?
Your Wirelss Headset equipped with Bluetooth technology lets you
connect with other similarly equipped devices such as Motorola A760 series,
V500 or V600 with integrated Bluetooth technology.
What is Bluetooth Wireless Technology?
Bluetooth wireless technology propels you into a new dimension in connectivity.
Bluetooth devices communicate without wires, using built-in radio transceivers
that operate on a globally available radio frequency to ensure worldwide
compatibility. Your Bluetooth Wireless Headset can communicate with other
Bluetooth devices within a range of approximately 10 meters (33 feet).
Note: .HS801 is equivalent to CHYN4590A

2
Operating Your Headset
Overview
To be able to use the headset together with a mobile phone, or any device to be
compatible with Bluetooth wireless technology and the Headset Profile.
Use your phone hands free.
Handle incoming and outgoing calls with the headset multifunction control
button (MFB).
Use voice activation to make calls.
Note: The HS801 supports both Headset and Hands Free Bluetooth Profiles for increased functionality
and compatibility with more products. for more information.Note: Please consult your phone user's guide

3
1
2
3
4
5
6
7
8
1
2
3
48
7
5
6

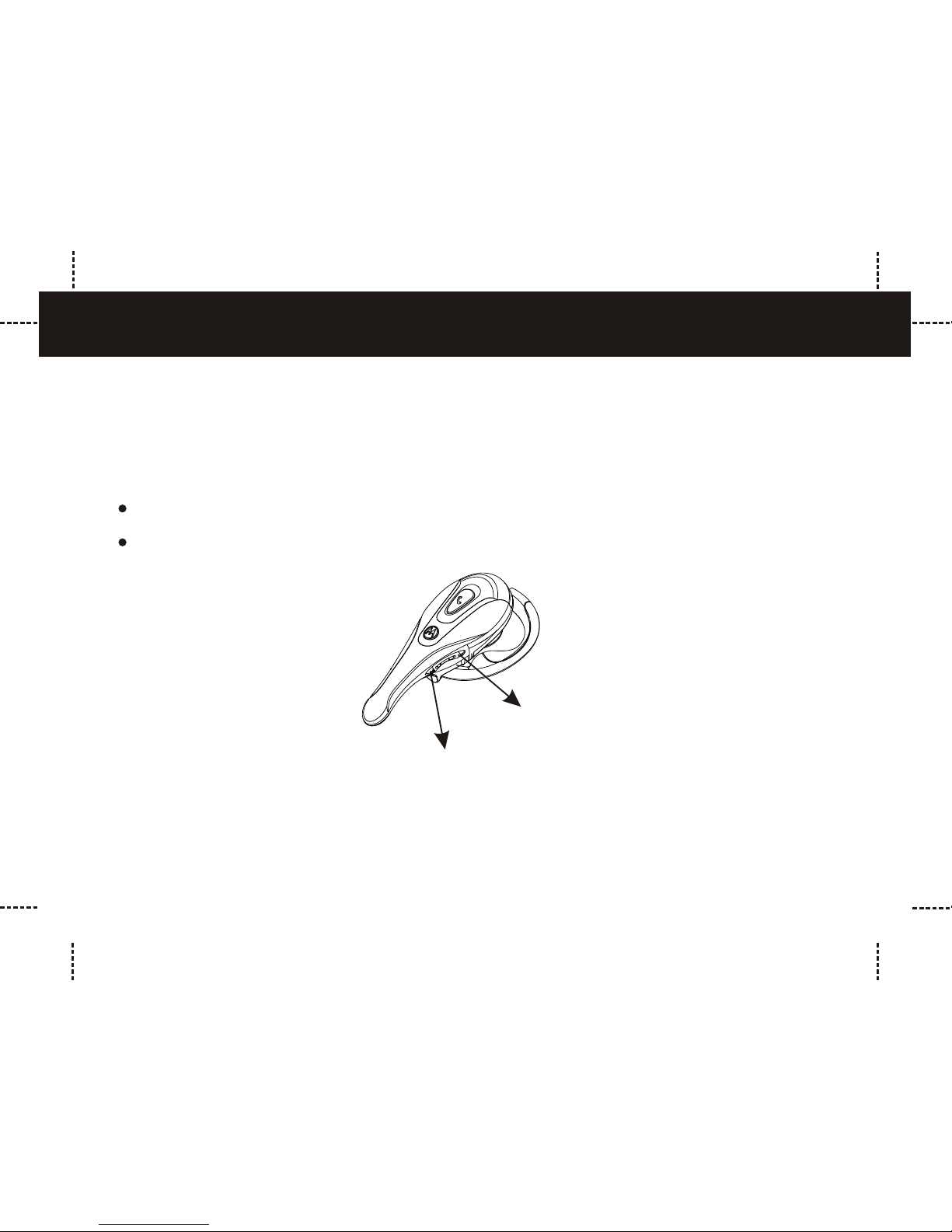

Headset Features
Indicator LED Provides visual cue about headset status.
Volume down key Adjusts speaker (receive) volume down.
Volume up key Adjusts speaker (receive) volume up.
Multi-function button (MFB) Controls several headset functions.
Microphone Picks up your voice input.
Speaker Plays the sound you receive on the call.
Earhook Attaches headset to ear.
Charging Port Receives the plug for your battery charger.
Operating Your Headset

4
Charging Your Headset
First Time Use Before you can use your headset, you need to charge its
self-contained Li-ion battery for 24 hours.
After the battery is fully charged, the indicator LED will turn off.
Do not charge for more than 24 hours.
It takes 1-1.5 hours
to fully charge the battery.
Recharging When you hear 5 rapid beeps through the headset speaker,
repeated at 20-second intervals, the headset battery needs to be charged.
You could only use the headset for about 10 minutes after the beeps.
Over extended periods of time, batteries gradually wear down and require
longer charging times. This is normal.
The more you talk on the phone with the headset, the less standby time your
battery has.
Operating Your Headset

5
How to Charge
Step
1Plug the Motorola charger into the headset, with the charger's release tab
facing up and the headset facing down.
2
After a full charge, remove the charger from the electrical outlet, press the
release tab, and detach the charger cord from the headset.
Wearing the Headset
When packaged, the headset is configured for wearing on the right ear.
Note: Please use Motorola travel charger to the headset.
Operating Your Headset

6

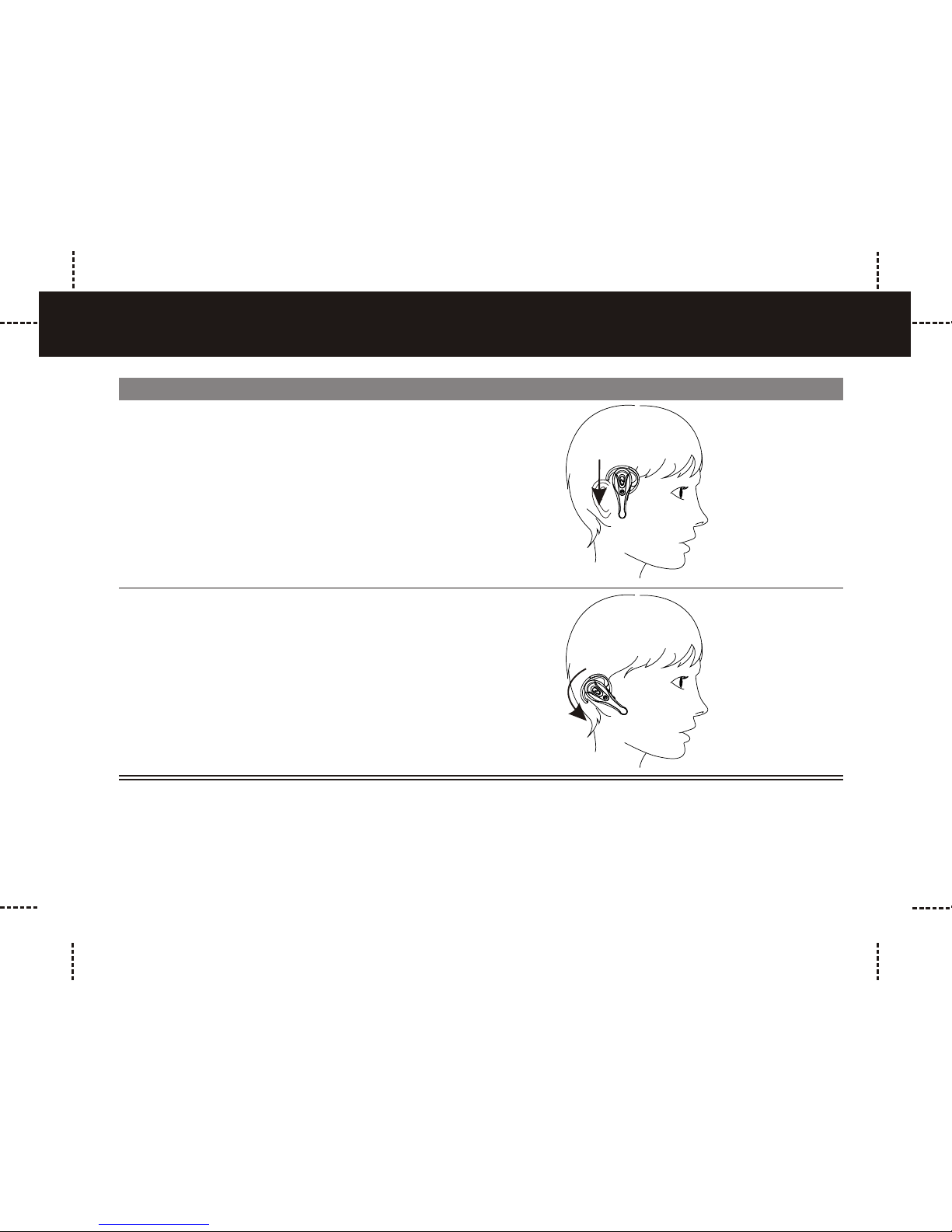

Step
1Hook the headset vertically on your
right ear.
2Turn your headset toward back, and
point the microphone toward your
mouth.
Operating Your Headset

7
Right or Left Ear
The direction of the ear clip has to be changed should you decide to wear the
headset on your left ear.

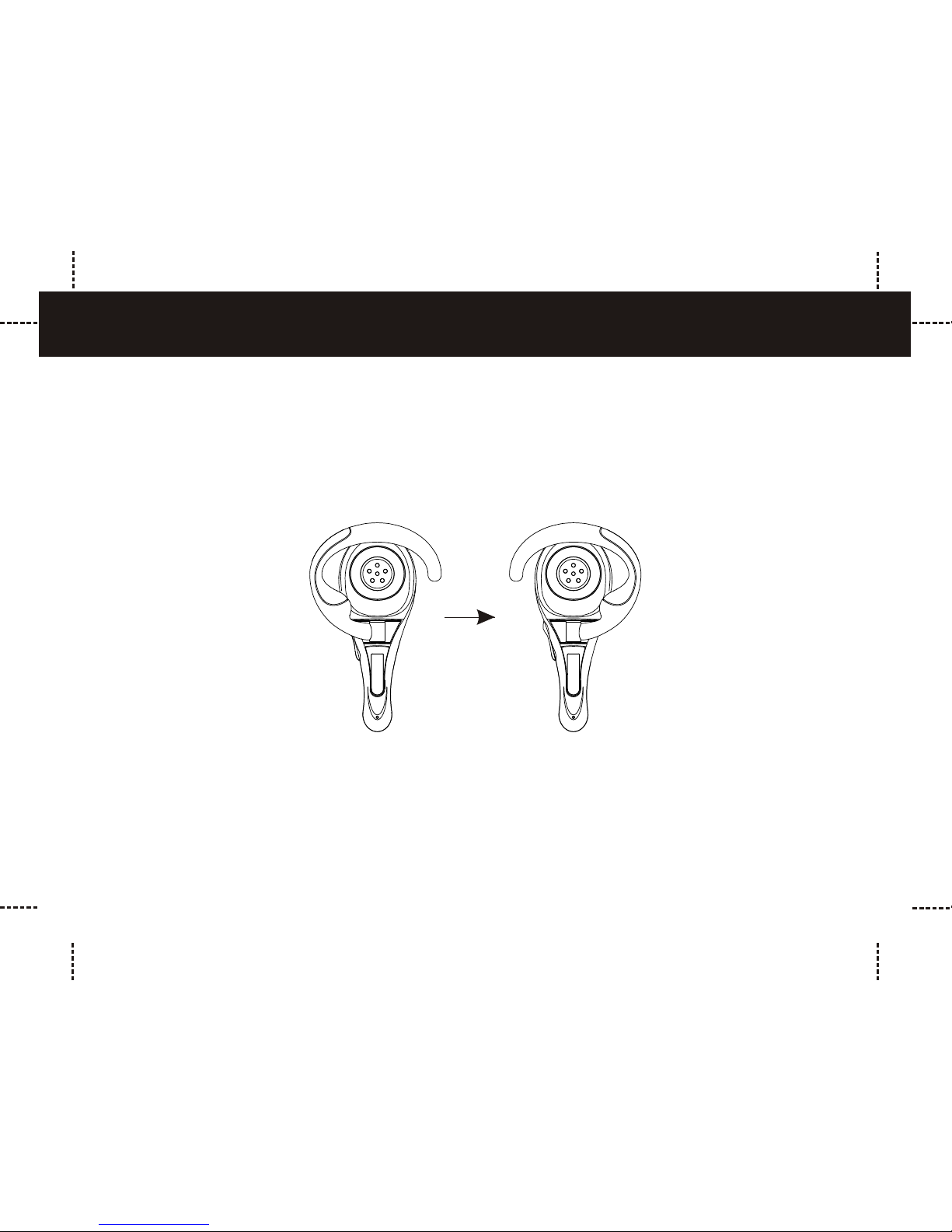

To Adjust the Ear Clip for Left-ear Use:
Operating Your Headset

8
Turning the Headset On or Off
To Turn the Headset On
Press and hold the headset MFB and side key (Volume down key or Volume up
key) together for more than 2 seconds, then the headset will light up. About 3
seconds later, the indicator LED will begin flashing, and you could start the
operation.
To Turn the Headset Off
Press and hold the headset MFB and side key (V
) together, the indicator LED will change from flashing to steady before
turning off.
olume down key or Volume up
key
Pairing Your Headset and Phone
"Pairing" creates a link between devices equipped with Bluetooth wireless
technology and allows the phone to remember the headset's unique ID; you
could add it to a list of paired device in the phone. The headset should be
paired once with the phone before use. If the pairing information or log is
deleted from the phone, the headset must be paired again with the phone
Operating Your Headset

9
Pairing
With the headset and phone in close proximity:
Step
1While the headset is on, press and hold side key (Volume down key or
Volume up key). After the indicator LED lights up steadily, the headset is in
pairing mode.
2Perform a device discovery from the phone.
3Select the Motorola HS from the discovered devices list and confirm the
following on screen prompts.
4When prompted by the phone, enter the passkey 0000 and the headset will
confirm to pair successfully with 5 rapid flashes.
Note: 1.Make sure the headset and the device you are using with are no more than 10 m./33 ft. apart, so
they are within operable range.
2.If the headset is not successfully paired within 1 minute, it will automatically leave pairing mode.
If you still want pairing, please restart the steps of pairing mode again. For details on device
discovery for your phone, please refer to the user's guide for the phone.
Note: 1.
Note:
Note: 2.
Note: 2.
before use. Once your headset and phone are paired, your headset could
easily connect to your phone.
Operating Your Headset

10
Volume Adjustment
Headset listening volume can be adjusted during a call.
Volume up key
To Adjust the Listening Volume
To turn down the volume, press the headset Volume down key.
To turn up the volume, press the headset Volume up key.
Volume down key
Operating Your Headset

11
Placing and Receiving Calls
Your headset supports both Hands Free and Headset Profiles. Accessing call
functions depends on which profile your phone supports.
You can activate call functions for both Hands Free and Headset Profiles
according to the following table:
Note: 1.Some phones do not support all features listed. Please consult your phone user's guide.
2.Note:
Note: 2.
Note: 2.
Note: 2.
When pressing the Multi-function button, short press and long press are possible. Short press
refers to duration less than 1 second. Long press refers to duration more than 1 second. After
short press, you should hear 1 beep to confirm the operation. After long press for more than 1
second, you should hear 1 beep. You can then release the button to confirm the operation.
Function Phone Headset Hands Free Profile Headset Profile
ActionDevice Status
Enter pairing
mode On On
Long press side key (Volume down key
or Volume up key) 2 seconds until LED
remains light
Leave pairing
mode On On
Long press side key (Volume down key
or Volume up key) 2 seconds until LED
returns to flash
Operating Your Headset

Function Phone Headset Hands Free Profile Headset Profile
ActionDevice Status
End a call On On-in call Short press MFB Short press MFB
Redial a
number
On-voice
dialing
turned
on or off
On Long press MFB
Short press MFB
(recalls last number)
, short press MFB
again (confirm the
number and send)
(depends on phone)
Put active
call on hold On-in callOn Long press MFB
Dial a
number
On-user
dials
number
On N/A
Short press MFB,
(call is sent)
(depends on phone)
N/A
Make a voice
dial call OnOn
Short press MFB,
speak name, phone
dials call
Short press MFB,
speak name, phone
dials call
(depends on phone)
12
Operating Your Headset

13
Function Phone Headset Hands Free Profile Headset Profile
ActionDevice Status
Toggle
between two
active calls
On-in call
2nd call on
hold
On Long press MFB
Transfer call
from phone
to headset
On-in call On
Short press MFB,
(call transferred
to headset)
Reject a call On
On-phone
rings Long press MFB
On-in call
2nd call
coming in
Answer 2nd
incoming call On
Long press MFB,
(place 1st call on
hold, answer
incoming call)
N/A
N/A
N/A
Receive a
call On
On-phone
rings
Short press MFB
(call is answered)
Short press MFB
(call is answered)
(depends on phone)
Short press MFB,
(call transferred
to headset)
Operating Your Headset
