1 Safety Regulations
1.1 Correct Use
The SavOx or SavOx Industry self-rescuer are respiratory protection devices
[chemical oxygen apparatus] for self-rescuing which is independent of the ambient
atmosphere. It protects the wearer of the devices during escape from a dangerous
ambient atmosphere or whilst waiting for rescue from poisonous gases, toxic parti-
cles and oxygen depletion. It is to be used exclusively for selfrescue under danger-
ous conditions and is not intended for long-term use.
The SavOx is carried at the belt. The SavOx Industry is carried over the shoulder.
The devices described in this operating manual comply with the European Directive
89/686/EEC [PPE Directive].
The device is developed for one mission, used devices must always be replaced,
reuse is not permitted.
It is imperative that this operating manual be read and observed when using the
product. In particular, the safety instructions, as well as the information for the use
and operation of the product, must be carefully read and observed. Furthermore,
the national regulations applicable in the user's country must be taken into account
for a safe use.
Alternative use, or use outside this specification will be considered as non-compli-
ance. This also applies especially to unauthorised alterations to the product and to
commissioning work that has not been carried out by MSA or authorised persons.
Warning!
The device may only be used once and must never be reused. Used or
opened devices must be replaced by new devices.
Danger!
This product is supporting life and health. Inappropriate use, mainte-
nance or servicing may affect the function of the device and thereby se-
riously compromise the user's life.
Before use the product operability must be verified. The product must
not be used if the function test is unsuccessful, it is damaged, a compe-
tent servicing/maintenance has not been made, genuine MSA spare
parts have not been used.

Safety RegulationsMSA
SavOx / SavOx Industry
GB 5
1.2 Liability Information
MSA accepts no liability in cases where the product has been used inappropriately
or not as intended. The selection and use of the product are the exclusive respon-
sibility of the individual operator.
Product liability claims, warranties also as guarantees made by MSA with respect
to the product are voided, if it is not used, serviced or maintained in accordance with
the instructions in this manual.
1.3 Safety and Precautionary Measures
Attention!
Chemical Oxygen Escape Devices used in mining may be subject to par-
ticular Mining-Regulations that are to be observed.
There is an ignition danger in case the device is destroyed and the oxy-
gen generating chemical comes into contact with combustible substanc-
es,e.g. coal.
Also observe official regulations applicable in the country of use.
Attention!
Defective devices must not be used!
Removed defect devices from service and return them to MSA for
inspection.

MSA
Description
SavOx / SavOx Industry
6GB
2 Description
2.1 Overview

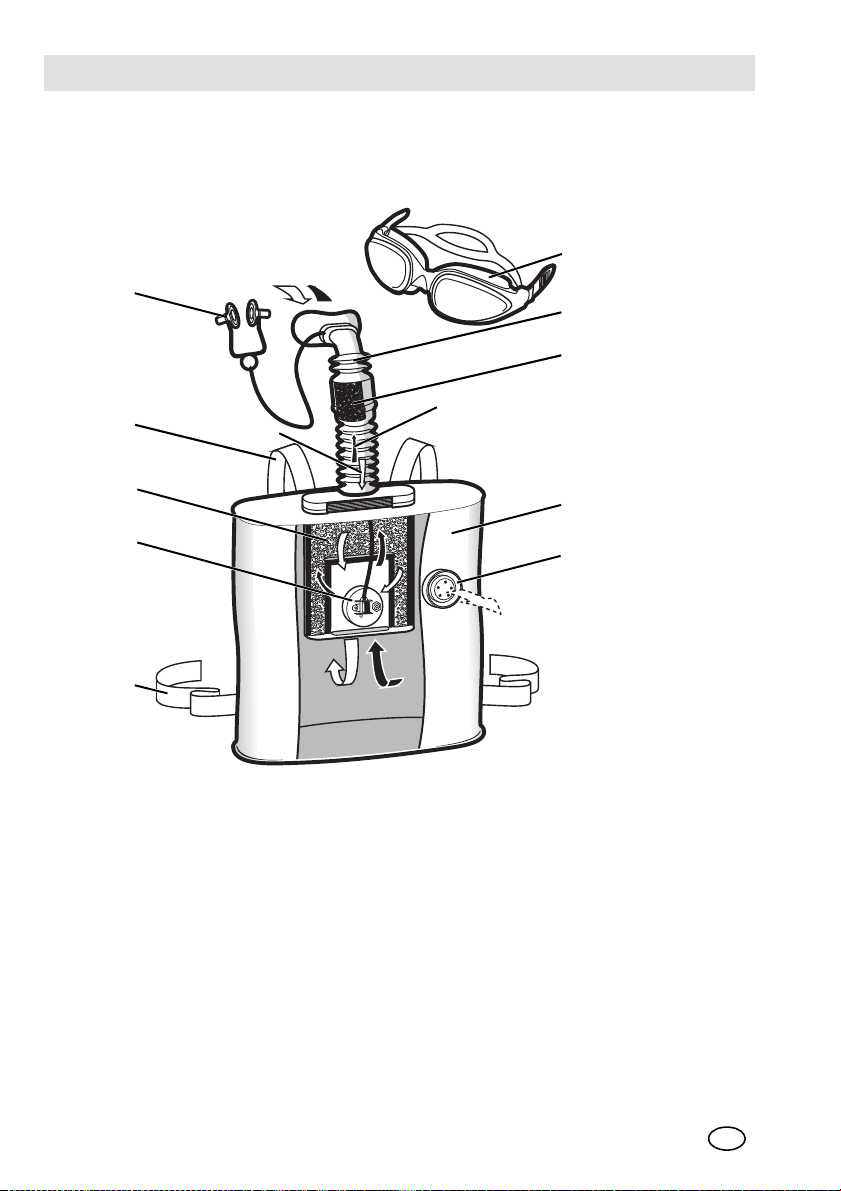

Fig. 1 Design of the device
The device is contained in an enclosed and sealed sturdy stainless steel container.
The device includes a chemical canister with potassium hyperoxide [KO2], which is
required for the regeneration of the exhaled air.
A Inhalation 5 Pressure relief valve
B Exhalation 6 Waist belt
1 Gas protective goggles 7 Starter
2 Breathing tube with mouthpiece 8 KO2-canister
3 Heat exchanger 9 Neck strap
4 Breathing bag 10 Nose clip
1
4
5
6
7
9
2
B
8
10
A
3

DescriptionMSA
SavOx / SavOx Industry
GB 7
After starting the device by pulling out the breathing tube the device it is directly
ready for use. During the escape, the device supplies the wearer with breathable
air which is prepared in the KO2canister.
Normally the SavOx is carried at the belt. The SavOx Industry is carried over the
shoulder. Both devices can be stored on vehicles.
2.2 Function
The device supplies the wearer with oxygen which is created from the chemical po-
tassium hyperoxide [KO2]. In an emergency, the container is opened and the res-
piratory protection device is taken out.
The device has a closed breathing circuit. When in operation, the exhaled air is
transferred into the chemical canister with the potassium hyperoxide. The potassi-
um hyperoxide reacts with the humidity and the carbon dioxide of the exhaled air
and, at the same time, creates oxygen and heat. The air for inhalation prepared in
this way is fed into the breathing bag and is then inhaled again.
The amount of resulting oxygen depends on the intensity of respiration. Increased
respiration [more carbon dioxide, more humidity] increases the formation of oxygen
or vice versa.
When the device is used for breathing, the KO2canister warms up, as does the in-
halation air, gradually. This is normal and indicates the correct operation of the de-
vice.
The end of oxygen supply is indicated by increase of the inhalation resistance.
The device is equipped with a starter which starts automatically when the breathing
tube is pulled. After starting it fills additional oxygen into the breathing bag.
Warning!
The device must only be opened for use!
Otherwise humidity from the ambient air can penetrate the open device
and affect the performance.
Used or opened devices must be replaced by new devices.

MSA
Description
SavOx / SavOx Industry
8GB
2.3 Marking/Certification
The devices are classified according to EN 13794 and marked with the type
[code letter] and nominal duration [minutes]. The type, nominal duration and refer-
enced standard are marked on the device.
The device is marked as follows:
2.4 Demonstration and Training Device
There are different demonstration and training devices for the SavOx Industry TR
and SavOx TR.
The demonstration and training device can be used for demonstration and practise
of wearing and breathing without using a chemical canister. The inhalation air is tak-
en from the ambient air and the exhalation air is expelled outside.
The demonstration and training device is comparable in size, weight, external con-
struction, handling and breathing resistance to the emergency use devices.
To distinguish it from the emergency use devices, the demonstration and training
device has marked blue.
Marking
Device upper side bottom side
MSA AUER
SavOx MSA AUER
Serial No.
Date of manufacture
SavOx
EN 13794 K/30/S
MSA AUER
SavOx Industry MSA AUER
Serial No.
Date of manufacture
SavOx Industry
EN 13794 K/30/S
Marine equipment directive: 96/98/EC
Approved by SOLAS 74/88 Section II-2/13,
latest version.
0736/XX
For the demonstration and training device the breathing air is taken from
the ambient atmosphere, i.e. training must be made in environments
free from contamination.

UseMSA
SavOx / SavOx Industry
GB 9
3Use
3.1 Important Escape Rules
The devices protects the wearer during escape from a dangerous ambient atmos-
phere. During the escape, the following rules must always be observed:
3.2 Carrying the Device
Carrying the SavOx
(1) Pull the waist belt through the belt loops.
(2) Close the belt.
Carrying the SavOx Industry
(1) Clip the snap hook of the shoulder strap into the lifting eye.
(2) Close the neck strap.
1. Stay calm!
2. Choose the shortest route to safe ambient air!
3. Breathe calmly! Extra air will be consumed if breathing is fast and irregular.
4. Do not damage or compress the breathing bag, otherwise lifesaving oxygen
may be lost!
5. The mouthpiece must be tight between teeth and lips and be tightly en-
closed with the lips.
The device must always be available for emergencies. The device can
be put into operation with a few simple hand movements in about
20 seconds.

MSA
Use
SavOx / SavOx Industry
10 GB
3.3 Donning the Device
Donning the SavOx
Opening the Container
(1) Push the locking lever in the direction of the
arrow until the seal breaks and locking device
falls off.
Removing the Device
(2) Grasp container cover with one hand.
(3) Pull out the device by the neck strap with the
other hand.
(4) Discard container cover.
Donning the Neck Strap
(5) Take off the protective helmet, if used.
(6) Place the neck strap around the neck.
The valve of the bag must be visible on the
front of the bag.
Do not adjust neck strap!
(7) Put the protective helmet on.

UseMSA
SavOx / SavOx Industry
GB 11
Detaching the Device
(8) Detach device from mouthpiece plug.
Activating the Device
(9) Grasp breathing tube at the mouthpiece.
(10) Fully extend the breathing tube to activate the
starter.
A drop in pull resistance indicates the start-
er is initiated.
Inserting the Mouthpiece
(11) Place mouthpiece into mouth with flange of
mouthpiece between teeth and lips.
(12) Bite down on the two lugs.
(13) Exhale into the device.
So the breathing bag is inflated.
It might be necessary to unfold the breath-
ingbag by hand.

MSA
Use
SavOx / SavOx Industry
12 GB

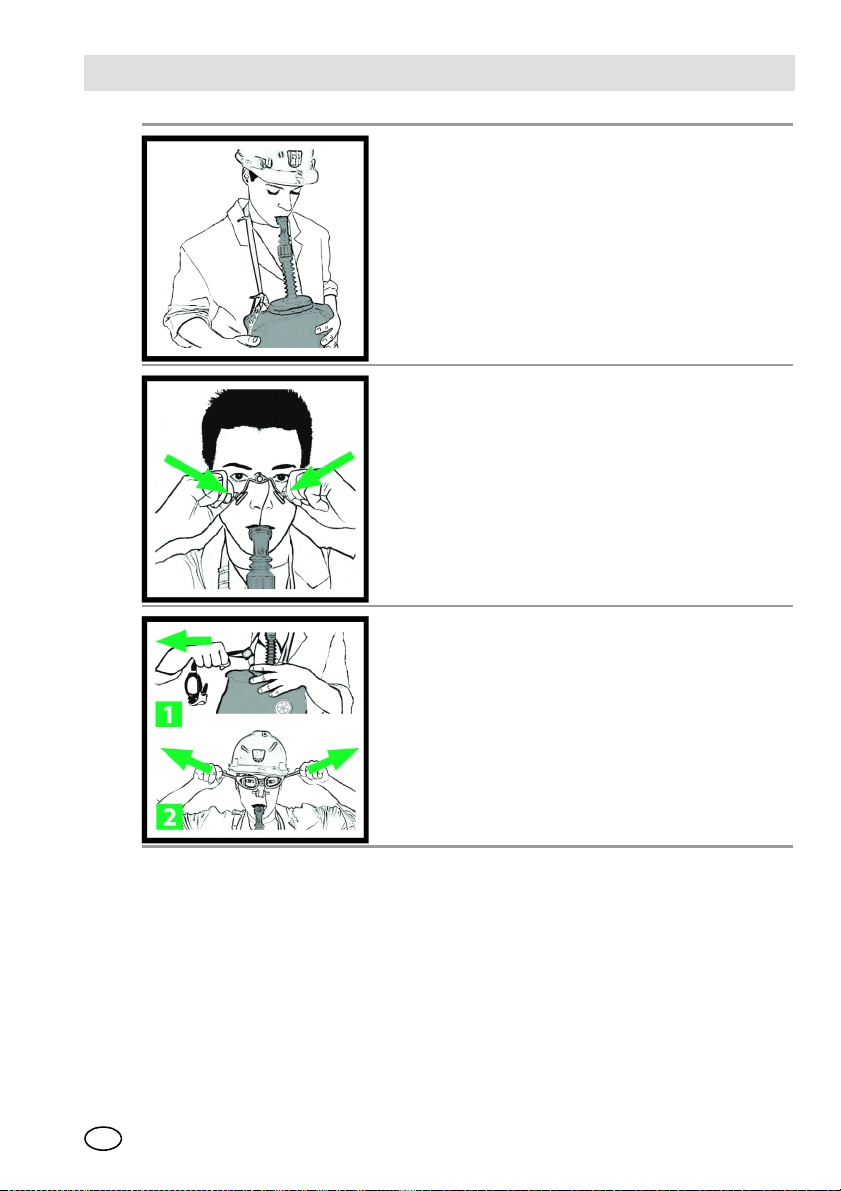

Fit the Nose Clip
(14) Grasp nose clip by rubber pads, pull nose
pads apart and fit them onto nose.
Removing and Fitting the Goggle
Note: Goggle is on the right side of the neck strap.
(15) Grasp the goggle strap and pull to remove the
goggle from neck strap.
(16) Fit the goggle.
(17) Tighten goggle straps.
Adjusting the Neck Strap
(18) Adjust neck strap.
Ensure that the head is able to move freely.

UseMSA
SavOx / SavOx Industry
GB 13
Donning the SavOx Industry
Tying the Waist Belt
(19) Tie waist belt and tighten with knot.
Opening the Container
(1) Push the locking lever in the direction of the
arrow until the seal breaks and locking device
falls off.
Removing the Device
(2) Grasp container cover with one hand.
(3) Pull out the device by the neck strap with the
other hand.
(4) Discard container cover.

MSA
Use
SavOx / SavOx Industry
14 GB
Donning the Neck Strap
(5) Take off the protective helmet, if used.
(6) Place the neck strap around the neck.
The valve of the bag must be visible on the
front of the bag.
Do not adjust neck strap!
(7) Put the protective helmet on.
Detaching the Device
(8) Detach device from mouthpiece plug.
Activating the Device
(9) Grasp breathing tube at the mouthpiece.
(10) Fully extend the breathing tube to activate the
starter.
A drop in pull resistance indicates the start-
er is initiated.

UseMSA
SavOx / SavOx Industry
GB 15
Inserting the Mouthpiece
(11) Place mouthpiece into mouth with flange of
mouthpiece between teeth and lips.
(12) Bite down on the two lugs.
(13) Exhale into the device.
So the breathing bag is inflated.
It might be necessary to unfold the breath-
ingbag by hand.
Fit the Nose Clip
(14) Grasp nose clip by rubber pads, pull nose
pads apart and fit them onto nose.
Removing and Fitting the Goggle
Note: Goggle is on the right side of the neck strap.
(15) Grasp the goggle strap and pull to remove the
goggle from neck strap.
(16) Fit the goggle.
(17) Tighten goggle straps.

MSA
Use
SavOx / SavOx Industry
16 GB

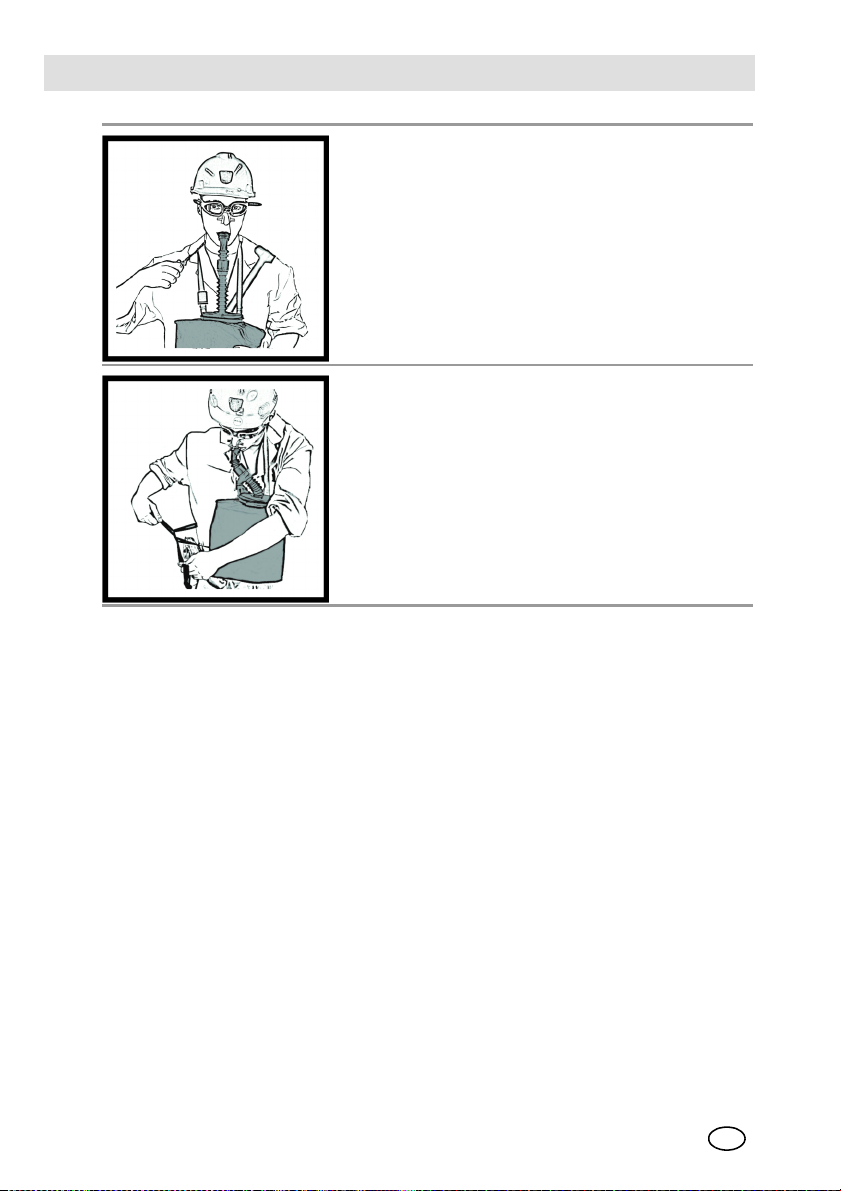

Adjusting the Neck Strap
(18) Adjust neck strap.
Ensure that the head is able to move freely.
Tying the Waist Belt
(19) Tie waist belt and tighten with knot.

Maintenance and CleaningMSA
SavOx / SavOx Industry
GB 17
4 Maintenance and Cleaning
4.1 Maintenance Instructions
To maintain readiness for use, the device must be inspected regularly, checked for
integrity, tightness and, if necessary, cleaned [do not use metal brushes!].
As the device contains a chemical which is sensitive to moisture, it is packed in an
airtight container and is sealed at the factory.
The frequency of inspection depends on the device load [chapter 4.5].
For used and/or opened devices, the chemical canister must always be replaced,
reuse is not permitted. Internal checks and any repairs to the devies are to be car-
ried out by the MSA Customer Service or authorized service centers.
4.2 Return of Used Device
For return of used or opened devices, observe the following:
- Pack the device and components in the device containers only after they have
cooled down and are dry.
- No organic substances must enter the chemical canisters [e.g. solvents, oils,
etc.].
- Observe transport regulations [chapter 5].
If the complete device cannot be packed in the container, the following procedure
is required:
- Remove the chemical canister from the device:
(1) Therefor loosen the clamp and remove the breathing bag and breathing tube.
(2) Pack the chemical canister inside the container and seal with the original lock-
ing assembly of the container.
Do not use finely cutted filling material.
- Place the other components of the device with the closed container in a carefully
packed package.
- The components must be complete and undamaged.

MSA
Maintenance and Cleaning
SavOx / SavOx Industry
18 GB
4.3 Tightness Test
The tightness test of the device is carried out using the MSA tightness tester for
chemical oxygen breathing protection apparatus. Detailed descriptions of the struc-
ture, function, use and maintenance of the tightness tester can be taken from the
relevant operating manual of the tightness tester [chapter 8].
The tightness test of the device is carried out as follows:
(1) Push the device without any straps into the tightness tester in such a way that
the cover points towards the door.
(2) Close the door and lock.
(3) Set timer to 90 s.
(4) Create overpressure with the lever, i.e. push the lever downwards until it
engages and start the timer at the same time.
(5) After 30 seconds, cover the black pointer with the red pointer.
(6) After a further 60 seconds, the timer signals the end of the test period. Then
read the pressure difference between the red and the black pointers.
The device is tight if the black pointer remains in the prescribed pressure range and
if the pressure difference is no more than 5 mbar.
If the pressure drop is more than 5 mbar, the unit must be replaced.
4.4 Indicator - applies only for SavOx
Perform an indicator check to controll if the device must be replaced. The indicator
is a circle with two semi-circles, the left side is the indicator, on the right side a com-
parison colour is shown.
A blue colour on the left side indicates a functionable device. A pink colour or col-
ourless indicator on the left side indicates, the device must be replaced. To verify
the colours, a comparison colour in pink on the right side is shown.
(1) Check the indicator on the left side.
(2) Compare the left side with the right side.
The colour of the left side must be blue.
Otherwise replace the device.

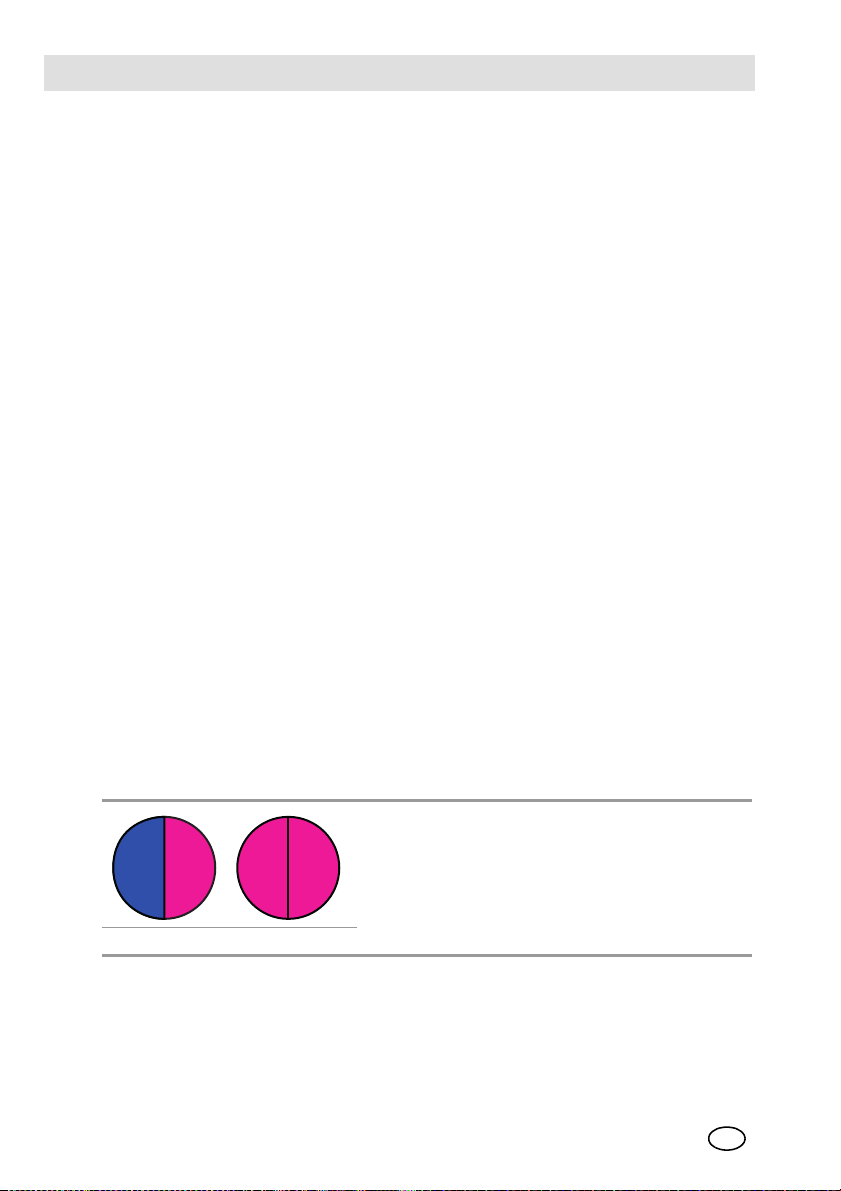

Blue / Pink Pink / Pink

Maintenance and CleaningMSA
SavOx / SavOx Industry
GB 19
4.5 Maintenance Intervals
4.6 Documentation
MSA recommends keeping a file for each device where the serial numbers, the
dates of manufacture and the dates and results of the inspections are recorded.
National regulation must be observed, e.g. control interval according
German Mining Regulation.
User specific conditions may require shorter intervals.
The service life depends on the type and kind of treatment to which the
device were subjected.
Intervals1
1. The intervals are based on the date of manufacture [month/year] on the con-
tainer. Devices manufactured in the same year are considered as "population"
and should be combined for inspection.
Inspection
Before and after carrying External visual check:
Check, that the seal is intact and that there are no
external damages on the device.
Annully Tightness check2
2. Tightness test with tightness tester D1118845 or by MSA Customer Service.
After 3 years3,4
3. It is recommended that a service contract with MSA Customer Service is made.
4. If the inventory of devices is less than ten devices the inspection after 3 years is
not necessary. A complete inspection of the whole inventory of devices is nec-
essary after 5 years.
Tightness check2and complete check5of 3% of the
representative population of devices which are carried
along or stored on vehicles.
5. Complete check = Internal inspection and check. The result will decide whether
the device can be used further.
After 5 years3Tightness check and complete check5of 3% of the
population.
After 7 years3Tightness check2and complete check5of 3% of the
population.
After 9 years Tightness check2and complete check5of 3% of the
population.
After 10 years Replace device, use no longer permitted.
