Chapter1
Getting Started
Congratulationsforpurchasing HetisG31 Series(MS-
6470)Barebone.HetisG31Seriesisyourbest SlimPC
choice.Withthefantasticappearanceand small form
factor,itcaneasilybesetanywhere.Thefeaturepacked
platformalsogivesyouanexciting PCexperience.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
This manual downloaded from http://www.manualowl.com
MS-6470Barebone
1-2
ProcessorSupport
-Intel SmithfieldPentiumD(8XX), PreslerPentiumD(9XX)and
CoreTM 2Duo /Core2Extreme/Core2Quad processorsinthe
LGA775package.
SupportedFSB
-800/1066/1333MHz
Chipset
-NorthBridge:Intel G31 Chipset
-SouthBridge:Intel ICH7Chipset
MemorySupport
-DDR2667/800 SDRAM(240-pin/ 1.8V)
-2DDR2DIMMs(4GBMax)(unbuffered non-ECC)
LAN
-SupportsGiga LANbyIntel 82573L
IEEE1394
-Chip integrated byVIA VT6308P
-Transferrateisup to400Mbps
Audio
-ChipintegratedbyRealtek ALC888
-Flexible8-channelaudiowithjacksensing
-CompliantwithAzalia1.0Spec
IDE
-1IDEportbyIntel ICH7
-SupportsUltraDMA66/100mode
-SupportsPIO, BusMasteroperationmode
SATA
-2SATAII portsbyIntel ICH7
-SupportstwoSATAdevices
-Supportsstorageanddatatransfersatup to300 MB/s
MainboardSpecifications
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
This manual downloaded from http://www.manualowl.com
Getting Started
1-3
Connectors
BackPanel
-1PS/2mouseport
-1PS/2keyboardport
-2serialports
-1VGAport
-1DVI port(Optional)
-1LANjack
-1IEEE1394port
-4USB 2.0ports
-6audiojacks
FrontPanel
-2audiojacks
-2USB 2.0ports
-1IEEE1394port
-1ChassisIntrusionSwitch
On-BoardPinheaders/Connectors
-1CD-Inconnector
-1CardReaderpinheader
-1SPDIF-Outpinheader
(ForHDMIGraphics CardAudioLineUseOnly)
Slots
-1PCI-XSlot(ForRiserCardUseOnly)
FormFactor
-Proprietary(334MM x190 MM)
Mounting
-5mounting holes
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
This manual downloaded from http://www.manualowl.com
MS-6470Barebone
1-4
1.Headphone(Green) 6.HDDLED
2.Microphone(Pink) 7.ODD Eject/Close Button
3.USB2.0Ports 8.OpticalDisk Drive(Optional)
4.IEEE1394Port 9.CardReaderDrive(Optional)
5.PowerButton/PowerLED
FrontView
SystemConfiguration
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
This manual downloaded from http://www.manualowl.com
Getting Started
1-5

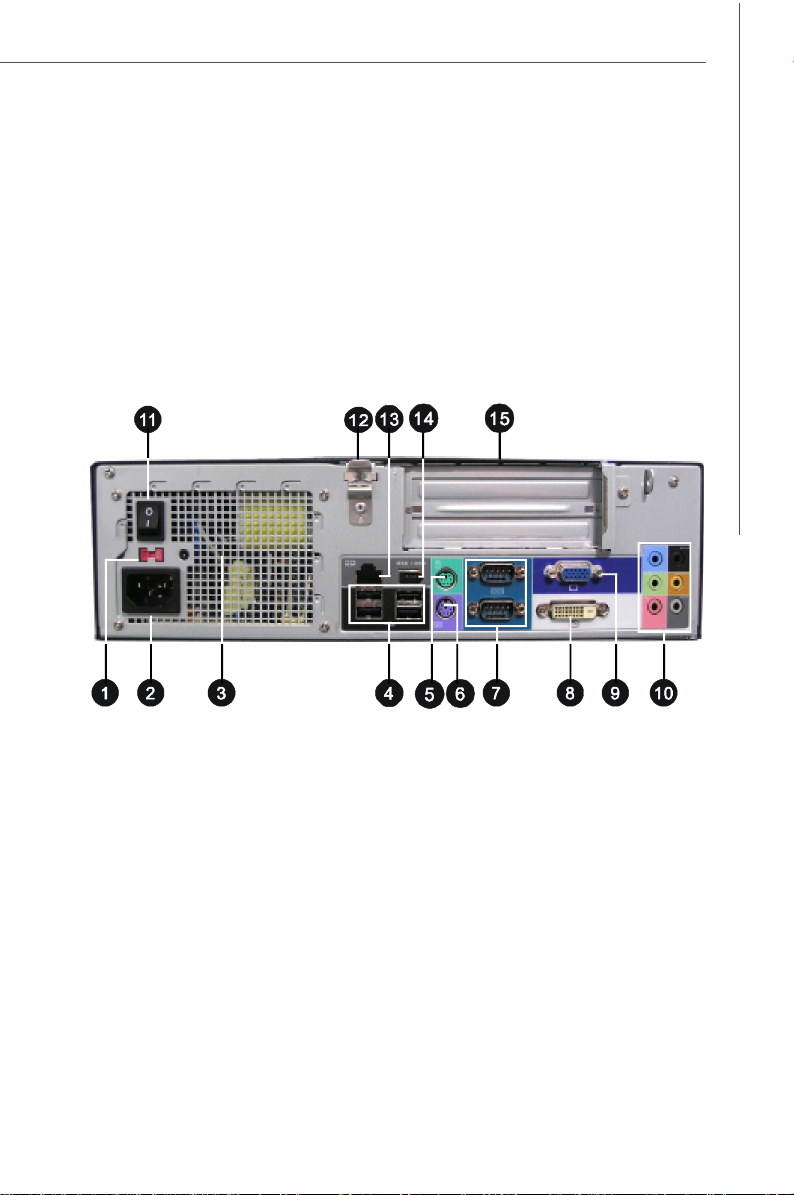

BackView
1.VoltageSelector 9. VGAPort
2.PowerJack 10.Audio Jacks
3.Ventilation Hole 11.PowerSwitch
4.USB2.0Ports 12.SupportBracketSpring
5.PS/2Mouse(Green) 13.LAN Jack (RJ45)
6.PS/2Keyboard(Purple) 14.IEEE1394Port
7.SerialPorts 15.ExpansionSlots
8.DVIPort(Optional)
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
This manual downloaded from http://www.manualowl.com
MS-6470Barebone
1-6
ChassisDesign
†Dimension:330MM(D)x320MM (W)x94MM (H)
†Minimized screwstructure
†Detachablebayhousing
†Multipleventilation holes

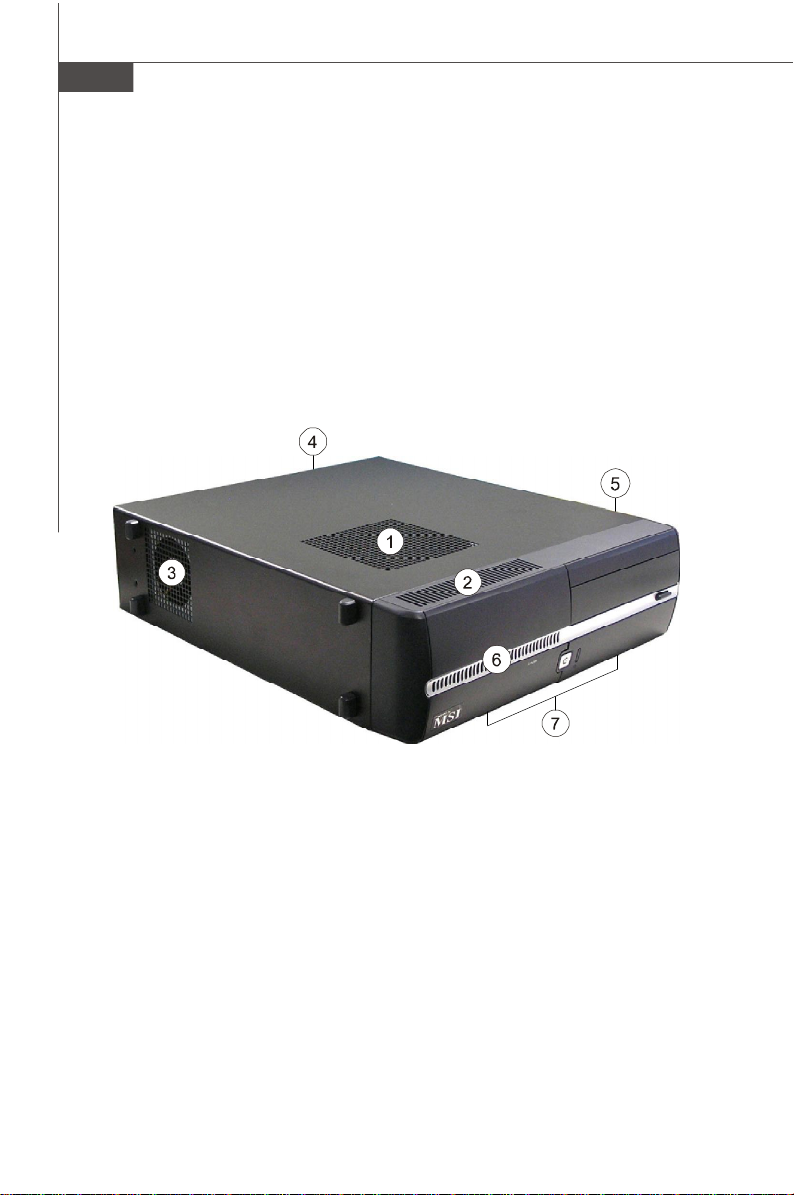

1.CPUFanVentilation Hole 5.SystemVentilation Hole
2.SystemVentilation Hole 6.SystemVentilation Hole
3.SystemFanVentilation Hole 7.SystemVentilation Hole
4.PowerSupplyVentilationHole
Back
Side
Bottom
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
This manual downloaded from http://www.manualowl.com
Getting Started
1-7
Topreventthesystemfromoverheating,wehaveadoptedaspeciallydesignedCPU
coolerand multipleventilationholesforbettercooling effects. Thefollowingfigures
illustratehowthesystemfaneffectivelyexhaustshotairthrough multipleventilation
holes.
CPUCoolerAirFlowDirection
ThermalSolution
AirOut
AirIn
AirOut
AirOut AirOut
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
This manual downloaded from http://www.manualowl.com
This manual downloaded from http://www.manualowl.com
This manual suits for next models
3
Table of contents
Other MSI Industrial PC manuals
