MSI MS-C902 User manual

MS-C902
Industrial Data Machine
User Guide

2Contents
Revision
V1.0, 2022/12
Contents
Safety Information........................................................................................................ 3
Regulatory Notices....................................................................................................... 5
System Overview .......................................................................................................... 7
Specifications ............................................................................................................. 11

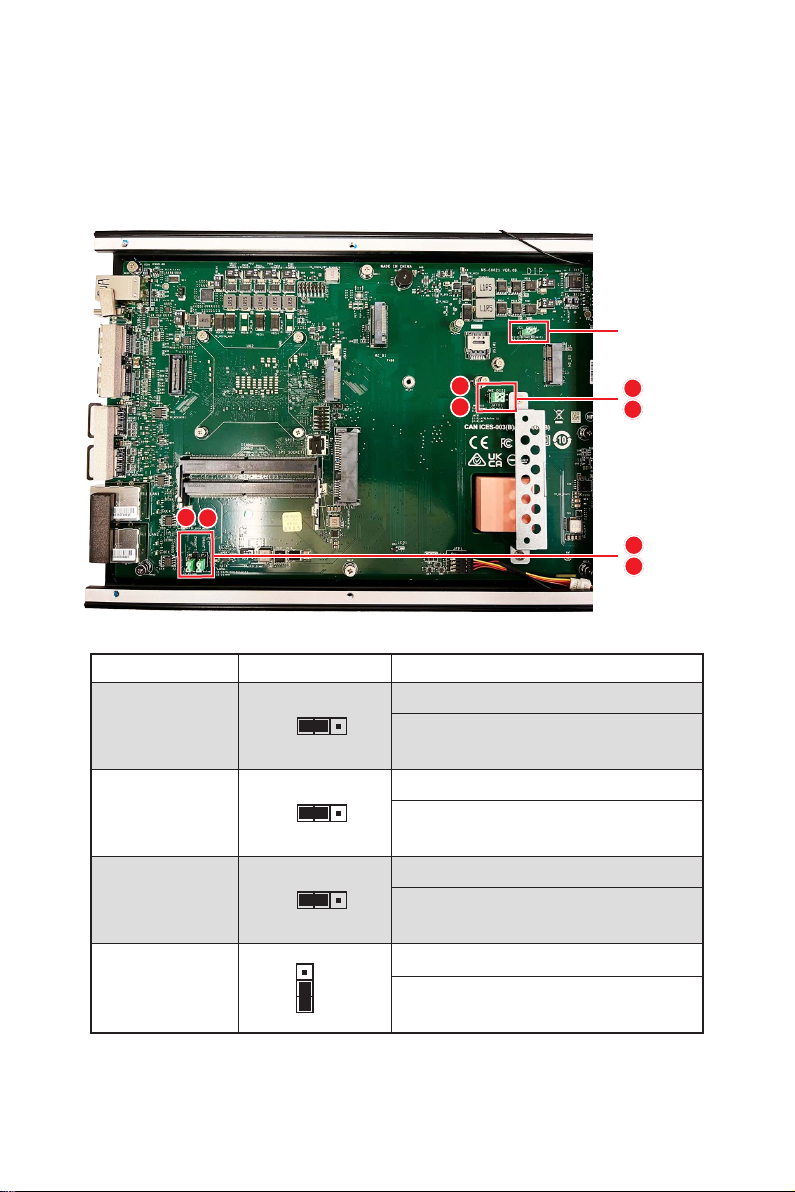

Motherboard Jumper................................................................................................. 13
Expansion Slot ............................................................................................................ 14
USIM1: Nano SIM Holder...................................................................................... 14
M.2 Slot (E Key, 2230) ............................................................................................ 15
M.2 Slot (B Key, 2242/ 3042).................................................................................. 15
Getting Started............................................................................................................ 16
Safety Precautions................................................................................................. 16

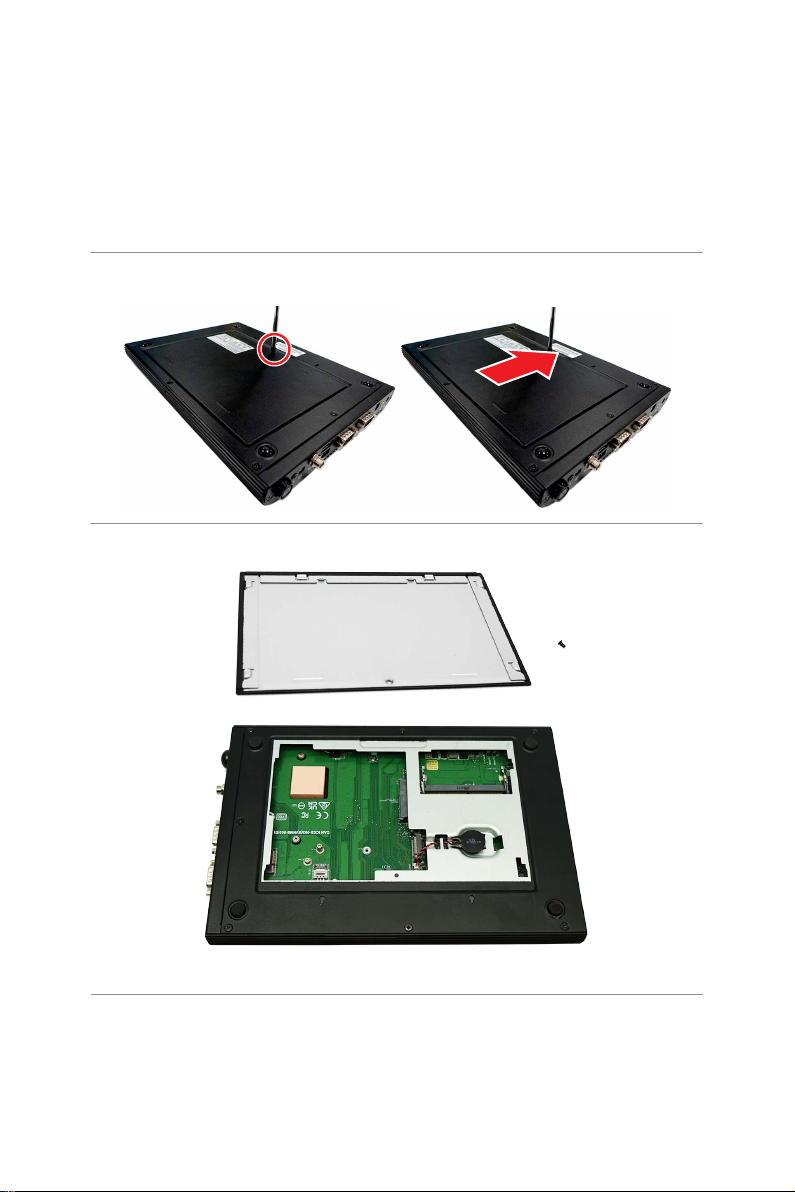

Removing System Cover............................................................................................ 17

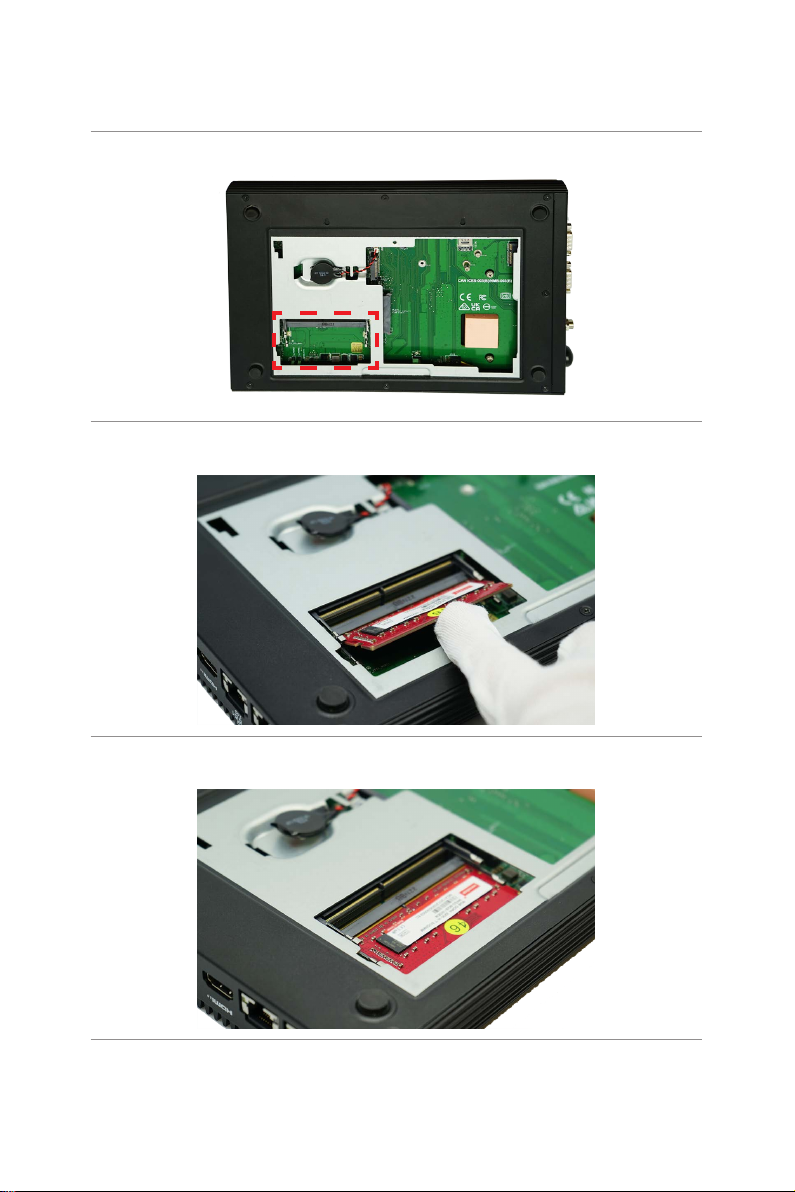

Installing Memory Module......................................................................................... 18

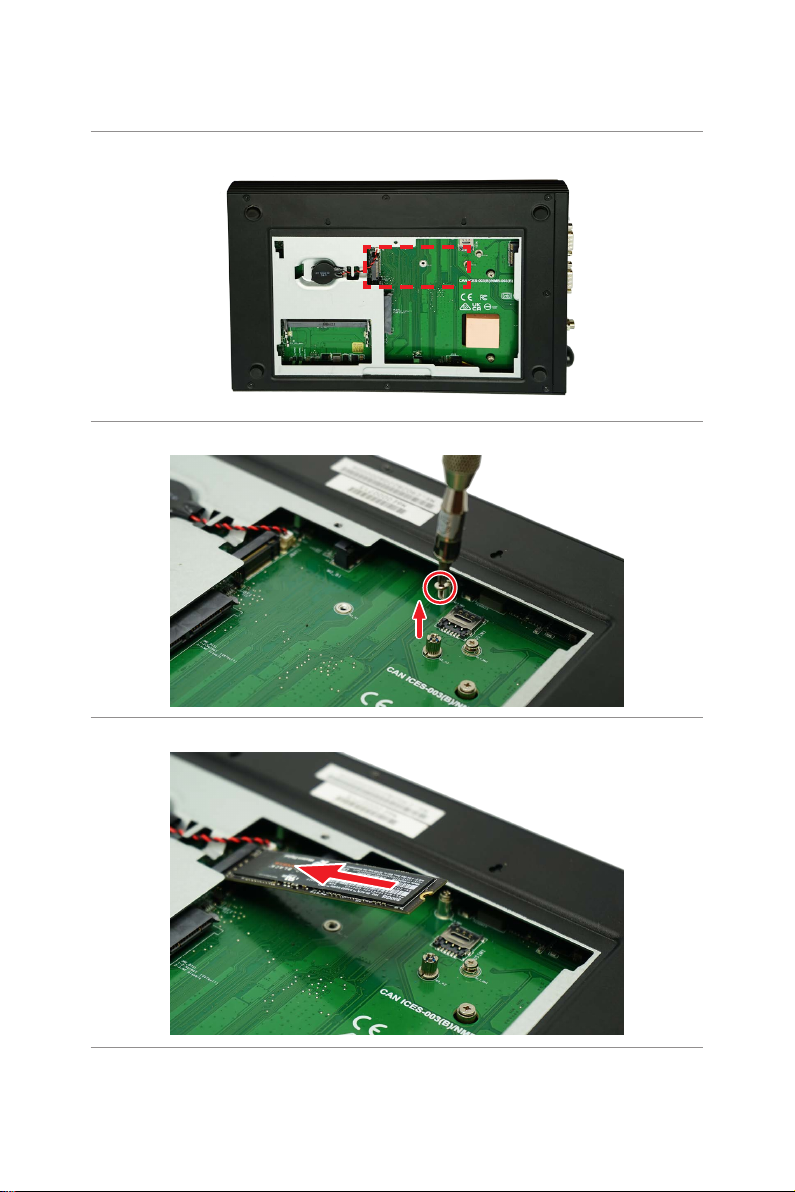

Installing SSD (M.2 M-Key Slot) ................................................................................ 20
Installing Wi-Fi Card (M.2 E-Key Slot) ...................................................................... 22
Installing 2.5” HDD/ SDD (7mm)............................................................................... 24
Removing System Case ............................................................................................. 26
Installing WWAN Card (M.2 B-Key Slot)................................................................... 28
Cable Connection for 5G Card (M.2 B-Key Slot) ...................................................... 30
VESA Mount................................................................................................................. 31

3
Safety Information
Safety Information
∙The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
∙Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
∙Hold the motherboard by the edges to avoid touching sensitive components.
∙It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap
is not available, discharge yourself of static electricity by touching another metal
object before handling the motherboard.
∙Store the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
∙Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
∙Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
∙If you need help during any installation step, please consult a certified computer
technician.
∙Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
∙Keep this user guide for future reference.
∙Keep this motherboard away from humidity.
∙Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
∙Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
∙All cautions and warnings on the motherboard should be noted.
∙If any of the following situations arises, get the motherboard checked by service
personnel:
• Liquid has penetrated into the computer.
• The motherboard has been exposed to moisture.
• The motherboard does not work well or you can not get it work according to user
guide.
• The motherboard has been dropped and damaged.
• The motherboard has obvious sign of breakage.
∙Do not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

4Safety Information
Battery Information
Please take special precautions if this product comes with a battery.
∙Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer.
∙Avoid disposal of a battery into fire or a hot oven, or mechanically crushing or
cutting of a battery, which can result in an explosion.
∙Avoid leaving a battery in an extremely high temperature or extremely low air
pressure environment that can result in an explosion or the leakage of flammable
liquid or gas.
∙Do not ingest battery. If the coin/button cell battery is swallowed, it can cause
severe internal burns and can lead to death. Keep new and used batteries away
from children.
European Union:
Batteries, battery packs, and accumulators should not be disposed of as
unsorted household waste. Please use the public collection system to
return, recycle, or treat them in compliance with the local regulations.
BSMI:
廢電池請回收
For better environmental protection, waste batteries should be collected
separately for recycling or special disposal.
California, USA:
The button cell battery may contain perchlorate material and requires
special handling when recycled or disposed of in California.
For further information please visit:
http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

5
Regulatory Notices
Regulatory Notices
CE Conformity
Hereby, Micro-Star International CO., LTD declares that this device is in
compliance with the essential safety requirements and other relevant
provisions set out in the European Directive.
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
measures listed below:
∙Reorient or relocate the receiving antenna.
∙Increase the separation between the equipment and receiver.
∙Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
∙Consult the dealer or an experienced radio/television technician for help.
Notice 1
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and AC power cord, if any, must be used in order to comply
with the emission limits.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
WEEE Statement
Under the European Union (“EU”) Directive on Waste Electrical and
Electronic Equipment, Directive 2012/19/EU, products of “electrical and
electronic equipment” cannot be discarded as municipal waste anymore
and manufacturers of covered electronic equipment will be obligated to
take back such products at the end of their useful life.

6Regulatory Notices
Chemical Substances Information
In compliance with chemical substances regulations, such as the EU REACH
Regulation (Regulation EC No. 1907/2006 of the European Parliament and the
Council), MSI provides the information of chemical substances in products at:
https://csr.msi.com/global/index
Green Product Features
∙Reduced energy consumption during use and stand-by
∙Limited use of substances harmful to the environment and health
∙Easily dismantled and recycled
∙Reduced use of natural resources by encouraging recycling
∙Extended product lifetime through easy upgrades
∙Reduced solid waste production through take-back policy
Environmental Policy
∙The product has been designed to enable proper reuse of parts and
recycling and should not be thrown away at its end of life.
∙Users should contact the local authorized point of collection for
recycling and disposing of their end-of-life products.
∙Visit the MSI website and locate a nearby distributor for further
recycling information.
∙Users may also reach us at [email protected] for information regarding proper
disposal, take-back, recycling, and disassembly of MSI products.
Copyright and Trademarks Notice
Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI
logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All
other marks and names mentioned may be trademarks of their respective owners. No
warranty as to accuracy or completeness is expressed or implied. MSI reserves the
right to make changes to this document without prior notice.
Technical Support
If a problem arises with your product and no solution can be obtained from the user’s
manual, please contact your place of purchase or local distributor. Alternatively,
please visit https://www.msi.com/support/ for further guidance.

7
System Overview
System Overview
1111
55
22334466
1111
771010 1111 1212 13138899

8System Overview
11
Wi-Fi Antenna Connector
These connectors allow you to connect sn external antenna for wireless
communication. User may find two on each side of the system.
22
2.5 Gbps LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
SPEED
LED
LINK/ACT
LED
LED Status Description
Link/ Activity LED
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Off 10/100 Mbps
Green 1 Gbps
Orange 2.5 Gbps
33HDMI™ Connector
Supports 4096x2304 @60Hz as specified in HDMI™ 2.0b.
44DisplayPort 1.4a
Supports a maximum resolution of 7680x4320 at 60Hz.
55
USB 3.2 Gen 2 Port (Type-C)
This connector is provided for USB peripheral devices, providing power up to
5V/3A. (Speed up to 10 Gbps)
66USB 3.2 Gen 2 Port
This connector is provided for USB peripheral devices. (Speed up to 10 Gbps)
77Line-Out Jack
This connector is provided for headphones or speakers.

9
System Overview
88
RS232/422/485 Serial Port
The serial port is a 16550A high speed communications port that sends/
receives 16 bytes FIFOs. It supports barcode scanners, barcode printers, bill
printers, credit card machine, etc.
1155
6699
RS232
PIN SIGNAL DESCRIPTION
1
2
3
4
5
6
7
8
9
NDCD
NSIN
NSOUT
NDTR
GND
NDSR
NRTS
NCTS
VCC_COM
Data Carrier Detect
Signal In
Signal Out
Data Terminal Ready
Signal Ground
Data Set Ready
Request To Send
Clear To Send
VCC_COM
RS422
PIN SIGNAL DESCRIPTION
1
2
3
4
5
6
7
8
9
422 TXD-
422 TXD+
422 RXD+
422 RXD-
GND
NC
NC
NC
NC
Transmit Data, Negative
Receive Data, Positive
Transmit Data, Positive
Receive Data, Negative
Signal Ground
No Connection
No Connection
No Connection
No Connection
RS485
PIN SIGNAL DESCRIPTION
1
2
3
4
5
6
7
8
9
TXD-
NC
TXD+
NC
GND
NC
NC
NC
NC
Transmit Data, Negative
No Connection
Transmit Data, Positive
No Connection
Signal Ground
No Connection
No Connection
No Connection
No Connection
99
USB 2.0 Port
This connector is provided for USB peripheral devices, providing power up to
5V/1.5A. (Speed up to 480 Mbps)
1010 DC Power Jack
Power supplied through this jack supplies power to the system.

10 System Overview
1111 Extend Switch Header
This header is provided for power switches.
1212
HDD Activity LED
This indicator shows the activity status of the HDD. It flashes when the system
is accessing data on the HDD and remains off when no disk activity is detected.
1313
Power Button/ Power LED
Press the button to turn the system on or off.
LED Status Description
Off ACPI S4/ S5/ Deep S5, Power Off
Blinking ACPI S3
Green ACPI S0

11
Specifications
Specifications
Model MS-C902
Processor ∙Intel® Alder Lake-P Platform U Series Processor
Memory Controller within processor
∙2 x DDR4 SO-DIMM slots
-Dual Channel for DDR4, Non-ECC
-Up to 3200 MT/s
-Up to 64 GB
Network 2 x Intel® I226-LM 2.5GbE RJ-45 LAN (Co-lay I226-V)
Audio Realtek® ALC888S High Definition Audio codec (Co-lay ALC897)
Graphics Engine within processor
∙2 x HDMI™ 2.0b up to 4096x2304 @60Hz
∙2 x DP 1.4a up to 7680 x 4320 @60Hz
-Supports DP++, High Bit Rate 3
∙4 independent display modes (2 x HDMI™, 2 x DP)
Storage Controller within processor
∙1 x SATA 3.0 (6Gb/s) port
-Hot-plug supported
∙1 x M.2 M Key (2242/ 2280) slot
-With PCIe Gen 4 x4 NVMe & SATA 3.0 signals
-Supports M/ B + M Key SSD devices
∙AHCI/ RAID 0/ RAID 1
-For SATA storage + M.2 M Key storage devices
Expansion Slots ∙1 x M.2 B Key (2242/ 3042) slot
-With PCIe x1, USB 3.2 Gen 2, USB 2.0 signals
-Shared with Nano SIM Holder
∙1 x M.2 E Key (2230) slot
-With PCIe x1 & USB 2.0 signal
-Supports CNVi
∙1 x Nano SIM Holder
-Shared with M.2 B key (SIM) slot
Wireless
Connection Wi-Fi/ Bluetooth/ 4G/ 5G
Power Solution ∙19V DC-in power connector, lockable

12 Specifications
Model MS-C902
Right Panel I/O ∙2 x Antenna connectors
∙2 x RJ-45 2.5 GbE LAN ports
∙2 x HDMI™ connectors
∙2 x DisplayPorts
∙1 x USB 3.2 Gen 2 Type-C connector (5V/3A)
∙1 x Dual USB 3.2 Gen 2 Type-A connector (5V/1.5A)
Left Panel I/O ∙2 x Antenna connectors
∙1 x Line-Out jack
∙2 x RS232/ 422/ 485 Serial ports
-0V/ 5V/ 12V, 0.5A each port
(selection by BIOS control, default: 0V)
∙1 x Dual USB 2.0 Type-A connector (5V/1.5A)
∙1 x DC power jack
∙1 x Extend switch header
∙1 x Hard disk drive (HDD) LED
∙1 x Power button/ Power LED
Dimension 285mm (W) x 196mm (D) x 29mm (H)
Weight 2.24kg
Mounting VESA mount
Accessories ∙1 x 19V, 90W Power Adapter
∙1 x EU Power Cord (by BOM option)
∙1 x USA Power Cord (by BOM option)
∙1 x VESA Mounting Bracket
∙4 x VESA Mounting Screws
∙2 x Antennas for WiFi/BT Module
OS Support Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Regulatory
Compliance
FCC Class B / CE / RCM / BSMI / VCCI / UKCA / IC / RoHS Compliant
Environment ∙Operating Temperature
--10 ~ 50°C (SSD)
∙Storage Temperature
--20 ~ 80°C
∙Humidity: 10 ~ 90%, non-condensing
∙Vibration: IEC 60068-2-64: 2 Grms, 5 ~500 Hz, 1hr/axis (w/ SSD)
∙Shock: IEC 60068-2-27: 50G, half sine, 11ms (w/ SSD)

13
Motherboard Jumper
Motherboard Jumper
⚠
Important
Avoid adjusting jumpers when the system is on; it will damage the motherboard.
2
22
2
1
11
1
JCL_CMOS1
JME_DIS1
LJNVM2
LJNVM1
JATX1
Jumper Name Default Setting Description
JCL_CMOS1 1
Clear CMOS Jumper
1-2: Normal (Default)
2-3: Clear CMOS
JME_DIS1 1
ME Jumper
1-2: Normal (Default)
2-3: ME disable
JATX1 1
ATX Mode Select Jumper
1-2: ATX mode (Default)
2-3: AT mode
LJNVM1
LJNVM2 1
NVM Jumper
1-2: Normal (Default)
2-3: NVM

14 Expansion Slot
Expansion Slot
M2_B1
M2_E1
USIM1
USIM1: Nano SIM Holder
This holder is provided for 3G, 4G, LTE, 5G Nano SIM cards.

15
Expansion Slot
M.2 Slot (E Key, 2230)
Please install the Wi-Fi/ Bluetooch card into the M.2 slot as shown below.
2
3
4
1
Feature
∙Supports PCIe x 1 & USB 2.0 signal.
∙Supports CNVi
M.2 Slot (B Key, 2242/ 3042)
Please install the WWAN Card/ solid-state drive (SSD) into the M.2 slot as shown
below.
2
3
4
1
Feature
∙Supports PCIe x 1, USB 3.2 Gen 2, USB 2.0 signals.

16 Getting Started
Getting Started
⚠
Important
All information is subject to change without prior notice.
Necessary Tools
Screwdriver Pliers Tweezers Anti-Static Gloves
Safety Precautions
The following precautions should be observed while handling the system:
∙Place the system on a flat and stable surface.
∙Do not place the system in environments subject to mist, smoke, vibration,
excessive dust, salty or greasy air, or other corrosive gases and fumes.
∙Do not drop or jolt the system.
∙Do not use another power adapter other than the one enclosed with the system.
∙Disconnect the power cord before performing any installation procedures on the
system.
∙Do not perform any maintenance with wet hands.
∙Prevent foreign substances, such as water, other liquids or chemicals, from
entering the system while performing installation procedures on the system.
∙Use a grounded wrist strap before handling system components such as CPU,
Memory, HDD, expansion cards, etc.
∙Place system components on a grounded antistatic pad or on the bed that came with
the components whenever the components are separated from the system.
⚠
Important
The system photos are provided for demonstration of system assembly only. The
internal view of your system may vary depending on the model you purchased.

17
Removing System Cover
Removing System Cover
⚠
Important
Before you remove or install any components, make sure the system is not turned on
or connected to the AC power.
1. Place the system on a flat and steady surface. Locate the screw on the back side,
and slightly pull aside to uncover the system.
2. Remove the cover carefully, and set the cover and screw aside for later use.
∙ Follow the above procedures in reverse order to install the cover.

18 Installing Memory Module
Installing Memory Module
1. Locate the SO-DIMM slot.
2. Align the notch on the memory module with the key on the slot and insert the
memory module into the slot at a 45-degree angle.
3. Push the memory module gently downwards until the slot clips click and lock
the memory module in place.

19
Installing Memory Module
4. Install more DIMMs if necessary.
∙ To uninstall the DIMM, flip the slot levers outwards and the DIMM will be released
instantly.
⚠
Important
∙ You can barely see the golden finger if the DIMM is properly inserted in the DIMM slot.
∙ Always insert memory modules in the lower slot first.
∙ To ensure system stability for Dual channel mode, memory modules must be of the
same type, number and density.

20 Installing SSD (M.2 M-Key Slot)
Installing SSD (M.2 M-Key Slot)
1. Locate the SSD slot.
2. Unlock the SSD screw, and keep the screw for later use.
3. Align the notch on the SSD with the key on the slot and insert the SSD into the slot.
