Inflatable PFD Owner’s Manual
MD3025 Manual Inflation Pouch Model
USCG Approved Type V,
Approved Only When Worn,
Special Use Device
DO NOT REMOVE PRIOR TO SALE.

DO NOT REMOVE PRIOR TO SALE.
This device will not inflate automatically upon immersion.
Tab must be pulled to activate inflation mechanism.
APPROVAL CONDITIONS AND CARRIAGE
REGULATIONS
This inflatable PFD is approved by the U.S. Coast
Guard for use as a Type V Personal Flotation
Device (PFD). It is not approved for water skiing
or other high impact, high speed activities.
This inflatable PFD was designed to be more
comfortable and less restrictive to wear than
inherently buoyant PFDs. When worn, used,
and serviced according to this owner’s manual,
this PFD can greatly increase your chances of
survival in the water. Not recommended for non-
swimmers or weak swimmers. Users of inflatable
PFDs must be at least 16 years old.
Why "Approved Only When Worn"?
This PFD requires more frequent checks than Type III Inflatable
PFDs with cylinder seal indicators or inherently buoyant PFDs. This
approval condition lets users overcome its design trait that would
otherwise prevent approval.
By wearing this PFD:
1) it gets needed extra attention associated with use
2) users get to know the disadvantages it has; and
3) safety increases enormously because user has it when needed.
When this PFD is not worn, it's less likely to be in working order
and cannot be counted as a PFD to meet the carriage requirements
on your boat.
p. 1

MANDATORY CARRIAGE REQUIREMENTS
Federal regulations in 33 CFR 175-1993 require you to carry Coast
Guard approved personal flotation devices (PFDs) legibly marked
with the Coast Guard approval number which are in good and
serviceable condition and are the correct size for each person on
board. To be considered serviceable, this PFD shall not exhibit
deterioration that could diminish its performance such as broken
or deformed hardware, detached webbing, rotted structural
components, air leaks, or nonfunctional oral inflation tube. Unless
worn, this PFD must also be properly armed with a full CO2
cylinder, inflation system status indicator, and an accessible manual
inflation lanyard. A PFD which is “approved only when worn” or
“required to be worn” must be worn under the specified conditions.
What is an Air-only PFD?
While traditional PFDs are inherently buoyant, air-only PFDs rely
entirely upon inflation for buoyancy. Uninflated, the inflatable PFD
is a comfortable, waist belt pack that can be inflated at any time
with a 33 gram CO2 gas cylinder. The inflatable PFD is designed
to meet the demands of a full protection PFD offering maximum
mobility with minimum bulk. The inflatable PFD can be inflated
either manually by jerking a pull tab, or orally by mouth. It is
recommended that you familiarize yourself with the procedures
outlined in INSTRUCTIONS FOR USE.
INSTRUCTIONS FOR USE
Sizing and Fit
The PFD provides 33.7 lbs of buoyancy and is designed for wearers
with a chest range of 30-52 inches weighing over 80 pounds.
p. 2

Check Your Inflatable PFD
Before Using it
After purchasing your inflatable PFD, make
sure it has an unused 33 gram CO2 cylinder
attached to the inflator mechanism (Fig. 1a).
Before each outing:
Check the components and how to assemble
the inflator by following these steps:
1) Undo the Velcro™flap on the back side
of the pouch to expose the bladder and
inflator
(Fig. 1b).
2) Unscrew and remove the CO2 gas cylinder
from the inflator and inspect its small end.
If it is pierced, replace it (Fig. 1c). Make sure
the CO2 cylinder is screwed hand-tight into
the inflator. Failure to do so may cause the
PFD to not inflate.
3) Make sure the manual lever is in the
up-and-ready position and the green
indicator pin is in place.
p. 3

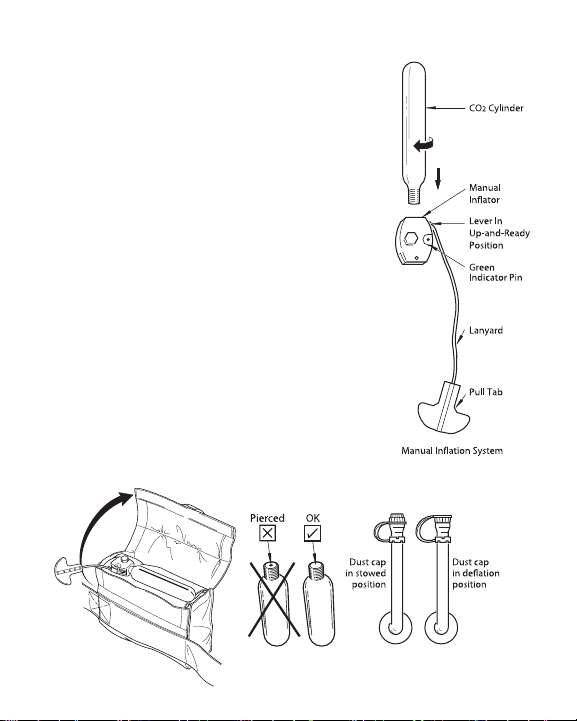

Fig. 1a
Fig. 1b Fig. 1c Fig. 1d

4) Check that the oral-inflation dust cap is properly in the
stowed position (Fig. 1d)
5) Repack the bladder into the pouch (see “Repacking your
inflatable PFD”). Make sure the pull tab is hanging freely
outside the pouch. If everything checks out according to the
preceding instructions, your inflatable PFD is ready for use.
Donning Instructions
It is important that the PFD is properly adjusted to fit the person
wearing it. An incorrect fit or improper fastening of attachments
could impede its effectiveness.
1) All belts and straps are already threaded correctly and only
need to be adjusted for fit. The MD3025 waist belt should fit
securely below your rib cage.
2) Put the inflatable Pouch PFD on just like a standard waist belt
pack, and fasten the front buckle. Adjust waist belt to a snug,
comfortable fit, and secure the belt’s loose end in the belt
loop. Do not wear inflatable PFDs under clothing, as the
inflation could be restricted, or you could be injured (Fig. 2,
Steps 1 and 2).
p. 4
Fig. 2

Deployment and Use of the PFD (Fig. 2, Steps 3-6).
Inflating then donning
1) Either pull on the yellow strap to bring out the bladder, then
inflate orally, or pull sharply on tab to inflate.
2) Put over head.
3) Tie the tie tapes at neckline.
Donning then inflating
1) Pull on the yellow strap to bring out the bladder
2) Put over head.
3) Pull sharply on tab to inflate or inflate orally.
4) Tie the tie tapes at neckline.
Inflating Your PFD
It is recommended that the following procedures are followed to
inflate your PFD:
1) Manual inflation
Actuate the inflation system by jerking firmly downward on
the pull tab. The PFD should fully inflate within 5 seconds
(Fig. 3a).
2) Oral inflation
Properly armed and inspected, manual inflatable PFD models
will inflate. However, should inflation not occur, or in a non-
emergency situation, you can fully inflate the PFD by mouth
(Fig. 3b). To orally inflate the PFD, first pull on the yellow
strap to bring out the bladder and locate the oral inflation
tube on the wearer’s left front panel of the PFD. Then remove
the dust cap from the end of the oral tube and blow into the
tube until the PFD is fully inflated.
p. 5

Information: The carbon dioxide used to inflate PFDs will
slowly permeate through the fabric cell over time. A slight
reduction of pressure will be observed after several hours of
inflation. Topping up by oral inflation may be required in the
event of very prolonged immersion.
Rearming Your PFD After Manual Inflation
1) Unscrew and inspect the CO2 cylinder. If used or damaged,
discard the CO2 cylinder (Fig 1c).
2) Check the manual lever to ensure it is in the up and ready
position with the green indicator pin properly installed. If the
green indicator pin is missing or damaged, replace it (Fig.
4a).
3) Install an unused CO2 cylinder
by screwing it into the top of
the inflator and hand-tighten.
Do not over-tighten, as this
can damage the internal
gasket.
4) Refold the PFD in accordance
with the repacking
instructions in the Owner’s
Manual.
Your PFD is now ready for use.
p. 6
Fig. 3a
Fig. 4a
Fig. 3b

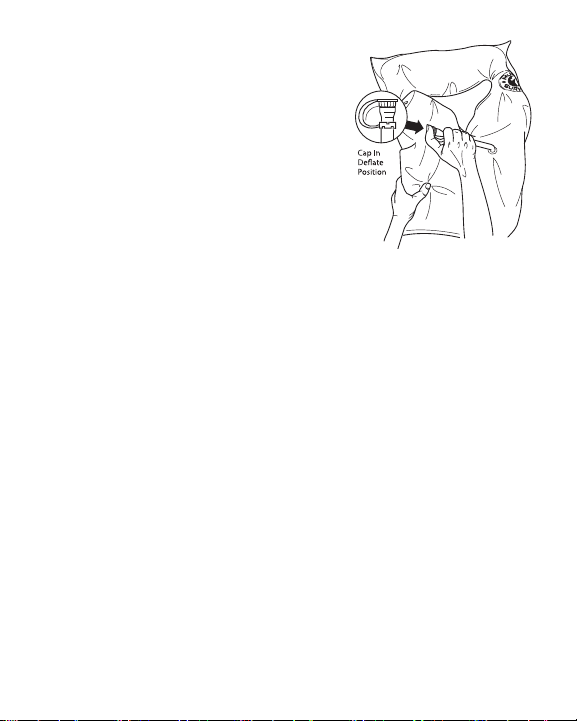

Deflating the Buoyancy Cell
To deflate the buoyancy cell, reverse the
oral-inflation tube dust cap and insert
it into the valve or depress valve with
fingertip. The dust cap will not lock in the
deflate position so it is necessary to hold
it in place (Fig.5). Gently squeeze the
cell until all air or gas has been expelled.
Put the inflation tube dust cap back in its
normal position on the oral inflation tube
(Fig.1d).
Repacking Your Inflatable PFD
Before repacking, completely deflate the inflation cell. Force excess
air out through the inflation tube (Fig. 5). Do not wring cell. Put
the inflation tube cap back in the normal stowed position (Fig. 1d).
Note: Before following the repacking sequence, be sure to
properly rearm your inflatable PFD .
Warning: Ensure the lanyard and pull tab are not twisted around the
inflator or cylinder before re-packing. Ensure attachment webbing,
between the bladder and pouch, is not twisted before re-packing.
1) Lay the bladder and pouch out on a flat surface with the
bladder’s inflator and oral tube facing the flat surface (Fig.6a).
2) Fold the bladder into thirds using the dotted lines printed on
the bladder. Start with Fold #1, then Fold #2. Ensure the tie
tapes and whistle are folded in (Fig.6a).
3) Starting at the top of bladder, make your next fold at the dotted
line screened on the bladder (Fig 6b, Fold #3). Fold on the next
dotted line (Fold #4). Continue folding the bladder toward the
pouch (Fig.6c).
p. 7
Fig. 5

4) Without twisting, fold the bladder over once and place into the
center of the pouch between the two wings (Fig.6d). Ensure
the yellow inflator pulltab is positioned so it hangs out from the
upper left hand corner (above left side wing).
5) Fold both side wings on top of the bladder and secure wingtips
together with Velcro™at ends. (Fig.6d)
6) Fold the lower flap up and secure both side edges to wings
with Velcro™. (Fig.6d)
7) Fold the upper flap down onto the lower flap and secure with
the Velcro™running across the width of the pouch (Fig.6d).
Ensure the yellow inflator pulltab is still hanging out of the
upper left corner (lower right corner when donned as in Fig.6e).
p. 8
Fig. 6a Fig. 6b Fig. 6c
Fig. 6d Fig. 6e

Usage Below Freezing
When the temperature is below freezing, a fully discharged
cylinder may not adequately inflate your PFD. Do not use your PFD
under these conditions unless it is already partly inflated.
Warning: CO2 inflation could over-pressurize and damage your
PFD if already fully orally inflated.
IS YOUR PFD IN GOOD AND SERVICEABLE
CONDITION?
Check your PFD between outings to be sure that it is properly
armed; that it is free of rips, tears or holes; that all seams are
securely sewn; and that the fabric, straps and hardware are still
strong. Inspect the inflatable portion of the PFD in accordance
with the CARE AND MAINTENANCE INSTRUCTIONS.
CARE AND MAINTENANCE INSTRUCTIONS
The buoyancy cell and inflation system should be checked at least
every three months. In addition, the following maintenance should
be performed after each time you wear or inflate the PFD.
1) Remove and inspect the CO2 cylinder from the inflator.
2) Check all components for dirt or corrosion. Clean or replace.
3) Check that the CO2 cylinder has not been pierced. Replace
with Mustang 33 gram CO2 cylinder if necessary (contained in
inflatable accessory pack MA7113.)
4) Check the manual lever to ensure it is in the up and ready
position with the green indicator pin properly installed.
p. 9

5) To check the oral inflation valve, fully inflate PFD and hold valve
under water. If bubbles appear, deflate and reinflate to test
again. Should the leak persist, take your inflatable PFD to your
dealer for proper servicing.
6) Visually examine your PFD for damage or excessive abrasion,
wear, tear or contamination. Particular attention must be paid
to the stitching. If in doubt, send it to your Mustang dealer for
evaluation and/or servicing.
7) Reassemble inflation system parts and repack PFD as outlined
in previous instructions and illustrations.
Leak test: Every three months the PFD should be tested for
general leakage by orally inflating your inflatable PFD until firm
and let stand overnight. A leaking PFD will not hold its firmness
and should be replaced.
Warning: If you are not confident in the self inspection and
servicing of your PFD, in accordance with these instructions, take
your inflatable PFD to a Mustang dealer for professional servicing
or contact Mustang Survival (see contact information on back of
manual).
Mustang Inflatable PFD Safety Accessories
MA7113 33 gram CO2 replacement cylinder and green indicator pin.
p. 10

Cleaning and Storing Your Inflatable PFD
To clean your inflatable PFD, remove the CO2 gas cylinder. Hand
wash or sponge down in warm, soapy water and rinse with clean
water.
Hang to dry on a plastic coat hanger. Be sure to replace CO2
cylinder. See Rearming Your PFD After Manual Inflation.
Always store your Inflatable PFD in a warm, dry place out of
direct sunlight.
WHY ARE PFDS REQUIRED SAFETY
EQUIPMENT?
Drownings are the leading cause of fatalities involving
recreational boating. A PFD provides flotation to help keep your
head above water, help you to stay face up in the water, and
increase your chances for survival and rescue. Most adults only
need an extra 7 to 12 pounds of flotation to keep their heads
above water. The proper size PFD will properly support the
weight of the wearer.
Since this inflatable PFD does not have inherent buoyancy, it
provides flotation only when inflated. Familiarize yourself with
the use of this PFD so you know what to do in an emergency.
p. 11

How and Why to Test your PFD
Inflate your PFD and try it out in the water to:
· Make sure it floats you:
Comfortably (when worn properly)
Adequately for expected wave conditions
(Body shapes/densities affect performance)
· Make sure it works:
A flow of bubbles should not appear (see CARE AND
MAINTENANCE INSTRUCTIONS for leak tests)
It should inflate quick and easily.
· Learn how it works by:
Activating the CO2 inflation system
Rearming the CO2 inflation system
Using the oral inflator tube
The U.S.Coast Guard recommends that you purchase two
rearming kits. One to be used immediately in testing the
inflation system (see HOW DO YOU TEST YOUR PFD USING
THE MANUAL INFLATOR?) and the other to carry on board as
a spare.
The only check of the manual
inflation system (with CO2
cylinder and green indicator
pin removed) would be to
determine that the lever
arm and piercing pin move
freely when moving the lever
(attached to the pull tab)
several times down and up.
p. 12

How do you Test your PFD using the
Manual Inflator?
1) To test your inflatable PFD, you will need:
· Your fully armed PFD, and
· Rearming kit approved for your PFD.
2) Put on the PFD.
3) Actuate the inflation system by jerking firmly downward on
the pull tab. The PFD should fully inflate within 5 seconds.
4) Get into shallow water, just deep enough that you can stand
with your head above the surface.
5) See if the PFD will float you on your back or just slightly
back of vertical. In a relaxed floating position, verify that your
mouth is well above the water’s surface. Note the effect of
where you hold your legs on how you float.
6) Get out of the water and remove the PFD. Remove the used
CO2 cylinder from the PFD inflator. Completely deflate the
PFD using the oral inflator.
7) Let the PFD dry thoroughly. REARM AND REPACK the PFD in
accordance with the manufacturer’s instructions!
p. 13

How do you Test your PFD Using the
Oral Inflator?
1) To test your inflatable PFD, you will not need any spare parts,
or rearming kits.
2) Remove the CO2 cylinder, to prevent inadvertent activation of
the manual inflation system which could potentially damage
the PFD. Inspect the threaded end to confirm it is unused.
3) Put on the PFD.
4) Get into shallow water, just deep enough that you can stand
with your head above the surface.
5) If you are a weak swimmer or non-swimmer, inflate the PFD
partially so that you are supported well enough to be able
to complete inflation without touching bottom, either orally
or manually. Note this level of inflation because it is the
minimum needed for you to safely use this inflatable PFD.
6) Fully inflate the PFD using the oral inflator.
7) See if the PFD will float you on your back or just slightly
back of vertical. In a relaxed floating position, verify that your
mouth is well above the water’s surface. Note the effect of
where you hold your legs on how you float.
8) Get out of the water and remove the PFD. Completely deflate
the PFD using the oral inflator.
9) Let the PFD dry thoroughly. REARM AND REPACK the PFD in
accordance with the manufacturer’s instructions!
p. 14

WEAR YOUR PFD
In approximately 80 percent of all boating fatalities, the victims
were not wearing a PFD. Most fatal accidents happen on calm
sunny days. This inflatable PFD is much more comfortable to wear
than other PFD types. Get into the habit of wearing this PFD.
Non-swimmers and children especially should wear a hybrid or
non-inflatable PFD at all times when on or near the water.
HYPOTHERMIA
Prolonged exposure to cold water causes a condition known as
hypothermia – a substantial loss of body heat which leads to
exhaustion and unconsciousness. Most drowning victims first
suffer from hypothermia. The following chart shows the effects of
hypothermia:
How Hypothermia Affects Most Adults
Water Exhaustion or Expected Time
Temperature
˚C (˚F) Unconsciousness of Survival
0.3 (32.5) Under 15 min. Under 15to 45 min.
0.3 to 4 (32.5 to 40) 15to 30 min. 30to 90 min.
4 to 10 (40 to 50) 30to 60 min. 1to 3 hours
10 to 16 (50 to 60) 1to 2 hours 1to 6 hours
16 to 21 (60 to 70) 2to 7 hours 2to 40 hours
21 to 27 (70 to 80) 2to 12 hours 3 hours to Indefinite
Over 27 (Over 80) Indefinite Indefinite
PFDs can increase survival time because they allow you to float
without using energy treading water and because of their
insulating properties. Naturally, the warmer the water, the less
insulation you will require. When operating in cold waters [below
p. 15

p. 16
60°F (15.6°C)] you should consider using a coat or jacket style
PFD or a Type V Thermal Protective PFD as they cover more
of the body than the vest or belt style PFDs. Some Points to
Remember About Hypothermia Protection:
1) Always wear your PFD. Even if you become incapacitated
due to hypothermia, the PFD will keep you afloat and greatly
improve your chances of rescue.
2) Do not attempt to swim unless it is to reach a nearby craft,
fellow survivor, or a floating object on which you can lean or
climb. Swimming increases the rate of body heat loss. In cold
water, drown-proofing methods that require putting your head
in the water are not recommended. Keep your head out of
the water. This will greatly lessen heat loss and increase your
survival time.
3) Use the standard H.E.L.P. position when
wearing an inflatable PFD, drawing the
legs up to a seated position, because
doing so will help you conserve body
heat.
4) Keep a positive attitude about your
survival and rescue. This will improve
your chances of extending your survival
time until rescued. Your will-to-live
does make a difference!
5) If there is more than one person in
the water, huddling is recommended
while waiting to be rescued. This action
tends to reduce the rate of heat loss
and thus increase the survival time.
Example of
H.E.L.P. Position
(Type III inflatable
PFD illustrated)

EACH OF THESE DEVICES IS INTENDED TO
HELP YOU SAVE YOUR OWN LIFE
For your PFD to function properly, follow these suggestions to
verify that it fits, floats, and remains in good condition.
1) Check the inflation mechanism status indicators before each
use.
2) Get in the habit of rearming the inflation mechanism right
after each inflation.
3) Try your wearable PFD on and adjust it until it fits
comfortably in and out of the water.
4) Mark your PFD with your name if you are the only wearer.
5) Do not alter your PFD. If it doesn’t fit properly, get one that
does. An altered device is no longer Coast Guard approved.
6) Your PFD is not intended for use as a fender or kneeling pad.
7) If your PFD is wet, allow it to dry thoroughly before storing it.
Store it in a well-ventilated area.
8) Do not dry your PFD in front of a radiator or other source of
direct heat.
p. 17

ADDITIONAL INFORMATION
If you need more information about PFDs and safe boating,
contact your state boating authority, U.S. Coast Guard Auxiliary,
U.S. Power Squadron, Red Cross, or your nearest unit of the U.S.
Coast Guard. To find out about free boating courses in your area
call 1-800-336-BOAT (in Virginia, call 1-800-245-BOAT).
DO NOT ATTACH PFDs TO YOUR BOAT
Each PFD has straps, hooks, buckles, or other means for securing
the device in place on the wearer. Some PFDs also incorporate
decorative dee rings or tabs. Such items are not to be used to
attach the device to the boat. Attaching the device to the boat
will not permit it to perform as intended.
BUDDY LINE
The MA7636 Accessory Pouch contains a Buddy Line intended
for use in two situations.
1) When more than one person is in the water, tie the Buddy
Lines together to ensure that you do not drift apart. This
makes it much more likely that a rescuer will be able to locate
you.
2) When a person is in the water, the Buddy Line can be used to
pull them into a position to be rescued i.e. closer to the side
of a boat or to another location where the freeboard is lower
and it will be easier to assist the person out of the water.
Warning: The Buddy Line is NOT FOR LIFTING.
p. 18

WE SAVE LIVES FOR A LIVING
mustangsurvival.com
tel [phone]
email [e-mail]
Mustang Survival and seahorse design is a registered trademark of Mustang Survival Corp.
HT-1153 (Rev 17June2019)
