NAMCO Alpine Racer User manual

Part No. 90500085
Operators Manual
ITIS THE RESPONSIBILITY OF THE OPERATOR TO MAINTAIN CUSTOMER SAFETY AT
ALL TIMES, AND IT IS IMPERATIVE THAT THE DETAILS SET OUT IN THIS MANUAL
ARE FOLLOWED PRECISELY,
52"

No part of this publication may be reproduced by any mechanical, photographic or electronic
process, or in the form of phonographic recording, nor may it be stored in a retrieval system,
transmitted or otherwise copied for public or private use, without permission from
NAMCO EUROPE LIMITED
While the information contained in this manual is given in good faith and was accurate at the
time of publication, NAMCO EUROPE LTD. reserve the right to make changes and alterations
without notice.
This machine has been manufactured in accordance with European Community directives
(1st. January 1996), and as such bears the marking. Any changes or modifications to this
machine must be in accordance with European Community directives (1st. January 1996).
If you make any unauthorised changes to this product, you may contravene European
Community directives (1st. January 1996)
© 1994 NAMCO LIMITED all rights reserved.
Published by:
NAMCO EUROPE LIMITED
Namco House,
8 Acton Park Estate,
The Vale,
London. W3 7QE
Phone:- 0208-324-6000
Fax:- 0208-324-6010

SAFETY WARNING
In order to use this machine safely, be sure to read this Operators Manual carefully
before installation, adjustment or use of this machine.
Whenever the owner of this machine entrusts disassembly, installation, adjustment,
routine maintenance or trouble shooting to another person, the owner should ensure
that that person read the appropriate precautions and relevant sections of this manual
before starting work.
In order that no accidents occur when the machine is in operation, strictly
follow the notes on safety described below. Also, carefully read section 2,
"Precautions"
Warnings for Operation ( Requirements)
NOTE: Only operate this machine after checking that it has been installed correctly
and in accordance with the installation and commisioning manual.
NOTE: Parts of this machine move during game play, so there are places where the
distance between the stationary section and moveable section changes.
There are warning notices to keep hands and feet clear of moving parts,
however if the operator feels that a person is in any danger, he should warn
that person accordingly.
NOTE: The warning notices must always be kept in good condition and replaced if
worn, so that the customer can read it clearly.
NOTE: If there is an error or problem with this machine, operation must be
stopped immediately and the problem rectified before further use.
Warnings for Disassembly, Installation, Routine Maintenance, and Troubleshooting.
DANGER: Namco Ltd. bears absolutely no responsibility for accidents or injuries
resulting from unauthorized changes to this machine.
DANGER: Ensure that the machine has been turned OFF before making adjustments
or carrying out maintenance. Also ensure only qualified personnel carry
out maintenance or turn the power ON to this machine.
DANGER: The power supply and inside the monitor will remain hot and have areas of
high voltage even though the machine has been turned OFF, and there is
a possibility of burns or electric shock. Be careful not to touch these areas.
DANGER: In order to avoid injuries due to mis-operation, be sure that the voltage of
the main power supply is within the prescribed limits. Also to prevent
possible electric shocks due to failure, this machine MUST be fitted with a
securely connected earthed plug.
NOTE: Do not turn the power switch ON until the machine has been installed
correctly.

Page 6
1. SPECIFICATIONS
POWER SUPPLY :- 230volts AC
MONITOR :- Thomson 52" Projector Monitor (RP52)
COIN ACCEPTOR Mars CashFlow - 1 Channel
DIMENSIONS :-
Assembled 1265(w) x 2245(d) x 2320(h)
Monitor Cabinet 1250(w) x 645(d) x 1940(h)
Ski Assembly 1265(w) x 1600(d) x 1220(h)
Header 1145(w) x 350(d) x 380(h)
WEIGHT :-
Assembled 458kg
Monitor Cabinet 200kg
Ski Assembly 240kg
Header 18kg
ACCESSORIES :- Keys: (Cash Door) ............................ 2
(Coin Door) ............................. 2
(Service Door)......................... 2
IEC Mains Lead............................................ 1
Operators Manual......................................... 1
Installation Manual ....................................... 1
Monitor Manual............................................. 1
Monitor Remote Control W/Batteries ........... 1
Cashflow Data .............................................. 1
Floor Safety Mat & Decal ............................. 1
Floor Safety Mat Securing Plate .................. 2
Floor Safety Mat Support Bracket................ 2
Joint Bracket - LHS ...................................... 1
Joint Bracket - RHS...................................... 1
Potentiometer............................................... 1
M10x35 Hex Head Set Screw - S/Steel ....... 8
M10 Flat Washer - S/Steel ........................... 8
M10 Spring Washer - S/Steel....................... 8
M8x20 Hex Head Set Screw - S/Steel ......... 4
M8 Flat Washer - S/Steel ............................. 4
M8 Spring Washer - S/Steel......................... 4
M6 Dome Head Nut - Chrome ..................... 6
M6X25 Hex Head Screw - BZP.................... 2
M6 Flat Washer H/Duty - BZP...................... 2
M6 Spring Washer - BZP ............................. 2
M4 Security Wrench..................................... 1
M5 Security Wrench..................................... 1
M6 Security Wrench..................................... 1

Page 7
2. PRECAUTIONS
Be sure to read this section carefully.
2-1 Notes on Operation ( Requirements)
2-2 Safety Mechanisms and Controls
For safety, this machine is equipped with a locking mechanism for securing the steps
when the machine is not being played.
• The step locking mechanism is controlled as describe below.
a. After selecting the course, the step lock is released before game start.
b. At game over, the steps are locked.
c. If the steps are moved left or right while they are locking or unlocking, the motor
temporarily stops in order to prevent damage to the step-lock motor. When the
steps are no longer being moved left or right, the motor will restart. To prevent
damage from occurring, do not move the steps while the motor is running.
d. When the machine is first turned ON, the step-lock mechanism is checked
automatically by unlocking and re-locking the steps.
e. If the step-locking system fails, an error message will be displayed on the monitor
screen.
Refer to section 6-4-3 "Handling Motor Errors" and section 8 "Trouble Shooting".
NOTE: Only operate this machine after checking that it has been installed correctly
and in accordance with the Installation and Commisioning Manual.
NOTE: Parts of this machine move during game play, so there are places where the
distance between the stationary section and moveable section changes.

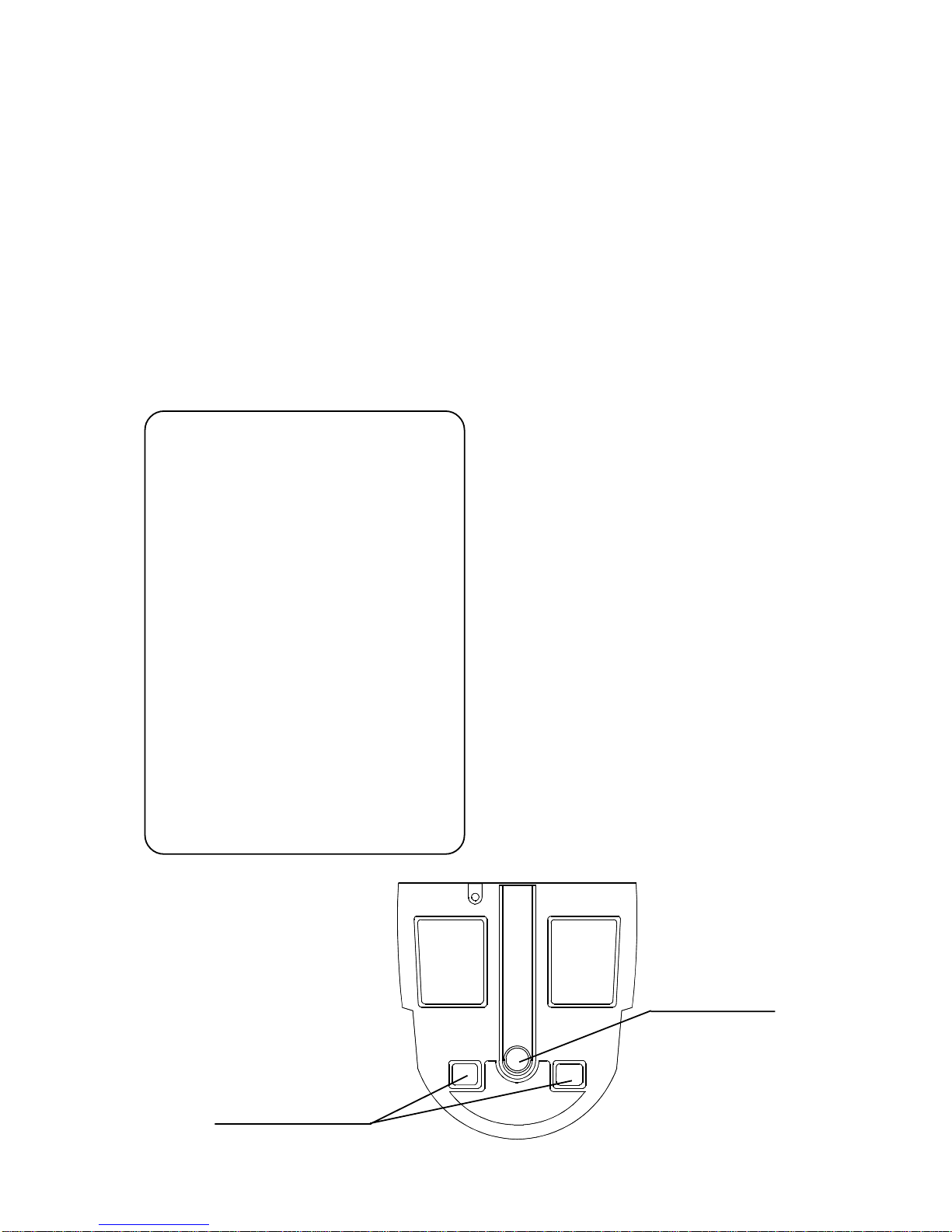

NOTE: There is a warning sticker that the player must be wearing flat shoes,
unsuitable footwear e.g. high heel shoes could cause the player to lose
balance and fall. However if the operator feels that a customer playing the
game is in any danger, he should warn the customer accordingly.
NOTE: The warning sticker must always be kept in good condition so that the
customer can read it clearly, and be replaced if worn.
NOTE: Ensure customer safety at all times. Be especially careful in the case of
young children, who should be supervised by an adult at all times.
NOTE: If there is an error or problem with this machine, operation must be
stopped immediately.
NOTE: Service, adustments and routine maintenance should be carried out by
qualified personel only.
Parts of this machine swing to the left and right during game play. In order to
maintain the customer's safety, the operator should strictly follow the
appropriate precautions.

Page 8
2-3 Cautions When Transporting.
a. Do not subject the game to physical shock when transporting or moving it.
b. Always return the levellers to the UP position before moving the machine, even
for short distances.
c. The monitor cabinet, ski assy and header assy must be separated before
shipping.
d. Take care not to rope any moulded (plastic) parts when transporting.
e. Always ship the monitor section upright.
THIS MACHINE IS NOT DESIGNED TO BE MOVED BY FORK LIFT. DO NOT USE

Page 9
2. If this machine is installed next to walls or other machines, ensure that there is
plenty of space between them.
2-4 Cautions When Installing.

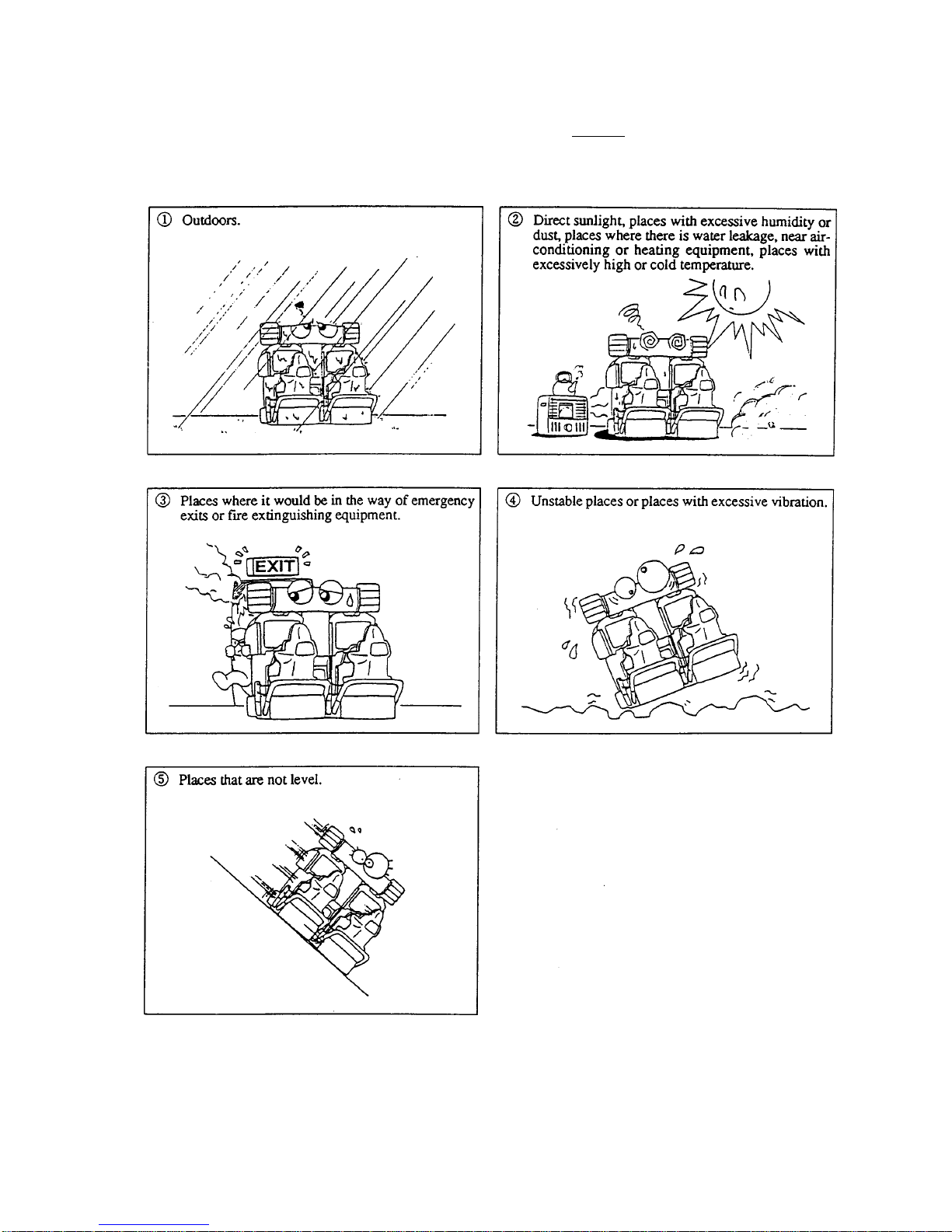

1. This machine is designed for indoor use only. Do Not install the machine in the
following places

Page 10

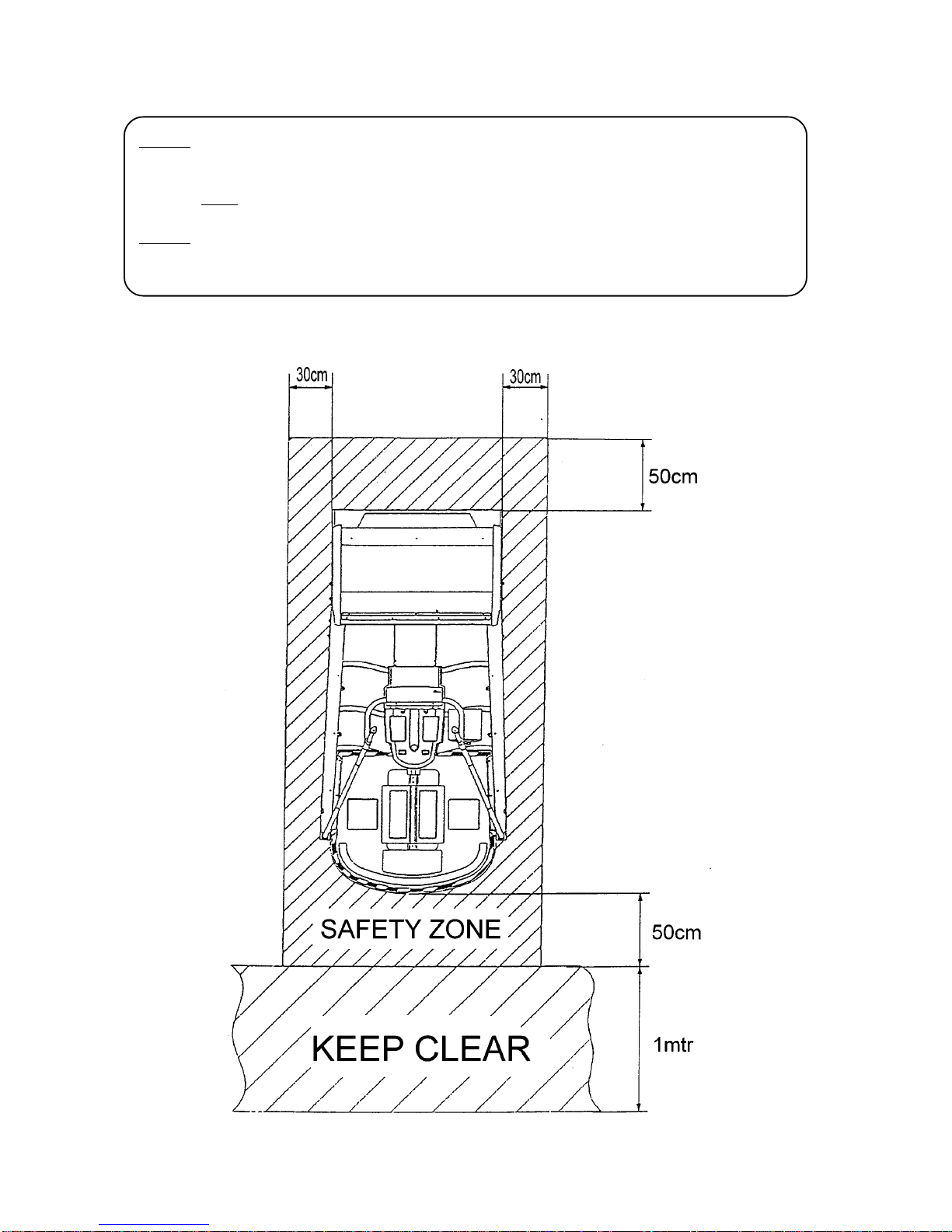

NOTE: So that customers are not injured by the movement of the Ski Tray, ensure that
there is at least 300mm separation between other machines or walls.
If two Alpine Racer machines are next to each other the space between them
must be at least 600mm.
NOTE: In order to gain access to the Power Supply and CPU assemblies, make sure that
the rear of the machine is separated from a wall or other machine by at least
500mm.

Page 11
3. HOW TO PLAY
This game is based on Alpine ski racing.
The player stands on the steps and moves them left or right to control the skier.
By using the inner edge when moving the steps, the skier slows down and turns
quickly.
• Race Mode
The player races the computer skiers and the object is to cross the goal line first.
The game is over when the player crosses the finish line within the given time
period, or the time period reaches zero. The time period is increased each time a
player passes a check point.
If a player wins in a fast time they can enter their initials. Select letters using the
select buttons and enter them by using the decision (Viewpoint) button.
• Time-Trial Mode
The object of the game is to pass between the flags (gates) and to cross the
finish line in the fastest time. The rules require the player to go through the gates,
so more technique is needed for this mode than the normal race mode.
The game is over when the player crosses the finish line within the given time
period, or the time period reaches zero. The time period is increased by one
second each time a player passes through a gate.
If a player completes a course in a fast time they can enter their initials. Select
letters using the select buttons and enter them by using the decision (Viewpoint)
button.
A player is not disqualified for not passing through a gate, however the player will
not be able to enter their initials even if they cross the finish line in a good time.
• Game Mode Selection
After inserting sufficient credit, the "Game Mode Selection" screen is displayed.
The player selects either the "Race Mode" or "Time-Trial Mode" by using the L/R
selection buttons, and pressing the decision (Viewpoint) button.
• Course Selection
After the game mode has been selected, the "Course Selection" screen is
displayed.
The player can select one of three courses, "Novice", "Intermediate" and
"Expert".
• Viewpoint Selection
The viewpoint button can pressed at any time during a game to switch between
the player's view and behind view.
Players View: This is the view as seen by the skier. This provides an exciting
view while skiing. The race mode starts in this view.
Behind View: This is the view from behind the skier. This view can be used to
get an understanding of the skiers posture and surrounding
conditions. The time trial mode starts in this position.

Page 12

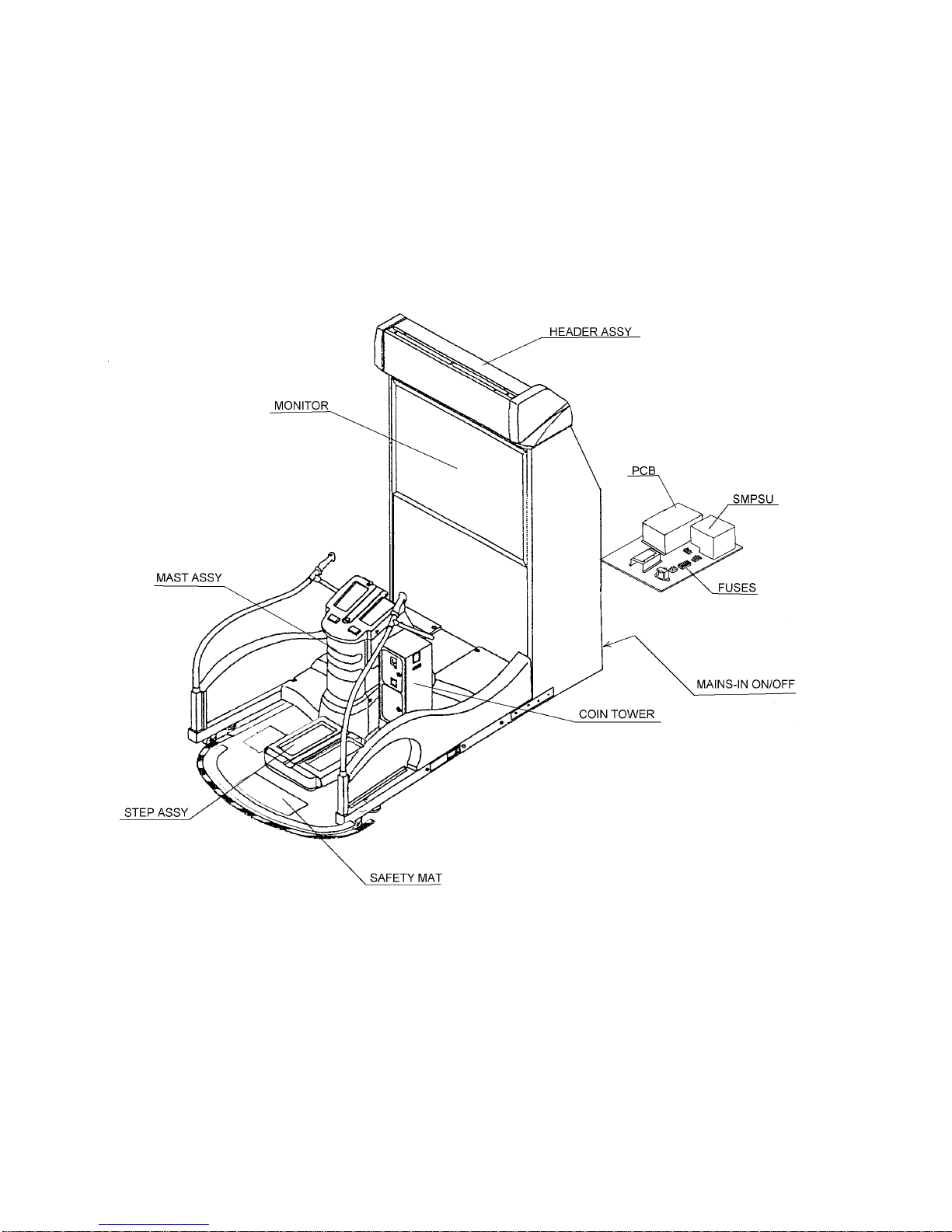

4. MAJOR COMPONENTS

Page 13
5. INSTALLATION

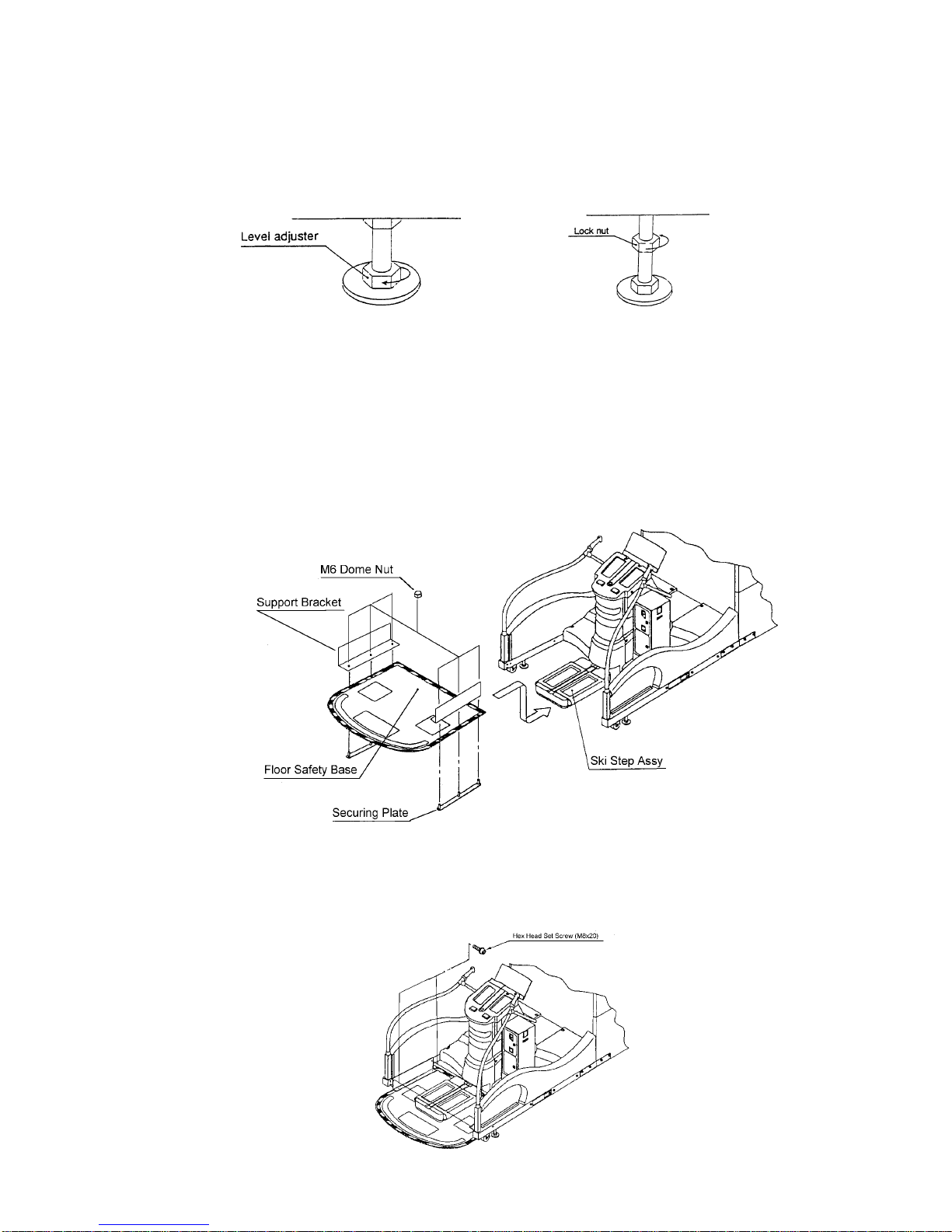

WARNING If the location site of this machine has a polished floor it is recommended
that rubber pads are fitted under the level adjusters to prevent the
machine sliding on the floor.

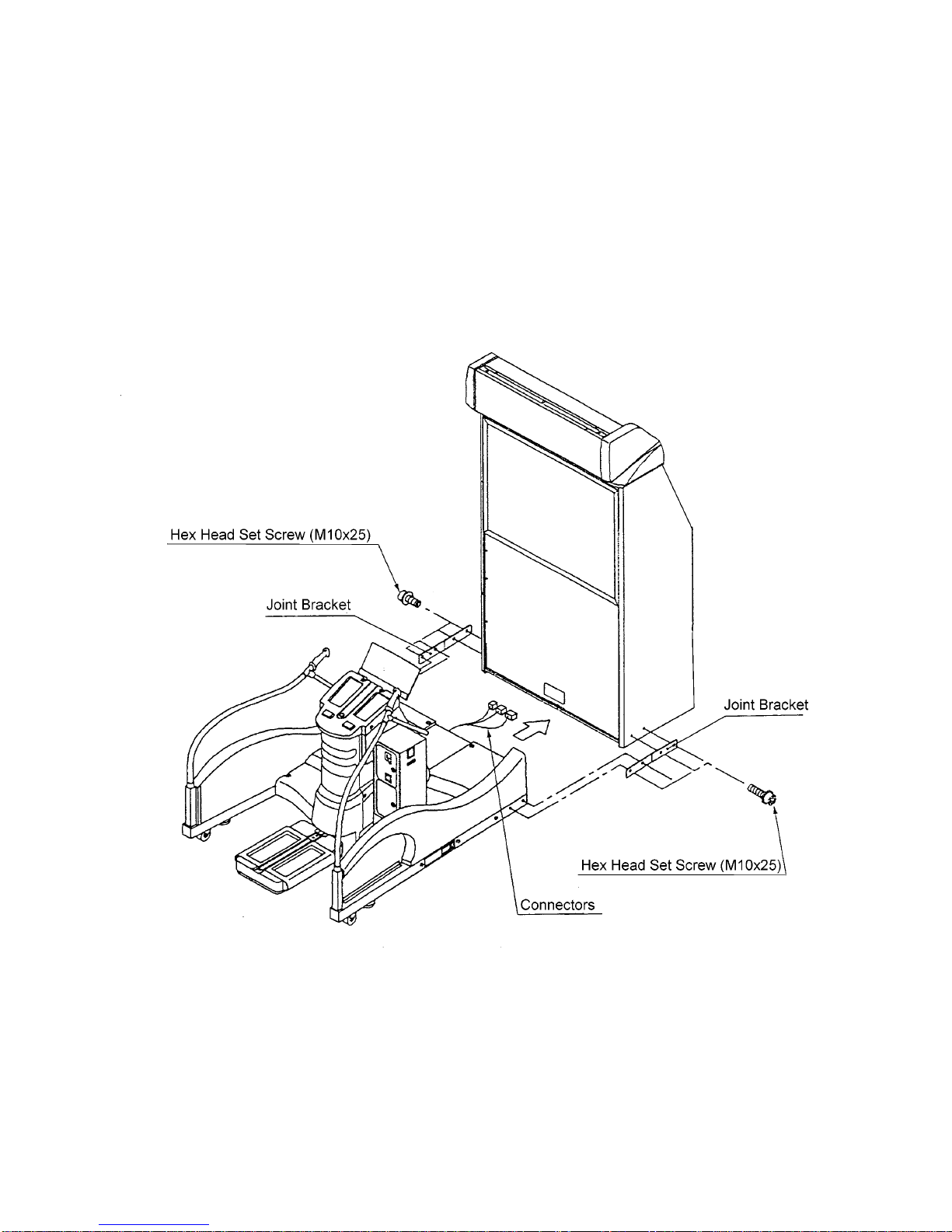

5-1 Fitting the Header Assembly
The Header Assembly has a forward centre of gravity, so it is important that
at least two people are used to fit or remove the Header Assembly.
The fitting position of the Header Assembly is very high, and it is important
that a means of reaching the height safely, without stretching, is available.
(e.g. steps, step stools etc.)
1. Place the Header Assembly on to the monitor cabinet, connect the connectors
and pass the connectors in to the cabinet, slide the header back ensuring that
it engages fully in to the retaining brackets at the front of the monitor cabinet.
2. Fit the 2off M6x25 Hex Head Screws, Spring and Flat washers to retain the
Header Assembly to the cabinet.

Page 14
5-2 Connecting the Ski Assy to the Monitor Cabinet.
1. Connect the connectors between the Ski Assembly and Monitor Cabinet.
2. Push the Ski Assembly fully up to the monitor cabinet, taking care not to trap
any wires.
3. Fit, finger tight, a joint bracket to each side using 4off Hex Head Set Screws
(M10x25), Spring and Flat Washers on each bracket. Tighten fully all screws.
(Note: Joint Brackets are handed, ensure bracket is fitted with fixing holes
uppermost.)

Page 15
2. Place the assembled Safety Mat into position under the Ski Step Assy.
3. Retain the Safety Mat in position with the Hex Head Set Screws (M8x20), Spring
Washers and Flat Washers
5-3 Fitting the Safety Mat
1. Assemble the Floor Safety Mat by fitting the securing plates from underneath,
the support brackets from the top and retaining the assembly together with
the M6 Dome Nuts.
NOTE:-
When the machine is fully assembled and in its final position, lower the 10 level
adjusters, (4 on the monitor cabinet and 6 on the ski assy), with a spanner so that
all castors are raised from the floor by approximately 5mm, and the machine is
level. Tighten the lock nuts with a spanner to ensure that the level adjusters do not
move.
If this machine is installed on a smooth or shiny floor, it is recommended that rubber
slip mats be placed under each adjustable foot to prevent the machine from moving
when being played.

Page 16

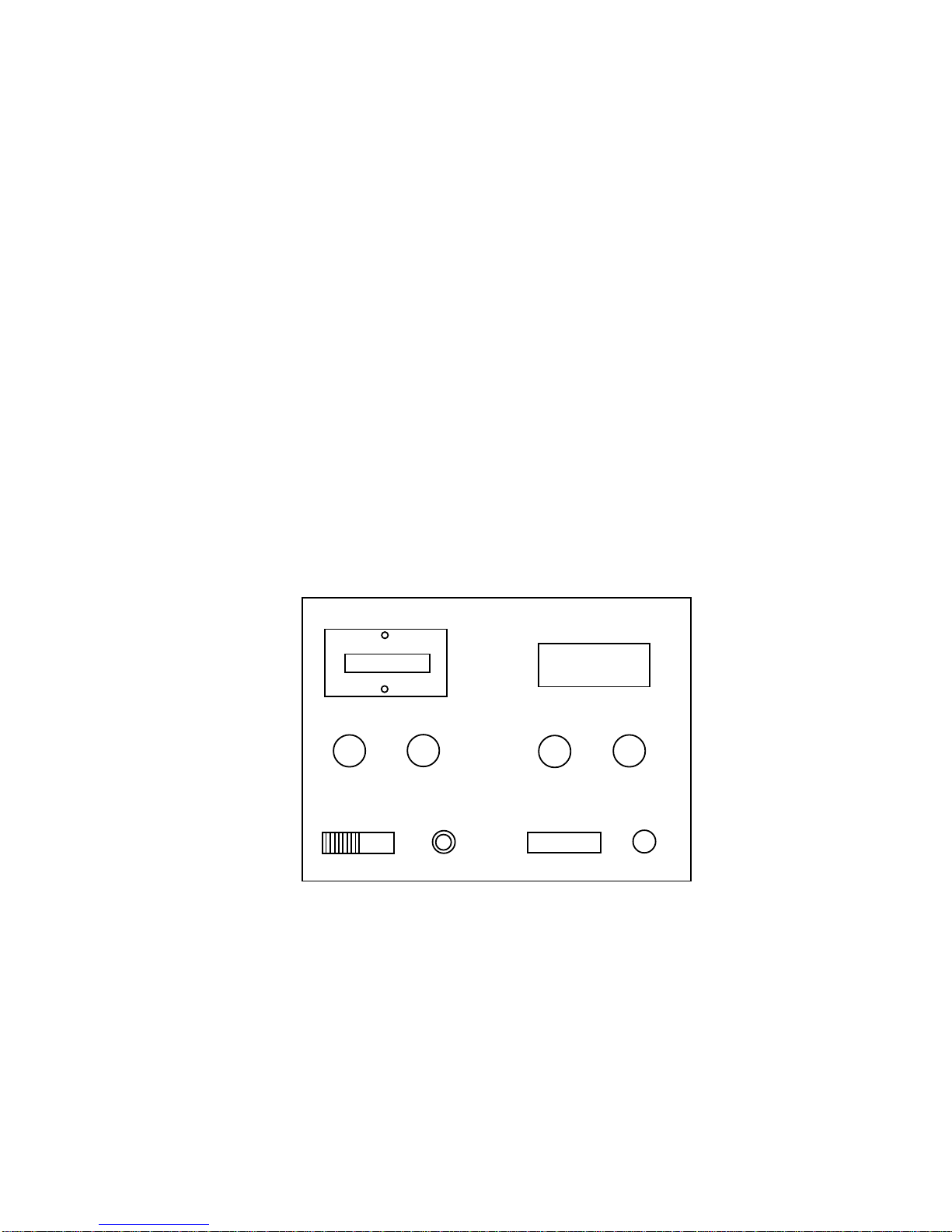

Service Bracket
COIN COUNTER
TEST SERVICE TEST SERVICE
RIGHT PLAYERLEFT PLAYER
6. ADJUSTMENTS
6-1 Turning on the Power
After the machine has been installed, turn ON the power. The power switch is
located on the rear of the monitor cabinet.
6-2 Adjustment Switches
The Adjustment switches are located inside the coin door.
1. Service Switch.
Press this switch to obtain game credits without incrementing the play meter.
2. Test Switch
Slide the test switch ON to enter test mode.
Test mode allows testing and the changing of game settings. (Refer to section
6-3 "Test Mode" (page 12))

Page 17
MENU
COIN OPTIONS ----------------- (1) Sets the price of play (See 6-3-1)
GAME OPTIONS ----------------- (2) Sets the game options (See 6-3-2)
I/O TEST ----------------- (3) Used for testing switches and controls
----------------- (See 6-3-3)
SOUND TEST ----------------- (4) Used for testing sound and setting
----------------- volumes (See 6-3-4)
MONITOR TEST ----------------- (5) Used for adjusting the monitor
ADS TEST ----------------- (6) Displays accumulated game data
OTHERS ----------------- (7) Used for testing the PC Boards and for
----------------- initializing all of the settings
L/R SELECTION BUTTON : CHOOSE
DECISION BUTTON : ENTER
6-3 Test Mode
1. Open the coin door and slide the test switch "ON". The menu screen will be
displayed on the monitor.
2. Select the test required by pressing the 'Left or Right Selection' push button. The
selected test will 'blink'.
3. Enter the selected test by pressing the 'Decision' push button. Select "EXIT" to
return the "Menu Screen".
4. After testing is completed, ensure that the test switch is returned to the "OFF"
position to return to normal game mode.
The Test Switch must always be in the "OFF" position for normal game mode.
Decision Button
Select L/R Buttons

Page 18
COIN OPTIONS
[ DEFAULT IN GREEN ]
GAME COST
1 COIN 1 CREDIT ------------------------ (a)
FREE PLAY OFF ------------------------ (b)
EXIT
SELECT L/R BUTTON : CHOOSE
DECISION BUTTON : CHANGE +
6-3-1 Coin Options
1. Select item(1)"COIN
OPTIONS" on the
menu screen to set
the game cost and
related settings.
2. Press 'Select L/R' to
select the required
item.
3. Use the 'Decision'
button to adjust the
settings.
4. Select "EXIT" to
return to the menu
screen.
Note :- The price of play on this machine is set within the Cashflow Coin Mech.
Ensure that the Coin Options on the screen are set as shown in the
following table.
ITEM CONTENTS FACTORY SET
(a) Game Cost No of Coins required for No. of credits - - - - - - settable 1 - 9 1 Coin 1 Credit
(b) Free Play Yes/No NO

Page 19
6-3-2 Game Options
1. Select item (2) "GAME OPTIONS" on the menu screen to set the game
options and related settings.
2. Press 'Select L/R' to select the required item.
3. Press the 'Decision' button to adjust the settings. Standard settings are
displayed in green.
4. Select "EXIT" and press 'Decision' to return to the menu screen.
GAME OPTIONS
[ DEFAULT IN GREEN ]
GAME DIFFICULTY B ------------ (a)
SOUND IN ATTRACT ON ------------ (b)
HI SCORE INITIALIZE NO ------------ (c)
AUTO HIGH SCORE INITIALIZE OFF ------------ (d)
EXIT
SELECT L/R BUTTON : CHOOSE
DECISION BUTTON : CHANGE +
ITEM DESCRIPTION FACTORY SET
(a) Game Difficulty A (easy) to C (hard) B
(b) Sound in Attract On / Off On
(c) Hi Score Initialize Yes / No (If Yes Hi Score will be reset when exiting test) No
(d) Auto High Score Initialize Yes / No (If Yes Hi Score will be reset every time the machine is
switched OFF) Off

Page 20
I/O TEST
DIP 4 12345678 ............................(a)
SWITCH TEST ............................(b)
MOTOR TEST ............................(c)
STEP ADJUST ............................(d)
EXIT
SELECT L/R BUTTON : CHOOSE
DECISION BUTTON : ENTER
6-3-3 I/O Test
1. Select item (3) "I/O Test" on the menu screen to test the switches, motor
and step adjust.
2. Press 'Select L/R' to select the required item, then press the 'Decision'
button to enter the test.
3. Select "EXIT" and press the 'Decision' button to return to the menu screen.
(a) Shows condition of DIP SW 4 on the PCB. In normal operation all switches
are OFF. (If a switch is ON, it will be displayed in red.)
(b) For testing Switches and Control Pots. (See 6-3-3-1 )
(c) For testing the Step-Lock Motor. (See 6-3-3-2)
(d) For initializing the Step Control Pots. (See 6-3-3-3)

Page 21
6-3-3-1 Switch Test
1. Select Switch Test from the 'I/O Test' menu. The following screen will
appear on the monitor.
Note:- On entering Switch Test the Skis will be unlocked. Ensure that the
Skis are returned to the locked condition at the end of the test by
entering Motor Test (See 6-3-3-2)
SWITCH TEST
TEST SW ON .................(a)
COIN SW ON .................(b)
SERVICE SW ON .................(c)
R SELECTION BUTTON ON ............(d)
DECISION BUTTON ON ............(e)
L SELECTION BUTTON ON ............(f)
SWING 0000 0000 CENTER.........(g)
EDGE 0000 0000 CENTER .........(h)
L/R SELECT + DECISION : EXIT
2. The word 'ON' will appear next to items (a) to (f) each time the
respective switch is operated.
When the skis are pushed left, 'SWING-CENTRE' will change to 'LEFT'
and 'OK' will appear just before it reaches the extreme left,. When the
skis are pushed right, 'CENTRE' will change to 'RIGHT' and 'OK' will
appear just before it reaches the extreme right. '0000' will increase
when the skis are moved to the right and decrease when they are
moved to the left.
When the skis are tilted, 'EDGE-CENTRE' will change to 'LEFT or
RIGHT' and 'OK' will appear just before they are fully tilted. '0000' will
change as the skis are tilted.
Note:"EDGE" 'OK' will only appear if you stand and
apply weight to the edges of the ski steps.
There is no problem if 'OK' is not displayed
when standing on the steps in the same way
as normal play.
3. If 'OK' is not displayed when the edge is tilted left or right, re-initialize as
described in section 6-4 "Initialization After Replacing Parts".
4. Operate both of the 'Select L/R' buttons and 'Decision' button together
to exit and return to the 'I/O Test' menu screen.

Page 22
6-3-3-2 Motor Test
1. Select Motor Test from the 'I/O Test' menu. The following screen will
appear on the monitor.
MOTOR TEST
NOW MOTOR STATE : LOCK............(a)
GO MOTOR : FREE .................(b)
EXIT
L/R SELECT BUTTON : CHOOSE
DECISION BUTTON : EXIT
(a) Displays the current condition of the Skis.
Display will show 'LOCK - FREEING - FREE - LOCKING' as the Skis
are tested.
(b) Allows the Skis to be locked and unlocked.
Display will show 'FREE - NOW MOVING - LOCK' as the Skis are
being tested.
Note:- Ensure Skis are in the locked condition before returning to normal
game mode.
6-3-3-3 Step Adjust
1. Select Step Adjust from the 'I/O Test' menu.
On entering 'STEP ADJUST' test, Step Adjust on the 'I/O' Menu Screen
will blink and 'INITIALIZE COMPLETED' will appear and be blinking.
Ski Step initialization is now completed.
2. Select EXIT to return to the Main Menu Screen.
