NEC MH150 Mounting instructions

NEC
NEC Unified Solutions, Inc.
NEC MH150/MH160 Mobile
Handset Administration Tool
Installation
User Guide
September 2008
NDA-30922, Issue 1

Liability Disclaimer
NEC Unified Solutions, Inc. reserves the right to change the
specifications, functions, or features, at any time, without notice.
NEC Unified Solutions, Inc. has prepared this document for the
exclusive use of its employees and customers. The information
contained herein is the property of NEC Unified Solutions, Inc. and
shall not be reproduced without prior written approval from
NEC Unified Solutions, Inc.
© 2008 NEC Unified Solutions, Inc.
MS-DOS® and Microsoft® Windows® are
registered trademarks of Microsoft Corporation.
All other brand or product names are or may be trademarks or
registered trademarks of, and are used to identify products or services
of, their respective owners.

i
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
Contents
About This Guide 1-1
Icons and conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Handset Administration Tool Installation 2-1
Installing the Handset Administration Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Installing the USB Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Using the Admin Tabs 3-1
Connecting the Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Password Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Character table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Error Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Software Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
FTP Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Local File Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Using the Settings Editor 4-1
Opening the Settings Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
The Settings Editor Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

ii Contents
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
The Settings Editor Toolbar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
File management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Copy settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Upload/download and indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Tab Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Creating a Configuration Plan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Organize the plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Create the options and save the settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Configuration planning worksheet (sample) . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Downloading and Uploading Configuration Plans. . . . . . . . . . . . . . . . . . . . . . . 4-9
Downloading a configuration plan to a handset . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Uploading a configuration plan from a handset . . . . . . . . . . . . . . . . . . . . . . . 4-10
Regulatory Domain Mismatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

iii
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
Figures
Figure Title Page
2-1 Mobile Handset and PC connection using USB ports . . . . . . . . . . . . . . . 2-1
2-2 Preparing to Install. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2-3 InstallShield Wizard welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
2-4 InstallShield Wizard: Destination folder. . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
2-5 InstallShield Wizard completed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
2-6 Found New Hardware Wizard: Welcome. . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2-7 Found New Hardware Wizard: Install software for USB Device . . . . . . . 2-7

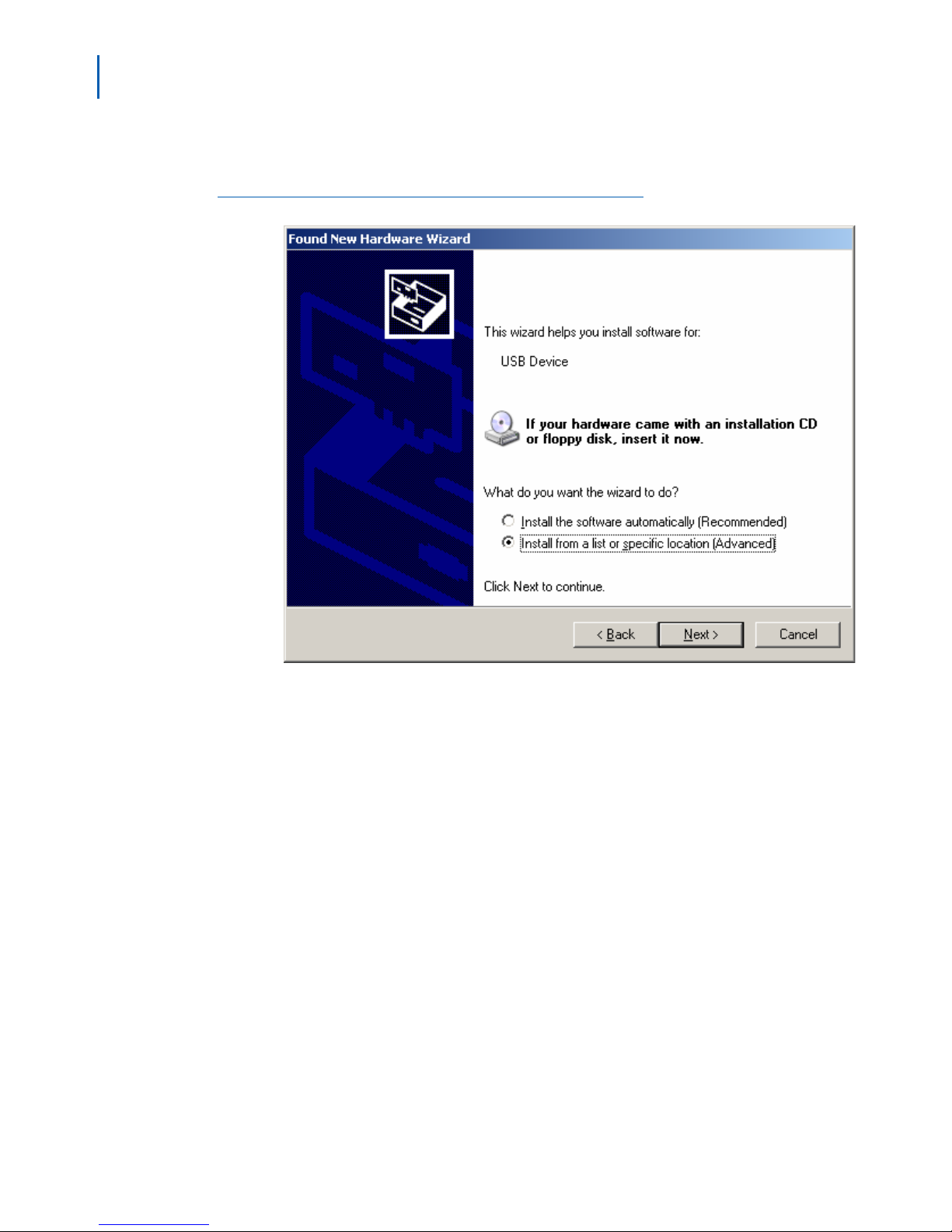

2-8 Found New Hardware Wizard: Choose search and installation options . 2-8

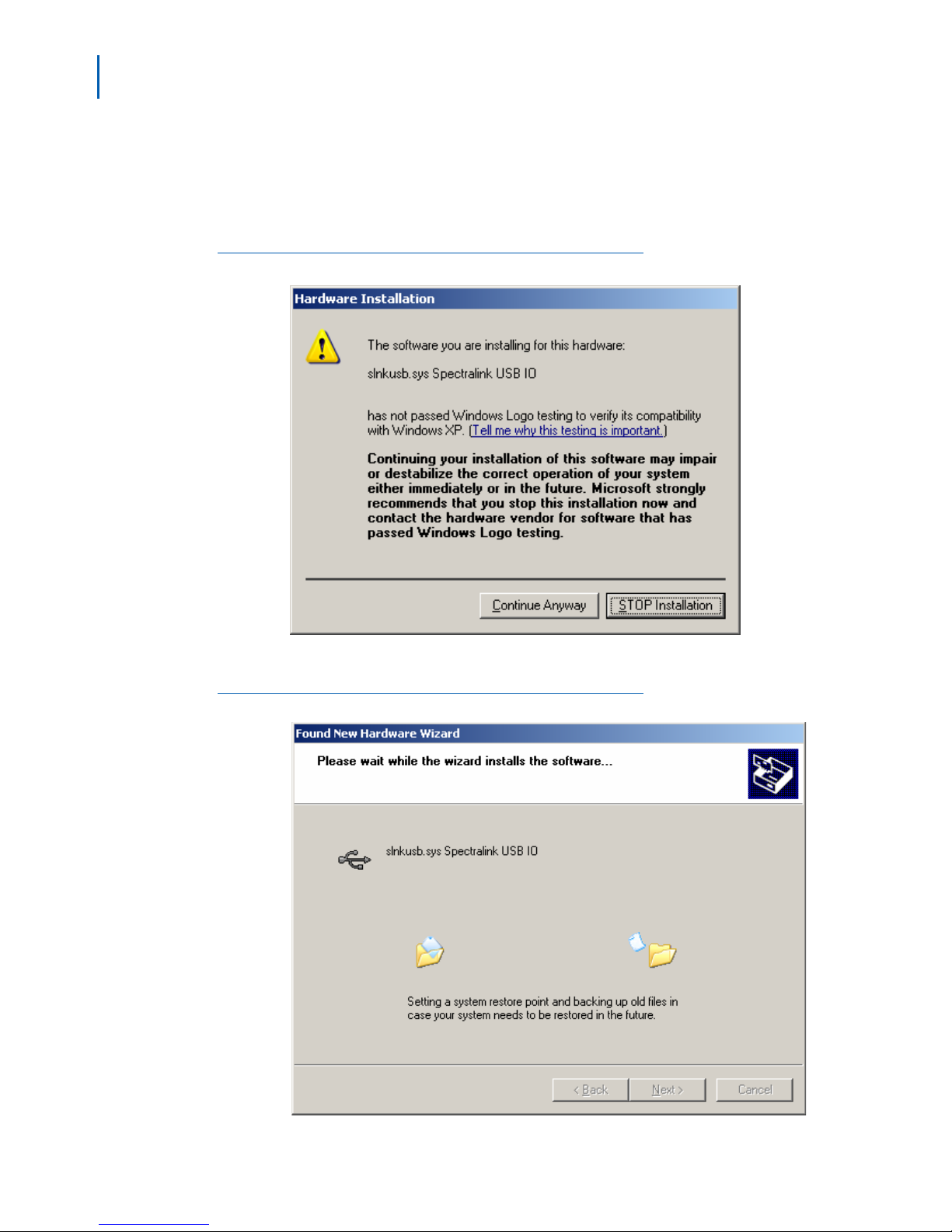

2-9 Warning: Software has not passed Microsoft testing. . . . . . . . . . . . . . . . 2-9
2-10 New software is being installed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
2-11 Software installation completed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
3-1 End-User License Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3-2 Connect tab prompt:showing the next action or status.. . . . . . . . . . . . . . 3-2
3-3 Prompt to enter the password and remember password checkbox. . . . . 3-3
3-4 Connect tab prompt indicates the Mobile Handset is connected. . . . . . . 3-4
3-5 Password change tab window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
3-6 Error information tab screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
3-7 Firmware tab displays current file information. . . . . . . . . . . . . . . . . . . . . 3-7
3-8 Firmware update ready to begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
3-9 Version tab displays current Handset information. . . . . . . . . . . . . . . . . . 3-9
3-10 Version tab displays the FTP update progress . . . . . . . . . . . . . . . . . . . 3-10
3-11 Mobile Handset update prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
3-12 Confirmation of new application installation. . . . . . . . . . . . . . . . . . . . . . 3-11
3-13 Local file update initiation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
3-14 Handset Administration Tool upgrade confirmation dialog box . . . . . . . 3-12
3-15 Confirmation of HandsetAdmin shutdown . . . . . . . . . . . . . . . . . . . . . . . 3-12
4-1 Settings Editor on the Settings tab window . . . . . . . . . . . . . . . . . . . . . . . 4-2
4-2 Handset Settings Editor Network Config screen . . . . . . . . . . . . . . . . . . . 4-3
4-3 Settings Editor toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
4-4 Handset Settings Editor example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

iv Figures
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1

v
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
Tables
Table Title Page
3-1 Handset character entry table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
4-1 Tab options on the Settings Editor window . . . . . . . . . . . . . . . . . . . . . . . 4-5
4-2 Configuration planning worksheet sample. . . . . . . . . . . . . . . . . . . . . . . . 4-8

vi Tables
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1

1-1
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
1
About This Guide
The Handset Administration Tool is a software utility developed by NEC
Unified Solutions, Inc. to automate the configuration of multiple NEC
MH150 and MH160 Mobile Handsets and perform various administration
tasks. This document explains how to use the Handset Administration
Tool to administer and configure the NEC MH150 and MH160 Mobile
Handset.
Please refer to the configuration and administration document that
pertains to the system in your facility for exact configuration options of
the handset. Specific configuration options are explained in detail in the
configuration and administration document for your system.
• NEC MH150/MH160 Mobile Handset Administration Guide
• NEC MH150/MH160 Deployment Best Practices Guide
• NEC WLAN Voice Gateway Administration Guide
Customer support
hotline For additional information or support on this NEC Unified Solutions, Inc.
product, contact your NEC representative.
Icons and conventions
This manual uses the following icons and conventions.
Note these instructions carefully.
Caution! Follow these instructions carefully to avoid danger.
REFERENCE
CAUTION
NOTE

1-2 About This Guide
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1

2-1
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
2
Handset Administration Tool
Installation
The Handset Administration Tool is a software utility installed on a PC
with a USB port. It is designed as a time-saving device for rapid
administration and configuration of a number of handsets. During
operation, the USB cable must be connected from the PC's USB port to
the Dual Charger's USB port, as shown in Figure 2-1.
Figure 2-1
Administrative
computer
Handset in
Dual Charger
USB
cable
Mobile Handset and PC connection using USB ports
Configuration options include:
• Setting all options on the Admin menu,
• Setting all options on the Config menu,
• Recording error information to assist troubleshooting,
• Upgrading handset software.
The Setup.exe file on the CD will download and install the files for the
Handset Administration Tool and download the files for the USB driver.
The USB driver must be installed as a separate process after the
Handset Administration Tool is installed.
The CD contains Setup.exe files for SRP and SIP. Please ensure that you have
downloaded the Setup.exe program for your protocol.
NOTE

2-2 Handset Administration Tool Installation
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
Necessary components:
• PC with a USB port running Windows 2000, Windows XP, or Windows
Vista,
• Dual Charger for the NEC MH150 and MH160 Mobile Handset,
• Power supply for the appropriate country or region,
• A USB cable with a 5-pin mini-USB connector (not supplied by NEC).
Installing the Handset Administration Tool
Step 1 Locate the Setup.exe file on the CD. You may copy this file to your local
drive or install from the CD. Click the Setup.exe file to start the
installation process.
Figure 2-2 Preparing to Install
The InstallShield Wizard will continue with the install.

Handset Administration Tool Installation 2-3
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
Step 2 Click Next to continue

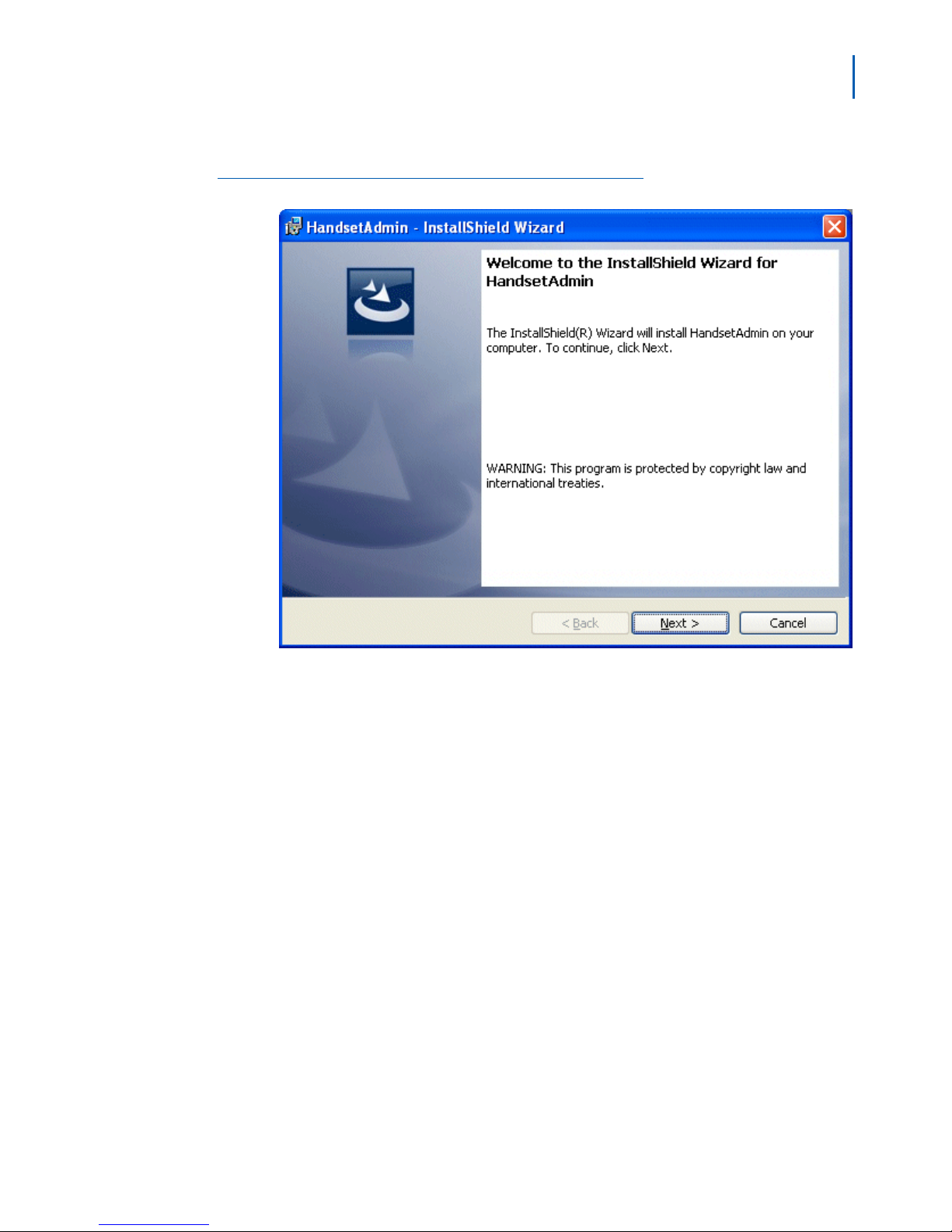

Figure 2-3 InstallShield Wizard welcome
.

2-4 Handset Administration Tool Installation
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
Step 3 The Destination Folder allows you to change the install to another
folder or to simply install in the folder location displayed next to the folder
icon. Click Next to continue
Figure 2-4 InstallShield Wizard: Destination folder
.

Handset Administration Tool Installation 2-5
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
Step 4 The program is about to be installed. Click Install to begin.
Figure 2-5 InstallShield Wizard read to begin installation

2-6 Handset Administration Tool Installation
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
Step 5 Click Finish to exit the InstallShield Wizard.
Figure 2-6 InstallShield Wizard completed
The Handset Administration Tool will appear in your Programs list under the Start
menu as HandsetAdmin and as an icon on your desktop. It may be launched like
any other program.
NOTE

Handset Administration Tool Installation 2-7
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
Installing the USB Driver
The USB driver installation allows the Dual Charger to be the
communication link between the handset and the PC. The two files
needed for the USB driver to function are named slnkusb.sys and
slnkusb.inf. If the Destination Folder had not been changed in step-3,
these files will be located at C:\Program Files\HandsetAdmin\Driver\
Step 1 Find the USB driver files on the PC.
Step 2 Place the Dual Charger on a flat, horizontal surface. Plug the power
supply into the Dual Charger and into an appropriate wall outlet.
Step 3 Plug the USB cable into the Dual Charger and into an available USB port
on the PC.
Step 4 Power off a NEC MH150 and MH160 Mobile Handset, remove the
Battery Pack (optional), and place the handset in the Charger. If properly
seated, the handset automatically powers up in USB mode and the
handset screen displays a USB Mode on indication.
If the handset is not properly seated in the Dual Charger, the USB connection will not
be made and the Battery Pack will begin charging, and the handset screen displays
a Charging… indication. If this occurs, reseat the handset, check the connections on
the USB cable, and/or remove the Battery Pack and try again.

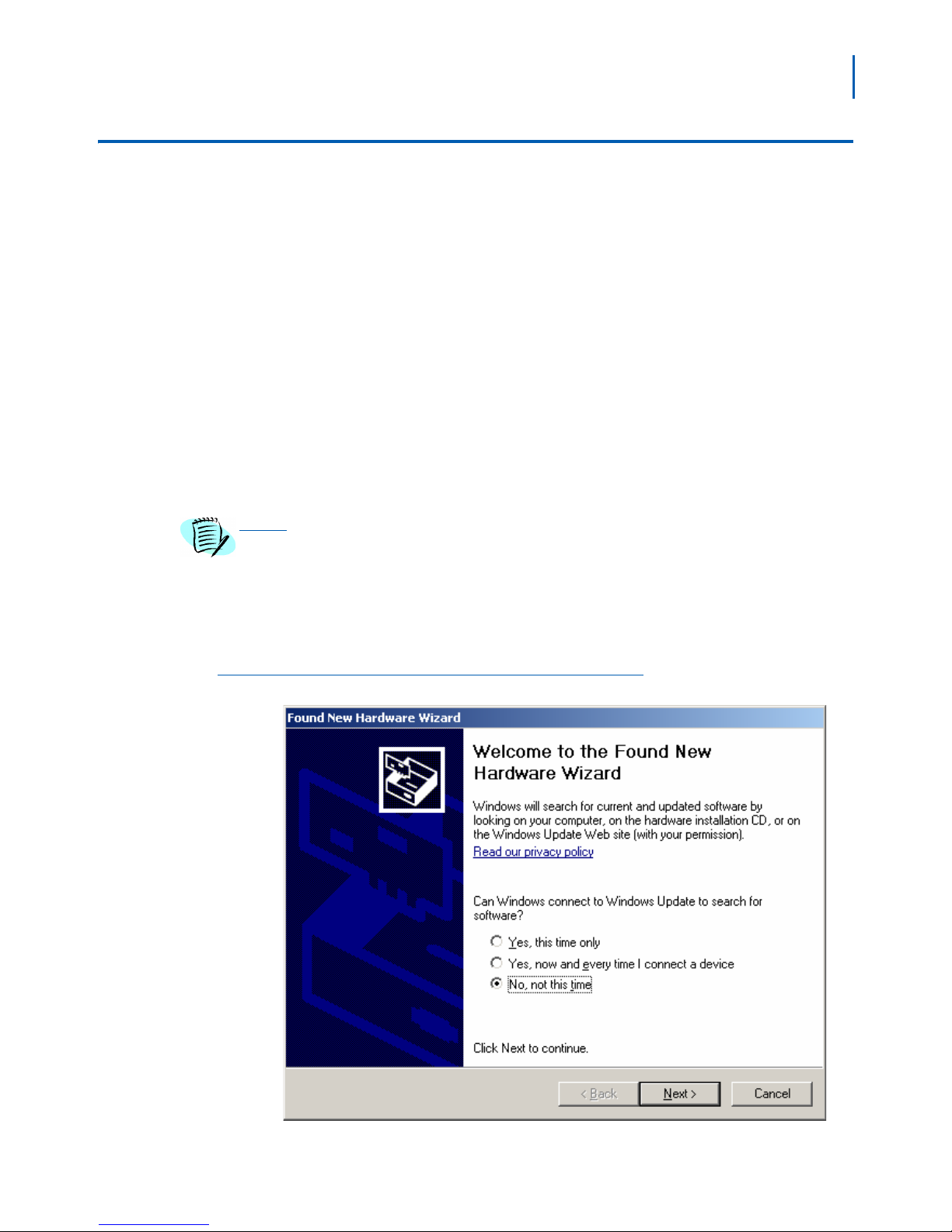

Step 5 Microsoft Windows will start the Found New Hardware Wizard. There is
no need to connect to Windows Update, so select No, not this time and
click Next.
Figure 2-7 Found New Hardware Wizard: Welcome
NOTE

2-8 Handset Administration Tool Installation
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
Step 6 The files need to be installed from a specific location, so select Install
from a list or specific location (Advanced) and click Next.
Figure 2-8 Found New Hardware Wizard: Install software for USB Device
.

Handset Administration Tool Installation 2-9
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
Step 7 Select Search for the best driver in these locations.
— Clear the check box Search removable media.
— Select the check box Include this location in the search.
— Browse the folder where the USB driver files were installed. The
default location is C:\Program Files\HandsetAdmin\Driver\
—ClickNext
Figure 2-9 Found New Hardware Wizard: Choose search and installation options
.

2-10 Handset Administration Tool Installation
NEC MH150/MH160 Mobile Handset Administration Tool-Installation and User Guide - Issue 1
Step 8 The following warning message from the Microsoft Wizard displays. The
USB driver files are proprietary to SpectraLink and were not submitted to
Microsoft for testing. They were fully tested by SpectraLink to more
exacting standards and will not harm your system. Click Continue
Anyway
Figure 2-10 Warning: Software has not passed Microsoft testing
.
Step 9 Microsoft Wizard installs the USB driver software
Figure 2-11 New software is being installed
.
