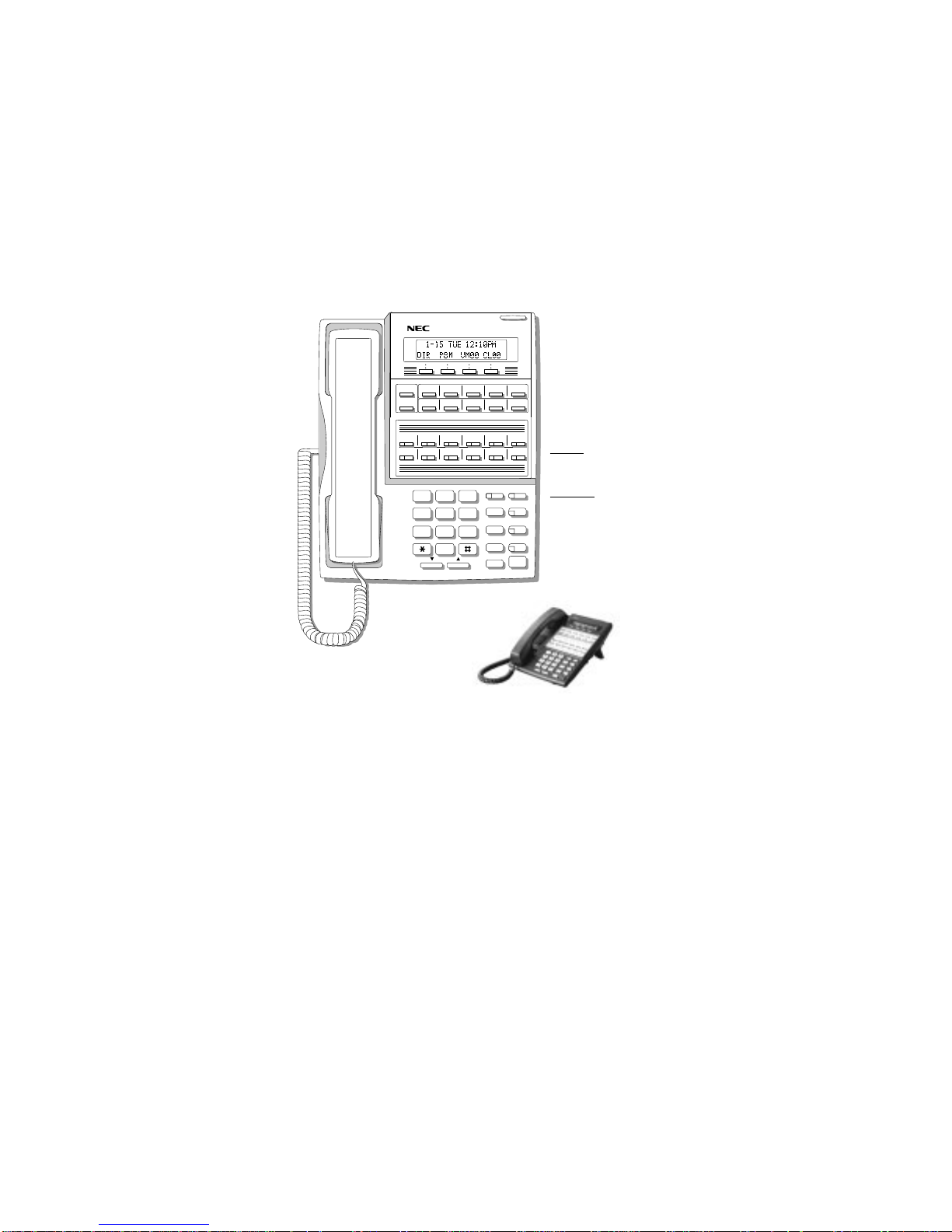

Your Multibutton Display Telephone
1 2 3
4 5 6
7 8 9
0
ABC DEF MW ICM
FLASH DND
DIAL MIC
LND SPK
CONF HOLD
GHI JKL MNOMNO
PQRS TUV
OPER
VOL
WXYZ
CLEAR
CHECK
80000 -70
LINE 1 LINE 2 LINE 3 LINE 4 LINE 5 LINE 6
LINE 7 LINE 8 LINE 9 LINE 10 LINE 11 LINE 12
BIN 1 BIN 2 BIN 3 BIN 4 BIN 5
BIN 6 BIN 7 BIN 8 BIN 9 BIN 10
For Attendants:
Key 11=Night Key
Key 12=Operator Call Key
In DS1000:
Keys 7-12 are
undefined.
●Your key assignments may be different than
shown. Ask your communications manager.
●See the inside back cover of this guide for an
illustration of the Super Display telephone.

Caller ID Logging.............................................................1
Caller ID Logging at your 22-Button or 34-Button
Display Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Caller ID Logging at your Super Display Telephone . .4
Distinctive Ringing...........................................................7
Distinctive Ring Configuration . . . . . . . . . . . . . . . . . .8
Extension Override . . . . . . . . . . . . . . . . . . . . . . . . . .13
Key Ring Override . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Hold Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Park Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Transfer Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Transfer, Handsfree.......................................................29
Volume and Contrast Control........................................30
Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Contrast Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Table of Contents
i

ii

If your system has Caller ID
enabled, Caller ID logging stores in
a log your caller’s number and
optional name for each outside call
that rings the system. You can view
this log on your telephone display,
allowing you to easily review and redial your calls.
The system can log calls directly to your extension — or you
may be a member of a Caller ID Logging group that shares
records. Your Communications Manager can tell you more.
Use the feature and soft keys on your phone to:
●Scroll through (review) your Caller ID records.
●Delete records you no longer need.
●Store a record (both the number and name) in one of your
Personal Speed Dial bins.
●Place a return call to the calling party.
Caller ID Logging at your 22-Button or 34-Button
Display Telephone
To review your Caller ID log:

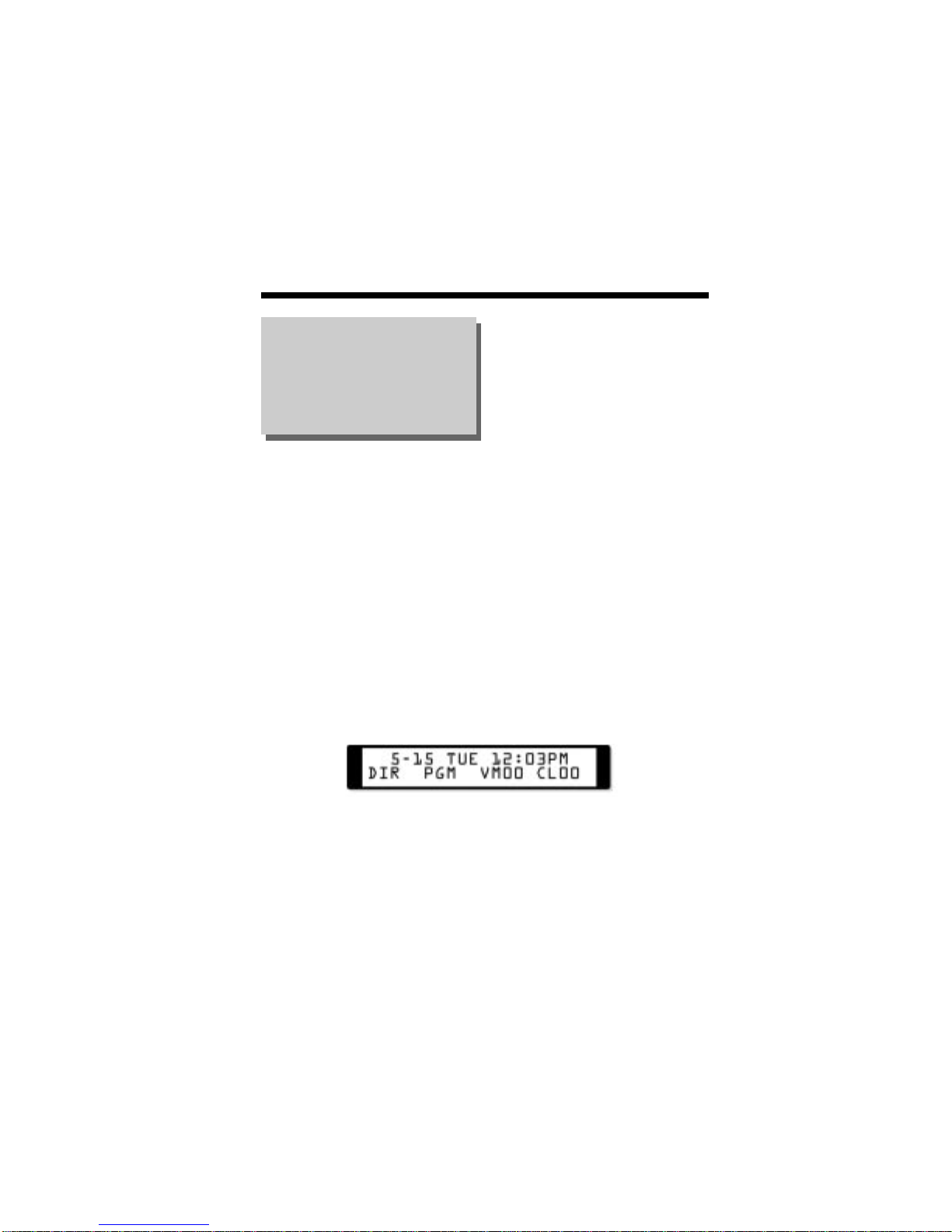

1. While your phone is idle, press CLnn (where nn is the num-
ber of Caller ID records currently logged at your phone).
– Your Ring/Message Lamp (the large green LED on the
upper right corner of you phone) winks on (green) when
you have Caller ID records you have not reviewed.
– After pressing CLnn, you see:
Caller ID Logging
1
Your phone can store
your caller’s name and
phone number for easy
review and redialing.

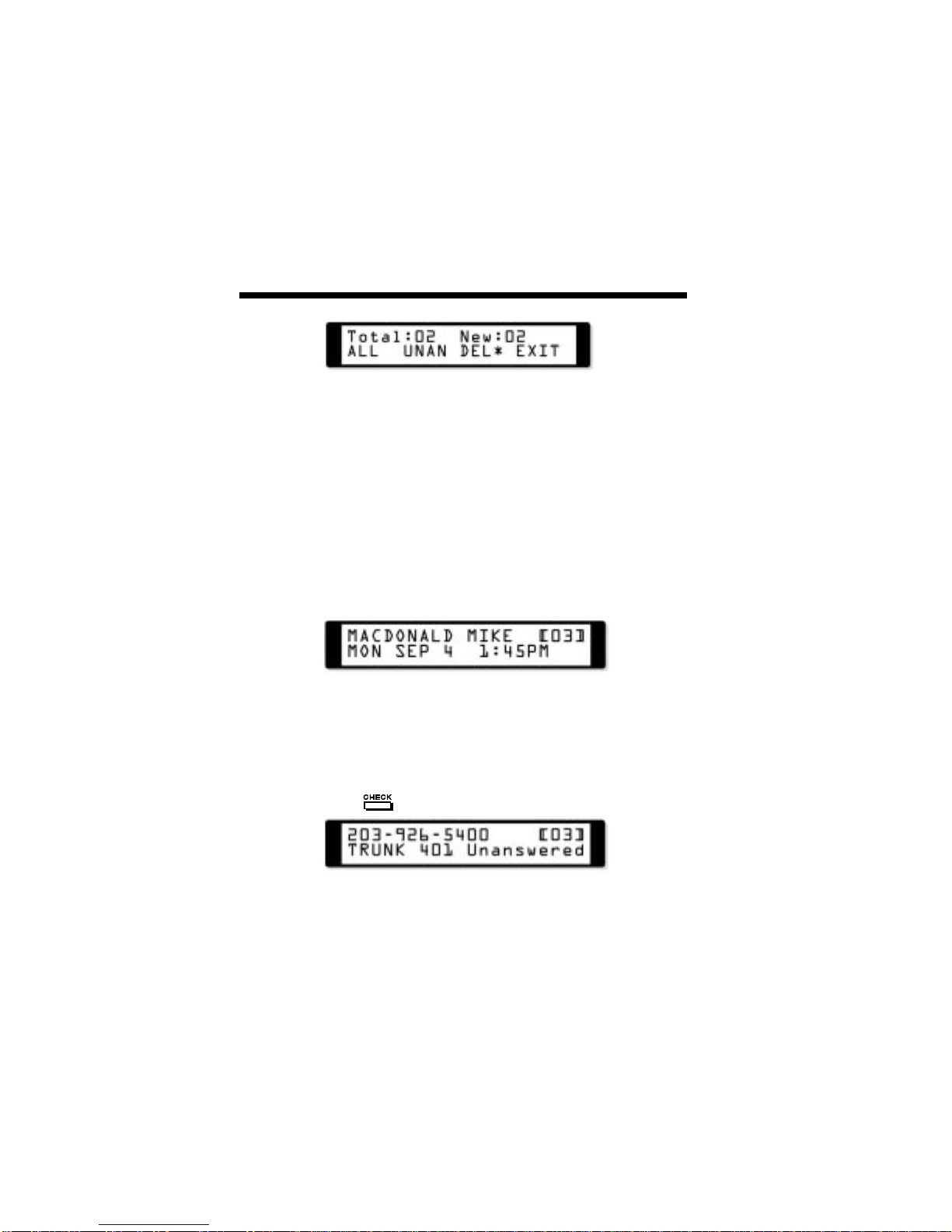

–Total = the total number of Caller ID records in your log.
–New = the number of new calls since you last
reviewed your log.
2. While this display is on screen, you can:
– Press ALL to review all your Caller ID records.
– Press UNAN to review the records just for calls that
rang you phone but were unanswered in the system.
– Press DEL* to delete all Caller ID records logged at
your phone.
– Press EXIT or dial 9 to exit to the idle mode without
making any changes.
3. If you pressed ALL or UNAN in the previous step, you
see (for example):
This display is Page 1 of a Caller ID record. It shows:
– The name of the person that called (if available). The
most recent call displays first.
– The call record number (e.g., 03).
– The date they called (i.e., Yesterday, Today or day of
week and date).
4. Press . You see (for example):
This display is Page 2 of a Caller ID record. It shows:
– Your caller’s phone number.
– The call record number (e.g., 03).
Caller ID Logging
2

– The outside line number (or name – if programmed)
the call came in on.
– The extension that answered the call, or if the call
was unanswered.
5. Use and to scroll through the Caller ID
records that are logged at your phone.
6. Press to toggle between Page 1 and Page 2.
7. When a Caller ID record is displayed, you can:
– Press to call the person back.
– Dial to Store the number in Personal Speed Dial.
– Dial to Delete the displayed record.
– Dial to eXit (go back to step 2).
– Press to show the Caller ID Menu display below.
8. While the Caller ID Menu displays, you can:
– Press CALL to call the person back.
– Press STOR to store the number in Personal Speed
Dial.
– Press DEL to delete the displayed record.
– Press EXIT to go back to step 2.
– Press to back up to step 7.
Caller ID Logging
3

Caller ID Logging at your Super Display Telephone
To review your Caller ID log:
1. While your phone is idle, press CALLs nn (where nn is
the number of Caller ID records currently logged at
your phone).
– Your Ring/Message Lamp (the large green LED on the
upper right corner of you phone) winks on (green) when
you have Caller ID records you have not reviewed.
– After pressing CALLS nn, you see:
–Total = the total number of Caller ID records in your log.
–New = the number of new calls since you last
reviewed your log.
–Unans = the number of Caller ID calls that rang your
phone that were unanswered in the system.
–Ans = the number of Caller ID calls that rang your
phone that were answered in the system.
Caller ID Logging
4

2. While this display is on screen, you can:
– Press VIEW ALL to review all your Caller ID records.
– Press VIEW UNANS to review the records just for calls
that rang you phone but were unanswered in the system.
– Press DELETE ALL to delete all Caller ID records
logged at your phone.
– Press VIEW ANS to review the records just for the calls
that rang your phone that were answered in the system.
– Press EXIT or dial 9 to exit to the idle mode without
making any changes.
3. If you pressed VIEW ALL, VIEW UNANS,or VIEW ANS
in the previous step, you see (for example):

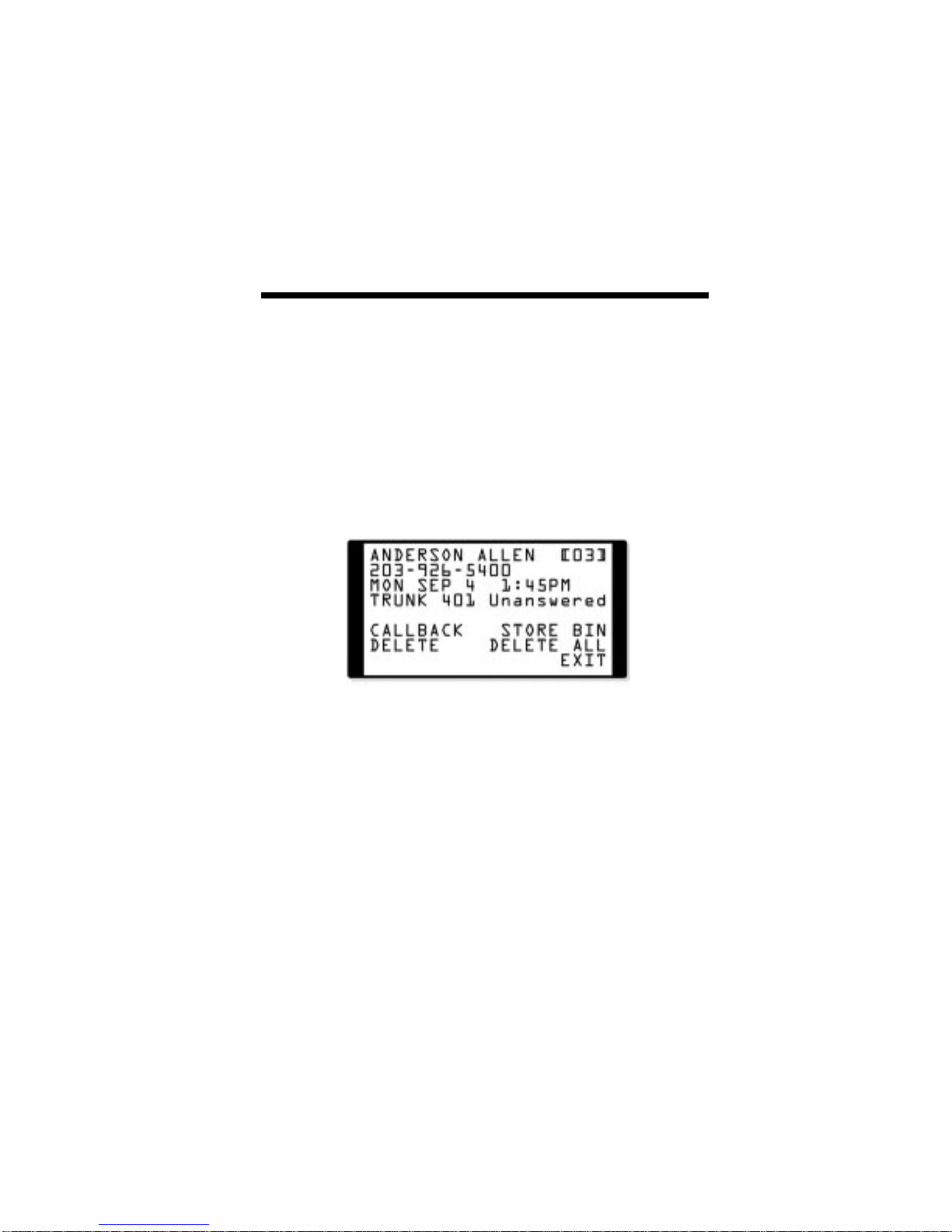

This display is a Caller ID record. It shows:
– The name of the person that called (if available). The
most recent call displays first.
– The call record number (e.g., 03).
– Your caller’s phone number.
– The date they called (i.e., Yesterday, Today or day of
week and date).
– The time they called.
– The outside line number (or name – if programmed)
the call came in on.
– The extension that answered the call, or if the call
was unanswered.
Caller ID Logging
5

4. Use and to scroll through the Caller ID
records that are logged at your phone.
5. When a Caller ID record is displayed, you can:
– Press CALLBACK to call the person back.
– Press DELETE to delete the displayed record.
– Press STORE BIN to store the number in a Personal
Speed Dial bin.
– Press DELETE ALL to delete all your Caller ID
records.
– Press EXIT to go back to step 1.
Caller ID Logging
