Nederman FilterMax F Series User manual

ENGLISH
INSTRUCTION MANUAL
No. 148546 / 03
2006-10-01
0
1
CAPTURE AT SOURCE
F

FilterMax F 30 FilterMax F 60 FilterMax F 90
0
1
0
1
0
1
CE, Declaration of conformity
Delivery check
IMPORTANT! Safety imformation
Pre-installation
Technical data
Dimensions
Mounting instructions
Mounting the filter cartridges
Compressed air connection
Electrical installation
Accessories, electrical installation
Earth control measuring
Applications

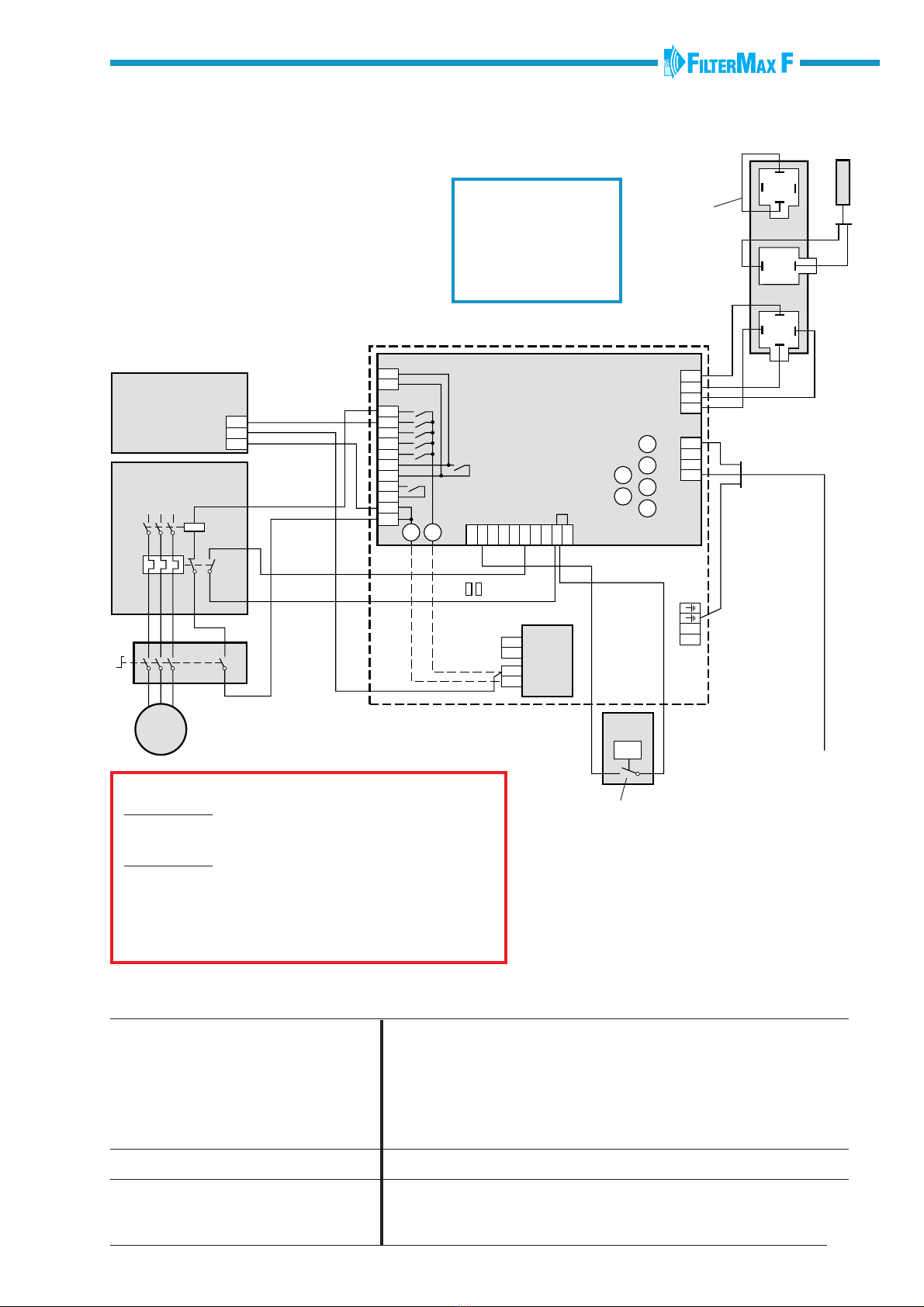

Wiring diagram
Connection of several FilterMax to one system
Connection of 2 or 3 pilot boxes

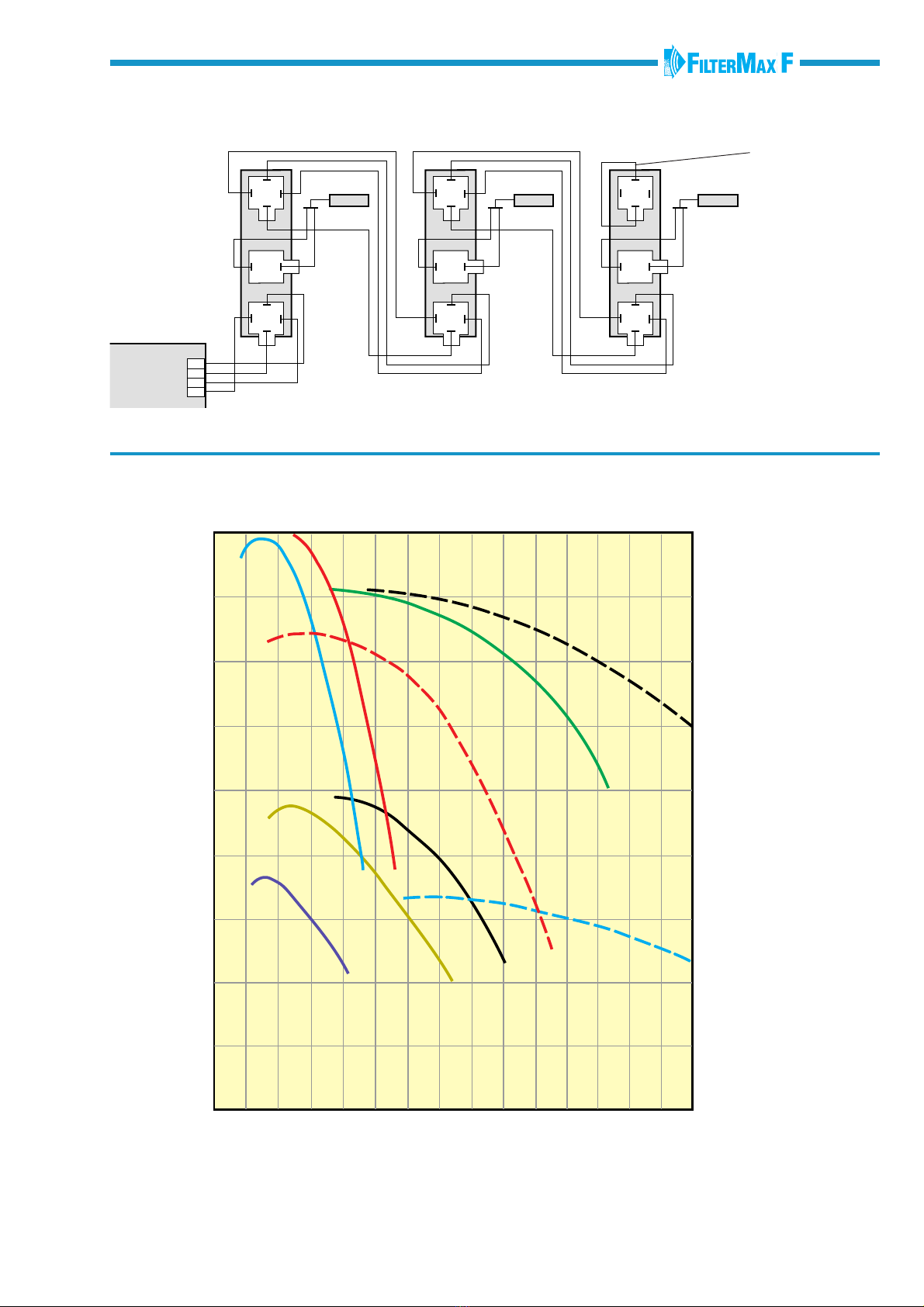

Fans
Duct dimensioning / System installation
Operating description
Starting the system

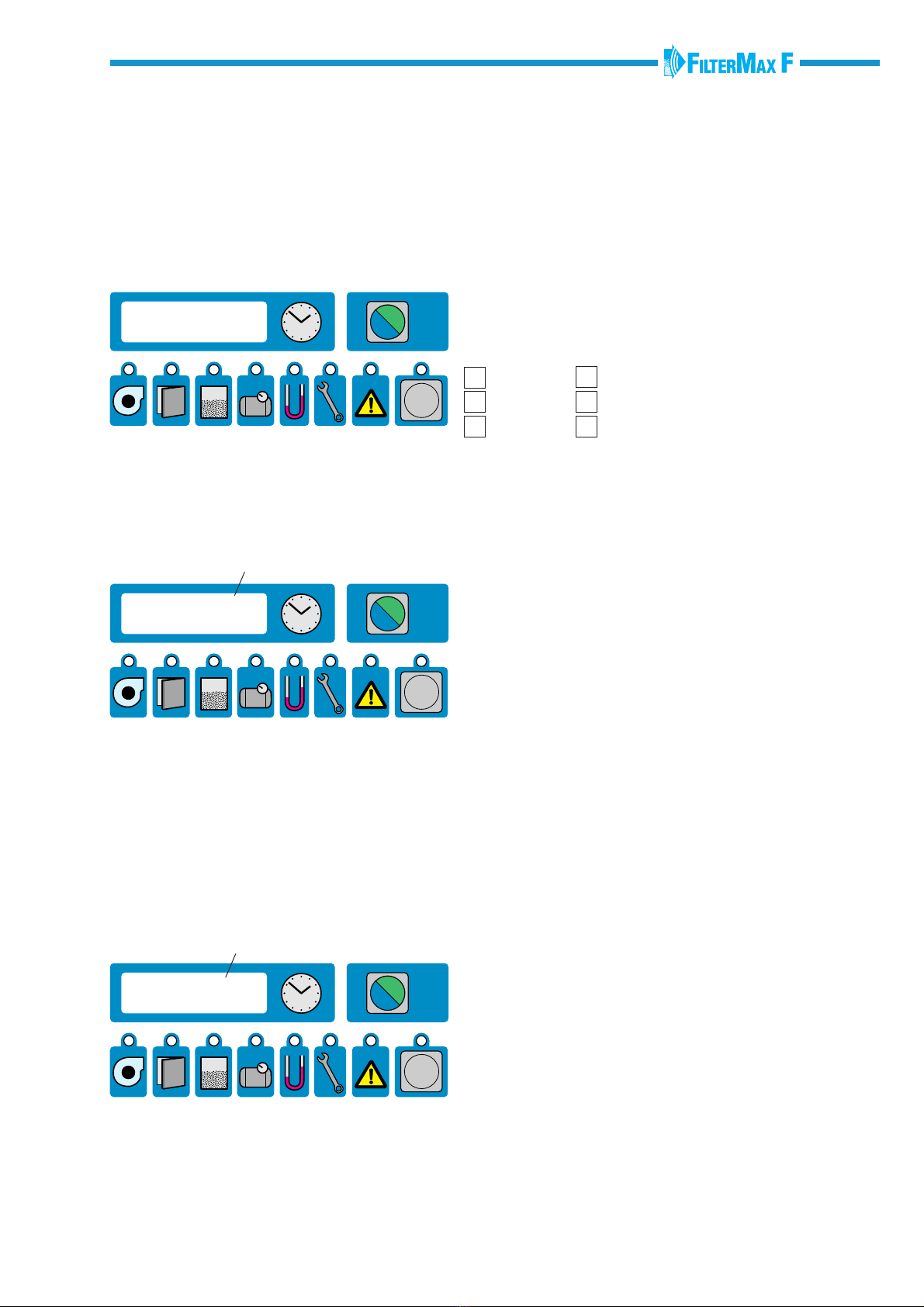

Monitoring system, settings

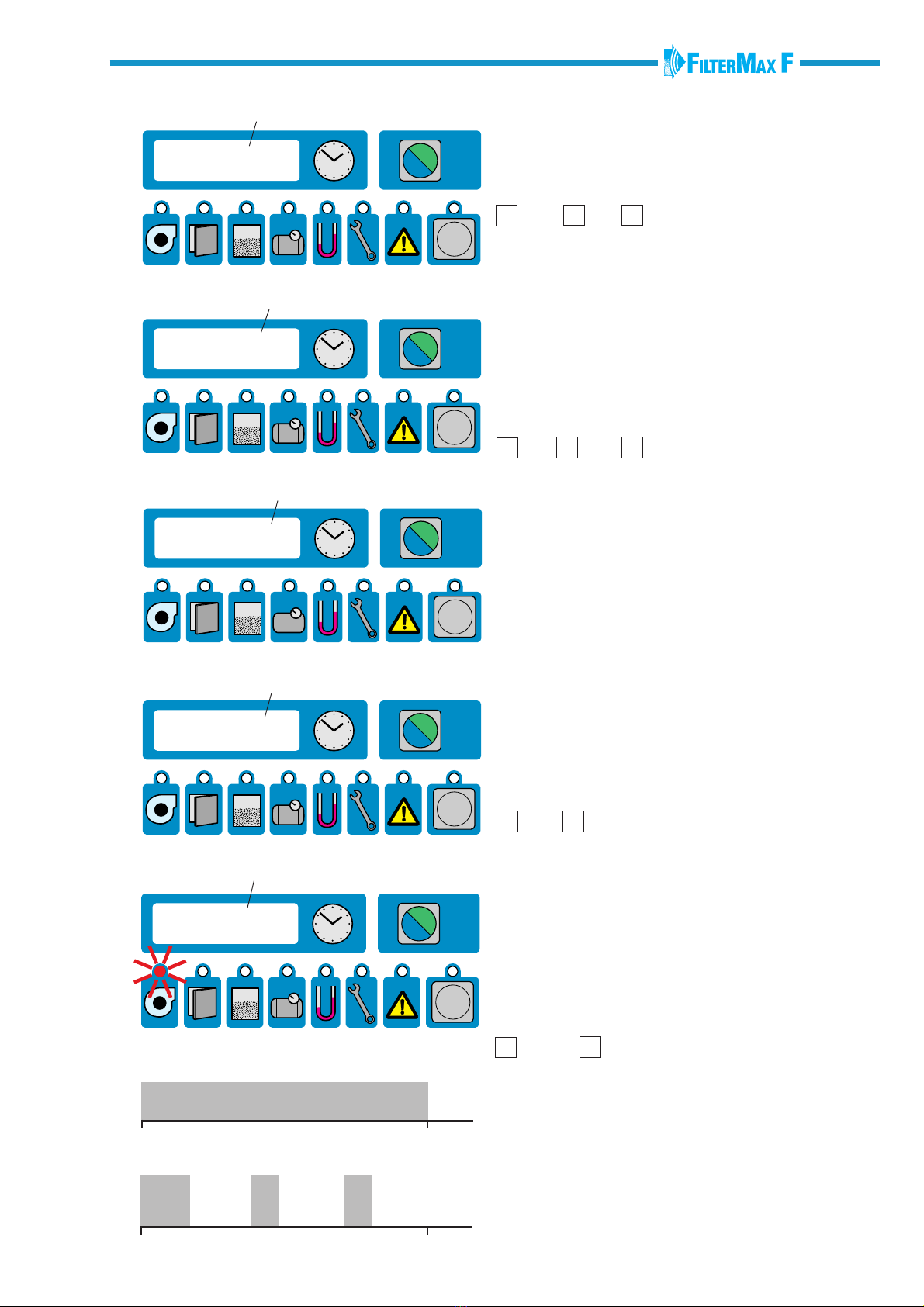

Monitoring system, general descriptions

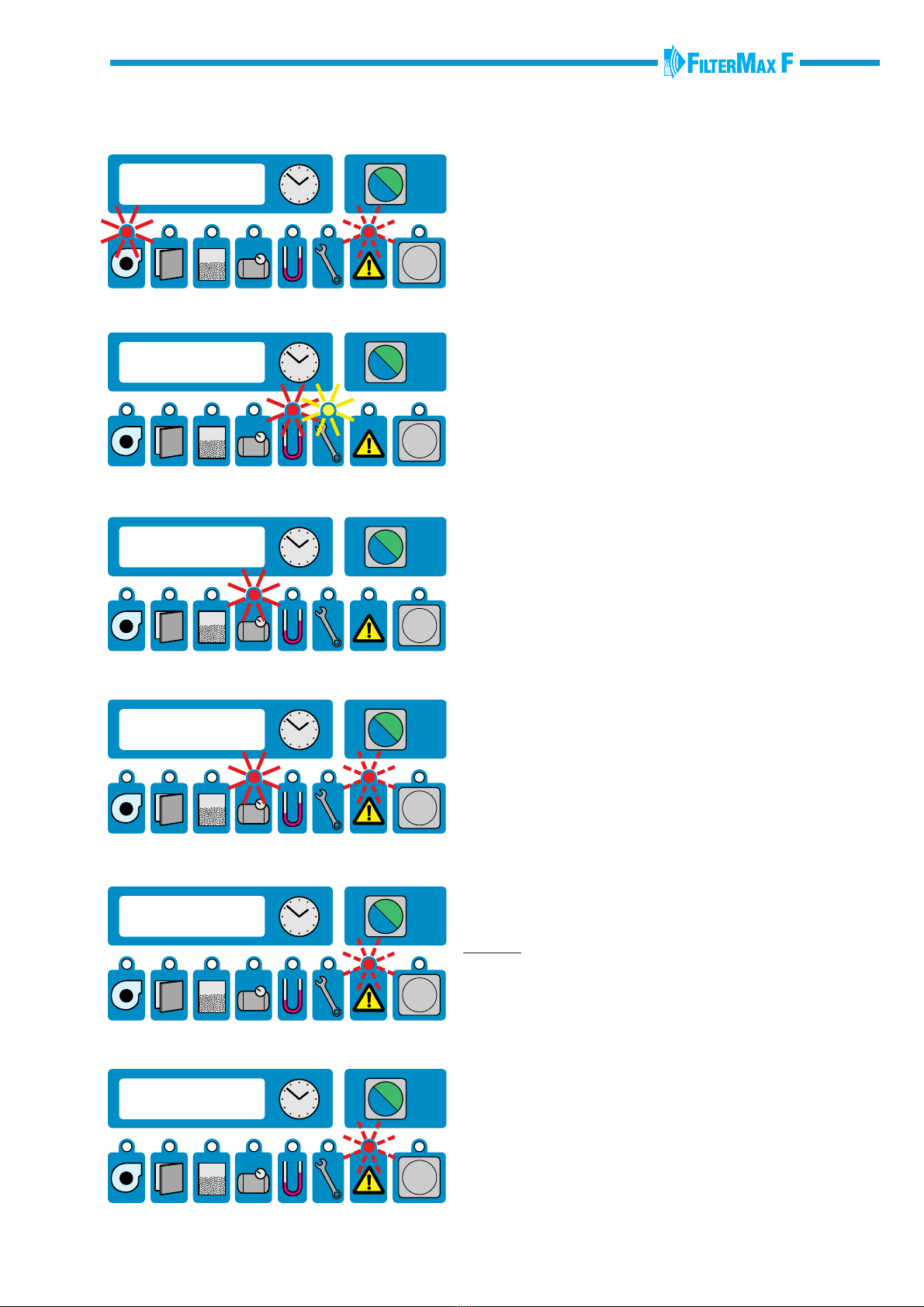

Monitoring system, fault indications
Service instructions
Trouble-shooting schedule
Spare parts
Accessories
Installation protocol
Service protocol
Service notes
Installation
page
3
3
4
4
4
5
6
7
8
9
9 - 11
12
12
13
14
15
15
16
17
18
18 - 19
20
21 - 22
23 - 25
26 - 28
29
30
31 - 32
33 - 36
37
Starting
Settings
Service
Repair
Operating
Accessories
Protocols

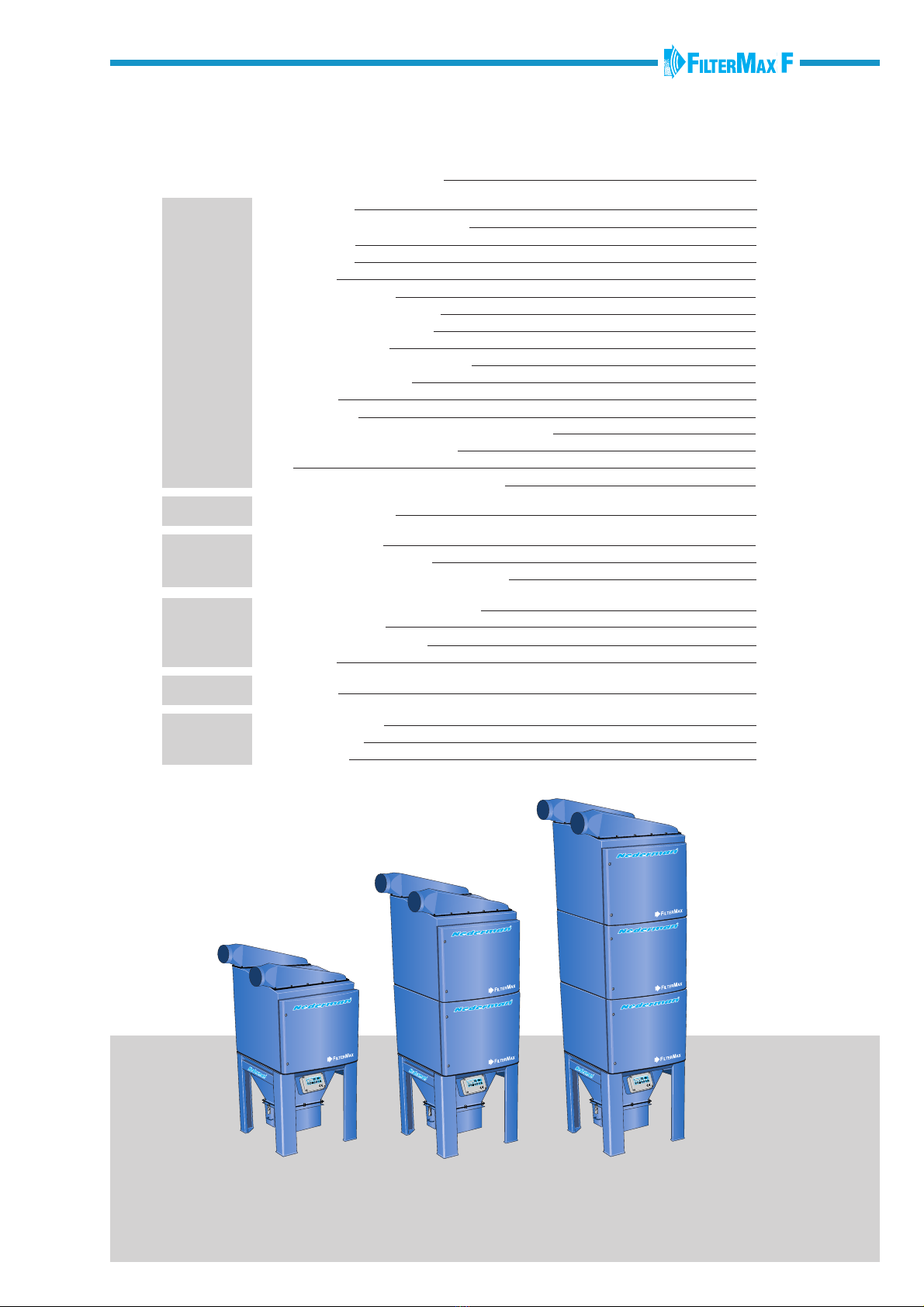

List of contents
2

Declaration of conformity
We, AB Ph. Nederman & Co., declare under our sole
responsibility that the Nederman product: FilterMax F
serial 667 with accessories, to which this declaration
relates, are in conformity with the following directives,
underlying standards or other normative documents:
Directive: 98/37/EC - Safety of machinery
Applied standards EN 292 Part 1,2, EN ISO 4871
Directive: 89/336/EEC - Electromagnetic compatibility.
Applied standards EN 50082-1, EN 61000, EN 55011
and EN 55022
Directive: 73/23/EEC - Low voltage equipment.
Applied standards EN 60204-1,EN 60947-1
Directive: 87/404/EEC - Simple pressure vessels
Applied standards EN 286-1 part 1
0
1
C
D
B
A
E
F
G
D
DELIVERY CHECK
The following modules should be mounted
together to assemble the complete FilterMax F.
When delivered A - C are already assembled
(units shipped by sea may contain more
components).
A. Filter unit (1, 2 or 3 pcs.)
B. Stand
C. Control box
D. Collector (2 x 40 litres or 2 x 100 litres
with stand extentions)
E. Inlet
F. Outlet
G. Filter cartridges
(6 pcs./filter unit)
3
The units should be checked for any
damage that may have occured during
transport. If there is damage or parts
missing, the carrier and your local
Nederman representative should be
notified immediately.
FilterMax F can be supplemented by
a number of accessories (see page 30).
This product is designed to meet the
requirements of the relevant EC directives.
To maintain this status all installation, repair
and maintenance work must be carried out by qualified
personnel using only original spare parts. Contact your
nearest authorised dealer or AB Ph. Nederman & Co. for
advice on technical service or if you require spare parts.
AB Ph. Nederman & Co.
Sydhamnsgatan 2
S-252 28 Helsingborg
Sweden
2006-10-01
Lennart Andersson, Product Manager

Filtration
Operating airflow
Filterarea / filter cartridge
Filter material
Operating temperature
Process air (dry) temperature
Material description
Environment classes *
Compressed air requirements
Compressed air consumption
Compressed air connection
Voltage supply
Protection class
Relay voltage, accessory
Working pressure
Pulse noise
Weight
Basic PW filter: 99% at 0,3 µm (after some time in operation), BIA class C
PTFE filter: 99,9% at 0,3 µm (after some time in operation), BIA class C
1 module: 2400 - 3600 m
3
/h (depending on load and application)
2 modules: 4800 - 7200 m
3
/h (depending on load and application)
3 modules: 7200 - 10800 m
3
/h (depending on load and application)
1 module: 60 m
2
, 2 modules: 120 m
2
, 3 modules: 180 m
2
2 layer polyester / polypropylene
-20°C to +60 °C
0 °C to +60 °C, not condensing
3 mm painted steel (FilterMax FI, FO), epoxy based zinc primer and top coat (FO only))
C2 = low corrosion risk, indoors, unheated air varying temperature (FilterMax FI)
C4 = high corrosion risk, outdoors polluted urban areas and coastal areas (FilterMax FO)
0,6 MPa (6 bar, 87 psi), water and oil free
32 N-litres / cleaning pulse at 0,6 MPa (6 bar, 87 psi)
1/2" R 15, max. 0,6 MPa (6 bar, 87 psi)
100 V, 120 V, 230 V, 50/60 Hz
IP 54
24 V AC, max. 60 VA
0 to -5 kPa, not overpressure
Lp Aeq, 30 s, 50 dB
1 module: 615 kg, 2 modules: 890 kg, 3 modules: 1150 kg
*according to EN ISO 12944
Nederman FilterMax F is designed for collecting and
filtering fume and non-explosive dry dust.
To guarantee the correct function and a minimal service
FilterMax F must only be used for these purposes and
according to the instructions in this manual. The manual
contains important warning directions which have to be
read and followed.
Any functional disorders, especially those affecting the
safety of the machine, should be rectified immediately.
IMPORTANT! SAFETY INFORMATION
4
967
min. 100
min. 5001000
1320
FILTERMAX
20
50
1200
max. 155°

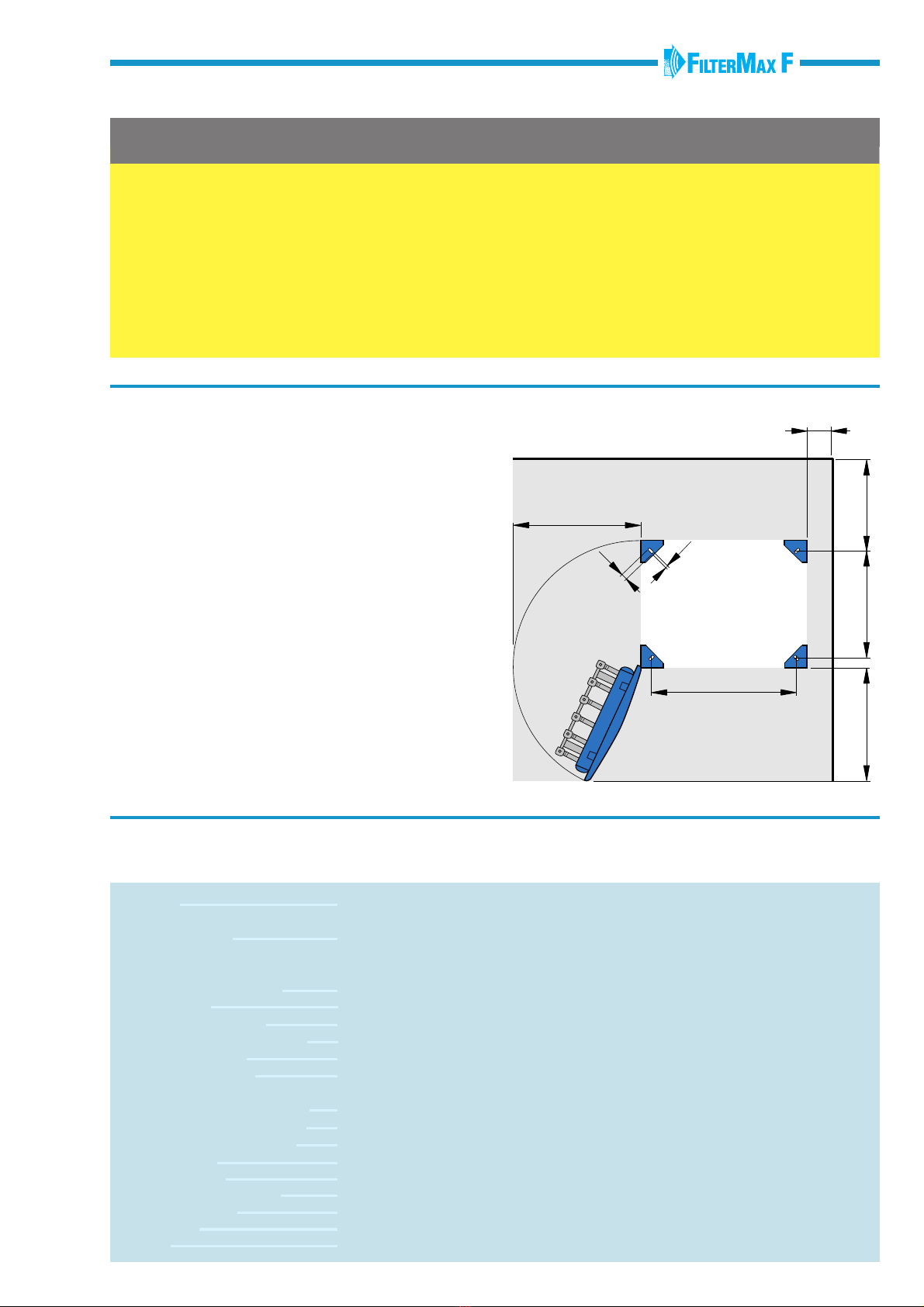

PRE-INSTALLATION
FilterMax FI is for indoor installation.
FilterMax FO is for outdoor installation.
FilterMax F should be located with consideration for easy
handling of the collected dust and for convenience of
service and maintenance.
FilterMax F is usually installed on a reinforced concrete
foundation. However, installation on another structure is
also possible. When calculating for foundation or supporting
structure the following factors should be taken into conside-
ration (see technical data):
• Total weight of FilterMax F
• Max. weight of collected contamination
• Possible wind load
• Possible snow load
IMPORTANT! Location must be clear of all obstructions
such as utility lines etc. Pay particular attention to the
anchor bolt location. Anchor bolts (M16) must extend at
least 60 mm above foundation. If you intend to secure the
unit by using expansion bolts or equivalent fittings, the
concrete floor must be prepared accordingly.
For safe and reliable results assembling
work, electrical installation, use, service
and trouble-shooting should be performed
by qualified personnel. Special training may
also be necessary.
Please contact your nearest authorised
dealer or AB Ph. Nederman & Co. for
technical advice.
TECHNICAL DATA

135
D
ABC
FE
970
1030
130
2270 3190 4120
INLET
1 MODULE
3 MODULES
2 MODULES
OUTLET
1160
G
1515
1690
1320
115
20
50
1180
open angle 155
°
A
B
C
D
E
F
G
H
H
NB!
The height dimensions for the
filter are only valid when using
the 40 litres containers.
2 x 40 litres
containers
In/Outlet inner diameters (mm)
250
-
-
-
2450
3370
-
-
275
315
2375
3300
-
2560
3480
4410
1430
325
400
2440
3365
4290
-
3540
4470
1445
395
500
2565
3490
4415
-
-
4600
1465
445
5
DIMENSIONS

0
1
6

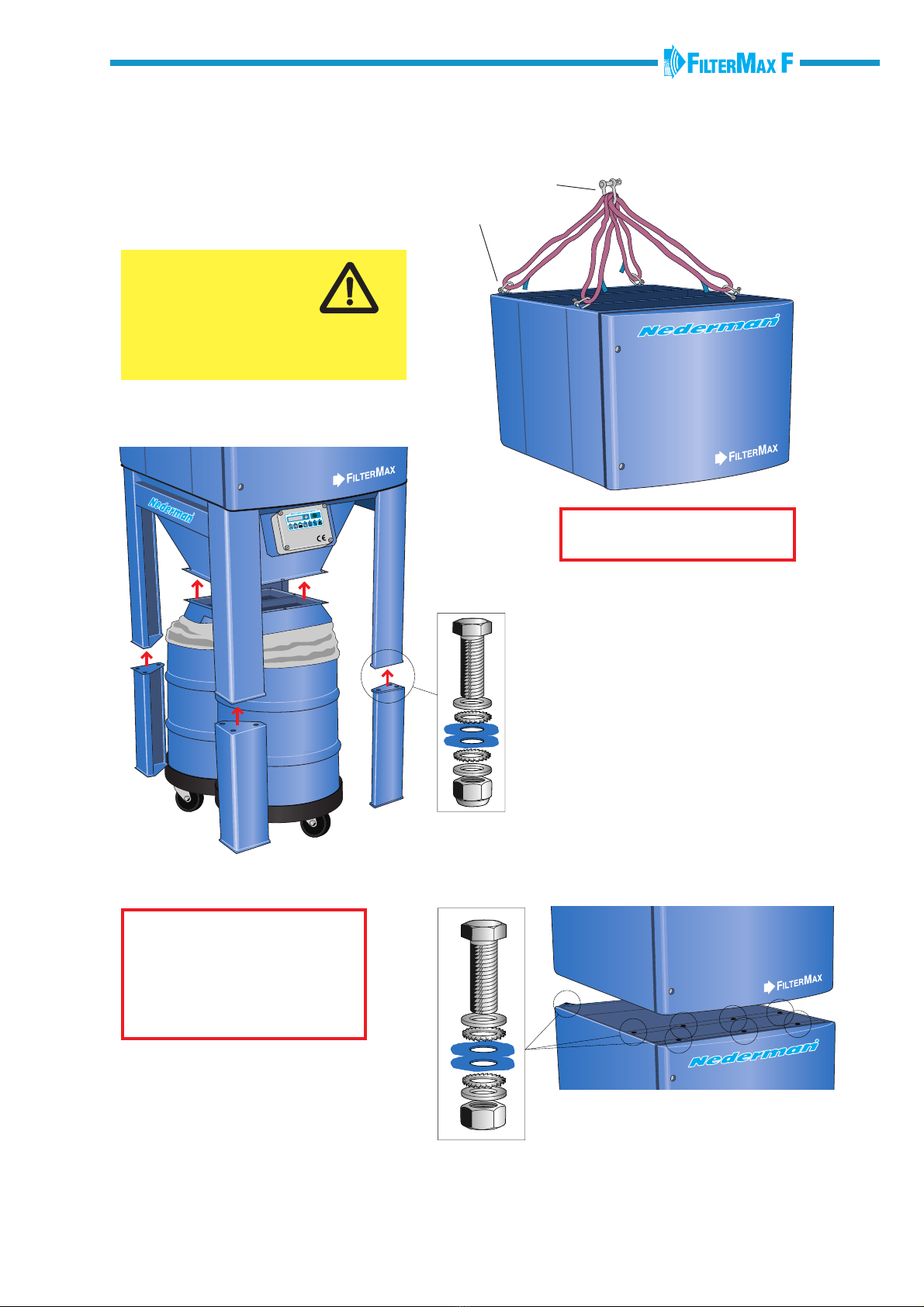

MOUNTING INSTRUCTION
Connect the lifting sling
to 4 cabinet lifting lugs.
Distribute loads equally.
Use schackles,
not hooks on the
lifting sling.
WARNING!
Risk of personal injuries
and/or product damages!
Use approved lifting equipment for
unloading, assembly and installation
of the units.
NB! Maximum 2 units should be
lifted at the same time.
x 3
1. Mount the dust containers. If dust containers
2 x 100 litre should be mounted the stand extensions
also must be mounted.
2. FilterMax is usually anchored to a concrete foun-
dation with expansion bolts or similar. Fit the fixing bolts
and use adjusting pieces, if necessary, to get the filter
unit in level. Check with a spirit level.
For more stabilty, the filter unit can be braced
against the wall.
IMPORTANT!
Ensure that the inlet, outlet and
all filter units always are mounted
together with bolts in all intended
holes. Always use toothed washers
to ensure electric connection.
0
1
3. For FilterMax F 60 and F 90 two and three
filter units are used respectively. Mount the units
together to build the complete filter unit.

MOUNTING THE FILTER CARTRIDGES
1. Unscrew the two fixing screws on the
access door. Use the enclosed T-key or a 10 mm
standard hexagon key. Open the door.
3. Handle the filter cartridges carefully to
avoid mechanical damage to the filter surface.
2. Loosen the nuts
on the filter holders
but don’t screw them
off completely.
Remove the filter
holders.
WARNING!
Risk of personal injury!
For FilterMax F equipped with 2 or 3 modules
(12 or 18 filter cartridges), an approved lifting
platform (see figure) has to be used when
mounting or replacing the filter cartridges.
6. Shut the access door and
fasten the two fixing screws.
5. Hang the filter holders on the screws
and fasten the nuts.
4. Insert the filter
cartridges. NB! The
mark on the back end
cap should be put on
the angled sheet-metal
plate just inside the
filter hole.
NB! The inlet and outlet are reversable
and concequently they can be positioned
for duct connection on the
right or left side of
the filter.
7
4. Fit the inlet and outlet.
(NB! The inlet is equipped with
an inspection cover on top.)

FilterMax F
Control box
Pressure switch
(accessory)
Compressed air tank, module no. 3
Compressed air tank, module no. 2
Compressed air tank, module no. 1
Water drain valve
Connect the compressed air supply line
to the compressed air connection of
the filter. Use pipe sealant on all
compressed air connections.
Compressed air components
(accessories, see page. 30)
A shut off valve for service work and a
filter regulator should be installed in the
compressed air pipe line (Note the flow
direction during the installation).
Important! the filter regulator
must be positioned in a frost free
environment.
Recommended connection size:
minimum 1/2".
Water drain valve
Water drain valve
IMPORTANT!
• The compressed air supply pressure has
to be = 0,4 - 0,6 MPa (4 - 6 bar / 58 - 87 psi).
• The compressed air shall have a dew point
below the minimum temperature at which the
system is ment to be used.
• The compressed air supply must be both oil
and water free.
• Improper air pressure or contamination in
the compressed air can result in cleaning
valve failure, poor cleaning and filter
performance.
• Purge compressed air lines to remove debris
before connecting to the compressed air
manifold.
• Do not use thread-sealing tape after the
filter regulator.
• Quick couplings throttle the air too much
and are not recommended.
• Turn off and bleed off compressed air supply
before doing any service work.
• Do not pressurise the system if the air tem-
perature is below the minimum operating
temperature, that is -20 °C. At lower air tem-
perature the process could be started and be
in operation for a while (approx. 15 min.) after
which the system can be pressurised.
8
Filter regulator,
recommended pressure
0,5 MPa (5 bar / 73 psi)
(accessory)
Service valve with
integrated drain valve
(accessory)
Compressed
air connection
COMPRESSED AIR CONNECTION

Automatic depressuring of compressed air tanks at fire
Frost free
Filter
regulator
Normally closed
valve with big bore.
Normally
opened valve.
Compressed
air connection. Both valves shall be connected to
JP6:4, 10/11, so they will be acti-
vated (drawn) at normal operation.
At a possible fire alarm (or a power
failure) the valves are switching and
the compressed air tanks will be
depressurised.
Compressed
air tank on
FilterMax F
JP1
14 109876532
132
97 98
> P
P > 3 bar
JP6
14 10119876532
External START/STOP
Pressure switch, compressed air Fan starter (24 V AC)
Down time damper (24 V AC)
Alarm signal (A or S), 24 V AC
A-Alarm, potential free
contact, 24 V AC
Fan starter
potential free
contact, 24 V AC
Alarm device
Start contactor
Fan start equipment
Connection block JP 1: Digital inputs
High dust level
Pressure switch, high dP /
low airflow / simple dP control
Fan motor protector
Spare, not used
Pressure switch
Dielectric detector PNP
Connection block JP 6: Outputs
Damper motor
Fire alarm
Dust feeder (24 V AC)
Automatic depressurising of
compressed air tanks at fire
The accessories must be equipped with
a potential free contact
Connecting fan and other accessories to the FilterMax F
as well as connecting the FilterMax F to the mains must
be done by a qualified electrician.
ACCESSORIES, ELECTRICAL CONNECTION
ELECTRICAL INSTALLATION
IMPORTANT!
All electrical work must be done by a qualified
electrician according to local regulations.
Connect FilterMax F to the mains and connect fan and
other components and accessories according to the
following wiring diagrams.
A lockable safety switch should be fitted on the
mains connection cable.
Electrical connection together with Nederman Fan Starter
or Fan Inverter is described on wiring diagrams supplied
with these products.
WARNING!
Risk of personal injury!
Disconnect the electrical power
before servicing any electrical component.
All exposed conductive parts of the electrical
equipment and the machine shall be connected
to the protective earthing (see wiring diagram).
9
Max. 2 A

Motor protector, fan
Push the P-button.
Activated input: JP1: 6
Set OFF, nC or nO with the 0/1-button.
High dust level indicator
Push the P-button.
Activated input: JP1: 3
Set OFF, nC or nO with the 0/1-button.
Push the 0/1-button and OFF, nC or nO comes up on the display.
OFF The selected input is not activated.
nC Normally closed: The selected input is activated.
nO Normally opened: The selected input is activated.
Select NC or NO depending on type of contact on the connected
accessory. Make a note of the setting which has been selected.
10
OFF nC nO
OFF nC nO
Selecting OFF, nC or nO
Push the P-button and the 0/1-button more than 4 seconds.
ACTIVATING THE MENU
The inputs or outputs should be activated when accessories
have been connected. Push the P-button to activate actual
input/output. The LED’s indicate, where appropriate, with
red blinking lights.
The inputs are activated in the following order:
ACTIVATING INPUTS AND OUTPUTS
0
1
1
0
P
P
0
1
1
0
P
0
1
1
0
P
A
B
or nC or nO
or nC or nO
OFF
OFF
Red blinking
Red blinking
Pressure switch, compressed air
Push the P-button.
Activated input: JP1: 2
Set OFF, nC or nO with the 0/1-button.
OFF nC nO
Pressure switch
high dP / low airflow
Push the P-button.
Activated input: JP1: 4
Set OFF, nC or nO with the 0/1-button.
OFF nC nO
0
1
1
0
P
0
1
1
0
P
C
D
or nC or nO
or nC or nO
OFF
OFF
Red blinking
Red blinking

11
0
1
1
0
P
E
or nC or nO
Fire alarm
Push the P-button.
Activated input: JP1: 7
Set OFF, nC or nO with the 0/1-button
EA OFF
OFF nC nO
0
1
1
0
P
F
or OFF or Int
Dust feeder
Push the P-button.
Activated output: JP6: 3
Direct controlled by contactor or other 24 V relay.
On: The dust feeder is in operation
OFF: The dust feeder is not in operation
Int: Intermittent operation of the dust feeder
Set On, OFF or Int with the 0/1-button.
On OFF Int
dF On
0
1
1
0
P
GDown time damper delay
Push the P-button.
Activated output: JP6: 2
24 V AC supply for opening a damper motor with
spring return or magnetic valve for compressed air.
Is used to reduce the starting current at fan start.
Delay time for opening the down time damper:
10 - 60 s after fan start. Set the required delay time
with the 0/1-button.
00 - 60 s
dA 00
0
1
1
0
P
HLocal START/STOP
Push the P-button.
Activated input: JP1: 1
Inactivates the start/stop button on the control box.
Only remote start is possible in OFF-position.
Set On or OFF with the 0/1-button.
LO ON
or OFF
On OFF
0
1
1
0
P
JPre-Coate Control
In some applications with FilterMax it is necessary to inject
dust. The purpose can be to reduce the fire risk or improve
cleaning of the filter cartridges. The input JP6:1 can be
used in 2 ways. When the function of the motor protection
has been chosen, the fan LED will show fixed red light.
Then you are able to choose the use of JP6:1 PULSE or
FAN with the 0/1-button. PULSE is the pre-coate mode.
If PULSE is set there will be a choise of parameters to set:
ST - Start. The initial injection time: 0, 1, 2, 3, 4, 5, 7, 10,
15, 20, 30, 40, 60 or 90 s.
IN - Injection. The injection time: 0, 1, 2, 3, 4, 5, 7, 10, 15,
20, 30, 40 or 60 s.
PA - Pause. The pause time between the injections: 0 or
20 s. 1, 2, 5, 10, 20 or 60 min.
If FAN is set JP6:1 will run in parallel with JP6:8,9 serving
as a 24 V fan start signal.
or FAN
PULSE
PULSE FAN
Red fixed light
In the Fan start mode
In the Pre-coate mode
Start signal
Start signal Stop signal
Stop signal
ST PA IN PA IN PA

12
0
1
7
12
6
4
3
JP3
230
120
100
0
0
24
GND1
Disconnect at earth
control measuring
APPLICATIONS
Nederman FilterMax F separates for instance welding
fume, metal oxides, talcum, lime stone, dust
and grinding dust.
FilterMax F must not be used for separating
explosive contaminations.
Explosive dusts are dry organic dusts and some metallic
dusts. The metallic dusts are, for example, aluminium,
magnesium, titanium, chromium and fine virgin dusts of
other metals. Welding fumes from these metals are not
explosive, but grinding dust is a problem. Please contact
your Nederman representative in case of doubts.
Various combinations of semi combustible fumes/dusts
(oil, grease) and sparks can cause fires when grinding or
welding. The most important action is to prevent sparks
from entering the extraction devices. Secondly it is very
important to perform regular cleaning of the extraction
arms/devices and the duct system.
FilterMax F does not separate gases.
WARNING!
Risk of personal injury!
• In some countries the purified air must not be
recycled in the workshop if FilterMax F is used
to separate welding fume or some contaminations
that may be a health hazard.
• Use a safety filter if the air is recycled in the
workshop.
Risk of fire or explosion!
• Do not use FilterMax F to separate explosive
fume or dust.
• Connect a fire alarm to the filter controling
processor, which means the filter will stop at
a possible fire.
• Care should be taken when working with
painted or oiled material. Consult your Nederman
representative for advice.
• FilterMax F must not be exposed for burning/
glowing material.
Earth control measuring must only be done by a
person with necessary knowledge.
IMPORTANT!
All metal parts of the filter unit must be earthed
reciprocally and connected to earth. To secure
this, the following procedure must be followed.
EARTH CONTROL MEASUREMENT
When the FilterMax F has been installed and during maintenance
work the earthing shall be measured. The measuring is done
between GND1 (in the Control Box, see picture below) and the
following components on FilterMax F. Disconnect protection earth
from GND1 before measuring.
1. Inlet
2. Cleaning access point (on the inlet)
3. Dust container
4. Adapter for dust container
5. Filter cartridge
6. Filter module
7. Door
Reconnect protection earth to GND1. Circuit card
FilterMax F
Control Box

JP1
> P
JP5
JP6
1
2
3
4
5
6
7
8
9
10
11
1 2 3 4 5 6 7 8 9
10
1
2
0
24
0
24
JP3
GND1
230
120
100
0
Open
Supply
Com
JP4
4
3
2
1
0
24
135
135 95 97
96 98
135
246
13
14
246
246
M
-
Door
Pilot
control
{
+
F1
F4
F8 F7
F6
F5 F3
F2
Output
Input
1 2
34
1 2
34
1. Down time damper
Alt. 1. Electric motor open and close
Alt. 2. Electric motor open, Spring return
Alt. 3. Magnetic valve for compressed air
operated damper with spring return.
2. Transformer
3. Pressure switch, compressed air
BASIC FUNCTIONS
For fan start, two alternatives are possible.
Alternative 1:
Connection to block JP6: 1 (24 V AC), for direct control
by contactor or other 24 V relay.
Alternative 2:
Connection to block JP6: 8 - 9, potential free relay
output, is used when the start equipment has its own
24 V control voltage, for example Nederman Fan Starter
(which is recommended). The complete connection is
described in the Fan Starter Instruction Manual.
CONNECTION TO THE MAINS
CONNECTION OF:
• FAN STARTER
• SAFETY SWITCH (Nederman accessory)
• AFTER CLEANING DAMPER
• PRESSURE SWITCH (Nederman accessory)
• PILOT BOX (included in the delivery)
• FAN (Nederman accessory)
Circuit card
FilterMax F
Control box
Mains-connection
100/120/230 V,
PE, 50/60 Hz
NB! After cleaning damper with spring
return should be connected only to JP6
no. 2 and no.10 or 11.
FilterMax F - Wire to JP1 : 2 and 9 or 10(common).
Select nO in the software setting if an OPEN contact indicates OK.
Select nC in the software setting if a CLOSED contact indicates OK.
NB! connection
between 3 and 4
Pilot box
Fan contactor
Control voltage 24 V
2 A max
2
3
Pressure switch
Motor
After cleaning
damper
1
Designations, Circuit card
FilterMax F control box:
JP1: Inputs
JP3: Power supply
JP4: Pilot box
JP5: A-alarm off
JP6: Outputs
Fuses
F1: T 1 A, 230 Vac power supply
F2: T 1,6 A, 120 Vac power supply
F3: T 2 A, 100 Vac power supply
F4: T 2 A, 100, 120, 230 Vac power supply
F5: 2 A, Basic card, inputs, dP card and
operator terminal power supply
F6: 2 A, Basic card, inputs, dP card and
operator terminal power supply
F7: 2 A, Outputs power supply
F8: 2 A, Outputs power supply
FilterMax F
Wire to JP6 : 2 and 10 or 11(common) and the lower
24 V AC output from the transformer (2).
Wire to JP6 : 2 and 10 or 11(common).
13
WIRING DIAGRAM
Door switch
Black
Black Blue
Brown Connection of
2 or 3 pilot boxes,
see page 15

14
CONNECTION OF TWO FILTERMAX TO ONE SYSTEM
NB! Remove the connection
between 3 and 4 on the output
contact before the cable from the
pilot box above is connected.
NB! connection between
3 and 4 on the last pilot box.
JP1
JP5
JP6
1
2
3
4
5
6
7
8
9
10
11
1 2 3 4 5 6 7 8 9
10
1
2
JP3
GND1
230
120
100
0
JP4
-
Door
Pilot
control
IN OUT
4
3
2
1
4321 IN OUT 4321
{
+
4
3
2
1
0
24
4
3
2
1
4
3
2
1
4
3
2
1
1 2
34
1 2
34
1 2
34
1 2
34
1 2
34
1 2
34
1 2
34
1 2
34
1 2
34
1 2
34
1 2
34
1 2
34
LINE 1 LINE 2
0
1
0
1
LINE 1 LINE 2
NB! connection between 3 and 4
GND to
filter house GND to filter house
Circuit card
FilterMax F
Control Box

4000
Pa
3000
2000
2000 4000 6000 8000 10000 12000 14000 m /h
3
1000
00
NCF 30/15
NCF 120/15
NCF 80/15
NCF 30/25
NCF 120/25
NCF 160/25
NCF 80/25
NCF 50/25
NCF 40/25
Each FilterMax F can be connected to an
existing central fan or to a fan dimensioned
specially for the system.
An adequate fan can be selected from the
Nederman NCF-range. Please contact your
Nederman representative for
dimensioning the right fan capacity.
Calculated air pressure drop over
the filter is approximately 1200 Pa.
Total pressure
Air flow
FANS
JP4
4
3
2
1
1 2
34
1 2
34
1 2
34
1 2
34
1 2
34
1 2
34
CONNECTION OF 2 OR 3 PILOT BOXES
NB! Remove the connection between 3 and 4 on the output
contact before the cable from the pilot box above is connected.
NB!
connection
between 3 and
4 on the last
pilot box.
15

18
Impeller rotation
direction
MONITORING SYSTEM, SETTINGS
CLEANING DURING OPERATION
FilterMax F is in its standard design equipped with a fully
automatic compressed air cleaning of the filter cartridges.
A piping system directs, by a system of solenoid valves,
air pulses of 100 ms into the filter cartridges. The pause
time between the air pulses is factory set at 30 s, but can
be set between 5 s and 90 s. Shorter pause time can be
used if more than 1 module is used or if FilterMax F is
used for heavy load.
RECOMMENDATIONS FOR
PAUSE TIME SETTINGS
The pause time setting depends on the size of the filter
(i.e. the number of cartridges) and the load at which the
filter is working.
• Light load - A dust that is easy to clean off the filter
cartridges, such as dry stone dust or grinding dust.
• Normal load - Applications such as welding fume or
light dusts in heavy concentrations.
• Heavy load - Typically metal cutting with laser or
plasma and heavy welding.
With light load the cleaning pressure could be reduced
to 0.4 MPa (4 bar). Check that the filter pressure drop
does not rise too quick. If so, the pause time could be
reduced with one step and the cleaning pressure could
be increased, but maximum to 0.6 MPa (6 bar).
Normal
60 s
30 s
15 s
Model / Dust load
FilterMax F 30
FilterMax F 60
FilterMax F 90
Light
90 s *
60 s
30 s
Heavy
30 s
15 s
10 s
The factory setting is 30 s for all FilterMax F.
* or no on line cleaning
0
1
1
0
P
tst
10 s
15 s
20 s
30 s
45 s
60 s
90 s
No cleaning
during operation
Setting the pause time
Push the P-button until pt is shown in the display.
Set one of the following values for pause times with
the 0/1-button. tst = test position, all valves will be
opened 1 time with 1 s interval.
pt 30
STARTING THE SYSTEM
1. Turn on the compressed air supply to the cartridge filter.
Adjust to 0,4 - 0,6 MPa (4 - 6 bar, 58 - 87 psi) of pressure.
Pressure of 0,5 MPa is the most typical setting for
satisfactory cleaning performance.
2. Close the regulating damper halfway, see figure,
page 16. (As an alternative the airflow can be controlled
by a Nederman FanInverter).
3. Start the fan and check fan impeller rotation. Refer to
the rotation sticker on the fan motor. Proper fan impeller
rotation is extremely important. Contact a qualified
electrician if the impeller rotation must be reversed.
4. IMPORTANT! It is necessary to adjust the airflow
to the dimensioned value using the regulating damper
(or Nederman FanInverter). The air flow can be measured
with a fixed airflow meter (or a pitot tube) and a micro-
manometer.
IMPORTANT! Too much airflow can dramatically
reduce the life of the filter element.
WARNING!
Risk of personal injury!
Stand clear of blower fan exhaust area as
debris can be exhausted and cause injury. 5. All the solenoid valves should open and close
continuously with a set interval time between each
cleaning pulse (factory set of 30 seconds).
Check operation of the solenoid valves in the following
way: Set the pause time on tst (see below). NB! This
is only a control setting and should not be used for nor-
mal operation. Start the system and count the number
of air pulses. It should be 6 pulses per module.
NB! Return the pause time to the original value
after checking.

19
CLEANING AFTER OPERATION
It is possible to choose cleaning after operation, that
is when the fan has stopped. This is more efficient
than cleaning during operation and is therefore
recommended. The pause time at cleaning after
operation is always 15 s.
If cleaning after operation has been chosen, one
has to set the desired number of cleaning cycles,
where one cycle means the cleaning of all filter
cartridges, that is 6, 12 or 18 cartridges, depending
on the number of modules in operation. 2 - 3 cycles
are recommended depending on the dust load
(light - normal) When cleaning after operation it is
recommended to use an after cleaning damper
(see accessories page 30).
0
1
1
0
P
0
1 cycle
2 cycles
3 cycles
4 cycles
5 cycles
Setting the cleaning cycles
Push the P-button until dt is shown in the
display. Set the desired number of cleaning
cycles with the 0/1-button.
0
1
1
0
P
or Go
Setting the alarm-function
Push the P-button until dL is shown in the display. Choose
any of the functions Go or StP with the 0/1-button. For fume/
dust generating processes that can’t be stopped immediately
when a fault accurs it is recommended to set Go and that a
clearly visible alarm device is installed.
Go: The system does not stop when the A-alarm is
activated, with exception for explosion/fire-alarm, motor
protection and with the access door open. The system
always stops for these functions.
StP: The system stops automatically when the alarm is
activated.
A-ALARM FUNCTION
The alarm-function is always ON when the system
operates, which means if there are negative influences on the function during operation, the alarm
will release, that is LED no. 7 will show a red fixed light.
0
1
1
0
P
Remote start, setting
Push the P-button until rE is shown in the display.
Choose Aut or OFF with the 0/1-button.
OFF: When using remote start there is no automatic
restart when a fault has been rectified. The remote started
mashine must be stopped and the FilterMax F must be
reset by one push on the start button before a new remote
start can be done.
Aut: When using remote start there is automatic restart
when a fault has been rectified or after a power failure.
rE Aut
or OFF
REMOTE START
It is possible to choose the functions Aut or OFF
with the 0/1-button. For most filters that are remotly
started from a machine or a process eg. it is
convenient to choose Aut.
The remote start control should be connected to JP 1 and
9 or 10 (see page 9). If remote start is used, the system
can not be stopped with the 0/1-button. The text rE is
shown in the display for a short time.
dL StP
dt 3

20
0
1
1
0
P
0
1
1
0
P
0
1
1
0
P
0
1
1
0
P
0
1
1
0
P
MONITORING SYSTEM, GENERAL DESCRIPTIONS
r E
1 2 4
Both "point" and 11blinks when cleaning after operation is in progress.
Fixed red light when
the system operates.
1
Blinks when the cleaning
function operates.
The display on the control box gives information
about the number of operating hours, cleaning
process, alarm functions and possible faults.
The LED:s can indicate the following:
1, 2, 3, 4, 5 green fixed light: All functions normal
and correct
1, 2, 3, 4, 5 green fixed light alternating with blinking red:
The system operates. Incorrect function
has been rectified (alarm memory)
1, 2, 3, 4, 5 red fixed light: Incorrect function which
requires investigations.
6 yellow fixed light: Incorrect function which
requires attention.
7 red blinking light: Incorrect function which
requires immediate investigations.
1, 3, 4, 5 is only active after the inputs for the
accessories has been activated
(see page 10).
The total number of operating
hours are displayed.
r E is displayed when trying to stop
the system from the control box when
the system is remote started.
The system has stopped and the cleaning
after operation is active. If the 0/1 button is
pressed once more the cleaning after ope-
ration is stopped immediately.
1
1 2 3 4 5 6 7

The fan motor overload protector is released.
Check the cause. Rectify the fault and reset
the motor protector. FilterMax F always stops
when the motor protector is released.
Low pressure in the compressed air supply.
FilterMax F will not start.
FilterMax F has stopped due to low compressed
air pressure (less than 0,4 MPa (4 bar)).
FilterMax F will not start until correct pressure
is resumed.
Fire alarm. Call for service technician. Check
the reason and do not start the system until
the fault has been rectified.
Possible faults (depending on how the input
has been used):
1. The pressure drop over the filter is high.
2. The air flow in the system is too low.
• Check if the filter cartridges are saturated,
change if necessary.
• Check if any damper is not open enough.
• Check the inlet for dirt. Clean if necessary.
A-alarm! Means acute problems which could disturb
the function of the system. Action should be taken as
soon as possible. Call for a service technician.
Example:
• More than 1 valve is defective or does not work.
It is displayed which valves that are defective (Err +
1, 2, 3, ........ 18) are displayed, alternating with the
number of operating hours).
• Electronic faults on the circuit card.
MONITORING SYSTEM, FAULT INDICATIONS
21
0
1
1
0
P
0
1
1
0
P
0
1
1
0
P
0
1
1
0
P
0
1
1
0
P
0
1
1
0
P
Red blinkingRed fixed
light
Red
fixed light Yellow fixed light
Red fixed light
Red blinkingRed fixed light
Red blinking
Red blinking
EA
