NEO ION 610B RGBW User manual

P. 1
- Neo ION 610B RGBW
USER MANUAL / MANUAL DE USUARIO
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE
POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR
ION 610B
RGBW
beam moving head

P. 2
Neo ION 610B RGBW -
1. OVERVIEW
English version
ION 610B RGBW
Beam moving head with two tilt rotation heads
powered by 6 x 10W RGBW 4-in-1 LEDs
ION 610B RGBW is a beam moving head with two
tilt rotation heads powered by 6 x 10W RGBW 4-in-1
LEDs with a 2.5º beam angle. With its quad-color LED
technology, Ion 610B RGBW enables a smooth RGBW
mix with no multicolor shadows. The unit provides
control pixel by pixel and a total dimmer control of
0-100%. Last but not least - thanks to its 3 phase
motor - Ion 610B RGBW is capable of extremely fast
movements & it’s optionally equipped with a Wire-
less Solution® card.
Source & Optics
• Light Source: 6 x 10W RGBW 4-in-1 LEDs
• LEDs life: 60,000 hours
• Beam angle: 2.5°
Photometric data
• Luminous Flux:
• Red: 2900 lux @ 2.5m (8 .)
• Green: 5300 lux @ 2.5m (8 .)
• Blue: 1160 lux @ 2.5m (8 .)
• White: 7600 lux @ 2.5m (8 .)
Effects & Functions
• Pixel control
• Hard-edge beam eect
• Separate tilt control of the two heads
• Dimmer: Full range 0-100%
• Strobe eect
• Color temperature correction: 2000K-2700K
• Color temperature presets: 3200K, 4200K,
5600K & 8000K
• Color chase eects
Control
• DMX channels: 16/18/19/21
• Wireless DMX (optional)
• Advanced RDM function
• Hibernation when lost DMX for preset time
• Indicate temperature info of base, arm and
lamp
• Back-up communicating IC
• RDM read voltage, current, power consump-
tion of lamp
• Soware upgrade via DMX
• Fan speed auto-change according to temper-
ature
Movement
• Pan: 360° / 540°
• Tilt: 265°
• 16-bit resolution
• Auto repositioning
Electrical
• Input voltage range: 100–240V, 50-60Hz
• Power supply: Electronic auto-ranging
• Max power consumption: 134W
Physical
• DMX connectors: 2 XLR connectors (XLR-3 In
and Out)
• Power supply connectors: PowerCON® In/Out
• 2.4 inch LCD graphic display

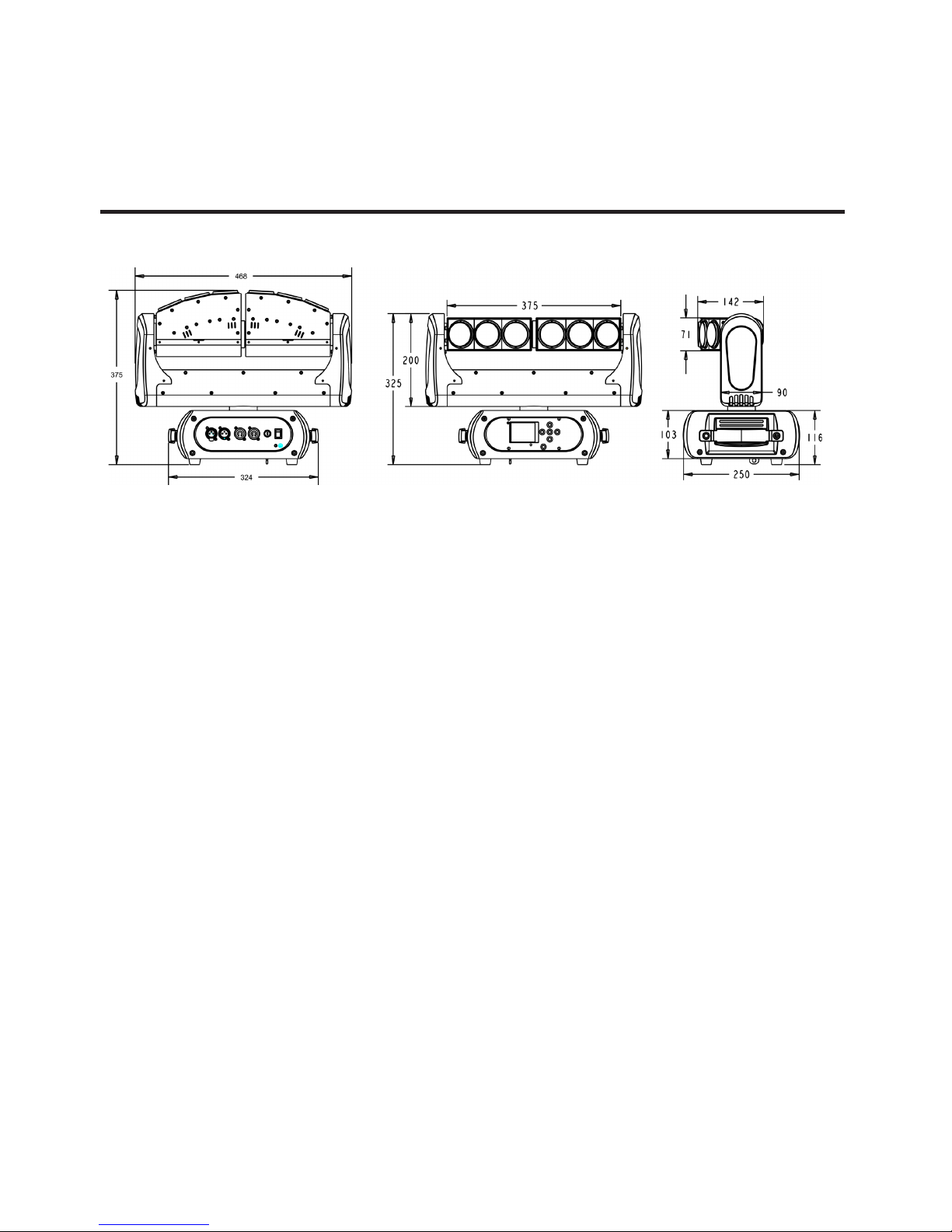

• Dimensions: 468x250x375 mm. / 18.4x9.8x14.8
in.
• Weight: 10 Kg. / 22 Lbs.

P. 3
- Neo ION 610B RGBW
English version

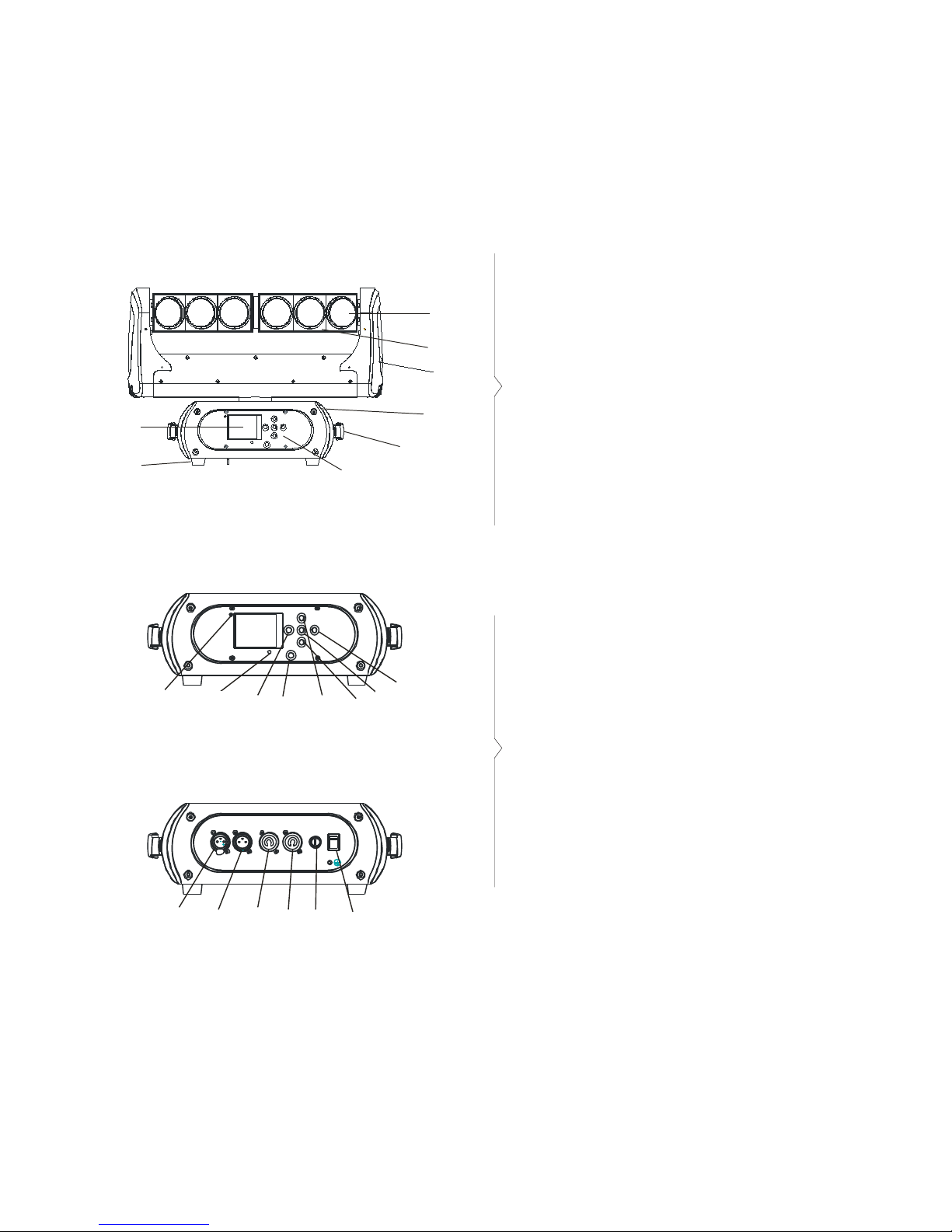

Description of the Device
9. Wireless indicator
10. Mic
11. Le button
12. Battery indicator
13. Up button
14. Down button
15. Enter button
16. Right button
17. 3-pin DMX in
18. 3-pin DMX out
19. Powercon in
20. Powercon out
21. Fuse
22. Power switch
1. Project lens
2. Head
3. Arm
4. Base
5. Display
6. Foot stand
7. Operation button
8. Handle
1
2
3
4
5
67
8
1
2
3
4
8
7
6
5
910 11 12 1314
15
16
17 18 19 2021 22
910 11 12 13 14
16
15
17 18 19 20 21 22

P. 4
Neo ION 610B RGBW -
English version
Before operate this unit, please carefully read this users guide and keep if needed in
future. It’s necessary to respect following rules.
The disposal of the device aer lifecycle could damage the environment, need to take
it to special company for recycling or return to authorized dealer.
The products referred to in this manual conform to the Eur opean Community Direc-
tives and are therefore marked with CE logo.
Keep this device away from children and unauthorized users, the manufacturer will
not take responsibility for the damage due to any disregard of the information provid-
ed in this manual and wrong operation.
Before operate the device, pls make sure the xture is in good housing, ensure pan
and tilt can rotate in its complete range.
Pls make sure minimal 0.5m distance need to kept between the xture to any am-
mable material.
The device can only run with 100-240v voltage, 50/60Hz power, don’t connect to any
other wrong power. Disconnect the device from main power before open the shield or
maintenance.
The device is designed only for indoor usage, pls keep it away from moisture. Do not
expose the device under the sun or directly to any other lighting source.
Never look directly into the projecting lens when the xture is power on, the light may
trigger epileptic seizures in photosensitive persons or persons with epilepsy. Espe-
cially at beam eect, extreme caution and observance of these safety instructions is
mandatory.
Don’t put or install the device on a surface that subject to vibration
or bumps.
2. SAFETY AND MAINTENANCE INFORMATION
Safety info

--0.5m

P. 5
- Neo ION 610B RGBW
English version
Maintenance
Ta=45°C The device is supposed to work in the temperate range -15° C and +45° C, do not use
the device when the temperate exceed this range.
The lens, shield need to be replaced when obviously broken, never use the device
when the shield is not completed closed.
Safety I class device, need to be earth connected.
When the xture is hanged overhead, the safety rope must be xed to the bottom of
the device to the appropriate xing point.
Always carry the device by the handles, do not take the head or arm directly for trans-
portation.
• Operation only allowed to qualied person,
damages due to unprofessional operation or re-
move of any parts inside will not be considered
in warranty service. There are no serviceable
parts inside the device or package, service only
leaves to authorized dealers.
• Never allow the optical components contact
with oil, fat or any other liquid.
• A regular clearance of the device is needed for
long-term usage, this is very helpful to maintain
the lifetime and brightness need to use a so
and lint-free cloth to clean the optical system,
fan and air owing tunnel.

P. 6
Neo ION 610B RGBW -
English version
Replacement of the fuse
Trouble Shooting
Need to replace with same type and rating, which
originally installed in the device.
Step One: Unplug power cable from main power.
Step Two: Unscrew the fuse holder out of the hous-
ing with a screwdriver.
Step Three: Remove the broken fuse and replace
with an exact same type of new fuse.
Step Four: Insert the fuse holder back to the hous-
ing and screw tight and reconnect power.
Problems Possible reasons Checking or solutions
Device not
power up
Powercon or power cable damaged Change a good power cable to try
Faulty power supply Replace new power supply
Pan/Tilt error
or vibrate
Faulty Pan/Tilt PCB Replace PT001 PCB
Faulty opto sensor Replace opto sensor OP001
Cable loosen Check the cable connect to OP001
Lamp o
Temperature protection Check the temperature from menu
Fan not working Check the fan speed info from menu
Faulty LED Replace new LED
Dimmer and strobe set at 0 Set dimmer and strobe channel at 255
Faulty power supply Replace new power supply
Device not response
to DMX
Faulty communication IC Replace the IC with back-up one in the
display PCB
Faulty display PCB Replace new display PCB
Wrong DMX addressing Check the address and setting
Faulty DMX cable Change to a good DMX cable

P. 7
- Neo ION 610B RGBW
English version

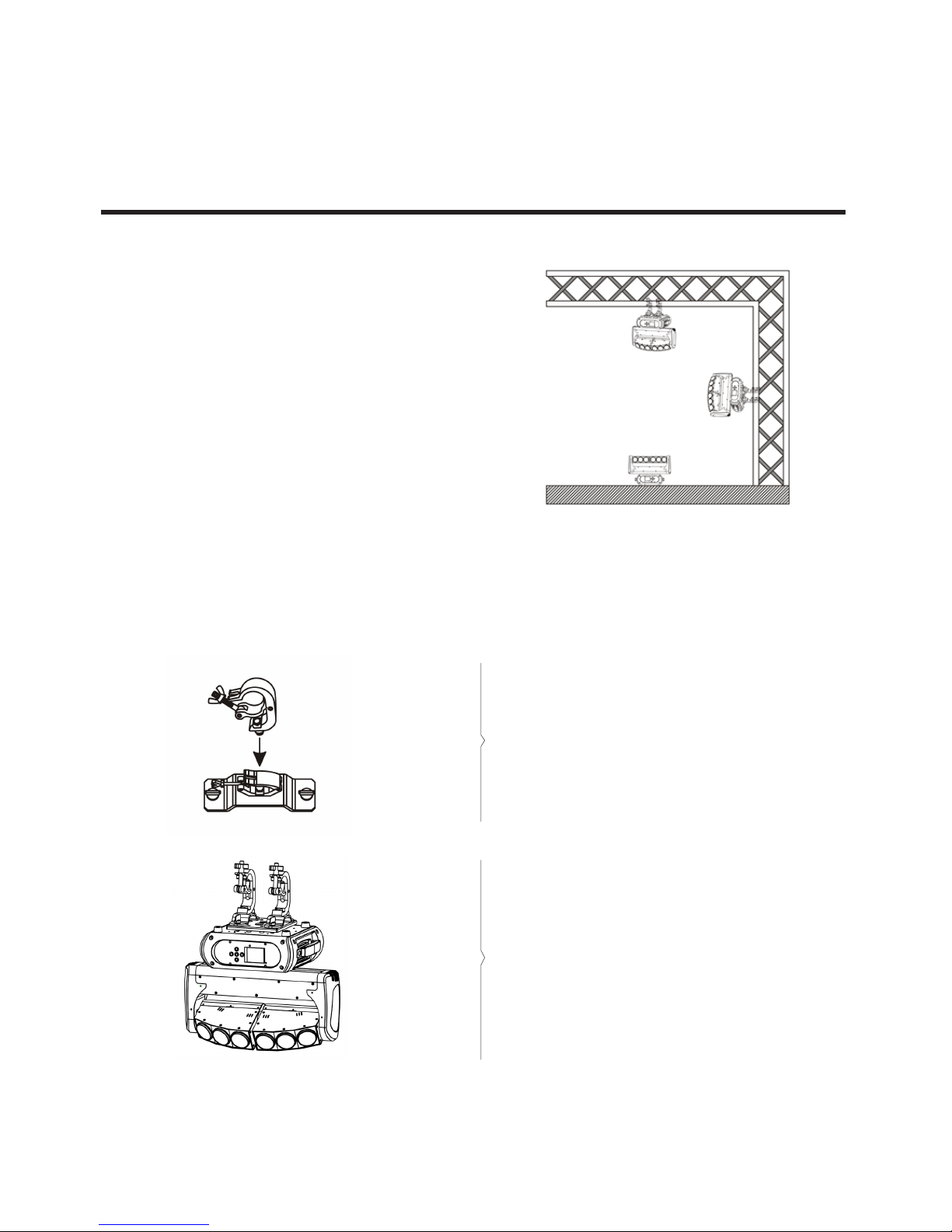

3. INSTALLATION
The device could be either put on a solid and even
Surface, or mounted upside down or sideways like
le picture.
The mounting place must be suicient stable and
be able to support a weight of 10 times of the unit’s
weight. When the xture is hanged, always addi-
tionally secure the device with the safety chain,
fasten the safety rope at a suitable position so that
the maximum fall of the projector will be 20 cm.
How to do mounting installation.
Step two: Install the clamp and bracket on the
bottom of panel, fasten the quick-locks;
Step one: Installation the clamp onto the
omega bracket;

P. 8
Neo ION 610B RGBW -
English version
4. CONTROL MENU
Meaning of the icon in menu
Default setting shadowed. mark with 1 can be basic
reloaded, 2 be program reloaded, 3can be private
reloaded.

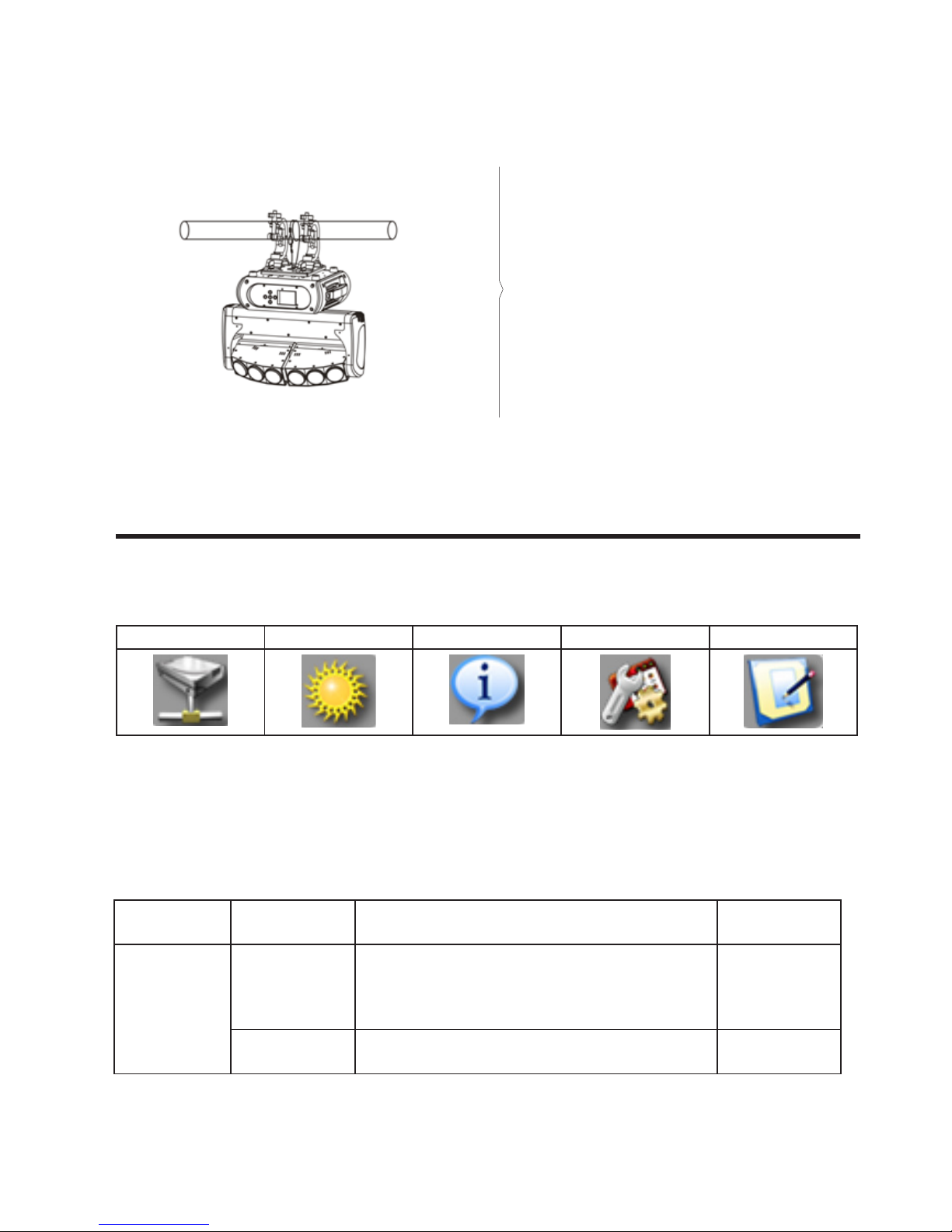

Step three: Install the whole device onto
appropriate truss and fasten the clamps, tight
the safety rope with the truss or other xing
point at a suitable position that drop down
distance not exceed 20 cm.
Connect Light Infomation Set Program
Menu tree
Connect DMX Address 1 XXX DMX address
setting
Light
Max
Temperature 1 80~139°C 90°C /176~282°F 194°F
Lamp o if tem-
perature contin-
uously over
for 5 minutes
Lamp Adjust 1 PAN…… Adjust value
of channel

P. 9
- Neo ION 610B RGBW
English version
Information
Time Info. Current XXXX(Hours)
Fixture Life XXXX(Hours)
Fixture
boot time
Fixture total
run time
Temperature Near Lamp Temp (depends on xture) Temperature
Sensors
Fans Speed Near Lamp Fan (depends on xture) Fan speed
Sensors
Channel Value PAN…… Display value
of channel
Error Message Pan,Tilt…… Error channels
Fixture Model xxxxxxxxxxxx
Display
model brand
and model
Soware Ver 1U01 V1.0.00…………. Version of
each IC
Set
Reset All
Pan&Tilt
Reset all
Reset Pan&Tilt
Movement
Pan Reverse 1
Tilt Reverse 1
Pan Degree 1
Encoders 1
Pan/Tilt Mode 1
ON/OFF
ON/OFF
630/540
ON/OFF
Stand/Smooth
Pan Reverse
Tilt Reverse
Choose Pan Degree
Encoder wheel on/o
Choose pan/tilt mode
UI Set
Mic Sens. 3
No Signal 1
Temperature.
C/F 1
Fans Mode 1
Hibernation 1
Backlight 1
Flip Display 1
Display Bright 3
Brand Show 1
Key Lock 1
Language3
0~99%,60%
Close/Hold/Auto/
Music
Fahrenheit /Celsius
Auto Speed /High
Speed
OFF, 01M~99M,15M
02~60m 02m
ON/OFF
00~31 10
ON/OFF
ON/OFF
En/简/简/Fr/Sp
Sensitivity of Mic
Mode when no signal
Temperature at °C/°F
Fans mode
Sleeping mode
Show backlight time
Display 180°reverse
Display Brightness
Show brand or not
Key lock on/o
Language Select
Users User Mode 1
Standard
Extended
Basic-8bit
Basic-16bit
User
Standard mode
Extended mode
Basic-8bit mode
Basic-16bit mode
User program mode

P. 1 0
Neo ION 610B RGBW -
English version
Edit User 3 Max Channel = XX
PAN = CH01
:
Edit users mode
Calibration 3 -Password-
Color
:
=XXX
=XXX
:
Password: 050
Calibrate channel value
Fixture ID 3 Name
-Password-
PID Code
Name
Password: 050
Set PID of RDM
Reload Default
Basic Reload(1)
Program Re-
load(2)
---Password---
Private Re-
load(3)
All Reload
ON/OFF
ON/OFF
XXX
ON/OFF
ON/OFF
Basic Reload
Program Reload
Password: 050
Private Reload
All Reload
Program
Play 1
DMX Receive
Slave Receive
Sequence
Music
Slave Receive 1,2,3
Master / Alone
Master / Alone
DMX Receive
Choose slave
position
Run Sequence
Music mode
Select Chase 2 Chase Part 1
Chase Part 2
Chase Part 3
Chase 1 ~ 8 Chase 1
Chase 1 ~ 8 Chase 2
Chase 1 ~ 8 Chase 3
Select and run
auto program
Edit Chase 2 Chase 1
:
Chase 8
Chase Test
Step 01
Step 64
=SCxxx
=SCxxx
Test
Beginning scene
Ending scene
Edit Scenes 2 Edit Scene 001
~ Edit Scene
250
Pan,Tilt,……
--Fade Time--
--Scene Time--
DMX Input
=xxx
=xxx
=xxx
Input manual
scene
Modify manually
fading time
Modify manually
scene time
Input scene
from exterior
controller
Scenes Record ScXX=>ScXX Auto Input
scenes

P. 11
- Neo ION 610B RGBW
English version
5. DMX CONNECTION AND DMX PROTOCOL
The device is controlled by universal DMX 512 pro-
tocol, DMX address is the start channel used to re-
ceive instructions from the external controller. For
independent control, each xture must be assigned
its unique address control channels. For example,
this device has four channel modes: 18/21/17/20,
if we set the mode at standard 21 channels mode,
and there are several models need to be inde-
pendently controlled, we just simply address rst
xture at 1, and second xture at 39, third one at
60, etc. If the devices have the same address, they
will behave synchronically.
DMX addressing is limited, don’t set the address so
high that without enough control channels for the
xtures. Display is ashing when no DMX signal is
received.
This device is equipped with 3-pins DMX in and
out sockets only.
Pin 1 = GND | Pin 2 = Signal (-) | Pin 3 = Signal (+)
The termination is prepared by soldering a 120Ω
resistor between pins 2 and 3.
DMX addressing
Connection: us DMX cable with 3-pin XLR-plugs
to connect the controller with the xture or one
xture with another.

P. 12
Neo ION 610B RGBW -
DMX chart
English version
Channel Name Function Min
DMX
Max
DMX
St Ex Ba1 Ba2
1 1 1 1 Pan Pan Coarse 0255
2 2 Pan ne Pan Fine 0 255
2 3 2 3 Tilt Tilt Coarse 0255
4 4 Tilt ne Tilt Fine 0 255
3 5 3 5 Tilt Tilt Coarse 0255
6 6 Tilt ne Tilt Fine 0 255
4 7 4 7 Movement
Speed
fastest to Slowest 0255
5 8 5 8 Movement
Function
Normal 015
Movement With Blackout 16 31
All Tilt Movement 32 47
TBD 48 255
6 9 Shutter
Function
Normal Shutter Functions 0 15
Pulse-eect Forward 16 31
Pulse-eect Reverse 32 47
Random Strobe 48 63
Eect 64 95
TBD 96 255
710 Shutter
Normal Shutter Functions
Close 031
Strobe Rate (slow to fast) 32 223
Open 224 255
Pulse-eect Forward
Close 031
Strobe Rate (slow to fast) 32 223
Open 224 255
Pulse-eect Reverse
Close 031
Strobe Rate (slow to fast) 32 223
Open 224 255
Random Strobe
Close 031

P. 13
- Neo ION 610B RGBW
English version
Strobe Rate (slow to fast) 32 223
Open 224 255
Eect
Close 031
Eect Speed (slow to fast) 32 223
Open 224 255
6 9 Shutter
Shutter closed 031
Eect 1 slow to fast 32 47
Eect 2 slow to fast 48 63
Strobe eect slow to fast 64 95
Eect 3 slow to fast 96 111
Eect 4 slow to fast 112 127
Pulse-eect in sequences 128 159
Eect 5 slow to fast 160 175
Eect 6 slow to fast 176 191
Random strobe eect slow to fast 192 223
No function (shutter open) 224 255
811 710 Dimmer Dimmer(Close to Open) 0255
912 811 Virtual
Color
Function
No Function 0 15
CTC Function 16 31
Forward Spin 32 47
Reverse Spin 48 63
Continuous 64 79
Color Bounce 80 111
TBD 128 255
10 13 912 Virtual
Color1
CTC Function
Colour Temperature Correction
2000K->2700K
0223
White 3200K 224 231
White 4200K 232 239
White 5600K 240 247
White 8000K 248 255
Forward Spin
Rainbow Eect (Slow->Fast) 0255
Reverse Spin
Rainbow Eect (Slow->Fast) 0255
Continuous&Color Bounce
Black 0 3

P. 14
Neo ION 610B RGBW -
English version
Red=full, Green->up,Blue=0,White=0 433
Red->down, Green=full,Blue=0,White=0 34 63
Red=0 Green=255 Blue->up White=0 64 93
Red=0 Green->down Blue=255 White=0 94 123
Red=0 Green=0 Blue=255 White->up 124 153
Red=0 Green=0 Blue->down White=255 154 183
Red->up Green=0 Blue=0 White=255 184 213
Red=255 Green=0 Blue=0 White->down 214 243
Red 244 245
Green 246 247
Blue 248 249
White 250 251
All Color 252 255
11 14 10 13 Virtual
Color2
Color Bounce
Black 0 3
Red=full, Green->up,Blue=0,White=0 433
Red->down, Green=full,Blue=0,White=0 34 63
Red=0 Green=255 Blue->up White=0 64 93
Red=0 Green->down Blue=255 White=0 94 123
Red=0 Green=0 Blue=255 White->up 124 153
Red=0 Green=0 Blue->down White=255 154 183
Red->up Green=0 Blue=0 White=255 184 213
Red=255 Green=0 Blue=0 White->down 214 243
Red 244 245
Green 246 247
Blue 248 249
White 250 251
All Color 252 255
12 15 11 14 Color A
Black 0 3
Color Continuous 4243
Red 244 245
Green 246 247
Blue 248 249
White 250 251
All Color 252 255
13 16 12 15 Color B
Black 0 3
Color Continuous 4243
Red 244 245

P. 15
- Neo ION 610B RGBW
English version
Green 246 247
Blue 248 249
White 250 251
All Color 252 255
14 17 13 16 Color C
Black 0 3
Color Continuous 4243
Red 244 245
Green 246 247
Blue 248 249
White 250 251
All Color 252 255
15 18 14 17 Color D
Black 0 3
Color Continuous 4243
Red 244 245
Green 246 247
Blue 248 249
White 250 251
All Color 252 255
16 19 15 18 Color E
Black 0 3
Color Continuous 4243
Red 244 245
Green 246 247
Blue 248 249
White 250 251
All Color 252 255
17 20 16 19 Color F
Black 0 3
Color Continuous 4243
Red 244 245
Green 246 247
Blue 248 249
White 250 251
All Color 252 255
18 21 17 20 Control
Normal 0 7
Reset All 815
Pan&Tilt Reset 16 23
TBD 24 31
TBD 32 39
TBD 40 47

P. 1 6
Neo ION 610B RGBW -
6. UNIQUE FEATURES
• RDM, stand for “Remote Device Management”,
with this function, users can realize remote
control of the device, such as remotely chang-
ing DMX address, reverse pan/tilt setting, check
a lot of useful information such as temperature,
power consumption, fan speed. Etc. Every
single device has a unique RDM code before le
factory to distinguish from each other, usually
not suggest users change this code freely.
• Soware upgrade function via DMX cable, if
there is any new rmware for this device come
out, it can be upgraded simply via a soware
upgrade box, no need to change any mechan-
ical parts. The upgrade box is not included in
the package, if need any further assistance pls
just contact authorized dealers.
• Hibernation, the device will enter sleeping
mode if activated aer a period of disconnect-
ing DMX signal to save the power consump-
tion, and will return immediately as soon as
the DMX signal is sent again.
• Display back-up communication IC, there is
a back-up communication IC installed in the
display PCB, so users could replace at once
if the working one is broken, no need to wait
long time from service.
• Display ip, by press up and down button for
more than 3 seconds, the display will ip auto-
matically, this function is useful to read menu
conveniently when device is hanged.
TBD 48 55
Display O 56 63
Display On 64 71
TBD 72 79
TBD 80 87
Hibernation 88 95
TBD 96 255
English version

P. 17
- Neo ION 610B RGBW
7. DIMENSIONS DRAWING
English version

P. 18
Neo ION 610B RGBW -
Versión Español
1. DESCRIPCIÓN
ION 610B RGBW
Cabezal móvil tipo beam con dos barras de tilt que
tienen un total de 6 LEDs 4-en-1 RGBW de 10W
ION 610B RGBW es un cabezal móvil tipo beam con
dos barras de tilt que tienen un total de 6 LEDs 4-en-
1 RGBW de 10W con un ángulo de haz de luz de 2.5º.
Con su tecnología LED de cuatro colores el equipo
habilita una mezcla RGBW suave sin sombras multi-
color. La unidad provee un control de pixel por pixel
y un control de dimmer total de 0-100%. El Ion 610B
RGBW es capaz de movimientos extremadamente
rápidos gracias a su motor de 3 fases y puede ser
equipado opcionalmente con una tarjeta inalámbri-
ca Wireless Solution®.
Fuente & Óptica
• Fuente de luz: 6 LEDs RGBW 4-en-1 de 10W
• Vida útil promedio. 60,000 horas
• Ángulo de haz: 2.5°
Información fotométrica
• Flujo lumínico:
• Rojo: 2900 lux @ 2.5m (8 .)
• Verde: 5300 lux @ 2.5m (8 .)
• Azul: 1160 lux @ 2.5m (8 .)
• Blanco: 7600 lux @ 2.5m (8 .)
Efectos y Funciones
• Control de pixel
• Efecto beam duro
• Control tilt de las dos cabezas por separado
• Dimmer: Rango completo 0-100%
• Efecto estrobo
• Corrección de temperatura de color:
2000K-2700K
• Preseteos de temperatura de color: 3200K,
4200K, 5600K & 8000K
• Efectos de persecución de color
Control
• Canales DMX: 16/18/19/21
• DMX inalámbrico (opcional)
• Función RDM avanzada
• Indica temperatura de la base, brazo & lám-
para.
• Comunicación de respaldo IC
• Lectura de voltaje RDM, consumo de corriente
actual de la lámpara
• Actualización soware vía DMX
• Velocidad del ventilador acorde a la tempe-
ratura
Movimiento
• Pan: 360° / 540°
• Tilt: 265°
• 16-bit resolución
• Reposicionamiento automático
Eléctrico
• Rango de voltaje de entrada: 100–240V, 50-
60Hz
• Alimentación: Rango automático
• Consumo máximo de potencia: 134W
Físico
• Conectores DMX: 2 conectores XLR (XLR-3 de
entrada & salida)
• Conectores de alimentación: PowerCON®
Entrada/Salida
• Pantalla LCD: 2.4 pulg.
• Dimensiones: 468x250x375 mm. /
18.4x9.8x14.8 in.
• Peso: 10 Kg. / 22 Lbs.

P. 1 9
- Neo ION 610B RGBW
Descripción del equipo
9. Indicador inalámbrico
10. Micrófono
11. Tecla de desplazamiento hacia la
izquierda
12. Indicador de batería
13. Tecla de desplazamiento hacia
arriba
14. Tecla de desplazamiento hacia
abajo
15. Tecla Enter
16. Tecla de desplazamiento hacia la
derecha
17. Entrada DMX de 3 pines
18. Salida DMX de 3 pines
19. Conector Powercon de entrada
20. Conector Powercon de salida
21. Fusible
22. Interruptor
1. Lente
2. Cabezal
3. Brazo
4. Base
5. Pantalla LCD
6. Soporte
7. Teclas de operación
8. Manija
Versión Español
1
2
3
4
5
67
8
1
2
3
4
8
7
6
5
910 11 12 1314
15
16
17 18 19 2021 22
910 11 12 13 14
16
15
17 18 19 20 21 22

P. 2 0
Neo ION 610B RGBW -
Versión Español
Antes de utilizar la unidad, lea atentamente el presente manual y consérvelo para
referencias futuras. Deberá cumplir con todas las espefcicaciones consignadas en el
presente manual.
Si luego de nalizada la vida útil de la unidad, ésta debiera ser desechada, deberá
entregarla a una empresa especializada en su reciclaje o devolverla a un distribuidor
autorizado a n de procurar el cuidado del medioambiente.
Los productos referenciados en el presente manual cumplen con las Directivas de la
Comunidad Europea y por tal motivo exhiben el marcado CE.
Mantenga la unidad alejada de niños y usuarios no autorizados; el fabricante no
asumirá responsabilidad alguna por daños generados al no cumplir con las pautas
indicadas en el presente manual o una ejecución indebida.
Antes de poner en funcionamiento la unidad, asegúrese de que ésta no se ha dañado
como consecuencia de su transporte. Verique que el pan y el tilt pueden rotar en su
rango completo.
Deberá dejar una distancia de por lo menos 50 cm entre el equipo y materiales in-
amables.
La unidad podrá ser utilizada exclusivamente con un rango de voltaje de 100-240v
y una potencia de 50/60Hz. Cumpla con esta pauta. Desconecte la unidad antes de
realizar las tareas de mantenimiento o levantar la tapa.
La unidad ha sido diseñada para su uso en espacios interiores. Mantengala alejada
de condiciones de humedad. No ubique la unidad bajo el sol ni la exponga en forma
directa ante otra fuente de luz.
Nunca mire en forma directa a los lentes de proyección cuando la unidad está encen-
dida. La luz podría generar convulsiones epilèpticas en personas fotosensibles o con
epilepsia. Es fundamental, especialmente con el efecto beam, tener extrema pre-
cauciòn y cumplir con las instrucciones consignadas.
No coloque ni instale la unidad en una supercie expuesta a golpes o vibraciones.
2. SEGURIDAD Y MANTENIMIENTO
Seguridad
--0.5m
