NEO ION 575 User manual

P. 1
- Neo ION 575
USER MANUAL / MANUAL DE USUARIO
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE
POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR
ION 575
spot moving head powered by a 75W white LED

P. 2
Neo ION 575 -
1. OVERVIEW
English version
Ion 575
Spot moving head powered by a 75W white LED
ION 575 is a spot moving head powered by a 75W
white LED. The unit provides a motorized focus,
3-facet rotating prism, 0-100% full range dimmer and
0-30Hz range strobe. ION 575 Led also sports a color
wheel with 8 dichroic lters + open with bidirec-
tional rainbow eect & a rotating gobo wheel with 7
indexable and interchangeable rotating gobos. As in
all the ION series, the movements of this xture are
highlighted because of their precision and speed,
thanks to its compact design & 3-phase motors.
Source & Optics
• Light Source: 1 x 75W White LED
• LEDs life: 60,000 hours
• Zoom: 13º-18º beam angle
Photometric data
• Luminous Flux: 6400 lumen
• Flux: 6990 lux @ 2.5m (8 .)
Effects & Functions
• Color wheel: 8 dichroic lters + open, indexable
and bidirectional rainbow eect
• Color bounce
• Rotating gobo wheel: 7 interchangeable, rotat-
ing, indexable gobos + open
• Gobo diameter: Outside 23 mm, Inside 18 mm
• Gobo animation eect
• Gobo shaking
• Zoom: 13º to 18º
• 3-facet rotating prism
• Motorized focus
• Dimmer: Full range 0-100%
• Strobe eect
Control
• DMX channels:11/14
• Hibernation when lost DMX for preset time
• Soware upgrade via DMX
• Fan speed auto-change according to
temperature
Movement
• Pan: 630° / 540°
• Tilt: 265°
• 16-bit resolution
• Auto repositioning
Electrical
• Input voltage range: 100–240V, 50-60Hz
• Power supply: Electronic auto-ranging
• Power consumption: 160W
Physical
• DMX connectors: 2 XLR connectors (XLR-3 In
and Out)
• Power supply connectors: Interlock In/Out
• LED display
• Dimensions: 299x252x431 mm. / 11.7x10x17 in.
• Weight: 10 Kg. / 22 Lbs.

P. 3
- Neo ION 575
English version
Description of the Device
8. Handle
9. Mic
10. MODE/ESC button
11. Down button
12. Up buttom
13. Enter button
14. Powercon in
15. Powercon out
16. Fuse
17. 3-pin DMX out
18. 3-pin DMX in
1. Project lens
2. Head
3. Arm
4. Base
5. Display
6. Foot stand
7. Operation button
1
2
3
4
7
6
5
8
17 18
910111213
14 15 16

P. 4
Neo ION 575 -
Colors and Gobos
1 Open
2 Magenta
3Orange
4Sky blue
5Pink
6Yellow
7Green
8Blue
9Red
English version

P. 5
- Neo ION 575

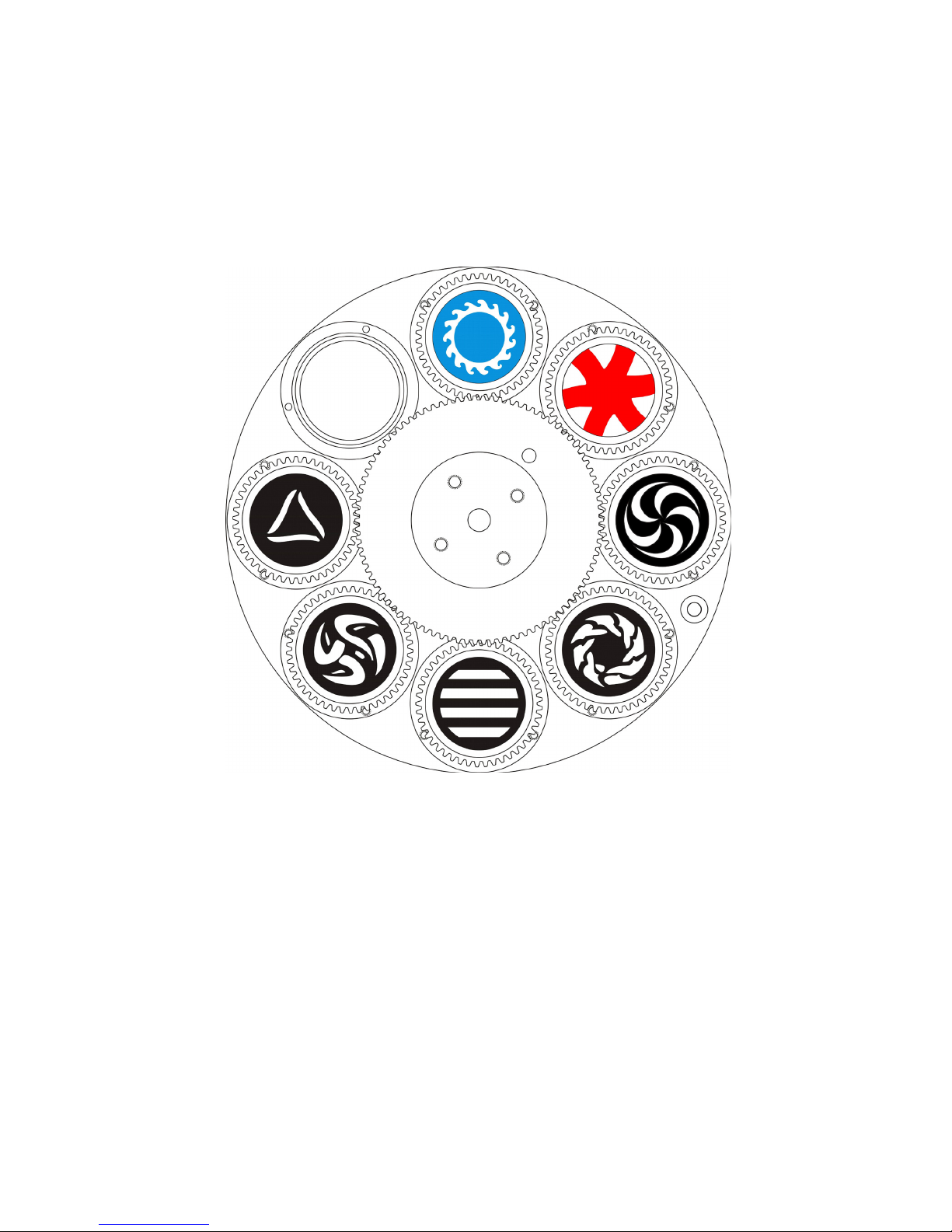

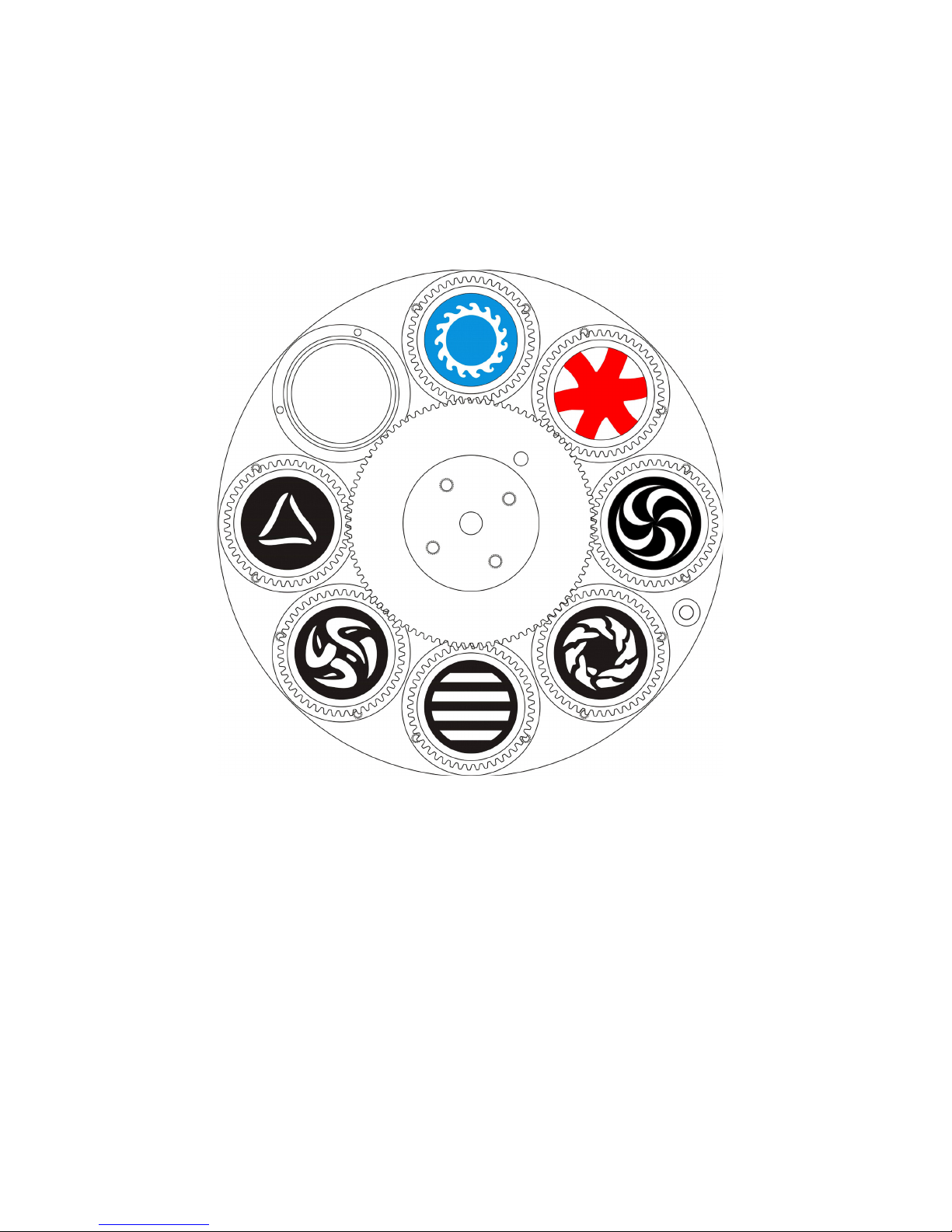

Rotating gobo wheel (slot-in-out gobos)
English version

P. 6
Neo ION 575 -
Before operate this unit, please carefully read this users guide and keep if needed in
future. It’s necessary to respect following rules.
The disposal of the device aer lifecycle could damage the environment, need to take
it to special company for recycling or return to authorized dealer.
The products referred to in this manual conform to the Eur opean Community Direc-
tives and are therefore marked with CE logo.
Keep this device away from children and unauthorized users, the manufacturer will
not take responsibility for the damage due to any disregard of the information provid-
ed in this manual and wrong operation.
Before operate the device, pls make sure the xture is in good housing, ensure pan
and tilt can rotate in its complete range.
Pls make sure minimal 0.5m distance need to kept between the xture to any am-
mable material.
The device can only run with 100-240v voltage, 50/60Hz power, don’t connect to any
other wrong power. Disconnect the device from main power before open the shield or
maintenance.
The device is designed only for indoor usage, pls keep it away from moisture. Do not
expose the device under the sun or directly to any other lighting source.
Never look directly into the projecting lens when the xture is power on, the light may
trigger epileptic seizures in photosensitive persons or persons with epilepsy. Espe-
cially at beam eect, extreme caution and observance of these safety instructions is
mandatory.
Don’t put or install the device on a surface that subject to vibration
or bumps.
2. SAFETY AND MAINTENANCE INFORMATION
Safety info

--0.5m
English version

P. 7
- Neo ION 575
Maintenance
Ta=45°C The device is supposed to work in the temperate range -15° C and +45° C, do not use
the device when the temperate exceed this range.
The lens, shield need to be replaced when obviously broken, never use the device
when the shield is not completed closed.
Safety I class device, need to be earth connected.
When the xture is hanged overhead, the safety rope must be xed to the bottom of
the device to the appropriate xing point.
Always carry the device by the handles, do not take the head or arm directly for
transportation.
• Operation only allowed to qualied person,
damages due to unprofessional operation or re-
move of any parts inside will not be considered
in warranty service. There are no serviceable
parts inside the device or package, service only
leaves to authorized dealers.
• Never allow the optical components contact
with oil, fat or any other liquid.
• A regular clearance of the device is needed for
long-term usage, this is very helpful to maintain
the lifetime and brightness need to use a so
and lint-free cloth to clean the optical system,
fan and air owing tunnel.
English version

P. 8
Neo ION 575 -
Replacement of the fuse
Trouble Shooting
Need to replace with same type and rating, which
originally installed in the device.
Step One: Unplug power cable from main power.
Step Two: Unscrew the fuse holder out of the hous-
ing with a screwdriver.
Step Three: Remove the broken fuse and replace
with an exact same type of new fuse.
Step Four: Insert the fuse holder back to the hous-
ing and screw tight and reconnect power.
Problems Possible reasons Checking or solutions
Device not
power up
Powercon or power cable damaged Change a good power cable to try
Faulty power supply Replace new power supply
Pan/Tilt error
or vibrate
Faulty Pan/Tilt PCB Replace PT001 PCB
Faulty opto sensor Replace opto sensor OP001
Cable loosen Check the cable connect to OP001
LED o
Temperature protection Check the temperature from menu
Fan not working Check the fan speed info from menu
Faulty LED Replace new LED
Dimmer and strobe set at 0 Set dimmer and strobe channel at 255
Faulty power supply Replace new power supply
Device not response
to DMX
Faulty communication IC Replace the IC with back-up one in the
display PCB
Faulty display PCB Replace new display PCB
Wrong DMX addressing Check the address and setting
Faulty DMX cable Change to a good DMX cable
English version

P. 9
- Neo ION 575
3. INSTALLATION
The device could be either put on a solid and even
surface, or mounted upside down or sideways like
le picture.
The mounting place must be suicient stable and
be able to support a weight of 10 times of the unit’s
weight. When the xture is hanged, always addi-
tionally secure the device with the safety chain,
fasten the safety rope at a suitable position so that
the maximum fall of the projector will be 20 cm.
How to do mounting installation.
Step two: Install the clamp and bracket on the
bottom of panel, fasten the quick-locks;
Step one: Installation the clamp onto the
omega bracket;
English version

P. 1 0
Neo ION 575 -
4. CONTROL MENU
Meaning of the icon in menu
Default setting shadowed. mark with 1 can be basic
reloaded, 2 be program reloaded, 3 can be private
reloaded.
Step three: Install the whole device onto
appropriate truss and fasten the clamps, tight
the safety rope with the truss or other xing
point at a suitable position that drop down
distance not exceed 20 cm.
Connect Light Infomation Set Program
Menu tree
English version
Mode
Addr XXX DMX address setting
Slav Choose Slave mode
Sequ Alon/Mast Choose Sequence mode
Sund Alon/Mast Choose Sound mode
Lamp
Temp 80~139°C, 80°F Lamp o if temperature continuously over
for 5 minutes
Adju CHxx=XXX….. Adjust value of each channels
Info DriT XXXC Temperature of driver

P. 11
- Neo ION 575
English version
Set
Move
RPan
RTilt
Degr
Enco
Mode
ON/OFF
ON/OFF
630/540
ON/OFF
Mod1/Mod2
Pan Reverse
Tilt Reverse
Choose Pan Degree
Encoder wheel on/o
Choose pan/tilt mode
UI
Mic
Sign
Fan
Hibe
Back
Flip
User
0~99%,60%
Close/Hold/Auto/
Music
Auto Speed /High
Speed
OFF, 01M~99M, 15M
02~60m 02m
ON/OFF
Use1/Use2
Sensitivity of Mic
Mode when no signal
Fans mode
Sleeping mode
Show backlight time
Display 180°reverse
Users mode
Cali Code
CHxx
XXX
XXX
Password: 050
Calibrate channel value
Ver X1.0.0 IC Version
load ON/OFF Reload Default
Rest Reset

P. 12
Neo ION 575 -
5. DMX CONNECTION AND DMX PROTOCOL
The device is controlled by universal DMX 512 pro-
tocol, DMX address is the start channel used to re-
ceive instructions from the external controller. For
independent control, each xture must be assigned
its unique address control channels. For example,
this device has four channel modes: 11/14, if we set
the mode at standard 11 channels mode, and there
are several models need to be independently con-
trolled, we just simply address rst xture at 1, and
second xture at 12, third one at 33, etc.
If the devices have the same address, they will be-
have synchronically.
DMX addressing is limited, don’t set the address so
high that without enough control channels for the
xtures.
Display is ashing when no DMX signal is received.
This device is equipped with 3-pins DMX in and
out sockets only. Pin 1 = GND, Pin 2 = Signal (-)
, Pin 3 = Signal (+)
The termination is prepared by soldering a 120Ω
resistor between pins 2 and 3.
DMX addressing
Connection: use DMX cable with 3-pin XLR-plugs
to connect the controller with the xture or one
xture with another.
English version

P. 13
- Neo ION 575
English version
DMX chart
Channel Name Function Min DMX Max DMX
St Ex
1 1 Pan Pan Coarse 0255
2Pan ne Pan Fine 0 255
2 3 Tilt Tilt Coarse 0255
4Tilt ne Tilt Fine 0 255
3 5 Movment
Speed
fastest to Slowest 0255
6 Movment
Function
Normal 015
Movement With Backout 16 31
TBD 32 255
4 7 Shutter
Shutter closed 031
No function (shutter open) 32 63
Strobe eect slow to fast 64 95
No function (shutter open) 96 127
Pulse-eect in sequences 128 159
No function (shutter open) 160 191
Random strobe eect slow to fast 192 223
No function (shutter open) 224 255
5 8 Dimmer Dimmer(Close to Open) 0255
6 9 Color
Indexed
Position 1 (Open) 0 2
Position 2 ~ Position 18 353
Indexed With Backout
Position 1 (Open) 54 56
Position 2 ~ Position 18 57 106
Indexed With Bounce
Position 1 107 119
Position 2 ~ Position 10 120 223
Forward Wheel Spin
Stop to fastest 224 239
Reverse Wheel Spin
Stop to fastest 240 255
710 Rot Gobo
Indexed
Position 1 (Open) 0 5
Position 2 ~ Position8 647

P. 14
Neo ION 575 -
Indexed With Backout
Position 1 (Open) 48 53
Position 2 ~ Position8 54 95
Indexed With Shake
Position 2 98 115
Position 3 ~ Position8 116 223
Forward Wheel Spin
Stop to fastest 224 239
Reverse Wheel Spin
Stop to fastest 240 255
811 Gobo Rot
Continuous
Positioning from 0-360 degrees 0191
Forward Animate Rotate
Stop to fastest 192 207
Reverse Animate Rotate
Stop to fastest 208 223
Forward Spin
Stop to fastest 224 239
Reverse Spin
Stop to fastest 240 255
912 Prism &
Prism Rot
Prism
Position 1 (Open) 0 3
Prism Rot Forward Spin
Stop to fastest 4127
Prism Rot Reverse Spin
Stop to fastest 128 255
10 13 Focus Continuous
Focus In to Focus Out 0 255
11 14 Control
Normal 0 7
Reset All 815
Pan&Tilt Reset 16 23
Color Reset 24 31
Gobo Reset 32 39
TBD 40 47
Other Reset 48 55
Display O 56 63
Display On 64 71
TBD 72 87
Hibernation 88 95
TBD 96 255
English version

P. 15
- Neo ION 575
English version
6. UNIQUE FEATURES
• RDM, stand for “Remote Device Management”,
with this function, users can realize remote
control of the device, such as remotely chang-
ing DMX address, reverse pan/tilt setting, check
a lot of useful information such as temperature,
power consumption, fan speed. Etc. Every
single device has a unique RDM code before le
factory to distinguish from each other, usually
not suggest users change this code freely.
• Soware upgrade function via DMX cable, if
there is any new rmware for this device come
out, it can be upgraded simply via a soware
upgrade box, no need to change any mechan-
ical parts. The upgrade box is not included in
the package, if need any further assistance pls
just contact authorized dealers.
• Hibernation, the device will enter sleeping
mode if activated aer a period of disconnect-
ing DMX signal to save the power consump-
tion, and will return immediately as soon as
the DMX signal is sent again.
• Display battery, this function is prepaid in
the display PCB, users just need to install
a normal 10440 600mAh 3.7V rechargeable
lithium battery, then users could power on
the display and do setting without connect to
main power.
• Display back-up communication IC, there is
a back-up communication IC installed in the
display PCB, so users could replace at once
if the working one is broken, no need to wait
long time from service.
• Display ip, by press up and down button for
more than 3 seconds, the display will ip auto-
matically, this function is useful to read menu
conveniently when device is hanged.
7. DIMENSIONS DRAWING

P. 1 6
Neo ION 575 -
Versión Español
1. DESCRIPCIÓN
Ion 575
Cabezal móvil tipo spot que cuenta con un LED blanco
de 75W
Ion 575 es un cabezal móvil tipo spot que cuenta con
un LED blanco de 75W. La unidad provee, además,
foco motorizado, prisma de 3 caras, dimmer de
rango completo y un estrobo de 0-30Hz. Ion 575
Led cuenta, por otra parte, con una rueda de ltros
dicróicos con 8 colores + abierto, efecto de arcoiris
bidireccional, y otra rueda con 7 gobos rotativos, in-
dexables e intercambiables. Al igual que toda la serie
ION, los movimientos de este modelo se destacan
por su velocidad y precisión, gracias a su motor de 3
fases y su compacto diseño.
Fuente & Óptica
• Fuente de luz: 1 LED blanco de 75W
• Vida útil promedio: 60.000 horas
• Zoom: 13º-18º de ángulo de haz
Información fotométrica
• Flujo luminoso: 6.400 lumen
• Flux: 6.990 lux @ 2,5m (8 .)
Efectos y Funciones
• Rueda de color: 8 ltros dicroicos + abierto,
efecto arcoiris indexable & bidireccional
• Rebote de color
• Rueda de gobos rotativos: 7 gobos rotativos,
intercambiables e indexables + abierto
• Diámetro de gobo: por fuera 23 mm, por dentro
18 mm
• Efectos de animación de gobo
• Gobo Shaking
• Zoom: 13º a 18º de ángulo de haz
• Prisma rotativo de 3 caras
• Foco motorizado
• Dimmer: Rango completo 0-100%
• Efecto estrobo
Control
• Canales DMX:11/14
• Hibernación cuando pierde DMX por tiempo
preestablecido
• Actualización de soware vía DMX
• Velocidad del ventilador acorde a la
temperatura
Movimiento
• Pan: 630° / 540°
• Tilt: 265°
• 16-bit de resolución
• Reposicionamiento automático
Eléctrico
• Rango de voltaje de entrada: 100–240V, 50-
60Hz
• Alimentación: Rango automático
• Consumo máximo de potencia: 160W
Físico
• Conectores DMX: 2 conectores XLR (XLR-3 de
entrada & salida)
• Conectores de alimentación: Interlock
Entrada/Salida
• Display LED
• Dimensiones: 299x252x431 mm. / 11,7x10,3x17
pulg.
• Peso: 10 Kg. / 22 Lbs.

P. 17
- Neo ION 575
Versión Español
Descripción del equipo
8. Manija
9. Micrófono
10. Tecla MODE/ESC
11. Tecla de desplazamiento hacia abajo
12. Tecla de desplazamiento hacia arriba
13. Tecla Enter
14. Conector Powercon de entra-
da 15. Conector Powercon de salida
16. Fusible
17. Salida DMX de 3 pines
18. Entrada DMX de 3 pines
1. Lente
2. Cabezal
3. Brazo
4. Base
5. Pantalla LCD
6. Soporte
7. Teclas de operación
1
2
3
4
7
6
5
8
17 18
910111213
14 15 16

P. 18
Neo ION 575 -
Colores y globos
Versión Español
1Abierto
2 Magenta
3Orange
4Sky blue
5Pink
6Yellow
7Green
8Blue
9Red

P. 1 9
- Neo ION 575
Rueda de gobos rotativos
Versión Español

P. 2 0
Neo ION 575 -
Antes de utilizar la unidad, lea atentamente el presente manual y consérvelo para
referencias futuras. Deberá cumplir con todas las espefcicaciones consignadas en el
presente manual.
Si luego de nalizada la vida útil de la unidad, ésta debiera ser desechada, deberá
entregarla a una empresa especializada en su reciclaje o devolverla a un distribuidor
autorizado a n de procurar el cuidado del medioambiente.
Los productos referenciados en el presente manual cumplen con las Directivas de la
Comunidad Europea y por tal motivo exhiben el marcado CE.
Mantenga la unidad alejada de niños y usuarios no autorizados; el fabricante no
asumirá responsabilidad alguna por daños generados al no cumplir con las pautas
indicadas en el presente manual o una ejecución indebida.
Antes de poner en funcionamiento la unidad, asegúrese de que ésta no se ha dañado
como consecuencia de su transporte. Verique que el pan y el tilt pueden rotar en su
rango completo.
Deberá dejar una distancia de por lo menos 50 cm entre el equipo y materiales in-
amables.
La unidad podrá ser utilizada exclusivamente con un rango de voltaje de 100-240v
y una potencia de 50/60Hz. Cumpla con esta pauta. Desconecte la unidad antes de
realizar las tareas de mantenimiento o levantar la tapa.
La unidad ha sido diseñada para su uso en espacios interiores. Mantengala alejada
de condiciones de humedad. No ubique la unidad bajo el sol ni la exponga en forma
directa ante otra fuente de luz.
Nunca mire en forma directa a los lentes de proyección cuando la unidad está encen-
dida. La luz podría generar convulsiones epilèpticas en personas fotosensibles o con
epilepsia. Es fundamental, especialmente con el efecto beam, tener extrema pre-
caución y cumplir con las instrucciones consignadas.
No coloque ni instale la unidad en una supercie expuesta a golpes o vibraciones.
2. SEGURIDAD Y MANTENIMIENTO
Seguridad
--0.5m
Versión Español
