NEO ELIPSOLED 3100 MAX User manual

P. 1
- Neo Elipsoled MAX
USER MANUAL / MANUAL DE USUARIO
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE
POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR
ELIPSOLED
MAX
ELLIPSOIDAL LED LUMINAIRE
3100K COLOR TEMPERATURE

P. 2
Neo Elipsoled MAX -
1. OVERVIEW
English version
ELIPSOLED 3100 MAX
Ellipsoidal LED luminaire - 3100K color temperature
ELIPSOLED 3100 MAX is an ellipsoidal LED luminaire
powered by 1 250W COB LED that works at 3100K
and has a performance 50% greater than the MKII
version, which has an output similar to the classic
750W halogen xtures, with a 90Ra color reproduc-
tion. Thanks to its COB LED, Elipsoled 3100 MAX en-
ables a great energy saving and a very low heat gen-
eration, important attributes for both theater and
broadcasting. On the other hand, the luminaire has
a 16-bit dimmer with four dimming curves, strobe
effect and adjustable PWM, essential for a flicker
free operation in any given circumstances. Last but
not least, Elipsoled 3100 MAX has a wide variety of
lenses, including two zoom barrels, and is compati-
ble with the most popular lenses in the industry.
Source & Optics
• Light Source: 1 250W COB LED
• Color temperature: 3200K
• LEDs life: 50,000 hours
• Lens tubes: 5º,10º,19º,26º,36º,50º, 15-30º & 25-
50º
• Selectable refresh rate: 600Hz, 1200Hz, 2000Hz,
4000Hz & 25000Hz
Photometric data
• Luminous Flux:
• 19º: 10166 lm
• 26º: 11616 lm
• 36º: 9363 lm
• Color rendering: >90Ra
• Flux:
• 5º: 10581 Lux @ 32 . (10M)
• 10º: 4965 Lux @ 32 . (10M)
• 19º: 1724 Lux @ 32 . (10M)
• 26º: 1250 Lux @ 32 . (10M)
Effects & Functions
• Dimmer: Full range 0-100% (16-bit)
• 4 dimming curves
• Strobe eect: 0-20 ashes per second
• Standard beam shutters
• Manual focus
• Flat and even light eld
• Compatible with industry standard lens tubes
• Adjustable PWM (Pulse Width Modulation) to
work icker free in any given situation
Control
• DMX channels: 1/2/3
• Operational modes: DMX, Static, Master/Slave
& On-board control
• RDM Function
Electrical
• Input voltage range: AC100–240V, 50-60Hz
• Power consumption: 250W
Physical
• LED display
• DMX connectors: 4 XLR connectors (XLR-3 In
and Out; XLR-5 In and Out)
• Power supply connectors: PowerCON® In/Out
• Cooling: Forced convection
• Dimensions: 720x380x340 mm. /
28.3x14.9x13.3 in.
• Weight: 9.6 Kg. / 21.1 Lbs.

P. 3
- Neo Elipsoled MAX
English version
IMPORTANT
• This product must be installed by a qualied
professional.
• All maintenance must be carried out by a quali-
ed electrician.
• A minumum distance of 0.5m must be maintained
between the equipment and a combustible sur-
face
• The product must always be operated in a well
ventilated area
• Do not stare directly into the LED light source.
• Always disconnect the power before carrying out
any maintenance.
• The earth must always be connected to the
ground.
• Ensure that all parts of the equipment are kept
clean and free of dust.

P. 4
Neo Elipsoled MAX -
English version

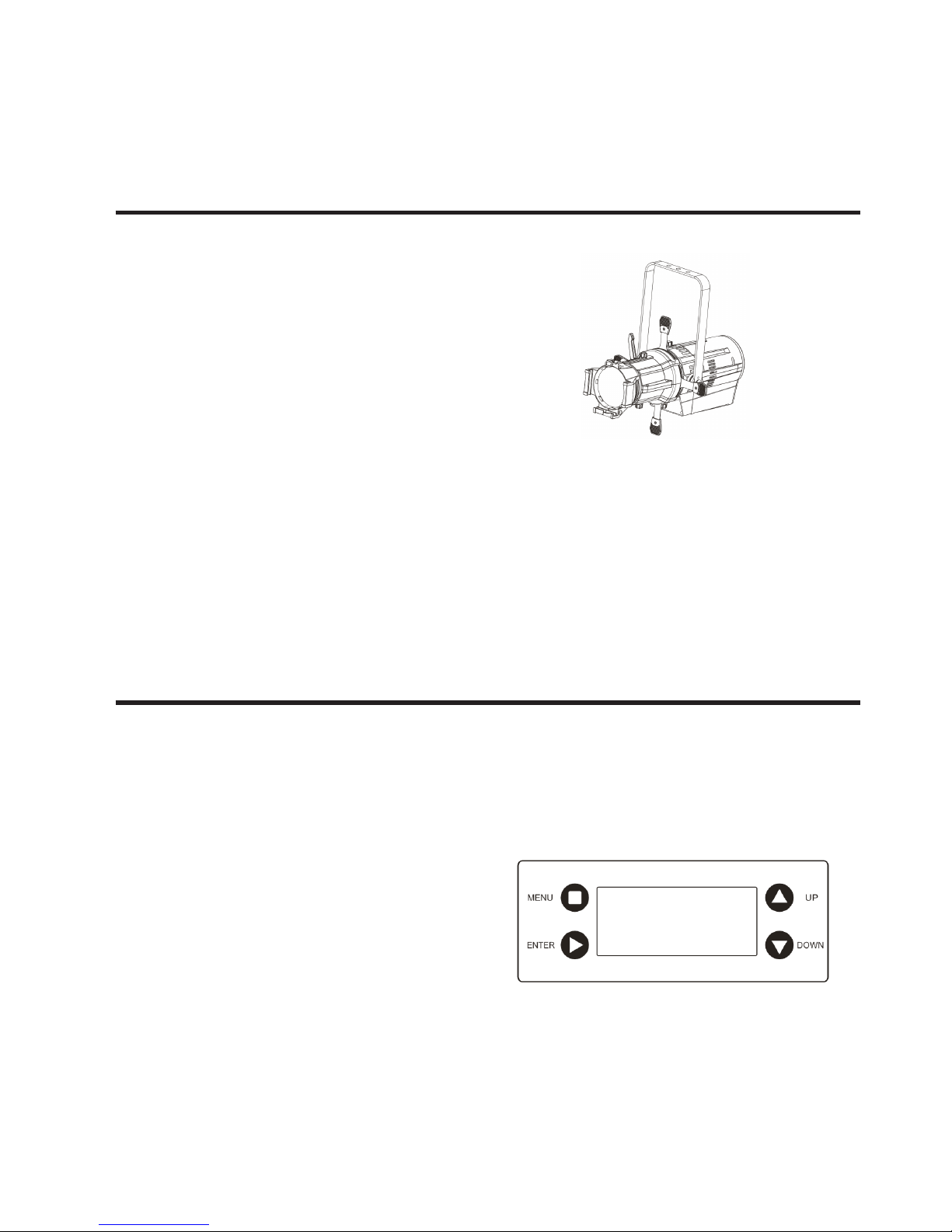

2. INSTALLATION
3. DISPLAY PANEL OPERATION
MOUNTING HANGING
POWE CONNECTIONS
The LED xture can be mounted un a hanging
position using the supporting bracket. The bracket
should be secured to the mounting truss or struc-
ture using a standard mounting clamp. Please note
that when hanging the unit a safety cable should
also be used.
• 220~240V: 7 units may be connected in series.
• 110~120V: 4 units may be connented in series.
DISPLAY OPERATION
• MENU return to the previus menu.
• ENTER enter the currently selected menu.
• UP scroll down through the current menu list or
decrease the value of the current function.
• DOWN scroll up through the current menu list
or increase the value of the current function.
QUICK-ACCESS KEYS
MENU By press and holding the MENU key when at
the main menu it is possible to directly access the
[DIM] function.

P. 5
- Neo Elipsoled MAX
English version

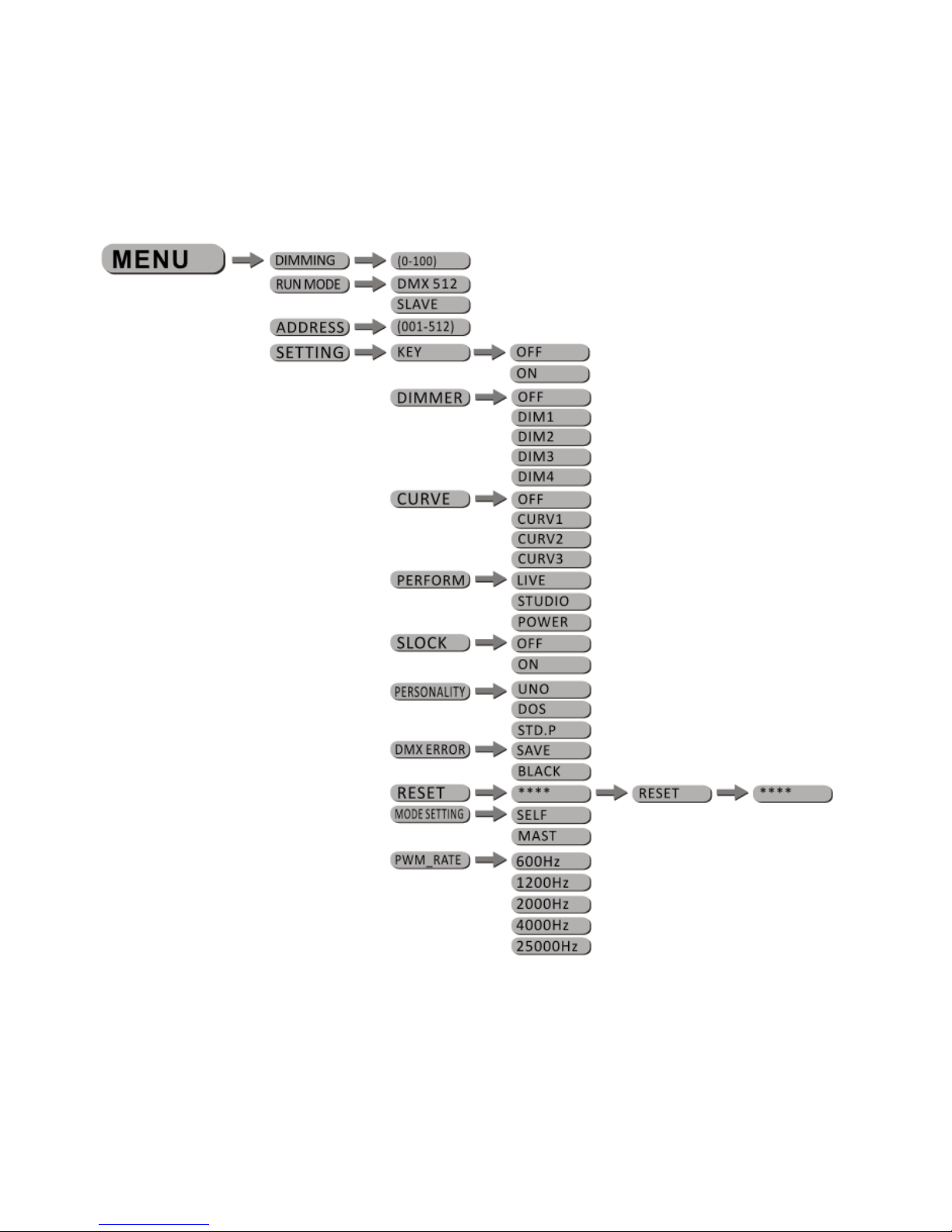

MENU MAP

P. 6
Neo Elipsoled MAX -

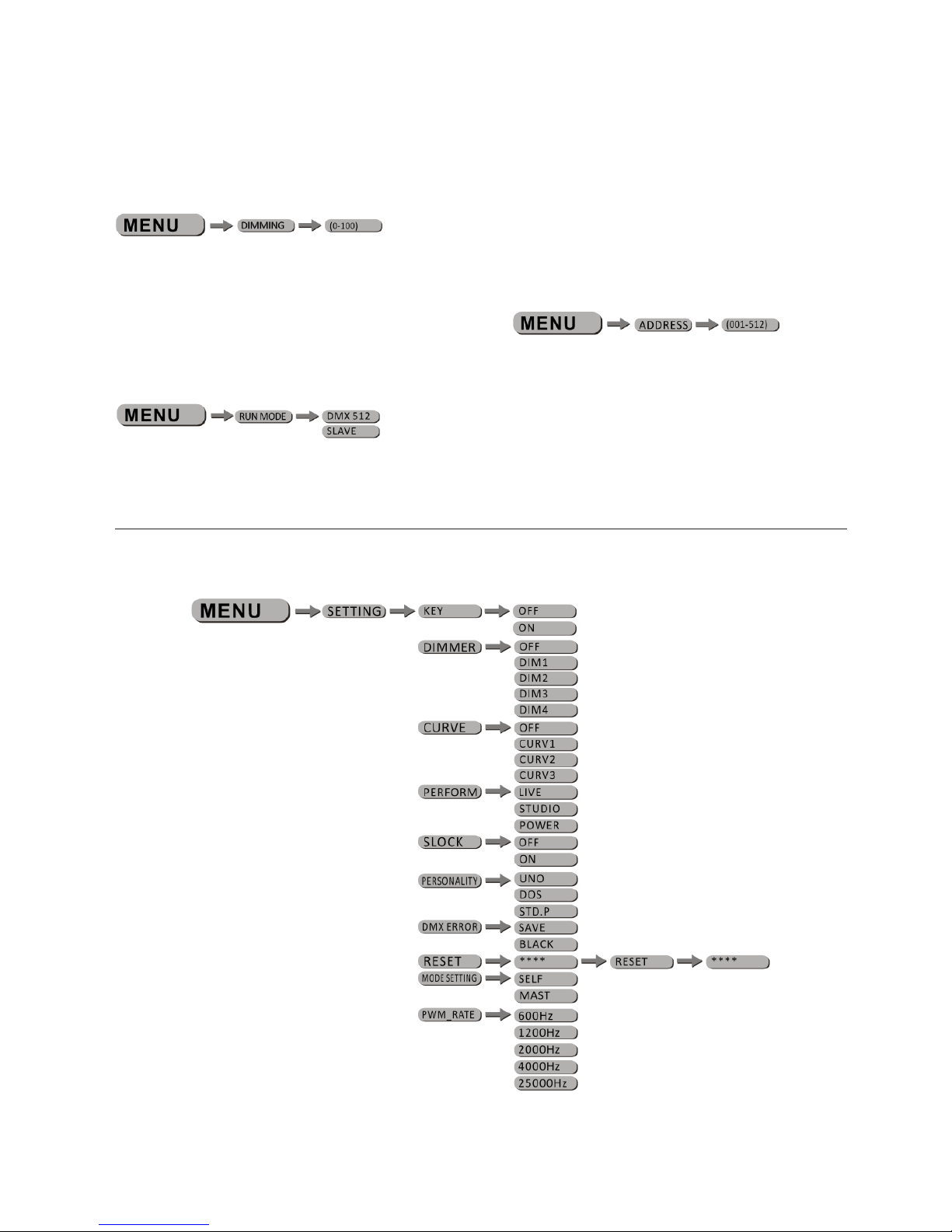

DIMMER DIMMING
DIMMING this menu allows the user to manually
control the intensity of the xture. Use UP or DOWN
keys to select required intensity.
RUN MODE
RUN MODE this menu allows the user to select the
operating mode of the xture.
English version
Select DMX for nomral DMX operation of SLAV for
slave operation
DMX ADDRESS
ADDRESS this menu allows the user to select the
start adress of the xture.
Use UP or DOWN keys to select required start
adress.
SPECIAL SETTINGS

P. 7
- Neo Elipsoled MAX
SETTING this menu allows the user to adjust key
operation settings for this xture. KEY select ON
for automatic lock-out. Password to re-enter the
display is UP + DOWN + UP + DOWN.
Select [DIM1], [DIM2], [DIM3] or [DIM4] for dierent
dimming speeds ([DIM4] is the slowest dimming
speed).
CURVE allows the user to adjust the shape of the
dmming curve. See the CURV chart to understand
more about actual dimming curves.
PERFORM this setting allows the user to select the
performance characteristics of the fixture.
LIVE mode is the default mode which balances the
requirements of output and noise.
STUDIO mode maintains extremely low noise at all
times and operates at a moderated power level.
POWER mode operates at high power for long peri-
ods of time without considerations for noise level.
SLOCK is use to lock settings menu. When SLCK
is set to ON the user must insert passcode (UP +
DOWN + UP + DOWN) in order to access the settings
English version
menu.
PERSONALITY this settings allows the user to select
DMX personality of the fixture. Refer to DMX per-
sonality charts for specific details.
DMX ERROR Choose SAVE in order to save the last
DMX data incase of DMX signal error. Choose BACK
in order to blackout in case of DMX signal error.
In order to reset custom modes to default values
select RESET.
MODE SETTING this function allows the user to se-
lect whether the fixture will send DMX data to other
fixtures during stand-alone operation. The MAST
setting allows data to be sent to other fixtures. The
SELF setting is default and will not send DMX data
to other fixtures.
PWM_RATE is PWM reflesh rate bottom, press UP/
DOWN to choose 600Hz, 1200Hz, 2000Hz, 4000Hz,
25000Hz.
NOTE with reflesh rate increase, gray rate dimmer
will be reduced (that´s means high reflesh rate, low
gray rate), when it´s 4000Hz, CV3 is invalid, when
it´s 25000Hz, CV1 CV2 CV3 are invalid, so please
lower PWM rate to increase gray rate in necessary.

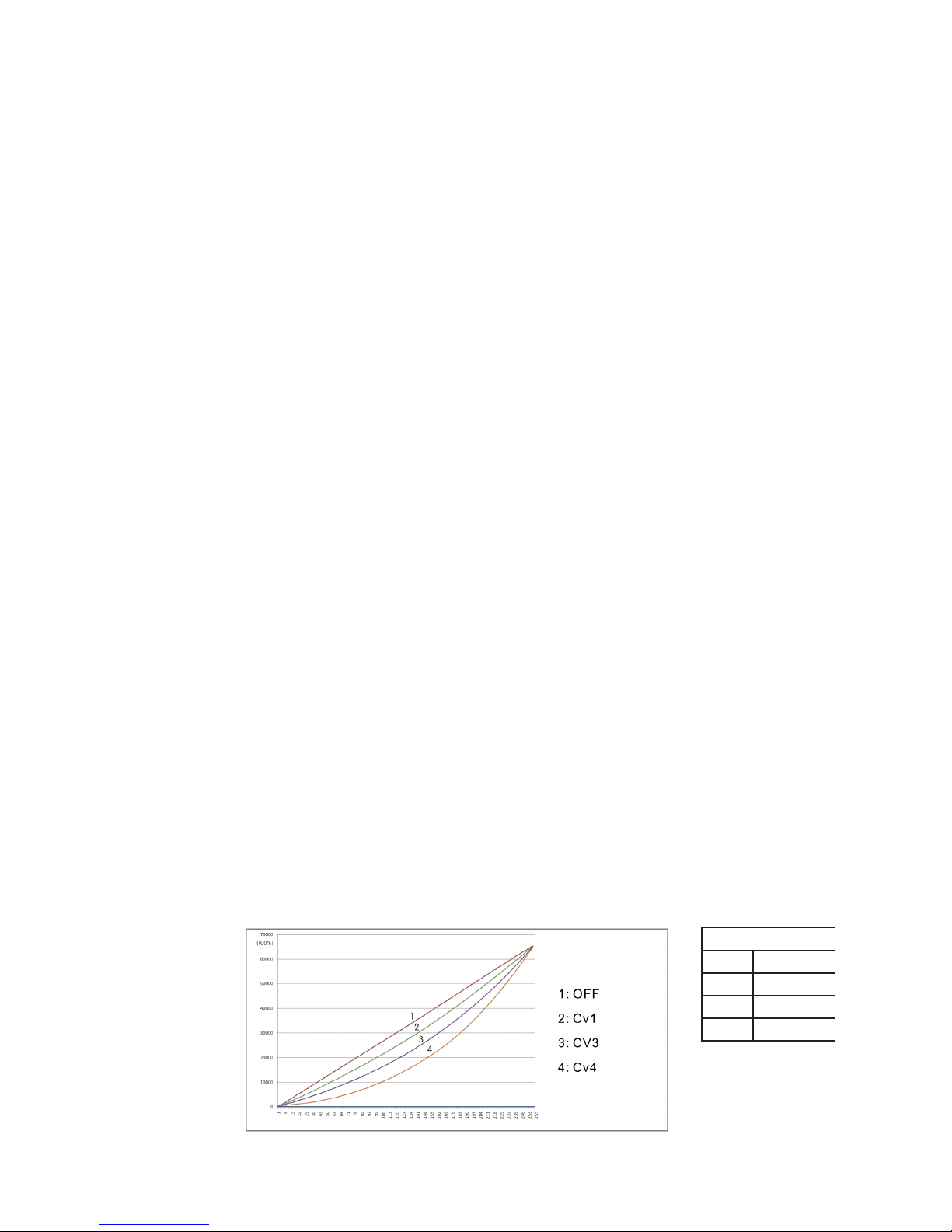

CURV DIMMING

P. 8
Neo Elipsoled MAX -
4. USING A DMX512 CONTROLLER
CHANNEL ASSIGNMENT
NOTE this product have two DMX512 channel conguration: UNO, DOS, STD.P
CHANNEL VALUE FUNCTION
1 0 - 255 Dimmer
CHANNEL VALUE FUNCTION
1 0 - 255 Dimmer
2 0 - 255 Fine dimmer
CHANNEL VALUE FUNCTION
1 0 - 255 Dimmer
2 0 - 255 Fine dimmer
3
0 - 9 No strobe
10 - 99 Stobre (slow to fast)
100 - 109 No strobe
110 - 179 Lightning strobe (slow to fast)
180 - 189 No strobe
190 - 255 Random strobe (slow to fast)
UNO
DOS
STD.P
English version

P. 9
- Neo Elipsoled MAX
5. APPENDIX
PARTS DIAGRAM
NO ITEM
1Focus tube components (19° ED)
Focus tube components (26° ED)
Focus tube components (36° ED)
Focus tube components (50° ED)
2Handwring screw
3 Light tube components
4M10 hand shak
515 degree lens (19 in 1)
6LED board
7 Thermal switch holder
8Thermal switch
9Dirver board
10 Aerbody plastic handle
11 Display PCB
12 Fuse holder
13 PS socket (male)
14 PS socket (male)
15 Adaptor PCB
16 Fan
17 92 lens xed cover
18 92 convex 1
19 92 lens xed cover
20 Power supply
English version

P. 1 0
Neo Elipsoled MAX -
Versión Español
1. DESCRIPCIÓN
ELIPSOLED 3100 MAX
Luminaria LED elipsoidal - Temperatura color de
3100K
ELIPSOLED 3100 MAX es una luminaria LED elipsoi-
dal que tiene 1 LED COB de 250W, trabaja a 3100K y
tiene un rendimiento 50% mayor a la versión MKII,
la cual se equiparaba con los tradicionales equipos
halógenos de 750W, con una reproducción de color
de 90Ra. Gracias a su LED COB, Elipsoled 3100 MAX
posibilita un gran ahorro energético y una gene-
ración de calor muy baja, atributos importantes tanto
para teatro como para broadcasting. Por otra parte,
el equipo cuenta con dimmer de 16-bit con cuatro
curvas de dimmeo, efecto estrobo y frecuencia de
refresco seleccionable, que garantiza un funciona-
miento sin parpadeo. Por último, cabe destacar que
el Elipsoled 3100 MAX cuenta con una amplia varie-
dad de lentes, incluyendo dos zoom barrels, y que,
por otra parte, es compatible con los lentes más
populares de la industria.
Fuente & Ópticas
• Fuente de luz: 1 LED COB de 250W
• Temperatura color: 3200K
• Vida útil promedio: 50.000 horas
• Lentes: 5º,10º,19º,26º,36º,50º, 15-30º & 25-50º
• Frecuencia de refresco seleccionable: 600Hz,
1200Hz, 2000Hz, 4000Hz & 25000Hz
Datos fotométricos
Flujo lumínico:
19º: 10166 lm
26º: 11616 lm
36º: 9363 lm
Reproducción de color: >90Ra
Flux:
5º: 10581 Lux @ 10M
10º: 4965 Lux @ 10M
19º: 1724 Lux @ 10M
26º: 1250 Lux @ 10M
Efectos y funciones
• Dimmer: 0-100% (16-Bit)
• 4 curvas de dimmeo
• Efecto estrobo: 0-20 ashes por segundo
• Obturadores de haz estándar
• Foco manual
• Campo de luz plano y nivelado
• Compatible con los lentes estandar de la
industria
• PWM ajustable para trabajar sin parpadeo en
cualquier situación
Control
• Canales DMX: 1/2/3
• Modos de operación: DMX, Estático, Maestro/
Esclavo & control a bordo
• Función RDM
Eléctrico
• Rango de voltaje de entrada: AC100–240V,
50-60Hz
• Consumo de potencia: 250W
Físico
• Display LED
• Conectores DMX: 4 conectores XLR (XLR-3
entrada y salida; XLR-5 entrada y salida)
• Conectores de alimentación: PowerCON®
• Enfriamiento por convección forzada
• Dimensiones: 720x380x340 mm. /
28,3x14,9x13,3 Pulg.
• Peso: 9,6 Kg. / 21,1 Lbs.

P. 11
- Neo Elipsoled MAX
Versión Español
IMPORTANTE
• Toda persona involucrada con la instalación, ope-
ración y mantenimiento de este dispositivo debe:
- estar calicada para la tarea.
- seguir las instrucciones del manual con
atención.
• Instale el equipo a una distancia mínima de 50 cm
de otros objetos para garantizar la buena venti-
lación.
• Mantenga el equipo alejado de llamas expuestas o
líquidos inables.
• No mire de forma directa hacia la fuente de luz
cuando el equipo esté encendido. La luz puede
generar convulsiones en las personas fotosensi-
tivas o con epilepsia. Se recomienda tomar estas
precauciones especialmente con el efecto beam.
• Desconecte el equipo del suministro eléctrico an-
tes de realizar cualquier tarea de mantenimiento.
• El equipo cuenta con grado de protección I, por lo
cual debe procurar la conexión a tierra.
• Se recomienda la limpieza regular del equipo para
prolongar su vida útil y optimizar la salida de luz.
Utilice un paño suave que no genere pelusa para
eliminar la acumulación de polvo de las piezas
ópticas, el ventilador y el tubo de ujo de aire.

P. 12
Neo Elipsoled MAX -
2. INSTALACIÓN
3. INSTRUCCIONES DE USO
CONEXIÓN
MONTAJE Y RIGGING
El equipo se puede instalar sobre una supercie
plana y también de forma colgante mediante
la abrazadera de montaje. Asegúrese de jar la
abrazadera al sistema de trussing o estructura
ja donde instalará la unidad. En caso de colgar la
unidad, utilice un cable de seguridad para prevenir
que el equipo sufra una caída mayor a 20cm.
• 220-240 V: Este voltaje admite conectar hasta 7
unidades en serie.
• 110-120 V: Este voltaje admite conectar hasta 4
unidades en serie.
Observación: Si el cable de señal se extiende por
más de 60 metros entre el controlador DMX y la
unidad o entre dos unidades, considere utilizar
un amplicador de señal DMX para garantizar la
transmisión eciente de datos y evitar la pérdida de
señal.
PANEL DE CONTROL
• MENU Abandona el menú o submenú actual.
• ENTER Accede a la función deseada o conrma
el valor seleccionado.
• UP Se desplaza hacia arriba o aumenta el valor
de la selección.
• DOWN Se desplaza hacia abajo o disminuye el
valor de la selección.
TECLA DE ACCESO RÁPIDO
El usuario puede acceder de manera rápida a la
función dimmer [DIM], si en el menú principal, man-
tiene presionada la tecla [MENU].
Versión Español

P. 13
- Neo Elipsoled MAX
MENÚ DE FUNCIONES
Versión Español

P. 14
Neo Elipsoled MAX -
DIMMER
DIMMING le permite al usuario controlar de forma
manual el nivel de intensidad de la salida de luz de
la unidad. Utilice las fechas UP y DOWN para selec-
cionar el nivel deseado.
MODO DE EJECUCIÓN
Ingrese a la opción a RUN MODE para establecer el
modo de operación de la unidad. Seleccione DMX
para utilizar un controlador DMX 512 para manejar
las unidades. De lo contrario, seleccione SLAVE
para activar el modo maestro/esclavo.
CONFIGURACIÓN DMX 512
Ingrese a la opción ADDRESS para congurar la di-
rección DMX de inicio de la unidad. Utilice las fechas
UP y DOWN para seleccionar la dirección necesaria.
CONFIGURACIONES ESPECIALES
Versión Español

P. 15
- Neo Elipsoled MAX
SETTING Este menú le permite al usuario ajustar
los parámetros principales de la unidad.
KEY Active esta función ON para bloquear au-
tomáticamente la pantalla. El sistema le pedirá
una contraseña para acceder al menú. La con-
traseña por defecto es UP + DOWN + UP + DOWN.
Seleccione la opción OFF para desactivar el uso de
contraseña.
Utilice DIM1, DIM2, DIM3 o DIM4 para regular la
velocidad de dimming. DIM4 es la velocidad más
lenta.
CURVE Utilice esta opción para regular la forma
de la curva de dimming. Para obtener más infor-
mación, refiérase al gráfico correspondiente.
PERFORM Le permite seleccionar las características
de desempeño de la unidad.
LIVE Es el modo por defecto que equilibra los re-
querimientos de la salida de luz y el nivel de ruido.
STUDIO Este modo mantiene el nivel de ruido bajo
en todo momento y opera en un nivel de potencia
moderado.
POWER El modo power opera en un nivel de poten-
cia alto durante largos periodos de tiempo sin tener
en cuenta el nivel de ruido.
SLOCK Utilice esta opción para bloquear el menú
de operaciones de la unidad. Si activa la función
ON, el sistema le pedirá una contraseña (UP +
DOWN + UP + DOWN) para acceder al menú.
PERSONALITY Utilice esta opción para seleccionar
la personalidad DMX de la unidad. Para obtener
más información, refiérase al cuadro de personali-
dad DMX.
DMX ERROR Dentro de este menú, seleccione SAVE
para guardar los datos DMX actuales en caso de que
exista un error de señal. De lo contrario, seleccione
BLACK para que la unidad pase al modo blackout
en caso de que exista un error de señal.
RESET le permite restablecer los valores de los mo-
dos personalizados a los valores por defecto.
MODE SETTING Utilice esta opción para determinar
si la unidad enviará datos DMX a otras unidades
cuando opere en modo stand alone. Seleccione
MAST para permitir el envío de datos a otras uni-
dades. De lo contrario, seleccione SELF, que es la
configuración predeterminada.
PWM_RATE Se refiere a la modulación por ancho
de pulsos de la unidad. Utilice las flechas UP y
DOWN para seleccionar entre [600Hz], [1200Hz],
[2000Hz], [4000Hz] y [25000Hz].
Observación: Con los valores más altos de PWM,
se reducirá el índice de gris del dimmer (el índice
de gris es inversamente proporcional al valor de
PWM). Configurado en [4000Hz], la curva de dim-
ming 3 (CV3) queda sin efecto; en [25000Hz], CV1,
CV2 y CV3 quedan sin efecto. Por lo tanto, reduzca
la frecuencia de PWM para incrementar el índice de
gris, en caso de que sea necesario.
CURVA DE
DIMMING Referencias
1: OFF 1: Apagada
2: CV1 2: CV1
3: CV3 3: CV3
4: CV4 4: CV4
Versión Español

P. 1 6
Neo Elipsoled MAX -
4. UTILIZAR UN CONTROLADOR DMX 512
ASIGNACIÓN DE CANALES
Esta unidad cuenta con las siguientes conguraciones de canales DMX: UNO, DOS, STD.P.
Canal Valor Función
10-255 Dimmer
Canal Valor Función
10-255 Dimmer
20-255 Dimmer no
Canal Valor Función
10-255 Dimmer maestro
20-255 Dimmer no
3
0-9 Sin función
10-99 Estrobo (velocidad creciente)
100-109 Sin función
110-179 Luz de estrobo
180-189 Sin función
190-255 Estrobo aleatorio
(velocidad creciente)
UNO
DOS
STD.P
Versión Español

P. 17
- Neo Elipsoled MAX
5. APÉNDICE
DESCRIPCIÓN DEL PRODUCTO
Ítem Descripción
1
Componente del tubo de foco (19”)
Componente del tubo de foco (26”)
Componente del tubo de foco (36”)
Componente del tubo de foco (50”)
2Tornillo mariposa
3 Componentes del tubo de luz
4Mango
5Lente 15° (19 en 1)
6Tablero LED
7 Soporte del interruptor térmico
8Interruptor térmico
9Tarjeta del controlador
Ítem Descripción
10 Mango de plástico trasero
11 Placa de circuito impreso
12 Portafusible
13 Conector PS/2 (macho)
14 Conector PS/2 (macho)
15 Adaptador de la placa de circuito
impreso
16 Ventilador
17 Cubierta ja del lente 92
18 Lente convexa 92
19 Cubierta ja del lente 92
20 Fuente de alimentación
Versión Español

P. 18
Neo Elipsoled MAX -
Table of contents
Languages:
Other NEO Dj Equipment manuals

NEO
NEO ION 740Z User manual

NEO
NEO STORMER QUAD User manual

NEO
NEO ZOOM PANEL User manual

NEO
NEO ELIPSOLED LITE 50 User manual

NEO
NEO ION 610B RGBW User manual

NEO
NEO Sion User manual

NEO
NEO STEAM INFINITE 450 User manual

NEO
NEO BLINDER MKII User manual

NEO
NEO PROTON IP 7 QA User manual

NEO
NEO ION 715Z User manual

NEO
NEO ION 575 User manual

NEO
NEO PROTON 12 USB User manual

NEO
NEO Proton 12 HEX USB User manual

NEO
NEO ELIPSOLED 5600 MAX Torch 4000 User manual

NEO
NEO FOLLOWER 15R User manual

NEO
NEO Ion 280 3-en-1 User manual

NEO
NEO NEO DOTZ User manual

NEO
NEO Ion 3715Z User manual

NEO
NEO ION 280F User manual

NEO
NEO FOLLOWER 35ST User manual
