NEO PROTON IP QW ZOOM User manual

PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE /
POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR
USER MANUAL / MANUAL DE USUARIO
PROTON
IP QW ZOOM

PROTON IP QW ZOOM
P.
2
1. OVERVIEW
Proton IP QW ZOOM is an outdoor professional washer
powered by 1 RGBW 60W LED with a 6º-23º motorized
zoom. Ideal for broadcasting applications, the unit has ad-
justable PWM, to work flicker free in any given situation,
and also sports on-board white balance, to adjust your
light source from 2000 to 8000K. Proton IP QW Zoom is
equipped with a 16-bit dimmer with 4 dimming curves, in-
ternal RGBW color mix, color macros and a friendly and
powerful OLED display. Regarding its outdoor nature, the
fixture is rated as a IP65 unit, making it ideal for long-term
outdoor applications.
SPECIFICATIONS
Source & Optic
• Light Source: 1 RGBW 60W LED
• LEDs life: 50,000 hours
• Motorized zoom: 6º-23º
Photometric Data
• 6º Beam angle: 3,034 lux @ 16 ft.
• 23º Beam angle: 212 lux @ 16 ft.
Effects & Functions
• Quad-color LED technology: Smooth RGBW mix
with no multi colored shadows
• Color macros and rainbow effect
• Dimmer: 0-100% general & for all colors
• 4 dimming curves
• Strobe effect: 1-30 Hz
• Pulse effect
• Adjustable PWM (Pulse Width Modulation) to
work flicker free in any given situation
• White balance control on-board
• Gel Frame included
• Heavy duty case
• Very silent operation
• Control
• DMX Channels: 5/7/11
• Operational modes: DMX, Master/Slave, Au-
to-run and Static Colors
• Electrical
• Input voltage range: AC100–240V, 50-60Hz
• Power consumption: 89W
• Power linking:
• 110V: Up to 12 units
• 220V: Up to 22 units
Physical
• IP Rating: IP65
• OLED display
• DMX connectors: 2 XLR connectors (XLR-5 in-
put and output)
• Powercon® IP65 In/Out power supply connectors
• Dimensions: 347x260x265 mm. / 13.7x10x10.4 in.
• Weight: 5.5 Kg. / 12 Lbs.
ENGLISH VERSION

PROTON IP QW ZOOM
P.
3
2. SAFETY INSTRUCTIONS
1. Before delivery, this device has passed strict in-
spection, Please follow the user manual strictly
for operation, if this fixture is damaged by im-
proper operation and mistake, the fixture will be
outofwarranty,andmanufactureordealerwon’t
be responsible for it. In case of any technology
change in this manual,we won’t advise in further
.
2. Aer you have received this product, please pay
special attention and check cautiously whether
the product was damaged or not during the
transportation, if it is, please do not use this fix-
ture and contact local dealers or manufacturers
as soon as possible.
3. The applicable temperature for the lighting is be-
low 40°C. Do not use the lighting above the temp
erature.
4. It must be kept clean; please do not use it around
overheat or dusty environment. Do not touch the
Chemical liquid.
5. Read the instructions before installing anything.
Pay attention to the manual and warning signs
on the equipment, if you have any other ques-
tions, please contact the dealer or manufacturer
as soon as possible.
6. Any break, please contact professionals: repairs
must be done by technical personnel.
7. Do not power in and open before installation. Let
have a rest when continuous work for eight hours.
It will longer the device using li.
8. Fixed installation, to prevent the strong vibration
or impact of the device.
9. The distance between the device and the projec-
tile must be at least 0.5 meter.
ENGLISH VERSION
10. Never look directly into the light source, as sen-
sitivepersonsmaysueranepilepticshock(espe-
cially meant for epileptics)! When light output
position of the device of dustproof glass break-
age, cracks or other visible damage, user should
replace the new glass to continue to use.
• WHAT’S INSIDE
• PROTON IP QW ZOOM - Power cord
• User Manual
• Warranty Card

PROTON IP QW ZOOM
P.
4
ENGLISH VERSION
3. MAINTENANCE AND CLEAN-
ING THE UNIT
• Make sure the area below the installation place is
free from unwanted persons during setup.
• Switch off the unit, unplug the main cable and wait
until the unit had cooled down.
• All screws used for installing the device and any
of its parts should be tightly fastened and should
not be corroded.
• Housings, fixations and installation spots (ceilling,
trusses, suspensions) should be totally free from
any deformation.
• The main cables must be in impeccable condition
and should be replaced immediately even when a
small problem is detected.
• It is recommended to clean the front at regular
intervals, from impurities caused by dust, smoke
or other particles to ensure that the light is radi-
ated at maximum brightness. For cleaning, discon-
nect the main plug from the socket. Use a soft,
clean cloth moistened with a mild detergent. Then
carefully wipe the part dry. For cleaning other
housing parts use only a soft, clean cloth. Never
use a liquid, it might penetrate the unit and cause
damage to it.

PROTON IP QW ZOOM
P.
5
ENGLISH VERSION

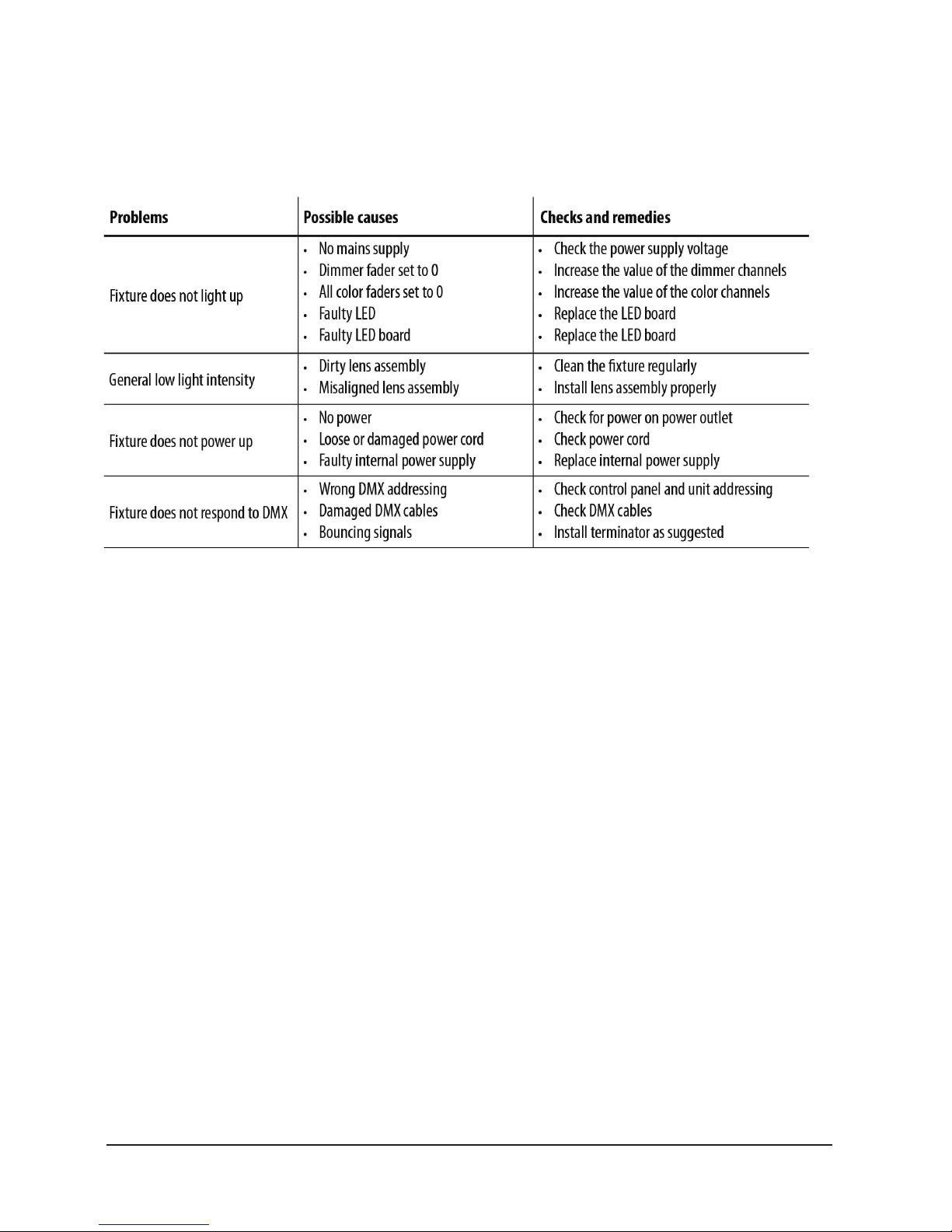

TROUBLESHOOTING

PROTON IP QW ZOOM
P.
6
ENGLISH VERSION
4. INTRODUCTION

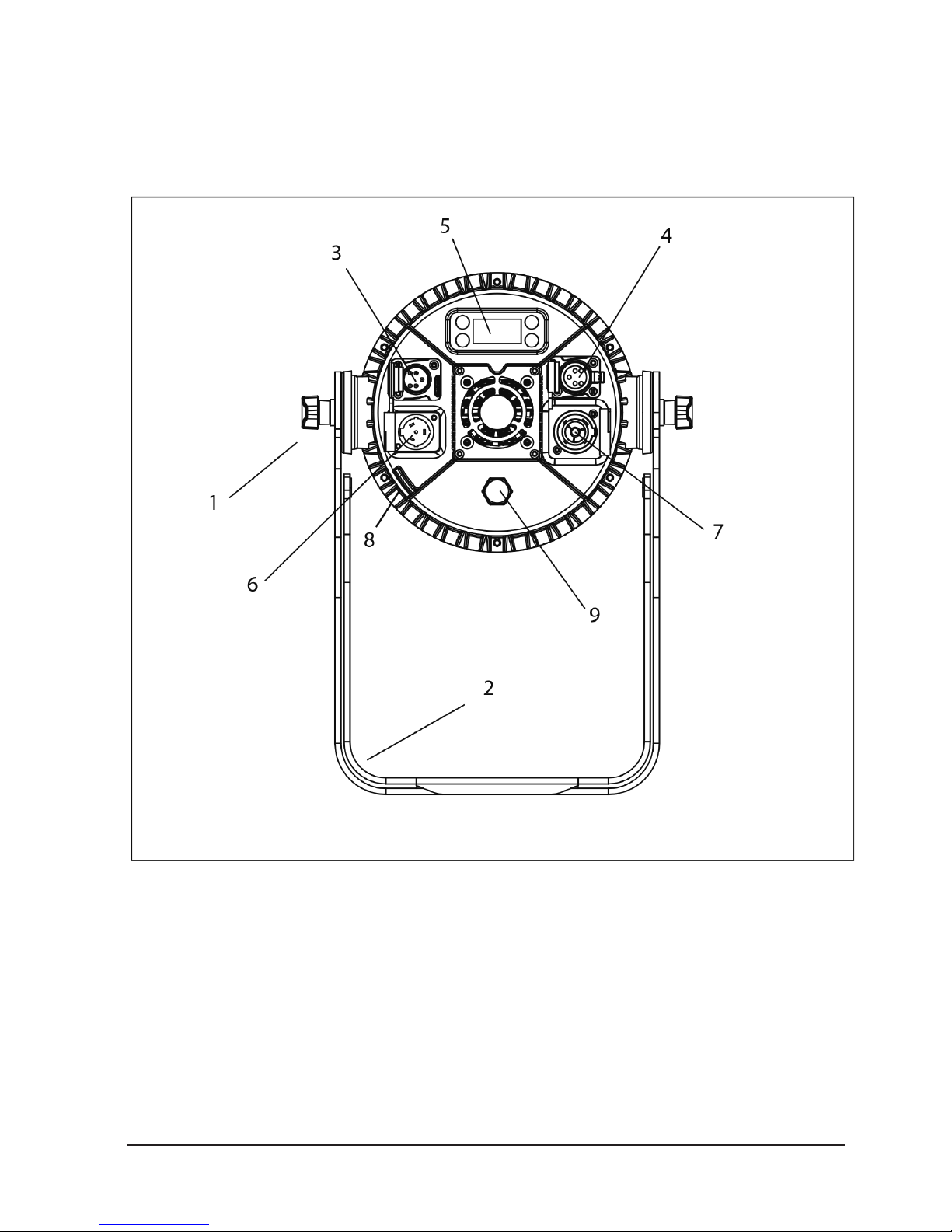

Rear Panel
1. Tighting Kbob
2. MOUNTING BRACKET
3. DMX IN (5-pin IP65 XLR):
- Ground,
- DMX -
- DMX +
4. DMX OUT(5-pin IP65 XLR):
- ground,
- DMX -
- DMX +
5. CONTROL PANEL with display and 4 button used
to access the control panel functions and manage them
6. POWER IN (IP65 PowerKON): for connection to
100-240V~/50-60Hz power via the supplied mains cable
7. POWEROUT(IP65PowerKON):forconnectionto
subsequent fixtures.
8. SAFETY RING to attach safety cable
9. GORE VALVE

PROTON IP QW ZOOM
P.
7
ENGLISH VERSION

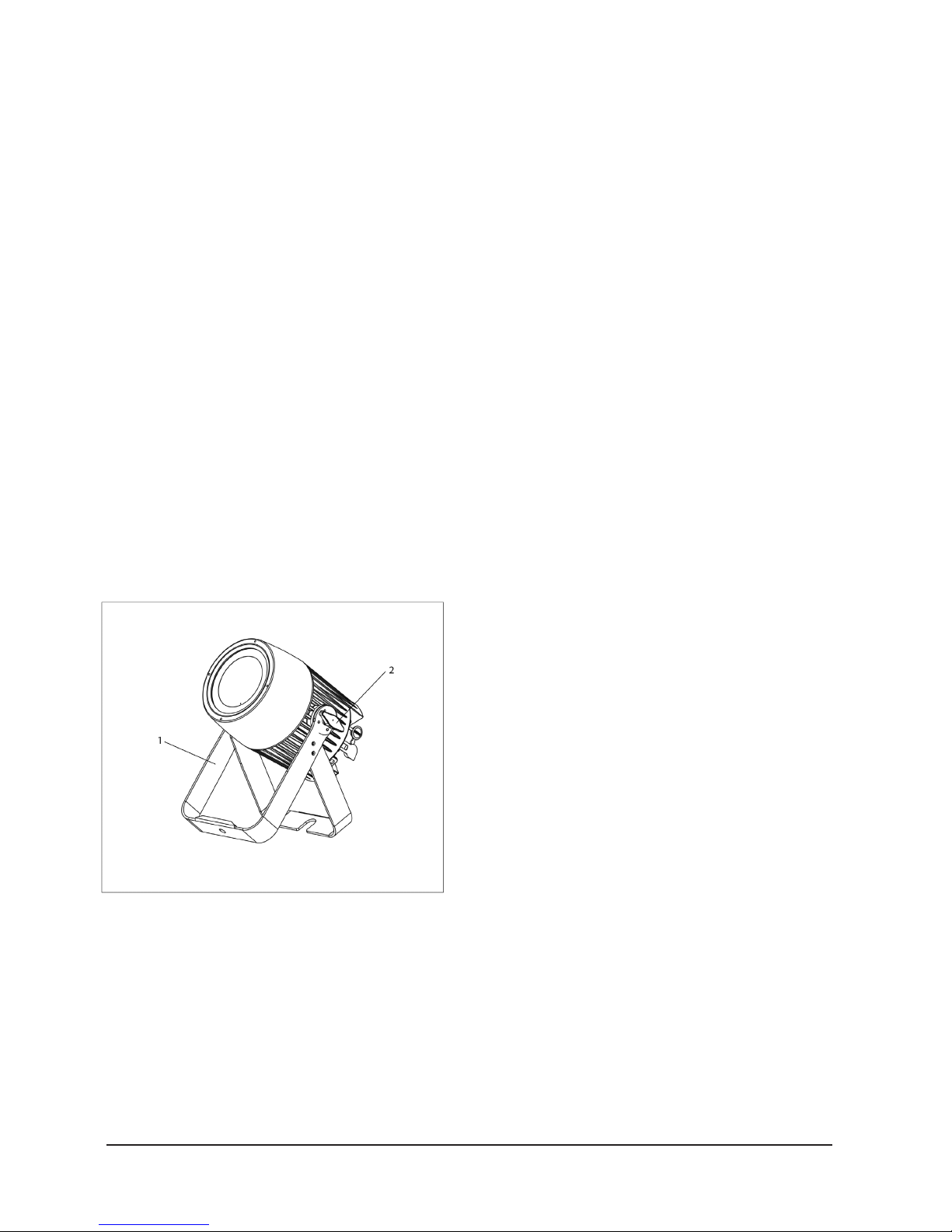

MOUNTING
PROTON IP QW ZOOM may be set up on a solid and even
surface. The unit can also be mounted upside down to a cross
arm. For fixing, stable mounting clips are required. The mount-
ing place must be of sufficient stability and be able to support a
weight of 10 times of the unit’s weight.
When carrying out any installation, always comply scrupulous-
ly with all the regulations (particularly regarding safety) cur-
rently in force in the country in which the fixture’s being used.
• Install the projector at a suitable location by
means of the mounting bracket (1).
• Always additionally secure the projector with the
safety rope from falling down. For this purpose, fas-
-ten the safety rope at a suitable position so that
the maximum fall of the projector will be 20 cm.
• Adjust the projector and use the screw to slightly
release or tighten the locking mechanism of the
bracket if it’s necessary.

PROTON IP QW ZOOM
P.
8
ENGLISH VERSION
5. FUNCTIONS & SETTINGS
OPERATION
Connect the supplied main cable to a socket (100-240
VAC-50/60 Hz). Then the unit is ready for operation and
can be operated via a DMX controller or it independently
performs its show program in succession.
To switchoff, disconnect the mains plug from the socket. For
a more convenient operation it is recommended to connect the
unit to a socket wich can be switched on and off via a light switch.
BASIC
Access control panel functions using the four panel but-
tons located directly underneath the LED Display:
Functions of the buttons

PROTON IP QW ZOOM
P.
9
ENGLISH VERSION
MENU
Static
Autoshow
DMX Channel
DMX Address
Master/Slave
Dimmer Mode
White Balance
5 CH
7 CH
11 CH
Fixed Color
Manual Color
Autoshow 1
Autoshow 2
Autoshow 3
Autoshow 4
Autoshow 5
Zoom (0-255)
Offset (0-255)
Master
Slave
Off
Dimmer 1
Dimmer 2
Dimmer 3
Off
Manual
Zoom
Zoom Offset
001
White Presets
G
B
R
GW
BW
RW
W
GBW
GBW
RGW
RGBW
GB
RB
RG
RGB
Default: RGBW
Default: 11ch
Default: 001
Default: RGBW=255
Default: Auto 1, speed=100
Default: 0
Default: Slave
Default: OFF
Default: RGBW=255
GREEN
BLUE
RED
WHITE
(000-255)
(000-255)
(000-255)
(000-255)
(1-100)
(1-100)
(1-100)
(1-100)
(1-100)
2000K
3000K
4000K
5000K
6000K
7000K
8000K
GREEN (125-255)
BLUE (125-255)
RED (125-255)
WHITE (125-255)

PROTON IP QW ZOOM
P.
10
ENGLISH VERSION
White Presets Mode
This function allows you to choose preset white color tem-
peratures.
• Press the button MENU until the display shows Static,
then press ENTER.
• Press the UP/DOWN buttons to select White Preset,
then press ENTER.
• Press the UP/DOWN buttons to scroll to the desired pre-
set, then press ENTER.Four selectable dimming curves:
OFF, dimmer 1,2,3 (fast, medium, slow.)
Auto Show
If no DMX control signal is present at the DMX INPUT, the
unit independently runs through its show programme pro-
vided that the blackout mode is switched off:
• Press the button MENU so many times until the display
shows Auto Show, then press the button ENTER.
• Press the button UP/DOWN to switch between the show
Auto 1 - Auto 5. The unit will operate in show
mode.
• Using the button UP/DOWN to select the desired run
speed slow-fast 0-100.
• Press the button ENTER to save the setting.
IMPORTANT: Programs Auto 1 - 5 are fully pre-pro-
grammed and will not be altered by changes.
Static mode
• The fixture has the ability to accept custom static color
settings. Access these chases via the control panel on the
back of the fixture.
• Press the button MENU so many times until the display
shows Static, then press the button ENTER.
• Select Fixed Color through the buttons UP/DOWN, then
press the button ENTER.
LED Frequency
Fan Mode
Backlight
Key Lock
Information
Reset factory
Default: 1200hz
Default: Auto Speed
Default: ON
Default: ON
600HZ
1200HZ
2000HZ
4000HZ
25kHZ
Auto Speed
High Speed
ON
10S
20S
30S
ON
OFF
Fixture Hours
Version
UID
YES
NO
(9999H)
(V1.0)
15D00207****

PROTON IP QW ZOOM
P.
11
ENGLISH VERSION
• Set the colors R , G , B, W, GB, RB, RG, ,RGB, RW, GW, BW,
RGW, RBW, GBW, RGBW, through the buttons UP/DOWN,
then press the button ENTER.
• Press the MENU button to go back or to meet the waiting
time to exit the setup menu.
Manual mode
This mode allows to combine the colors red, green, blue
and white (R, G, B, W).
• Press the button MENU so many times until the display
shows Static, then press the button ENTER. • Select Man-
ual Color through the buttons UP/DOWN, then press the
button ENTER.
• Select the color R, G, B, W through the buttons UP/
DOWN, then press the button ENTER.
• Using UP/DOWN button,selectthe desiredcolorvalue000-255.
• Press ENTER button to continue to the next color R, G, B,. W.
• Continue until the desired mix is obtained.
• Press the MENU button to go back to the main menu.
Master/slave mode
This mode will allow you to link up the units together with-
out a controller. Choose a unit to function as the Master.
The unit must be the firast unit in line; other units will work
as slave.

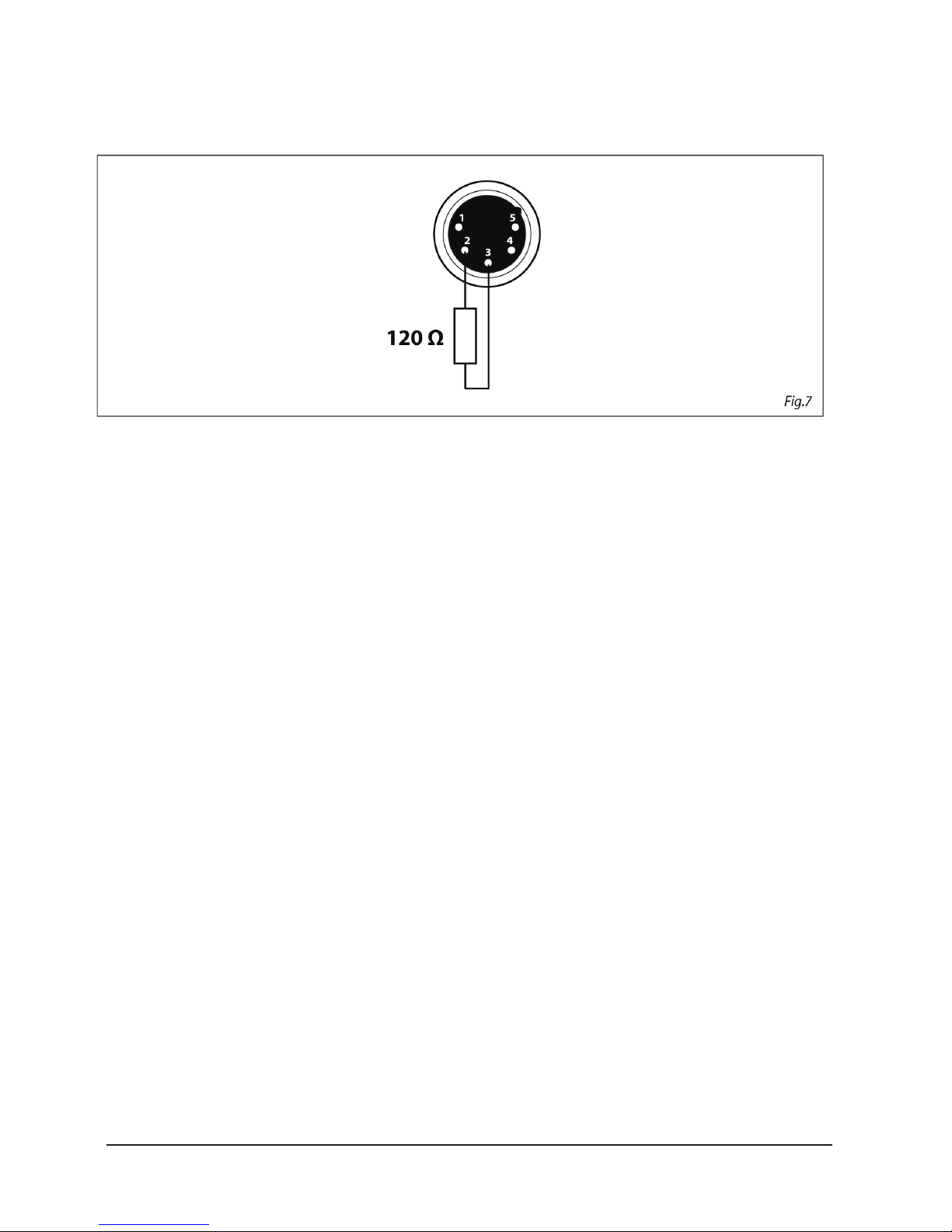

• Use standard DMX cables to daisy chain your units to-
gether via the DMX connector on the rear of the units. For
longer cable runs we suggest a terminator at the last fixture.
• Set on master fixture the desired program.
• Set the slaves to the same DMX modes.
Linkung
• Connect the DMX OUT of the master unit via 5-pin XLR
cable to the DMX IN of the first slave unit.
• Connect the DMX OUT of the first slave unit to the DMX

PROTON IP QW ZOOM
P.
12
ENGLISH VERSION
IN of the second slave unit, etc. until all units are connected
in a chain.
DMX Mode
Press the button MENU so many times until shows 5 Ch, 7
Ch or 11 Ch and press the button ENTER to confirm.
• Press the button UP/DOWN to select the desired DMX
address 001 - 512. Press and hold to scroll quickly. Press
ENTER button to store.
• Press the MENU button to go back to the main menu.
The tables on page 13 indicate the operating mode and
DMX value. EPAR Z1 is equipped with 5-pin XLR connec-
tions.
Dmx addressing
This mode allows you to select the starting address for the
EPAR Z1.
• Press the MENU button until DMX Channel is displayed,
then press ENTER.
• Select the DMX starting address using the UP/DOWN
buttons, then press ENTER • Press the MENU button to go
back to the main menu.
The following diagram shows the connection mode:

PROTON IP QW ZOOM
P.
13
ENGLISH VERSION
Connection of the dmx line
DMX connection employs IP65 XLR connectors. Use shielded
pair-twisted cables with 120Ω imped- ance and low capacity.
The following diagram shows the connection mode:
ATTENTION
The screened parts of the cable (sleeve) must never be
connected to the system’s earth, as this would cause faulty
fixture and controller operation.
Overlong runs can be necessary to insert DMX level match-
ing amplifier.
For those connections the use of balanced microphone ca-
ble is not recommended because it cannot transmit control
DMX data reliably.
- Connect the controller DMX input to the DMX
output of the first unit.
- Connect the DMX output to the DMX input of
the following unit. Connect again the output to the
input of the following unit until all the units are
connected in chain.
- When the signal cable has to run longer distance
is recommended to insert a DMX termination on
the last unit.
CONSTRUCTION OF THE DMX TERMINATION
The termination avoids the risk of DMX 512 signals being
reflected back along the cable when they reaches the end
of the line: under certain conditions and with certain cable
lengths, this could cause them to cancel the original signals.
The termination is prepared by soldering a 120Ω 1/4 W re-
sistor between pins 2 and 3 of the 5-pin male XLR connec-
tor, as shown in figure.

PROTON IP QW ZOOM
P.
14
ENGLISH VERSION
DMX CONTROL
Dimmer (0-100%)
Green
Blue
White
Red
Zoom
Strobe
Color Presets
Color Function
White Presets
Color macro
Color macro Speed
Dimmer Fade
Percent/SettingValue
11Ch Function
000-255
000-255
000-255
000-255
000-255
000-255
031-100
101-130
131-200
201-255
000-255
000-010
011-085
086-170
171-255
000-028
029-056
057-084
084-112
113-140
141-168
169-196
197-224
225-255
R 100%, G 0-100% B 0%
R 100-0%, G 100% B 0%
R 0%, G 100% B 0-100%
R 0%, G 100-0% B 100%
R 0-100%, G 0% B 100%
R 100%, G 0% B 100-0%
R 100%, G 0-100% B 0-100%
R 100-0%, G 100-o% B 100%
R 100%, G 100% B 100% W 100%
No function (shutter open)
Strobe effect slow to fast
No function (shitter open)
Random strobe effect slow to fast
No function (shutter open)
No function
Color presets
White presets
Color macro
Determines
Channel 9
Functionality
000-100%
000-100%
000-100%
000-100%
000-100%
000-100%
Auto program 1
Auto program 2
Auto program 3
Auto program 4
Auto program 5 (Auto Program 1-4)
Preset dimmer speed from display menu
0-100%
000-060
061-110
111-160
161-210
211-255
000-195
196-210
211-225
226-240
241-255
000-000
001-255
000-255
2000k --> 3000k
3000k --> 4000k
4000k --> 6000k
6000k --> 8000k
8000k
Color macro speed slow to fast

PROTON IP QW ZOOM
P.
15
ENGLISH VERSION
Percent/Setting
Value
5Ch Function
Percent/Setting
Value7Ch Function
Dimmer
Green
Blue
White
Red
Zoom
Strobe
000-255
000-255
000-255
000-255
000-255
000-030
031-100
101-130
131-200
201-255
No function (shutter open)
Strobe effect slow to fast
No function (shitter open)
Random strobe effect slow to fast
No function (shutter open)
000-100%
000-100%
000-100%
000-100%
000-100%
000-100%000-255
Green
Blue
White
Red 000-255
000-255
000-255
000-255
000-255
000-100%
000-100%
000-100%
000-100%
000-100%
Zoom

PROTON IP QW ZOOM
P.
16
ENGLISH VERSION
Dimmer curve Settings
• To enter dimmer mode and choose to simulate different
dimming curves, press the MENU button repeatedly until
the display shows Dimmer Mode, then press ENTER.
• Press the button MENU repeatedly until Dimmer Mode
shows, and press ENTER button to accept.
• Use the button UP/DOWN to select a dimmer curve .
• Press ENTER button to con rm.
Back light
• To activate backlight display press the button MENU so
many times until shows Back Light, and press ENTER
• Press the button UP/DOWN to select On - 10S - 20S - 30S.
Fixture information
Press the MENU button so many times until shows Infor-
mation, and then press ENTER button. 2. Use UP/DOWN
button to select: Fixture Hours - Version - UID .
- Fixture Hours
This option shows the user the amount of hours
the PROTON IP QW ZOOMhas been in use
throughout its lifetime. Select Fixture Hours.
- Version
This option shows the user the software version
currently installed in the unit. Select Version.
Led frequency
• To adjust the frequency of the LEDs, press the MENU but-
ton repeatedly until the display shows LED Frequency, and
then press the ENTER button.
• Select the frequency 600 Hz - 25 KHz using the UP/
DOWN buttons,then confirm with ENTER.
Key lock
• The password to unlock access to menu changes is this key
sequence:UP + DOWN+ UP + DOWN(followedbyENTER).
Fan mode
To set the rotation speed of the fans refer to the following guide:
• Press the MENU key repeatedly until the display shows
Fan Mode, then press the button ENTER.
• Select by pressing UP/DOWN one of the following op-
tions: Auto - High. It is possible choose the speed of
rotation of the fans from: fast High and automatic Auto.
• Press the MENU button to go back or wait a few seconds
to exit the setup menu.
White balance
Enter the White balance to adjust the Red, Green, Blue and
White values to set the white balance. • Press the button
MENU so many times until shows White Balance
• Select the color R, G, B, W through the buttons UP/
DOWN, then press the button ENTER.
• Using UP/DOWN button, select the desired color value 125-255.
• Press ENTER button to continue to the next color R, G, B, W.
• Continue until the desired mix is obtained.
• Press the MENU button to go back to the main menu.

PROTON IP QW ZOOM
P.
17
ENGLISH VERSION

PROTON IP QW ZOOM
P.
18
VERSION ESPAÑOL
1. DESCRIPCIÓN
Proton IP QW Zoom es un bañador profesional para exteri-
ores que cuenta con 1 LED RGBW de 60W y un zoom mo-
torizado de 6º-23º. Con PWM ajustable, función que ajusta
la frecuencia de refresco para poder trabajar realmente
sin parpadeo, y un control de balance de blanco incorpo-
rado, que permite variar la temperatura color entre 2000 y
8000K, el equipo es ideal para broadcasting. Proton IP QW
Zoom cuenta, además, con un dimmer con cuatro curvas de
dimmeo, mezcla de color RGBW interna, macros de color y
un display OLED con una interface amigable y potente. Por
último, gracias a su rating IP65, el equipo es ideal para su
uso en exteriores.
ESPECIFICACIONES
Fuente & Óptica
• Fuente de luz: 1 LED RGBA de 60W
• Vida útil promedio: 50.000 horas
• Zoom motorizado: 6º-23º
Datos fotométricos
• Ángulo de haz de 6º: 3.034 lux @ 5m (16 ft.)
• Ángulo de haz de 23º: 212 lux @ 5m (16 ft.)
Efectos & Funciones
• Tecnología LED de cuatro colores: Mezcla RGBW
suave sin sombras multicolor
• Macros de color y efecto arcoiris
• Dimmer: 0-100% general & para todos los colores
• 4 curvas de dimmeo
• Efecto estrobo: 1-30 Hz
• Efecto pulse
• PWM ajustable: 600/1200/2000/4000 Hz o 25KHz
• Control integrado de balance de blanco
• Gel Frame incluido
• Diseño ultra-resistente y funcionamiento silencioso
• Control
• Canales DMX: 5/7/11
• Modos de operación: DMX, Maestro/Esclavo,
Automático & colores estáticos
• Eléctrico
• Rango de voltajede entrada:AC100–240V,50-60Hz
• Consumo de potencia: 89W
• 110V: Hasta 12 unidades
• 220V: Hasta 22 unidades
• Físico
• Certificación IP65
• Display OLED
• Conectores DMX: 2 conectores XLR-5 IP65 de
Entrada/Salida
• Conectores de alimentación Powercon® IP65
de Entrada/Salida
• Dimensiones: 347x260x265 mm. / 13,7x10x10,4 pulg.
• Peso: 5,5 Kg. / 12 Lbs.

PROTON IP QW ZOOM
P.
19
VERSION ESPAÑOL
2. SEGURIDAD- ATENCIÓN
1. Este equipo cumple con las Directivas de la Comu-
nidadEuropeay,porlotanto,cuentaconcertificación CE.
2. El equipo funciona con un voltaje de entrada de
230V~. Para su instalación, póngase en contacto
con un profesional calificado. Para evitar el riesgo
de shock eléctrico, no introduzca modificaciones no
autorizadas en el equipo.
3. El equipo requiere de un sistema de suministro eléc-
trico con puesta a tierra (equipo clase I, norma IEC
60598-1). A su vez, se recomienda proteger los ca-
bles de alimentación de los contactos indirectos y
cortocircuitos mediante el uso de interruptores dif-
erenciales del tamaño adecuado.
4. La instalación eléctrica debe realizarla un electri-
cista certificado. Procure que el voltaje y la fre-
cuencia coincidan con los requeridos por la unidad.
5. La unidad está diseñada para uso profesional. No
es de uso residencial.
6. Procurenoutilizar elequipo bajolas siguientescondiciones:
- En lugares proclives a vibraciones y sacudidas.
- En lugares con temperatura superior a 40°C.
7. Evite que líquidos inflamables, objetos de metal o
agua entren en contacto con el equipo.
8. No desarme o modifique el equipo.
9. El mantenimiento o reparación del equipo deben
ser realizados por personal calificado. Pónganse
en contacto con el servicio técnico autorizado
más cercano o directamente con su proveedor.
10. Con el fin de respetar el medio ambiente, procure
desecharla unidad en la planta de recicladomás cercana.
11. La garantía no cubre daños provocados por el
uso inapropiado del equipo. El uso inadecuado
del equipo puede ocasionar quemaduras, corto-
circuitos, shock eléctrico, etc.
12. Desconecte el equipo del suministro eléctrico an-
tesderealizarcualquiertareade limpiezao mantenimiento.
13. Procure utilizar un cable de seguridad para afirmar
la instalación. Al utilizar la unidad, cumpla en todo
momento con las regulaciones (especialmente de
seguridad) actualmente vigentes en su país.
14. Instale el equipo en una zona con ventilación.
15. Mantenga cualquier tipo de material inflamable
lejos de la unidad.
16. Reemplace la cubierta, los lentes o la luz ultravio-
leta si se dañan y comprometen el óptimo funcion-
amiento del equipo.
17. Reemplace la lámpara de LED si se daña o sufre
deformación por el calor.
18. No mire de forma directa hacia la fuente de luz
cuando el equipo esté encendido. La luz puede
generar convulsiones en las personas fotosensiti-
vas o con epilepsia.
19. No toque el equipo durante su funcionamiento ya
que su temperatura puede ser muy elevada.
QUE VIENE DENTRO
• PROTON IP QW ZOOM - Cable de Alimentación
• Manual del USUARIO

PROTON IP QW ZOOM
P.
20
VERSION ESPAÑOL
3. LIMPIEZA Y MANTENIMIENTO
• Asegúrese de que no haya personas ajenas a la in-
stalación al momento de fijar el equipo.
• Apague el quipo, desconéctelo de la corriente
eléctrica y aguarde a que se enfríe antes de re-
alizar cualquier tarea de mantenimiento.
• Ajuste bien todos los tornillos que se utilicen para
la instalación del equipo y procure que no mues-
tren signos de corrosión.
• La cubierta, las herramientas de fijación y los pun-
tos de instalación (cielos rasos, suspensiones y sis
temas de truss) deben estar libres de deformaciones.
• Conserve los cables principales en buenas condi-
ciones. Reemplácelos de forma inmediata si detec-
ta algún problema.
• Para garantizar el óptimo desempeño del equi-
po, es indispensable limpiar el frente con frecuen-
cia para remover impurezas causadas por el exce-
so humo, polvo u otras partículas. Antes de limpi-
arlo, desconecte el equipo de la corriente eléctri-
ca. Utilice un paño suave humedecido con un de
tergente suave. Luego seque el frente con cuidado.
Para otras partes del equipo solo emplee un paño
suave y limpio. No utilice ninguna clase de líquidos
ya que podrían filtrarse en el equipo y causar
daños severos.
SUSTITUCIÓN DEL FUSIBLE
1. Extraiga la tapa de seguridad con un destornillador.
2. Sustituya el fusible quemado por uno nuevo del
mismo tipo (T2A-250V).
3. Vuelva a colocarla tapa de seguridad y conecte el equipo
