NEO Proton 6 QUAD USB User manual

PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE /
POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR
USER MANUAL / MANUAL DE USUARIO
PROTON 6
QUAD USB

PROTON 6 QUAD USB
P.
2
ENGLISH VERSION
1. OVERVIEW
Proton 6 QUAD USB is a professional, light & compact fix-
ture powered by 6 RGBA 8W LEDs. Member of the success-
ful return of Proton Series, the unit is equipped with quad-
color LED technology, enabling a smooth RGBA mix with no
multicolor shadows. The addition of amber gives the possi-
bility to achieve more vivid and saturated colors. Thanks to
its power and 20º beam angle this equipment is ideal for the
most demanding stages and installations. Amongst its most
relevant features the user will find the built-in USB port that
- in combination with NEO Stick USB - allows the user to
control the unit in wireless mode or via NEO Wi app – iOS®
& Android®.
SPECIFICATIONS
Source & Optic
• Light Source: 6 x 4-in-1 8W LEDs
• LEDs life: 50.000 hours
• Beam angle: 16º / Field angle 35º
Photometric Data
• Luminous flux: 1047 Lux @ 3m (10 ft)
Effects & Functions
• Controllable via NEO Wi app - iOS® & Android® -
Combined with the NEO Stick USB
• Quad-color LED technology: Smooth RGBA mix
with no multi colored shadows
• Ideal for any setting thanks to amber color incor-
poration
• 15 color macros and rainbow effect
• Dimmer: 0-100% general & for all colors
• Strobe effect: 1-30 Hz
• Flicker free (Ideal for broadcasting)
• 4 built-in programs

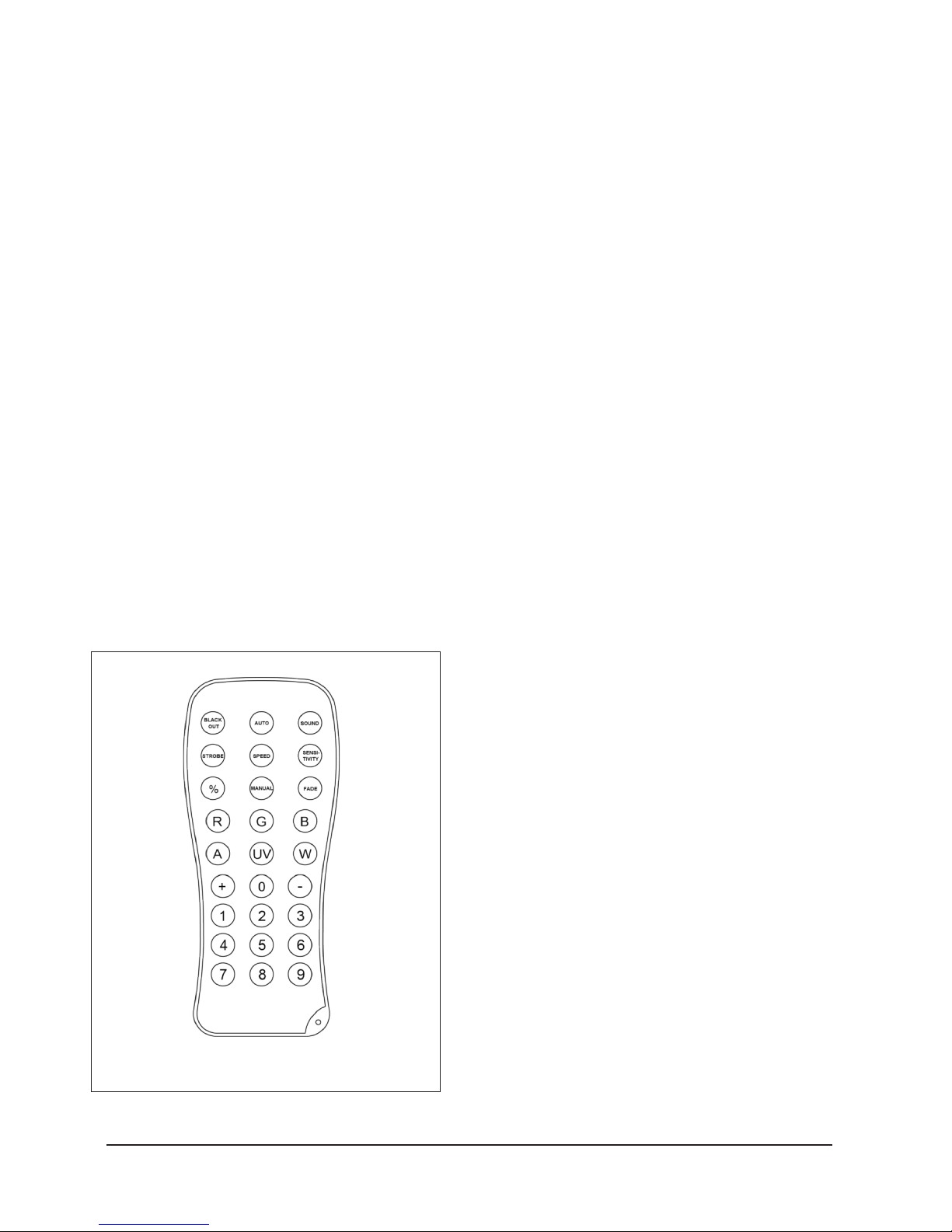

• IR control available (not included)
• Built-in microphone
• Gel Frame included
Control
• DMX Channels: 4/9
• Operational modes: DMX, Master/Slave, Auto-
run, Static Colors and Sound-Active
• USB port for Wifi control (Through NEO USB Stick)
• Software upgrade via DMX
Electrical
• Input voltage range: AC100–240V, 50-60Hz
• Power consumption: 42W
Physical
• IP Rating: IP20
• 4-digit LED display
• DMX connectors: 2 XLR connectors (XLR-3 in-
put and output)
• USB port
• Interlock In/Out Power supply connectors
• Dimensions: 224x211x114 mm. / 8.8x8.3x4.5 in.
• Weight: 2 Kg. / 4.4 Lbs.

PROTON 6 QUAD USB
P.
3
2. SAFETY INSTRUCTIONS
1. The products referred to in this manual conform
to the European Community Directives and are
there- fore marked with .
2. The unit is supplied with hazardous network
voltage (230V~). Leave servicing to skilled per-
sonnel only. Never make any modifications on
the unit not described in this instruction manual,
otherwise you will risk an electric shock.
3. Connection must be made to a power supply sys-
tem fitted with efficient earthing (class I appliance
according to standard EN 60598-1). It is, moreo-
ver, recommended to protect the supply lines of
the units from indirect contact and/or shorting to
earthbyusingappropriatelysizedresidualcurrent devices.
4. The connection to the main network of electric
distribution must be carried out by a qualified
electrical installer. Check that the main frequency
and voltage correspond to those for which the
unit is designed as given on the electrical data label.
5. Thisunitisnotforhomeuse,onlyprofessionalapplications.
6. Never use the fixture under the following conditions:
- in places subject to vibrations or bumps;
- in places with a temperature of over 45 °C.
7. Make certain that no inflammable liquids, water or
metal objects enter the fixture.
8. Do not dismantle or modify the fixture.
9. All work must always be carried out by a qualified
technical personnel. Contact the nearest sales
pointforaninspectionorcontactthemanufacturerdirectly.
10. If the unit is to be put out of operation definitvely,
take it to a local recycling plant for a disposal which
is not harmful to the environment.
ENGLISH VERSION
WARNING AND INSTALLATION PRECAUTIONS
• If this device will be operated in any way different
to the one described in this manual, it may suffer
damage and the guarantee becomes void. Further
more, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Before starting any maintenance work or cleaning
the projector, cut off power from the main supply.
• For inside use only. Not designed for outside use.
• The minimum distance between the fixture and
surrounding walls must be more than 50cm and
theair ventsat thehousingmustnotbe covered inanycase.
• Install the fixture in a well ventilated place.
• Keep any inflammable material at a safe distance
from the fixture.
• The maximum temperature that can be reached
on the external surface of the fitting, in a thermally
steady state, is high. After power off, please cool
down over 15 minutes.
• Shields, lenses or ultraviolet screens shall be
changed if they have become damaged to such an
extent that their effectiveness is impaired.
• The lamp(LED) shall be changed if it has become
damaged or thermally deformed.
• Never look directly at the light beam. Please note
that fast changes in lighting, e.g. flashing light, may
trigger epileptic seizures in photosensitive per-
sons or persons with epilepsy.

PROTON 6 QUAD USB
P.
4
ENGLISH VERSION
3. OVERVIEW
Rear View

PROTON 6 QUAD USB
P.
5
ENGLISH VERSION
DIMENSIONS
86.5
91.5
244
157.5
196
211
167
135

PROTON 6 QUAD USB
P.
6
ENGLISH VERSION
Operating Elements and Connections
1. MOUNTING BRACKET
2. LOCKING KNOB: for the mounting bracket
3. DMX IN (3-pole XLR):
1 = ground, 2 = DMX -, 3 = DMX +
4. DMX OUT (3-pole XLR):
1= ground, 2 = DMX -, 3 = DMX +
5. POWER IN: mains plug for connection to a socket
(100-240V~/50-60Hz) via the supplied mains cable.
The support for the mains fuse is located near the main plug.
Only replace a blown fuse by one of the same type .
6. CONTROL PANEL: with display and 4 button used to
access the control panel functions and manage them.
7. Universal Serial Bus (USB) for UFI only
8. POWER OUT: connect to supply power to the next unit.
9. SAFETY ANCHOR to attach safety cable

PROTON 6 QUAD USB
P.
7
ENGLISH VERSION
4. INTRODUCTION
MOUNTING
PROTON 6 QUAD USB may be set up on a solid and even
surface. The unit can also be mounted upside down to a
cross arm. For fixing, stable mounting clips are required.
The mounting place must be of sufficient stability and be
able to support a weight of 10 times of the unit’s weight.
When carrying out any installation, always comply scrupulous-
ly with all the regulations (particularly regarding safety) cur-
rently in force in the country in which the fixture’s being used.
• Install the projector at a suitable location by means of the
mounting bracket (1).
• Always additionally secure the projector with the safety
rope from falling down. For this purpose, fas-
ten the safety rope at a suitable position so that the maxi-
mum fall of the projector will be 20 cm.
• Adjust the projector and use the knob (2) to slightly re-
lease or tighten the locking mechanism of the
6CH - 11CH ), then press the button ENTER.
bracket if is necessary.

PROTON 6 QUAD USB
P.
8
ENGLISH VERSION
Functions of the buttons
5. FUNCTIONS & SETTINGS
OPERATION
Connect the supplied main cable to a socket (100-240
VAC-50/60 Hz). Then the unit is ready for operation and
can be operated via a DMX controller or it independently
performs its show program in succession.
To switchoff, disconnect the mains plug from the socket. For
a more convenient operation it is recommended to connect the
unit to a socket wich can be switched on and off via a light switch.
BASIC
Access control panel functions using the four panel but-
tons located directly underneath the LED Display:

PROTON 6 QUAD USB
P.
9
ENGLISH VERSION
MENU STRUCTURE

PROTON 6 QUAD USB
P.
10
ENGLISH VERSION
Auto Show
The fixture has a built in automatic program. To access this,
please see the below instructions:
• Press the button MENU several times until the
display shows P--, then press the button ENTER.
• Press the button UP/DOWN to switch between
programs P1-P4.
•Press the button MENU until S-- appears on the
display.
• Use the button UP/DOWN to select the auto
programs speed S001 - S100 (slow-fast).
• Press the button ENTER save the setting.
Sound mode
In music mode, via its integrated microphone, the unit can
be controlled by music with a clear rhythm in the bass range.
If the music control should not work optimally, increase the
volume or reduce the distance between the sound source
and the light effect unit.
• Press the button MENU so many times until the
display shows Snd.
• Using UP/DOWN button, select one of the
modes Snd1 or Snd2. Press ENTER
• You can set the microphone sensitivity pressing
the button MENU so many times until the display
show Sens
• Using the buttonUP/DOWN, select the desired
value sensitivity (slow-fast) u0 - u100.Press ENTER
Static Color
The fixture has the ability to accept custom static color set-
tings. Access these chases via the control panel.
• Press the button MENU several times until the
display shows C.., then press ENTER.
• Using UP/DOWN button, select one of the pro-
grams C1 - C15. Press ENTER to confirm.
• Press the MENU button to go back or to meet the
waiting time to exit the setup menu.
Manual Color
This mode allows to combine the colors red, green, blue, amber.
• Press the button MENU several times until the
display shows U-- , then press the button ENTER.
• Select the color r, g, b, a through the buttons
UP/DOWN. Then ENTER.
• Using UP/DOWN button, select the desired
color value 000 - 255.
• Press ENTER button to continue to the next color.
• Continue until the desired mix is obtained.
• Press the MENU button to go back or to meet the
waiting time to exit the setup menu.
Dimmer
Enter in Dimmer mode to select specific dimming curve,
press the button MENU several times until shows dIM and
press ENTER to confirm.
• Press the button UP/DOWN to select OFF -
dIM1 - dIM2 - dIM3.
• Press ENTER button to store.
• Press the MENU button to go back or to meet the
waiting time to exit the setup menu.
Linking
Several Units may be interconnected in order to control all
further slave units to the same effect of the master unit. Use
standard DMX cables to daisy chain your units together via

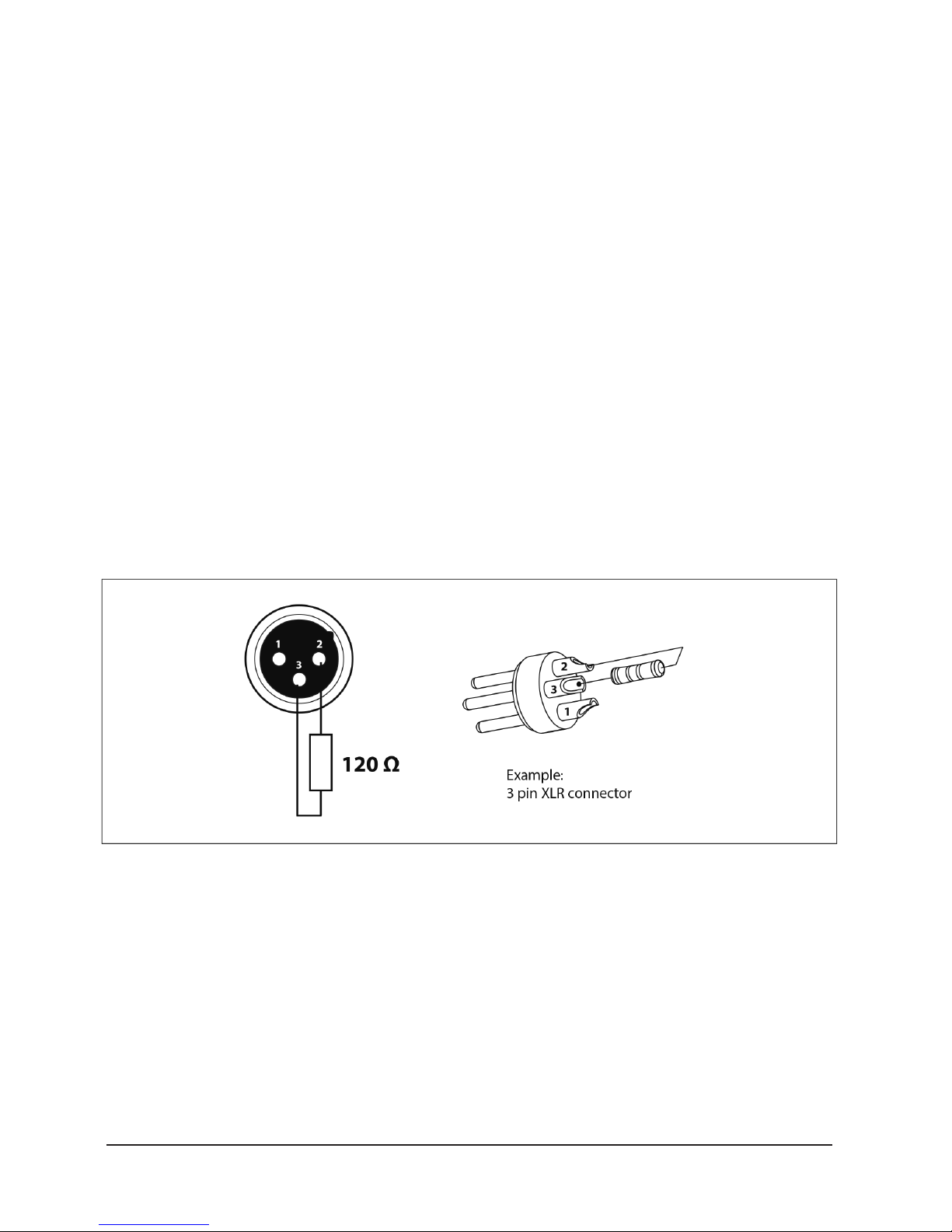

the DMX connector on the rear of the units. For longer ca-
ble runs, we suggest a terminator at the last fixture.
• Connect the DMX OUT of the master unit via 3
pole XLR cable to the DMX IN of the first slave unit.
• Connect the DMX OUT of the first slave unit to
the DMX IN of the second slave unit, etc. until all
units are connected in a chain.

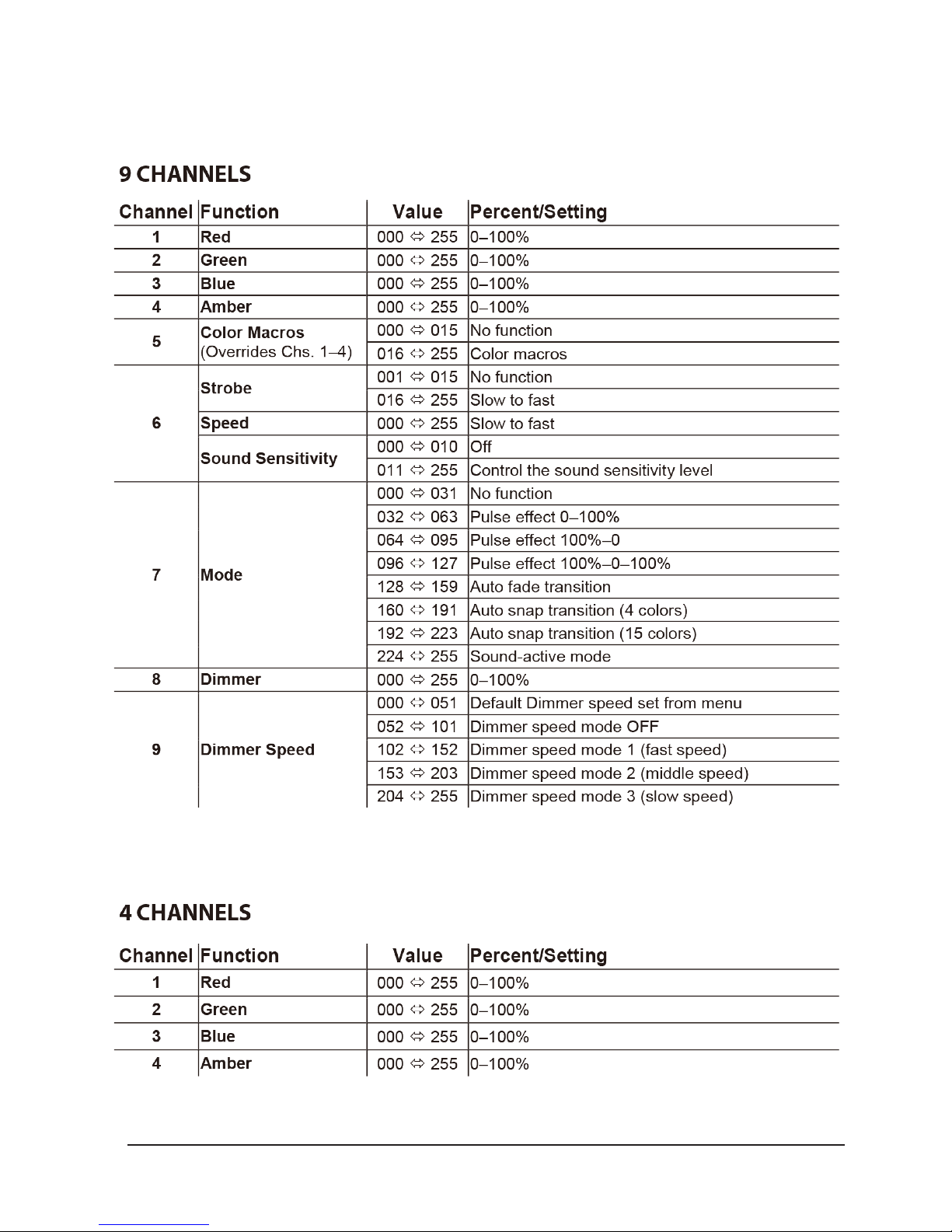

DMX Configuration
Proton 6 QUAD USB is equipped with different DMX con-
figuration.
• Press MENU to select the desired DMX configu-
ration (4ch-9ch).
• Press the button UP/DOWN to select the desid-
er value (001 - 512), then press the button ENTER
to confirm.
• Press the MENU button to go back or to meet the
waiting time to exit the setup menu.

PROTON 6 QUAD USB
P.
11
ENGLISH VERSION

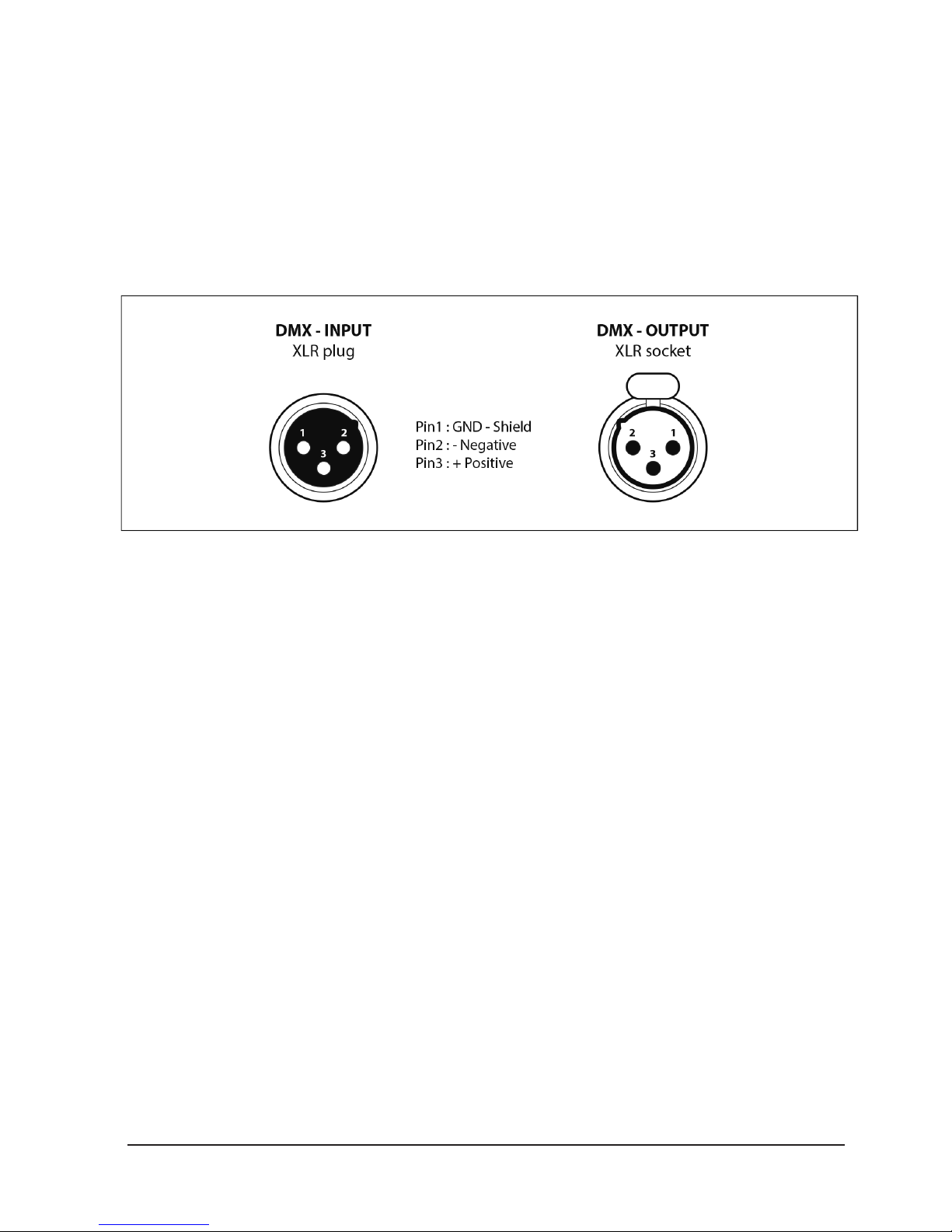

DMX Addressing
The PROTON 6 QUAD USB is equipped with 3-pole XLR
connections.
To be able to operate the PROTON 6 QUAD USB with a
light controller, adjust the DMX start address for the first
time to a DMX channel. If e.g. address 33 on the control-
ler is provided for controlling the function of the first DMX
channel, adjust the start address 33 on the PROTON 6
QUAD USB.
The other functions of the light effect panel are then auto-
matically assigned to the following addesses.
An example with the start address 33 is shown below:
4
9
33-36
33-41
37
42
41
51
45
60
37 41 45

PROTON 6 QUAD USB
P.
12
ENGLISH VERSION
Connection of the dmx line
DMXconnectionemploysstandardXLRconnectors.Useshield-
ed pair-twisted cables with 120Ω impedance and low capacity.
The following diagram shows the connection mode:
ATTENTION
The screened parts of the cable (sleeve) must never be
connected to the system’s earth, as this would cause faulty
fixture and controller operation.
Overlong runs can be necessary to insert DMX level match-
ing amplifier.
For those connections the use of balanced microphone ca-
ble is not recommended because it cannot transmit control
DMX data reliably.

PROTON 6 QUAD USB
P.
13
ENGLISH VERSION
• Connect the controller DMX input to the DMX
output of the first unit.
• Connect the DMX output to the DMX input of
the following unit. Connect again the output to the
input of the following unit until all the units are
connected in chain.
• When the signal cable has to run longer distance
is recommended to insert a DMX termination on
the last unit.
CONSTRUCTION OF THE DMX TERMINATION
The termination avoids the risk of DMX 512 signals being
reflected back along the cable when they reaches the end
of the line: under certain conditions and with certain cable
lengths, this could cause them to cancel the original signals.
The termination is prepared by soldering a 120Ω 1/4 W re-
sistor between pins 2 and 3 of the 3-pin male XLR connec-
tor, as shown in figure.

PROTON 6 QUAD USB
P.
14
ENGLISH VERSION
6. DMX CONTROL

PROTON 6 QUAD USB
P.
15
ENGLISH VERSION
To control the PROTON 6 QUAD USB with the infrared
remote control:
• Press the button MENU repeatedly until SET
• Using UP/DOWN button to select On or to ena-
ble or disable the infrared remote control. Press
ENTER to confirm.
NOTE - Make sure to point the controller directly at the re-
ceiver on the product.
Automatic Mode
Automatic Mode will enable you to run the automatic pro-
grams on the product.
To turn on Automatic Mode:
1. Press AUTO on the controller.
2. Press + or - to choose between different auto programs.
To adjust the speed of the automatic program:
1. Press SPEED on the controller.
2. Press %.
3. Press + or – to either increase or decrease the
speed of the program.
7. INFRARED (IR6) REMOTE CONTROL OPERATION
Sound Active Mode
Sound Active Mode will enable the product to respond to
the music. To turn on Sound Active mode:
1. Press SOUND on the controller.
To adjust sound sensitivity in Sound Active mode:
1. Press SENSITIVITY on the controller.
2. Press %.
3. Press + or – to either increase or decrease sound
sensitivity.
Manual Color Control
To choose a specific color with the controller:
1. Press MANUAL on the controller.
2. Press any number between 0-9 to choose your color.
To manually control the RGBA percentage:
1. Press MANUAL on the controller.
2. Press R, G, B, A to choose your color.
3. Press + or – to increase or decrease the percentage
of each color.
Miscellaneous Operation
To adjust the strobe rate of the program:
1. Press STROBE on the controller.
2. Press + or – to increase or decrease the strobe rate.
3. Press STROBE again to turn off the strobe.
To change the switching effect of the program:
• Press FADE/SNAP on the controller.
• FADE will slowly switch the effect. Snap will rapidly
switch the effect.
To black out the lights:
• Press BLACK OUT on the controller.
• This will turn off alll the lights until the button is
pressed again.
• NOTE - The controller will not respond to any inputs
when Black Out is activated. If the remote does not
respond when a button is pressed, try pressing
BLACK OUT. You may have inadvertently activated
BLACK OUT.

PROTON 6 QUAD USB
P.
16
ENGLISH VERSION
UFI OPERATION
To enable wireless DMX operation via the optional UFI
wi- transceiver:
1) Set the starting DMX address.
2) Set the UFI sending/receiving channel
3) Attach the UFI to the port.
4) Use Dipswitch 5 to select UFI send or receive mode.

PROTON 6 QUAD USB
P.
17
ENGLISH VERSION
MASTER/SLAVE OPERATION (via UFI
wi- transceiver)
PROTON 6 QUAD USB units can operate in Master/Slave
mode wirelessly using the optional UFI wi- transceiver. The
master UFI-enabled unit can be operated in stand-alone
mode, with the UFI set to transmit. The slave units should
all be set to slave mode, with the UFI set to receive.
Note: Slave units should be configured before configuring
master unit
Note: All units should be set to same DMX address, mode
and UFI channel
SLAVE UNITS:
• Press MENU button until 4-CH or 9-CH is dis
played. Press ENTER
• Set DMX address to d 1
• Set UFI to preferred receiving channel (1-16)
• Attach UFI to the PROTON 6 QUAD USB’S port.
MASTER UNIT:
• Press MENU button until DMX mode is displayed
that matches slave configuration Press ENTER
• Set DMX address to d 1
• Set to Auto or Sound-Active mode
• Set UFI to chosen transmitting channel (1-16)
• Attach UFI to the PROTON 6 QUAD USB port
OPERATING MODE PRIORITY RANK
Higher priority control modes override lower priority modes
1. UFI
2. DMX (wired)
3. Infrared (IR6 remote)
4. Manual (onboard menu)

PROTON 6 QUAD USB
P.
18
ENGLISH VERSION
8. MAINTENANCE AND CLEAN-
ING THE UNIT
• Make sure the area below the installation place is
free from unwanted persons during setup.
• Switch off the unit, unplug the main cable and wait
until the unit had cooled down.
• All screws used for installing the device and any
of its parts should be tightly fastened and should
not be corroded.
• Housings, fixations and installation spots (ceilling,
trusses, suspensions) should be totally free from
any deformation.
• The main cables must be in impeccable condition
and should be replaced immediately even when a
small problem is detected.
• It is recommended to clean the front at regular
intervals, from impurities caused by dust, smoke
or other particles to ensure that the light is radi-
ated at maximum brightness. For cleaning, discon-
nect the main plug from the socket. Use a soft,
clean cloth moistened with a mild detergent. Then
carefully wipe the part dry. For cleaning other
housing parts use only a soft, clean cloth. Never
use a liquid, it might penetrate the unit and cause
damage to it.
FUSE REPLACEMENT
1. Remove the safety cap by a screwdriver.
2. Replace the blown fuse with a fuse of the exact
same type and rating (T2A-250V).
3. Install the safety cap, and reconnect power.

PROTON 6 QUAD USB
P.
19
ENGLISH VERSION
TROUBLESHOOTING

PROTON 6 QUAD USB
P.
20
VERSION ESPAÑOL
1. DESCRIPCIÓN
Proton 6 QUAD USB es una luminaria profesional liviana y
compacta que cuenta con 6 LEDs RGBA de 8W. Miembro
del exitoso regreso de la serie Proton, la unidad provee una
mezcla RGBA suave sin sombras multicolor gracias a su tec-
nología de LED, sumando además la infinidad de colores, la
saturación e intensidad que le agrega el Ambar a la mezc-
la. Por su potencia y su ángulo de haz de 20º es ideal tanto
para su utilización en escenarios o en las más demandantes
instalaciones. Entre sus características más salientes está la
incorporación de un puerto USB que permite, mediante la
utilización del NEO Stick USB, controlar la unidad wireless
o mediante la app NEO Wi de AMPRO®, disponible para
iOS® & Android®.
ESPECIFICACIONES
Fuente & Óptica
• Fuente de luz: 6 LEDs 4-en-1 de 8W
• Vida útil promedio: 50.000 horas
• Ángulo de haz: 16º / Ángulo de campo 35º
Datos fotométricos
• Flujo lumínico: 1047 Lux @ 3m (10 ft)
Efectos & Funciones
• Controlable mediante la app NEO Wi - iOS® & An-
droid® incorporando el NEO USB Stick
• Tecnología LED de cuatro colores: Mezcla RGBA
suave sin sombras multicolor
• Ideal para ambientación por la incorporación del ámbar
• 15 Macros de color y efecto arcoiris
• Dimmer: 0-100% general & para todos los colores
• Efecto estrobo: 1-30 Hz
• Sin parpadeo (Ideal para broadcasting)
• 4 programas integrados
• Controlable vía IR (no incluído)
• Microfono incorporado
• Gel Frame incluido
Control
• Canales DMX: 4/9
• Modos de operación: DMX, Master/Slave, Au-
tomático, colores estáticos & activado por sonido
• Puerto USB para su control Wi-Fi (Mediante
NEO USB Stick)
• Actualización de software via DMX
Eléctrico
• Rango de voltaje de entrada:AC100–240V, 50-60Hz
• Consumo de potencia: 42W
Físico
• Certificación IP20
• Pantalla LED de 4 dígitos
• Conectores DMX: 2 conectores XLR (XLR-3 en-
trada y salida)
• Puerto USB
• Conectores de alimentación y thru
• Dimensiones: 224x211x114 mm. / 8.8x8.3x4.5 pulg.
• Peso: 2 Kg. / 4.4 Lbs.
