Ness HD-960H User manual

REV Nov14
Ness IQ Premium DVRs Series III
HD-SDI / 960H / Hybrid
User’s Manual

FCC Compliance Statement
Notice to Users
: This equipment has been tested and found to comply with the limits for a Class A digital device. Pursuant to Part
15 of the FCC Rules, these limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is l kely to cause harmful interference in which case the user
will be required to correct the interference at own expense.
CAUTION
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
ATTENTION
DES CHANGEMENTS OU DES MODIFICATIONS NON EXPRESSEMENT APPROUVEES PAR LE RESPONSABLE DE LA CONFORMITE
POURRAIENT ANNULER L'AUTORISATION DE L'UTILISATEUR A EXPLOITER L'EQUIPEMENT.
The equipment complies with the requirement of FCC CFR 47 PART 15 SUBPART B, Class A.
Explanation of Graphical Symbols
Warnings
Installation and servicing should be performed only by qualified and experienced personnel.
Power off the DVR when connecting cameras, audio, or sensor cables.
The manufacturer is not responsible for any damage caused by improper use of the product or failure to follow instructions for
the product.
The manufacturer is not responsible for any problems caused by or resulting from the user physically opening the DVR for
examination or attempting to fix the unit.
The manufacturer may not be held liable for any issues with the unit if any labels are removed in the product.

Please use a shielded
LAN
cable when using
these products
This symbol indicates the presence of important operating and maintenance (servicing) instruction in the
literature accompanying the product.
This symbol indicates the presence of non-insulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Ce symbole indique la présence d’instructions importantes et de maintenances dans le manuel
accompagnant le produit
Ce symbole indique la présence de « haute tension » non-isolé dans le produit qui peut avoir pour
conséquence un risque de la décharge électrique aux personnes.

Cautions
This product has free voltages (100V ~ 240V). See installation instructions before connecting to the power supply.
This product uses a Lithium battery.
To avoid any risk of explosion, do not replace the battery on the main board by anything other than a Lithium battery.
Dispose of used batteries according to the manufacturer’s instructions.
This equipment and all communication wirings are intended for indoor use only.
To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.
WEEE (Waste Electrical and Electronic Equipment)
Important Safeguards
1. Read Instructions
To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for
cleaning.
4. Attachments
Never add any attachments and/or equipment without manufacturer approval as such additions may result in the risk of fire,
electric shock, or other personal injury.
5. Water and/or Moisture
Do not use this equipment near water or in contact with water.
6. Accessories
Do not place this equipment on an unstable cart, stand or table. The equipment may fall, causing serious injury to a child or
adult and serious damage to the equipment.
Wall or shelf mounting should follow the manufacturer’s instructions and should use a mounting kit approved by the
manufacturer.
Move this equipment and cart combination with care. Quick stops, excessive force and uneven surfaces may cause the
equipment and cart combination to overturn.
7. Power Sources
This equipment should be operated only from the type of power source indicated on the marking label. If not sure the type of
power, please consult to distributor or local power company.
UPS (Uninterruptible Power Supply) is highly recommended when the power input is not stable to protect DVR and HDD(s).
8. Power Cords
Operator or installer must remove power, BNC, alarm and other connections before moving the equipment.
9. Lightning
For added protection for this equipment during a lightning storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the equipment due
to lightning and power-line surges.
10. Overloading
Do not overload wall outlets and extension cords to avoid the risk of fire or electric shock.
11. Objects and Liquids
Never push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out
parts that could result in a fire or electric shock.
Customers in European Union countries are advised to dispose this product, at the end of its
useful life, as per applicable local laws, regulations and procedures.

4
12. Servicing
Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel.
13. Damage Requiring Service
Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions:
① When the power-supply cord or the plug has been damaged.
② If liquid is spilled or objects have fallen into the equipment.
③ If the equipment has been exposed to rain or water.
④ If the equipment does not operate normally by following the operating instructions, adjust only those controls that are
covered by the operating instructions as an improper adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the equipment to its normal operation.
⑤ If the equipment has been dropped or damaged the cabinet.
⑥ When the equipment exhibits a distinct change in performance—this indicates a need for service.
14. Replacement Parts
When replacement parts are required, ensure the service technician uses replacement parts specified by the manufacturer or
that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other
hazards.
15. Safety Check
Upon completion of any service or repairs to this equipment, ask the service technician to perform safety checks to determine
that the equipment is in proper operating condition.
16. Field Installation
This installation should be made by a qualified service person and should conform to all local codes.
17. Correct Batteries
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
ATTENTION
RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UN TYPE INCORRECT
DISPOSEZ DE BATTERIES EN ACCORS AVEC LES INSTRUCTIONS
18. Operating Temperature
An operating temperature range is specified so that the customer and installer may determine a suitable operating
environment for the equipment.
19. Elevated Operating Ambient Temperature
If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater
than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the
specified operating temperature range.
20. Reduced Air Flow
Installation of the equipment in the rack should be such that the amount of airflow required for safe operation of the equipment
is not compromised.
21. Mechanical Loading
Mounting of the equipment in the rack should be such that a hazardous condition is not caused by uneven mechanical loading.
22. Circuit Overloading
Consideration should be given to connection of the equipment to supply circuit and the effect that overloading of circuits might
have on over-current protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used
when addressing this concern.
23. Grounding (Earthing)
Connection of ground wire is highly recommended to protect the DVR from external electric shock, such as lightning, electrical
surge.
WARNING
WARRANTY IS VOID IF SEAL OR LABEL IS REMOVED OR DAMAGED.

5
The List of Configuration
DVR Set
4 / 8CH
8 / 16CH
Manual / CMS CD
Remote Controller
Quick Guide
Screws
HDD Brackets
Rack Bracket
(Except A and E Type)
Data Cable
Power Cable
Adapter

6
Mandatory Setup & Operation Precautions
STEP 1. Date / Time Configuration (‘before’ HDD(s) installation)
Plug a network cable, if any.
Turn on the DVR and press ‘OK’ on no HDD(s) detection message.
Go to SETUP>SYSTEM>General>Setup.
Check on ‘NTP Setup’ box, and then select your ‘Time Zone’.
Select DST (Daylight Saving Time) ‘On’ or ‘Off’ accordingly.
When the DVR has no internet connection, adjust Date/Time manually. Otherwise the DVR will adjust the correct time
every hour automatically.
Click/Select ‘EXIT’ on your right and top corner.
Turn off the DVR for Step 2 (HDD(s) installation).
STEP 2. HDD(s) Installation / Addition / Moving / Replacement / Removal
HDD(s) Installation/Addition: Make sure the DVR is turned off. Connect a power cable and a SATA cable from DVR’s
main board to HDD(s). Use SATA port #1 (written on the board) for the first HDD and in order. Power the DVR on and
follow the screen. DVR starts recording. No rebooting required.
HDD(s) Removal: Make sure the DVR is turned off. Disconnect a power and a SATA cable from DVR’s main board to
HDD(s). Power the DVR on and follow the screen. (You may leave SATA port #1 unused when you removed the
attached #1 HDD.)
HDD(s) Selection: Even most of HDDs are compat ble with DVRs; suggested HDD list is available by request.
Power Off
Do not turn DVR off, or plug off the power adapter while DVR is in operations (record/playback). It may cause permanent
damage to the equipment. Please Click () Shutdown on System Menu Bar and then UNPLUG the power cable after
DVR is shut down completely. It is safe to wait for 5 seconds before turning the power on again.
(‘Shut Down’ by DVR’s menu selection does NOT physically power off the machine. Please physically unplug the power
cable from the DVR to completely turn off.)
Do not turn off External storage device (e.g., USB memory stick (powered), removable external hard disk, and similar)
while the DVR is on. It may cause permanent damage to the equipment. When you have to turn off external storage
device, make sure the DVR is turned off. When you turn those on, turn on external storage first and then DVR. (you may
unplug simple USB thumb drive freely unless it is in archiving process)
Do not turn DVR off, or plug off the power adapter when the DVR is formatting an HDD(s). It may cause permanent
damage to the equipment. Make sure the power is “ON” until the formatting of an HDD is completed. (note, a DVR
formats HDD(s) in seconds)
Monitor resolution
For the best picture display, a DVR’s local monitor output has a default resolution of 1920x1080 pixels. If your attached
monitor does not support 1080p resolution, and you cannot see any picture, please change the DVR’s resolution to the
lowest as following.
The lowest resolution (1024x768) Hot Keys: Use your ‘Remote Controller’ (It comes with a DVR)
Press followings in order one by one. REW>FF>BACKWARD>FORWARD
The resolution should be changed to 1024x768.
Default Password
For all (DVRs and Software) default password is 1111 (four 1(one)s).
For your protection, it is strongly recommended to change. Computer-like passwords are supported.
Upgrade
You may upgrade a DVR when the HDDs are added properly.
Contact your dealer/technical support when you need a help on updating.
NOTE
E, F and J Type DVRs can detect 1080i, 1080p or 720p HD-SDI signals. If a user connects cameras before the booting, each
signal is automatically detected and recognized (Auto Detection).

7
Table of Contents
1.PRODUCT FEATURES................................ 10
1.1Unpacking...................................................... 10
1.2Service ........................................................... 10
1.3System Connection Diagram........................ 10
1.4Specification.................................................. 15
2.INSTALLATION............................................ 16
2.1Hard disk and DVD-RW Installation ............. 16
2.1.1SATA Port............................................ 16
2.1.2Internal SATA Storage........................ 17
2.1.3e-SATA External Storage ................... 17
2.1.4HDD Installation.................................. 17
2.1.5HDD Capacity...................................... 17
2.1.6DVD-RW Installation ........................... 17
2.2Connector Wiring .......................................... 18
2.2.1Video-In/Loop Out Connections ........ 18
2.2.2HD-SDI Input Signal detection ........... 18
2.2.3Monitor Connections.......................... 18
2.2.4HDMI connections .............................. 19
2.2.5Audio Connections............................. 19
2.2.6TCP/IP (Ethernet) Connections.......... 19
2.2.7Alarm Connections (TTL)................... 19
2.2.8Master Alarm....................................... 19
2.2.9Alarm Connections (Relay) ................ 20
2.2.10RS-485/422 Connections .................... 20
2.2.11RS-485 Over Coax Connections ........ 20
2.2.12USB Connections ............................... 20
2.2.13Grounding (Earthing) ......................... 20
2.2.14Factory Reset Switch ......................... 20
2.2.15Power Supply connections ................ 20
2.2.16Connections Guideline....................... 21
3.INPUT DEVICE AND SCREEN ICONS........ 22
3.1Key and LEDs ................................................ 22
3.2Camera Select Keys ...................................... 23
3.3Front Panel .................................................... 24
3.4Using a Remote Controller ........................... 24
3.5Using a Mouse............................................... 25
3.6Screen Icon.................................................... 26
4.SETUP .......................................................... 27
4.1Login .............................................................. 27
4.2SYSTEM ......................................................... 28
4.2.1Status .................................................. 28
4.2.2General ................................................ 28
4.2.3Event.................................................... 33
4.3DEVICE........................................................... 35
4.3.1Display................................................. 35
4.3.2Network ............................................... 38
4.3.3Alarm ................................................... 40
4.3.4Storage................................................ 41
4.3.5Camera ................................................ 44
4.3.6Audio ................................................... 45
4.3.7Text-In ................................................. 45
4.4RECORD ........................................................ 45
4.4.1Record................................................. 45
4.4.2Schedule ............................................. 50
4.4.3Motion ................................................. 51
4.5RELAY............................................................ 51
4.5.1MOTION............................................... 52
4.5.2EMERGENCY ...................................... 53
4.5.3TEXT-IN ............................................... 54
4.5.4VIDEO LOSS ....................................... 54
5.OPERATION INSTRUCTION ....................... 56
5.1Viewing .......................................................... 56
5.1.1First Image .......................................... 56
5.1.2View Format ........................................ 57
5.1.3Digital Zoom........................................ 57
5.1.4Freeze Live Image............................... 57
5.1.5Pan / Tilt / Zoom Control .................... 58
5.1.6System Log ......................................... 59
5.1.7Key Lock ............................................. 59
5.1.8Emergency Recording ....................... 59
5.1.9Alarm Out Control and Acknowledge 59
5.2Playback ........................................................ 60
5.2.1Search ................................................. 60
5.2.2Digital Zoom in Playback ................... 64
5.2.3One-touch Playback ........................... 64
5.3Menu Bar ....................................................... 65
5.4Bookmark ...................................................... 66
5.5Archive........................................................... 66
6.CMS PRO ..................................................... 69
6.1CMS Pro Features ......................................... 69
6.1.1Introduction ........................................ 69
6.1.2Features .............................................. 69
6.1.3System Requirements........................ 69
6.2Installation..................................................... 70
6.2.1Software Installation .......................... 70
6.2.2Login ................................................... 71
6.3Menu .............................................................. 72
6.4Setup.............................................................. 73
6.4.1Local Setup - Device .......................... 73
6.4.2Device Group Setup ........................... 75
6.4.3Local Setup - Environment ................ 76
6.4.4Local Setup - Account........................ 80
6.4.5Local Setup – E-map .......................... 81
6.4.6Remote Device Setup......................... 82
6.4.7Change Password .............................. 83
6.4.8Help ..................................................... 83

8
6.5View................................................................ 83
6.5.1Server List ........................................... 83
6.5.2Remote Device System Log............... 84
6.5.3Remote Device Event Log.................. 84
6.5.4CMS System Log ................................ 85
6.5.5Health Check....................................... 85
6.5.6Show All Windows.............................. 87
6.6Application..................................................... 87
6.6.1Search ................................................. 87
6.6.2Exit....................................................... 87
6.7Live (Live Video Monitoring System)........... 88
6.7.1Overview.............................................. 88
6.7.2Live Monitor Menu .............................. 88
6.7.3Screen Layout Control ....................... 94
6.7.4Change Division Display.................... 94
6.7.5Sequencing ......................................... 94
6.7.6Audio Volume Control........................ 95
6.8Search ............................................................ 95
6.8.1Overview.............................................. 95
6.8.2Time Bar Search ................................. 95
6.8.3Event Search....................................... 97
6.8.4POS/ATM Search ................................ 97
6.8.5Thumbnail Search............................... 98
6.8.6Smart Search ...................................... 98
6.9E-Map ............................................................. 99
6.9.1Overview.............................................. 99
6.9.2Sowing E-Map ..................................... 99
6.9.3Alarm In/Out Control .......................... 99
6.9.4Audio ................................................... 99
6.10Uninstalling CMS Pro ................................. 100
7.ICMS VIEWER............................................ 102
7.1System Recommendations......................... 102
7.2Program Installation.................................... 102
7.3Login ............................................................ 103
7.4Watch Mode ................................................. 103
7.4.1Log-in Screen.................................... 103
7.4.2Local Setting ..................................... 104
7.5Live View...................................................... 107
7.5.1Connection........................................ 107
7.5.2Display Mode .................................... 107
7.5.3Health Check..................................... 108
7.5.4PTZ Control ....................................... 108
7.5.5System Log ....................................... 109
7.6Search Mode................................................ 109
7.6.1Date/Time Search.............................. 109
7.6.2Event Search..................................... 110
7.6.3POS/ATM ........................................... 111
7.7Disconnection ............................................. 112
7.8Uninstall....................................................... 113
8.CMS WEB CLIENT PRO............................ 115
8.1System Requirements ................................ 115
8.2Setup and Login.......................................... 115
8.3Live Display................................................. 116
8.4Search Screen ............................................. 117
8.5PTZ Control ................................................. 118
8.6Capture ........................................................ 119
9.CMS MOBILE VIEWER .............................. 121
9.1iPhone / iPad (mViewer Pro)....................... 121
9.1.1System Requirements...................... 121
9.1.2Installation ........................................ 121
9.1.3Site Registration............................... 122
9.1.4Connection........................................ 123
9.1.5Live View (Portrait View).................. 124
9.1.6Live View (Landscape View) ............ 125
9.1.7PTZ Control....................................... 125
9.1.8Search ............................................... 126
9.1.9Snapshot gallery............................... 127
9.1.10Setting ............................................... 127
9.1.11Uninstallation.................................... 127
9.2Android Phone (mViewer Pro) ................... 128
9.2.1System Requirements...................... 128
9.2.2Installation ........................................ 128
9.2.3Site Registration............................... 129
9.2.4Connection........................................ 130
9.2.5Live View (Portrait View).................. 130
9.2.6Live view (Landscape View) ............ 131
9.2.7PTZ control ....................................... 132
9.2.8Alarm Out Control ............................ 133
9.2.9Search ............................................... 133
9.2.10Snapshot Gallery .............................. 134
9.2.11Setting ............................................... 135
9.2.12Uninstallation.................................... 135
10.KEYBOARD CONTROLLER .................... 137
10.1Connection.................................................. 137
10.1.1Configuration Diagram..................... 137
10.1.2USB Connection ............................... 137
10.2Keyboard Setup in DVR ............................. 137
10.3Keyboard Configuration............................. 138
10.4Setup ........................................................... 140
10.4.1DVR Control Mode............................ 140
10.4.2Speed Dome Setup........................... 140
10.4.3Joystick Calibration ......................... 140
10.5Operation .................................................... 141
10.5.1DVR/SPD Mode Conversion............. 141
10.5.2DVR Control Mode............................ 141
10.5.2.1 Connection.................................... 141
10.5.2.2 Buttons.......................................... 141
10.5.2.3 PTZ Mode ...................................... 142
10.5.3SPD Control Mode (Speed Dome) ... 142
10.5.3.1 Connection.................................... 142
11.TEXT-IN (POS) .......................................... 145

9
11.1Usage of Serial-In Function ....................... 145
11.2Connection Method .................................... 145
11.3Connection Diagram................................... 145
11.4Relay............................................................ 147
11.4.1Relay Setup (Optional) ..................... 147
11.4.2Schedule Setup (Mandatory) ........... 148
11.5Setup (Mandatory) ...................................... 148
11.5.1Text Overlay ...................................... 148
11.5.2Link Cam ........................................... 149
11.5.3Device Setting................................... 149
11.5.4Example............................................. 150
11.6Search.......................................................... 152
12.HD-SDI VIDEO SIGNAL ACCESSORIES. 155
12.1.1HD signal converter.......................... 155
12.1.2Introduction....................................... 155
12.1.3Features............................................. 155
12.1.4Technical Specification.................... 155
12.1.5Unpacking ......................................... 155
12.1.6Service............................................... 155
12.1.7System Dimension Diagram ............ 155
12.1.8Connector Wiring.............................. 156
12.1.9Cable ................................................. 156
12.1.10Screen Display Information ........... 156
12.2HD SDI repeater .......................................... 157
12.2.1Introduction ...................................... 157
12.2.2Features ............................................ 157
12.2.3Technical Specification.................... 157
12.2.4Unpacking ......................................... 157
12.2.5Service .............................................. 157
12.2.6System Dimension Diagram ............ 157
12.2.7Connector Wiring ............................. 158
12.2.8Cable ................................................. 158
12.2.9Display .............................................. 158
12.3SDI to Fiber Optic ....................................... 158
12.3.1Introduction ...................................... 158
12.3.2Features ............................................ 158
12.3.3Technical Specification.................... 159
12.3.4
Unpacking ......................................... 159
12.3.5Service .............................................. 159
12.3.6System Dimension Diagram ............ 159
12.3.7Connector Wiring ............................. 160
12.3.8Cable ................................................. 160
12.3.9Display .............................................. 160

1. Product Features
1.1 Unpacking
This equipment is an electronic appliance, so it should be handled with special care.
After unpacking, please check if all the following items are included.
-DVR Main body
- A and E Type : Power Supply Adapter (DC 12V, 5A) and Power Supply Cable
- C and F Type : Power Supply Adapter (DC 12V, 6.67A) and Power Supply Cable
- J Type : Power Supply Adapter (DC 12V, 6A) and Power Supply Cable
-Remote Control With 2 AAA batteries
-Installation CD (CMS Pro Software & User’s Manual)
-Quick Guide
1.2 Service
If there is any problem in the product, please refer servicing to a supplier or a distributor with qualified service personnel.
WARNING
WARRANTY IS VOID IF SEAL OR LABEL IS REMOVED OR DAMAGED.

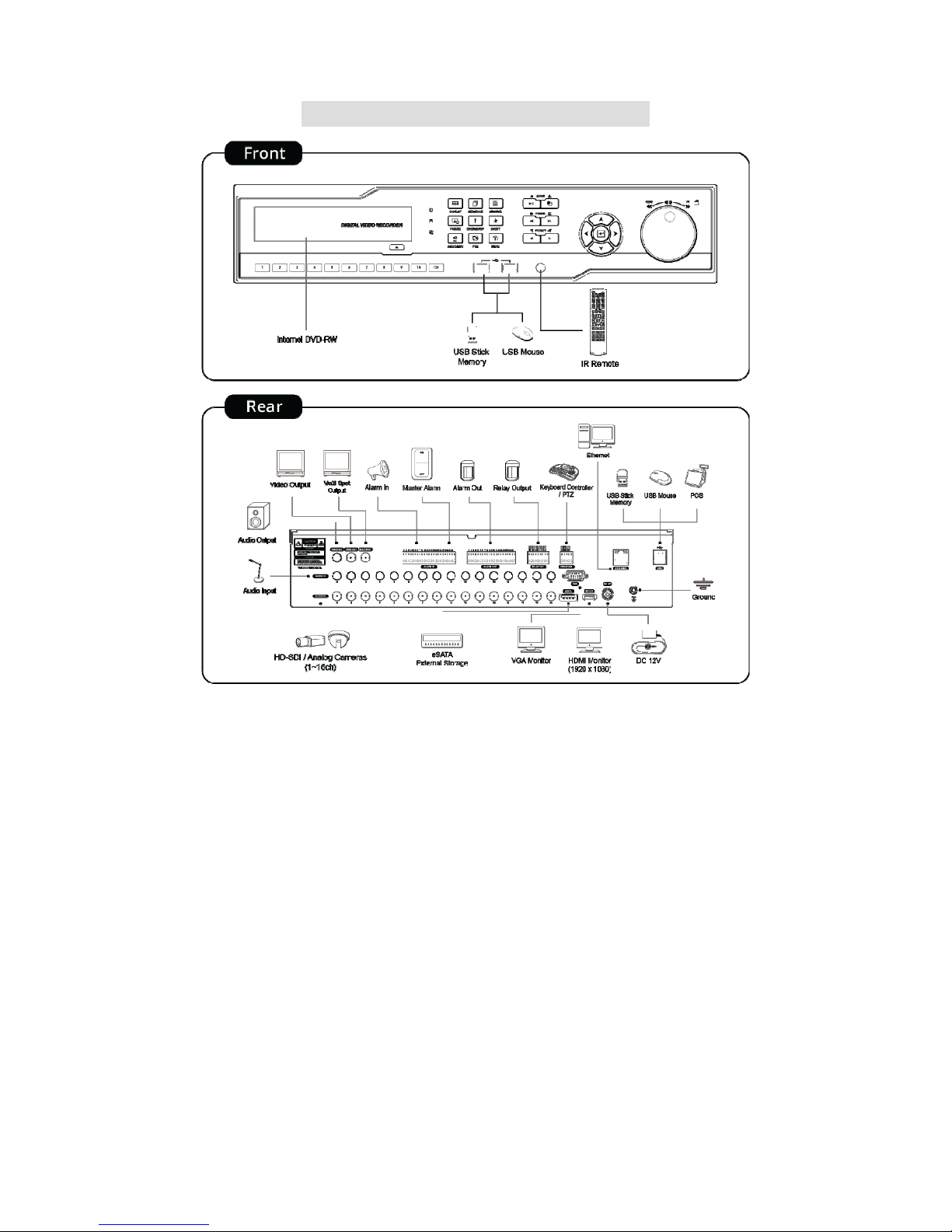

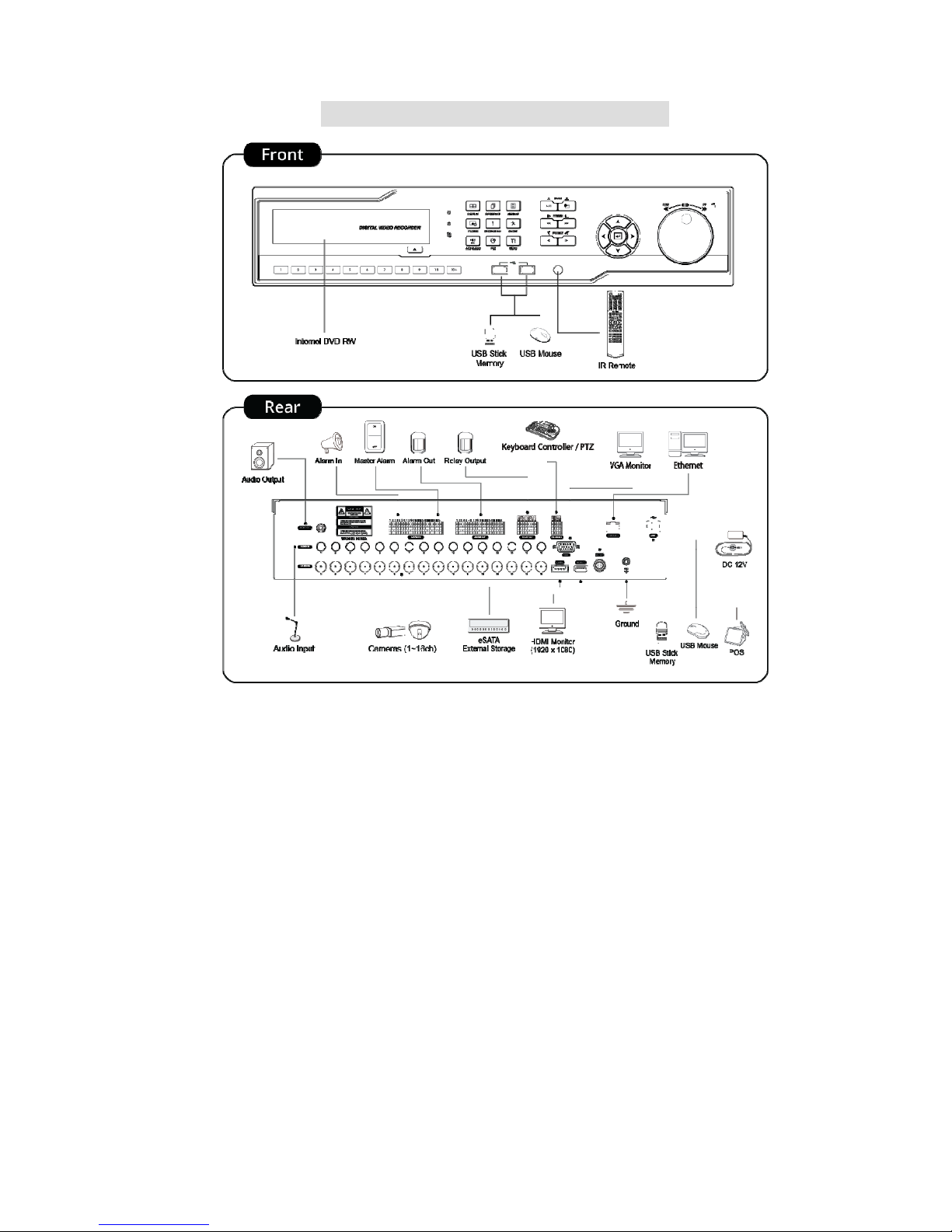

1.3 System Connection Diagram
A
T
yp
e
–
4 / 8 channel IQ Series
A
nalo
g
ue 960H DVR

C T
yp
e
–
16 channel IQ Series 960H DVR

E T
yp
e
–
4 channel IQ Series HD-SDI DVR

F T
yp
e
–
8 / 16 channel IQ Series HD-SDI DVR

J T
yp
e
–
8 / 16 channel Series True H
y
brid DVR

15
1.4 Specification
Type A C
Signal Format NTSC or PAL (Auto / Manual)
Video Input 4 / 8 (BNC) 16 (BNC)
Video Output Composite : 1
VGA 1 port (Max. 1920 x 1080)
HDMI 1 port (Max. 1920 x 1080)
Spot Out Composite : 1 (Multi Spot)
Loop Out N/A 16 (BNC)
Recording rate (Max) 120 (100) / 240 (200)@960 480 (400)@960
Audio Input / Output 1 Input / 1 Output 16 Input / 1 Output
Alarm Input 2 Input 16 Input
Master Alarm N/A 1 Port
Alarm Output 1 (Relay) 16 (TTL) / 2 (Relay)
Primary Storage 2 x SATA HDD 4 x SATA HDD
eSATA N/A 1 Port
Dimension (WxDxH) 290x329x50 (mm) 430x380x88 (mm)
Type E F
Signal Format HD-SDI (1080p, 1080i or 720p)
Video Input 4 (BNC) 8 / 16 (BNC)
VGA 1 port (Max. 1920 x 1080)
HDMI 1 port (Max. 1920 x 1080)
Recording rate (Max) 120@1080p 120 / 240@1080p
Audio Input / Output 2 Input / 1 Output 8 / 16 Input / 1 Output
Alarm Input 2 Input 8 / 16 Input
Master Alarm N/A 1 Port
Alarm Output 1 (TTL) / 1 (Relay) 8 / 16 (TTL) / 2 (Relay)
Primary Storage 4CH: 1 x SATA HDD 4 x SATA HDD
eSATA N/A 1 Port
Dimension (WxDxH) 290x274x50 (mm) 430x380x88 (mm)
Type J
Signal Format HD-SDI (1080p, 1080i or 720p) or NTSC or PAL (Auto / Manual)
Video Input 8 / 16 (BNC)
Video Output Composite : 1
VGA 1 port (Max. 1920 x 1080)
HDMI 1 port (Max. 1920 x 1080)
Spot Out Composite : 1 (Multi Spot)
Recording rate (Max) 240 / 480 @1080i or 960H
Audio Input / Output 8 / 16 Input / 1 Output
Alarm Input 8 / 16 Input
Master Alarm 1 Port
Alarm Output 8 / 16 (TTL) / 2 (Relay)
Primary Storage 4 x SATA HDD
eSATA 1 Port
Dimension (WxDxH) 430x380x88 (mm)

16
2. Installation
2.1 Hard disk and DVD-RW Installation
2.1.1 SATA Port
When installing HDDs, make sure to connect from SATA 1 Port.
A Type
-Main board of this DVR has three SATA port: it is indicated as SATA 1 and 2.
E Type
-Main board of this DVR has one SATA port: it is indicated as SATA 1.
C, F and J Type
-Main board of this DVR has five SATA ports: they are indicated as SATA 1, 2, 3, 4 and SATA 5.
-Please mount DVD-RW at the SATA 5 port.
Up to five SATA devices (HDD and DVD-RW) are able to be connected to the SATA ports in serial; however the devices must
be connected onto correct SATA port.
Refer to the table below to mount HDDs and DVD-RW.
A Type
4 / 8 CH DVR
Storage SATA 1, 2 Port
HDD 1 2
1 HDD ---
2 HDD HDD
E Type
4 CH DVR
Storage SATA 1 Port
HDD
1 HDD
C, F and J Type
8 / 16 CH DVR
Storage SATA 1, 2, 3, 4, 5 Port
HDD DVD-RW 1 2 3 4 5
1 1 HDD --- --- --- DVD-RW
2 1 HDD HDD --- --- DVD-RW
3 1 HDD HDD HDD --- DVD-RW
4 1 HDD HDD HDD HDD DVD-RW
4 0 HDD HDD HDD HDD ---

2.1.2 Internal SATA Storage
C, F and J Type DVRs have 5 internal SATA Ports.
1-4 SATA Port: It is designed to mount HDD. Connect from SATA 1 port when installing HDDs.
5 SATA Port: Please mount a DVD-RW.
Only one DVD-RW can be installed among the SATA Ports.
2.1.3 e-SATA External Storage
C, F and J Type DVRs have one external SATA Port; the picture above shows external SATA 6 Port.
6 SATA Port: It is designed to mount up to 4HDDs per external SATA Port.
2.1.4 HDD Installation
Securely mount a hard disk using bracket and screws provided.
Please do not use any different hard disk cables (data cable and power supply cable) other than provided.
Otherwise, it may cause damage to the hard disk.
CAUTION
INSTALL DVD-RW OR/AND HARD DISK AFTER DVR POWER OFF. OTHERWISE, IT MAY CAUSE PERMANENT DAMAGE TO THE
HARD DISK. TO TURN OFF DVR, PLEASE USE SHUTDOWN KEY ON SYSTEM MUNU BAR LOCATED ON THE RIGHT MARGIN. AND
THEN UNPLUG THE POWER CABLE FROM DVR.
2.1.5 HDD Capacity
Each model has different HDD capacity.
Below table shows the maximum HDD capacity for each model.
Type A C E F and J
Capacity 8TB 16TB 4TB 16TB
2.1.6 DVD-RW Installation
Securely mount DVD-RW using bracket and screws provided.
Please do not use any different DVD-RW cables (data cable and power supply cable) other than provided.
Otherwise, it may cause damage to the DVD-RW.
Only one DVD-RW can be used. SATA 5 port (C, F and J Type).
CAUTION
INSTALL DVD-RW OR/AND HARD DISK AFTER DVR POWER OFF. OTHERWISE, IT MAY CAUSE PERMANENT DAMAGE TO THE
HARD DISK. TO TURN OFF DVR, PLEASE USE SHUTDOWN KEY ON SYSTEM MUNU BAR LOCATED ON THE RIGHT MARGIN. AND
THEN UNPLUG THE POWER CABLE FROM DVR. ALSO, WAIT FOR 5 SECONDS BEFORE PLUGGING IN POWER SUPPLY AGAIN.

18
2.2 Connector Wiring
2.2.1 Video-In/Loop Out Connections
A and C Type
Connect Analog camera to ‘VIDEO IN’.
If a user wishes to link a camera input to another device, use ‘LOOP OUT’. (C Type).
Assure the ‘VIDEO IN’ (top connector) and ‘LOOP OUT’ (bottom one) connections are connected properly, not opposite way.
E and F Type
Connect HD-SDI cameras to ‘HD-SDI IN’ from channel 1 to 16.
J Type (True Hybrid)
Connect HD-SDI or Analog cameras to ‘any’ from channel 1 to 16.
NOTE
Only C Type model supports LOOP OUT connection.
NOTE
Please reboot the DVR, when switch from HD-SDI to Analog or Analog to HD-SDI (J Type only)
2.2.2 HD-SDI Input Signal detection
E, F and J Type DVRs automatically detect the video signals of 720P 24, 720P 25, 720P 30, 720P 50, 720P 60, 1080i 50,
1080i 60, 1080P 24, 1080P 25, 1080P 30, 1080P 50, 1080P 60 (Auto Detection) when the system starts.
720P and 1080P HD-SDI inputs can be used simultaneously with no restriction.
NOTE
1080i input cannot be used simultaneously with 720P and/or 1080P and does not support digital zoom in live mode.
2.2.3 Monitor Connections
Video Out (A, C and J Type Only)
-Use with the CCTV monitor.
-Connect BNC cable between CCTV monitor and ‘VIDEO OUT’ of the DVR.
VGA
-Use with the computer monitor.
-Connect VGA cable between computer monitor and ‘VGA’ of the DVR
Multi Spot (A, C and J Type Only)
-This function supports Multi-Channel Display on Spot Monitor
-Connect BNC cable between spot monitor and multi spot port of rear panel.
CAUTION
BLACK SCREEN WILL DISPLAY IF THE MONITOR DOES NOT SUPPORT THE SELECTED RESOLUTION. IN ORDER TO CHANGE
THE RESOLUTION PLEASE PRESS “REW>FF>BACKWARD>FORWARD” IN SERIES USING FRONT BUTTON OR REMOTE
CONTROLLER THEN THE RESOLUTION WILL BE CHANGED TO ‘1024 X 768’.

19
2.2.4 HDMI connections
Connect HDMI cable to HD out port of rear panel and HDMI port of HD output device.
Please Click () SETUP> DEVICE > DISPLAY > General and the following screen will display.
Click the box below to select resolution.
-A user can select the resolution among ‘1920x1080 (60Hz)’, ‘1920x1080 (50Hz)’, ‘1280x720 (60Hz)’, ‘1280x720 (50Hz)’
and ‘1024x768’.
-If the resolution is changed then the DVR may restart automatically.
-The default setting of DVR is ‘1920 x 1080 (60Hz)’.
Click Video Signal box to select signal format.
-A user can select the signal output among ‘NTSC’, ‘PAL’ and ‘AUTO’.
-The default setting of DVR is ‘AUTO’
CAUTION
HDMI CONNECTION MAY NOT BE COMPATIBLE WITH CERTAIN OUTPUT DEVICE.
VIDEO NOISE MAY OCCUR DEPENDING ON THE TYPE OF HDMI CABLE USED. MAKE SURE TO USE AN HDMI-CERTIFIED CABLE.
CAUTION
BLACK SCREEN WILL DISPLAY IF THE MONITOR DOES NOT SUPPORT THE SELECTED RESOLUTION. IN ORDER TO CHANGE
THE RESOLUTION PLEASE PRESS “REW>FF>BACKWARD>FORWARD” IN SERIES USING FRONT BUTTON OR REMOTE
CONTROLLER THEN THE RESOLUTION WILL BE CHANGED TO ‘1024 X 768’.
2.2.5 Audio Connections
Connect an audio device to ‘AUDIO IN’ and a speaker system to ‘AUDIO OUT’. Please use a speaker system with volume
adjustable.
2.2.6 TCP/IP (Ethernet) Connections
Connect to ‘ETHERNET’ connector with the LAN cable.
2.2.7 Alarm Connections (TTL)
Connect Alarm Input (Sensor) to ‘AI 1~AI 4 (or AI 16)’ connectors and connect Sensor Common to ‘G’ connector.
Connect Alarm Output (buzzer, siren, etc.) to ‘AO 1~AO 4 (or AO 16)’ connectors and connect Common to ‘G’ connector.
(Except A type)
2.2.8 Master Alarm
Alarm In sensor will be deactivated if Master Alarm is on. (C, F and J Type)
Connect Master Alarm In to ‘M’ connectors.

20
2.2.9Alarm Connections (Relay)
Connect Alarm Output (buzzer, siren, etc.) to ‘NO and/or NC’ connectors, Power to ‘COM’ connector and Ground to ‘GND’
connector.
2.2.10 RS-485/422 Connections
PTZ Camera and Keyboard controller connector.
Please use TX+, TX-, RX+ and RX- terminals accordingly.
2.2.11 RS-485 Over Coax Connections
PTZ Camera Connector
Please connect Coax to ‘Video In’ and select any Protocol in Camera/PTZ setup.
NOTE
PTZ Camera must support RS-485 over Coax function in order to use this feature. (A, C and J Type)
NOTE
When selecting Protocol, a user can choose any protocol from the Protocol list other than ‘NONE’. If ‘NONE’ is selected then
RS-485 over Coax will not work.
2.2.12 USB Connections
There are up to four identical USB ports in front and in rear. It is possible to connect a USB memory stick to archive data or a
mouse to control the device.
2.2.13 Grounding (Earthing)
Connection of ground wire is highly recommended to protect the DVR from external electric shock, such as lightening,
electrical surge.
2.2.14 Factory Reset Switch
Reset the switch to restore all setup values to factory default. It also deletes System Log File.
The switch is located in a pin hole of the back panel.
Using a paper clip, press and hold the reset switch for 2-3 seconds and release until popup message will display.
2.2.15 Power Supply connections
A and E Type: Plug the power supply adapter (DC 12V, 5A, included) to ’DC12V’ connector and plug another side to power
source. Adapter input voltage is a free volt (100 VAC ~ 240 VAC). Please do not use any different power supply adapter
because it may cause the DVR to malfunction.
C and F Type: Plug the power supply adapter (DC 12V, 6.67A, included) to ’DC12V’ connector and plug another side to
power source. Adapter input voltage is a free volt (100 VAC ~ 240 VAC). Please do not use any different power supply adapter
because it may cause the DVR to malfunction.
J Type: Plug the power supply adapter (DC 12V, 6A, included) to ’DC12V’ connector and plug another side to power source.
Adapter input voltage is a free volt (100 VAC ~ 240 VAC). Please do not use any different power supply adapter because it
may cause the DVR to malfunction.
Please do not use any different power supply adapter because it may cause the DVR to malfunction.
