Ness EDSR400M User manual

INSTRUCTION MANUAL V1.0
EDSR400M
MOBILE 4 CHANNEL
DIGITAL VIDEO RECORDER
Before installing and using this unit, please read this manual carefully.
Be sure to keep the manual handy for later reference.

WARNING
TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Note:
This equipment has been tested and found to comply with the limits for a Class A digital device,
The changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Notice:
The information in this manual was current when published. The manufacturer
reserves the right to revise and improve its products. All specifications are
therefore subject to change without notice.
Note:
This is a class A product. In a domestic environment this product may cause radio interference
In which case the user may be required to take adequate measures.

Refer all work related to the installation of this product to qualified service
personnel or system installers.
Do not block the ventilation opening or slots on the cover.
Do not drop metallic parts through slots.This could permanently damage
the appliance. Turn the power off immediately and contact qualified service
personnel for service.
Do not attempt to disassemble the appliance.To prevent electric shock,
do not remove screws or covers. There are no user-serviceable parts
inside. Contact qualified service personnel for maintenance. Handle the
appliance with care. Do not strike or shake, as this may damage the
appliance.
Do not expose the appliance to water or moisture, nor try to operate it in
wet areas. Do take immediate action if the appliance becomes wet.
Turn the power off and refer servicing to qualified service personnel.
Moisture may damage the appliance and also cause electric shock.
Do not use strong or abrasive detergents when cleaning the appliance
body. Use a dry cloth to clean the appliance when it is dirty. When the
dirt is hard to remove,use a mild detergent and wipe gently.
Do not overload outlets and extension cords as this may result in a risk of
fire or electric shock.
Do not operate the appliance beyond its specified temperature, humidity
or power source ratings. Do not use the appliance in an extreme
environment where high temperature or high humidity exists. Use the
appliance at temperature within 0oC ~ +40oC and a humidity below 90%.
The input power source for this appliance is DC12~24V
Safety Precautions

The exclamation point within an equilateral triangle is
intended to alert the user to presence of important operating
and maintenance(servicing)instructions in the literature
accompanying the appliance.
Warning :
To prevent fire or shock hazard, do not expose units not
specifically designed for others use to rain or moisture.
Safety Precautions
The lightning flash with an arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the presence
of uninsulated ” dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock to persons
Attention:
Installation should be performed by qualified service personnel only
in accordance with the National Electrical Code or applicable local codes.
Power Disconnect:
Units with or without ON-OFF switches have power supplied to the unit
whenever the power code is inserted into the power source; however, the
unit is operational only when the ON-OFF switch is in the ON position.
The power cord is the main power disconnect for all units.
External Power Supplies
Use only the recommended power supplies.
Power supplies must comply with the requirement of
the latest version of IEC 60065/CNS 13439. Substitutions
may damage the unit or cause a fire or shock hazard
DC12~24V Power Cords
DC12~24V power cords
Warning:
Electrostatic-sensitive device. Use proper
CMOS/MOSFET handing precautions to avoid
electrostatic discharge.
UNPACKING
Unpack carefully.
This is electronic equipment and should be
handled carefully.
Check to ensure that the following items are included
;
•1. Digital Video Recorder unit
•2. User’s manual
•3. Power Cord
•4. CF card reader
•5. Adapter
•6. HDD tray key and screws
If an item appears to have been damaged in shipment,
replace it properly in its carton and notify the shipper.
Do not place on uneven or unstable work surfaces.
Seek servicing if the casing.

Read Instruction---All the safety and operating instructions should be read before the init is operated
Retain Instructions---The safety and operating instructions should be retained for future reference.
Heed Warnings—All warnings on the unit and in the operating instructions should be adhered to.
Follow Instructions—All operating and use instructions should be followed
Cleaning—Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning
Attachments—Do not use attachment not recommended by the product manufacturer as they may cause hazards.
Water and Moisture—Do not use this unit near water, in a wet basement may result in a risk of fire or electric shock.
Servicing—Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel or with the technician of the vehicle-related
Before installation.
Power Cord Protection—Power supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, playing particular attention to cords and plugs, convenience receptacles, and the point
where they exit from the appliance.
Object and Liquid Entry—Never push objects of any kind into this unit through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or electric shock, Never spill liquid of any kind on the unit.
Important Safeguards

Important Safeguards and Warnings before Installation
For Mobile Digital Single Channel Video Recorder (single HDD)
While the DVR is connected to the 12VDC battery of the vehicle, the limited electric
current is 3.0 amps with a normal electric current between 1.5~1.0 amps.
While the DVR is connected to the 24VDC battery of the vehicle, the limited electric current
is 1.5 amps with a normal electric current between 0.7~1.0 amps.
For Mobile Digital Four Channel Video Recorder (single HDD)
While the DVR is connected to the 12VDC battery of the vehicle, the limited electric current
is 3.5 amps with a normal electric current between 1.5~2.0 amps.
While the DVR is connected to the 24VDC battery of the vehicle, the limited electric current
is 1.6 amps with a normal electric current between 0.7~1.0 amps.
During installation, it is important to note that the power supply for the DVR should be directly
connected to the vehicle battery. Utilize a 5 - 10 amp fuse and only qualified power material designed
specifically for the vehicle for best results.
Never connect the unit directly to the power source as a high voltage surge may damage both the DVR
and the vehicle. The EP2026A is equipped with electronic surge protection (up to 470V) to help p rotect
the unit from damage.
It is advised to operate the DVRwhile the car is running to minimize the power drain on the vehicle
battery. Inspect the vehicle battery prior to installation to ensure maximum performance of your DVR.
Please use 160GMaxtor Hard Disk Drives with 3.5" Hard Disk DVRs
Please use 40G or 60G HITACHI Hard Disk Drives with 2.5" Hard Disk DVRs
To minimize the risk of an electrical fire, it is very important to monitor the power range and
electrode, while the LCD monitors and cameras are both connected to the DVR.

Quick Install Guide :
1.Unpack Everything
Make sure you have everything you need before you begin the installation.
2.Equipment Required
The following tools may help you to complete the installation:
•Drill
•Screwdrivers
•Wire cutters
3. Choosing the Location
Choose a location for installation that:
•Provide convenient access for installing or removing the hard drive
•Allows air to flow around the fan vents. Inadequate or improper air flow can impede proper operation of the unit.
Avoid any location for installation:
•That is subject to high vibration
•That is subject to high sunlight levels
•That is subject to drenched of the rain
•Where passengers can interfere with unit
•Next to a heater duct
As following table lists recommended location options.
Location Convenient operation Easy to install Low vibration Good air flow
Bottom of glove box- horizontal mount
Bottom of passenger seat next to the driver
Underneath bulkhead-horizontal mount
Front of bulkhead-horizontal mount
Beside deriver seat-horizontal mount
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes Yes
NO
NO
Caution: Do not install the DVR on the floor or on the transmission access hatch. These locations have the highest levels of vibration and may
be subject to water damage.

Drive seat ( between seat and wall)
Trunk
( Suggest user “ suspend” for mounting option)
Glove box (inside or underneath)
Passenger seat (underneath)

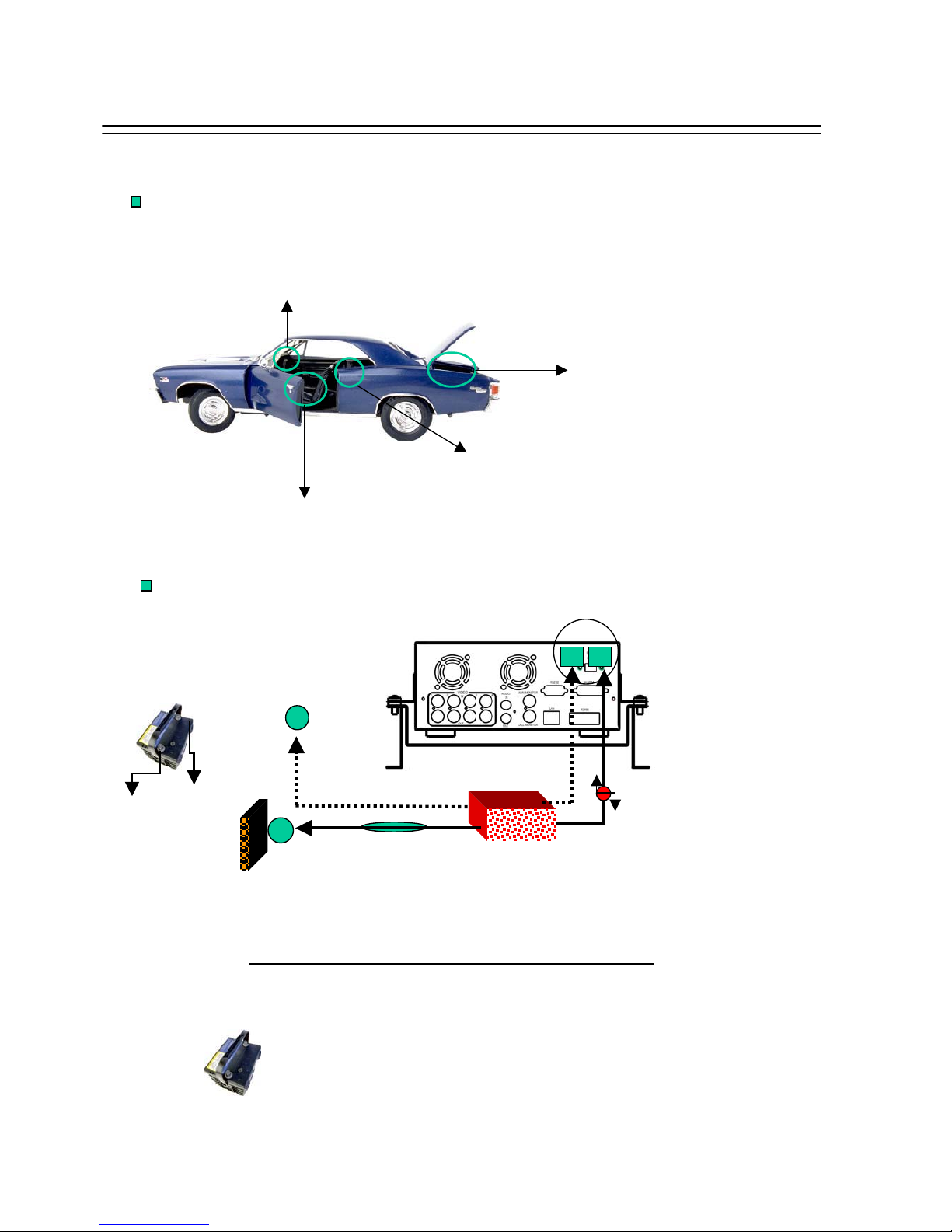

Possible Installation Locations Inside the Vehicle: CAR / 12VDC
+
-
-
+
DVR
Fuse(2A or 5A)
Power Regulator/ Filter
GROUND to body
On/Off switch
Example of typical vehicle electrical connection.
(12VDC or 24VDC)
IMPORTANT Information for Power Protection to the EDSR400M.
It is a requirement that a Power Regulator / Filter be fitted to stop power surges
from the vehicle's electrical system that will cause damage to your EDSR400M.
Before connecting Ask Your EDSR Dealer or Auto Electrician if unsure of type suitable.
Direct Connection to a vehicle BATTERY without protection will Void Your Warranty.
?
?
Power Distribution
through Vehicle
Cable Harness
12VDC Car Battery
+
+
-
-

Drive seat ( between seat and wall) or Passenger seat (underneath)
( Suggest user use “ support” for mounting option)
Glove box (inside or underneath)
Possible Installation Locations Inside the Automobile Vehicle: Bus / Truck 24VDC
+
-
-
+
DVR
Fuse(2A or 5A)
Power Regulator/ Filter
GROUND to body
On/Off switch
Example of typical vehicle electrical connection.
(12VDC or 24VDC)
IMPORTANT Information for Power Protection to the EDSR400M.
It is a requirement that a Power Regulator / Filter be fitted to stop power surges
from the vehicle's electrical system that will cause damage to your EDSR400M.
Before connecting Ask Your EDSR Dealer or Auto Electrician if unsure of type suitable.
Direct Connection to vehicle BATTERIES without protection will Void Your Warranty.
?
?
Power Distribution
through Vehicle
Cable Harness
-
24VDC Bus / Truck Batteries
++
-

Support
Suspend
Interface
Interface
The DVR can be mounted horizontally (suspend or support mounted).
Support
Suspend
Show all the possible ways to mount the DVR.
Use the two Z-brackets supplied to mount it in any ways shown.
EDSR400M
EDSR400M
EDSR400M
EDSR400M

Connect the Camera(s)
Connect the power connector from the camera(s) harness into the CAMERA POWER OUT jack on the back panel
of the DVR.
Connect the primary camera(s) video connector to the CAMERA INPUT and the audio connector to the AUDIO
INPUT In the back panel.

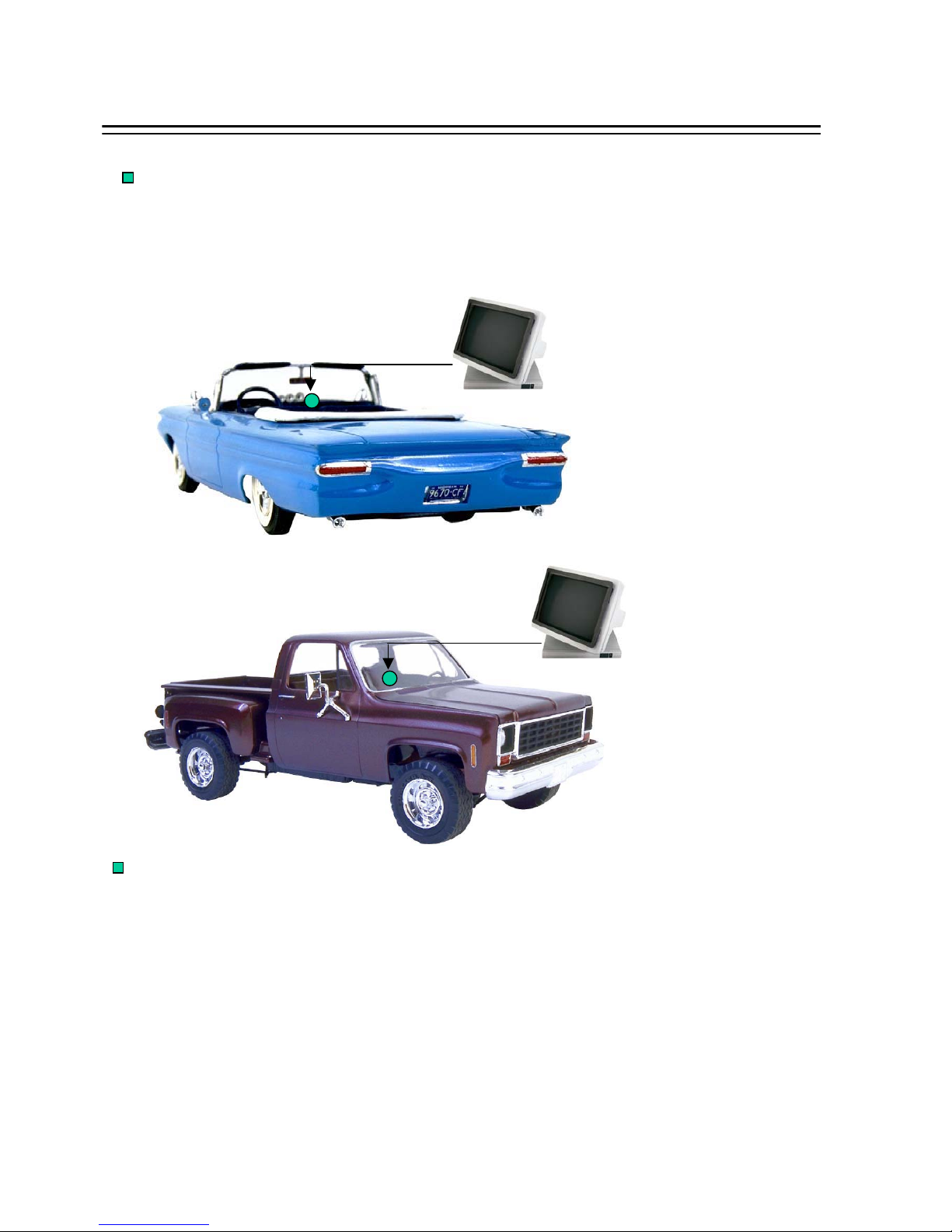

Adjust the camera(s). After the camera is installed, connect a monitor directly to the camera and observe the image.
Make any adjustment necessary.
Installing the Camera(s) and Monitor
The DVR is typically connected to one camera installed inside the car. Other camera(s) can also be installed in different
location(for example, use the waterproof camera to the outside of vehicle ). For installation procedure, refer to the guide
that came with the camera(s) you purchased.
The Monitor power supply connect from the Automotive adapter(cigarette plug)
Monitor and cameras must be purchased separately.
LCD Monitor
LCD Monitor

Installing the Hard Drive
As following are the figure for the 3.5” and 2.5” HDD.
Figure shows 3.5“ HDD
Figure shows 2.5“ HDD

1. Product Overview……….…...……………………………………………………………………… 1
1.1 Feature………...…………….….…………………………………….…………..……………….……1
1.2 Specifications…………….…...………….………………….……………..……….…….…………………………………..2
2. Front & Rear Panels………...…….………………………………………..………………………..3
3. Back Panel Connections…….………...……………………………………..……………………..5
4. System Connection…....………………………...…………………………..…………….………...8
4.1 Before Installation……..………………………………………………..……………………………..…………8
4.2 Basic Connection……………………………………………………………………………………………………..…………………9
5. Installation………...………………………………………………..……………….….…………....10
6. Menu………...……………….……………………………………..…………………………………11
6.1 Clock/Language Setup Menu…………………………………………….………………………...…...……13
6.2 Title Setting Menu……………………………………………………………………………………………..14
6.3 Daylight Setting Menu…………………………….……………………………………………………………15
6.4 Timer Setting Menu………………………………………………………………………………….…………17
6.5 Normal Setting Menu…………………………………………………………………………………….……18
6.6 Alarm Record Setting Menu………………………………………………………………………………...…19
6.7 Buzzer Setting Menu…………………..………………………………….…………………………………….24
6.8 Archive Setting Menu…………………………………………………………………………..……………….25
6.9 Network Setting Menu…………………..….…………………………………………………………………..26
6.10 Sequence Setting Menu……………………………………………………………………………………….27
6.11 RS232/485 Setting Menu……………..………...…………………………………………………………….28
6.12 Motion Record Setting Menu…………………….……………………………………………………………29
6.13 System Setting Menu………………………………………………………………….……………………….31
7. Recording…...………………………………………………..………………………………………..33
7.1 Instant Recording………….…..……………………………………...…………….……………………………………... ..33
7.2 Alarm Recording………………..……………………………………………………………….………………………….. ..34
8. Playback…...……………………….……………………….…………………………………..……..36
8.1 Normal Playback……………………………………………………………………………………………………………….36
8.2 Search Playback……………………………………………………………………………………………………………….38
9. Copy………...……………………….……………………………………………………….………….41
9.1 Still Image Copy………………………………...………………………………………………………………………………41
9.2 Copy to Movie File……...…………………………………………………...…………………………………………………42

10. Interface Specifications……..………...………………………………………………………44
10.1 Transmission setting……..……………………………..………………………….…………………………………..44
10.2 Remote Control Protocol…………………………………..………………………………………………………..…45
11. Remote Controller………….…….……………………………………………………….……49
12. Appendix-A/Time Lapse Mode Recording Time…….……..…………………………..…50
12.1 Recording with and 80 GB HDD…..…………...………………….…………………………………………………..50
12.2 Recording with and 160 GB HDD…………..………………………………………………………………………….51
13.View from Internet/Intranet……………………………………………………………………..52

1. Product Overview
1.1 Features
Easy-to-use control panel with common VCR
Shuttle/Jog dial for picture-by-picture or fast/slow viewing
No tapes to manage, clean or replace
Instant retrieval of stored video
On-screen setup menu and system timer
Ethernet TCP/IP connectivity for remote viewing and controlling
Pre-Alarm and Post-Alarm process
Built-in M-JPEG compression/decompression with configurable quality
Programmed with various time-lapse speeds
2.5”or 3.5”IDE Type Hard Disks for storage with Hot-Swap tray
RS232 and RS485 for Remote Control.
Real-Time Live Display for all Cameras
Variable recording speeds up to 60/50 IPS for NTSC/PAL
Alarm-activated recording
Data can be stored in CompactFlash
Audio recording capabilities
The EDSR400M is the first full-featured digital video recorder designed specifically for use
in mobile applications. It features a superior image quality, easy to use VCR-styles controls and
a rugged construction that will withstand high levels of vibration and humidity.
The EDSR400M is ideal for use in bused, cars, police cruisers, or any application requiring a
rugged digital recorder. Video and audio can be recorded at speeds up to 60/50 fields per second
(NTSC/PAL), and can be replayed instantly when the touch of a button. Highly efficient
compression technology and superior resolution of recorded images make the EDSR400M stand
out from the competition as the best choice in mobile surveillance.
1

4 camera inputs (BNC),1Vp-p/75ohmVideo Input
M-JPEG
Video Compression
0~+ 5 0
Operating Temperature
320.8mm (L) x 215mm (W) x 109.9mm (H)Dimension
RJ45 ConnectorRS485
9-pin female connectorRS-232
YesWatch Dog Timer
Built-in real time clockTimer
Front Panel KeypadUser Input Device
Menu DrivenUser Interface
On screen display setupSetup
By Date/Time or Event/SegmentPlayback Search
Up to 60/50 fields per second for NTSC/PALPlayback Rate
Up to 60/50 fields per second for NTSC/PALRecording Rate
Continuous, Time-lapse recording, Schedule or Event RecordingRecording Mode
2.5” or 3.5” IDE type, Hot- swappableHard Disk Storage
YesEvent Log
RJ45 connectors for network communicationsEthernet
YesVideo Loss Detection
Full, PIP, Quad and 2x2 zoom for Live and PlaybackVideo Display
1 alarm outputAlarm Output
4 alarm inputsAlarm Input
Yes, Built-in Compact Flash card slotCompactFlash Memory
720x484 (NTSC); 720x576 (PAL)Recording Resolution
1 BNC video out (1Vp-p/75 ohm) for Main Monitor
1 BNC video out (1Vp-p/75 ohm) for CALL Monitor
4 video out (1Vp-p/75ohm)for looping
Video Output
1.2 Specifications
Power Consumption
Power Source
60W
DC12~24V
8G,11ms(20 per five seconds maximum)Operating Shock
5~20 Hz, 0.037 inches(double amplitude), 5~500Hz 0.75G(0 to peak)Operating Vibration
2

20 10912
11 13 14 16 21
19
18
17
CH1 ~CH4:.
14
2. Front Panel Keypads
15
22
2
143 5 6 8
7
Press channel key (1~4) to display video image in the full screen format
, the picture of the corresponding will fill the whole screen of the monitor display.
~
SEQ :Press this key to enter the auto sequential switching mode.
7
6ZOOM: Press this key while viewing the full screen image to display a magnified resolution on the
monitor.
5MODE:
8MENU: Press this key to enter Setup menu.
STOP : Press this key to stop recording and play back.
PAUSE: Press this key to pause the playback picture.
SEARCH: Press this key to enter the Search Menu.
10
9
11
12
13
15
14
REC : Press this key to start recording.
COPY: Under PAUSE or PLAYBACK, Press this key to start copy still picture or video stream into
Compact Flash card.
REV. PLAY : Reverse Play Back.
PLAY: Play Back.
KEY
Switch PIP/Quad.
EDSR400M
3

Display: Press this key to switch ON/OFF.
16
Display OFF Display Date/Time and titles
Shuttle and Jog Dial
Shuttle : In Playback mode, turn the shuttle dial can fast
forward/rewind the picture.
In Pause mode, turn the shuttle dial can slow forward/rewind
the picture.
Jog Dial :
19
In Pause mode, turn the jog dial can forward/rewind the
Picture.
In Menu mode turn the jog dial to change setting Menu page.
17
18
20
21
22
Compact Flash Card Slot: Insert a Compact Flash Card.
Hard Disk Tray: Hard Disk holder for HDD.
LEDs: LEDs for system active power ,LAN and ALARM access.
Remote Control: IR Remote receiver
HDD KEY: Protect HDD without steal and Turn on HDD power
2003/04/22
10:41:00
Disk:120 GB(0)
CH1 CH2
CH3 CH4
CH1 CH2
CH3 CH4
2003/04/22
10:42:00
LIVE: 60IPS
DISK:80G
4

VIDEO IN (1~4): The BNC connectors of video input enables the system to receive the signals from
each camera through the 75 ohm coaxial cables.
VIDEO IN /Output
VIDEO OUT(1~4) : Connect the other devices with four cameras to the other devices.
MAIN MONITOR : This connector is used for the Main monitor display, A number of different
display modes may be selected for viewing.
MAIN
MONITOR MONITOR OUT
INTERNAL
VIDEO
SW3
A
When the machine is in Menu, Search or Copy mode, the internal Video is switched to Monitor Out, so that the user
can view full screen OSD. In other modes, the Video from multiplexer main monitor will be loop-through to the Monitor
Out.
MONITOR
3
5
( Internal circuit )
4CALL MONITOR : This connector is used for the Call(secondary) monitor. This monitor can only
display full screen.
ALM-OUTPUT : Normal Close Alarm output. In normal condition, this terminal is
shorted to the terminal of ALM-COM. In alarm status, it is open
between ALM-NC and ALM-COM terminals.
ALM-INPUT : Normal Open or Normal Close type alarm sensor input.
The Alarm Input can be selected as Normal Open or Normal Close input in the setup
menu. When an alarm occurs, alarm recording will automatically start.
Alarm Input/ Output
6Alarm Input
5

Audio IN : Audio input for recording.
Audio OUT : Audio output can be set to “ON” or “OFF” in Setup Menu.
When in recording or standby mode,
the out of SW1 is connected to Audio IN.
Playback Audio
When in playback mode the out of SW1 is
connected to SW2 Audio.
When Playback Audio is enabled then the output
of SW2 will be connected to Playback Audio.
When Playback Audio is disabled then there is no
audio output (MUTE).
When Audio Out is enabled and machine is in Recording or Standby mode, the Audio IN is loop-through to Audio Out
connector.
When Audio Out is enabled and machine is in Playback mode then the Audio Out playback audio.
AUDIO
52437
1
2
Operation of SW1 : Operation of SW2 :
Audio IN
Audio OUT
OFF / Mute SW1
SW2
A
( Internal circuit )
3. Back Panel Connections
9
1
10 86
Main Power plug: Connect the DC12~24V power source to the power input terminal.
POWER
6
