New Holland D150B User manual

SERVICE MANUAL
D150B
Crawler Dozer
Part number 47998875B
3rd edition English
June 2018
© 2018 CNH Industrial Latin America LTDA. All Rights Reserved.
SERVICE
MANUAL
1/1
Part number 47998875
D150B
Crawler Dozer

SERVICEMANUAL
D150BXLT,Withcab,Tier3,PowerAngleTilt(PAT)Blade,MadeinBrazil
[N9AC03000-]
47998875B21/05/2018
EN
Find manuals at https://best-manuals.com

LinkProduct/Engine
ProductMarketProductEngine
D150BXLT,comcabine,Tier3,
lâminaPowerAngleTilt(PAT),
produzidonoBrasil[N9AC03000
-]
LatinAmericaF4HE9684U*J101
47998875B21/05/2018
Find manuals at https://best-manuals.com

Contents
INTRODUCTION
Engine.......................................................................................10
[10.001]Engineandcrankcase.............................................................10.1
[10.400]Enginecoolingsystem.............................................................10.2
[10.310]Aftercooler..........................................................................10.3
[10.304]Enginelubricationsystem..........................................................10.4
Rearaxlesystem........................................................................27
[27.120]Planetaryandnaldrives..........................................................27.1
[27.126]Spurgearandnaldrives..........................................................27.2
Hydrostaticdrive.........................................................................29
[29.100]Transmissionandsteeringhydrostaticcontrol.....................................29.1
[29.202]Hydrostatictransmission...........................................................29.2
Brakesandcontrols....................................................................33
[33.202]Hydraulicservicebrakes...........................................................33.1
Hydraulicsystems.......................................................................35
[35.000]Hydraulicsystems..................................................................35.1
[35.104]Fixeddisplacementpump..........................................................35.2
[35.310]Distributorandlines................................................................35.3
[35.350]Safetyandmainreliefvalves......................................................35.4
[35.741]Dozerbladecylinders..............................................................35.5
[35.742]Ripperhydraulicsystem............................................................35.6
Tracksandtracksuspension........................................................48
[48.130]Trackframeanddrivingwheels....................................................48.1
[48.110]Frontsuspension...................................................................48.2
[48.100]Tracks..............................................................................48.3
[48.134]Tracktensionunits.................................................................48.4
47998875B21/05/2018
Find manuals at https://best-manuals.com

[48.138]Trackrollers........................................................................48.5
Cabclimatecontrol.....................................................................50
[50.100]Heating.............................................................................50.1
[50.200]Airconditioning.....................................................................50.2
Electricalsystems.......................................................................55
[55.013]Engineoilsystem..................................................................55.1
[55.000]Electricalsystem...................................................................55.2
[55.100]Harnessesandconnectors.........................................................55.3
[55.525]Cabenginecontrols................................................................55.4
[55.015]Enginecontrolsystem..............................................................55.5
[55.201]Enginestartingsystem.............................................................55.6
[55.301]Alternator...........................................................................55.7
[55.302]Battery..............................................................................55.8
[55.202]Coldstartaid.......................................................................55.9
[55.010]Fuelinjectionsystem.............................................................55.10
[55.012]Enginecoolingsystem...........................................................55.11
[55.019]Hydrostaticdrivecontrolsystem.................................................55.12
[55.050]Heating,Ventilation,andAir-Conditioning(HVAC)controlsystem...............55.13
[55.408]Warningindicators,alarms,andinstruments....................................55.14
[55.101]Chassisharness.................................................................55.15
[55.014]Engineintakeandexhaustsystem...............................................55.16
[55.DTC]FAULTCODES..................................................................55.17
Dozerbladeandarm...................................................................86
[86.110]Dozerblade........................................................................86.1
Tools.........................................................................................89
[89.128]Ripperassembly...................................................................89.1
Platform,cab,bodywork,anddecals.............................................90
[90.150]Cab.................................................................................90.1
47998875B21/05/2018
Find manuals at https://best-manuals.com

[90.114]Operatorprotections...............................................................90.2
[90.124]Pneumatically-adjustedoperatorseat..............................................90.3
47998875B21/05/2018
Find manuals at https://best-manuals.com

47998875B21/05/2018
Find manuals at https://best-manuals.com

INTRODUCTION
47998875B21/05/2018
1
Find manuals at https://best-manuals.com

Contents
INTRODUCTION
Foreword-Importantnoticeregardingequipmentservicing(*)................................3
Foreword-Howtouseandnavigatethroughthismanual(*)..................................4
Safetyrules(*)..................................................................................9
Safetyrules(Signalworddenitions)(*)......................................................10
Safetyrules(*)................................................................................11
Safetyrules(Weldworks)(*).................................................................13
Safetyrules-(Machineservice)(*)...........................................................15
Torque(*).....................................................................................23
Torque-Standardtorquedataforhydraulics(*)..............................................27
Basicinstructions-Shopandassembly(*)...................................................29
Basicinstructions(Dailyinspection)(*).......................................................31
Generalspecication(*)......................................................................32
Tracks(*)......................................................................................34
Overalldimensions(*)........................................................................35
Ripper(*)......................................................................................38
Machineweights(*)...........................................................................39
Consumables(*)..............................................................................40
Productidentication(Sidesofthemachine)(*)..............................................42
Partidentication-(Identicationplates)(*)..................................................43
Productoverview-(MachineComponents)(*)...............................................45
(*)Seecontentforspecicmodels
47998875B21/05/2018
2
Find manuals at https://best-manuals.com

INTRODUCTION
Foreword-Importantnoticeregardingequipmentservicing
D150BXLT ,Withcab,Tier3,PowerAngleTilt(PAT)Blade,MadeinBrazil
[N9AC03000-]
LA
Allrepairandmaintenanceworklistedinthismanualmustbecarriedoutonlybyqualieddealershippersonnel,
strictlycomplyingwiththeinstructionsgiven,andusing,wheneverpossible,thespecialtools.
Anyonewhoperformsrepairandmaintenanceoperationswithoutcomplyingwiththeproceduresprovidedherein
shallberesponsibleforanysubsequentdamages.
Themanufacturerandalltheorganizationsofitsdistributionchain,including-withoutlimitation-national,regional,or
localdealers,rejectanyresponsibilityfordamagescausedbypartsand/orcomponentsnotapprovedbythemanu-
facturer,includingthoseusedfortheservicingorrepairoftheproductmanufacturedormarketedbythemanufacturer.
Inanycase,nowarrantyisgivenorattributedontheproductmanufacturedormarketedbythemanufacturerincase
ofdamagescausedbypartsand/orcomponentsnotapprovedbythemanufacturer.
Themanufacturerreservestherighttomakeimprovementsindesignandchangesinspecicationsatanytimewithout
noticeandwithoutincurringanyobligationtoinstallthemonunitspreviouslysold.Specications,descriptions,and
illustrativematerialhereinareasaccurateasknownattimeofpublicationbutaresubjecttochangewithoutnotice.
Incaseofquestions,refertoyourNEWHOLLANDCONSTRUCTIONSalesandServiceNetworks.
47998875B21/05/2018
3
Find manuals at https://best-manuals.com

INTRODUCTION
Foreword-Howtouseandnavigatethroughthismanual
D150BXLT ,Withcab,Tier3,PowerAngleTilt(PAT)Blade,MadeinBrazil
[N9AC03000-]
LA
Thismanualhasbeenproducedbyanewtechnicalinformationsystem.Thisnewsystemisdesignedtodeliver
technicalinformationelectronicallythroughwebdelivery(eTIM),DVD,andpapermanuals.Acodingsystemcalled
SAPhasbeendevelopedtolinkthetechnicalinformationtootherProductSupportfunctions,e.g.,Warranty.
Technicalinformationiswrittentosupportthemaintenanceandserviceofthefunctionsorsystemsonacustomer's
machine.Whenacustomerhasaconcernontheirmachineitisusuallybecauseafunctionorsystemontheirma-
chineisnotworkingatall,isnotworkingefciently,orisnotrespondingcorrectlytotheircommands.Whenyourefer
tothetechnicalinformationinthismanualtoresolvethatcustomer'sconcern,youwillndalltheinformationclassied
usingtheSAPcoding,accordingtothefunctionsorsystemsonthatmachine.Onceyouhavelocatedthetechnical
informationforthatfunctionorsystem,youwillthenndallthemechanical,electricalorhydraulicdevices,compo-
nents,assemblies,andsubassembliesforthatfunctionorsystem.Youwillalsondallthetypesofinformationthat
havebeenwrittenforthatfunctionorsystem:thetechnicaldata(specications),thefunctionaldata(howitworks),
thediagnosticdata(faultcodesandtroubleshooting),andtheservicedata(remove,installadjust,etc.).
ByintegratingSAPcodingintotechnicalinformation,youwillbeabletosearchandretrievejusttherightpieceof
technicalinformationyouneedtoresolvethatcustomer'sconcernonhismachine.Thisismadepossiblebyattaching

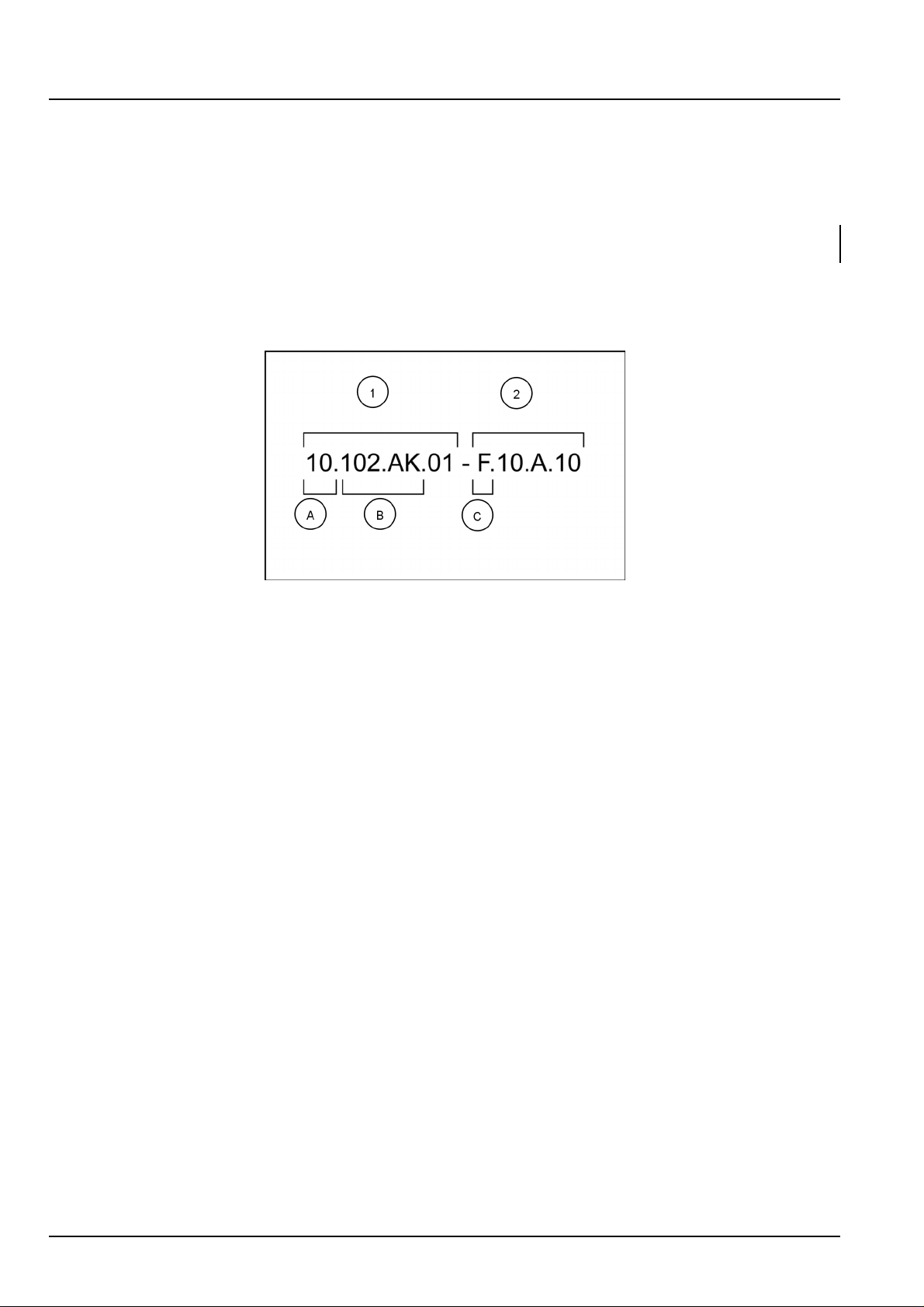

3categoriestoeachpieceoftechnicalinformationduringtheauthoringprocess.
TherstcategoryistheLocation,thesecondcategoryistheInformationTypeandthethirdcategoryistheProduct:
•LOCATION-thecomponentorfunctiononthemachine,thatthepieceoftechnicalinformationisgoingtodescribe
(e.g.,Fueltank).
•INFORMATIONTYPE-thepieceoftechnicalinformationthathasbeenwrittenforaparticularcomponentorfunc-
tiononthemachine(e.g.,CapacitywouldbeatypeofTechnicalDatadescribingtheamountoffuelheldbythefuel
tank).
•PRODUCT-themodelforwhichthepieceoftechnicalinformationiswritten.
Everypieceoftechnicalinformationwillhavethosethreecategoriesattachedtoit.Youwillbeabletouseanycombi-
nationofthosecategoriestondtherightpieceoftechnicalinformationyouneedtoresolvethatcustomer'sconcern
ontheirmachine.
Thatinformationcouldbe:
•theprocedureforhowtoremovethecylinderhead
•atableofspecicationsforahydraulicpump
•afaultcode
•atroubleshootingtable
•aspecialtool
47998875B21/05/2018
4

INTRODUCTION
Manualcontent
ThismanualisdividedintoSections.EachSectionisthendividedintoChapters.Contentspagesareincludedatthe
beginningofthemanual,theninsideeverySectionandinsideeveryChapter.AnalphabeticalIndexisincludedat
theendofeachChapter.Pagenumberreferencesareincludedforeverypieceoftechnicalinformationlistedinthe
ChapterContentsorChapterIndex.
EachChapterisdividedintofourInformationtypes:
•TechnicalData(specications)forallthemechanical,electricalorhydraulicdevices,components,assembliesor
sub-assemblies.
•FunctionalData(howitworks)forallthemechanical,electricalorhydraulicdevices,components,assembliesor
sub-assemblies.
•DiagnosticData(faultcodes,electricalandhydraulictroubleshooting)forallthemechanical,electricalorhydraulic
devices,components,assembliesorsub-assemblies.
•ServiceData(removedisassemble,assemble,install)forallthemechanical,electricalorhydraulicdevices,com-
ponents,assembliesorsub-assemblies.
Sections
Sectionsaregroupedaccordingtothemainfunctionsorasystemsonthemachine.EachSectionisidentiedbya
number(00,35,55,etc.).TheSectionsincludedinthemanualwilldependonthetypeandfunctionofthemachinethat
themanualiswrittenfor.EachSectionhasaContentspagelistedinalphabetic/numericorder.Thistableillustrates
whichSectionscouldbeincludedinamanualforaparticularproduct.
PRODUCT
Tractors
Vehicleswithworkingarms:backhoes,excavators,
skidsteers,….
Combines,forageharvesters,balers,….
Seeding,planting,oating,spraying
equipment,….
SECTIONMountedequipmentandtools,….
00-MaintenanceXXXXX
05-MachinecompletionandequipmentXXXXX
10-EngineXXXX
14-MaingearboxanddriveXXXX
18-ClutchXXX
21-TransmissionXXXX
23-Fourwheeldrive(4WD)systemXXXX
25-FrontaxlesystemXXXX
27-RearaxlesystemXXXX
29-HydrostaticdriveXXXX
31-PowerT ake-Off(PTO)XX
33-BrakesandcontrolsXXXX
35-HydraulicsystemsXXXX
36-PneumaticsystemXXXX
37-Hitches,drawbarsandimplementcouplingsXXX
39-FramesandballastingXXXXX
41-SteeringXXXX
44-WheelsXXXX
46-Steeringclutches
48-TracksandtracksuspensionXXX
50-CabclimatecontrolXXXX
55-ElectricalsystemsXXXXX
56-Grapeharvestershaking
58-Attachments/headersX
60-ProductfeedingX
47998875B21/05/2018
5

INTRODUCTION
61-MeteringsystemX
62-Pressing-BaleformationX
63-ChemicalapplicatorsX
64-ChoppingX
66-ThreshingX
68-Tying/Wrapping/TwistingX
69-Balewagons
70-EjectionX
71-LubricationsystemXXXXX
72-SeparationX
73-ResiduehandlingX
74-CleaningX
75-Soilpreparation/Finishing
76-Secondarycleaning/Destemmer
77-SeedingX
78-SprayingX
79-PlantingX
80-Cropstorage/UnloadingX
82-FrontloaderandbucketXX
83-T elescopicsinglearmXX
84-Booms,dippersandbucketsXX
86-DozerbladeandarmXX
88-AccessoriesXXXXX
89-ToolsXXXXX
90-Platform,cab,bodyworkanddecalsXXXX
47998875B21/05/2018
6

INTRODUCTION
Chapters
EachChapterisidentiedbyanumbere.g.Engine-Engineandcrankcase-10.001.Therstnumberisidentical
totheSectionnumberi.e.Chapter10.001isinsideSection10,Engine.Thesecondnumberisrepresentativeofthe
ChaptercontainedwithintheSection.
CONTENTS
TheChapterContentslistsallthetechnicaldata(specications),functionaldata(howitworks),diagnosticdata(fault
codesandtroubleshooting),andservicedata(remove,install,adjust,etc.),thathavebeenwritteninthatChapterfor
thatfunctionorsystemonthemachine.
Contents
ENGINE
ENGINE-Engineandcrankcase–10.001
TECHNICALDATA
ENGINE-Engineandcrankcase-Generalspecication(10.001-D.40.A.10)4
FUNCTIONALDATA
ENGINE-Engineandcrankcase-Dynamicdescription(10.001-C.30.A.10)6
SERVICE
ENGINE-Engineandcrankcase-Remove(10.001-F.10.A.10)8
DIAGNOSTIC
ENGINE-Engineandcrankcase-Troubleshooting(10.001-G.40.A.10)10
INDEX
TheChapterIndexlistsinalphabeticalorderallthetypesofinformation(calledinformationunits)thathavebeen
writteninthatChapterforthatfunctionorsystemonthemachine.
Index
ENGINE-10
ENGINE
ENGINE-Engineandcrankcase-Dynamicdescription(10.001-C.30.A.10)6
ENGINE-Engineandcrankcase-Generalspecication(10.001-D.40.A.10)4
ENGINE-Engineandcrankcase-Remove(10.001-F .10.A.10)8
ENGINE-Engineandcrankcase-Troubleshooting(10.001-G.40.A.10)10
47998875B21/05/2018
7

INTRODUCTION
Informationunitsandinformationsearch
Eachchapteriscomposedofinformationunits.EachinformationunithastheSAPcodeshowninparentheses.This
indicatesthefunctionandtypeofinformationinthatinformationunit.Eachinformationunithasapagereferencewithin
thatChapter.Theinformationunitsprovideaquickandeasywaytondjusttherightpieceoftechnicalinformation
youarelookingfor.
Exampleinformation
unit
Engineblockcover-Front–Remove(10.102.AP .01-F .10.A.10)
InformationUnitSAP
code
10102AK01F10.A.10
SAPcodeclassicationEnginePanandcoversEngineblock
cover
FrontServicedataRemove
NHIL12GEN0070A1
Navigatetothecorrectinformationunityouaresearchingforbyidentifyingthefunctionandinformationtype
fromtheSAPcode.
•(1)Locationand(2)Informationtype.
•(A)correspondstothesectionsoftheservicemanual.
(B)correspondstothechaptersoftheservicemanual.After(B)theremaybesomeadditionalinformation.Inthis
caseitshows“.01”,whichrepresentsthe“Front”blockcover.Theseoptionsmaybefront/rear,left/right,hydraulic/
mechanicaletc.
(C)correspondstothetypeofinformationlistedinthechaptercontents:T echnicalData,FunctionalData,Diagnos-
tic,orService.
(A)and(B)arealsoshowninthepagenumberingonthepagefooter.
THERESTOFTHECODINGISNOTLISTEDINALPHANUMERICORDERINTHISMANUAL.
•Youwillndatableofcontentsatthebeginningandendofeachsectionandchapter.
Youwillndanalphabeticalindexattheendofeachchapter.
•Byreferringto(A),(B)and(C)ofthecoding,youcanfollowthecontentsorindex(pagenumbers)andquicklynd
theinformationyouarelookingfor.
Pageheaderandfooter
Thepageheaderwillcontainthefollowingreferences:
•SectionandChapterdescription
Thepagefooterwillcontainthefollowingreferences:
•PublicationnumberforthatManual.
•Versionreferenceforthatpublication.
•Publicationdate
•Section,chapter,andpagereferencee.g.10.102/9
47998875B21/05/2018
8

INTRODUCTION
Safetyrules
D150BLA
Ecologyandenvironment
Soil,airandwaterarevitalfactorsoflifeingeneral.Disposingofwasteimproperlyrepresentsadangerforthe
environment.
NOTE:Somerecommendationsmustbefollowed:
•Obtaininformationaboutthecorrectmethodstorecycleordisposeofwastefromlocalauthorities,collectioncenters
oryourdealer.
•Donotdisposeofwasteontotheground,intodrains,orinwaterbeds.
•Donotllreservoirsusingcansorinappropriatepressurizeduiddeliverysystems,astheymaycauseconsiderable
spillage.
•Usesealedcontainerswhendrainingtheuids.Donotusecontainersforfoodorbeverageswhichmayinduce
ingestion.
•Theairconditioningsystemisunderpressure,andcontainsgasesthatshouldnotbereleasedintotheatmosphere.
Donotdisconnectorremoveanycomponentfromthepressurelineoftheairconditioningsystem.Ifyouneed
repairstotheairconditioningsystem,contactadealer.
•Immediatelyrepairanyleaksordefectsinthemachine'senginecoolingandhydraulicsystems.
•Generallyavoidskincontactwithanyfuels,oils,uids,acids,solvents,etc.Mostofthemcontainsubstanceswhich
maybeharmfultoyourhealth.
•Avoidspillswhendraininguid.Storethemsafelyuntiltheycanbedisposedofproperlyincompliancewithlocal
legislation.
•Protecthosesandpipesduringweldingworks,becausethesparksgeneratedduringtheweldingworkcandamage
them,allowingtheuidtoleak.
Mandatoryrecycling
Thebatteryisessentiallycomposedofleadplatesand
sulfuricacidsolution.Becausethebatterycontainsheavy
metalssuchaslead,resolution401de2008ofCONAMA
ordersthatallusedbatteriesmustbereturnedtothebat-
terydealeratthetimeofreplacement.Donotdisposeof
thebatteryinthegarbage.Pointsofsaleareobligedto
acceptthereturnofyourusedbattery,andtostoreitina
suitableplaceandreturnittothemanufacturerforrecy-
cling.
Improperdisposalofbatteriescancontaminatethesoil,
groundwaterandwaterways.Consumptionofcontami-
natedwatercancauseserioushealthrisks.Contactof
theacidsolutionwiththeskinoreyescancauseserious
injuryandblindness.Incaseofaccidentalcontactwith
theeyesorskin,immediatelywashwithrunningwaterand
seekemergencymedicalcare.
CUIL13TRO0091AA1
47998875B21/05/2018
9

INTRODUCTION
Safetyrules(Signalworddenitions)
D150BXLT ,Withcab,Tier3,PowerAngleTilt(PAT)Blade,MadeinBrazil
[N9AC03000-]
LA
PersonalSafety
Thisisthesafetyalertsymbol.Itisusedtoalertyoutopotentialpersonalinjuryhazards.Obeyall
safetymessagesthatfollowthissymboltoavoidpossibledeathorinjury.
Throughoutthismanualandonmachinesafetysigns,youwillndthesignalwordsDANGER,WARNING,andCAU-
TIONfollowedbyspecialinstructions.Theseprecautionsareintendedforyourpersonalsafetyandforallthose
involvedintheworkactivityduringoperationofthemachine.
Readandunderstandallthesafetymessagesinthismanualbeforeyouoperateorservicethemachine.
DANGER:
Indicatesanimmediatedangerthat,ifnotavoided,willcausedeathorseriousinjury.Thecolorassociated
withDangerisRED.
WARNING:
Indicatesapotentialdangerthat,ifnotavoided,willcauseseriousinjury.ThecolorassociatedwithWarningis
ORANGE.
CAUTION:
Indicatesapotentialdangerthat,ifnotavoided,cancauseminorormoderateinjury.ORANGEalsoalertsthe
operatortounsafepractices.ThecolorassociatedwithCautionisYELLOW.
FAILURETOFOLLOWDANGER,WARNINGANDCAUTIONMESSAGESCOULDRESULT
INDEATHORSERIOUSINJURY .
Machinesafety
NOTICE:Indicatesasituationthat,ifnotavoided,couldresultinmachineorpropertydamage.Thecolorassociated
withNoticeisBLUE.
ThroughoutthismanualyouwillndthesignalwordNoticefollowedbyspecialinstructionstopreventmachineor
propertydamage.ThewordNoticeisusedtoaddresspracticesnotrelatedtopersonalsafety.
Information
NOTE:Indicatesadditionalinformationwhichclariessteps,procedures,orotherinformationinthismanual.
ThroughoutthismanualyouwillndthewordNOTEfollowedbyadditionalinformationaboutastep,procedureor
otherinformationinthemanual.ThewordNOTEisnotintendedtoaddresspersonalsafetyorpropertydamage.
47998875B21/05/2018
10

INTRODUCTION
Safetyrules
D150BXLT ,Withcab,Tier3,PowerAngleTilt(PAT)Blade,MadeinBrazil
[N9AC03000-]
LA
Standardsafetyprecautions
Beinformedandnotifypersonnelofthelawsinforceregulatingsafety,andprovidedocumentationavailablefor
consultation.
•Keepworkingareasascleanaspossible.
•Ensurethatworkingareasareprovidedwithemergencyboxes.Theymustbeclearlyvisibleandalwayscontain
adequatesanitaryequipment.
•Fireextinguishersmustbeproperlyidentiedandalwaysbeclearofobstructions.Theirefciencymustbechecked
onaregularbasisandpersonnelmustbetrainedonproperinterventionsandpriorities.
•Keepallemergencyexitsfreeofobstructionsandclearlymarked.
•Smokinginworkingareassubjecttoredangermustbestrictlyprohibited.
Preventionofinjury
•Wearsuitableworkattireandsafetyglasseswithnojewelrysuchasringsandchainswhenworkingclosetoengines
andequipmentinmotion.
•Wearsafetyglovesandgoggleswhenperformingthefollowingoperations:
•Toppingofforchanginglubricationoils.
•Usingcompressedairorliquidsatapressuregreaterthan2bar(29psi).
•Wearasafetyhelmetwhenworkingclosetohangingloadsorequipmentworkingatheadlevel.
•Alwayswearsafetyshoesandttingclothes.
•Useprotectioncreamforhands.
•Changewetclothesassoonaspossible.
•Inthepresenceofvoltagesexceeding48–60V,verifytheefciencyofthegroundandmasselectricalconnections.
Ensurethathandsandfeetaredryanduseisolatingfootboards.Workersshouldbeproperlytrainedtoworkwith
electricity.
•Donotsmokeorstartanopenameclosetobatteriesandanyfuelmaterial.
•Placesoiledragswithoil,dieselfuelorsolventsinspeciallyprovidedanti-recontainers.
•Donotuseanytoolorequipmentforanyuseotherthanwhatitwasoriginallyintendedfor.Seriousinjurymay
occur.
•Ifrunninganengineindoors,makesurethereisasufcientexhaustfaninusetoeliminateexhaustfumes.
Duringmaintenance
•Neveropenthellercapofthecoolingsystemwhentheengineishot.Hightemperatureliquidatoperatingpressure
couldresultinseriousdangerandriskofburn.Waituntilthetemperaturedecreasesunder50°C(122°F).
•Neveraddcoolanttoanoverheatedengineanduseonlyappropriateliquids.
•Alwaysworkwhentheengineisturnedoff.Certaincircumstancesrequiremaintenanceonarunningengine.Be
awareofalltherisksinvolvedwithsuchanoperation.
•Alwaysuseadequateandsafecontainersforengineuidsandusedoil.
•Keepenginecleanofanyspilleduidssuchasoil,dieselfuel,andorchemicalsolvents.
•Useofsolventsordetergentsduringmaintenancemayemittoxicvapors.Alwayskeepworkingareasaerated.
Wearasafetymaskifnecessary.
•Donotleavesoiledragsthatmaycontainanyammablesubstancesclosetotheengine.
•Alwaysusecautionwhenstartinganengineafteranyworkhasbeenperformed.Bepreparedtocutoffintakeair
incaseofenginerunaway.
47998875B21/05/2018
11

INTRODUCTION
•Neverdisconnectthebatterieswhiletheengineisrunning.
•Disconnectthebatteriespriortoperforminganyworkontheequipment.
•Disconnectthebatteriestoplacealoadonthemwithaloadtester.
•Afteranyworkisperformed,verifythatthebatteryclamppolarityiscorrectandthattheclampsaretightandsafe
fromaccidentalshortcircuitandoxidation.
•Beforedisconnectinganypipelines(pneumatic,hydraulic,fuelpipes,etc.),verifythatallpressurehasbeenre-
leased.Takeallnecessaryprecautionsbleedinganddrainingresidualpressure.Alwayswearthepropersafety
equipment.
•Donotalterthelengthsofanywires.
•DonotconnectanyelectronicservicetooltotheengineelectricalequipmentunlessspecicallyapprovedbyNEW
HOLLANDCONSTRUCTION.
•DonotmodifythefuelsystemorhydraulicsystemunlessapprovedbyNEWHOLLANDCONSTRUCTION.Any
unauthorizedmodicationwillcompromisewarrantyassistanceandmayaffectengineoperationandlifespan.
Forengineequippedwithanelectroniccontrolunit
•Donotweldonanypartoftheequipmentwithoutremovingthecontrolunit.
•Removetheincaseofworkrequiringheatingover80°C(176°F).
•Donotpaintthecomponentsandtheelectronicconnections.
•Donotalteranydataledintheelectroniccontrolunitdrivingtheengine.Anymanipulationoralterationofelectronic
componentswillvoidenginewarrantyassistanceandmayaffectthecorrectworkingorderandlifespanofthe
engine.
RespectoftheEnvironment
•Respectoftheenvironmentshouldbeofprimaryimportance.T akeallnecessaryprecautionstoensurepersonnel's
safetyandhealth.
•Informthepersonnelofthelawsregardingthedispensingofusedengineuids.
•Handlebatterieswithcare,storingtheminawellventilatedenvironmentandwithinanti-acidcontainer.
47998875B21/05/2018
12

INTRODUCTION
Safetyrules(Weldworks)
D150BXLT ,Withcab,Tier3,PowerAngleTilt(PAT)Blade,MadeinBrazil
[N9AC03000-]
LA
WARNING
Avoidinjury!
Whenwelding,alwayswearproperprotectiveequipmentandweldingclothing.Allpersonsinthe
workareamust,atminimum,wearweldinggoggles.Neverlookdirectlyattheweldingarcwithout
weldingeyeprotection.
Failuretocomplycouldresultindeathorseriousinjury.W1178A
NOTICE:Repairworkswithweldingmustbeperformedbyaqualiedandexperiencedwelder.Appropriatesafety
regulationsshouldbefollowedbythepersonnelinvolvedinthework.Thetimetoperformweldingoperationsdepends
onthequalityandprecisionofthework.Nevermakemodicationsonthemachine.
Toperformweldingoperationsonthemachine
(authorizedandinaccordancewithNEWHOLLAND
CONSTRUCTIONrecommendations),proceedas
follows:
•Identifyallpointsoffractureorcracking,andtheareas
inwhichweldingisrequired.
•Thoroughlycleantheareasinvolved.
•Removeallpaint.Inspectthepartswithliquidpenetrant
oramagnetictoolforparticles.
•Shutdowntheengine.Placetheignitionkeyinthe
“OFF”positiontoshutdowntheengine.
NOTICE:Afteryoushutdownthemachine,waitatleast
8mintoshutdownthebatterycablesorthemaster
switch(ifequipped).Thistimeisnecessarysothatthe
engine’selectronicsystem(ifequipped)canstorethe
settingsdataintheelectronicmodule.
•Disconnectthebatteriesandthewiresfromterminals
D+andB+ofthealternator.
•Disconnecttheelectricalwiringharnessesfromthe
transmissioncontrolmodulesandfromtheengine.
•Connectthegroundcableoftheweldingmachinetothe
componenttobewelded.
•Alwaysconnecttheweldingequipmenttotheframethat
isbeingwelded.
•Neverconnecttheweldingequipmentgroundtoacom-
ponentofthehydraulicsystem.
•Avoidweldingatlowtemperatures,e.g.,below16°C.If
necessary,warmupthepartinvolvedpriortowelding.
•Removethepaintfromallsurfacesbeforeheatingor
welding.Paintedsurfacescangeneratetoxicgases
whenheatedorwelded.
•Useappropriatemasksorprotectivegoggles.
•Wearappropriateglovesandprotectiveequipment.
•Disconnecttheconnectorsfromallcontrolmodulesof
themachine.
SP00641
47998875B21/05/2018
13
