NI NI-9223 User manual

NI-9223 Getting
Started
2022-07-11

Contents
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Voltages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Guidelines for Hazardous Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electromagnetic Compatibility Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cable Requirements for EMC Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Special Conditions for Marine Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Preparing the Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
NI 9223 Pinout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Grounded Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Floating Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
NI-9223 Connection Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Wiring for High-Vibration Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Overvoltage Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Where to Go Next. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
NI Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
ni.com
2
NI-9223 Getting Started

Overview
This document explains how to connect to the NI-9223.
Note Before you begin, read the NI-9223 Safety, Environmental, and
Regulatory Information document on ni.com/manuals and complete the
soware and hardware installation procedures in your chassis
documentation.
Note The guidelines in this document are specific to the NI-9223. The
other components in the system might not meet the same safety ratings.
Refer to the documentation for each component in the system to
determine the safety and EMC ratings for the entire system.
Safety Guidelines
Caution Observe all instructions and cautions in the user documentation.
Using the product in a manner not specified can damage the product and
compromise the built-in safety protection.
Attention Suivez toutes les instructions et respectez toutes les mises
en garde de la documentation d'utilisation. L'utilisation du produit de
toute autre façon que celle spécifiée risque de l'endommager et de
compromettre la protection de sécurité intégrée.
Safety Voltages
Connect only voltages that are within the following limits:
Isolation
Channel-to-channel
© National Instruments 3
NI-9223 Getting Started

Continuous 60 V DC, Measurement Category I
Withstand 1000 V RMS, verified by a 5 s dielectric withstand test
Channel-to-earth ground
Continuous 60 V DC, Measurement Category I
Withstand 1000 V RMS, verified by a 5 s dielectric withstand test
Safety Guidelines for Hazardous Locations
The NI-9223 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous
locations; Class I, Zone 2, AEx nA IIC T4 Gc and Ex nA IIC T4 Gc hazardous locations;
and nonhazardous locations only. Follow these guidelines if you are installing the
NI-9223 in a potentially explosive environment. Not following these guidelines may
result in serious injury or death.
Caution Do not disconnect I/O-side wires or connectors unless power has
been switched o or the area is known to be nonhazardous.
Caution Do not remove modules unless power has been switched o or
the area is known to be nonhazardous.
Caution Substitution of components may impair suitability for Class I,
Division 2, or Zone 2.
Caution The system must be installed in an enclosure certified for the
intended hazardous (classified) location, having a tool secured cover/door,
where a minimum protection of at least IP54 is provided.
ni.com
4
NI-9223 Getting Started

Special Conditions for Hazardous Locations Use in Europe and
Internationally
The NI 9223 with screw terminal has been evaluated as Ex nA IIC T4 Gc equipment
under DEMKO Certificate No. 07 ATEX 0626664X and is IECEx UL 14.0089X certified.
The NI 9223 with BNC has been evaluated as Ex nA IIC T4 Gc equipment under
DEMKO Certificate No. 12 ATEX 1202658X and is IECEx UL 14.0089X certified. Each
NI 9223 is marked II 3G and is suitable for use in Zone 2 hazardous locations, in
ambient temperatures of -40 °C ≤ Ta ≤ 70 °C. If you are using the NI 9223 in Gas
Group IIC hazardous locations, you must use the device in an NI chassis that has
been evaluated as Ex nC IIC T4, Ex IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.
Caution Transient protection shall be provided that is set at a level not
exceeding 140% of the peak rated voltage value of 85 V at the supply
terminals to the equipment.
Caution The system shall only be used in an area of not more than
Pollution Degree 2, as defined in IEC/EN 60664-1.
Caution The system shall be mounted in an ATEX/IECEx-certified
enclosure with a minimum ingress protection rating of at least IP54 as
defined in IEC/EN 60079-15.
Caution The enclosure must have a door or cover accessible only by the
use of a tool.
Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits
for electromagnetic compatibility (EMC) stated in the product specifications. These
requirements and limits provide reasonable protection against harmful interference
when the product is operated in the intended operational electromagnetic
environment.
© National Instruments 5
NI-9223 Getting Started

This product is intended for use in industrial locations. However, harmful
interference may occur in some installations, when the product is connected to a
peripheral device or test object, or if the product is used in residential or
commercial areas. To minimize interference with radio and television reception and
prevent unacceptable performance degradation, install and use this product in strict
accordance with the instructions in the product documentation.
Furthermore, any changes or modifications to the product not expressly approved
by National Instruments could void your authority to operate it under your local
regulatory rules.
Cable Requirements for EMC Compliance
Select and install cables for the NI-9223 with screw terminal in accordance with the
following requirements:
■Connect the cable shield to the chassis ground (grounding screw of the
chassis) using the shortest length of wire possible.
■Use shielded, twisted-pair cables (Belden 9451 or equivalent).

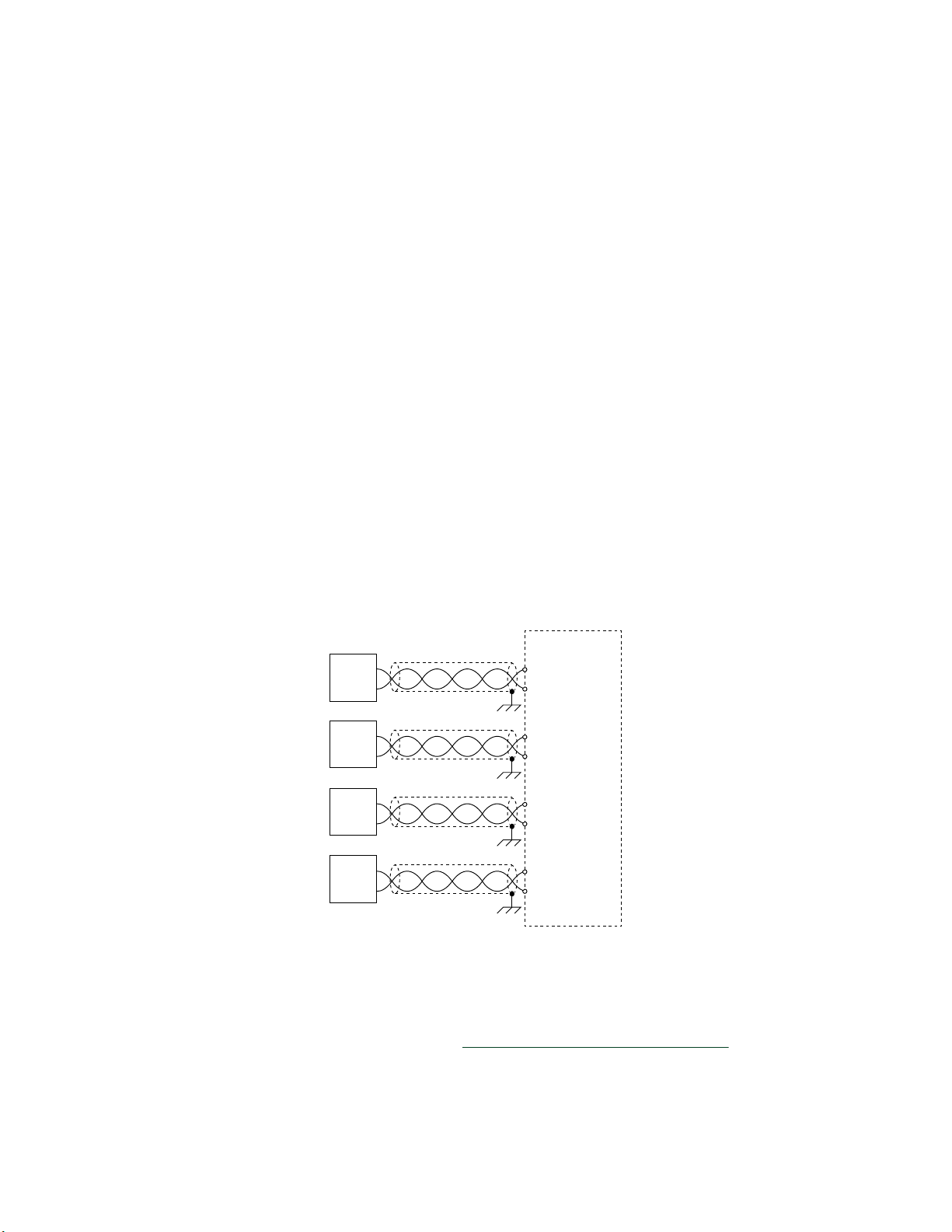

Figure 1. Cable Connections for NI-9223 with screw terminal for EMC Compliance
NI 9223
Shield
AI0+
AI0–
Signal
Source
Shield
AI1+
AI1–
Signal
Source
Shield
AI2+
AI2–
Signal
Source
Shield
AI3+
AI3–
Signal
Source
Special Conditions for Marine Applications
Some products are approved for marine (shipboard) applications. To verify marine
approval certification for a product, visit ni.com/product-certifications, search by
model number, and click the appropriate link.
ni.com
6
NI-9223 Getting Started

Notice In order to meet the EMC requirements for marine applications,
install the product in a shielded enclosure with shielded and/or filtered
power and input/output ports. In addition, take precautions when
designing, selecting, and installing measurement probes and cables to
ensure that the desired EMC performance is attained.
Preparing the Environment
Ensure that the environment in which you are using the NI 9223 meets the following
specifications.
Operating temperature (IEC 60068-2-1, IEC 60068-2-2) -40 °C to 70 °C
Operating humidity (IEC 60068-2-30) 10% RH to 90% RH, noncondensing
Pollution Degree 2
Maximum altitude 5,000 m
Indoor use only.
Note Refer to the NI-9223 Specifications on ni.com/manuals for
complete specifications.

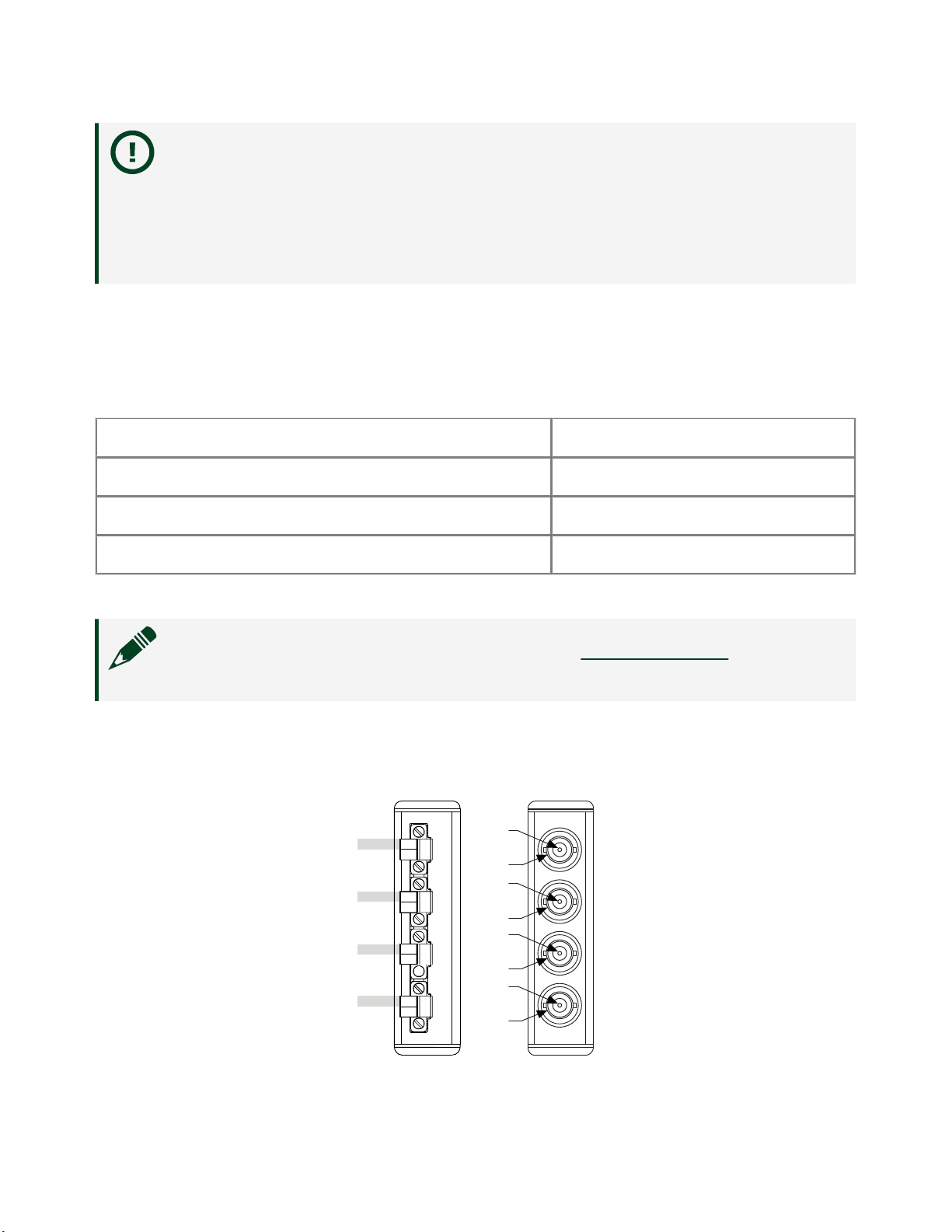

NI 9223 Pinout
AI0+
AI0–
AI1+
AI1–
AI2+
AI2–
AI3+
AI3–
0
1
0
1
0
1
0
1
AI0+
AI0-
AI1+
AI1-
AI2+
AI2-
AI3+
AI3-
© National Instruments 7
NI-9223 Getting Started

Signal Description
AI+ Positive analog input signal connection
AI- Negative analog input signal connection
Table 1. Signal Descriptions
Grounded Connections
NI 9223
AI–
+
–
AI+
Signal
Source
Floating Connections
NI 9223
Signal
Source
AI–
+
–
AI+
NI-9223 Connection Guidelines
■ Make sure that devices you connect to the NI-9223 are compatible with the
module specifications.
■ You must use 2-wire ferrules to create a secure connection when connecting
more than one wire to a single terminal on the NI-9223 with screw terminal.
Wiring for High-Vibration Applications
If your application is subject to high vibration, NI recommends that you follow these
guidelines to protect connections to the NI-9223 with screw terminal:
ni.com
8
NI-9223 Getting Started

■Use ferrules to terminate wires to the detachable connector.
■Use the NI-9971 backshell kit.
Overvoltage Protection
The NI-9223 provides overvoltage protection for each channel.
Note Refer to the NI-9223 Specifications on ni.com/manuals for more
information about overvoltage protection.
Where to Go Next
CompactRIO NI CompactDAQ
Located at ni.com/manuals
RELATED INFORMATION
C Series Documentation
& Resources
ni.com/info cseriesdoc
Services
ni.com/services
Installs with the software
NI 9223 Datasheet
NI-RIO Help
LabVIEW FPGA Help
NI 9223 Datasheet
NI-DAQmx Help
LabVIEW Help
NI Services
Visit ni.com/support to find support resources including documentation,
downloads, and troubleshooting and application development self-help such as
tutorials and examples.
Visit ni.com/services to learn about NI service oerings such as calibration options,
repair, and replacement.
© National Instruments 9
NI-9223 Getting Started

Visit ni.com/register to register your NI product. Product registration facilitates
technical support and ensures that you receive important information updates from
NI.
NI corporate headquarters is located at 11500 N Mopac Expwy, Austin, TX,
78759-3504, USA.
