NI PXIe-1487 User manual

GETTING STARTED GUIDE
PXIe-1487
FlexRIO GMSL Interface Module
This document explains how to install and configure the following variants of the PXIe-1487:
• PXIe-1487 FlexRIO GMSL Interface Deserializer
• PXIe-1487 FlexRIO GMSL Interface Serializer
• PXIe-1487 FlexRIO GMSL Interface SerDes
After completing the tasks described in this document, you will have a hardware and driver
setup that allows you to design and test your software application.
Note If you purchased the PXIe-1487 as part of an NI system, refer to your system
documentation for application-specific instructions for using the PXIe-1487.
Contents
FlexRIO Documentation and Resources...................................................................................2
Preparing the System Components........................................................................................... 3
Unpacking the Kit............................................................................................................. 3
Verifying the Kit Contents................................................................................................ 3
System Components..........................................................................................................3
Prerequisites.............................................................................................................................. 4
Verifying the System Requirements..................................................................................4
Installing the Software.............................................................................................................. 4
Installing the PXIe-1487........................................................................................................... 4
Cabling the PXIe-1487..............................................................................................................4
Configuring the PXIe-1487 in MAX........................................................................................ 8
Accessing FlexRIO with Integrated I/O Examples...................................................................9
Common FlexRIO with Integrated I/O Examples.......................................................... 10
Component-Level Intellectual Property (CLIP)..................................................................... 10
Front Panels, Connectors, and Block Diagrams......................................................................11
PXIe-1487 Deserializer Front Panel, Connectors, and Block Diagram..........................11
PXIe-1487 Serializer Front Panel, Connectors, and Block Diagram..............................14
PXIe-1487 SerDes Front Panel, Connectors, and Block Diagram................................. 17
FPGA Carrier Block Diagram.........................................................................................20
Where to Go Next................................................................................................................... 20
NI Services..............................................................................................................................20

FlexRIO Documentation and Resources
Use the following resources to find more information about the PXIe-1487.
All product documentation can be found at ni.com/manuals or in LabVIEW by clicking Help.
Table 1. FlexRIO Documentation and Resources
Document Contents
PXIe-1487 Getting Started
Guide (this document)
• Installation instructions
• Basic programming instructions
PXIe-1487 Specifications • Operating environment requirements
• IO specifications
• Clocking specifications
• Physical and mechanical specifications
PXIe-1487 Safety,
Environmental, and Regulatory
Information
• Safety and compliance information
• Environmental information
LabVIEW FPGA Module Help • Basic functionality of the FPGA module
• Instructions for developing and debugging custom
hardware logic
NI-FlexRIO Readme • Minimum system requirements
• Supported Application Development Environments
(ADEs)
• Known issues and bug fixes
• Recent updates
FlexRIO Help • Hardware reference information
• Programming instructions
• I/O Component Level IP (CLIP) development
information
LabVIEW Examples • Examples showing how to run FPGA VIs on your
device
• How showing how to run host VIs on your device
FlexRIO product page • Product information
• Data sheets
2| ni.com | PXIe-1487 Getting Started Guide

Preparing the System Components
Unpacking the Kit
Notice To prevent electrostatic discharge (ESD) from damaging the device, ground
yourself using a grounding strap or by holding a grounded object, such as your
computer chassis.
1. Touch the antistatic package to a metal part of the computer chassis.
2. Remove the device from the package and inspect the device for loose components or any
other sign of damage.
Notice Never touch the exposed pins of connectors.
Note Do not install a device if it appears damaged in any way.
3. Unpack any other items and documentation from the kit.
Store the device in the antistatic package when the device is not in use.
Verifying the Kit Contents
Verify that the following items are included in the PXIe-1487 kit.
Figure 1. Kit Contents
1 2 3 4
1. PXIe-1487 Module
2. Terminal blocks
3. PXIe-1487 Safety, Environmental, and Regulatory
Information
4. PXIe-1487 Getting Started Guide (This
Document)
System Components
The PXIe-1487 is intended for use with the following system components.
Required System Components
• PXIe chassis with slot cooling capacity ≥58 W
• Camera or serial device (for Deserializer or SerDes modules)
PXIe-1487 Getting Started Guide | © National Instruments Corporation | 3

• Engine control unit (for Serializer or SerDes modules)
• PXI Express embedded controller or PC with MXI controller system
Optional System Components
• Power source (for Deserializer or SerDes modules)
• Power sink (for Serializer or SerDes modules)
• Copper power connector wire
• FAKRA Female Code Z to FAKRA Female Code Z Cable(s)
Note See the PXIe-1487 Specifications for detailed information on compatible
serial devices, chassis, copper connector wire, and other system components.
Prerequisites
Verifying the System Requirements
To use the FlexRIO instrument driver, your system must meet certain requirements.
Refer to the product readme, which is available online on the driver software download page
or at ni.com/manuals, for more information about minimum system requirements,
recommended system, and supported application development environments (ADEs).
Installing the Software
Download the following software from ni.com/downloads.
Note NI software includes NI Package Manager to handle the installation. Refer to
the NI Package Manager Manual at ni.com/r/nipmmanual for more information
about installing, removing, and upgrading NI software using NI Package Manager.
• LabVIEW
• LabVIEW FPGA Module
• FlexRIO
Installing the PXIe-1487
For instructions on how to install your PXIe-1487 into the chassis, refer to your chassis
documentation, available at ni.com/manuals.
Cabling the PXIe-1487
Complete the following steps to connect your PXIe-1487 to other system components.
1. Connect your chassis to a power source as described in the chassis Getting Started Guide.
4| ni.com | PXIe-1487 Getting Started Guide

2. Connect serial device(s) and ECU(s) as required for your application.
a) For Deserializer or SerDes modules, use a FAKRA cable to connect serial device(s)
to the PXIe-1487 serial input (SI) connector(s).
b) For Serializer or SerDes modules, use a FAKRA cable to connect ECU(s) to the
PXIe-1487 serial output (SO) connector(s).
Note Serial output and serial input coaxial connectors on the PXIe-1487 are
physically identical. They can be differentiated by their labels. Serial output
channels are labeled SO and serial input connectors are labeled SI.
3. Connect the terminal blocks included in your kit to the AUX power connectors on the
PXIe-1487.
4. (Optional) Connect power sink(s) or power source(s) to the AUX power connectors as
required for your application.
a) For Deserializer or SerDes modules, use a copper conductor wire to connect a power
source to the serial input channel's corresponding pin on the AUX power connector.
This allows you to supply external power. If you do not connect an external power
source, devices connected to PXIe-1487 can be powered by the chassis backplane.
b) For Serializer or SerDes modules, use a copper conductor wire to connect a power
sink to the serial output channel's corresponding pin on the AUX power connector.
This allows you to simulate an additional load.
Note AUX power connector pins map to serial input and serial output
connectors one to one.
Refer to the following diagrams for examples of cabled configurations.
PXIe-1487 Getting Started Guide | © National Instruments Corporation | 5

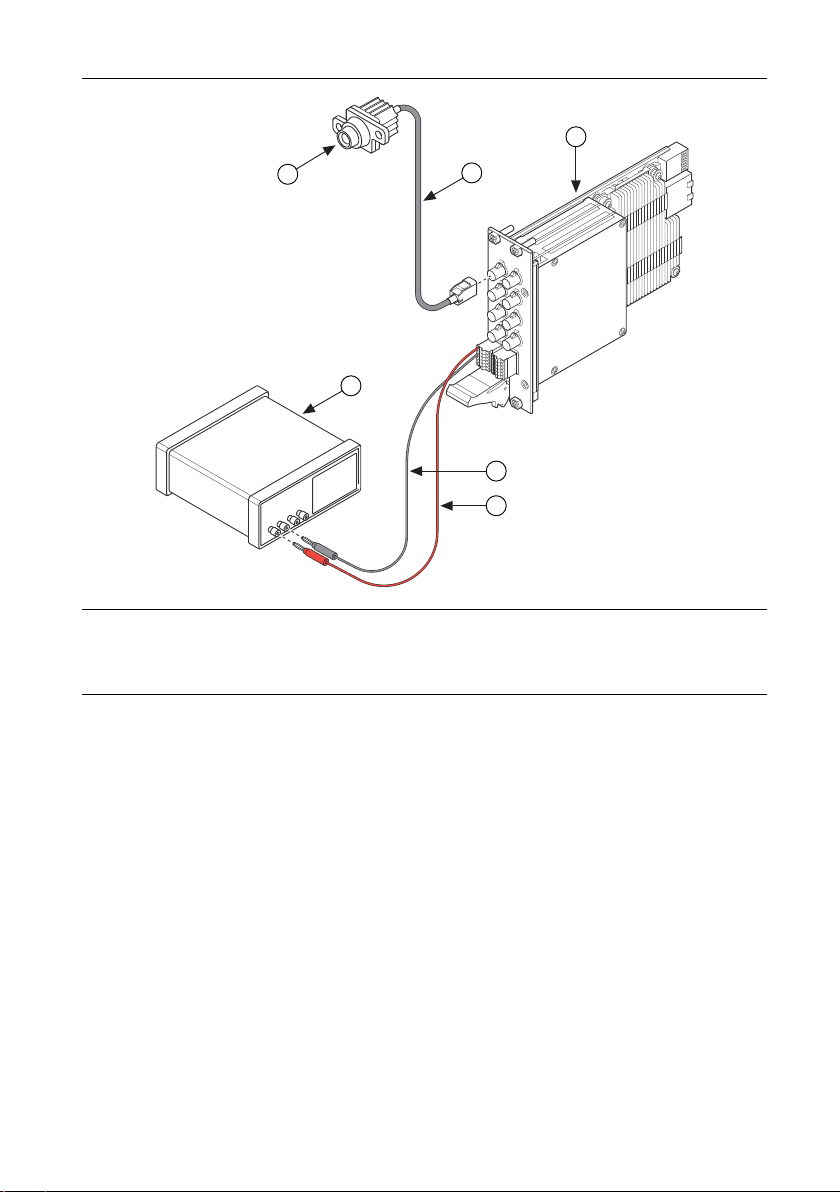

Figure 2. PXIe-1487 Deserializer
1
6
5
3
4
2
1. PXIe-1487 Deserializer Module
2. Camera or Serial Device
3. Power Source
4. FAKRA Female Code Z to Serial Device
Connector Cable
5. Power Connector Wire, Grounding
6. Power Connector Wire, Positively Charged
6| ni.com | PXIe-1487 Getting Started Guide

Figure 3. PXIe-1487 Serializer
1
6
5
4
2
3
1. PXIe-1487 Serializer Module
2. Engine Control Unit (ECU)
3. Power Sink
4. FAKRA Female Code Z to FAKRA Female Code Z
Cable
5. Power Connector Wire, Grounding
6. Power Connector Wire, Positively Charged
PXIe-1487 Getting Started Guide | © National Instruments Corporation | 7

Figure 4. PXIe-1487 SerDes
1
4
5
3
2
1. PXIe-1487 SerDes Module
2. Engine Control Unit (ECU)
3. FAKRA Female Code Z to FAKRA Female Code Z
Cable
4. Camera or Serial Device
5. Power Connector Wire, Positively Charged
Note In the PXIe-1487 SerDes module configuration shown, the power connector
wire allows the ECU to power the camera or serial device.
Related Information

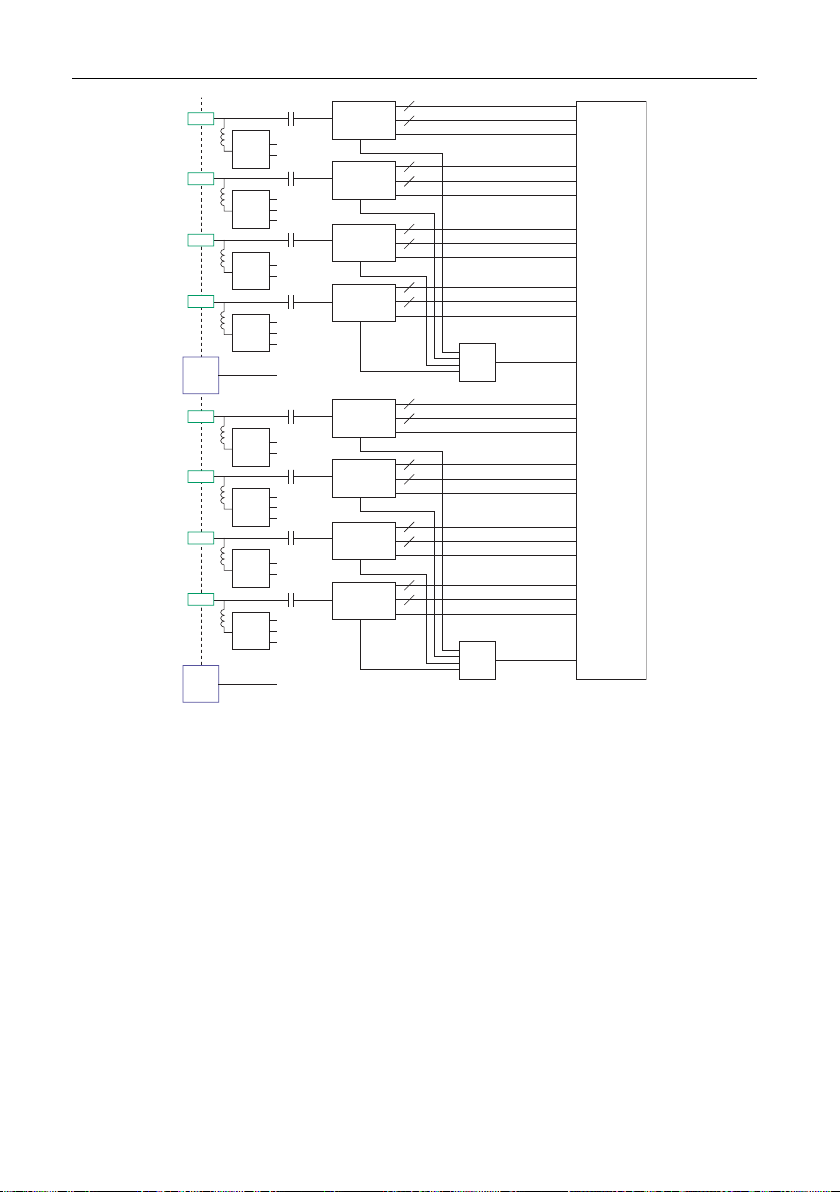

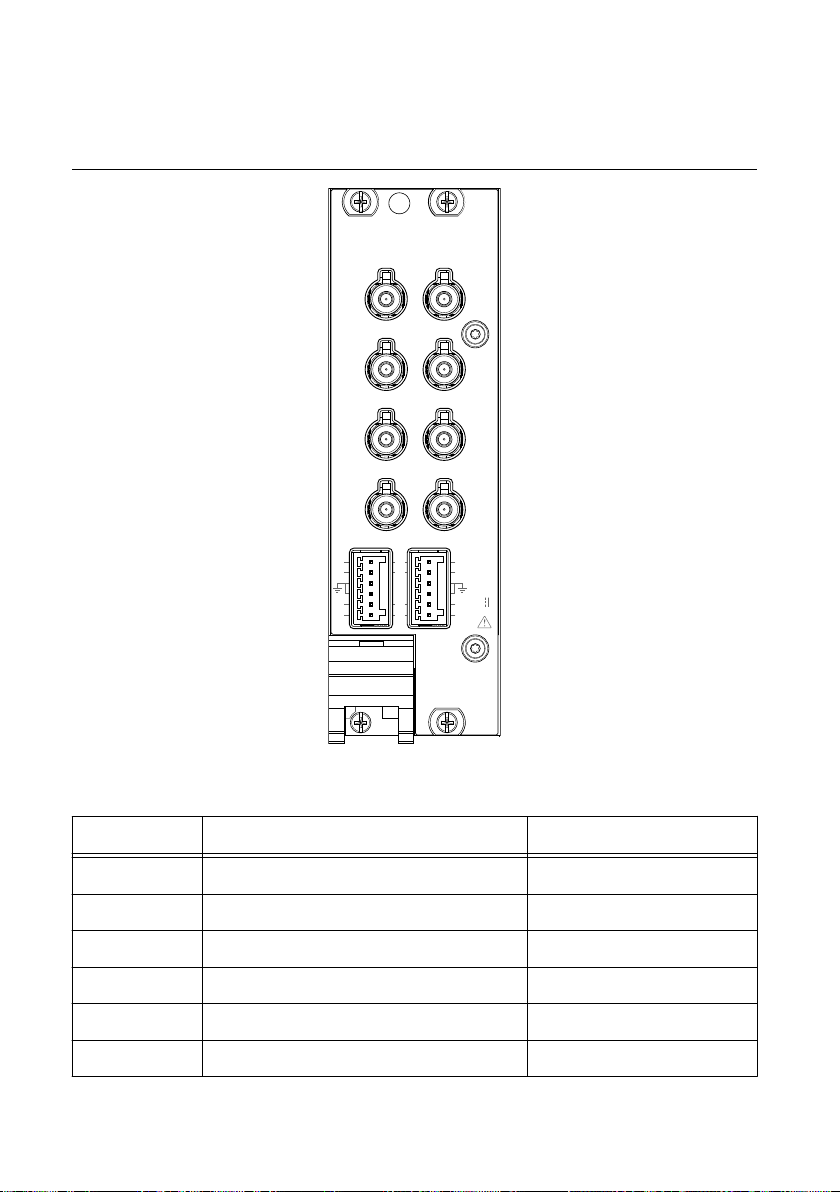

PXIe-1487 Deserializer Front Panel, Connectors, and Block Diagram on page 11
PXIe-1487 Serializer Front Panel, Connectors, and Block Diagram on page 14
PXIe-1487 SerDes Front Panel, Connectors, and Block Diagram on page 17
Configuring the PXIe-1487 in MAX
Use Measurement & Automation Explorer (MAX) to configure your NI hardware. MAX
informs other programs about which NI hardware products are in the system and how they are
configured. MAX is automatically installed with FlexRIO.
1. Launch MAX.
8| ni.com | PXIe-1487 Getting Started Guide

2. In the configuration tree, expand Devices and Interfaces to see the list of installed NI
hardware.
Installed modules appear under the name of their associated chassis.
3. Expand your Chassis tree item.
MAX lists all modules installed in the chassis. Your default names may vary.
Note If you do not see your module listed, press <F5> to refresh the list of
installed modules. If the module is still not listed, power off the system, ensure
the module is correctly installed, and restart.
4. Record the identifier MAX assigns to the hardware. Use this identifier when
programming the PXIe-1487.
5. Self-test the hardware by selecting the item in the configuration tree and clicking Self-
Test in the MAX toolbar.
The MAX self-test performs a basic verification of hardware resources.
Accessing FlexRIO with Integrated I/O
Examples
The NI-FlexRIO driver includes several example applications for LabVIEW. These examples
serve as interactive tools, programming models, and as building blocks in your own
applications. Complete the following steps to access all FlexRIO with Integrated I/O getting
started examples.
1. In LabVIEW, click Help »Find Examples .
2. In the NI Example Finder window that opens, click Hardware Input and Output »
FlexRIO »Integrated IO »Getting Started .
3. Double click Getting Started with FlexRIO Integrated IO.vi.
The FlexRIO with Integrated IO Project Creator window will open.
4. Select the example that corresponds to the name of your FlexRIO module. The
Description window includes a short description of the getting started example for your
device. Rename the project, select a location for this project, and click OK.
The Project Explorer window for your new project opens.
Online examples are also available to demonstrate FlexRIO basics, such as using DRAM,
acquiring data, and performing high throughput streaming. To access these examples, search
FlexRIO examples in the Search the community field at ni.com/examples.
PXIe-1487 Getting Started Guide | © National Instruments Corporation | 9

Common FlexRIO with Integrated I/O Examples
In addition to the examples within the FlexRIO with Integrated IO Project Creator, NI
provides several examples that apply to all FlexRIO with Integrated I/O modules to help you
perform common tasks.
The following examples can be found in the NI Example Finder:
•Show All FlexRIO with Integrated IO Hardware.vi queries and displays a
set of hardware properties from all FlexRIO with Integrated I/O devices in a chassis.
•Vivado Export Getting Started Ultrascale.lvproj demonstrates the use
of the Vivado Project Export feature.
•Read-Write Calibration Data.vi demonstrates how to read and write calibration
data and metadata into the storage space of FlexRIO with Integrated I/O devices.
Component-Level Intellectual Property (CLIP)
The LabVIEW FPGA Module includes component-level intellectual property (CLIP) for HDL
IP integration. FlexRIO devices support two types of CLIP: user-defined and socketed.
•User-defined CLIP allows you to insert HDL IP into an FPGA target, enabling VHDL
code to communicate directly with an FPGA VI.
•Socketed CLIP provides the same IP integration of the user-defined CLIP, but it also
allows the CLIP to communicate directly with circuitry external to the FPGA. Adapter
module socketed CLIP allows your IP to communicate directly with both the FPGA VI
and the external adapter module connector interface.
The PXIe-1487 ships with socketed CLIP items that add module I/O to the LabVIEW project.
10 | ni.com | PXIe-1487 Getting Started Guide
