Njoy Aira 600 User manual

Aira Series User Manual
Manual de ulizare
UPCSTLP860TAICP01B
UPCSTLP812HAICP01B
Before using this product, carefully read all product documentaon and retain it for future reference.
600 / 1200
166.34.22.1

2
UPS unit
Power cord (attached)
Battery cables (attached)
User manual
Warranty card
Car battery adapter
Package contents
1
Thank you for purchasing our products!
Please read this manual before using the product.
nJoy is a brand of power and backup protecon products that
create soluons for mulple levels of environment complexity,
residenal to industrial.
This UPS will protect your electronic equipment from physical
damage and will provide emergency baery backup power to
prevent data loss in the event of power problems.
NOTE!
Before installaon, please inspect the unit. Be sure that nothing inside the
package is damaged. Keep the original package in a safe place for future use.
* cable ring terminal instead clamps, implemented aer February 2022

3
Product overview
2
NOTE!
This UPS does not include a built in baery, it must be purchased separately.
Front view
Back view
1 2
54
3
7
6
1. LCD display
2. LEDs of charging current
status
3. Power On/O buon
4. Schucko outlets
5. Circuit breaker
6. Baery cables +/- (aached)
7. AC input power cord
(aached)
English
Româna

4
Important safety warnings
3
Please comply with all warnings and operang instrucons in this manual
strictly. Save this manual properly and carefully read the following
instrucons before installing the unit. Do not operate this unit before
reading through all safety informaon and operang instrucons
carefully:
Transportaon
• Please transport the UPS system only in the original package to
protect against shock and impact.
Preparaon
• Condensaon may occur if the UPS system is moved directly from
cold to warm environment. The UPS system must be absolutely dry
before being installed. Please allow at least two hours for the UPS
system to acclimate to the environment.
• Do not install the UPS system near water or in moist environments.
• Do not install the UPS system where it would be exposed to direct
sunlight or near heat sources.
• Do not block venlaon holes in the UPS housing.
Installaon
• Place cables in such a way that no one can step on or trip over them.
• Do not connect domesc appliances such as hair dryers to UPS
output sockets.
• The UPS can be operated by any individuals with no previous
experience.
• Connect the UPS system only to an earthed shockproof outlet which
must be easily accessible and close to the UPS system.
Operaon
• Do not disconnect the mains cable on the UPS system or the building
wiring outlet (shockproof socket outlet) during operaons since this
would cancel the protecve earthing of the UPS system and of all
connected loads.

5
• In order to fully disconnect the UPS system, rst press the OFF/Enter
buon to disconnect the mains.
• Prevent uids or other foreign objects from entering the inside of the
UPS system.
Maintenance, service and faults
• The UPS system operates with hazardous voltages. Repairs may be
carried out only by qualied maintenance personnel.
• Cauon - risk of electric shock. Even aer the unit is disconnected
from the mains (building wiring outlet), components inside the UPS
system are sll connected to the baery and electrically live and
dangerous.
• Before carrying out any kind of service and/or maintenance,
disconnect the baeries and verify that no current is present and no
hazardous voltage exists in the terminals of high capability capacitor
such as BUS-capacitors.
• Only persons are adequately familiar with baeries and with the
required precauonary measures may replace baeries and supervise
operaons. Unauthorized persons must be kept well away from the
baeries.
• Cauon - risk of electric shock. The baery circuit is not isolated
from the input voltage. Hazardous voltages may occur between the
baery terminals and the ground. Before touching, please verify that
no voltage is present!
• Baeries may cause electric shock and have a high short-circuit
current. Please take the precauonary measures specied in this
manual and any other measures necessary when working with
baeries: remove wristwatches, rings and other metal objects, use
only tools with insulated grips and handles.
• When changing baeries, install the same number and same type of
baeries.
• Do not aempt to dispose of baeries by burning them. This could
cause baery explosion.
• Please replace the fuse only with the same type and amperage in
order to avoid re hazards.
• Do not dismantle the UPS system.
English
Româna

6
Connecng your equipment and rst usage
4
4.1 Connecng external baery
1. It is recommended to install a DC Breaker in a posive baery line.
The rang of the DC Breaker must be at least 75Ah to guarantee safe
operaon without interrupon. Keep the DC Breaker o.
NOTE!
For the user operaon safety we strongly recommend that you should use
tapes to isolate the baery terminals before you start to operate the UPS.
A. Single baery connecon
When using a single baery its voltage must be equal to the Nominal DC
Voltage of the unit.
B. Mulple baeries in series connecon
All baeries must be equal in voltage and amp hour capacity. The sum of
their voltages must be equal to the nominal DC Voltage of the unit.
C. Mulple baeries in parallel connecon
Each baery’s voltage must be equal to the Nominal DC Voltage of the unit.

7
It’s very important for system safety and ecient operaon to use
appropriate external baery cable. To reduce risk of injury, external
baery cables should be rated for 75° C or higher. Do NOT use
copper cables with less than 10mm in cross seconal area!
CAUTION
2. Make sure to connect the polarity of baery side and the unit correctly.
Posive pole (Red) of baery to the posive terminal (+) of the unit.
Negave pole (Black) of baery to the negave terminal (-) of the unit.
3. Aer connecng the baery to the UPS use tape to isolate the external
baery terminals.
4.2 Connecng to ulity and charge
Plug in the AC input cord to the wall outlet. The unit will automacally
charge the connected external baery even though the unit is o.
4.3 Starng the UPS
Please make sure that the baery is connected before you turn ON the
UPS. If your baery is connected you can turn ON the ON/OFF switch
and charge the baery or baeries at least 8 hours for a full load.
English
Româna

8
4.4 Posioning

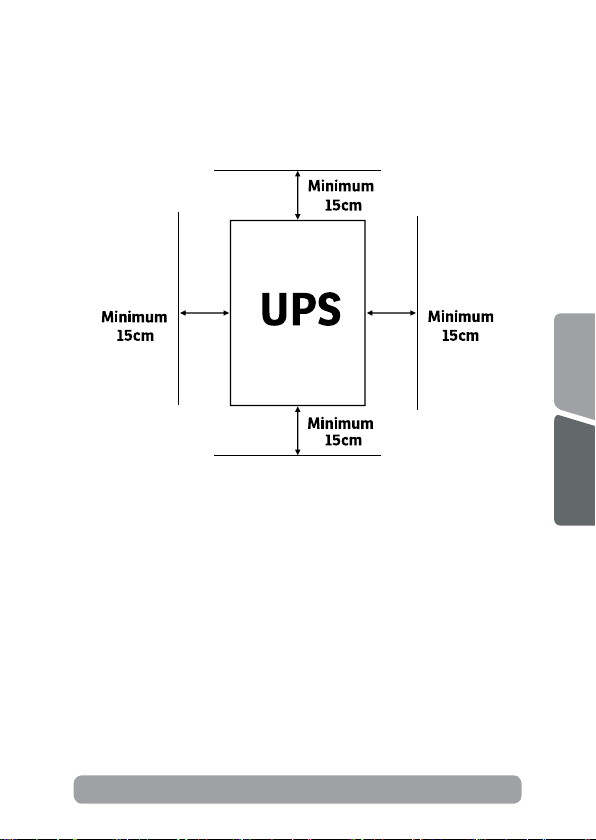

• For opmal venlaon of the UPS, please place it 15cm distance
from any wall or object.
The unit may have output power when is connected to the ulity,
even though it is powered o. To completely cut o the output
power, please switch o the unit and disconnect.
CAUTION
NOTE!
The baery or baeries connected to the UPS must be at least 38Ah each to
guarantee safe operaon without interrupon.

9
Operaon
5
5.1 Connect the RED baery cable to the anode and the BLACK one to
the cathode. Baery cables are required to be connected with the anode
and cathode ghtly. Short circuit between the anode and cathode, as
well as the polarity reverse are strictly forbidden.
5.2 Connect your equipment to the UPS. To ensure that your equipment
will be protected during an ulity failure, it is important to make sure
that the maximum power needed by the equipment is not over the rated
capacity of the UPS. Alarm will beep if the load is over the rated value.
Meanme, if the overload is severe, the UPS will shut down immediately
for protecng itself.
5.3 DC start: during a blackout, push the buon for 4 seconds; then,
the UPS will be turned on and enter into back-up mode. To turn o the
power from the UPS, please push the buon for 4 seconds.
5.4 Once it is connected with normal city power, the UPS will charge
the baery automacally. Please push the buon on the front panel for
about 4 seconds to turn on the UPS.
5.5 Push the buon for 4 seconds to turn o the UPS. The UPS will keep
charging the baery if the ulity power is normal. Please pull out the
power cord if you want to turn o the UPS completely.
5.6 Under back-up mode, when baery voltage is too low or too high,
the UPS will emit alarm; if the voltage is too much low/high, the UPS will
turn o itself automacally.
5.7 When the green LED is bright, the UPS’s charger works on 10A. If
you press the front buon for 10 seconds, the LED will turn red and the
charger will work on 20A.
5.8 Beep alarm ON/OFF: Push the power buon for one second to turn
the beeper ON or OFF.
English
Româna

10
LCD indicators
6
UPS Mode & LCD display
AC mode Backup mode
2
4
6
1
5
6.1 Auto turn-on: UPS will turn on
automacally when city power is back.
6.2 AVR: The AVR is increasing (boost
mode) or reducing (buck mode) the input
voltage to the UPS output.
6.3 Display of frequency: in the normal
mode, a short touch at the buon will
display I/P frequency for 4 seconds.
6.4 Display of input and output voltage:
When UPS is turned on, LCD will show
input and output voltage.
6.5 Baery capacity: Esmated baery
capacity, the accuracy is inuenced by
UPS operaon mode and load level.
6.6 Load level: the load level, percentage
of full load.
6.7 Alarm icon: when the beeper is ON,
the icon appears on the LCD.
7
3

11
Troubleshooting7
Problem Possible cause Soluons
UPS no reacon
while AC is
connected.
1. Line cord plug is
loose.
2. Breaker broken.
3. Dead wall
socket.
1. Check the line cord plug.
2. Replace the breaker.
3. Check wall socket with a
table lamp.
Power output
is normal, UPS
emits connuous
beep, Load level
indicator ickers.
The inveryer is
overloaded.
Turn o the UPS and unplug
excessive loads from UPS.
UPS does not
provide expected
run me.
1. Excessive loads
connected at UPS’s
outlets.
2. Baery is
weak and can not
provide enough
power.
Do not operate the UPS.
Leave the UPS plugged in
for 10 hours. Then test it
again.
If UPS sll can not provide
expected run me, baery
should be replaced.
Buon on front
panel does not
work.
The CPU inside
UPS is not running
correctly.
2. Buon damage.
Unplug line cord and baery
cord from the UPS to let it
shut down automacally.
Then plug the line cord and
baery cord again.
If buon sll fails, please
call for service.
UPS emits
urgent beep,
baery capacity
indicator ickers.
Low baery
1. Charge baeries.
2. Replace baeries.
3. Call for service.
English
Româna

12
NOTE!
If any abnormal situaons occur that are not listed above, please call for
service immediately.
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with
separate collecon systems)
This symbol on the product or on its packaging indicates that this product shall not be
treated as household waste.
Instead it shall be handed over to the applicable collecon point for the recycling of
electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potenal
negave consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources.
UPS cannot DC
start.
1. Baery polarity
wrong.
2. Baery wrong
(over voltage).
3. Baery
exhauson.
4. UPS fault.
1. Check baery and
connecon.
2. Check baery voltage by
voltage meter.
3. Connect AC power cord
to charge baery.
4. Call for service.

13
English
Română
Unitatea UPS
Cablu de alimentare
Adaptor borne baterie auto
Cabluri baterii (atasate)
Manual de utilizare
Certificat de garantie
Connutul pachetului
1
Multumim pentru ca a ales produsele noastre!
Va rugam ci cu atene manualul de ulizare inainte de a
pune in funcune acest produs.
nJoy este un brand de solui UPS dedicate protecei si rezervei de
energie din diferite medii de ulizare, de la rezidenal la industrial
UPS-ul va protejeaza echipamentele electronice de daune zice
si ofera o baterie de rezerva pentru a preveni pierderile de date in
cazul intreruperilor accidentale ale energiei electrice.
NOTA!
Înainte de instalare inspecta unitatea. Fi siguri ca nimic din interiorul
pachetului nu este stricat. Tine pachetul original într-un loc sigur pentru o
ulizare ulterioara.
* cabluri cu papuci inelari in loc de cles, incepand cu februarie 2022

14
Prezentarea produsului
2
NOTA!
Produsul nu conne baterie interna. Ea trebuie achizionata separat.
Vedere
frontala
Vedere din spate
1 2
54
3
7
6
1. Ecran LCD
2. Indicatori LED
3. Buton de pornit/oprit
4. Prize Schucko
5. Siguranta pentru curentul de
intrare
6. Cabluri baterie +/- (atasate)
7. Cablu de alimentare (atasat)

15
Averzari de siguranta
3
Va rugam sa respecta toate aversmentele si instrucunile de ulizare
din acest manual. Pastra acest manual în mod corespunzator si ci cu
atene urmatoarele instrucuni înainte de instalarea aparatului. Nu folosi
aceasta unitate înainte de a ci toate instrucunile de siguranta si de
ulizare cu atene:
Transport
• Va rugam sa transporta sistemul UPS numai în ambalajul original
pentru a-l proteja împotriva socurilor.
Pregare
• Condensul poate aparea daca sistemul UPS este mutat dintr-un
mediu rece în unul cald. Sistemul UPS trebuie sa e uscat înainte de
a  instalat. Va rugam sa aloca cel pun doua ore pentru ca sistemul
UPS sa se aclimazeze cu mediul unde dori sa îl instala.
• Nu instala sistemul UPS lânga apa sau în medii umede.
• Nu instala sistemul UPS acolo unde ar  expus la lumina directa a
soarelui sau în apropierea surselor de încalzire.
• Nu bloca oriciile de venlae ale carcasei UPS-ului.
Instalare
• Instala cablurile în asa fel încât nimeni sa nu calce pe ele.
• Nu conecta aparate de uz casnic, cum ar  uscatoare de par la
prizele de iesire UPS.
• UPS-ul poate  folosit de orice persoana, fara a necesita nici o
experienta anterioara.
• Conecta sistemul UPS numai la o priza cu împamântare, care trebuie
sa e usor accesibila si aproape de sistemul UPS.
Operare
• Nu deconecta cablul de alimentare de la sistemul UPS sau de la priza
cladirii în mpul ulizarii, deoarece acest lucru ar anula împamântarea
de protece a sistemului UPS si a tuturor sarcinilor conectate.
English
Româna

16
• Pentru a deconecta complet sistemul UPS, apasa mai întâi butonul
OFF/Enter pentru a deconecta sursa de alimentare.
• Nu lasa sa ajunga în interiorul unitai UPS orice obiect strain sau lichide.
Întrenere, service si defecte
• Sistemul UPS funconeaza cu tensiuni periculoase. Reparaile pot 
efectuate numai de catre personalul de întrenere calicat.
• Atene - risc de soc electric. Chiar si dupa ce aparatul este
deconectat de la reteaua electrica, componentele din interiorul
sistemului UPS sunt înca conectate la baterie si sunt încarcate electric
si periculoase.
• Înainte de a efectua orice fel de service si / sau întrenere,
deconecta bateriile si verica sa nu existe curent sau tensiune
periculoasa în terminalele condensatorului de mare capacitate, cum
ar  condensatorul BUS.
• Numai persoanele care sunt familiarizate în mod adecvat cu baterii si
cu masurile de precaue necesare pot înlocui bateriile si supraveghea
operaunile. Persoane neautorizate trebuie sa e nute departe de
baterii sistemului UPS.
• Atene - risc de soc electric. Circuitul bateriei nu este izolat de
tensiunea de intrare. Tensiuni periculoase pot aparea între bornele
bateriei si pamânt. Înainte de a ange, va rugam sa verica ca nu
exista tensiune!
• Bateriile pot provoca soc electric. Va rugam sa lua masurile de
precaue specicate mai jos, precum si orice alte masuri necesare
atunci când se lucreaza cu bateriile sistemului: da-va jos ceasurile de
mâna, inelele si alte obiecte metalice si folosi doar instrumente cu
mânere izolate.
• La schimbarea bateriilor, instala acelasi numar si acelasi p de
baterii.
• Nu încerca sa distruge bateriile prin arderea lor. Acest lucru poate
cauza explozia bateriilor.
• Va rugam sa înlocui siguranta numai cu acelasi p de siguranta si
amperaj pentru a evita pericolele de incendiu.
• Nu dezasambla sistemul UPS.

17
Conectarea echipamentelor si prima ulizare
4
4.1 Conectarea bateriei externe
1. Este recomandat sa instala o siguranta pe cablul de curent connuu
de minim 75Ah pentru garana unei operari sigure si fara intreruperi.
Tine siguranta inchisa.
NOTA!
Pentru siguranta dumneavoastra va recomandam sa izola bornele bateriei
inainte de a pune UPS-ul in funcune.
Bateria sau bateriile conectate la UPS trebuie sa e de cel pun 38Ah,
ecare, pentru a garanta operarea in siguranta si fara intrerupere.
A. Conectarea unei singure baterii
Atunci cand se ulizeaza o singura baterie tensiunea ei (in vol) trebuie
sa e egala cu cea nominala a UPS-ului.
B. Conectare de baterii mulple in serie
Toate bateriile inseriate trebuie sa e egale din punct de vedere al
tensiunii (volţi) si al capacitaţii (amper-ora). Suma tensiunilor trebuie sa e
egala cu tensiunea nominala a UPS-ului.
English
Româna

18
C. Conectare de baterii mulple in paralel
Tensiunea ecarei baterii trebuie sa e egala cu cea nominala al UPS-ului.
E foarte important pentru siguranta sistemului si funconarea
sa ecienta sa uliza cabluri adecvate pentru bateria externa.
Pentru a reduce riscul de ranire, cablurile pentru bateriile externe
ar trebui sa e cercate pentru o funconare la minim 75 °C.
NU uliza cabluri de cupru cu un diametru al secunii
transversale mai mic de 10 mm!
ATENTIE
2. Conecta corespunzator polaritatea bateriei si a UPS-ului. Conecta
borna poziva (rosu) a acumulatorului cu borna poziva (+) a UPS-ului si
borna negava (negru) a acumulatorului cu borna negava (-) a UPS-ului.
3. Dupa ce bateria a fost conectata la UPS izola bornele bateriei externe
folosind banda izolatoare.
4.2 Conectarea UPS-ului la curent connuu
Conecta cablul de alimentare al UPS-ului la reteaua de curent alternav.
Unitatea va incarca automat acumulatorul extern conectat chiar daca
UPS-ul este oprit.
UPS-ul poate genera tensiune chiar daca este oprit. Pentru a
întrerupe complet tensiunea va rugam sa opri UPS-ul si sa îl
deconecta de la aparate.
ATENTIE
4.3 Pornirea UPS-ului
Asigura-va ca bateria este conectata inainte de a porni UPS-ul. In
cazul in care bateria este conectata pute porni unitatea de la butonul
pornit/oprit. Incarca bateria mp de cel pun 8 ore pentru o incarcare
completa.

19
English
Română
4.4 Pozionare
• Pentru o venlae opma a UPS-ului, va rugam sa îl plasa la 15 cm
distanta de orice perete sau obiect

20
Funconare
5
5.1 Conecteaza cablul rosu la anod si cablul negru la catod. Cablurile
trebuie conectate foarte strâns. Inversarea cablurilor si conectarea lor
gresita este strict interzisa.
5.2 Conecteaza echipamentele la UPS. Pentru a te asigura ca ele vor 
protejate în mpul unei întreruperi de curent, este important ca puterea
maxima de care are nevoie echipamentul sa nu depaseasca capacitatea
UPS-ului. Alarma va porni si va connua sa sune daca capacitatea este
depasita. Iar daca supraîncarcarea este cu mult peste limita UPS-ului, el
se va opri imediat pentru a nu se arde.
5.3 În mpul unei pene de curent, apasa butonul mp de 4 secunde
pentru a reporni UPS-ul si a-l pune în modul Backup (rezerva). Pentru a
opri UPS-ul, apasa butonul din nou pentru 4 secunde.
5.4 În momentul în care curentul de la retea este restabilit, UPS-ul va
încarca automat bateriile. Pentru a-l porni apasa butonul mp de 4
secunde.
5.5 Pentru a opri UPS-ul apasa butonul mp de 4 secunde. UPS-ul va
connua sa încarce bateriile daca tensiunea la retea e normala. Pentru a
opri UPS-ul complet, scoate-l din priza de alimentare.
5.6 În modul Backup (rezerva), în cazul în care voltajul e prea mic sau
prea mare, alarma UPS-ului va suna; daca voltajul deviaza foarte mult din
limitele acceptate, UPS-ul se va opri automat.
5.7 Când LED-ul este verde, echipamentul funconeaza în modul curent
de 10A. În modul AC Standby apasa întrerupatorul pentru 10 secunde,
LED-ul se va aprinde rosu, iar echipamentul va funcona în modul curent
de 20A.
5.8 Alarma ON/OFF: Apasa butonul mp de o secunda pentru a porni
sau a opri alarma sonora.
